USER MANUAL Fenna 17-22113-921 Bruno Söhnle
QUALITÄTSPASS QUALITY PASSPORT
BRUNO SÖHNLE UHRENATELIER
GLASHÜTTEISA
Licensed dealers and descriptions of our watches in other languages can be found on the Internet at www.brunosoehnle.de
BEDIENUNGSANLEITUNG
Licensed dealers and descriptions of our watches in other languages can be found on the Internet at www.brunosoehnle.de
for the following automatic movements:
Basic movement: Refined BS movement:
Sellita SW 200 → BS 175
Sellita SW 240 → BS 297
Sellita SW 260 → BS 212
QUALITYCERTIFICATE
We congratulate you on your Bruno Söhnle watch.
In order for you to fully enjoy your watch, we recommend that you read through these operating instructions and note the following information.
Bruno Söhnle watches are manufactured and inspected by our qualified watchmakers in the former Assmann house in Glashütte/Sachsen, a town with a long tradition of watchmaking. A timekeeping variation of approx. 20 seconds a day can nevertheless occur. This is also an idiosyncrasy of the best mechanical watches and is normal for a vibrant watch movement. The models are adjusted so that they run slightly fast. The fully wound automatic watch will reach a power reserve of up to 38 hours after it is taken off.
BRUNO SÖHNLE UHRENATELIER
GLASHÜTTEISA
Please note that automatic watches are not absolutely accurate and can stop if they are moved too little during the day! If this should be the case, you can also manually wind the watch using the crown.
(Clockwise, approx. 30 rotations = fully wound)
With this quality passport, we guarantee the flawless operation of your Bruno Söhnle watch. Any possible defects are covered by our 24-month warranty starting on the date of purchase.
f purchase. Bruno L@uule
Bruno
Söhnle
QUALITY CERTIFICATE
MECHANISM EDITIONS
WARRANTY OPERATING INSTRUCTIONS
for Bruno Söhnle automatic movement
FINEST TECHNOLOGY
All watches from Bruno Söhnle meet the highest quality standards.
The stainless steel casings are produced from high quality and skin-friendly surgical steel (316L). The casing is characterised by its hardness, high level of comfort and low nickel content.
The non-reflective sapphire glass is among the hardest of watch glasses and ensures good readability and is extremely scratch-resistant. The high level of light penetration allows the face always to appear in bright light. With some models, the crown and the glass base are screwed together. Please note that the impermeability of these watches is ONLY guaranteed when the crown is screwed in tightly. The watch strap links are also partially screwed together. The leather watch straps are free of synthetic dyes and and provided with a nickel-free clasp.
BRUNO SÖHNLE UHRENATELIER
GLASHÜTTEISA
In the watches of the automatic collection from Bruno Söhnle, the operating movement has five basic components that are produced in Glashütte and surfaces that are machined and refined by our watch workshop. The three hands and the date display are mechanically driven.
In the Bruno Söhnle workshops in Glashütte, the base plate, automatic bridge, clockwork bridge, winding bridge and balance cock are perlaged and machined on the surface with a variety of electroplatings (yellow / rosé gold and nickel).
The rotor is a proprietary development of Bruno Söhnle and is likewise manufactured in Glashütte. The manufacturer and manufacturing location are laser-engraved on the top of the rotor – clearly visible through the glass base of the watch. Every watch is designated with its own identity number.
BRUNO SÖHNLE WARRANTY
Bruno Söhnle offers a 24-month guarantee against manufacturing defects. Our product has been manufactured, inspected and tested using state-of-the-art methods. The technology used and the materials processed are of the highest quality. Should manufacturing or material defects appear during the warranty period, these will be rectified without charge by your authorised BS dealer or by the manufacturer. The amount of indemnity shall be limited to the manufacturing cost of this model.
The warranty does not include any claims for compensation, replacement or refund of the purchase price. Excluded from the warranty are defects caused by improper handling or unauthorised interventions. Also excluded are breakage of the glass, spring pins and crown, accidents and normal wear and tear. Straps and spring pins are not covered
BRUNO SÖHNLE UHRENATELIER
GLASHÜTTEISA
by the warranty. To verify the warranty claim, please complete the enclosed warranty card. Forwarding shall be at the sender's risk.
The built-in rubies in the movements are synthetic rubies. These are comparable in all their characteristics to genuine rubies. They have the advantage that they are freeof the inclusions that occur in natural rubies which could damage the wheel pins.
BRUNO SÖHNLE WARRANTY
General information on the water resistance of your watch in accordance with DIN 8310: Water resistance is not a permanent property. It should be checked annually and also before particular stresses since the built-in sealing elements are subject to a natural ageing process and thereby decrease in their function and in daily use. External impacts can also influence water resistance. The pressure specified on your watch reflects the test pressure and must not be misunderstood as an indication of possible immersion depth.
Water resistance up to 3 bar: These Bruno Söhnle watches have been tested up to the stated atmospheric pressure of 3 bar and are protected against surface contact with water. Immersion in water should be avoided. Heavy perspiration can also impair water resistance. The 3 bar specification is not recommended for swimming and other types of water sports.
BRUNO SÖHNLE UHRENATELIER GLASHÜTTEISA
Water resistance up to 5 bar: These Bruno Söhnle watches have been tested up to the stated atmospheric pressure of 5 bar. The glass and seals will withstand this pressure. This watch may be worn for swimming. In order to ensure lasting water resistance, have your watch checked and inspected annually.
Water resistance up to 10 bar: These Bruno Söhnle watches have been tested up to the stated atmospheric pressure of 10 bar and are the ideal partner for all types of water sports except diving. In the case of intensive use or heavy perspiration, it is very important to have an inspection performed annually.
GENERAL INFORMATION
Avoid high temperatures Do not leave your watch in direct sunlight or in very warm or cold locations for a long period. This can lead to condensation and substantial differences in timekeeping.
Avoid strong impacts This watch will withstand normal impacts that occur during play or sporting activities. Avoid dropping your watch on the ground or exposing it to other excessive impacts. In particular, impacts on the crown should be avoided.
Avoid strong magnetic fields Keep your watch away from the immediate reach of strong magnetic fields. The operation of your watch will generally not be influenced by the magnetic fields of household, television or stereo devices.
BRUNO SÖHNLE UHRENATELIER GLASHÜTTEISA
Avoid chemicals, solvents and gases Do not wear your watch while using strong chemicals, solvents or harmful gases. If your watch comes into contact with these materials, degradation of the quality or damage to the casing or its seals, the watch strap or other components of the watch could occur.
Keep your watch clean Wipe off with a soft clean cloth any trace of water and area of dampness on the casing, glass or strap. Any dirt on the casing or the watch strap could cause a skin rash. A watch strap will be soiled by deposits of sweat and dust. A stainless or gold-plated strap can corrode if it is not cleaned over a longer period of time.
GENERAL INFORMATION
Periodic inspection In order to maintain the watch in trouble-free functioning condition over many years, we recommend that you have the watch inspected every 3 years.
We wish you a lot of enjoyment with your Bruno Söhnle watch.
Your Bruno Söhnle Team - Glashütte
BRUNO SÖHNLE UHRENATELIER
GLASHÜTTEISA
OPERATING INSTRUCTIONS AUTOMATIC MOVEMENT
SELLITA SW 200 BASIC MOVEMENT REFINED BRUNO SÖHNLE BS 175 MOVEMENT
OPERATING INSTRUCTIONS AUTOMATIC MOVEMENT
Sellita SW 200 basic movement | Refined Bruno Söhnle BS 175 movement

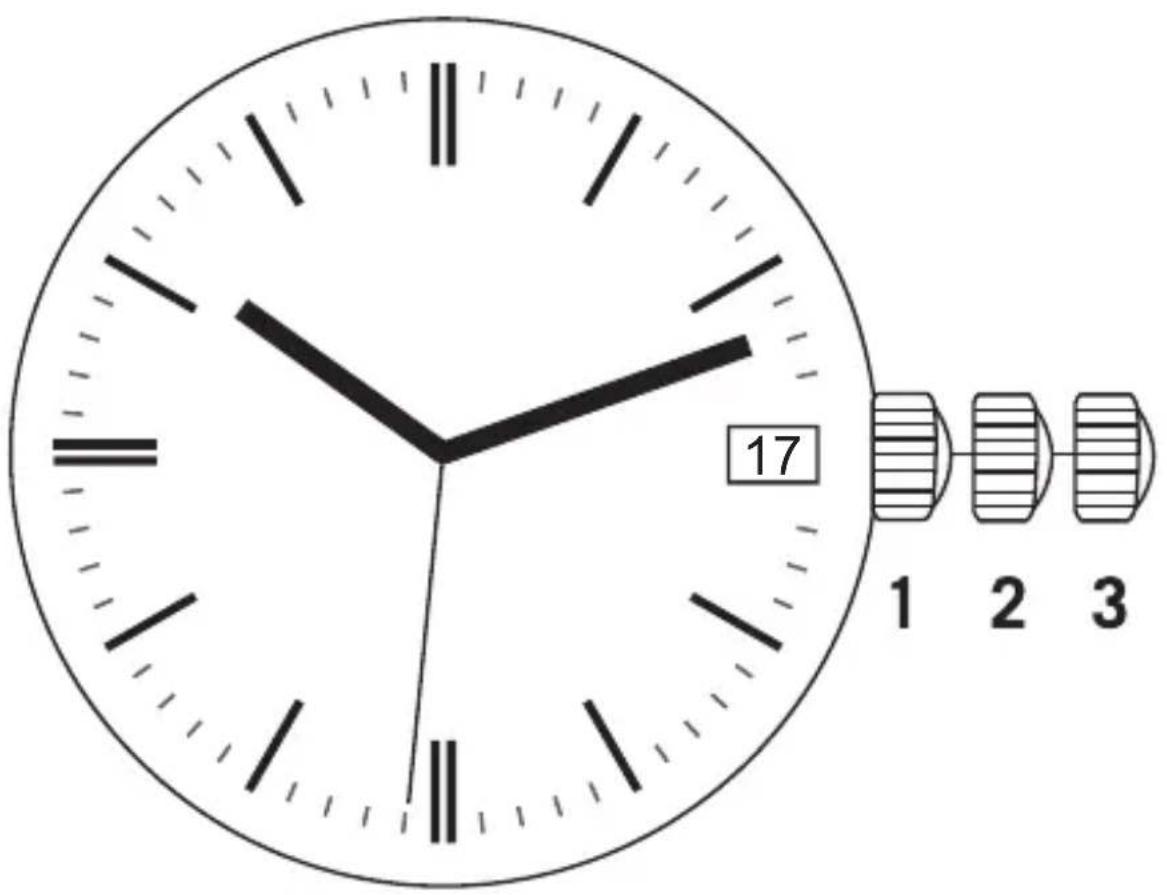

The crown and/or the date display may possibly be in another position depending on the model.
OPERATING INSTRUCTIONS AUTOMATIC MOVEMENT
Sellita SW 200 basic movement | Refined Bruno Söhnle BS 175 movement
Winding the watch
■Unscrew the crown counter-clockwise
(only with watches that are provided with a screw-down crown).
■The watch must be wound clockwise by hand approx. 30 rotations before initial operation so that the main spring has sufficient tension (position 1).
Setting the time
■Pull out the crown completely (position 3); the second hand stops (to allow setting to the exact second)
■Turn the crown to set the correct time
■Push the crown back in (position 1), and the watch will begin to run again
OPERATING INSTRUCTIONS AUTOMATIC MOVEMENT
Sellita SW 200 basic movement | Refined Bruno Söhnle BS 175 movement
Setting the date with the quick-set function
■Pull crown out to the first click stop (position 2)
■Turn the crown to set the correct date
■Press the crown in (position 1)
■ Attention: In the period from 10 p.m. to 3 a.m., the quick-set date function cannot be carried out since the appropriate ratchet wheel is being used for the regular changing of the date.
BRUNO SÖHNLE UHRENATELIER
GLASHÜTTEISA
OPERATING INSTRUCTIONS AUTOMATIC MOVEMENT
SELLITA SW 240 BASIC MOVEMENT REFINED BRUNO SÖHNLE BS 297 MOVEMENT
OPERATING INSTRUCTIONS AUTOMATIC MOVEMENT
Sellita SW 240 basic movement | Refined Bruno Söhnle BS 297 movement

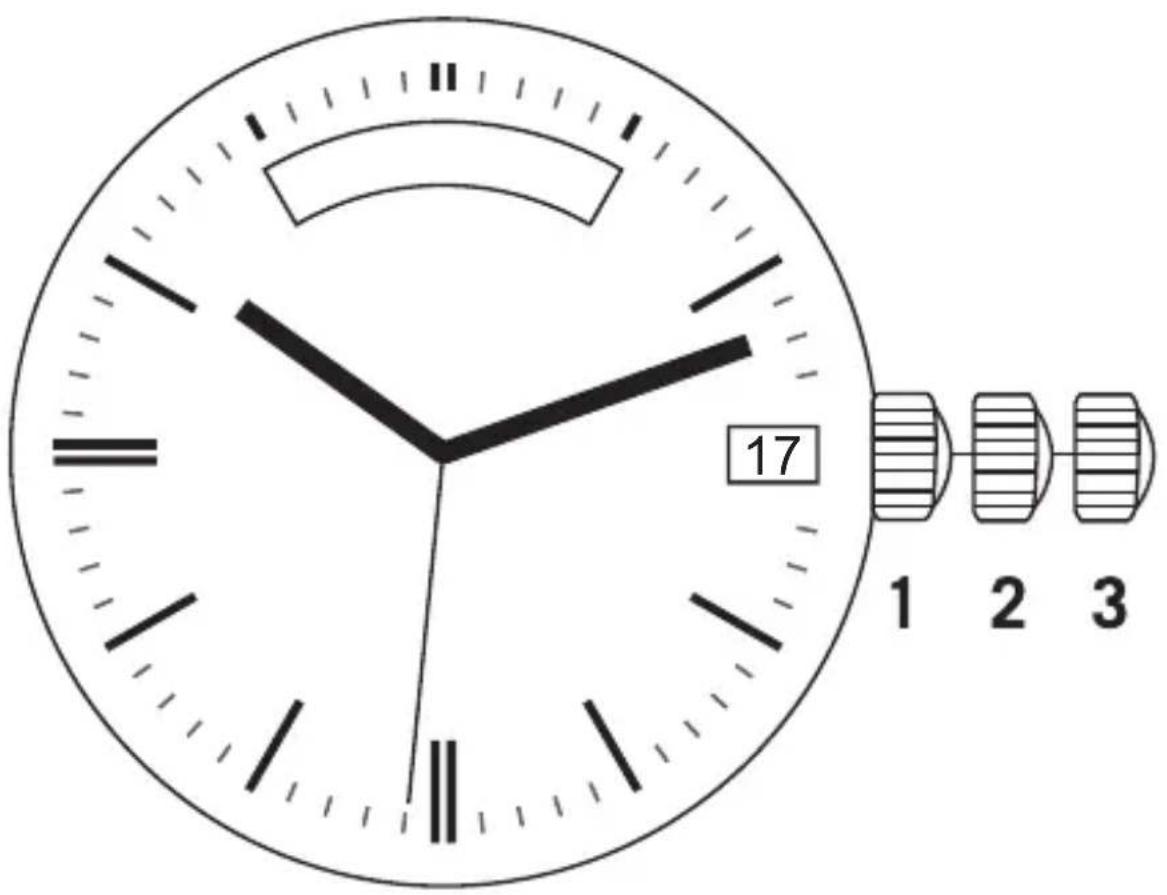

The crown and/or the date display may possibly be in another position depending on the model.
OPERATING INSTRUCTIONS AUTOMATIC MOVEMENT
Sellita SW 240 basic movement | Refined Bruno Söhnle BS 297 movement
Winding the watch
■Unscrew the crown counter-clockwise (only with watches that are provided with a screw-down crown)
■The watch must be wound clockwise by hand approx. 30 rotations before initial operation so that the main spring has sufficient tension (position 1)
Setting the time
■Pull out the crown completely (position 3); the second hand stops (to allow setting to the exact second)
■Turn the crown to set the correct time
■Push the crown back in (position 1), and the watch will begin to run again
OPERATING INSTRUCTIONS AUTOMATIC MOVEMENT
Sellita SW 240 basic movement | Refined Bruno Söhnle BS 297 movement
Setting the date with with the quick-set function
■Pull the crown out to the first click stop (position 2)
■The day of the week can be set by turning the crown counter-clockwise The day of the week must be completely visible in the window
■The date can be set by turning the crown counter-clockwise
■The watch starts by pressing in the crown Screw in the crown again hand-tight (in the case of screw-down crowns)
■ Attention: In the period from 10 p.m. to 3 a.m., the quick-set date and day of the week function should not be carried out since the appropriate ratchet wheel is being used for the regular changing of the date.
BRUNO SÖHNLE UHRENATELIER
GLASHÜTTEISA
OPERATING INSTRUCTIONS AUTOMATIC MOVEMENT
SELLITA SW 260 BASIC MOVEMENT REFINED BRUNO SÖHNLE BS 212 MOVEMENT
OPERATING INSTRUCTIONS AUTOMATIC MOVEMENT
Sellita SW 260 basic movement | Refined Bruno Söhnle BS 212 movement

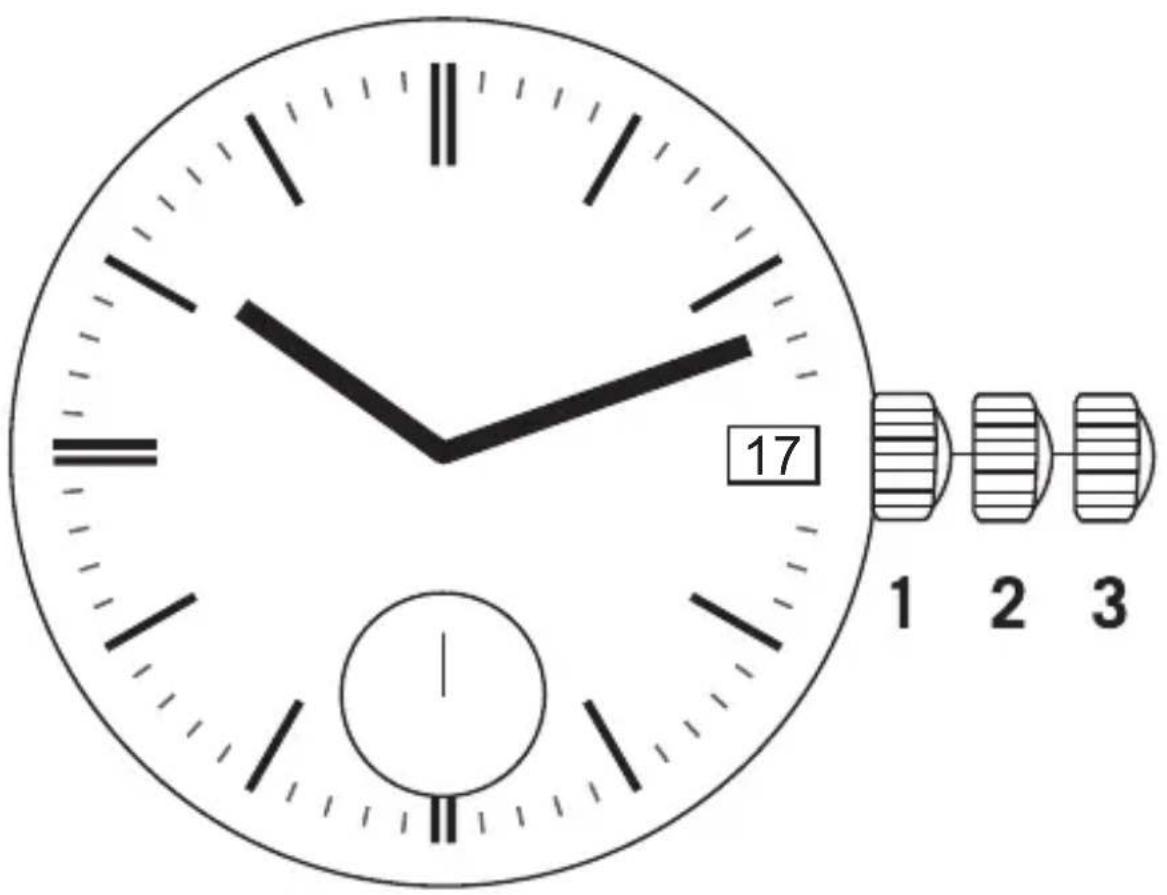

The crown and/or the date display may possibly be in another position depending on the model.
OPERATING INSTRUCTIONS AUTOMATIC MOVEMENT
Sellita SW 260 basic movement | Refined Bruno Söhnle BS 212 movement
Winding the watch
■Unscrew the crown counter-clockwise
(only with watches that are provided with a screw-down crown)
■The watch must be wound clockwise by hand approx. 30 rotations before initial operation so that the main spring has sufficient tension (position 1)
Setting the time
■Pull out crown completely (position 3); the second hand stops (to allow setting to the exact second)
■Turn the crown to set the correct time
■Push the crown back in (position 1), and the watch will begin to run again
OPERATING INSTRUCTIONS AUTOMATIC MOVEMENT
Sellita SW 260 basic movement | Refined Bruno Söhnle BS 212 movement
Setting the date with the quick-set function
■Pull the crown out to the first click stop (position 2)
■Turn the crown to set the correct date
■Press the crown in (position 1)
■ Attention: In the period from 10 p.m. to 3 a.m., the quick-set date function cannot be carried out since the appropriate ratchet wheel is being used for the regular changing of the date.

