Product Type	Inline Skates
Brand	Crivit
Model	JI-1735
Wheel Size	80 mm
Wheel Material	Polyurethane (PU)
Bearing Rating	ABEC 7
Brake	Rear brake included
Frame Material	Aluminum
Boot Type	Hard shell with soft liner
Closure System	Laces and buckle strap
Recommended Use	Recreational fitness skating
Age Group	Adults and teens
Size Range	EU 38-43 (adjustable)
Max User Weight	100 kg
Weight per Skate	Approx. 1.5 kg
Color	Black/Red
Care Instructions	Clean wheels and bearings regularly; store in dry place
Safety Features	Brake system, sturdy frame
Spare Parts Available	Wheels, bearings, brake pads

Frequently Asked Questions - JI-1735 CRIVIT

How do I adjust the size of the Crivit JI-1735 inline skates?

The skates have an adjustable sizing system. Press the button on the back of the boot and slide the heel forward or backward to fit your foot size within the EU 38-43 range.

How do I install the rear brake?

The brake comes pre-installed. If it needs replacement, unscrew the bolt on the heel, attach the new brake pad, and tighten the bolt securely.

How often should I clean the bearings?

Clean bearings every 10-15 hours of use or whenever they feel rough. Use a bearing cleaner or isopropyl alcohol, then relubricate with bearing oil.

Can I use these skates for aggressive skating?

No, these are recreational fitness skates designed for smooth paths and streets. They are not suitable for aggressive tricks or jumps.

What is the maximum user weight?

The maximum recommended weight is 100 kg (220 lbs). Exceeding this may compromise safety and performance.

How do I replace the wheels?

Use an Allen wrench to remove the axle bolt. Slide out the wheel, insert a new one, and tighten the bolt without over-tightening.

Are these skates suitable for beginners?

Yes, the Crivit JI-1735 are ideal for beginners due to their adjustable fit, stable frame, and included brake.

How do I tighten the laces and buckle?

First, tighten the laces from toe to top for a snug fit. Then secure the buckle strap over the ankle for added support. Adjust the buckle tightness by pulling the strap.

What tools are needed for maintenance?

Basic maintenance requires a 4mm Allen wrench for axles, a bearing press or tool, and lubricant. A screwdriver may be needed for brake replacement.

How do I store the skates when not in use?

Store in a cool, dry place away from sunlight. Loosen the laces and avoid stacking heavy objects on top to prevent deformation.

USER MANUAL JI-1735 CRIVIT

Jugend-Softboot-InlineSKAteS

DE AT CH

Jugend-Softboot-InlineSKAteS

Bedienungsanleitung

GB

Softboot Inline SKAteS

Instructions for use

DE AT CH

Scope of delivery/names of parts 11

Technical Data 11

Correct use 11

HeiQ® Pure dynamic 11

Safety notes 11

Skating tips 12

Setting the sizes 12

Setting the width 12

Removing the skates 13

Putting the skates on 13

Maintenance 13-14

Care, Storage 14

Trouble-shooting 14 - 15

Disposal Information 15

3 Years Warranty 15

Fersenbremse (Abb. C):

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following operating instructions. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Scope of delivery/ names of parts (figure A)

1 x User guide
1 x Softboot inline skates
1 x Replacement stopper
2 x Allen key
(1) Ratchet strip
(2) Rocker fastener
(3) Pressure slider
(4) Quick-release fastener
(5) Velcro fastener
(6) Lace
(7) Pulling aid
(8) Setting button
(9) Size symbols

Technical data

sizes: 35 - 39

class A, 20 - 100kg

rollers: 80 x 22mm

ball bearings: ABEC 7

Correct use

These inline skates are designed as fitness skates for private use and are not suitable for street hockey or aggressive skating.

• Always pay attention to other road users and follow the road traffic regulations.
- Choose the right surface for inline skating. Surfaces should be smooth, clean, and dry.
- Make sure that screws and bolts are secure before skating.
- Ensure that screws and bolts retain their self-locking properties.
- Do not modify the inline skates in such a way that poses risk to your safety.
- Remove sharp edges that may form during skating.
• Always wear suitable protective equipment (helmet, protectors for your hands, wrists, elbows, and knees).
- Avoid areas with heavy traffic.
- Remain vigilant at all times and be careful.
- Avoid excessive speeds. As a rule of thumb: never skate faster than you can run.
- Exchange the brakes, rollers, and ball bearings regularly if they are worn.
• Always wear reflective clothing so that you are visible to others.
- Do not use this article barefoot.

Risk of injury!

• Look after your inline skates.
• Avoid water, oil, potholes, and very rough surfaces.

Skating tips

Note:

We recommend skating in skate parks and taking a skating course with an instructor.

First attempts

Initial position:

Keep your feet shoulder-width apart and bend your knees slightly to avoid falling backwards.

Accelerating:

As a beginner, start by taking small steps forwards with your toes pointing outwards at an angle.

Rolling:

If you take a few steps in succession you will then have enough momentum to place your skates next to one another and roll. Bend your knees slightly while doing this.

How to fall

Important! Practise falling initially onto a soft surface using protective equipment without your inline skates. Always try to fall forwards, and never backwards! Fall onto your protective knee pads. Then catch yourself using the elbow and wrist protectors. Spread your fingers in order to avoid injury.

Mastering curves

At low speeds:

Shift your weight as in riding a bicycle. Move your weight onto your left foot for a left curve and onto your right foot for a right curve.

At high speeds:

Cross your feet as in ice-skating (figure B).

Braking techniques

Note:

Practise various braking techniques on a smooth surface without traffic or pedestrians. Avoid slopes until you are confident about braking.

Heel brake (figure C):

If your inline skates are fitted with brakes then remember to use them. Lift the point of the skate where the brake is mounted and push the brake into the ground. Shift your weight forwards slightly and bend your knee. The braking effect can be intensified if you bend your knee more and shift your weight further forwards, while increasing at the same time the pressure on the skate you are braking with.

T-stopping (figure D):

If your inline skates are not fitted with a brake or if you have removed the brake, then we recommend using the 'T-stop' technique. However this is only suitable for advanced skaters! To brake using the 'T-stop' technique, shift your entire weight onto one foot. Now move the other skate behind the front skate at a right angle. Then shift your weight from the front to the inside of the rollers of your back skate and brake with increasing pressure.

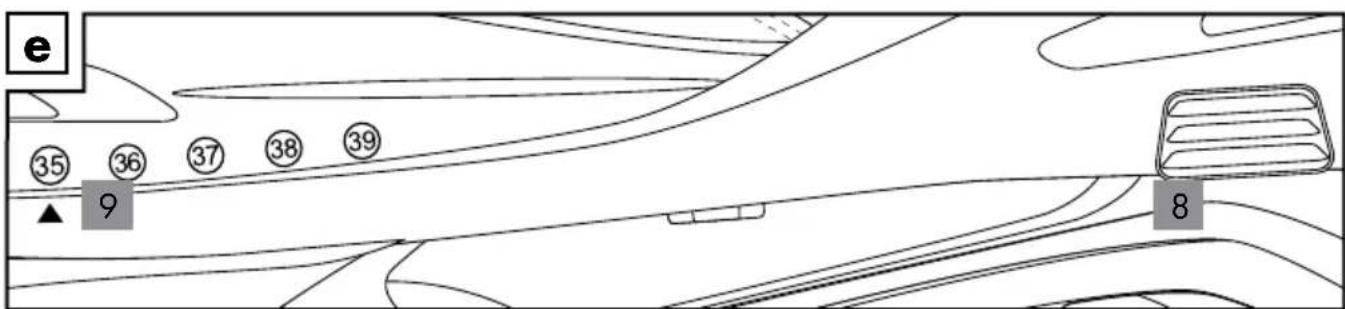

Setting the sizes (figure E)

Press the setting button (8) down and adjust the shoes to the desired size while holding the setting button down. This must snap into place with an audible 'CLICK'. The arrow on the show points to the corresponding size (9) on the frame.

Setting the width (figure F)

Release the screw on the bottom of the article with the Allen key of any length by turning it in the direction of the arrow. Adjust the width by sliding the shoe size to your individual needs. Then tighten the screw again.

Removing the skates

Prepare the skates for wear following delivery Important!

Ensure that your inline skates fit correctly. The outer boot should not become deformed when you close the quick-release fastener. Do not use force to close the quick-release fastener. If your outer boot is deformed then this is either a sign that the tension is incorrect or that you may have purchased inline skates in the wrong size.

Note!

To find the right tension for your foot, pull the rocker fastener upwards at an angle and move the ratchet strip to the correct position for you.

1. Push the pressure slide (3) on the quick-release fastener (4) inwards in the direction of the arrow, and open the quick-release fastener (figure G).
2. Pull the rocker fastener (2) upwards at an angle, and pull the ratcheted strip (1) out of the opening on the rocker fastener (figure H).
3. Open the Velcro fastener (5) (figure I).
4. Open the laces (6).

Putting the skates on

1. Pull on the inline skates using the donning aids (7) (figure J).
2. Do up the laces.
3. Close the Velcro fastener.
4. Push the ratcheted strip into the correct opening under the rocker lock, and set it to the correct tightness (figure K).
5. Close the quick-release fastener ('CLICK').

Maintenance

Changing the brake (figure L) Note:

Worn brakes do not function correctly. An angle of more than 40 degrees between the frame and the surface is a sign of worn brakes. If the distance between the brake block and the ground becomes too large (more than 17mm), then the brake block must be exchanged.

• Unscrew the brake block (3) on the inline skate with the enclosed Allen key.
• Pull the brake block screws out and remove the brake block (1) from the brake block mounting (2).
• Attach the new brake block back onto the brake block mounting securely using the brake block screws.

Changing the rollers (figure M) Important!

• Please observe the chapter on technical data:
  Rollers with a different diameter could change the handling characteristics and could mean a risk to the user in some circumstances. You should therefore not use the skates if the rollers cannot be fitted perfectly. Never install larger rollers then those originally used in the inline skates.

• Please observe the following with regard to the axle bolts:
  Self-sealing lacquer must be re-applied to the screw thread after the screw connection has been released. We recommend always doing this step as a precautionary measure.
  Self-sealing lacquer is available from DIY stores or specialist retailers.

Rollers become worn. The wear depends on many factors such as skating style, surfaces, the size and weight of the user, weather conditions, the roller material and its degree of hardness. It is therefore necessary to exchange them every so often.

• Unscrew the axle bolts (2) on the inline skate from the frame (1) using the two Allen keys supplied.
• Remove the axle bolts and remove the roller (3).
• Install the new roller into the frame and fix it with the axle bolts.

After changing the rollers:

If the roller scrapes on the side after the exchange, or if it touches the edge of the frame, please do not use the roller! Please ensure that all screws are still secure after the first few minutes of use and that nothing has become detached or loosened.

Re-install the rollers in order to ensure that they are running smoothly and no sounds are emitted from the bearings.

Important!

New rollers make the inline skates taller. This changes the distance to the ground therefore also the braking characteristics. For this reason, you must adjust or exchange the brake block.

Changing the ball bearing (figure N)

Note:

The quality of the ball bearing and its maintenance are extremely important for the smooth running of the inline skates.

• Remove the roller (1) as described above (pages 13-14).
• Push a bearing (3) out by pressing on a spacer (2) with an Allen key and then remove the spacer.

• Push the other bearing out by pressing on it with an Allen key.

• Push in a new bearing. Turn the roller around, insert the spacer, and then push in a second new bearing.

• Re-attach the roller to the frame, as described in the paragraph 'exchanging the rollers'.

Care, storage

Inline skates are pieces of technical sports and leisure equipment and they therefore become worn depending on the skill and style of each skater. We recommend that you clean and dry the inline skates thoroughly after use. Remove any small stones and other objects that may have become trapped in your rollers. Remove any sharp edges that may have formed during skating. Always keep the inline skates in a dry place.

• Clean your ball bearings with a dry cloth after skating. Wet or damp ball bearings must be dried using a clean cloth. Lubricate the bearings from the outside with a suitable bearing grease to prevent the formation of external rust.
• Bearings are usually closed and cannot be lubricated inside. Worn ball bearings must be replaced.

Trouble-shooting

• Rollers or ball bearings are noisy
  Dismantle the roller from the frame, remove it, and clean the ball bearing with a clean cloth.
• Rollers wear quickly

Smooth surfaces extend the life of the rollers. Try harder rollers for harder surfaces and for use in difficult conditions.

- Rollers block

Do not fasten the axle bolts too tightly.

- Skate pulls to the left or right

This can depend on the user. Exchange the rollers that show signs of one-sided wear.

• The brake is not working properly

Change the brake if the angle between the brake and the ground is greater than 40 degrees, i.e. if the distance between the brake block and the ground becomes too great (more than 17mm). Rounded brakes need to be changes for new blocks.

- Brake problems

Always keep sufficient distance. The faster you skate the longer your braking distance. Ensure that you understand the braking techniques and practise them on a level ground.

- Ankles get twisted frequently

Make sure the laces are tight enough.

- Problems with the foot bed

You may not be accustomed this kind of movement. Check the areas that are causing you problems and re-adjust the inline skates. Try wearing thick socks.

Disposal information

Please dispose of the product and packaging in an environmentally friendly manner, separating different materials for recycling as required! Dispose of this item through an authorised disposal company or through your local waste disposal facilities - ask your local authority for information if further guidance is required. Ensure that you comply with all regulations currently in force.

3-year warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 93713

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

You can also find spare parts for your product at: www.delta-sport.com, category Service - Lidl Spare Parts Service

Bestellkarte

93713_Stopper

Artikel-Nr. 01001

93713_Rollen

Artikel-Nr. 01002

Order form

93713, Softboot Inline Skates Delta-Sport Nr. Jl-1735

Additional parts for our products are delivered against advance payment by bank transfer or Paypal. Please be sure to state the article number together with your name and postcode in the reference fi eld when sending a payment.

Bank transfer:

Please send your Paypal payment to: [e-mail]

Our postal address:

SERVICE.DELTA-SPORT.COM

HÜTTMANNSWEG 11 • 24641 HÜTTBLEK GERMANY

Here is how you order: Under "sender/purchaser", enter in capital letters your name, address, and telephone number (in case of any queries).

Sender/purchaser

(please fi ll out completely in capital letters)

Surname, given name

House number, street

Town, postcode

Telephone number

Alternatively, you can order all articles directly from our on-line store: service.delta-sport.com

QuantityArticle NUnit price				Total
		x	7,00 €01001	€
01002		x	9,00 €	€
Post and packaging
				5,00 €
Total
				€
SignatureDate and place

93713_stopper

Article No. 01001

93713_rollers

Article No. 01002

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • D-22397 Hamburg

Version: 02/2014
