Product Type	Watch
Brand	ORIENT
Model	Executive FER27004W0
Movement Type	Automatic with hand winding capability
Movement Frequency	21,600 vibrations per hour
Number of Jewels	21 jewels
Power Reserve	More than 40 hours
Water Resistance	Water resistant for daily life (50M / 5 bar) (estimated)
Functions	Hour, minute, second, date, day of the week
Winding	Automatic and manual winding
Shock Protection	Shock-proof bearings to protect balance and hairspring
Luminescence	Luminous hands and dial (stores light)
Calendar Type	Date and day of the week (quick-set via crown)
Antimagnetic	Not specified; avoid strong magnetic fields
Crown Type	Push-pull (standard); some models screw-down (check case)
Bracelet/Strap	Not specified; likely leather or metal based on model
Case Material	Stainless steel (typical for Executive series)
Crystal	Mineral glass (typical for this price range)
Case Diameter	Approximately 40-42 mm (estimated)
Warranty	Refer to guarantee card supplied with watch

Frequently Asked Questions - Executive FER27004W0 ORIENT

How do I set the time on my ORIENT Executive FER27004W0?

Pull the crown out to the second click (if applicable) and turn it clockwise to set the time. Ensure to distinguish between AM and PM by observing the date change at midnight.

How do I set the date and day of the week?

Pull the crown to the first click. Turn it counterclockwise to set the date (previous date) and clockwise to set the day of the week. Then pull to second click to set the time. Avoid setting between 9 PM and 4 AM for models with day/date.

Is this watch water resistant?

The water resistance level is marked on the case back. For daily use, it is water resistant for face washing and rain. Do not operate the crown underwater. Refer to the manual for specific depth ratings.

How do I wind the watch manually?

Turn the crown clockwise (when in normal position) to wind the mainspring. It is fully wound when the crown stops turning; do not force it.

How long does the power reserve last?

When fully wound, the watch runs for more than 40 hours. For optimal accuracy, wear it at least 8 hours daily.

Can I wear this watch while swimming?

Check the water resistance marking. If it shows 50M or higher, it is suitable for swimming but not for diving. Always keep the crown pushed in or screwed down.

What should I do if the watch fogs up?

Temporary fogging is normal. If it persists or water enters, consult a watch repair professional immediately.

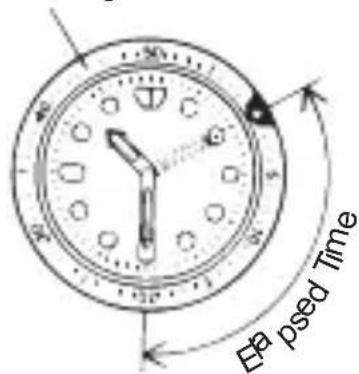

How do I use the rotating bezel (if present)?

Rotate the bezel to align the triangle marker with the minute hand to measure elapsed time. Some bezels turn only counterclockwise to prevent accidental movement.

What is the correct way to set the day of the week?

Press the click button (if available) to select the desired language for the day display. Then set the day by turning the crown clockwise when in the first click position.

How can I avoid magnetizing my watch?

Keep the watch away from strong magnetic sources like speakers, refrigerators, and medical devices. If magnetized, precision is restored when removed from the magnetic field; reset the time if needed.

USER MANUAL Executive FER27004W0 ORIENT

Thank you for choosing our product. To ensure prolonged use and optimum performance, please read this instruction manual carefully and familiarize your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

◆ SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to prevent any possible physical danger and property damage to you as well as other people concerned.

... A demarcation with this symbol represents the contents assuming possibility for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility of causing human injury or material damage only when a product is used in any manner different from given instructions.

◆ IN HANDLING THE WATCH

(1) Water-resistance

Type\Conditions of use		Exposure to small amounts of water (facewashing, rain, etc.)	Water sports (swimming, etc.), frequent contact with water (car-washing, etc.)	Skin diving (air tanks are not used)	Scuba diving (air tanks are used)	Underwater operation of crown and operation of crown with drops of water on it
Non water resistant	Watch without WATER RESISTANT on back cover of watchcase.	×	×	×	×	×
Water resistant for daily life	Watch with WATER RESISTANT on back cover of watchcase.	○	×	×	×	×
Reinforced water resistance for daily life I	Watch with 50M (5BAR) on back cover or dial face along with WATER RESISTANT on back cover of watchcase.	○	○	×	×	×
Reinforced water resistance for daily life II	Watch with 100M (10BAR), 150M (15BAR), 200M (20BAR) on back cover or dial face along with WATER RESISTANT on back cover of watchcase.	○	○	○	×	×

* It is recommended that you use the watch correctly following the above-mentioned scope of usage after ascertaining water resistance precautions marked on the dial face of the watch or on the back of the watchcase.

WARNING

① A watch with water resistance for daily life 30M (3 bar) can be used during face-washing, etc. but cannot be used in an environment in which it will be submerged in water.
② A watch with reinforced water resistance for daily life I 50M (5 bar) can be used while swimming, etc. but cannot be used during any type of diving including skin diving.
③ A watch with reinforced water resistance for daily life II 100M or 200M (10 or 20 bar) can be used while skin diving, but cannot be used while scuba diving using oxygen tanks or saturation diving using helium gas, etc.

CAUTION

④ Keep the crown pushed in at all times (in the normal position) while using the watch. If the crown is the screwed-down type, check that it is securely screwed down.
⑤ Do not operate the crown underwater, or while the watch is wet. Water may enter the interior of the watch and defeat the water resistance.
⑥ If your watch is non-water resistant, beware of splashes of water (during face washing, rain, etc.) and sweat. If the watch becomes wet from water or sweat, wipe the moisture off with a dry, soft cloth.
⑦ Even with a water resistant watch for everyday use, avoid directing strong jets of mains water onto the watch. Water pressure above the limit can apply, which may defeat the water resistance.
⑧ With a water resistant watch for everyday use, rinse sea water off the case after exposure, then wipe it thoroughly to avoid corrosion and other effects.
⑨ The interior of the watch contains some amount of moisture, which may cause fogging on the inside of the glass when the outside air is cooler than the internal temperature of the watch. If the fogging is temporary it causes no harm inside the watch, but if prolonged, or if water enters the watch, consult your place of purchase and do not leave the problem untreated.

(2) Shock

① Be sure not to carry the watch when you engage in strenuous sports, whereas playing such light sports as golf, etc., will not adversely influence the watch.
② Avoid a violent shock such as dropping the watch on the floor.

Simple line drawing of a person using a tool to dig or walk (no text or symbols)

(3) Magnetism

① If the watch is left at a location with strong magnetism for an extended period of time, the components may be magnetized, resulting in malfunction. Be careful.
② The watch may temporarily speed up or slow down when exposed to magnetism. Precision is restored when placed away from magnetism. In such a case, reset the time.

(4) Vibration

The watch may lose precision if subjected to strong vibrations such as from riding motorcycles, using jackhammers, chain saws, etc.

Cartoon illustration of a person riding a three-wheeled motorcycle with motion lines indicating speed (no text or symbols)

(5) Temperature

In environments below and above normal temperatures (5°C-35°C), the watch may malfunction and stop.

Do not use the watch at high temperatures, such as in a sauna. The watch may heat and cause burns.

(6) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases, mercury, chemicals (paint thinner, gasoline, various solvents, detergents containing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and so forth. Such may cause discoloration of the watchcase, watchband, and dial face. Discoloration, deformation, and damage to various resin-based component parts may also occur.

(7) About accessory parts

WARNING

Store the bracelet/strap pin and other small parts out of the reach of children.

If any small parts are swallowed, immediately contact a doctor.

(8) Allergic reactions

CAUTION

If you develop a skin rash or your skin becomes abnormally irritated due to contact with the watch or strap, stop wearing the watch immediately and consult a doctor.

(9) About "luminous light"

Some products have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light without using any radioactive material, and emits that light in a dark setting. As the paint discharges the stored light, it will become dimmer over time. The amount of light emitted and the time that light is emitted depends on various factors when the light is stored, such as the shape of the glass, the thickness of the paint, surrounding brightness level, the distance from the watch to the light source, and the light absorption level. Please note that when not enough light energy is stored, the watch may emit weak light or emit light for only a short time.

(10) Water resistant watchband

Some products employ leather and nylon bands on which a special treatment to resist perspiration and water absorption have been applied. Please understand that the water resisting effect of this watchband can be lost depending on the period and conditions of use.

◆ HOW TO IDENTIFY THE CALIBER NUMBER

Check the caliber number by referring to the model number of your watch or the case code on the watch's case back.

1. Searching by 10-digit model number

Check the 10-digit model number on the guarantee supplied with your watch. You can also see the number on the product tag put on the watch. Its second and third digits indicate the caliber number of your watch.

Example: If the model number is "CDB05001B0", the caliber number is "DB".

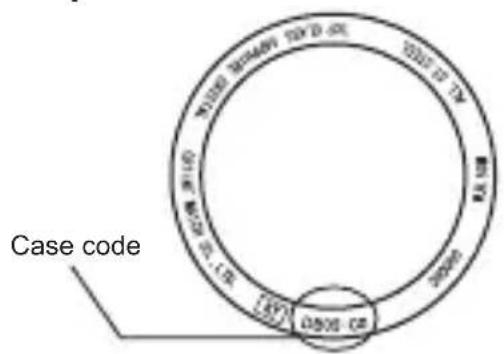

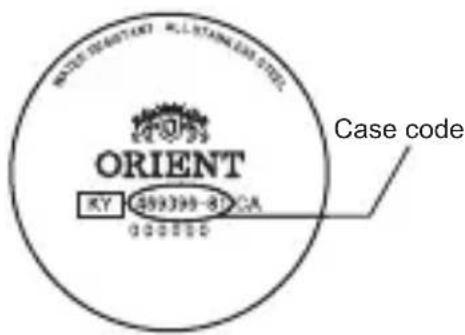

2. Searching by the case code

See the case code on the case back of your watch.

A: If the case code is 6 digits, the first two digits indicate the caliber number.
B: If the case code is 8 or 9 digits, the first three digits indicate the movement number. Search the caliber number corresponding to the movement number referring to the correspondence table.

Example A

Case code D500-02

Example B

ORIENT KY 059390-87 CA Case code

Example A : When the case code is "DB05-C0", the caliber number is "DB". Example B : When the case code is "469396-81", the movement number is "469". The caliber number corresponding the number will be found "EM" on the table.

* The place of case code may vary and its letter size may be small and difficult to see depending on the characteristics of watches.
* The pictures and illustrations on this manual may differ from the actual appearance of your watch but the function and operation procedures are the same.

◆ SPECIFICATIONS

Caliber Click-B Date Day of week Hand winding Daily accuracy Remark1*
DB 46A	-	-	-	-	-	+25~-15s/day
DW 48D	-	○	-	-	+25~-15s/day	9:00PM-2:00AM
EM 469	○	○	○	- +25~-15s/day		9:00PM-4:00AM
ER 487	-	○	-	-	+25~-15s/day	9:00PM-2:00AM
NP 558	○	○	○		+40~-30s/day	8:30PM-2:00AM
NQ 559	-	○	○	○	+40~-30s/day	8:30PM-4:00AM
NR 557	-	○	-	○	+40~-30s/day	8:30PM-0:30AM
PF 597	-	○	-	○	+40~-30s/day	8:30PM-0:30AM
PM 599	-	○	○	○	+40~-30s/day	8:30PM-4:00AM

(1) Vibrations: 21,600 vibrations/1 hour
(2) Number of jewels: 21 jewels
(3) Running time: More than 40 hours
(4) Shock-proof bearings to protect the balance with hairspring from shocks.

The stated daily accuracy is in the following conditions:

• After 24 hours at room temperature with the mainspring wound fully and the dial facing up.
- Due to the characteristics of the automatic winding watch, the time may deviate from the stated “daily accuracy” depending on the following conditions: amount of time the watch is worn each day, position of the watch, movement of your arm, winding condition of the mainspring.

Product specifications may change without notice, for improvement.

CAUTION

* Avoid setting the date during the time periods listed in "Remark1" above since the calendar changes during this time. If the date is set during this time period, the date may not change or the watch may malfunction. Be sure to move the hour and minute hands away from this time period when setting the date.

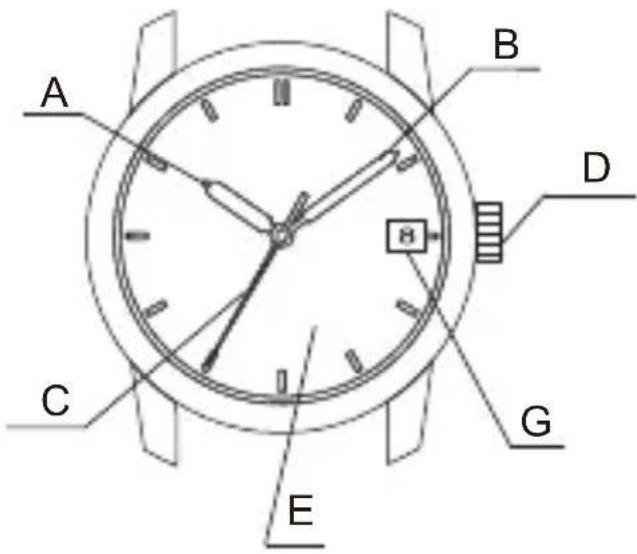

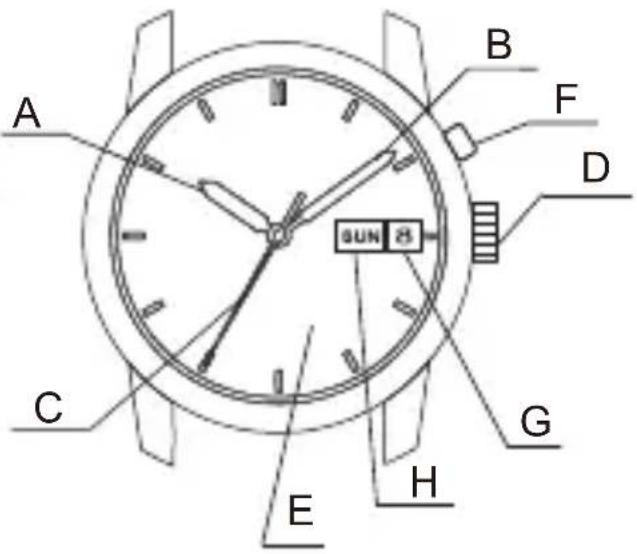

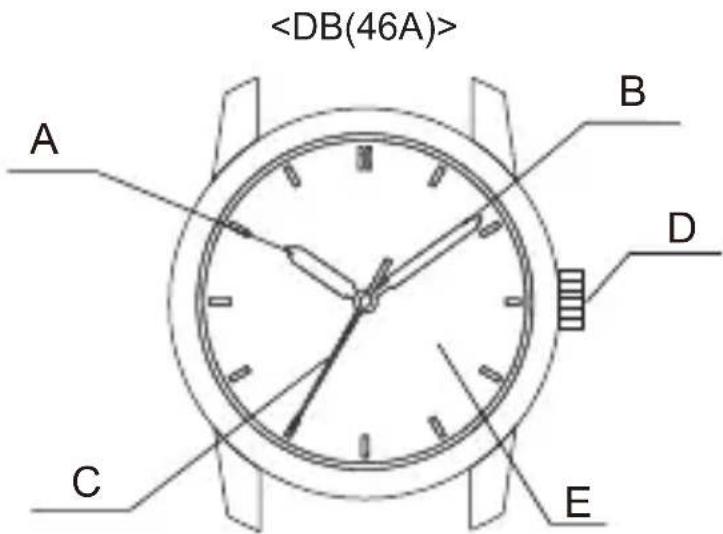

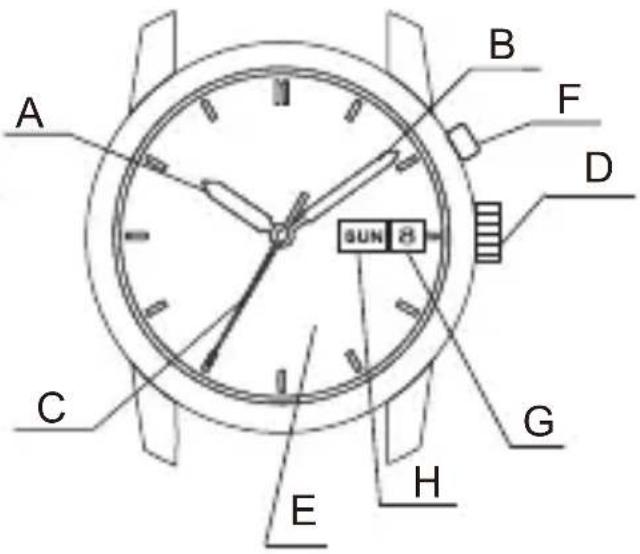

◆ NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

A: Hour hand

B: Minute hand

C:Secondhand

D:Crown

E: Dial

F: Click button

* EM(469) & NP(558) only

G:Date

H: Day of the week

A B D C E

A B D C E G

A B F D SUN 2 C G H E

* The position of the crown, date indicator, or day of the week window may be different, depending on the model.

◆ AUTOMATIC WINDING MECHANISM

(1) The mainspring is wound by natural movements of your arm when wearing the watch on your wrist.
(2) If your watch stops, swing the watch back and forth ten or more times to re-start the second hand. After it starts moving, set the date and time.
(3) This watch will run approximately 40 hours after it is fully wound. If it is not wound enough, the watch may lose accuracy. In order to maintain the watch's accuracy, we recommend wearing the watch at least 8 hours a day.

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

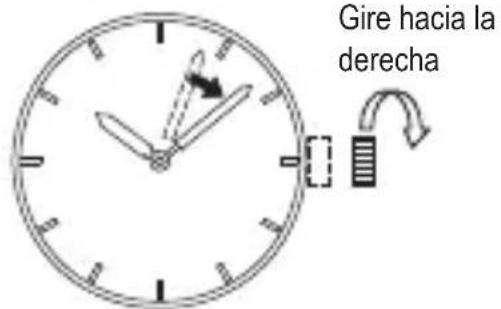

♦ HAND WINDING MECHANISM

(1) The mainspring is wound up manually.
(2) To wind the spring, turn the crown clockwise.
When you turn the crown counterclockwise, the spring will not be wound.
(3) Once the spring is fully wound, the crown will no longer turn. Be careful not to keep trying to turn it, or the spring or other parts may be broken.
(4) This watch will run approximately 40 hours after the spring is fully wound.

◆ MODELS WITH SCREWED-DOWN CROWN

Depending on the model, you may not be able to pull the crown out without unscrewing it (models with screwed-down crown).

Operate this type of watch as follows:

(1) Before setting the date and time, first turn the crown to the left to loosen the screw lock.

(2) After setting the date and time, turn the crown to the right while pressing in, until it stops turning to securely tighten the screw.

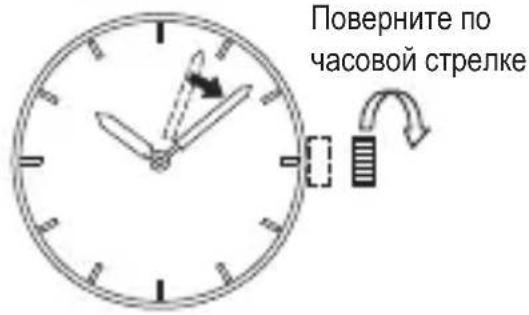

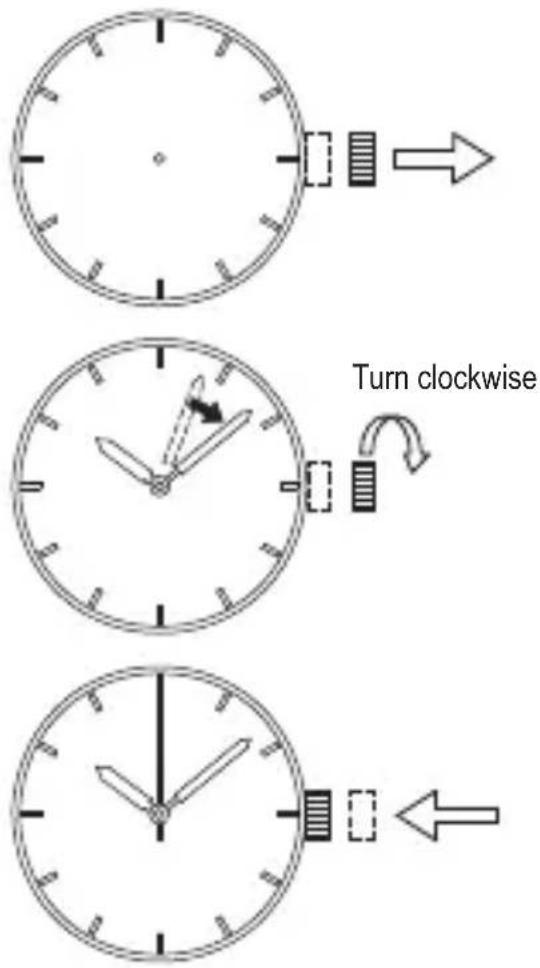

◆ HOW TO SET THE TIME [DB(46A)]

(1) Pull the crown out. (The second hand does not stop.)
(2) Turn the crown clockwise and set the current time. When setting the time, first bring the hand back slightly later than the actual time and then move it forward to the actual time.
(3) Press the crown in to the normal position.

Turn clockwise

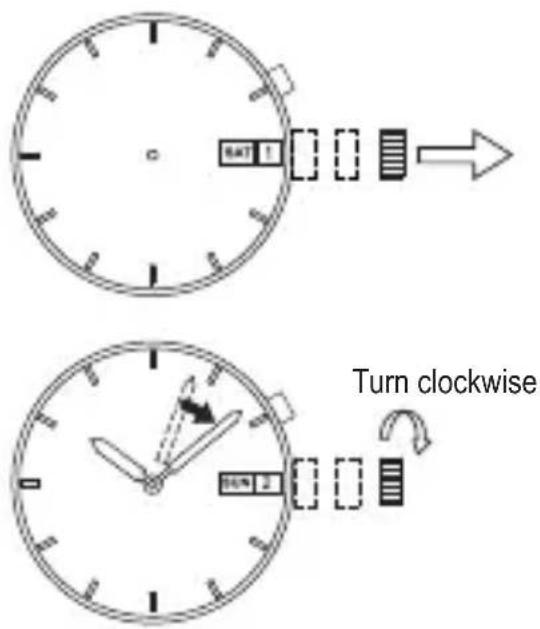

◆ HOW TO SET THE TIME & CALENDAR [EM(469), NP(558)]

(1) Press the click button and set the previous day of the week. The day of the week can be displayed in two languages. Press the click button to select your desired languages. The languages available differ depending on the model.
(2) Pull the crown out to the first click. The crown on this watch can be pulled out to the first and second clicks.

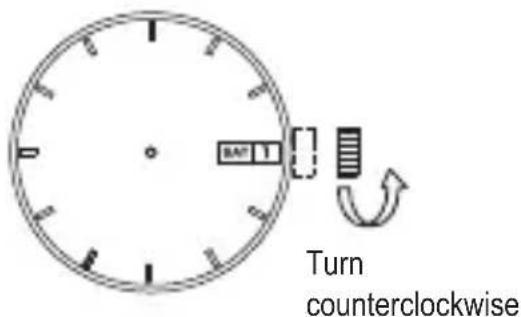

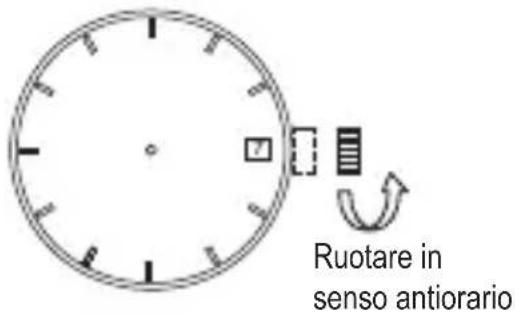

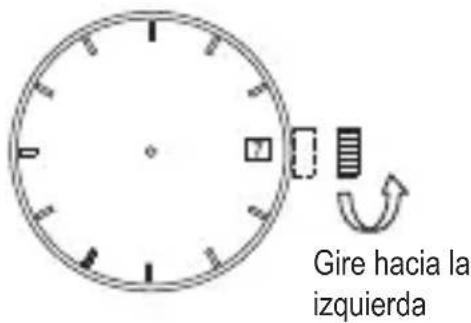

(3) Turn the crown counterclockwise to set the date indicator to the previous date.

About date correction at month's end:

Date correction is necessary for months with 30 days or less. In this case, set the date to the [1st day] on the first day of the next month.

BAT 2:35

Diagram showing a clock face with time and duration indicators, followed by an arrow indicating direction or measurement.

BAT 1 Turn counterclockwise

(4) Pull the crown out to the second click.

(5) Turn the crown to set the time. Turn the crown in the direction to advance the hand (clockwise) until today's date is displayed. It is the "a.m." when the date changes. Set the hands further forward to adjust to the current time.

Since the calendar changes at midnight, take care not to confuse a.m. and p.m. when setting the time.

(6) Push the crown back to the normal position.

RAT 1 Turn clockwise RAT 2

B:20 12

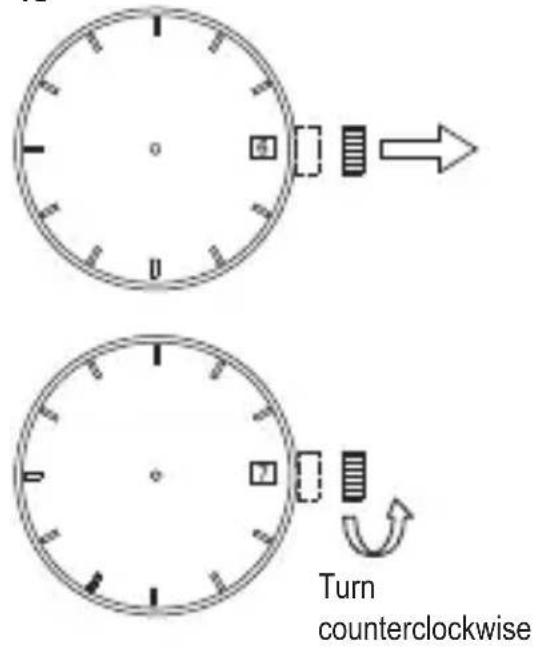

◆ HOW TO SET THE TIME & DATE [DW(48D), ER(487), NR(557), PF(597)]

(1) Pull the crown out to the first click. The crown on this watch can be pulled out to the first and second clicks.

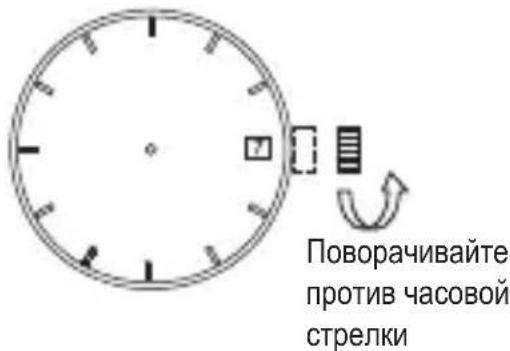

(2) Turn the crown counterclockwise to set the date indicator to the previous date.

About date correction at month's end: Date correction is necessary for months with 30 days or less. In this case, set the date to the [1st day] on the first day of the next month.

(3) Pull out the crown to the second click. The second hand does not stop.

Simple circular diagram with tick marks and a right-pointing arrow, no text or symbols present.

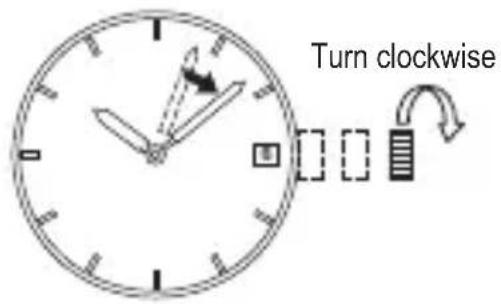

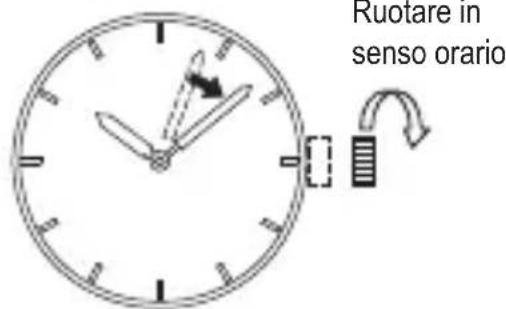

(4) Turn the crown clockwise and set the current time.

Since this watch comes with a calendar, make sure that you set either a.m. or p.m. without fail.

The date changes at [twelve o'clock midnight].

When setting the time, first bring the hand back slightly later than the actual time and then move it forward to the actual time.

(5) Press the crown in to the normal position.

Turn clockwise

Diagram of an analog clock showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

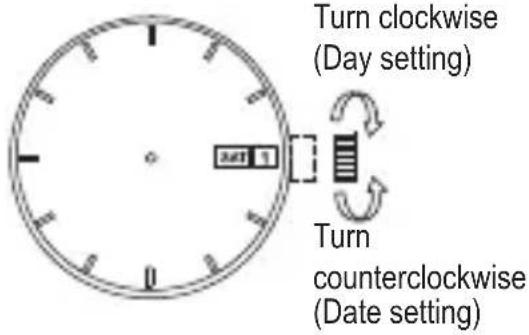

◆ HOW TO SET THE TIME & CALENDAR [NQ(559), PM(599)]

(1) Pull the crown out to the first click. The second hand does not stop.

(2) At first turn the crown clockwise to the previous day of the week.

The day of the week can be displayed in two languages. Press the click button to select your desired languages.

The languages available differ depending on the model.

0:31 0:31 0:31

Turn the crown counterclockwise to set the date indicator to the previous date.

About date correction at month's end: Date correction is necessary for months with 30 days or less. In this case, set the date to the [1st day] on the first day of the next month.

(3) Pull the crown out to the second click.

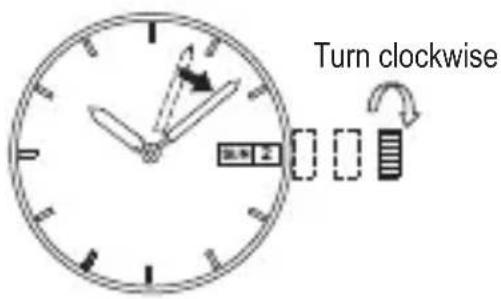

(4) Turn the crown to set the time. Turn the crown in the direction to advance the hand (clockwise) until today's date is displayed. It is the "a.m." when the date changes. Set the hands further forward to adjust to the current time. Since the calendar changes at midnight, take care not to confuse a.m. and p.m. when setting the time.
(5) Press the crown in to the normal position.

Turn clockwise (Day setting) Turn counterclockwise (Date setting)

Turn clockwise

2:35

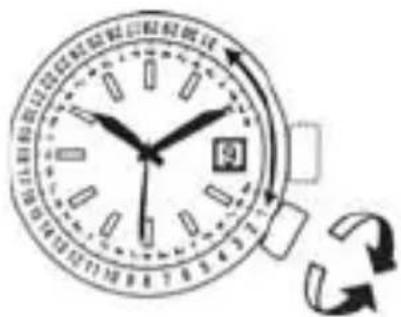

◆ HOW TO SET THE MONTHLY CALENDAR

Some models come with a monthly calendar.

The monthly calendar can be used by turning the crown at the 4 o'clock position to set the rotating ring inside the watchcase and aligning it with the day of the week that is printed on the dial.

Turn the crown to align the first day of the month to the appropriate day of the week.

* Note that when setting the first day of the month, if the days at the end of the month (31st, etc.) are aligned with the section that does not have the days of the week printed on the dial (3 - 4 o'clock side), days of the week will not be indicated at the end of the month.

Hand-drawn clock face with Chinese text and a circular arrow indicating refresh or move, accompanied by a small recycling symbol.

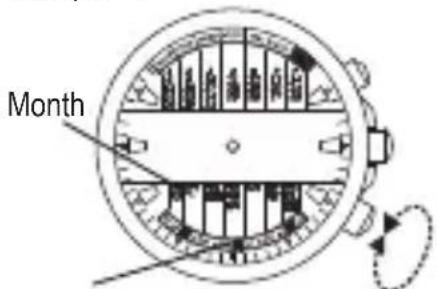

◆ HOW TO USE “MULTI-YEAR CALENDAR”

You can easily use the calendar for the year printed on the rotating ring by operating the crown.

Depending on the model, the month on the six o'clock side may be printed in roman numerals or alphabet.

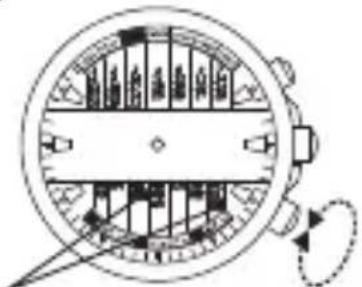

Example 1: To set October 2007

(1) Turn the crown and set "07" on the rotating ring to "OCT" on the six o'clock side.
(2) The calendar for October 2007 is set on the twelve o'clock side of the dial.

Example 2: To set February 2008 (Leap year)

(1) Turn the crown and set "08" on the rotating ring to "Feb" on the six o'clock side.

* Set to “Jan” or “Febly for leap years. Other months are the same for leap and non leap years.

(2) The calendar for February 2008 is set on the twelve o'clock side of the dial.

* January and February for leap years are highlighted.

Example 1:

Month Detached in order

Rotating ring: Year and day of the week are printed.

Example 2:

Diagram of a mechanical device with internal components and a pointer, no visible text or symbols

January and February of a leap year

WORLD TIME

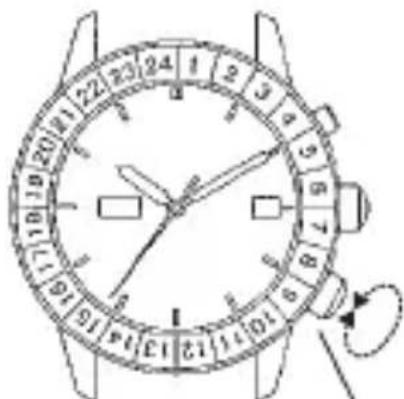

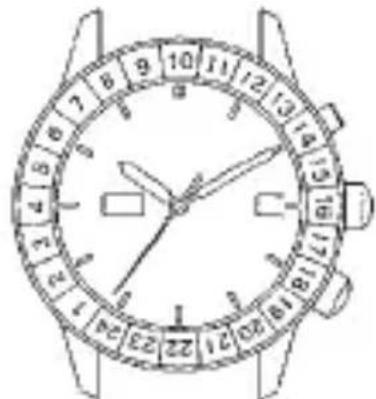

You can see the time in cities around the world by turning the crown (2) to the present time of one of the cities printed on the dial. In the figure on the right, since the time in Tokyo is 10:08, align “10” on the rotating indicator ring to “TOKYO” on the dial. To tell the time in other cities, simply look at the corresponding numbers on the rotating indicator ring.

Diagram of a wristwatch face with dual dials and a dial indicator showing time, speed, and position.

Crown (2)

Hand-drawn sketch of a wristwatch face with dual dials and analog clock face showing time and duration.

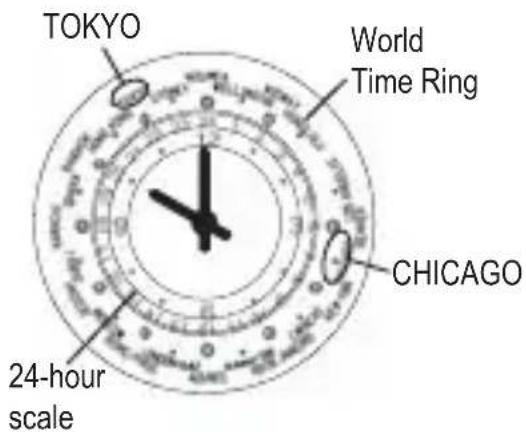

Using the World Time Ring, you can see the times all around the world.

Example: It is 10 p.m. now.

(1) In the 24-hour system, 10 p.m. is 22:00 hours.
(2) Set TOKYO on the World Time Ring to the 22-hour position of the 24-hour scale.

* The World Time Ring comes in various types, such as with a crown for setting world time or with a rotating bezel.

(3) The position that CHICAGO on the World Time Ring indicates is the time in Chicago.

TOKYO World Time Ring CHICAGO 24-hour scale

* The position indicated by each scale on the World Time Ring represents the time in that country.

Using this method, you can simultaneously see the time in countries around the world by using the scales on the World Time Ring and reading the dial.

* The city names are major cities in various countries around the world.
* Some countries use daylight savings time.
* Note that in some countries policies regarding daylight savings time may be changed by the government ordinance.

◆ USING THE ROTATING INDICATOR BEZEL

Please notice that some models come with a rotating indicator bezel, which should be used properly.

Turn the bezel by pointing the ▽ mark to the minute-hand. While certain time goes by, you can measure the elapsed time from the distance between minute-hand and figures on the rotating indicator bezel. You can also set the ▽ mark as a desired time to remind you how long time is still remain for an appointment.

You cannot turn the bezel reversely since it comes with a protection mechanism for preventing wrong operation by force or shock. Figures on the bezel could also help you to read the current time easily.

Rotating indicator bezel

EP pseud Time

The above shows that 20 minutes have elapsed from 10:10.

* Depending on design, anti-reversely and 1 minute "click" sound mechanism on rotating indicator ring does not apply to some models.

ITALIANO

OROLOGI MECCANICI

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines (no text or symbols)

(5) Temperatura

A B D C E G

A B F D SUN 28 C G E H

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

Simple analog clock face with hour and minute hands, showing 2:15 (no text or numbers)

Analog clock face showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

◆ IMPOSTAZIONE DELL'ORA E DEL CALENDARIO [EM(469), NP(558)]

0 12:00 0 12:00

Diagram showing a clock face with directional arrow and measurement labels, likely illustrating a measurement or navigation system.

RUT 1 Ruotare senso ar

Diagram showing a clock face with hour and minute hands, next to an arrow indicating rightward movement.

Ruotare in senso antiorario

Diagram showing a clock face with hour and minute hands, followed by a directional arrow indicating rightward movement.

Analog clock face showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

Hand-drawn clock face with Chinese text and a circular arrow indicating rotation or refresh, alongside a partial circular symbol.

♦ UTILIZZO DEL “CALENDARIO MULTI-ANNO”

Technical line drawing of a mechanical dial with internal components and a pointer (no text or symbols)

Hand-drawn sketch of a wristwatch face with dual dials showing time and minute hands

Simple line drawing of a person using a tool to clean or brush (no text or symbols)

(3) Magnetismo

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines indicating speed (no text or symbols)

(5) Temperaturas

A B D C E G

A B F D C G H E SUN 8

Illustration of a hand holding a wristwatch with motion arrows indicating rotation (no text or symbols)

MECANISMO DE CUERDA MANUAL

Simple analog clock face with hour and minute hands, showing 2:15 (no text or numbers)

Analog clock face showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

◆ CÓMO AJUSTAR LA HORA Y EL CALENDARIO [EM(469), NP(558)]

Simple line drawing of a clock face with an arrow pointing right (no text or symbols)

Diagram showing a clock face with hour and minute hands, followed by an arrow indicating rightward movement.

Analog clock face showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

◆ PUESTA EN HORA Y AJUSTE DE LA FECHA [NQ(559), PM(599)]

Hand-drawn clock face with Chinese text and a circular arrow indicating refresh or move, alongside a partial circular symbol.

◆ USO DEL "CALENDARIO MULTIANUAL"

Technical line drawing of a mechanical dial with internal components and a pointer (no text or symbols)

Diagram of a wristwatch with dual dials showing time and duration in seconds, including a dial indicator and pointer.

Hand-drawn sketch of a wristwatch face with dual dials showing time and minute hands

Corona (2)

Simple line drawing of a person using a tool to clean or dig (no text or symbols)

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines indicating speed (no text or symbols)

(5) Температура

A B D C E G

A B F D SUN 28 C G E H

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

Simple analog clock face with hour and minute hands, showing a small rectangular object on the wall (no text or symbols)

Analog clock face showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

Diagram showing a clock face with directional arrow and a small labeled component, likely indicating a time or signal flow.

Diagram of a clock face with directional arrow indicating rightward movement, showing time and square marker

Simple circular diagram with tick marks and a right-pointing arrow, no text or symbols present.

Analog clock face showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

◆ УСТАНОВКА ВРЕМЕНИ И ДАТЫ [NQ(559), PM(599)]

Hand-drawn clock face with Chinese text and a circular arrow, indicating time measurement or refresh.

Diagram of a circular mechanical device with internal components and a pointer, no visible text or symbols

Diagram of a wristwatch with dual dials showing time and duration in seconds, including a dial indicator and analog clock.

Hand-drawn analog clock face with dual dials and hands, showing time approximately 12:30

Головка (2)
