USER MANUAL TEL 50 SOS AUDIOLINE

Operating Instructions

D

GB

AUDIOLINE

TEL 50 SOS

Diagram showing a device panel with labeled components and directional arrows indicating movement or flow.

1 Safety Information 24
2 Putting the Telephone into Operation 25
3 Operating Elements 27.
4 Operating the Telephone 28
5 Telephoning 30.
6 Private Branch Exchanges / Supplementary Services 32.
7 Menu Structure 33
8 Phone Book 34
9 Calls List 36
10 Emergency Call Unit 37
11 If Problems Occur 39
12 Important Information 40
13 Index 41

1 Safety Information

Please read this operating instruction manual thoroughly.

Intended use

The telephone is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

Installation location

Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Power supply

Caution: Only use the power adapter plug supplied because other power supplies could damage the telephone. Ensure access to the power adapter plug is not obstructed by furniture or such.

Hearing aid compatibility

The telephone is compatible with most popular hearing aids on the market. However, due to the wide range of hearing aids available, there is no guarantee that the telephone will function problem-free with every model.

Disposal

You are obliged to dispose of consumable goods properly in accordance with the applicable legal regulations. The adjacent symbol on the telephone indicates that electrical and electronic apparatus and batteries no longer required must be disposed of separate from domestic waste.

Electrical and electronic devices must be disposed of at suitable collection points provided by the public waste authorities.

Batteries must be disposed of at the point of sale or at the appropriate collection points provided by the public waste authorities.

Packaging materials must be disposed of according to local regulations.

2 Putting the Telephone into Operation

Safety notes

Caution: It is essential to read the safety information in Chapter 1 before preparing the telephone for use.

Checking the contents of the package

The package contains:

• a base unit - a receiver
• a telephone connection cable - a helix cable for the receiver
• a power adapter plug - an emergency call unit with neckband
• a wall-mounting bracket - four AA 1.5 V batteries
• an operating manual - a 12 V battery in the emergency call unit

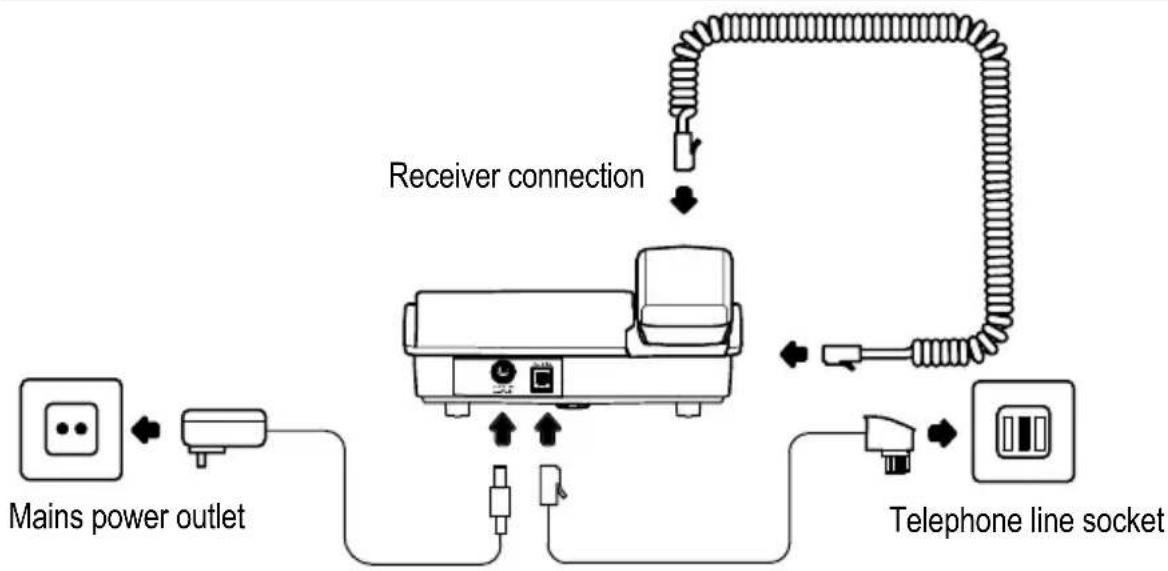

Connecting the telephone

Connect the telephone as illustrated in the diagram. For reasons of safety, only use the power adapter plug supplied and telephone connection line enclosed.

The telephone can be operated with or without the power adapter plug. The full range of telephone functions can only be exploited when batteries or the power adapter plug are used.

Inserting the batteries

Insertion of batteries is not absolutely essential. The telephone can be operated with or without batteries. The full range of telephone functions can only be exploited when batteries or the power adapter plug are used. Pay attention that the telephone is not connected to the telephone line socket and/or mains power connection when the batteries are being inserted or replaced.

The battery compartment is located on the underside of the telephone. Insert the batteries after opening the battery compartment. Only use batteries of the type AA 1.5 V. Pay attention to correct polarity. Close the battery compartment cover.

When the batteries are empty, the 📁 icon appears in the display. Replace the batteries.

Putting the Telephone into Operation

Wall installation

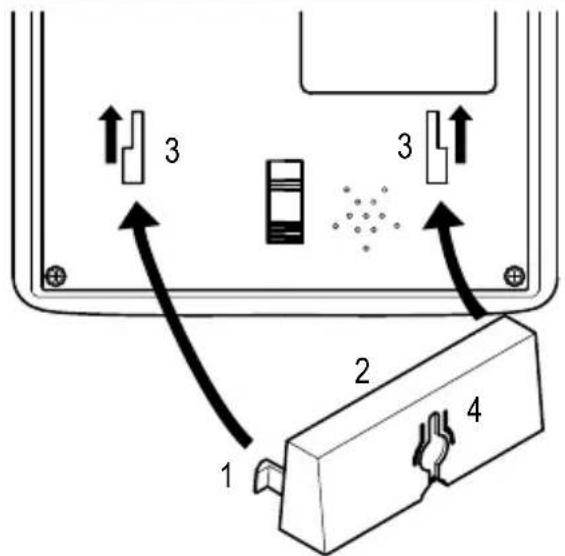

Feed the guide tabs (1) on the wall-mounting bracket (2) in the slots (3) on the underside of the telephone. Slide the wall-mounting bracket 10 mm upwards until it audibly locks into place. Drill a hole and insert a screw leaving about 5 mm of the screw projecting from the wall. Guide the mounting hole (4) in the mounting bracket (2) over the screw and slide the telephone downwards.

Caution: Ensure there are no electrical lines, water pipes etc. in the wall where the hole is drilled.

1 2 3 3 4

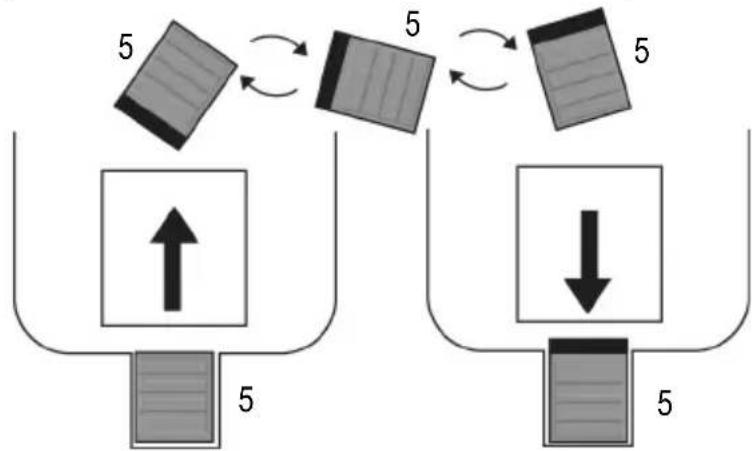

Turn the hook (5) in the receiver cradle so that the receiver can be placed on-hook.

Setting the language

The information on Page 33 explains how to set the telephone's voice output and display language when starting it up for the first time.

Setting the date and time

The information on Page 33 explains how to set the date and time on the telephone when starting it up for the first time.

Setting the contrast

The information on Page 33 explains how to set the display contrast.

Setting the ringer tone

The information on Page 33 explains how to set the ringer tone.

3 Operating Elements

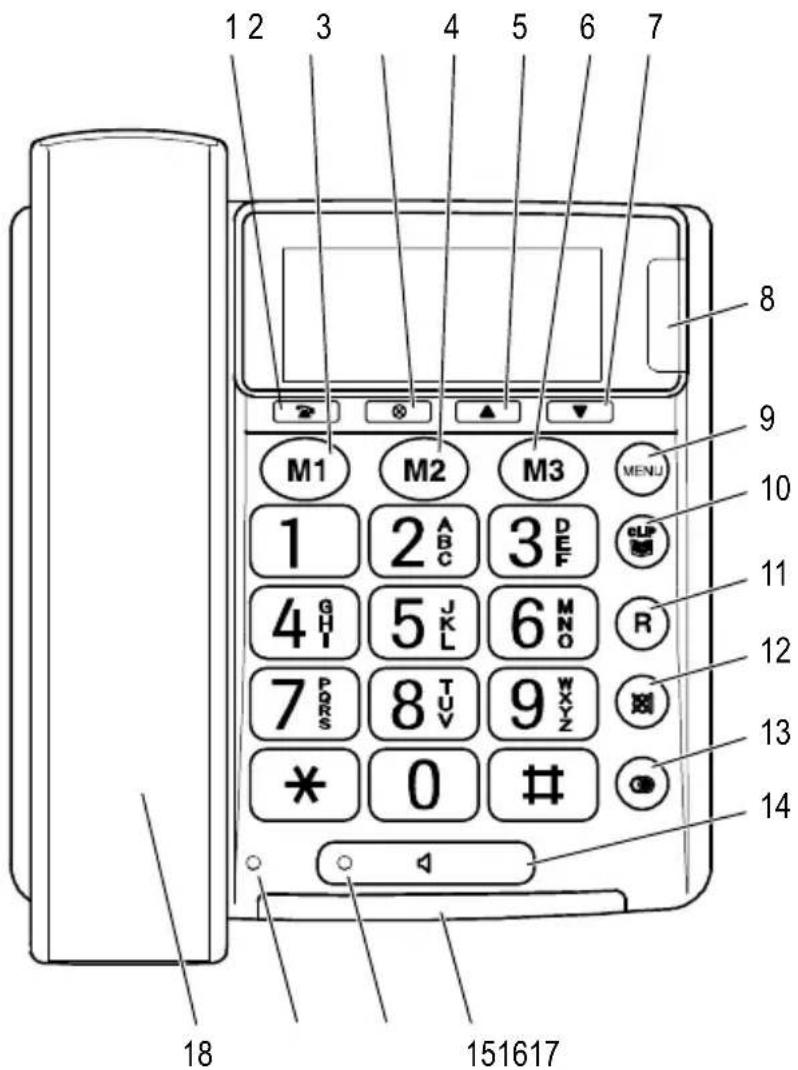

Telephone

1 Call back button
2 Quick dial button M1 (emergency call number 1)
3 Delete
4 Quick dial button M2 (emergency call number 2)
5 Scroll upwards
6 Quick dial button M3 (emergency call number 3)
7 Scroll downwards
8 LED, emergency call unit / New call
9 Menu button
10 Calls list (CLIP) / Phone book
11 R button
12 Microphone muting button
13 Redialling
14 Handsfree mode
15 LED, telephone is ringing
16 LED, handsfree mode
17 LED, receiver volume
20 "Tone" slide control
21 "Handsfree volume" slide control

18 Control knob, receiver volume (hidden)

19 "Ringing volume" slide control

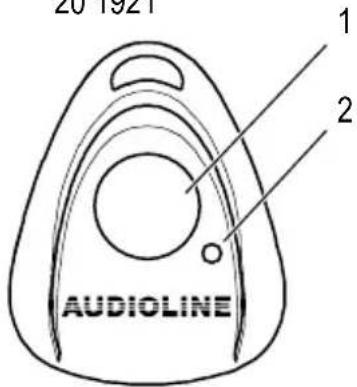

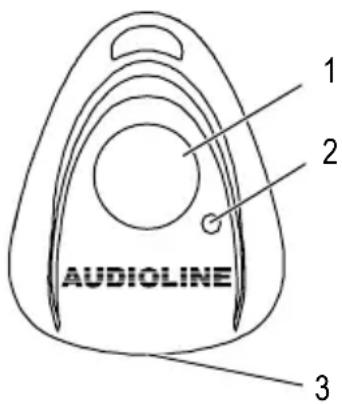

Emergency call unit

1 Start automatic emergency call
2 LED, battery charge capacity

12 3 4 5 6 7 M1 M2 M3 MENU 1 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO R 7 PORS 8 TUV 9 WXYZ * 0 # 18 151617

Line drawing of a curved electronic device with labeled ports (no text or symbols)

20 1921

20-1921 1 2 AUDIOLINE

GB

The buttons in this operating manual are depicted with a uniform contour. Variations in the symbols on the telephone buttons compared to those depicted here are possible.

4 Operating the Telephone

Display and explanation of operation sequences

Enter digits or letters

* Press the button depicted briefly

2 x ✱ Press the button depicted twice, briefly

2 sec ✱ Press the button depicted for 2 seconds

Press and hold ✱ Press and hold the button depicted

Release * Release the button depicted

(( ) Telephone rings

Lift the receiver

Replace the receiver on-hook

≥Text

GERMAN

or

Text flashes in the display

Text or icon in the display

Icons in the display

Icon Description

On: Replace the batteries.

14:45 Display of the time. Page 33

19/09 Display of the date. ☐ Page 33

The phone book is open. Page 34

CLIP The calls list is open. Page 32

NEW The entry in the calls list is new. Page 36

REPEAT The caller in the calls list has called several times. Page 36

VOICE Flashing: Recording mode is active. 📋 Pages 33 and 37

On: A name has been recorded for this phone book entry.

+ An emergency call number (M1, M2 or M3) has been dialled. Page 37

Navigating in the menu

All the functions can be accessed via the various menus. Refer to Menu Structure ☐ Page 33 for information on how to access each respective function.

MENU Open the main menu

Select the submenu required

Open the submenu

Select the setting required

Enter digits or letters using the relevant digit keys

Confirm the entries

Cancel programming and saving processes and

return to Standby mode

Every process is automatically cancelled if there is no input within 20 seconds.

Creating phone book entries - example

The example in Creating phone book entries explains how to navigate and make entries in the phone book. Proceed as in this example for all the settings.

MENU Open the main menu

STORE NUMBER, Select the submenu required and confirm it

Enter the phone number (max. 22 digits) and confirm it

Enter the name (max. 16 letters) and confirm it

Telephoning

5 Telephoning

Taking a call

(( ), or Take the call

Ending a call

or End the call

Making a call

Enter the phone number (max. 22 digits)

Following incorrect input, press to delete the last digit

or 📋 Dial the phone number

It is also possible to lift the receiver first to obtain the dialling tone. The digits in the phone number then entered are dialled immediately. It is not possible to correct wrong digits individually using this dialling procedure.

Redialling

Your telephone stores the last phone number dialled.

or，

Redial the last phone number dialled

Calling back missed calls

The telephone stores the numbers of the last 64 calls received in a calls list.

CLIP Open the calls list

▲ or ▼ Select an entry

, ▲Dial the number

Dialling phone numbers from the phone book

There must be phone numbers stored in the phone book. Page 33

Open the phone book

▲ or ▼ Select an entry

, ▲Dial the number

Quick dial

The quick dial buttons M1, M2 or M3 can be used for normal quick dial numbers or as a memory location for automatic emergency call dialling. Phone numbers must have been stored as quick dial numbers.

Page 37.

M1, M2 or M3

Press the required quick dial button

or Dial the number

Further information on automatic emergency calls ☐ Page 37.

Chain dialling

The function is used in more complex telephone services, e.g. for telephone banking, call-by-call or calling card procedures. Several numbers stored in the phone book can be dialled successively when a connection has already been made. It is also possible to combine numbers for transfer from the phone book with numbers entered manually. Numbers stored in the phone book can be chained and transmitted as required.

Open the phone book when a connection has

been made

▲ or ▼,

Select the phone book entry and transmit the number

Adjusting the receiver volume

The receiver volume can be adjusted to one of 10 levels using the control knob.

Adjust the volume with the control knob

Tone control

The tone of the receiver can be adjusted using the corresponding slide control on the right-hand side of the housing.

Adjust the tone using the slide control

Tone adjustment is not possible when the receiver volume is set to its minimum level.

Ringing volume

The ringing volume can be adjusted using the corresponding slide control on the right-hand side of the housing.

Adjust the volume using the slide control

Talk time display

The duration of a call is displayed in minutes and seconds during the call.

Handsfree

Use this function to listen to the caller via the loudspeaker.

Switch on handsfree mode

Deactivate handsfree mode

Adjusting the handsfree volume

The handsfree volume can be adjusted using the corresponding slide control on the right-hand side of the housing.

Adjust the volume using the slide control

Muting the microphone in the handset

The microphone in the handset can be activated and deactivated during a telephone conversation.

Press and hold ☒ Switch the microphone off (muting)

Release ☒ Switch the microphone on

Private Branch Exchanges / Supplementary Services

6 Private Branch Exchanges / Supplementary Services

R button on private branch exchanges

If the telephone is connected to a private branch exchange, functions such as transferring calls and automatic call back can be used via the R button. Please refer to the operating manual supplied with your private branch exchange to determine which recall (Flash) time must be set in order to use these functions. The dealer where you purchased the exchange can provide information as to whether the telephone will work properly with the exchange. Setting the recall time ☐ Page 33

Dialling pause

In the case of private branch exchanges, it is necessary to enter an access code to get an outside line with its corresponding dialling tone. When using some older private branch exchanges, it takes a little time before the dialling tone becomes audible. Particularly in the case of such private branch exchanges, it is possible to insert a dialling pause after the number for the outside line so that the number can be dialled in a continuous process without having to wait for the dialling tone.

Insert a dialling pause

After dialling the number for the outside line, the telephone then waits approx. 3 seconds before dialling the actual phone number.

pause can also be entered with the phone number in the phone book.

R button and supplementary services

Your telephone supports the supplementary services offered by your telephone network provider, such as brokering, call waiting and conference calls. The supplementary services can be used in conjunction with the R button. Please contact your telephone network provider regarding which recall time must be set to use the supplementary services. Please contact the telephone network provider with regard to enabling the supplementary services. Setting the recall time Page 33.

Caller number display (CLIP ^1 )

If this function is available with your telephone line, the number of the caller appears in the display when the phone rings. If the caller has suppressed transmission of his phone number, a corresponding message appears in the display. The phone number is not displayed and, as a result, is not stored in the calls list.

The caller number display function is an optional service offered by telephone network providers. Contact your network provider for further information.

7 Menu Structure

Main menu

Access the main menu by pressing the MENU button. Page 28 explains how to navigate and make entries in the main menu.

LCD CONTRAST LCD CONTRAST 1-5

TIME/DATE

ENTER TIME

ENTER DATE

STORE NUMBER

ENTER NUMBER

ENTER NAME

NAME RECORDING Page 35

RECORD MESSAGE Page 37

CHECK MESSAGE Page 35

LANGUAGE ^1

GERMAN

FRENCH

ENGLISH

ITALIAN

FLASH FLASH100

FLASH300

RINGER TONE RINGER TONE 1-3

VOICE 2

VOICE YES

VOICE NO

GB

^1 The outgoing messages and display texts on the telephone are available in 4 languages.
^2 When a button is pressed, a voice accompanies the action. This voice can be activated and deactivated, as required.

8 Phone Book

Thirty phone numbers can be stored in the phone book together with the associated names.

• Always enter the area access code with the phone numbers so that the telephone can also assign incoming local calls to a phone book entry.
• When the memory capacity of the phone book is used up, the message

MEMORY FULL appears when an attempt is made to store another number. To create space, an existing entry must first be deleted.

- The phone book entries are arranged alphabetically. To skip to the required phone book entry directly, enter the first letter of the corresponding entry.

Entering a name

The digit keys are also labelled with letters for the entry of the respective letters. Pressing the respective key the necessary number of times enables capital letters and digits to be entered.

1 Space
Delete

To enter the same letter twice, press the button to enter the letter. Wait until the cursor skips one place forward. Enter the letter again.

Creating phone book entries

MENU Open the main menu

▲ or ▼

STORE NUMBER, Select the submenu required and confirm it

Enter the phone number (max. 22 digits) and

confirm it

Enter the name (max. 16 letters) and confirm it

Editing entries in the phone book

Open the phone book

▲ or ▼ Select a phone book entry

2 sec MENU EDIT, Activate the editing process and confirm it

, Edit the phone number (max. 22 digits) and

confirm it

, Edit the name (max. 16 letters) and confirm it

Deleting entries from the phone book

Deleting a single entry

Open the phone book

▲ or ▼ Select a phone book entry

DELETE?

Activate the deleting process

2 sec ☒ Confirm the deleting process

or

▲ or ▼ Cancel the deleting process

Delete all entries

Open the phone book ▲ or ▼ Select any phone book entry 2 sec Ⓧ DELETE ALL? Activate the deleting process 2 sec Ⓧ Confirm the deleting process

or

Recording names for phone book entries

A name can be recorded for each phone number stored in the phone book. When you subsequently select an entry in the phone book, the recording you made for it is played and you can hear the entry you have selected.

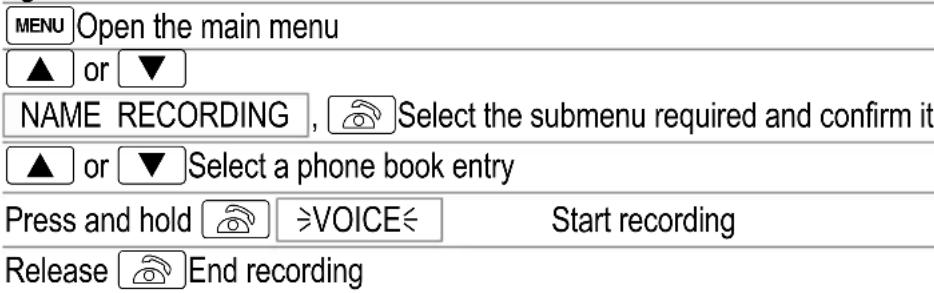

Recording names

MENU Open the main menu ▲ or ▼ NAME RECORDING , Select the submenu required and confirm it ▲ or ▼ Select a phone book entry Press and hold ≥VOICE≤ Start recording Release End recording

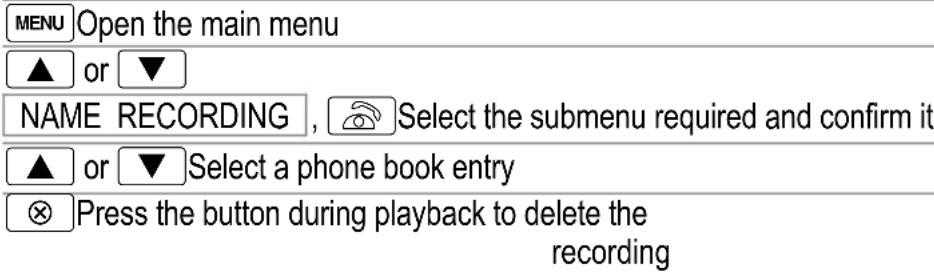

Deleting recordings

MENU Open the main menu ▲ or ▼ NAME RECORDING , Select the submenu required and confirm it ▲ or ▼ Select a phone book entry ⊗ Press the button during playback to delete the recording

9 Calls List

A total of 64 call numbers can be stored in the calls list. The red LED indicates new calls in the calls list.

Displaying phone numbers in the calls list

▲ or ▼ Open the calls list and select an entry

Two different display messages indicate whether the caller has called once or several times.

Display Description

NEW The entry in the calls list is new.

REPEAT The caller in the calls list has called several times.

Storing numbers from the calls list in the phone book

A phone number stored in the calls list can be transferred directly to the phone book.

▲ or ▼ Open the calls list and select an entry

2 sec MENU Start the storing process

COPY TO MEMORY, Confirm the storing process

The phone number is stored in the phone book without a name being assigned. Then enter a name for the phone number. ☐ Editing entries in the phone book Page 34

When the number in the phone book is stored together with a name, the name entered also appears in the calls list.

Deleting phone numbers from the calls list

Deleting phone numbers individually

▲ or ▼ Open the calls list and select an entry

DELETE?

Activate the deleting process

2 sec ☒ Confirm the deleting process

or

▲ or ▼ Cancel the deleting process

Deleting all the phone numbers

▲ or ▼ Open the calls list and select an entry

2 sec ☒ DELETE ALL? Activate the deleting process

2 sec ☒ Confirm the deleting process

or

▲ or ▼ Cancel the deleting process

10 Emergency Call Unit

The emergency call unit can be used to dial an emergency services exchange or persons for assistance.

There are several appropriate emergency service call numbers available, such as the Red Cross, St. John's Ambulance Brigade, etc. Emergency calls are not free of charge.

The unit can also be used for private emergency calls within the family, for example.

Outgoing alert message

There is a default outgoing alert message recorded on the telephone. You can replace this message with one of your own. After activating an automatic emergency call, the phone numbers assigned to buttons M1, M2 and M3 are called automatically. The alert message is played repeatedly until your emergency call is acknowledged by the person receiving it through pressing the "0" key. For this reason, you must end your own alert message clearly telling the receiving party to "...take this emergency call by pressing the 0 key!".

When recording your message, make sure that the person called recognises your name in the emergency call. Inform them clearly that this is an emergency call and that you need help.

Recording an outgoing alert message

MENU Open the main menu

RECORD MESSAGE

Select the submenu

Press and hold

≥slant VOICE ≤slant

Start recording

Release

End recording

Playing the outgoing alert message

MENU Open the main menu

CHECK MESSAGE

Select the submenu

Play the outgoing alert message

Deleting the outgoing alert message

MENU Open the main menu

CHECK MESSAGE

Select the submenu

)Play the outgoing alert message

Delete the outgoing alert message

Storing emergency call / quick dial numbers

The quick dial buttons M1, M2 and M3 can be used for normal quick dial numbers or as memory locations for automatic emergency call dialling.

MENU Open the main menu

STORE NUMBER ,

|Select the submenu required and confirm it

，

Enter the pho

ne number (max. 22 digits) and

confirm it

M1

M2

or

M3

Select the quick dial button and confirm

phone numbers assigned to the quick dial keys cannot be deleted. When storing new numbers, the existing entries are overwritten.

Emergency Call Unit

Automatic emergency call

The automatic emergency call can be initiated by pressing the buttons M1, M2 or M3 on the telephone or the button on the emergency call unit. If no phone number has been assigned to M1, M2 or M3, no phone number is dialled but a loud warning signal is issued from the telephone.

Pay attention that the emergency call unit is within range of the telephone.

The batteries in the emergency call unit should always be full.

Starting/Ending the automatic emergency call

The phone behaves as follows on starting the automatic emergency call:

1. The telephone issues warning signals for 15 seconds.
2. The telephone then automatically activates handsfree mode and plays back the outgoing alert message.
3. The phone numbers assigned to M1, M2 and M3 are then dialled in succession at intervals of 60 seconds. As soon as the emergency call is acknowledged by one of those called pressing the "0" button, the outgoing alert message is stopped and you can speak to the person and request the necessary assistance.
4. If the call is acknowledged by the person called pressing "0", the phone is set to Speakerphone mode for 3 minutes. After the 3 minutes, the phone numbers assigned to M1, M2 and M3 are then dialled again in succession at intervals of 60 seconds.

Automatic emergency calls via the telephone

5 sec M1, M2 or M3 Start the automatic emergency call function

5 sec M1, M2, M3 or End the automatic emergency call function

Automatic emergency calls via the emergency call unit

1. Press and hold the button (1) on the emergency call unit for 5 seconds to start the automatic emergency call function.
2. Press and hold the button on the emergency call unit for 5 seconds again to end the automatic emergency call function.

Emergency call unit battery

Testing the battery

1. Press and hold the button (1) on the emergency call unit briefly. The LED (2) lights up.
2. If the LED (2) no longer lights up when the button is pressed and held, replace the battery.

AUDIOLINE 1 2 3

Replacing the battery

1. Remove the screw on the rear side of the emergency call unit using a small, crosstip screwdriver.
2. Insert the tip of a small screwdriver in the notch (3) and open the housing.
3. Replace the battery. Only use batteries of the same type. Pay attention to correct polarity.
4. Close the housing.

11 If Problems Occur

Service hotline

Should problems arise with the telephone, please refer to the following information first. In the case of technical problems, contact our Service Hotline, tel. [phone] (Telekom costs at time of going to print: 12 ct/min). In the case of claims under the terms of guarantee, contact your sales outlet. There is a 2 year period of guarantee.

Problems Reply
No telephone calls possible - The	telephone line is not connected properly or is defective. Only use the telephone connection cable supplied.- The power adaptor plug is not plugged in or there is a complete power failure.
The caller number display (CLIP) does not function	- The caller number display function is an optional service offered by telephone network providers. Contact your network provider for further information.- The caller has suppressed the transmission of their phone number.

12 Important Information

Maintenance

• Clean the housing surfaces with a soft, fluff-free cloth.
• Never use cleaning agents or solvents.

Guarantee

AUDIOLINE equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the batteries, rechargeable batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies resulting from material or production faults which occur during the period of guarantee will be eliminated free of charge. Rights to claims under the terms of guarantee are annulled following intervention by the purchaser or third parties. Damage caused as a result of improper handling or operation, incorrect positioning or storing, improper connection or installation, Acts of God or other external influence are not covered by the terms of guarantee. In the case of complaints, we reserve the right to repair or replace defect parts or provide a replacement device. Replacement parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your equipment shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the AUDIOLINE equipment together with the purchase receipt. All rights to claims under the terms of guarantee in accordance with this agreement must be asserted exclusively with regard to your sales outlet. Two years after the purchase and transfer of our products, claims under the terms of guarantee can no longer be asserted.

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directive:

1999/5/EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. Conformity with the above mentioned directive is confirmed by the CE symbol on the device.

To view the complete Declaration of Conformity, please refer to the free download available on our web site www.audioline.de.

13 Index

A

Automatic emergency call, 38

B

Battery status, 25

C

Caller number display, 32

Calling back missed calls, 30

Calls list, 36

Chain dialling, 30

Connecting the telephone, 25

Contrast setting, 26, 33

Creating phone book entries, 29, 34

D

Date and time setting, 26, 33

Declaration of Conformity, 40

Deleting entries from the phone book, 34

Deleting phone numbers from the calls list, 36

Dialling pause, 32

Dialling phone numbers from the phone book, 30

Display, 28

Displaying phone numbers in the calls list, 36

E

Editing entries in the phone book, 34

Emergency call unit, 37

Emergency call unit battery, 38

Ending a call, 30

Entering a name, 34

Explanations, 28

G

Guarantee, 40

H

Handsfree, 31

Handsfree volume, 31

|

Icons in the display, 28

Inserting the batteries, 25

L

Language setting, 26, 33

M

Main menu, 33

Maintenance, 40

Making a call, 30

Menu structure, 33

Muting the microphone, 31

N

Navigating in the menu, 28

0

Operating elements, 27

Operating the Telephone, 28

Outgoing alert message, 37

P

Package contents, 25

Phone book, 34

Private branch exchanges, 32

Putting the telephone into operation, 25

Q

Quick dial, 30

R

R button and supplementary services, 32

R button on private branch exchanges, 32

Receiver volume, 31

Recording names for phone book entries, 35

Redialling, 30

Ringer tone setting, 26, 33

Ringing volume, 31

S

Safety information, 24

Service hotline, 39

Storing emergency call numbers, 37

Storing numbers from the calls list in the phone book, 36

Storing quick dial numbers, 37

Supplementary services, 32

T

Taking a call, 30

Talk time, 31

Telephoning, 30

Tone control, 31

W

Wall installation, 26

GB
