USER MANUAL TEL49 CLIP AUDIOLINE

White telephone with digital display showing phone number and keypad

Operating Instructions 21

Pure diagram of a container with two circular components and directional arrows, no text or symbols present

Top-down schematic of a vehicle or vehicle interior with no visible text, numbers, or symbols

VOLLVERANTWORTLICH, DASS DAS PRODUKT

MODELL: TEL49Clip

BESCHREIBUNG:

Schnurgebundenes

Telefon

Name: MANFRED ZINNOW

3.1 Safety Information 25
3.2 Check contents of pack 25
3.3 Connecting the receiver 25
3.4 Insert batteries.... 25
3.5 Connecting the telephone cable 25
3.6 Wall mounting 26
3.7 Basic settings 27
3.8 Setting the display contrast.... 28
3.9 Private exchanges - T-NET set-up 28

4 Operation 29

4.1 Using the telephone 29
4.2 Receiving Calls 29
4.3 Increasing the volume of the receiver.... 29
4.4 Redial.... 29
4.5 Call Duration Display 29
4.6 Adjustable ringing tone.... 30
4.7 Storing direct and speed dial numbers 30

4.7.1 Storing the direct dial buttons 30
4.7.2 Storing the spedd dial numbers 30
4.7.3 Dialling using the direct dial buttons 31
4.7.4 Dialling using the speed dial buttons 31

4.8 Dialling telephone numbers when using on private exchanges ..... 31

5 Caller Display (CLID).... 32

5.1 Viewing the Caller List 33
5.2 Dialling a telephone number directly from the Caller List...... 34
5.3 Deleting numbers from the caller list 34
5.4 Deleting the entire caller list.... 34

6 Important information 35

6.1 Fault Finding 35
6.2 Hearing aid compatible 35

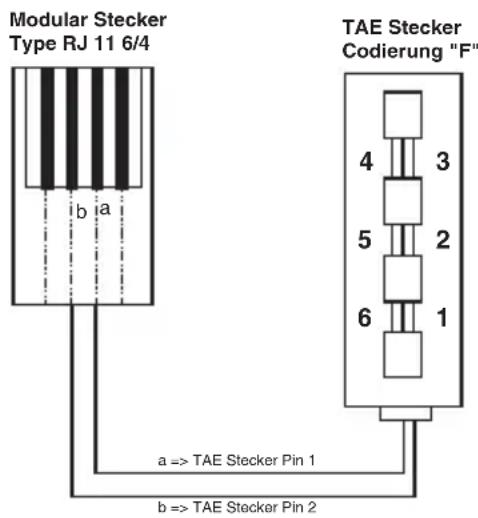

6.3 Replacing the telephone cable 35
6.4 Warranty 36
6.5 Declaration of conformity 37

1 Safety Information

Please read these operating instructions carefully. If you should have any questions, please contact our Service Department on the Hotline number 01805 00 13 88. Under no circumstances open the unit yourself and do not try to carry out your own repairs. For any claims under the warranty, please refer to your dealer.

Intended use

This telephone is designed for use connected to an analogue telephone line (PSTN) in Germany. However, due to differences in the services provided by the various telecommunications providers, we cannot guarantee that the telephone will work properly when connected to all telecommunications terminal lines. The telephone is prepared for connection to a TAE phone jack with F/N coding and can be used together with other equipment such as a fax, answering machine, or a modem. Plug the connecting phone cable only into the telephone plug socket provided for this purpose. Do not replace the plug of the connecting phone cable.

Private exchanges

The telephone can also be connected to a private exchange. You can find out from the dealer from whom the equipment was purchased whether your telephone will work on your private exchange without any problems. Due to the large number of different private exchanges, it is not possible to guarantee this function.

Location

Do not set up the telephone in the immediate vicinity of other electrical equipment such as microwaves or hi-fi systems, as this may result in mutual interference. The location has a decisive influence on the trouble-free operation of the telephone.

Place the telephone on a flat and non-slip surface. The feet do not normally leave any marks on the surface. However, due to the large number of varnishes and surfaces in use, it may not be possible to prevent marks occurring on the surface due to the feet of the unit.

Do not use the telephone in areas where there is a risk of an explosion. Excessive exposure to smoke, dust, vibrations, chemicals, moisture, heat or the direct rays of the sun must be avoided.

- Safety Information -

Disposal

If the useful life of the complete equipment has expired, please dispose of it carefully in accordance with the statutory requirements and in a manner friendly to the environment.

Temperature and ambient conditions

The telephone is designed for use in protected rooms with a temperature range of 10 °C to 30 °C. The telephone must not be installed in damp rooms such as a bathroom or laundry room. Avoid proximity to sources of heat such as radiators and do not expose the unit to direct sunlight.

Cleaning and care

The surface of the case can be cleaned with a soft, dry, lint-free cloth. Never use cleaning agents, particularly aggressive solvents. No attention is necessary apart from cleaning the housing occasionally. The rubber feet of the telephone are not resistant to all cleaning agents. The manufacturer can therefore not accept any liability for possible damage to furniture or the like.

CE mark

The telephone complies with the basic requirements of the R&TTE Directive This is confirmed by the CE mark.

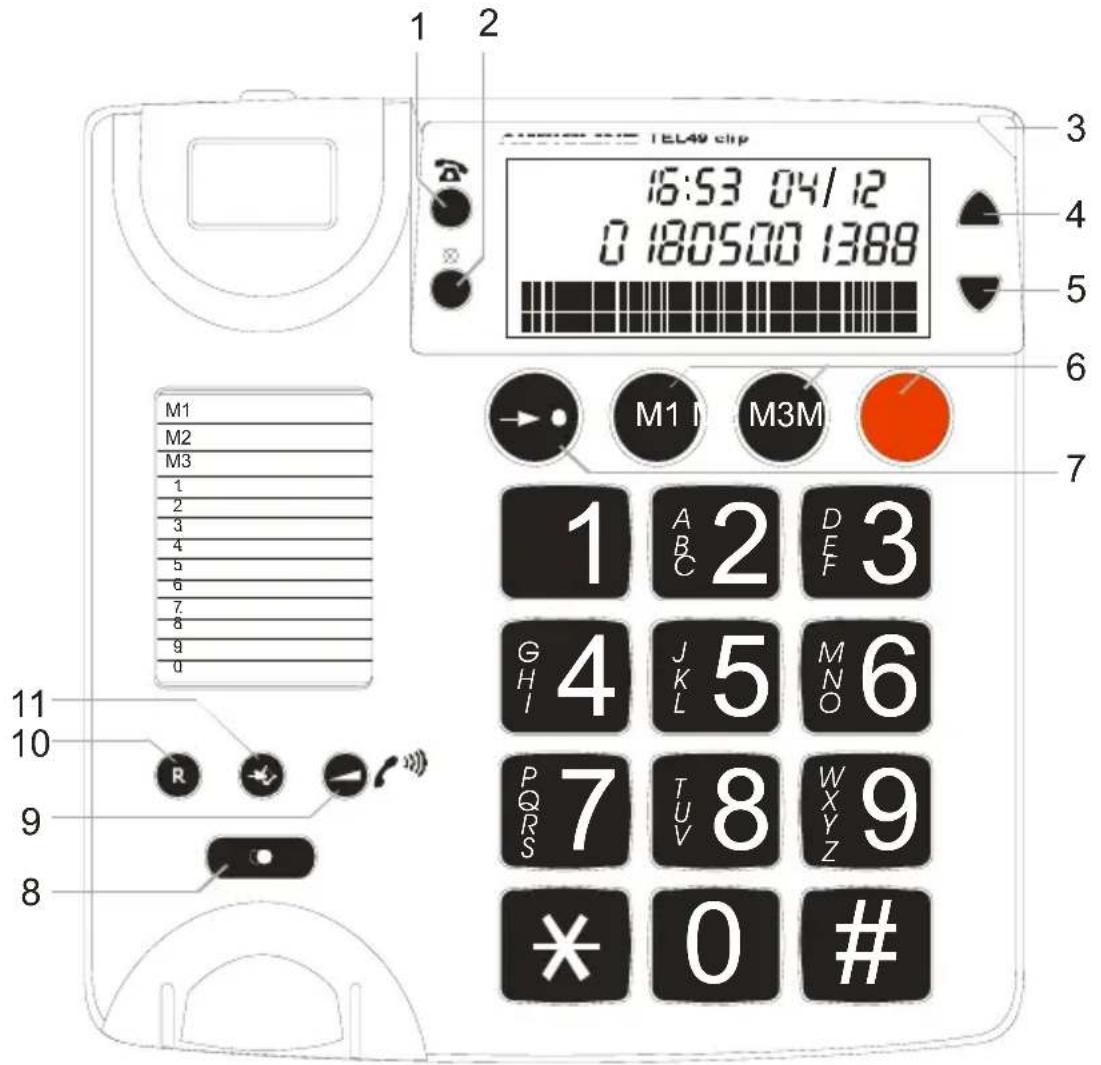

2 User controls

1 2 TEL49 clip 16:53 04/12 0 180500 1388 M1 M2 M3 1 2 3 4 5 6 7 8 9 0 11 10 9 8 M1 M M3M 1 A B 2 D E F 3 G H I 4 J K L 5 M N O 6 P Q R S 7 T U V 8 W Y Z 9 * 0 #

1 Dialing from caller list 7 Speed dial button
2 Delete button 8 Redial
3 Visual call indicator 9 Receiver volume
4 Caller list up 10 R Signal button
5 Caller list down 11 Store button
6 Direct dial buttons 1 to 3

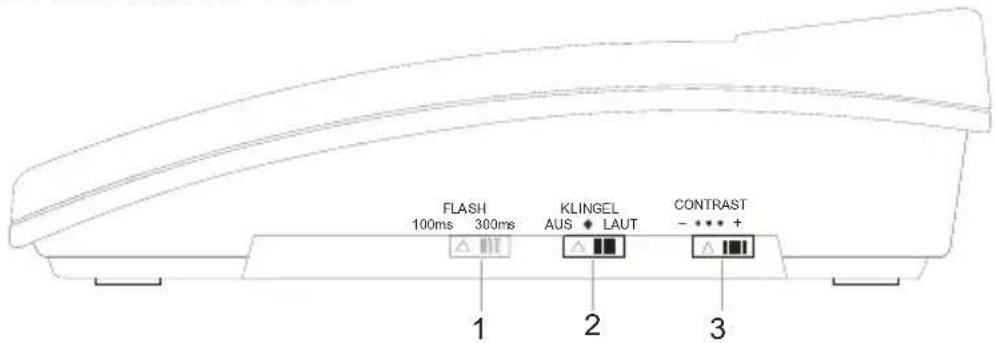

FLASH 100ms 300ms KLINGEL AUS • LAUT CONTRAST - •••• + 1 2 3

1 FLASH switch
2 Ringer volume

3 Display contrast

3 Setting up

3.1 Safety Information

NOTE! Before setting up, it is essential that you read the Safety Information at the beginning of this operating manual.

3.2 Check contents of pack

The following items are supplied:

one telephone one telephone connecting cable

one instruction manual one receiver

one spiral cable four AA batteries

one wall adapter

3.3 Connecting the receiver

After unpacking your new telephone, you must first connect the telephone receiver to the base unit. The spiral cable needed for this has two identical connections so that there can be no confusion. First take one end of the spiral cable and plug it into the socket at the bottom of the receiver. Now plug the other end into the socket on the left-hand side of the base unit.

3.4 Insert batteries

Before connecting your new telephone to the telephone network, the supplied batteries should be installed. Please always use four type AA 1.5V alkaline batteries. The batteries are required for the display and other features of the telephone. Before installing or changing the batteries make sure that the telephone is not connected to the telephone network. The battery compartment is to be found on the underside of your telephone.

1. Open the battery compartment with a small screwdriver or a pointed object.
2. Insert the batteries. Ensure that the polarity is correct. Push the “-” pole onto the small spring and then press the “+” pole downwards.
3. Close the battery compartment.

The battery must be changed when the display shows ▼.

3.5 Connecting the telephone cable

Connect the telephone cable provided to the telephone jack and the socket on the rear of your telephone. Check that the plug is properly engaged by pulling gently on the cable. If you do not have the right connection socket, please refer to your local network office.

- Setting up -

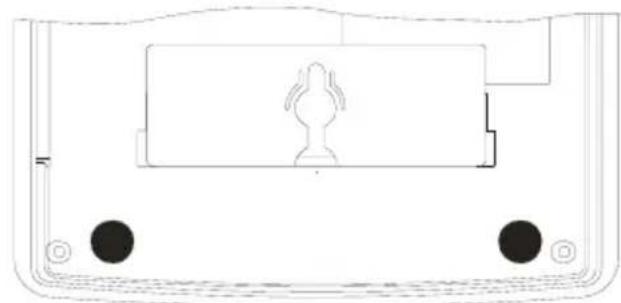

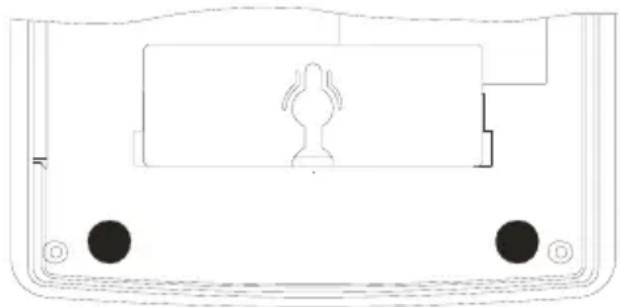

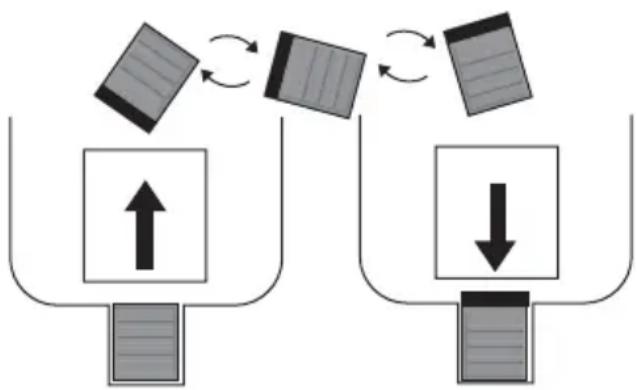

3.6 Wall mounting

Your telephone is also suitable for wall mounting. For wall-mounting, the adapter provided must be fixed to the rear of the telephone. To do this, turn the telephone over and fit the adapter into the openings marked in the housing (see left-hand diagram). Then slide the adapter upwards until it audibly engages (see right-hand diagram).

Pure diagram of a container with two circular objects and directional arrows, no text or symbols present

Top-down schematic of a device or enclosure with no visible text, numbers, or symbols

Use two screws for fixing to the wall. Drill two holes 83 mm apart, vertically one above the other, and leave the screws protruding 5 mm from the wall. Now place the telephone over the screws and push down slightly.

When using the telephone on a table, the receiver hanging hook must be in the lowered position, as shown in Diagram A (factory setting). When mounting on the wall, the receiver hanging hook is pulled out and turned. For more detail, see Diagram B.

Abb. A Abb. B

3.7 Basic settings

Before you can use your telephone, a few basic settings have to be made. These include entering the current date and time as well as your local dialling code and the country dialling code for Germany.

Some notes on the local dialling code and the country code

Telephone numbers are always shown in the display with the local dialling code or, in the case of international calls, also with the appropriate country code. If these numbers are dialled directly from the caller list, the dialling code can of course be omitted with local calls. Therefore, you should enter your local dialling code (always starting with the 0) and the country code for Germany (0049).

After the batteries have been fitted, the display shows the message ORTSVORWAHL and the cursor will flash in the first position.

Note: If the message ORTSVORWAHL no longer appears or if you have to change the time from winter to summer time, press the buttons ▲ ▼ for 4 seconds.

1. You can enter the local dialling code as soon as the cursor flashes in the first position. At a short dialling code press the Ⓧ button several times until the display shows the message LANDESVORWAHL.
2. Now enter the whole of the country code for Germany "0049". Confirm with the Ⓧ button. The display now jumps to the time entry.
3. Enter the current hour by repeatedly pressing the ▲▼ buttons.
4. Confirm with the ⊗ button. The display jumps to the minutes display.
5. Enter the current minutes by repeatedly pressing the ▲▼ buttons.
6. Confirm with the ☒ button. The cursor jumps to the day display.
7. Enter the current day by repeatedly pressing the ▲▼ buttons.
8. Confirm with the ☒ button. The cursor jumps to the month display.
9. Enter the current month by repeatedly pressing the ▲▼ buttons.
10. Confirm with the ☒ button. This completes the entries and the current data will now be shown in the display.

If the batteries are fully discharged, the time and date must be re-entered.

- Setting up -

Note: If you ever have to change the local or national dialling code at a later date, start programming by pressing the keys simultaneously. You can move the flashing cursor to the desired position by means of the delete button. You can now change the selected number with the buttons. In order to delete a number altogether, enter a minus sign (-) using the buttons.

3.8 Setting the display contrast

If the display cannot be seen clearly, you can adjust the display contrast to suit the lighting conditions. The display contrast can be adjusted in three steps by means of the “CONTRAST” slide switch on the right-hand side.

3.9 Private exchanges - T-NET set-up

You can use the “R” signal button on your telephone on private exchanges and when using DEUTSCHE TELEKOM’s T-Net functions. If you use neither a private exchange or the T-NET-functions of the DEUTSCHE TELEKOM, no adjustments must be made here.

Private exchanges

If you have connected your telephone to a private exchange, you can use all the facilities such as call transfer, automatic recall, etc. The “R” signal button gives you access to these facilities. The FLASH time “100ms” (factory setting) will be required on a private exchange. To make this setting, move the slide switch on the right side to the “100ms” position. You can find out from the dealer from whom the equipment was purchased whether your telephone will work on your private exchange without any problems and which other facilities you will have access to.

T-NET functions

Your telephone supports the most important DEUTSCHE TELEKOM added value services (e.g. brokering, call waiting, three-way conferencing, etc.). Please contact DEUTSCHE TELEKOM to gain access to these functions (some of which are subject to charge). When using T-NET functions, move the slide switch on the right side to the “300ms” position.

4 Operation

4.1 Using the telephone

Your telephone can be used like any conventional telephone.

PLEASE FOLLOW THE INSTRUCTIONS:

Lift the receiver and wait until you hear the dialling tone. The display shows the symbol.

Now dial the required telephone number. The number dialled will be shown in the display. The display shows a telephone number with a maximum of 16 digits. If the number dialled is longer, only the last 16 digits will be displayed.

To end the call simply replace the receiver.

4.2 Receiving Calls

As soon as you receive a call you will hear the ringing tone and the visual call indicator will come on at each ring. The call can now be accepted by lifting the receiver.

4.3 Increasing the volume of the receiver

If the caller's voice should ever be too quiet, you can increase the volume of the receiver.

Simply press the ▲ button during the call.

Note: The changed volume setting is not saved and must be increased again for the next call if required.

4.4 Redial

If a connection that you have dialled is engaged or you were unable to get through to anybody, simply replace the receiver. The last number dialled remains stored in the telephone automatically.

To use the redial facility, proceed as follows:

Lift the receiver and press the redial button ○. The stored redial number will now be dialled.

4.5 Call Duration Display

After dialling the telephone number, the current call duration in minutes and seconds will be shown in the display after a few seconds.

4.6 Adjustable ringing tone

By means of the “Ringer” slide switch on the right-hand side of your telephone you can choose the settings “SOFT” (◆), or “LOUD” (LAUT) to match the volume of the ringing tone to your requirements. If at any time you do not want to be disturbed, use the “OFF” (AUS) setting.

4.7 Storing direct and speed dial numbers

You can store a telephone number for direct dialling on each of the buttons M1, M2 and M3 with your telephone. The direct dial button M3 is coloured red and is thus suitable for use as an emergency call button. An additional 15 important numbers can be stored as speed dial numbers.

4.7.1 Storing the direct dial buttons

1. Enter the required telephone number using the number pad. The maximum length is 16 digits.
2. Lift the receiver.
3. Press the store button ↗.
4. The display shows “(--)”. Now press the required direct dial button M1, M2 or M3 to save the telephone number as a speed dial number. The display shows the message “GESPEICHERT (STORED)”.

5. If a storage location has already been used, the display shows the message "UEBERSCHREIBEN (OVERWRITE)". The selected storage location is overwritten with the new telephone number by means of the button. If you do not want to overwrite the storage location, press one of the buttons ▲ ▼ to cancel the entry.

6. Replace the receiver.

4.7.2 Storing the spedd dial numbers

1. Enter the required telephone number using the number pad. The maximum length is 16 digits.
2. Lift the receiver.
3. Press the store button ↗.
4. Press the speed dial button →●.
5. The display shows “(--)”. Now enter the required storage location between 04 and 18 using the number pad and the telephone number entered will be stored. The display shows the message “GESPEICHERT (STORED)”.

6. If a storage location has already been used, the display shows the message "UEBERSCHREIBEN (OVERWRITE)". The selected storage location is overwritten with the new telephone number by means of the button. If you do not want to overwrite the storage location, press one of the buttons to cancel the entry.

7. Replace the receiver.

- Operation -

Note: The memories M1, M2 and M3 correspond to the speed dial buttons 01, 02 und 03.

The numbers stored can be recorded on the index underneath the receiver. For this purpose, the cover can be removed with a pointed object.

4.7.3 Dialling using the direct dial buttons

1. Lift the receiver.
2. Press the required direct dial button M1, M2 or M3.
3. The stored number will now be dialled.

4.7.4 Dialling using the speed dial buttons

1. Lift the receiver and
2. Press the speed dial button →● and the required storage location from 04 to 18.
3. The stored number will now be dialled.

4.8 Dialling telephone numbers when using on private exchanges

With private exchanges, it is necessary to dial a certain number (e.g. "9" or "0") in order to obtain a dialling tone for an outside line on the extension. With some, older private exchanges, it takes some time before the dialling tone can be heard.

Especially for these private exchanges, an automatic pause can be inserted after connecting to the outside line so that you can dial directly without waiting for the dialling tone.

Press the ⚙ button once between the number for the outside line and the actual telephone number. The pause will be shown by a “P” in the display. After connecting to an outside line your telephone will wait for three seconds before dialling the actual telephone number.

5 Caller Display (CLID)

Using caller display, you can see with incoming calls who is calling you. If this function is available on your line, the display shows you the caller's telephone number while the telephone is ringing.

If the call is not accepted, this indication remains in the display for 60 seconds before the current time and date are shown once more.

The display reports the following information when there is no telephone number available.

1. If the message "Error" appears in the display, the number has only been partially or incorrectly received.
2. If the message “Not available” appears in the display, the telephone number information is not available. This could have been an international call.
3. If the message “Private” appears in the display, the caller has suppressed the transmission of his telephone number or it was not possible to transmit the number.

Furthermore, in your absence, all calls are saved in a caller list with date and time. Up to 99 numbers are saved in the caller list. When the list is full, the oldest number is always deleted from the list.

13:46 05/12

9 ANRUFE 2 NEU

If calls are registered during your absence, the display shows the number of newly stored numbers (XX NEW(NEU) and the visual call indicator flahes. The total number of telephone numbers stored in the caller list is also displayed (XX CALLS/ANRUFE).

You can find out how to view the list in the next chapter 5.1.

Warning!

Caller display is an optional service from your telephone provider. Your telephone will show the number in the display if your telephone provider offers this service. Please ask your telephone provider for further information. If this service is not available, incoming calls will not be shown in the display.

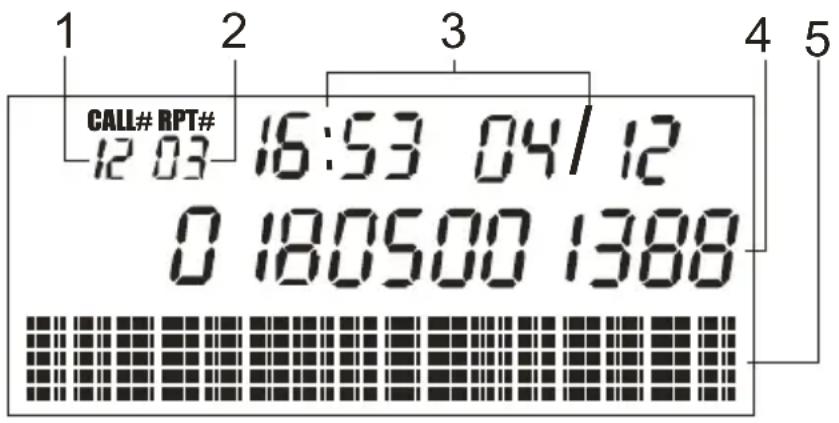

5.1 Viewing the Caller List

You can see the latest numbers by means of the button. When you reach the last storage location the display shows the message "End of list".

You can page through the caller list using the buttons.

CALL# RPT# 12 03 16:53 04/12 0 180500 1388

1. The number of the currently selected storage location between 1 and 99 appears under "CALL #" in the display.
2. If a caller has tried to reach you several times, the message "RPT" appears in the display and beneath it the number of calls. The date and time of the last call is always shown.
3. Time and date of the call.
4. Telephone number if received.
5. Display PRIVAT or NICHT VERFÜGBAR (not available), if it is not possible to show the number.

When all newly recorded numbers have been checked, the “NEW” (NEU) indicator in the display shows “0” and the visual call indicator expires

If no button is pressed within 20 seconds, the caller list is no longer displayed and the display shows the current time and date once more along with the number of telephone numbers stored in the caller list and the number of newly stored telephone numbers.

- Caller Display (CLID) -

5.2 Dialling a telephone number directly from the Caller List

You can dial telephone numbers directly from the caller list.

1. Lift the receiver and select the required telephone number using the ▲▼ buttons.
2. Now press the 📄 button and the telephone number will be dialled directly.

Or

1. With the receiver hung up on base select the required telephone number using the ▲▼ buttons.
2. Now press the 📄 button and lift the receiver. The telephone number will be dialled directly

Note!

Before dialling, your telephone compares the country and local dialling codes of the number dialled with your location (local dialling code). If you have entered your local dialling code during installation, the appropriate numbers will not be dialled if this is a number from within your local network.

5.3 Deleting numbers from the caller list

1. Select the telephone number that you want to delete from the caller list using the ▲▼ buttons.
2. Now press the ☒ button twice and the number will be deleted.

5.4 Deleting the entire caller list

1. Select one telephone number from the caller list using the ▲▼ buttons.
2. Press the button for 3 seconds. The display will show the message "KEIN ANRUF (NO CALLS)" and the entire caller list will be deleted.

6 Important information

6.1 Fault Finding

Remove all extra telephone equipment and connect only the telephone directly to the telephone socket. If the fault is still there, connect a different telephone (if available) to the telephone socket. The results will show you whether the fault lies with the unit or with the telephone line. Of course, you can always ring your telephone network provider's service department, which will give you more advice on checking your installation.

In the case of technical problems you can also contact our Service Department on the Hotline number 0180 5 00 13 88.

6.2 Hearing aid compatible

The telephone has a special circuit working on the basis of induction for transmitting speech to hearing aids. Please set your hearing aid to "T".

6.3 Replacing the telephone cable

If you have to replace your telephone cable, you can locate the appropriate cable at your dealer's with the help of the diagram below.

Modular Stecker Type RJ 11 6/4 a => TAE Stecker Pin 1 b => TAE Stecker Pin 2 TAE Stecker Codierung "F" 4 3 5 2 6 1

6.4 Warranty

AUDIOLINE equipment is manufactured and tested in accordance with the most up to date production methods. Selected materials and highly developed technology ensure trouble-free operation and long life. If your unit should develop a fault within the guarantee period, however, please contact the shop where you bought your AUDIOLINE equipment exclusively and have your purchase receipt available for inspection. The guarantee period is 24 months from the day of purchase under the following conditions: within the guarantee period, all defects due to material or manufacturing faults will be repaired free of charge. The guarantee is invalidated if the equipment has been tampered with by the purchaser or third parties. Any damage caused by improper handling or operation, by incorrect positioning or storage, by improper connection or installation or by excessive force or other external influences is not covered by the guarantee. In the case of complaint, we reserve the right to repair or replace defective parts or to exchange the equipment. Exchanged parts or exchanged equipment become our property. Claims for compensation are excluded insofar as they do not relate to criminal intent or gross negligence on the part of the manufacturer. All guarantee claims according to these conditions must be raised exclusively with your dealer. Rights under the guarantee can no longer be enforced after the expiry of 24 months from purchase and delivery of our products. In the case of unnecessary or unjustified demands on the customer service department, we will levy our usual service charges for materials, time, postage and packing. Any complaints must be reported as soon as a problem is found. The guarantee is valid within the German Federal Republic.

- Important information -

6.5 Declaration of conformity

WE AUDIOLINE GmbH

OF HELLERSBERGSTR. 2a

D-41460 NEUSS

GERMANY

DECLARE UNDER OUR SOLE RESPONSIBILITY AS EU DISTRIBUTOR THAT THE PRODUCT

MODEL: TEL49Clip

DESCRIPTION:

Cord-connected

telephone

IS IN CONFORMITY WITH THE BASIC REQUIREMENTS OF DIRECTIVE:

1999/5/EC

AUTHORISED SIGNATORY:

###

Signature:

Name: MANFRED ZINNOW

Position in the company: MANAGING DIRECTOR:

Date of issue: 06.11.2002

A copy of this declaration will be retained for 10 years after cessation of production.

SUPPLIER: AUDIOLINE GmbH, HELLERSBERGSTR. 2a, D-41460 NEUSS

PRODUCT: TEL49Clip

This product has been developed for use on a analog telephone line (PSTN) within Germany. However, no guarantee can be accepted for trouble-free operation on all telecommunications terminal equipment connections due to the differences between the different telecommunications network operators.

AUDIOLINE GmbH

Neuss

Service Hotline [phone]
