Product Type	Portable Toilet
Brand	Clas Ohlson
Model	34-8910
Dimensions (H × W × D)	415 × 365 × 420 mm
Weight	5 kg
Water Tank Capacity	10 litres
Waste Tank Capacity	20 litres
Flushes per Full Water Tank	50
Flushing Mechanism	Hand-operated pump
Waste Tank	Detachable, with slide valve
Design	Self-contained, portable, easy to carry
Assembly	Requires attaching water tank to waste tank and locking catches
Use	Fill water tank, pull slide valve, pump to flush
Emptying	Empty when waste level is 2 cm below slide valve; remove waste tank, open cap carefully due to pressure
Maintenance	Lubricate slide valve regularly; clean surfaces with mild detergent; rinse waste tank
Storage	Empty both tanks and pump dry; store in cool dark place
Recommended Accessories	Cleaning fluid for waste tank, rinsing fluid for water tank
Safety Notes	Do not use deodorant in water tank; do not lean on seat cover; use easily dissolvable toilet paper
Replaceable Parts	All parts are replaceable
Disposal	Follow local ordinances; dispose of waste at legitimate emptying place

Frequently Asked Questions - 34-8910 Clas Ohlson

How do I flush the toilet?

Ensure the slide valve is pulled out, then pump the pump handle a few times. After flushing, close the slide valve. Use easily dissolvable toilet paper to avoid blockages.

How do I empty the waste tank?

Empty when the waste level reaches 2 cm below the slide valve. First push the slide valve fully in. Unlock the catches and lift off the water tank. Keep the waste tank vertical, carefully remove the cap (beware of pressure buildup), and pour contents into a legitimate emptying place or normal toilet. Rinse with water.

What cleaning agents can I use?

Use a mild detergent and a moist cloth for the outer surfaces. For the waste tank, use the recommended cleaning fluid. Do not use abrasive cleaners or deodorant in the water tank.

How many flushes can I get per water tank?

The 10-litre water tank provides approximately 50 flushes.

Can I use any toilet paper?

It is recommended to use easily dissolvable toilet paper to prevent clogs in the pump and waste tank.

How do I store the toilet for winter?

Empty both the water tank and waste tank completely. Pump the handle several times until no water comes out. Store in a cool, dark place.

What accessories are recommended?

Recommended accessories include cleaning fluid for the waste tank and rinsing fluid for the water tank. These are not included with the product.

How do I lubricate the slide valve?

Regularly apply a suitable lubricant (e.g., silicone spray) to the slide valve to ensure smooth operation. Clean it first if necessary.

Is the waste tank pressurized?

Temperature changes can cause pressure buildup inside the waste tank. Always open the cap carefully, directing it away from your face, to release any pressure slowly.

What should I do if a part breaks?

All parts are replaceable. Contact Clas Ohlson customer service or check their website for spare parts availability.

USER MANUAL 34-8910 Clas Ohlson

Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for making any necessary technical changes to this document. If you should have any questions concerning technical problems please contact our Customer Services.

Safety

• Handle with care.
• Avoid exposing the product to direct sunlight for extended periods.
• Avoid temperatures above 60 °C.
  • Make sure that there is plenty of clean water in the tank before use.
• Do not lean on the seat cover during use.
• Regularly check that all catches are locked and that the product is free of splits.
• Do not use any kind of deodorant in the water tank.

Product description

• For holiday cottages, boats, caravans, etc.
• Hand-operated pump for flushing
- Detachable waste tank
- Self-contained
- Easy to carry
• All parts are replaceable

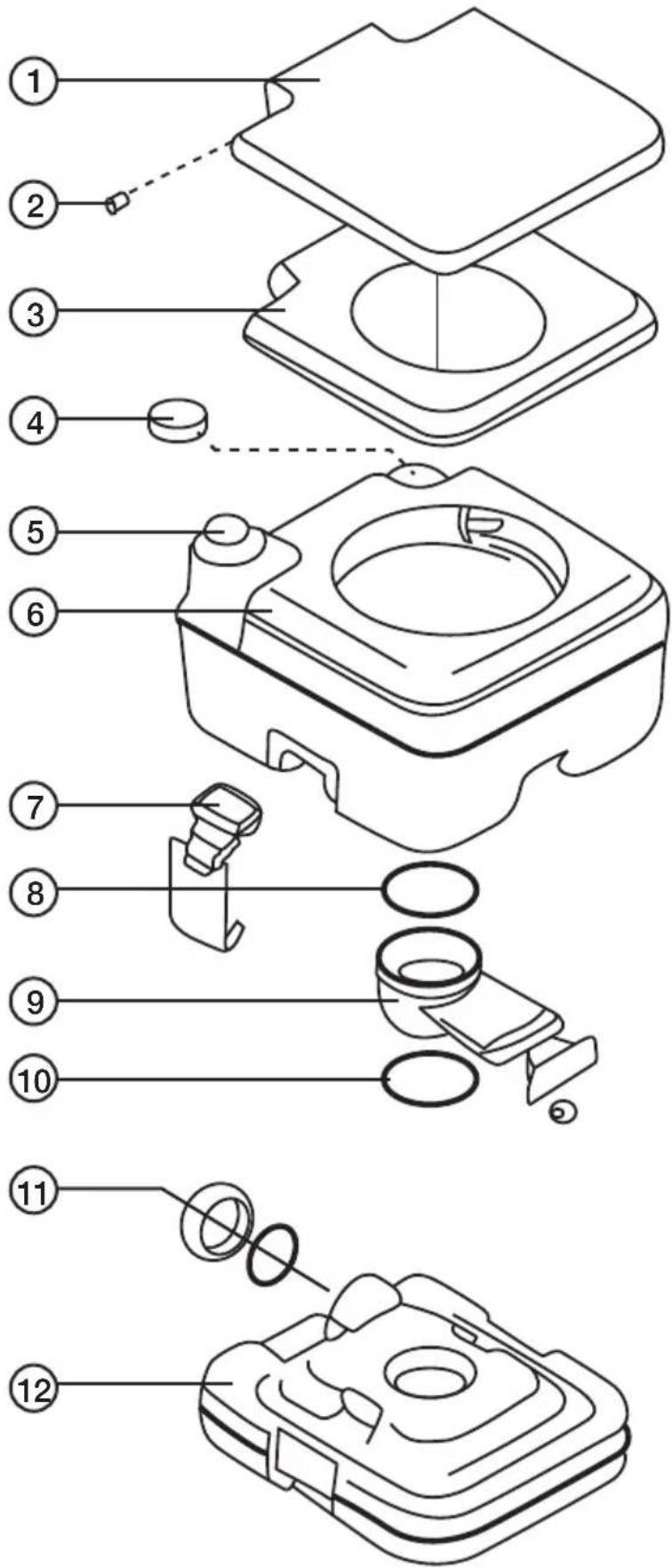

Buttons and functions

1. Seat cover
2. Hinge pin
3. Seat
4. Water tank cap
5. Pump handle
6. Water tank
7. Catch
8. Gasket
9. Slide valve
10. Gasket
11. Waste tank cap
12. Waste tank

Recommended accessories

• Cleaning fluid for the waste tank (not included).
- Rinse fluid for the water tank (not included).

Assembly

1. Take the cap off the waste tank and pour in some cleaning fluid (not included). Follow the instructions that come with the cleaning fluid.
2. Replace the cap.

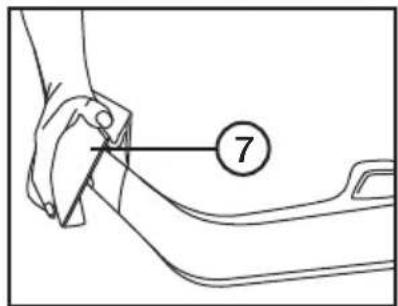

3. Undo the catches (7).
4. Place the water tank onto the waste tank.
5. Lock the catches again.

Use

1. Remove the water tank cap and fill the tank with water and rinsing fluid (not included) up to the cap. Follow the instructions that come with the rinsing fluid.
2. Replace the cap.

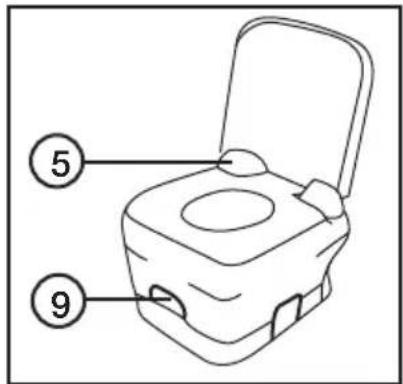

3. Pull out the slide valve.
4. Pump the pump (5) a few times to flush after use. Clean using a brush whenever necessary.
5. Close the slide valve.

Note: Use an easily dissolvable toilet paper to avoid blockages.

Emptying

1. The waste tank should be emptied when the level reaches 2 cm under the slide valve.

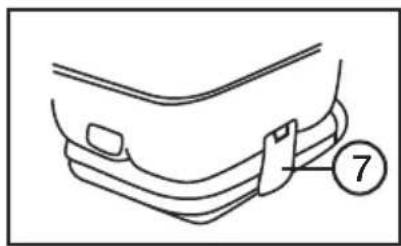

2. Make sure that the slide valve is pushed all the way in before removing the waste tank. Undo the catches (7) on both sides. Hold the water tank in both hands and lift it off.
3. Take the waste tank to a legitimate emptying place or normal toilet.

Line drawing of a car rear bumper with a numbered label pointing to the side (no text or symbols on the object itself)

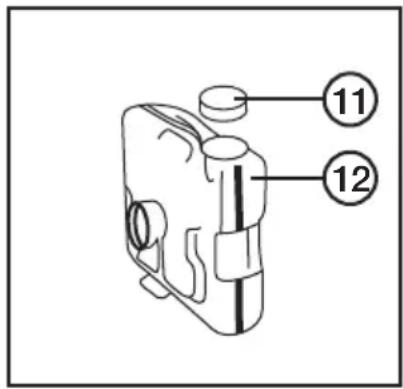

1. Make sure that the waste tank (12) is vertical before taking the cap (11) off.
2. Temperature can cause a build up of pressure inside the waste tank. Be careful when taking the cap off.
3. Empty the tank by carefully pouring out the contents.
4. Rinse the tank with water and put the cap back on. Shake the tank.
5. Rinse the tank with clean water once more.

Care and maintenance

1. Lubricate the slide valve regularly.
2. Clean the surfaces of the toilet with a moist cloth and a little mild detergent. Do not use abrasive cleaning agents.
3. Clean the waste tank regularly.

Storage

If the toilet is to be stored for the winter:

1. Empty both the water tank and the waste tank.
2. Make sure that there is no water in the pump by pumping it a few times until no water comes out.
3. Store the toilet in a cool dark place.

Disposal

Follow local ordinances when disposing of this product. If you are unsure of how to dispose of this product, please contact your municipality.

Specifications

Waste tank capacity 20 litres

Water tank 10 litres (a full water tank lasts for 50 flushes)

Weight 5 kg

Size 415 (seat height) × 365 × 420 mm
