USER MANUAL Eye FAKIR

Fakir customer service/ Kundenservice: Technik Service Profi GmbH Ahtener Str. 4-8 D-31275 Lehre Germany Tel.: +49 51 32 / 88 73 858 Fax: +49 51 32 / 58 87 23 [e-mail]

Exterior view of a white electric iron with black handle and visible branding (no text or symbols on body)

INHALTSVERZEICHNIS

DE

Sicherheit 4

Diagram of a mechanical device with a bucket pouring liquid into a housing (no text or symbols)

Technical line drawing of a mechanical component, showing front and side views (no text or symbols)

Important Safeguards ....14

Important Precautions ....15

Assembling....16

Product Description....16

Technical Specifications....16

Operating 17

After Ironing....18

Self-clean Function....18

Ironing tips....19

Troubleshooting....20

Liability....21

Unauthorized Use....21

Usage Area....21

CE Declaration of Conformity....22

Waste Disposal....22

Dispatch....22

Dear Customer,

We hope you'll enjoy your product and we thank you for choosing Fakir Hausgeräte, who has its signature on innovative technologies.

We hope you to get the best out of Fakir EYE Steam Iron, produced with high quality and technology. Therefore, before using the product, we kindly ask you to read this User Guide carefully and keep it for future reference.

Important safeguards

Before using the electrical appliance, the following basic precautions should always be followed including the following:

Read all instructions before using

1. Read all instructions and save it for future reference.
2. Before using check that the voltage of wall outlet corresponds to the one shown on the rating plate.
3. Burns may occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down as there may be hot water in water tank.
4. If any part is damaged it must be replaced by the manufacturer or an or a qualified technician in order to avoid a hazard.
5. Don't operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner, Return the appliance to the nearest for examination, repair or electrical or mechanical adjustment.
6. Do not let cord hang over edge of table or hot surface.
7. The plug of power cord must be removed from outlet before water tank is filled with water.
8. Unplug from outlet when not in use, before filling water or cleaning.
9. Do not operate the iron for other than its intended use.
10. To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
11. Close supervision is necessary for any appliance being used by or near children.
12. Do not leave iron unattended when connected into power supply or on an ironing board.
13. Do not use outdoors.

Important precautions

When using your iron, basic safety precautions should always be followed, including the following:

1. Use the iron only for its intended use.
2. To protect against the risk of electric shock, do not immerse the iron in water or other liquids.
3. The iron should always be turned to "min" before plugging or unplugging from the mains outlet. Never pull the cord to disconnect from the mains: instead, grasp plug and pull to disconnect.
4. Do not allow the cord to touch hot surfaces. Allow the iron to cool completely before putting away.
5. Always disconnect the iron from the electrical outlet when filling with water or emptying and when not in use
6. Do not operate the iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron .take it to a Fakir Authorized Service Agent for examination and repair. Incorrect re-assembly, can cause a risk of electric shock when the iron is used.
7. Close supervision is necessary for any appliance being used by or near children. Do not leave the iron unattended when connected to the mains or on an ironing board.
8. Burns can occur from torching hot metal parts, hot water or steam, use caution when you turn a steam iron upside down-there may be hot water in the reservoir.
9. If the iron is not operating normally, disconnect from the power supply. And contact the nearest Fakir Authorized Service Agent.
10. Your iron is designed to rest on the heel. Do not leave the iron unattended when switched on. Do not place the iron on an unprotected surface even if it is on its heel rest.

NOTE!

While assembling your product; you can realise that some water drop might be on the water tank and the product body. This is caused by our quality tests which confirm the 100 % workability of the product. The product did not be used before and it is produced to give you many years of trouble-free service.

EN

ASSEMBLING

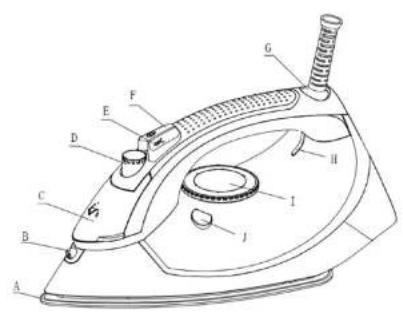

Product Description

A. Soleplate
B. Spraying nozzle
C. Water filling inlet
D. Variable steam button
E. Spraying button
F. Steam shot button
G. Power Cord
H. Indicator light
I. Temperature dial
J. Self-cleaning button

Technical Specifications

2600 Watt

220-240 V

50/60 Hz

Usage Life: 7 Years

Before first use

1. Remove any sticker, protective foil or storage cover from the soleplate.
2. Heat up the iron to maximum temperature and iron over a piece of damp cloth for several minutes on the purpose of removing any residue on the soleplate.

NOTE!

It is normal that strange odor comes out from the unit for the first use.

Operation

1. Hold the iron in a tilted position, then fill proper water into water tank. by measuring cup, you had better use purified water with less calcium particles and make sure not to exceed Max level on the tank. (Fig 1.)
2. Press down cover of water tank and you will hear a click if it is in the correct position.
3. Connect plug to outlet and turn temperature dial to your desired setting, which is depended on the fabric of garment. And indicator light will be illuminated. Refer to Fig.2 and IRONING TIPS latter.
4. Make sure steam button is on dry position. (See fig 3), then place the iron vertically (See fig 4).
5. Once soleplate temperature has reached the preset temperature, indicator light will be off, then set steam button to your desired steam output or dry position and begin ironing.
6. Press spraying water button a couple of times to moisten the laundry if necessary, before spraying make sure that there is enough water in water tank.
7. Steam shot function had better be used at max temperature, as it helps remove stubborn creases.
8. The iron has an anti-drip function: if ironing garments for long time, soleplate temperature will fall off, the iron will stop coming out steam automatically and no water droplets can come out from soleplate.
9. "Steam shot" can also be applied when holding the iron in a vertical position, so this is useful for removing creases from hung clothes, curtains, etc.

(Fig. 1)

Line drawing of a mechanical device with a cylindrical component and a lever, no text or symbols present

(Fig. 2)

Line drawing of two views of a mechanical component, one showing internal components and the other with a tool (no text or symbols)

(Fig. 3) (Fig. 4)

EN

AFTER USE

After ironing

1. Disconnect power supply and empty the water left in water tank.
2. Reconnect into power supply and disconnect after indicator light goes off, make soleplate dry.
3. Let the iron completely cool down, then wipe flakes and any other deposits on the soleplate with a damp cloth or a non-abrasive (liquid) cleaner.
4. Clean the upper part of iron with a damp cloth.
5. Always store the emptied iron horizontally on a stable surface with a cloth protecting the soleplate.

Self-clean function

We should clean the unit regularly according to hardness of water and using frequency.

1. Fill water into the water tank and set the temperature selector to Max position

2. Connect into power supply and indicator light will be illuminated, make sure Steam button is in the Dry position, then place iron as fig.4

WARNING!

Never pour white vinegar or other liquid cleaners for eliminating calcium into water tank!

1. Once the light is off, hold the iron over the sink and turn steam button to SELF CLEAN position (Fig.3) with a little force. Steam and boiling water will come out of the soleplate while impurities and flakes will be flushed out.

2. Release the button as soon as water in the water tank has been used up.

AFTER USE

Ironinig Tips

1- Always check first whether a label with ironing instructions is attached to the article. Follow these ironing instructions in any case.
2- The iron heats up quicker than cooling it down, therefore, you should start ironing the articles requiring the lowest temperature such as those made of synthetic fibre.
3- If the fabric consists of various kinds of fibres, you must always select the lowest ironing temperature to iron the composition of those fibres.
4- Silk and other fabrics that are likely to become shiny should be ironed on the inner side. To prevent staining do not spray water straight on silk or other delicate fabrics.
5- Velvet and other textures that rapidly become shiny should be ironed in one direction with light pressure applied. Always keep the iron moving at any moment.
6- Pure woollen fabrics (100% wool) may be ironed with the iron set a steam position. Preferably set steam button to the maximum position and use a dry p cloth as a mat.

Troubleshooting

Fault	Possible cause	Solution
Iron emits an odor or smoke	Iron gives off an odor when turned on for the first time.	Oils used during manufacture need to be burnt off allow ten minutes for odor to disappear.
Iron does not heat	The temperature dial did not set at the desired temperature.	The iron should be plugged into a 230 Volt, AC electrical outlet only. The temperature dial must be set at the desired temperature.
Iron does not steam	The water tank many be empty.	Turn the steam valve to “” and add water. Allow the iron to heat, and then set the steam dial to the steam setting.
Burst of steam feature does not work	The water tank can be empty and temperature button set to shouldn’t steam.	The water tank must be at least 1/4 full. Temperature must be set to steam position. Iron should be in the horizontal position. Prime pump briefly. Allow a short pause between shots. Be sure to fully depress the burst of steam button.
Spry mist feature does not work	The water tank must be at least 1/4 full.	Fill the iron as described in the section “how to fill the water tank”.
Iron is leaking	Temperature should be set to low level.	The variable steam dial must be set on“,until the iron is hot. The temperature setting is too low to produce steam. Shot of steam used too much, allow iron to re-heat.

Liability

Fakir will accept no liability for damages resulting from failure to comply with the operating instructions. Fakir cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Unauthorized use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury:

This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance. Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance.

Keep packaging films away from children - danger of suffocation!

Usage Area

This appliance is suitable for places; home. Do not use appliance for other than intended use and never use this appliance outdoors.

WARNING!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children should not play with this appliance

Cleaning and maintenance shall not be carried out by children without supervision.

Keep the packing materials away from the children. Choking risk!

Children younger than 3 years shall be kept away from the appliance if they are not supervised constantly.

This appliance may be used by persons (including children) with limited physical, sensory or mental capabilities, or with limited experience and/or knowledge, only under the supervision of a person responsible for their safety, or in accordance with the instructions of that person.

Children shall be supervised to ensure that they do not play with the appliance.

This appliance shall not be used for play.

Children older than 3 years and younger than 8 years may switch the appliance on and off only if they are under supervision or are informed of the safe use of the appliance and if they understand the hazards that may be caused by the appliance. In this respect, it is a prerequisite for the appliance to be in normal usage position or that it is installed properly.

Children older than 3 years and younger than 8 years shall not plug the appliance to the electrical outlet, adjust the appliance, and do not perform any cleaning or maintenance operations.

The appliance shall not be used without supervision.

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law and the EU Directives. 2014/30/EU "Electromagnetic Compatibility" and 2014/35/EU "Low-Voltage Directive". The appliance bears the CE mark on the rating plate. Fakir reserves the right to change the design and equipment.

If the service life of the device has ended, in particular if functional disturbances occur, make the worn-out device unusable by cutting through the power cable.

Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste. Bring the worn-out device to a collection center. The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them.

For advice on recycling, refer to your local authority or your

dealer.

Dispose of used dust bag and filters in domestic waste.

This appliance is compatible with WEEE directive.

Dispatch:

Carry the appliance in the original package or a similar, wellpadded package to prevent damage to the appliance.
