USER MANUAL Deep Clean W3000 Wertheim

WERTHEIM DEEP CLEAN ENGINEERING

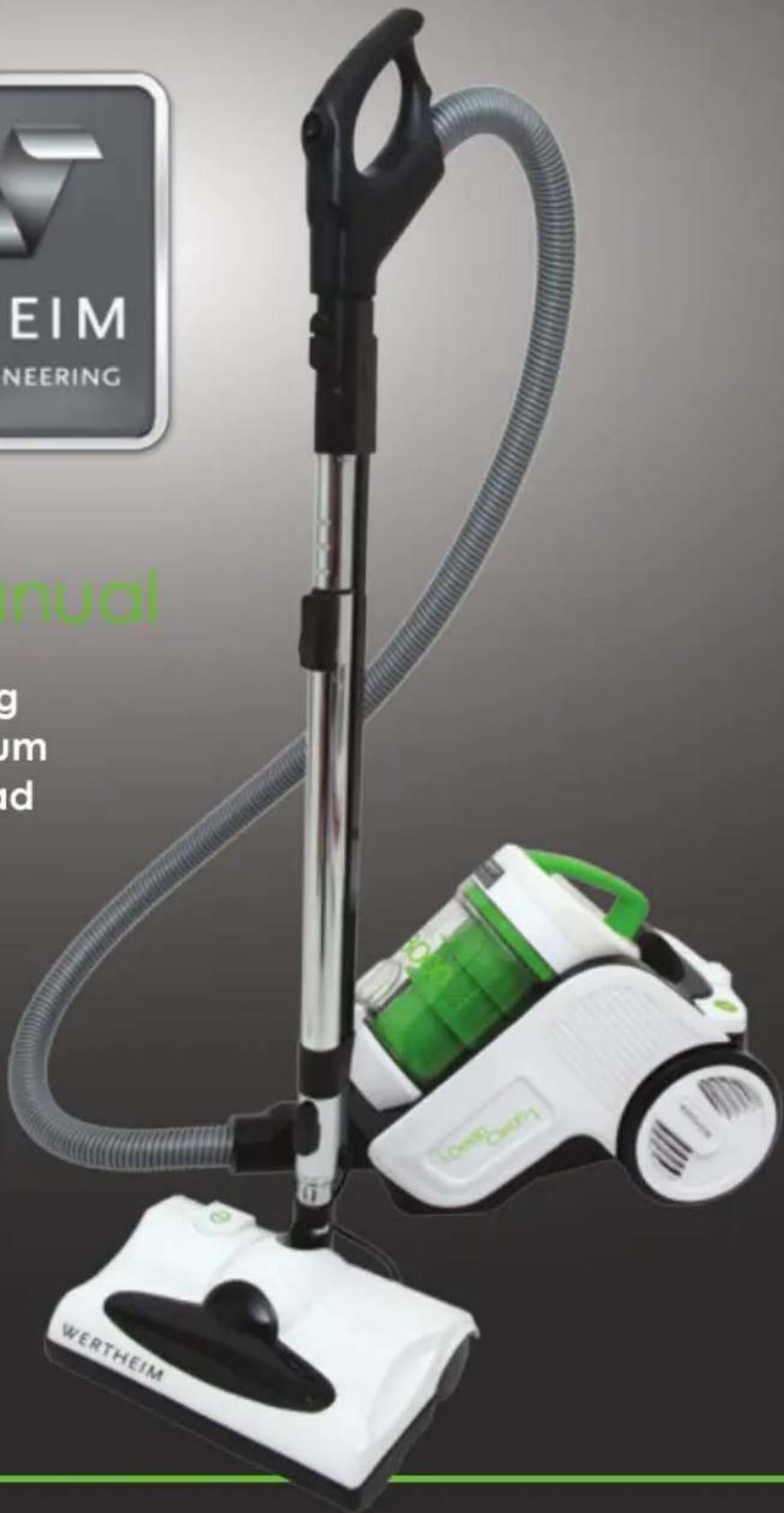

User Manual

Deep Cleaning Bagless Vacuum with Powerhead

EIM NEERING annual g um nd WERTHEIM

Deep Clean w3000

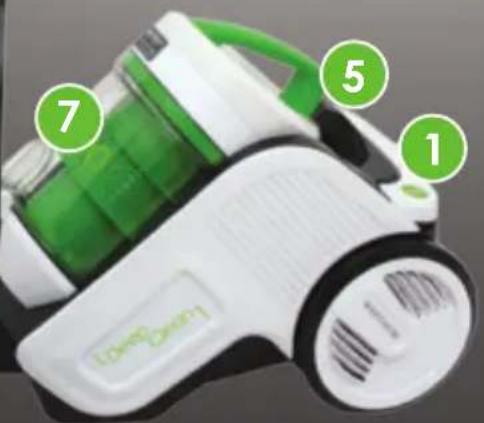

Features

① On/off button
② Flexible hose
③ Telescopic wand
④ Wand length adjustment
⑤ Cord rewind button
6 Combination floor brush
7 Dust canister
⑧ Combination floor tool
9 Mini hand turbo tool
10 Dusting brush
⑪ Crevice tool

4

3

7

5

1

7 5 1 GreenSmart

8

9

10

11

2

WERTHEIM

6

WERTHEIM DEEP CLEAN ENGINEERING

INTRODUCTION

Congratulations on the purchase of your new Wertheim vacuum cleaner. There are many useful features built into your cleaner and we recommend that you carefully read this instruction manual so that you may take best advantage of them.

Due to our program of continuous product improvement and innovation, sometimes the product you buy may differ slightly from the one shown on this product carton/manual.

BEFORE YOU BEGIN

The cleaner must be operated in accordance with these instructions and used only for domestic household cleaning to remove DRY dirt and dust from household carpets, flooring and fabrics. This cleaner is not fit to be used as an industrial cleaner, and is not designed for the collection of vitreous building material including particle board, construction products and similar products such as wood/fibres, cement, fillers, fibre glass etc or excessive or frequent sand. The infrequent pick-up of these materials in these circumstances may be harmful to your cleaner and may void the manufacturer's warranty.

Please read these instructions thoroughly

This will ensure you obtain full benefit from your new cleaner. Keep this instruction manual in a handy place for future reference.

Precautionary measures:

1. Do not operate the vacuum cleaner too close to heaters, radiators, and other hot surfaces.

1. Before inserting the plug into the wall, make sure your hand is dry.

1. Before turning on the vacuum cleaner, remove any large or sharp objects from the floor or cleaning surface in order to prevent damage to the filter.

1. When you want to pull the plug from the wall, do not pull the power cable, gently pull the plug from the power socket.

2. If the air inlet, floor head or telescopic wand are blocked, you should switch off the cleaner straight away and remove from mains power. First clear the blocked substance before attempting to start the vacuum cleaner again.

SAFETY INSTRUCTIONS

Important

Always switch off the cleaner and remove the plug from the electricity power supply before cleaning your appliance, when not in use or attempting any maintenance task. The cleaner must only be connected to an AC power supply at the voltage shown on the rating label. This cleaner should only be used for its intended purpose as described in this instruction manual. Never operate the vacuum cleaner without filters.

Safety Precautions and Warnings:

When using your vacuum cleaner, basic precautions should always be observed, including the following;

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.

3. To prevent electrical shock, do not immerse the appliance, power cord or power plug into water or other liquids.

4. To prevent electrical shock, do not use the vacuum cleaner outdoors or on wet surfaces.

5. Always check the power cord before use, the power cord and the plug should be in a good condition and must not be damaged. If the power supply cord is damaged or defective, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Do not unplug by pulling on the power cord. To unplug, grasp the plug not the power cord. Use only Australian and New Zealand electrical safety approved extension cords.
7. Do not pull or carry the appliance by the power cable, use the power cable as a handle or pull the power cable around shaft edges or corners. Avoid running the appliance over the power cable.

SAFETY INSTRUCTIONS (CONT'D)

1. Ensure the appliance is switched off before unplugging.
2. Do not handle or operate the appliance with wet hands and follow electrical safety precautions at all times.
3. Extreme caution should be exercised when using the appliance on stairs.
4. Do not attempt to change the attachments while the appliance is plugged in to mains power supply. Switch off and remove plug from mains power supply. Use only manufacturer's recommended accessories.
5. Do not operate the vacuum cleaner too close to the heaters, radiators and other hot surfaces.
6. Do not use the appliance to pick up flammable items or combustible liquids (i.e. petrol, hot ashes cigarettes, matches, explosive materials or anything burning) or use in areas where such substances and items may be present.
7. Do not use the appliance to pick up toxic materials (i.e. chlorine bleach, ammonia).
8. Ensure the appliance is disconnected

from the mains power supply before connecting the hose to the unit.

1. Do not operate or use the appliance without the dust bag and/or filters in place.
2. Before vacuuming, remove any large or shaft objects from the floor or cleaning surface in order to prevent damage to the filter.
3. If the air inlet, floor head or the telescopic wand is blocked, switch off the cleaner straight away and remove from the mains power. First clear the blocked object before attempting to start the cleaner again.
4. Hold the plug when rewinding onto the cord reel. To prevent accidental injury do not allow the plug to whip when rewinding.
5. Do not extend the power cable beyond the red mark.
6. Do not leave the appliance unattended when it is connected to a mains power supply.

7. Before carry out any maintenance service or cleaning the filters, always switch off the vacuum cleaner and disconnect the plug from power supply.

8. Keep ends of the hose, telescopic wand and other openings away from your face and body.

9. Do not use the vacuum cleaner if it is damaged or breaks down. Check the electrical regularly for defects. If connection cables, electrical hoses, electrical contacts and electric tubes are damaged, have them replaced immediately.
10. Never clean the vacuum cleaner or any of the electrical parts, especially the electrical connections with water or liquid cleaners.
11. Never attempt to make any modifications electrically to the vacuum cleaner.
12. Always store the appliance indoors in a cool and dry place.
13. Do not pickup water, dry household use only.
14. Damage caused by improper use or by not observing the instructions in this manual will void warranty.

Vacuum Cleaner with Powerhead

1. The electric hose contains electrical connections;

2. Do not immerse it in water for cleaning;

3. The hose should be checked regularly and must not be used if damaged.
4. The vacuum cleaner handle contains electrical connections, the handle is not a serviceable part.
5. The vacuum cleaner rod contains electrical connections, the wand is not a serviceable part.

6. The vacuum cleaner powerhead contains electrical connections, the powerhead is not a serviceable part.

7. Use the electric powerhead only for vacuuming dust and dry substances in the home.

8. Never run over the power cable with the powerhead as the cable could get damaged.
9. Never touch the brush roller while the vacuum cleaner is connected to the mains power.
10. To prevent unnecessary wear on the powerhead, keep it moving while in operation.

INSTRUCTIONS FOR USE

Before using, unwind a sufficient length of cable and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark.

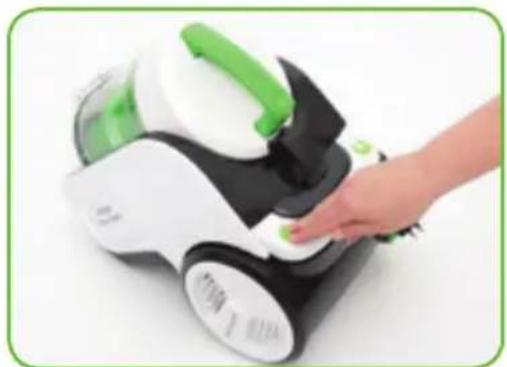

Hand placing a green button on a white and black robotic device (no text or symbols visible)

1. Press the on/off button to turn the vacuum on.

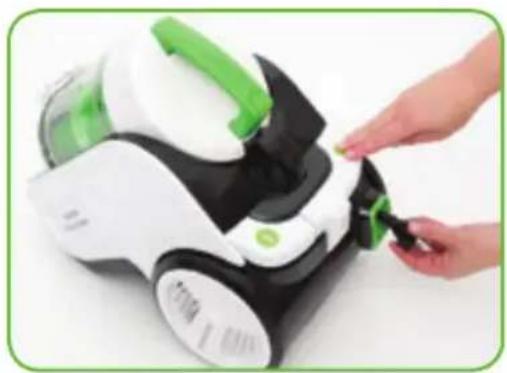

Hand placing a green clip onto a white and black robotic device (no text or symbols visible)

1. To rewind the power cable, press the rewind button with one hand and guide the cable with the other hand to ensure that it does not whip, causing damage to the cable.

Assembling your Cleaner

The cleaner should be switched off and disconnected from the mains power supply before you start to assemble.

Hand holding a black handheld device next to a white and green vacuum cleaner (no visible text or symbols)

1. Connect the hose body connector to the cleaner making sure it fits firmly.

Close-up of a hand holding a black spray gun with a white circular component, next to a gray hose and a small black connector (no text or symbols visible)

1. Fit handle into the telescopic wand until it clicks into place.

Close-up of a hand holding a black cylindrical device with a red internal component (no visible text or symbols)

1. Extend or reduce the length of the wand by depressing button and moving the slider.

INSTRUCTIONS FOR USE (CONT'D)

Assembling your Cleaner cont.

Hand holding a small black object next to a mechanical device (no visible text or symbols)

1. Push the wand into the powerhead until it clicks into place. To remove, press button and separate.

Close-up of a hand holding a black plastic plug attached to a cable (no text or symbols visible)

1. The powerhead can be controlled by the on/off switch on the handle.

Close-up of a black WERTHEIM vacuum cleaner component with a handle and base (no visible text or symbols on the device itself)

1. Also provided is a combination floor tool.

Close-up of a small robotic device with black and white body, green control buttons, and a connected cable (no visible text or symbols)

1. Do not extend the power cable further than the yellow mark.

Powerhead

The use of a powerhead is recommended for the optimal cleaning of carpets. The rotating design allows the powerhead to move in any direction, making it easily manoeuvrable around obstacles.

Safety Precautions

1. Keep hair, hands and feet away from the rotating brush roller while the powerhead is running.
2. Remember the powerhead will operate whenever it is connected to a running vacuum. If children are present, make sure to turn the vacuum system off when leaving powerhead unit unattended.
3. Do not attempt to service or unclog the powerhead while unit is running.

Combination Floor Tool

Ideal for daily cleaning on carpets and hard floors.

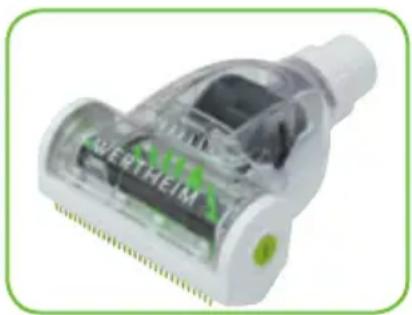

Mini Hand Turbo Brush

Ideal for picking up pet hair on upholstery.

Firmly fit the mini hand turbo brush to the handle or rod.

Note: By unlocking the side release buttons, the external bristles can be rotated to face upwards allowing a closer clean as required.

Close-up of a white vacuum cleaner with green filter and 'WEPTHEIM' branding (no additional text or symbols visible)

MAINTENANCE

Close-up of hands holding a black handheld electric vehicle plug (no visible text or symbols)

How to Clear Blockages

- Low suction or pick up may be due to a blockage in the system. Refer to the following steps to check for blockages, continuing with each step until the blockage is found.

Hose/Wand Blockage

• Disconnect the powerhead and telescopic wand from handle.
• Plug vacuum in and turn it on. Check the hose end for suction. Remove any obstructions.
• If there is no blockage in the hose, remove the powerhead from the telescopic wand and attach the wand to the hose.

Mini Hand Turbo Brush

Hand holding a transparent plastic cylindrical device with a green handle (no visible text or symbols)

WARNING: ENSURE THE CLEANER IS NOT CONNECTED TO THE MAINS POWER SUPPLY WHEN PERFORMING ANY MAINTENANCE PROCEDURES.

Close-up of hands holding a small white spray gun with a black cap and green handle (no text or symbols visible)

Step 1: Unlock the neck on the Mini Hand Turbo Brush by twisting anti-clockwise.

Step 2: Push the release buttons on the side of the Mini Hand Turbo Brush down to unlock the external bristles. Rotate this bristle attachment upwards.

Step 3: Remove the clear cover.

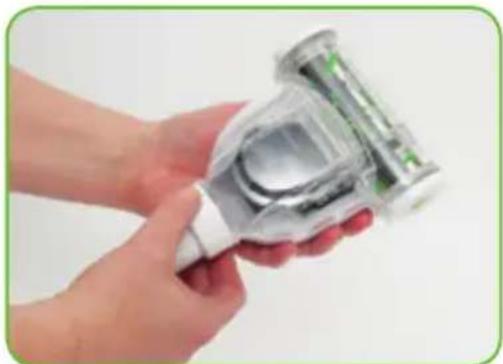

Mini Hand Turbo Brush (cont'd)

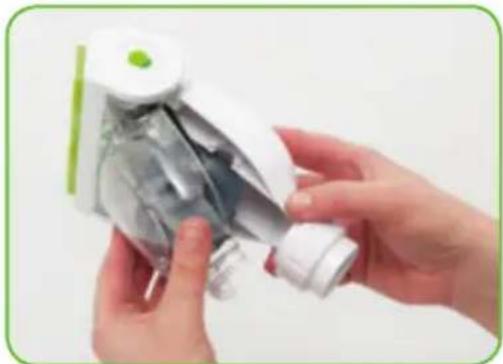

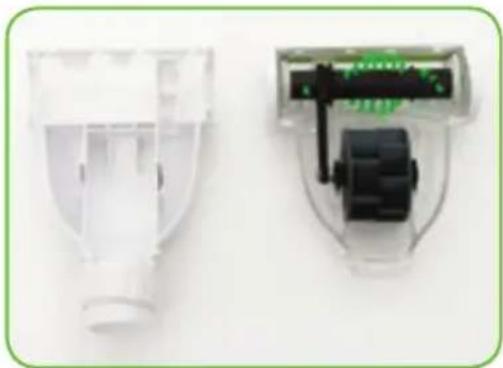

Two views of a transparent plastic device showing internal components (no text or symbols visible)

Step 4: Remove any dirt or hair from the roller brush.

Close-up of hands holding a white plastic container with a green label, no visible text or symbols

Step 5: Replace the clear cover.

Close-up of hands holding a transparent plastic cylindrical device with a green internal component (no visible text or symbols)

Step 6: Lock the neck on the Mini Hand Turbo Brush by twisting clockwise.

Step 7: Rotate the external bristles down and lock the side release buttons by pushing upwards.

MAINTENANCE (CONT'D)

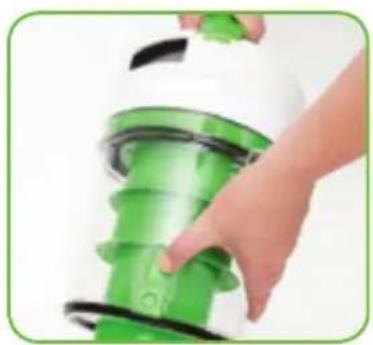

Emptying and Cleaning the Cyclonic Separator (Dust Canister)

The cleaner should be switched off and disconnected from the mains power supply before you start to empty or disassemble.

Close-up of a hand holding a green and white brush in a kitchen appliance (no text or symbols visible)

1. Press the dust canister release button to remove canister from cleaner.

Hand holding a green and white plastic container with a black lid, against a plain background (no text or symbols visible)

1. To empty dust canister, press release button and dispose of dirt.

Close-up of a green plastic door with white trim and black vertical lines, no visible text or symbols

1. Hold canister body and rotate handle anti-clockwise lining the arrow up with the lock symbol.

Two green and white plastic containers, one with a funnel-like handle and the other with a mesh container (no visible text or symbols)

1. Separate items for cleaning. Reassembly is a reversal of Step 3.

Close-up of a green and white plastic connector with a perforated lid (no text or symbols visible)

1. With a cloth dampened with water, clean all surfaces of the separator and canister and dry thoroughly.

Close-up of hands holding a green and white portable device (no text or symbols visible)

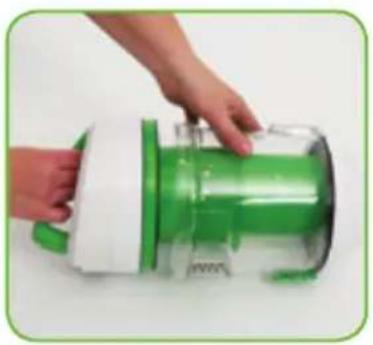

1. When thoroughly dried, refit canister to handle/separator assembly and fit back into cleaner.

MAINTENANCE (CONT'D)

Changing Filters

The cleaner should be switched off and disconnected from the mains power supply. Never operate without filters as overheating and damage to cleaner could occur.

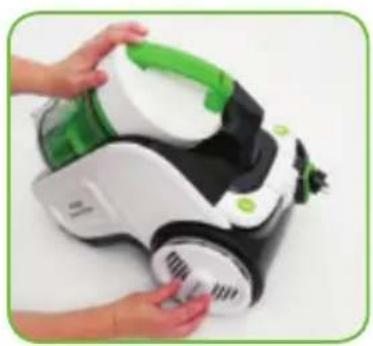

Close-up of hands operating a white and black electric vacuum cleaner with green handle (no visible text or symbols)

1. To remove HEPA filter rotate wheel hub anti-clockwise.

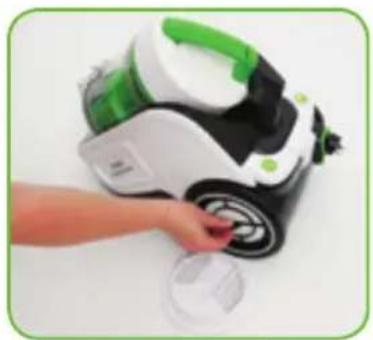

Hand operating a white and green handheld vacuum cleaner with a circular button (no text or symbols visible)

1. Remove HEPA filter from wheel hub and discard.

Product photo of a handheld device with green and white casing, plus a compact jar and plastic cup (no text or symbols visible)

1. Depending on usage, replace HEPA filter every 6–12 months. Dirty filters will reduce performance.

Hand touching a black and white vacuum cleaner device (no text or symbols visible)

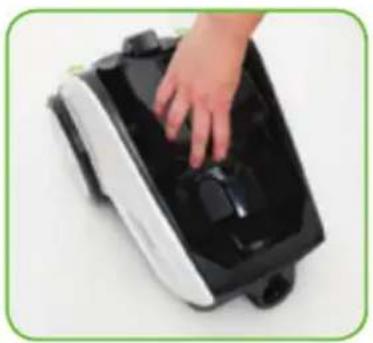

1. To replace the motor filter, remove canister and locate the filter cover indentations A and B.

Close-up of a black and white electronic device with a hand inserting a component (no visible text or symbols)

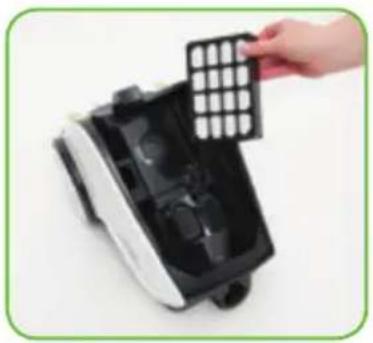

1. Lift filter cover by placing fingers into indentations.

Hand holding a grid-patterned device next to an open robotic vacuum cleaner (no text or symbols visible)

1. The motor filter, if clogged or dirty, must be replaced.

TROUBLESHOOTING

Service problems that appear to be major can often be solved easily. You can be your own troubleshooter by reviewing this guide. All other servicing should be done by an authorised service agent or qualified technician.

Problem Cause Remedy
Motor does not start or stops.	No power supply.	Check cable, plug and socket. If still inoperative, contact Customer Service.
Suction force gradually decreases.	Dust canister is full, suction hose, wand is blocked or clogged filters.	Empty dust canister, remove objects from hose, wand, replace filters.
Powerhead does not operate.	Not switched on or belt broken.	Switch on, have belt replaced by service agent.

SPECIFICATIONS

Wattage: 1800W

Dust Capacity: 2.3L

Noise Level: 75dBa

Telescopic Wand: Chrome

Power Cable Length: 7.7m

Net Weight: 7.08kg

SPARE PARTS

HEPA Outlet Filter (Exhaust) 32200613
Inlet Filter (Sponge/Washable) 32200549
Grill Wheel Cover 32200634
Hose Assembly 31220362
Telescopic Wand 31300492
Combination Floor Tool 31110029
Dust Canister 33151718

2 YEAR WARRANTY

This warranty on your cleaner commences from the original date of purchase and is not transferable; please retain your original proof of purchase for any warranty claims. This warranty is valid only in the country where the cleaner is purchased.

The cleaner must be operated in accordance with these instructions and used only for domestic household cleaning to remove DRY dirt and dust from household carpets, flooring and fabrics. This cleaner is not fit to be used as an industrial cleaner, and is not designed for the collection of vitreous building material including particle board, construction products and similar products such as wood/fibres, cement, fillers, fibre glass etc or excessive or frequent sand. The infrequent pick-up of these materials in these circumstances may be harmful to your cleaner and may void the manufacturer's warranty.

Accessories and consumables including dust bags and filters, unless defective in manufacture, are not subject to this warranty. In order to prolong the life of accessories and consumables, regular care and maintenance is recommended.

When properly used and cared for, your cleaner will render excellent service; refer to the instruction manual for further details, as misuse or failure to follow the instructions makes this warranty void.

In the event of service or advise being needed, please contact International Cleaning Solutions Pty. Ltd. Level 1, Building 2, Brandon Business Park, 530 Springvale Road, Glen Waverley Victoria 3150, AUS: 1800 815 270, NZ: [phone], Monday - Friday, 9am-5pm EST. Email: [e-mail]

The decision to repair or replace the cleaner is at the sole discretion of International Cleaning Solutions Pty Ltd.

International Cleaning Solutions Pty Ltd is unable to accept responsibility under this warranty for any repair work not carried out by an authorised International Cleaning Solutions Service Agent or from the use of non-genuine parts. If any part is no longer available or manufactured, International Cleaning Solutions Pty Ltd will replace it with a genuine functional replacement part. This warranty does not apply to the cost of replacing any parts of the product due to normal wear and tear, alterations, improper installation, physical abuse, misuse or accidental damage. Any transportation costs involved in the repair of defective parts shall be borne by the claimant.

If proof of purchase cannot be provided at the time of a warranty claim or service, any work carried out on the cleaner is chargeable. The repair or replacement of the cleaner under this warranty does not extend the original period of warranty.

The benefits conferred by this warranty are in addition to all other rights and remedies in respect of the product as outlined under the Trade Practises Act and other State and Territory laws.

"Our goods come with guarantees that cannot be excluded in the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure."

Online

www.wertheim.net.au

www.wertheim.co.nz

Email

[e-mail]

WERTHEIM DEEP CLEAN ENGINEERING

International Cleaning Solutions Pty. Ltd.

ACN 119 462 798

Level 1, Building 2, Brandon Business Park

530 Springvale Road,

Glen Waverley, Victoria 3150

www.wertheim.net.au

www.wertheim.co.nz

[e-mail]
