USER MANUAL 70072 Lakeland

Transparent glass coffee maker with lid and side handle, no visible text or symbols on the device itself

Model: 70072

LAKELAND ELECTRIC CITRUS JUICER

Thank you for choosing the Lakeland Electric Citrus Juicer.

Please take a little time to read this booklet before you use your machine and keep it in a safe place for future reference.

The Electric Citrus Juicer makes juicing easy. No squeezing or force is required, simply press your halved fruit onto the juicing cone to activate the motor. Fresh juice is filtered straight into the jug, ready to serve. Juice lemons and limes for cooking with the small juicing cone, or add the large cone and juice grapefruits and oranges for drinks. The 1.2 litre jug has millilitre and fluid ounce increments for measuring, and a strainer to catch pulp and seeds.

An award winning family-owned business, here at Lakeland we still have the same values of excellent quality, value for money and exceptional customer care as we did when we first set up the company in the 1960s.

Our products are carefully selected and rigorously tested to meet our high standards, so you can be assured that any product you purchase will be easy-to-use and highly durable.

CONTENTS

Product features....4

Safety cautions....5-6

How to assemble the Electric Citrus Juicer and using for the first time....7

Instructions for use 8

Troubleshooting 9

Care and cleaning 10

Recycling your electricals 11

Electrical connections....11

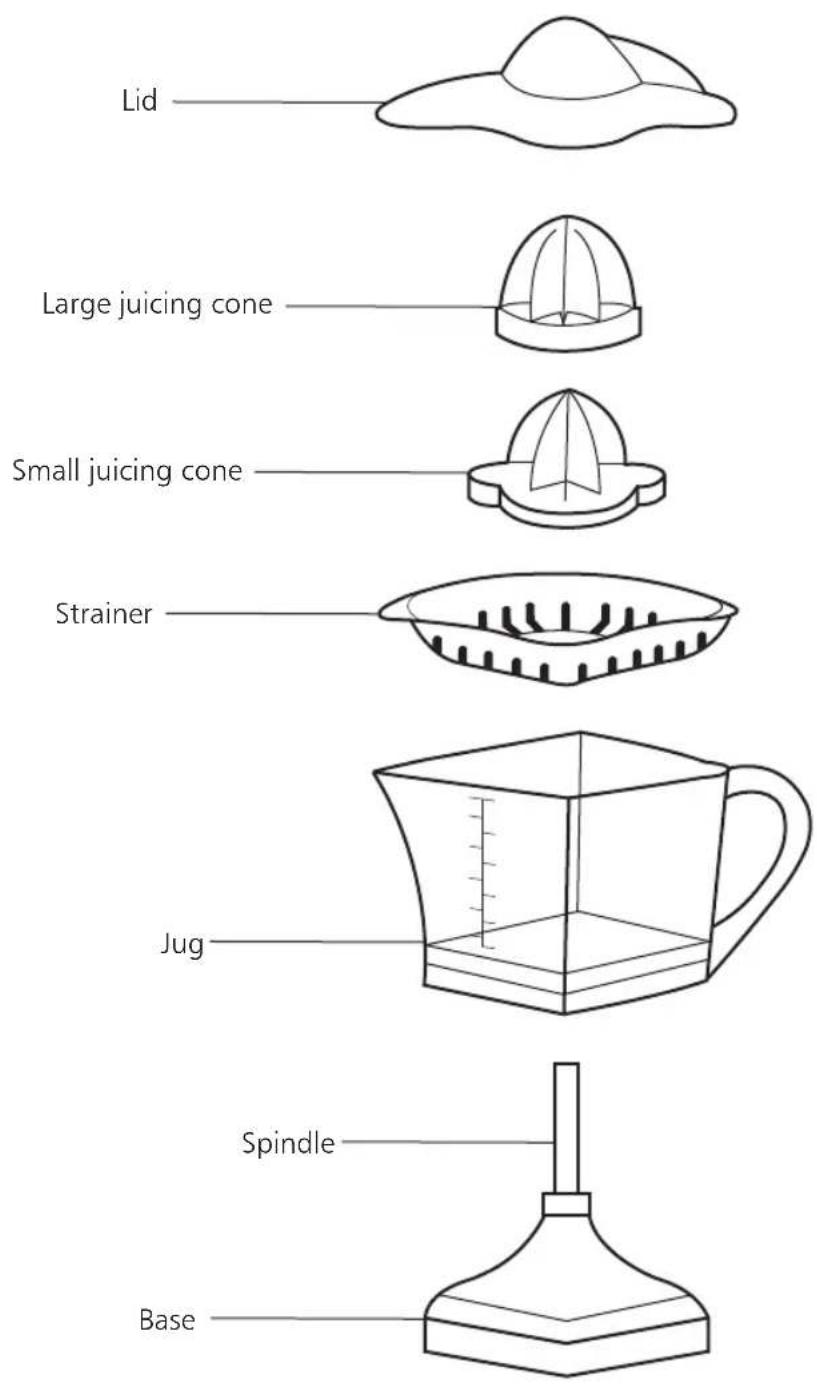

PRODUCT FEATURES

Large juicing cone

Small juicing cone

Strainer

Jug

Spindle

Base

SAFETY CAUTIONS

Carefully read all the instructions before using the appliance and keep in a safe place for future reference. Always follow these safety cautions when using the appliance to avoid personal injury or damage to the appliance. This appliance should be used only as described in this instruction book.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

• Make sure your electricity supply matches the voltage shown on the appliance.
• Ensure all packaging materials and any promotional labels or stickers are removed from the appliance before the first use.
• Always inspect the appliance before use for noticeable signs of damage. Do not use if damaged or has been dropped. In the event of damage, or if the appliance develops a fault contact the Lakeland customer care team on 015394 88100.
• Do not use this appliance if the lead is damaged. If the lead is damaged it must be replaced with a special lead. Contact the Lakeland customer care team on 015394 88100.
  • Always use the appliance on a dry, level, heat resistant surface.
• Unplug from the mains when not in use and before cleaning. To disconnect, turn the socket to "off" and remove the plug from the mains socket.
• Do not use any accessories or attachments with this appliance other than those recommended by Lakeland.
• To protect against fire, electric shock or personal injury, do not immerse cord, plug or lid in water or other liquids.
• Do not leave the lead hanging over the edge of a kitchen table or worktop. Avoid contact between the lead and hot surfaces.
• For indoor use only.
• For domestic use only.

• This appliance should be used for preparation of drinks as described within the instructions for use that accompany it.

• Always ensure that your hands are dry before removing the plug from the mains socket. Never pull the plug out of the mains socket by its lead.

• To avoid injury or possible fire, do not cover the appliance when in use.
• Do not connect this appliance to an external timer or remote control system.
• An extension cable may be used with care. The electrical rating of the cable should be at least as great as the appliance. Do not allow the cable to hang over the edge of the worktop or touch any hot surfaces.
• This appliance complies with the basic requirements of Directives 04/108/EC (Electromagnetic Compatibility) and 06/95/EC (Safety of Domestic Electrical Appliances).
• WARNING: A cut off plug inserted into a 3amp socket is a serious safety (shock) hazard. Ensure the cut off plug is disposed of safely.
• CAUTION: The plastic bags used to wrap this appliance or the packaging may be dangerous. To avoid risk of suffocation, keep these bags out of reach of babies and children. These bags are not toys.
• Keep the Electric Citrus Juicer, plug and lead away from hot ovens, electric and gas burners, flames and hot surfaces.
• The rotating juicing cone will change direction if too much pressure is applied to it with the fruit. Decrease the pressure you are applying to the cone immediately, and the cone will continue to rotate as normal in the other direction.
• Always switch off and unplug the appliance before changing the juicing cones or removing the jug from the base unit and motor.

HOW TO ASSEMBLE THE ELECTRIC CITRUS JUICER AND USING FOR THE FIRST TIME

Unpack the Citrus Juicer, remove all the packaging materials.

Before first use, wipe the base and spindle with a clean damp cloth.

Wash the jug, strainer, juicing cones and lid in warm soapy water, rinse and dry thoroughly.

Make sure that all parts are clean and dry before assembling the product.

WARNING: Do not insert the plug into an electrical outlet, or turn on the Citrus Juicer before you have fully assembled it.

1. Place the base on a flat surface near a socket. Slot the jug over the spindle and place the strainer on top, with the larger corner over the jug spout, so it sits inside the jug.

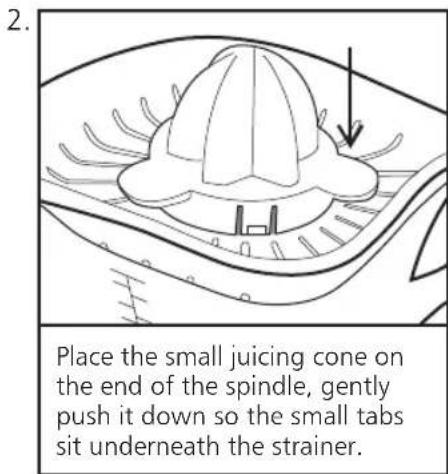

Place the small juicing cone on the end of the spindle, gently push it down so the small tabs sit underneath the strainer.

1. Put the large juicing cone on top of the small juicing cone. Add the lid, with the larger corner over the jug spout.

2. The Citrus Juicer is now ready to use.

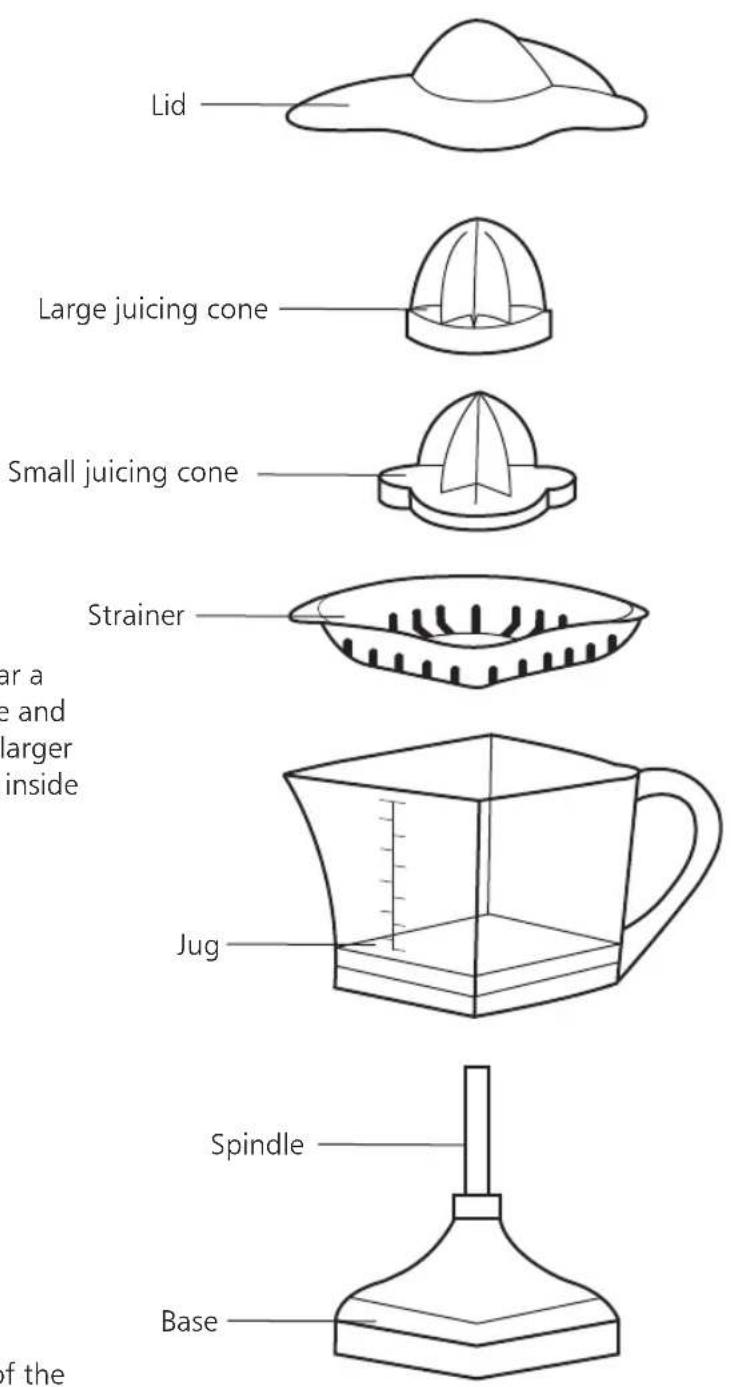

Lid Large juicing cone Small juicing cone Strainer Jug Spindle Base of the

INSTRUCTIONS FOR USE

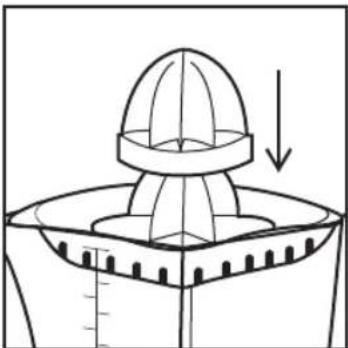

1. First select the cone for the fruit you are juicing. Remove the large cone and juice lemons and limes with the small juicing cone. Put the large cone on top of the small cone to juice grapefruits and oranges.

2. Cut your fruit in half. Plug in and switch on the Citrus Juicer at the socket.

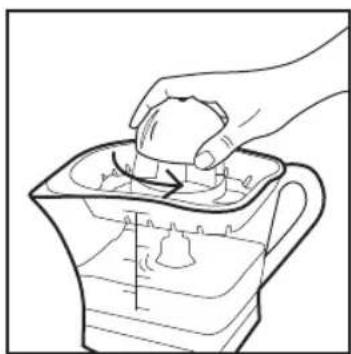

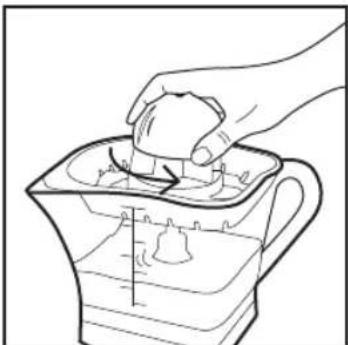

3. The Citrus Juicer motor will automatically start when your halved fruit is pressed onto the juicing cone. Fruit should be juiced in short bursts of 5 second intervals. Allow the Citrus Juicer motor to rest for a few minutes after using the Citrus Juicer continuously for 3 minutes at one time.

4. Fresh juice is filtered through the strainer straight into the jug.

Diagram of a mechanical device with a dome-shaped component and an arrow indicating downward motion (no text or symbols)

Line drawing of a hand pressing down on a mechanical component with no visible text or symbols

WARNING: No squeezing or force is required. The rotating juicing cone will change direction if too much pressure is applied to it with the fruit. Decrease the pressure you are applying to the cone immediately, and the cone will continue to rotate as normal in the other direction.

Always switch off and unplug the appliance before changing the juicing cones or removing the jug from the base unit and motor.

TROUBLESHOOTING

The following are some common problems that can occur when using the Electric Citrus Juicer. Please review the problems, their possible cause and any corrective action that should be taken.

Problem	Possible cause	Solution
The cone is not turning. The machine	not switched on at the socket.The small juicing cone is not properly fitted onto the end of the spindle, with the tabs underneath the strainer.	Check the power is on at the socket.See ‘How to assemble the Electric Citrus Juicer’ for an image of how the small cone should be fitted.
The machine changed juicing direction.	Too much pressure has been applied to the fruit and juicer.	Decrease the pressure you are applying to the cone and it will continue to rotate as normal.

CARE AND CLEANING

• Before the first use and after every use, clean each part thoroughly. Dried fruit pulp is difficult to remove.
• Periodically check all parts before reassembly.
  • Always switch off and unplug the Electric Citrus Juicer before cleaning.
• Wipe the base and spindle with a clean damp cloth. Caution: Never immerse the base in water or any other liquids.
• Do not use abrasive cleaners, bleaching agents or metal scourers on any parts. This will damage the Citrus Juicer.
• Wash the jug, strainer, juicing cones and lid in warm soapy water, rinse and dry thoroughly. These parts are also dishwasher safe.
• The jug and lid can be taken off the motor base and used alone to serve juice, or store in the fridge.
• Make sure that the Citrus Juicer and attachments are completely clean and dry before you store them.
• Store the Citrus Juicer with the power cable loosely coiled. Never wrap it tightly around the machine.

RECYCLING YOUR ELECTRICALS

Along with many other high street retailers, Lakeland has joined a scheme whereby customers can take their unwanted electricals to recycling points set up around the country.

Visit www.recycle-more.co.uk to find your nearest recycling point.

ELECTRICAL CONNECTIONS

This appliance is fitted with a fused three-pin plug to BS1363 which is suitable for use in all homes fitted with sockets to current specifications. If the fitted plug is not suitable for your socket outlets, it should be cut off and carefully disposed of. To avoid an electric shock, do not insert the discarded plug into a socket.

This product is a Class 2 electrical appliance and does not include an earth wire.

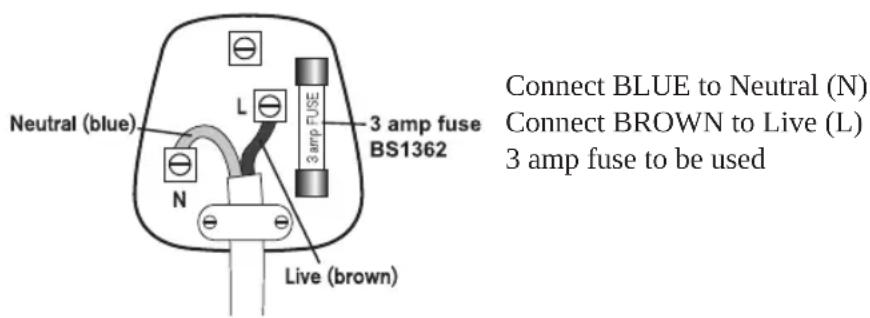

Fitting a new plug

If for any reason you need to fit a new plug, the flexible mains lead must be connected as shown here. The wires in the mains lead fitted to this appliance are coloured in accordance with the following code:

Neutral (blue) L 3 amp fuse BS1362 N 3 amp FUSE Live (brown) Connect BLUE to Neutral (N) Connect BROWN to Live (L) 3 amp fuse to be used

If the colours of the wires in the mains lead of this appliance do not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured blue MUST be connected to the terminal which is marked with the letter N (Neutral). The wire which is coloured brown MUST be connected to the terminal which is marked with the letter L (Live).

Before refitting the plug cover, check that there are no cut or stray strands of wire inside the plug. Use a 3 amp BS1362 fuse. Only BSI or ASTA approved fuses should be used. If you are at all unsure which plug or fuse to use, always refer to a qualified electrician.

Note: after replacing or changing a fuse on a moulded plug which has a fuse cover, the cover must be refitted to the plug; the appliance must not be used without a fuse cover. If lost, replacement fuse covers can be obtained from an electrical shop. This appliance complies with the following EU Directives: 2006/95/EC (Low Voltage Directive) and 2004/108/EC (EMC Directive).
