Product Type	Kitchen Scale
Brand	Fasett
Model	9095-1438
Power Source	1x CR2032 battery (included)
Capacity	5 kg / 11 lb
Precision	1 g / 0.1 oz
Tare Function	Yes
Auto-Off	Yes, after 2 minutes of inactivity
Platform Material	Stainless steel
Display	LCD, white backlight
Units	g, kg, oz, lb
Dimensions (L x W x H)	20 x 15 x 2 cm
Weight	200 g
Color	Silver / Black
Overload Protection	Yes, displays 'EEEE'
Low Battery Indicator	Yes
Included Accessories	Scale, battery, user manual
Cleaning	Wipe with damp cloth; do not immerse
Warranty	1 year limited

Frequently Asked Questions - 9095-1438 Fasett

How do I turn on the Fasett 9095-1438 kitchen scale?

Press the ON/OFF button located on the front panel. The scale will power on and display 0.

How do I change the battery?

Open the battery compartment on the bottom of the scale. Remove the old CR2032 battery and insert a new one with the positive side up.

What is the maximum weight capacity?

The maximum capacity is 5 kg (11 lb). Do not exceed this limit to avoid damaging the sensor.

How do I use the tare function?

Place an empty container on the scale and press the TARE button to reset the display to zero. Then add ingredients; only the net weight will be shown.

Can I measure in different units?

Yes, press the UNIT button to cycle between g, kg, oz, and lb. The selected unit appears on the display.

The scale shows 'EEEE' or error. What does it mean?

'EEEE' indicates an overload. Remove the item immediately. The scale may also show this if the battery is low or if there is a malfunction.

How do I clean the scale?

Wipe the surface with a damp cloth. Do not use abrasive cleaners or immerse the scale in water, as it is not waterproof.

Does the scale have an auto-off feature?

Yes, the scale will automatically turn off after 2 minutes of inactivity to save battery.

What should I do if the display is dim or inaccurate?

Replace the battery with a fresh CR2032. If the problem persists, calibrate the scale by placing a known weight (e.g., a coin) and adjust using the manual if available.

Where can I find the user manual?

The manual is included in the package. You can also download a PDF version from the Fasett support website or via the link on the product page.

USER MANUAL 9095-1438 Fasett

fasett Zero Chemistry Weight Milk Water WOOD

SEENG NO

Thank you for choosing to purchase a product from Rusta!

Read through the entire manual before installation and use!

Kitchen scale

FUNCTIONS

• Specifi es the volume of water and milk.
• Two units of weight can be selected - grams (g) or pounds (lb).
• Two units of volume can be selected - millilitres (ml) or fl uid ounces (fl).
• Long battery life. Indicates overloading.
  • Highly precise weight sensor.
• Net weight and reset function.
• Turns off automatically.

The kitchen scale is intended for use in households or household-like environments, for example, in kitchenettes in hotel or motel rooms, bed and breakfasts, common areas in campsites or other environments where food preparation occurs.

The scale is sensitive to extremes of temperature. Variations may occur if the scale is cold and therefore it works best at normal room temperature.

BATTERY

• 1 x lithium battery CR2032, 3V

REPLACING THE BATTERY

• Remove the battery cover and open the battery compartment on the underside of the scale.
• Remove the used battery.
• The new battery must be activated before the scale can be used. Carefully remove the black plastic flap. Let the scale adjust to the room temperature before using.
• Insert the new battery so that it is secure - remember to set the battery poles correctly.
• Put the battery cover back on.
• The battery should be replaced when the display shows "Low".

3V CR2032 +

Black plastic fl ap Contact

ENVIRONMENTAL CONSIDERATIONS FOR DISPOSAL OF BATTERIES

• When disposing of batteries, it is necessary to think of the environment. Used batteries should never be disposed of with household waste, but should be submitted to battery collection stations.
• The batteries should always be removed before the device is disposed of.
  • Make sure that the batteries are not too old and used, since there is a risk that they will leak. Check the shelf life dates on the batteries and remove the batteries before they get too old.

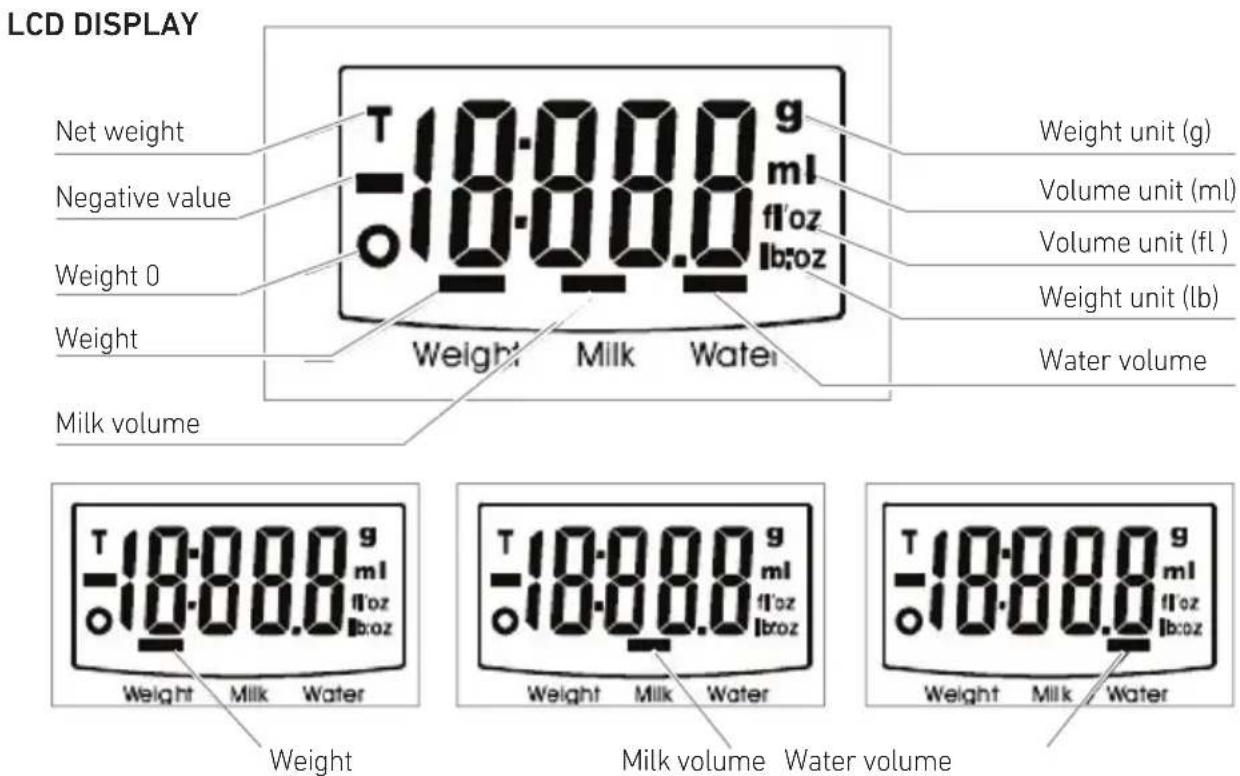

LCD DISPLAY Net weight Negative value Weight 0 Weight Milk volume T 18.000 g ml o 18.000 g fl'oz lb:oz Weight Milk Water Weight Milk Water Weight Milk volume Water volume Weight unit (g) Volume unit (ml) Volume unit (fl ) Weight unit (lb) Water volume

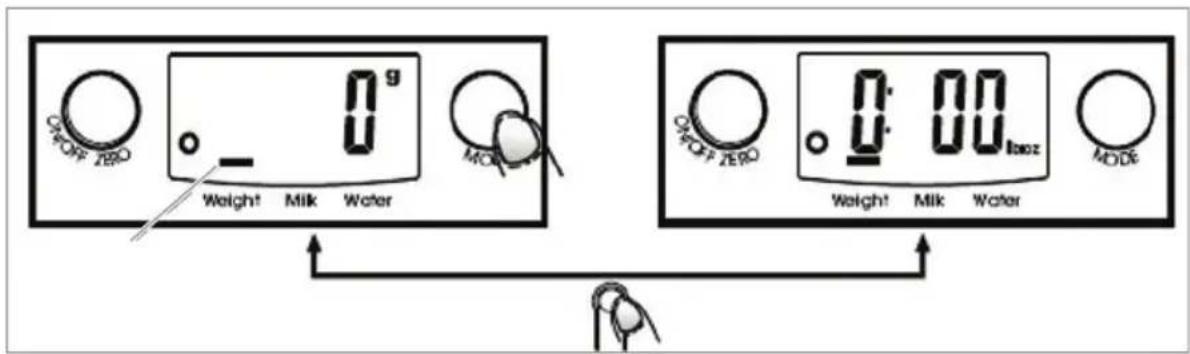

BUTTON FOR CHANGING UNITS

- The button to change the unit is on the underside of the scale.

Simple line drawing of a two-pin electronic component (no text or symbols)

• Press the MODE button and choose the setting: weight, milk volume or water volume.
• Then press the button to change the unit and select the desired weight and volume unit. When grams (g) are selected as the weight unit, the volume will be in millilitres (ml). When pounds (lb) are selected, the volume will be in fluid ounces (fl).

Cr#OFF ZERO 0 g Weight Milk Water MODR Cr#OFF ZERO 0.00 Weight Milk Water MODR

ENG

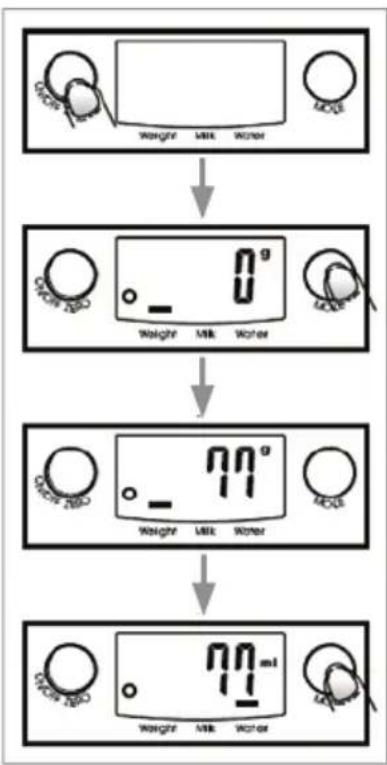

WEIGHING

• Place the scale on a flat, stable surface.
• For exact weight, place the weighing pan or object to be weighed in the middle of the scale.

WEIGHT MODE

• Place the weighing pan (if you want to use it) on the scale before you turn on the scale.
• Press the ON/OFF button to go to weight mode.
• Wait until the display shows all the information.
• Put the object to be weighed on the scale. The display shows the weight.
• If you are weighing milk or water, press the MODE button and select volume mode. The display shows the volume of the weighed liquid.

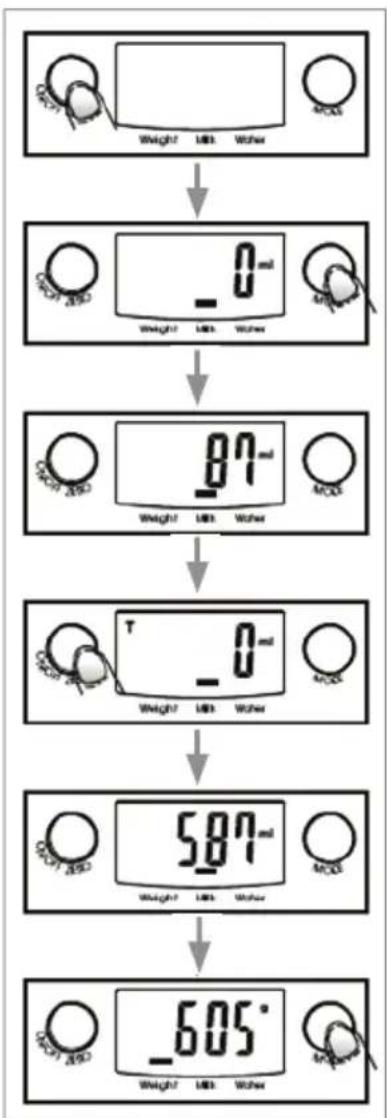

VOLUME MODE

• Press the ON/OFF button to go to turn on the scale.
• Wait until the display shows "0".
• Press the MODE button and select "Water" or "Milk" mode.
• Put an empty container on the scale.
• Press the ZERO button to reset the display to "0".
• Pour the liquid (water or milk) in the container. The display shows the volume of the liquid.
• Press the MODE button and select weight mode to see the liquid's weight.


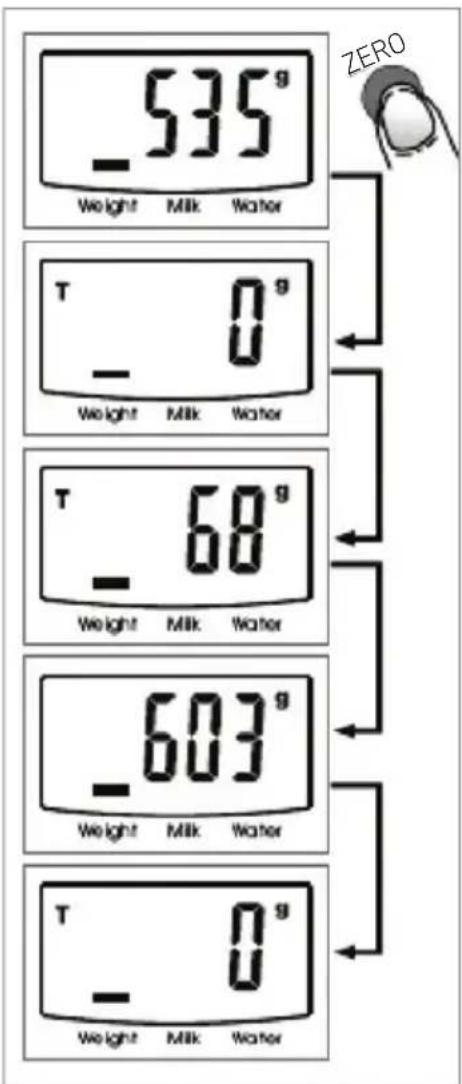

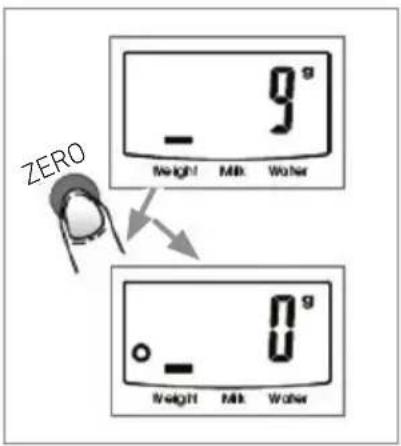

RESET AND NET WEIGHT FUNCTION

• The reset function is used to weigh objects one after another without needing to remove the previous object from the scale.
• Put the object on the scale and read the weight.
• Press the ZERO button to reset the display to "0" before adding the next object to the scale.
• Weighing can be repeated if more objects are added.

ZERO 9° Weight Milk Water 0° Weight Milk Water

• Condition 1, reset function: If the total weight is < 4% of the scale's maximum weight capacity (4% =80g if the capacity is 2000g, and 200g if the capacity is 5000g).
• The display shows"----"or "0g" each time the ZERO button is pressed. ----"means that the scale is not stable. Wait until it stabilises. "0g" (eventually also displays the icon "o" in the lower left corner of the display) means that the reset function is active. The maximum weight capacity is unchanged.
• Condition 2, net weight function: If the total weight is >4% of the scale's maximum weight capacity (4% =80g if the capacity is 2000g, and 200 g if the capacity is 5000g).
• The display shows "----" or "0g" each time the ZERO button is pressed. "" means that the scale is not stable. Wait until it stabilises. "0g" (eventually also displays the icon "o" in the lower left corner of the display) means that the net weight function is active. The maximum weight capacity decreases with the total weight of the weighed objects.
• Under these conditions, press the ZERO button to see all objects' total weight. If you want to weigh more objects, press the ZERO button to reset the display to "0".

535° Weight Milk Water T 0° Weight Milk Water T 68° Weight Milk Water 603° Weight Milk Water T 0° Weight Milk Water ZERO

ENG

AUTOMATIC SHUTOFF

- Automatically turns off if the display shows "0" or if the same weight is shown for 2 minutes.

MANUAL SHUTOFF

- Extend the battery's life by turning off the scale (press the ON/OFF button). - Note: When the display shows "0", press the ON/OFF button to turn on the scale. When the display shows the weight, press the ON/OFF button and hold it down for 3 seconds to turn off the scale.

ON/OFF

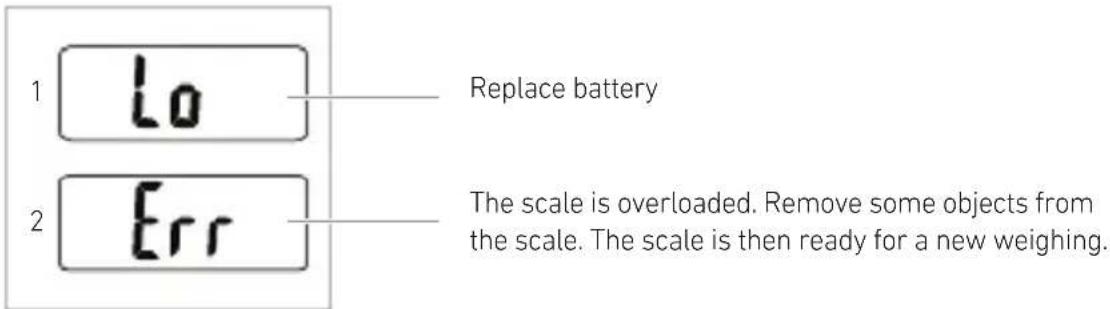

WARNING SYMBOLS ON THE DISPLAY

1 lo 2 Err Replace battery The scale is overloaded. Remove some objects from the scale. The scale is then ready for a new weighing.

- This scale's weight capacity is 5kg. If overloaded, the display shows "EEEE".?

CLEANING AND MAINTENANCE

• Wipe the scale with a slightly damp cloth. Do not immerse the scale in water or other liquid. Do not use chemicals or abrasive cleaning agents.
• All plastic parts should be cleaned immediately after contact with grease, spices, vinegar or highly spicy or colourful foods. Avoid contact with citric acid.
  • Always place the scale on a flat, stable surface. Do not place the scale on a mat.

TECHNICAL DATA

Slim design 14mm
Tempered glass plate	3mm thick
LCD display
Units g/lb
Capacity Max 5kg with	1g accuracy
Battery 1 x CR-2032, 3V (included)
Reset and net weight function between weighings
Automatically turns off after about 120 seconds.

Simple line drawing of a U-shaped electronic component (no text or symbols)

Cr-Off ZERO Weight 0 g Milk Water MOR Cr-Off ZERO Weight 0.00 Milk Water MOR

SE

VÄGNING

VIKTLÄGE

ZERO - 9° Weight Milk Water 0° - 0° Weight Milk Water

535° Weight Milk Water T 0° Weight Milk Water T 68° Weight Milk Water 603° Weight Milk Water T 0° Weight Milk Water

SE

AUTOMATISK AVSTÄNGNING

9° 2 mins

MANUELL AVSTÄNGNING

Simple line drawing of a two-pin electronic component (no text or symbols)

OFF ZERO Weight Milk Water MODE OFF ZERO 0 9 0 00 Milk Water MODE 0 00 Milk Water

NO

VEIING

VEKTMODUS

ZERO - 9° Weight Milk Water - 0° Weight Milk Water

535° Weight Milk Water T 0° Weight Milk Water T 68° Weight Milk Water 603° Weight Milk Water T 0° Weight Milk Water ZERO

NO

SLÅ AV AUTOMATISK

9° 2 mins

SLÅ AV MANUELT
