USER MANUAL 21500 KORONA

Close-up of a raw meat cut (no text or symbols visible)

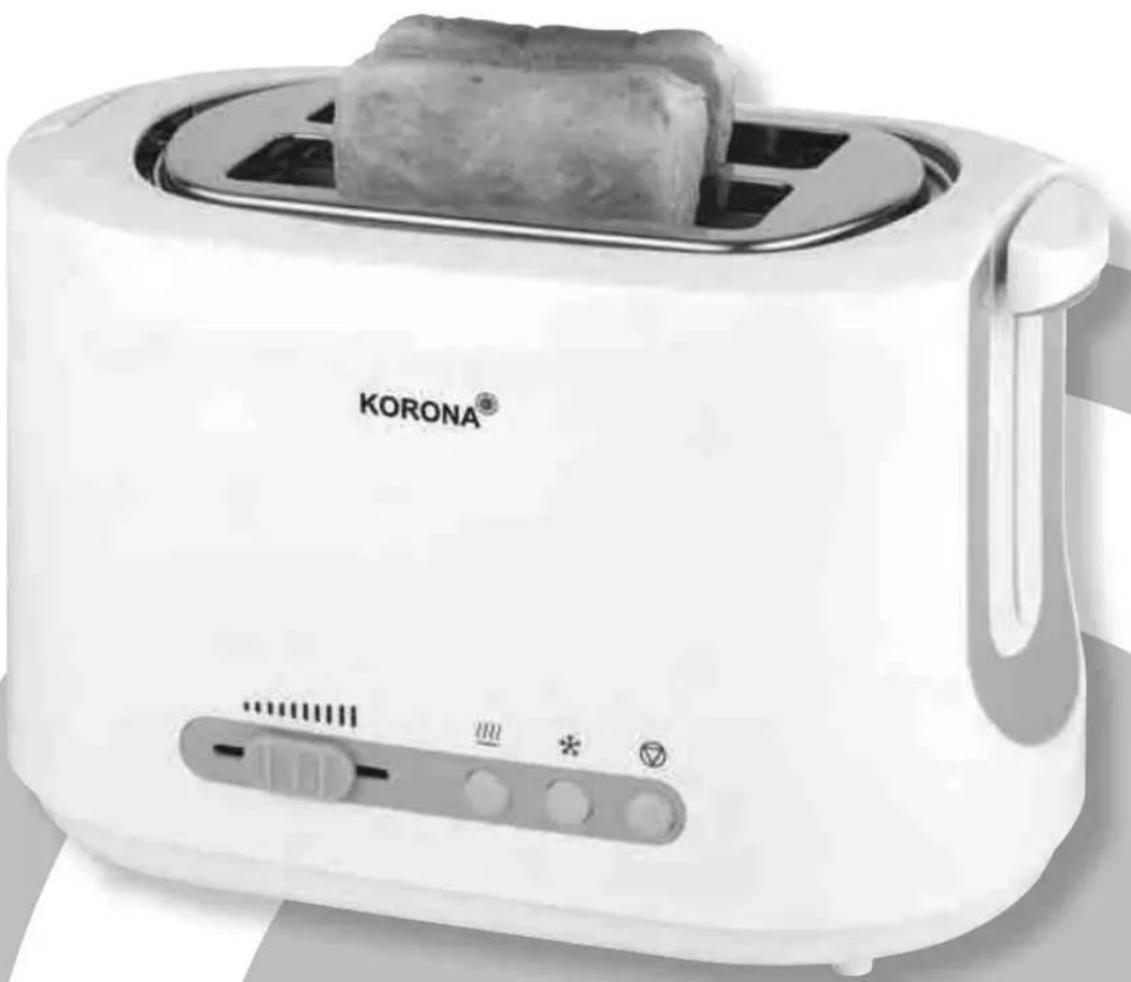

White Korona brand toaster with a single bite on top, no visible text or symbols on the device itself.

CE

Warning symbols including exclamation mark, steam symbol, and lightning bolt

Top-down view of a device's internal structure showing ventilation grilles and a connector (no text or symbols visible)

12
11
10

Vor Erstgebrauch

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is intended and suitable for toasting and reheating

the appliance is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is only intended for private household use and not for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

by incorrect use.

cause injuries to the user.

sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

liquid.

An electric appliance is not a toy!

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless

before cleaning.

surfaces to avoid any damage to the appliance.

anyone to trip when in use. Do not allow the cord to hang over sharp edges.

Do not use the appliance,

Have it checked and, if necessary, repaired by a qualified modifications to or repair the appliance yourself.

Special Safety Instructions

Warning symbols including exclamation mark, steam symbol, and lightning bolt

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, risk of fire and burns!

described in this manual.

resistant surface.

any bread into the bread slot. The appliance may produce some smoke or smell which is due to residues left over from the manufacturing process.

slots rises significantly. Therefore, do not operate the toaster underneath or near any inflammable material, such as curtains.

high during operation. Therefore, do not touch the appliance

serious burns!

electric sources of heat.

other objects lie across the bread slots.

cool down before cleaning.

KORONA® ① ② ③ ④ ⑤ ⑥ ⑦ ⑪ ⑫ ⑬

Product Description

1. Bread slots
2. Toasting lever
3. Stop button with indicator light
4. Defrost button with indicator light
5. Reheat button with indicator light
6. Browning control knob

7. Crumb tray

8. Bun warmer control lever

Top-down view of a device's internal structure showing ventilation grilles and a connector (no text or symbols visible)

12. Power cord and plug

Before First Use

appliance is complete.

resistant surface.

properly installed wall socket.

not insert any slices of bread during this first use and let your

cool down and clean it as described under Cleaning and Care.

Note: During this process, the appliance may briefly produce some smoke or smell which is due to residues on the heating elements left over from the manufacturing process. This is normal and not harmful. Make sure that the room is well ventilated.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Operation

The temperature of accessible surfaces may be highing operation. Therefore, do not touch the applianceing and/or immediately after operation.

Toasting

The toaster comes with a self-centering function which allows an even browning process on both sides of the bread slices.

surface and connect it to a properly installed wall socket.

1. Select your preferred browning degree depending on the freshness and thickness of the bread by sliding the browning
2. The toaster will switch off automatically, once the set browning degree has been reached.

Attention: Toasted bread can be very hot. Let it cool down or use potholders to handle it.

If a slice of bread should get stuck during the toasting process, unplug the appliance and let it cool down completely, before trying to remove it. Do not use any sharp metal objects to do so.

During operation, bread crumbs are falling down onto the crump tray (7), make sure to clean it on a regular basis.

Use of the integrated bun warmer

Always use the bun warmer (8) for toasting/reheating buns/croissants. Never put them directly into the bread slot.

Once the required browning degree has been reached, the toaster switches off automatically. Toasted bread can be very hot. Let it cool or use potholders to handle it.

toaster on again.

Please note: The browning degree also depends on the size and freshness of the product.

Make sure to close the bun warmer after use by pushing the bun warmer control lever upward.

Reheating Function

With this function, you can reheat bread which was toasted

Both indicator lights, stop and reheat, light up. The reheating process starts. The toaster automatically stops after several

reheat cycle.

Defrost Function ✱

With this function you can toast frozen bread. To activate the

⚠️ If your toaster should not switch off automatically, press the stop button ( △) or disconnect the appliance from the mains. The same applies in case of smoke coming out of the appliance.

In either case, do not continue to use the appliance. Contact our Customer Service or have it checked by an authorized dealer or similarly qualified person.

Cleaning and Care

⚠️ 4 Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance with a moistened soft cloth.

objects to clean the appliance.

back inside the unit.

Storage

Disconnect the appliance from the mains after each use and let it completely cool down.

and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must

according to the EU directive on Waste Electric And

collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your toaster 21500 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Subject to change without notice!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

instructions

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

guaranteed period, the customer must provide evidence of the

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede,

Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired

Abstract geometric design with curved gray shapes on white background (no text or symbols)

KORONA
