PS-ZP-20 - Wallpaper steam machine Cotech - Free user manual and instructions

Product Type	Wallpaper Steamer (Steam Stripper)
Brand	Cotech
Model	PS-ZP-20
Power	2000 W
Mains Supply	230 V AC, 50 Hz
Water Capacity	4 litres
IP Class	IPX4
Use Time per Tank	Approx. 80 minutes
Safety Cut-Off Temperature	115 °C
Mains Lead Length	2 metres
Hose Length	3 metres
Steam Pad Size	200 × 275 mm
Steam Production Time	About 15 minutes after plugging in
Safety Features	Pressure relief valve, automatic safety cut-off, thermostat
Descaling	Recommended with citric acid or commercial descaler
Assembly	Connect hose to steam outlet and steam pad to hose; fill tank with clean water
Operation	Plug in, wait for steam, apply pad to wallpaper for ~10 seconds
Maintenance	Empty tank after use, descale as needed, check hose for kinks
Compliance	CE marked, complies with Low Voltage and EMC directives
Accessories Included	Steam pad, hose, water tank with lid

Frequently Asked Questions - PS-ZP-20 Cotech

How long does it take to produce steam?

After plugging in, steam is produced within about 15 minutes, depending on water amount and temperature.

Can I use additives or chemicals in the water?

No, only use clean water. Never add detergent or other chemicals, as they can damage the steamer.

What should I do if water seeps from the steam pad before steam appears?

A little water seepage before full steam is normal. It will stop once the water turns to steam.

How do I descale the wallpaper steamer?

Use a descaling solution like citric acid. Pour it into the tank, boil for 5 minutes, let it sit for 10 minutes, then empty and rinse with clean water.

What does the safety cut-off do?

If the water level drops too low, the safety cut-off prevents overheating. It resets after 15 minutes. Wait 5 minutes before opening the lid.

What should I do if steam escapes from the pressure relief valve?

A little steam/water from the valve is normal. If excessive, the hose may be blocked or tank overfilled. Unplug, let cool, and check the valve and hose.

Can I leave the steamer unattended while plugged in?

No, never leave it unattended. Always unplug after use and before cleaning.

How do I remove wallpaper effectively?

Hold the steam pad against the wallpaper for about 10 seconds, then slowly move it across the surface. Use a scraper to remove the wallpaper.

What should I do if the steamer stops boiling during use?

This may be due to the safety cut-off. Unplug, wait 5 minutes, then top up the water. The cut-off resets after 15 minutes.

How should I store the steamer?

Allow it to cool completely, then empty the water tank. Store with the tank empty and the hose disconnected.

USER MANUAL PS-ZP-20 Cotech

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Line drawing of a simple kitchen appliance with a lid, side legs, and a handle (no text or symbols)

ART.NO.

18-3134

40-7022

MODEL

PS-ZP-20-UK

PS-ZP-20

Ver. 20130719

Original instructions

Bruksanvisning i original

Please read the entire instruction manual before using and save it for future use. We apologise for any text or photo errors and any changes of technical data. If you have any questions concerning technical problems please contact our Customer Service Department (see address on reverse).

Safety

• Before starting to use the tool, check that it is complete and undamaged. The tool or its accessories must not be used if they have been dropped or damaged in any way.
  • The power lead should be checked regularly.
  If the power cable is damaged it can only be replaced by the retailer or qualified service technician.
• The nozzle of tool must not be pointed in the direction of electrical appliances or fittings.
• Never open the lid of the water tank or unscrew the hose during use or before the tool has cooled. Wait at least 5 minutes after the tool has been unplugged.
• Do not move the stripper by pulling the lead, use the handle.
• Do not stand on the tool and avoid standing on the hose.
• Keep the hose in order. If it should kink or become tangled, unplug the stripper at once and let it cool down before rectifying the fault.
• Make sure that the mains power at the socket is 230 V AC, that extension leads have an area of at least 1.5 mm ^2 and that an RCD is fitted.
• Do not cover or block the pressure relief valve.
• Place the wallpaper stripper on an even and level surface, otherwise it might overheat.
• Always hold the steam pad away from your face. Watch out for drops of water, especially when working over head height.
  • Use only clean water and do not overfill.
  • Never add detergent or other chemicals to the water.
• Never direct the steam towards people, animals or anything that might be damaged.
  • Always unplug the tool from the wall socket after use and before cleaning.
• Never leave the tool unattended whilst it is plugged in.
• Never place the tool close to sources of heat such as fires, radiators, fan heaters, etc.
• The tool is fitted with a thermostat that regulates the temperature and prevents overheating. If the temperature continues to rise above working temperature, unplug the tool immediately. Send the tool in for service.
• Never cover the tool during or directly after use.

Product description

1. Lid with pressure relief valve

2. Steam outlet

3. Watertank

4. Mains lead

5. Steam pad

6. Hose

Assembly

NOTE: Always unplug the tool from the wall socket before changing accessories.

Assembly

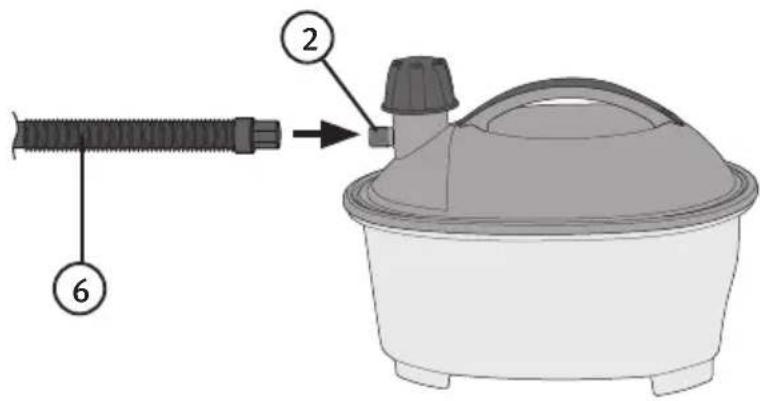

1. Connect one end of the hose (6) to the steam outlet (2).

1. Connect the steam pad (5) to the other end of the hose (6).

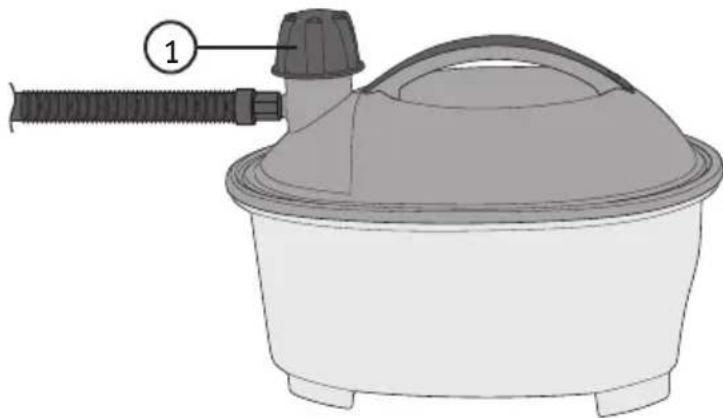

1. Remove the lid (1). Fill the water tank with clean water up to the maximum level, no higher. Then replace the lid.

Diagram of a portable air purifier with a handle and spool, labeled with number 1 (no text or symbols on the diagram itself)

NOTE:

• Do not overfill the water tank and do not let the water level drop below the minimum mark.
  • Do not use additives or chemicals.

Operation

NOTE: Make sure that all connections are tight before starting to use the stripper. Make sure that your power supply is 230 V AC, 50 Hz.

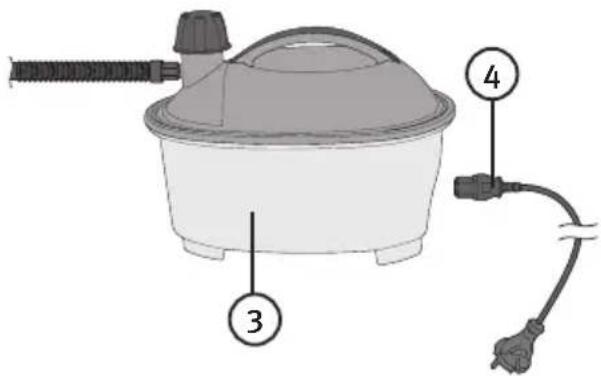

1. Connect the mains lead (4) to the water tank (3).
2. Connect the lead to the wall socket.

3. Steam will be produced after about 15 minutes, depending on the amount of water and its temperature. Sometimes a little water can seep out through the steam pad before it has turned into steam. This is quite normal.

4. After use, unplug the stripper from the wall socket.

5. Allow the tool to cool before moving or emptying it.

Removing wallpaper

Hold the steam pad against the surface for approximately 10 seconds. Move the steam pad slowly across the surface of the wallpaper. The wallpaper should now come off easily with the help of a scraper. Certain types of wallpaper can take longer to dislodge and might not come off at the first attempt.

Tip

When the water is low, unplug the tool and let the water tank cool for at least 5 minutes before taking off the lid and topping up the water level. Watch out for the steam! Similarly, when you have finished using the stripper, let it cool before emptying it. Always store the stripper with an empty tank.

Safety cut-off

A safety cut-off prevents the heating element from overheating if the water level drops too low. If the water stops boiling during use, it might be because of the safety cut-off. Wait 5 minutes before taking off the lid and topping up the water. The safety cut-off resets itself after 15 minutes, and work can be resumed.

Pressure relief valve

The wallpaper stripper is equipped with a pressure relief valve. If too much pressure builds up inside the tank, the relief valve allows steam and a little water to escape. Overpressure can be caused by the hose being blocked or overfilled. If this should occur; unplug the stripper from the wall socket and let it cool before checking the valve/hose. Under no circumstances must the pressure relief valve be blocked. A little water and steam might escape from the valve during normal use.

Unplug the stripper from the wall socket and wait at least 5 minutes before removing the hose or other accessory.

Descaling

• The appliance should be descaled as and when required, depending on how hard the water is and how often the stripper is used. Descaling agents such as citric acid can be found in any supermarket.
• Switch the stripper off and unplug it from the wall socket.
• Pour the descaling solution into the tank. One pint of descaling solution should be enough.
• Disconnect the hose and switch the stripper on.
• Allow the descaling solution to boil for about 5 minutes.
• Switch the stripper off and unplug it from the wall socket. Allow the solution to remain in the tank for about 10 minutes. Let both the tool and the solution cool down.
  • Empty the tool and flush it out with clean water.

Disposal

Follow local ordinances when disposing of this product. If you are unsure of how to dispose of this product, please contact your municipality.

Specifications

Power 2000 W

Water capacity 4 litres

Mains supply 230 V AC, 50 Hz

IP class IPX4

Use from one tank Approx. 80 minutes

Safety cut-off At 115 °C

Mains lead 2 metres

Hose 3 metres

Steam pad 200 × 275 mm

Tapetborttagare

ART.NR 18-3134

40-7022

MODELL

PS-ZP-20-UK

PS-ZP-20

Diagram of a portable shower unit with a hose and base, no text or symbols present

OBSERVERA:

1. Lokk med overtrykksventil

2. Damputgang

3. Vanntank

4. Strømkabel

5. Damplate

6. Slange

Å komme i gang

Diagram of a portable air purifier with a handle and spool, labeled with number 1 (no text or symbols on the diagram itself)

OBS!

- Påse at vannivået i vanntanken er mellom maks. og min. merkene ved bruk. - Vannet må ikke tilsettes kjemikaler.

Bruk

Fjerne tapet

Diagram of a portable air purifier with a handle and spool, labeled with number 1 (no text or symbols on the diagram itself)

HUOM.!

Diagram of a portable air purifier with a handle and spool, labeled with number 1 (no text or symbols on the diagram itself)

Hinweis:

Declaration of Conformity

CE

Hereby, Clas Ohlson AB, declares that the machinery:

WALL PAPER STRIPPER

COTECH 40-7022 / 18-3134

PS-ZP-20 / PS-ZP-20-UK

Complies with the provisions of the following Directives:

2006/95/EC Low Voltage directive

2004/108/EC EMC

Complies with the provisions of the following harmonized standards:

EN 62233:2008

EN 60335-1:2002+A1+A11+A12+A2+A13+A14

EN 60335-2-54:2008

EN 55014-1:2006

EN 55014-2:1997+A1

EN 61000-3-2:2006

EN 61000-3-3:1995+A1+A2

Insjön, Sweden, February 2011

Klas Balkow

President

Clas Ohlson, 793 85 Insjön, Sweden
