Product Type	Freestanding Refrigerator-Freezer
Brand	Inventum
Model	KV1880R
Height	1850 mm
Width	600 mm
Depth	650 mm
Weight	72 kg
Power Supply	220-240 V ~ 50 Hz
Energy Class	E (EU 2019)
Annual Energy Consumption	256 kWh
Noise Level	42 dB(A)
Refrigerator Net Capacity	170 L
Freezer Net Capacity	80 L
Total Net Capacity	250 L
Star Rating (Freezer)	4 stars
Freezing Capacity	4 kg/24h
Climate Class	N-ST
Defrosting	Automatic (Refrigerator), Manual (Freezer)
Cooling System	Static (Fridge), Static (Freezer)
Adjustable Shelves	3 glass shelves in fridge
Door Storage	3 shelves in fridge door, 2 in freezer door
Temperature Control	Manual dial thermostat
Interior Light	Yes (LED)
Reversible Door	Yes

Frequently Asked Questions - KV1880R INVENTUM

How do I adjust the temperature on my Inventum KV1880R fridge?

The temperature is controlled by a manual dial inside the refrigerator compartment. Turn the dial to a higher number for colder temperatures. The recommended setting is between 3 and 5.

Why is my fridge making unusual noises?

Some noise is normal due to the compressor and coolant flow. If the noise is loud or rattling, ensure the fridge is level and not touching walls or cabinets. Also check that the rear components are secure.

How do I clean the inside of the fridge?

Unplug the fridge and remove all food. Use a soft cloth with warm water and mild detergent. Do not use abrasive cleaners. Wipe dry with a clean cloth. For the freezer, defrost first by unplugging and leaving the door open.

How often should I defrost the freezer?

Defrost the freezer when the ice layer reaches about 5 mm (0.2 inches) in thickness. This improves energy efficiency and frees up space.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the installation instructions for detailed steps. You will need a screwdriver and possibly a spanner. The kit with necessary parts is included.

What is the correct temperature for storing food?

The refrigerator compartment should be at 4°C (39°F) for fresh food. The freezer should be at -18°C (0°F) for long-term storage. Use a thermometer to check.

Why is water pooling at the bottom of the fridge?

This usually happens when the defrost drain is blocked. Clean the drain hole at the back of the fridge compartment with a pipe cleaner or cotton swab. Also check that the drain tray is not full.

What should I do if the fridge is not cooling enough?

First, check the temperature setting. Ensure the door is sealing properly and the condenser coils at the back are clean. If the problem persists, contact technical support.

Can I put warm food directly into the fridge?

It is best to let food cool down to room temperature before placing it in the fridge to avoid raising the internal temperature and increasing energy consumption.

How do I replace the interior light bulb?

The KV1880R uses an LED light which is not user-replaceable. If the light fails, contact a qualified technician or the manufacturer for service.

USER MANUAL KV1880R INVENTUM

Exterior view of a modern stainless steel refrigerator with a black top and front panel (no visible text or symbols)

Interior view of a modern stainless steel refrigerator with open doors and food compartments (no visible text or symbols)

1. Safety instructions page 14
2. Appliance description page 16
3. Before first use
4. Usage
5. Tips
6. Cleaning & maintenance
7. Troubleshooting
8. Reversing the door opening
9. Product fiche
   Guarantee & After sales service

page 17
page 17
page 18
page 18
page 19
page 20

page 18

page 21

Line drawing of a tray with six circular cutouts (no text or symbols)

10 11

Pure technical line drawing of a rectangular grid pattern with no text or symbols

3 ingebruikname

Simple line drawing of a 3D cube with a small protrusion on top (no text or symbols)

Simple line drawing of a 3D cube with a small protrusion, labeled 'fig. 2' at the top (no other text or symbols)

Simple line drawing of a vertical rectangular object with a curved base, labeled 'fig. 3' (no text or symbols on the object itself)

Simple line drawing of a rectangular object with curved arrows indicating rotation or direction (no text or symbols)

Line drawing of a refrigerator with shelves and top panel, showing internal compartments and a hanging device (no text or symbols)

Technical line drawing of a mechanical bracket assembly with a screwdriver inserted (no text or symbols)

1 safety instructions

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home. The appliance is suitable for keeping food.
• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• Do not use single/multiple adapters or extension cables.
• Always carry out regular checks of the appliance and the power cord to ensure no damage is evident. Should there be any signs that the appliance or the power cord is damaged in the slightest degree, the entire appliance should be returned to the Customer Service Department. For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• The appliance must be handled and installed by two or more persons.
• Be careful not to damage the floor when you move the appliance.
• During installation, make sure the appliance does not damage the power cable.
• Check the appliance is not positioned near a heat source.
• Make sure that there is sufficient ventilation, leave a space of 10 cm around the appliance.
• Keep the vent outlets of the appliance free.
• Do not damage the refrigerant circuit pipes of the appliance.
  • Install the appliance on a firm and stable surface.
• Install the appliance in a dry and well ventilated area. The appliance is intended for operation in environments where ambient temperatures fall within the following ranges, depending on the climatic class indicated on the rating label at the back of the appliance. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

Climatic class Ambient temperature

SN From 10°C to 32°C

N From 16°C to 32°C

ST From 18°C to 38°C

T From 18°C to 43°C

- Do not store or use petrol, flammable liquids or gas in the vicinity of this or other electrical appliances. The fumes can create a fire hazard or explosion.

• Do not use mechanical, electric or chemical means to speed up the defrost process.
• Do not allow children to play or hide inside the appliance - there is a risk of becoming trapped and suffocating.
• This appliance shall not be used by children from 0 to 8 years. This appliance can be used by children over the age of 8 and above if they are continuously supervised. This can be used by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years.
• Cleaning and maintenance shall not be made by children.
  • Children must not play with the appliance.
• It is hazardous for anyone other than a competent person to carry out any service or repairs that involve the removal of the housing.
• Only use and place the appliance indoors.
• Do not let the cord hang over the edge of the table or counter and keep it away from the heated surface.
• Before moving or cleaning the appliance, make sure it is switched of and unplugged.
• For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• Never unplug it from the socket by pulling on the cable. Always ensure that your hands are dry before handling the plug or power cord.
• Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it.
• Never immerse any part of the main body, lid, power cord and plug in water or any other liquid to protect against electrical hazards.
• If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.
• Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

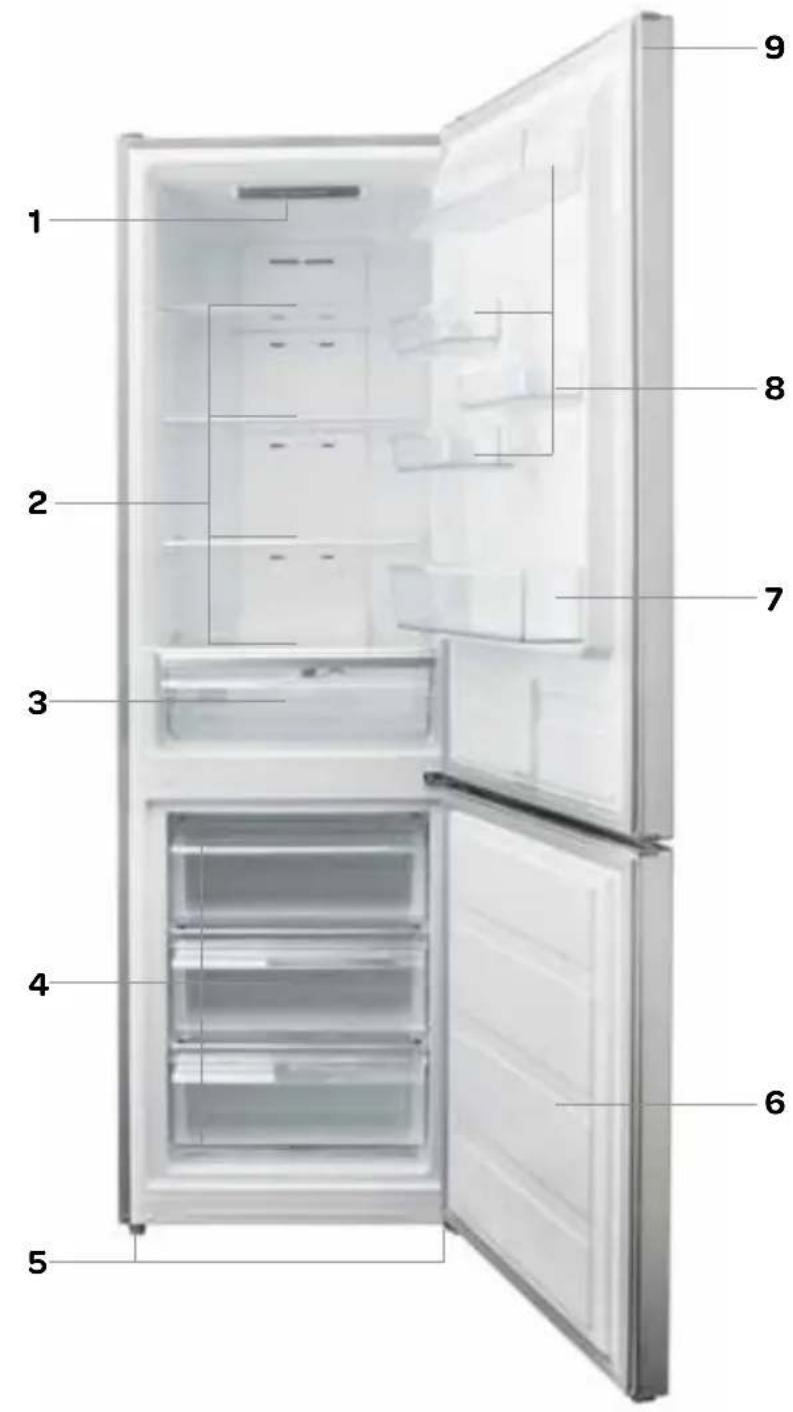

2 appliance description

1. Interior lighting
2. Glass shelves
3. Crisp drawer
4. Freezer drawers
5. Adjustable feet
6. Door - freezer compartment
7. Bottle compartment
8. Door compartments
9. Door - cooling compartment
10. Egg tray
11. Icecube holder

Line drawing of a tray with six circular cutouts, no text or symbols present

10 11

Pure geometric diagram of a rectangular frame with internal triangular cutouts (no text or symbols)

3 before the first use

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material and promotional stickers. Keep the material (plastic, polystyrene and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation. Place the appliance on a flat and stable surface. Make sure there is enough open space around the appliance for the intake and/or outlet vents. A minimum clearance of 10 cm is required between the appliance and any adjacent walls. The appliance needs good ventilation for easy dissipation of heat, high efficiency of refrigeration and low power consumption. Note: check the climat class of the appliance. When installing the appliance in a environment that is not suitable, the appliance can not function properly.

Leave the appliance to stand for at least 3 hours before you insert the plug into the socket.

First clean the interior of the appliance. Use warm water and a neutral detergent. After cleaning, rinse the interior with clean water and rub dry. Leave the appliance to dry for 1 to 2 hours.

4 usage

The appliance features both internal and external controls. Check that the voltage in your home corresponds with the voltage printed on the back of the appliance and plug it in a socket.

SETTING THE TEMPERATURE OF THE COOLING COMPARTMENT

The thermostat for the cooling compartment is placed on the exterior of the appliance. Press the temperature button [1] repeatedly to set the desired temperature. There are six temperature settings.

2°C is the coldest and the setting SUPER turns the appliance cold rapidly.

We advise to set the appliance on the temperature setting 4^ when using the appliance at normal room temperature.

The appliance now cools continuously until the set temperature has been reached. Do not place anything in the appliance until the set temperature is reached. This usually takes 2 or 3 hours. Then set the thermostat at the desired setting and place food into the refrigerator.

Set the appliance on a lower temperature setting when the ambient air temperature rises to maintain the temperature inside the appliance.

SETTING THE TEMPERATURE OF THE FREEZER COMPARTMENT

The thermostat of the freezer compartment can be found on the inside of the cooling compartment behind the crisp drawer.

There are three settings. The setting WINTER is the coldest. Turn the thermostat knob [2] to the desired setting.

The recommended position is NORMAL when using the appliance at normal room temperature.

The recommended position is between NORMAL and WINTER for colder working environments and between NORMAL and SOMMER for hotter environments.

Note:

The ambient air temperature, how often the door is opened and the position of the appliance can affect the internal temperature. These factors must be taken into account when setting the thermostat.

• Do not put hot food into the refrigerator.
  • Never introduce volatile, inflammable or explosive fluids such as alcohol, acetone or petrol because of the risk of explosion.
• It is advisable to wrap meat and fish to avoid odours.
• Leave sufficient space between the food to enable air to circulate correctly between them. Similarly, when storing them, avoid putting food items in contact with each other.

- Do not place food items in contact with the cold wall at the back of the appliance. The shelves have a stop to avoid this.

- The door should not be left open any longer than necessary.

5 tips

• High ambient temperatures have a negative effect on energy use. Keep the appliance in a position away from direct sunlight or other sources of heat.
• Keep ventilation openings free. Clogged openings lead to higher use of energy.
• Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, mind to close it as soon as possible.
• The space between the shelves and the rear wall of the refrigerator compartment must be unobstructed to allow the cool air to circulate. Therefore don't place any food items against the back.
• Turn the thermostat to a lower setting when the circumstances allow it.
• Before storing fresh cooked food, make sure the food has cooled at least to room temperature.
• Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3 to 5 mm thick.
• If the gasket is damaged or if it turns out that the sealing is poor, the energy consumption is substantially higher. To restore efficiency, replace the gasket.
  • Always consider the instructions, otherwise the energy consumption is substantially higher.

6 cleaning & maintenance

Before cleaning the appliance always unplug the appliance.

Clean the interior of the appliance. Use warm water and a neutral detergent to prevent any bad smells occurring. After cleaning, rinse the interior with clean water and rub dry. Leave the appliance to dry for 1 to 2 hours.

Simply remove the shelves, drawer and door compartments to clean them by hand. Do not clean the interior accessories in the dishwasher.

Clean the outside of the appliance and the gasket with a soft moist cloth. The grille of the condenser at the back of the appliance and the adjacent components can be vacuumed using a soft brush attachment.

DEFROSTING

The freezer compartment of the appliance is frost-free - no-frost. With proper use, there should not be any frost accumulated.

However, in case of improper use of the freezer compartment, frost might build up in the freezer compartment after the appliance has been used for a period of time. Defrost the freezer compartment when the layer of ice reaches a thickness of 3 mm. Keep the contents of the freezer in a cool place and wrapped in blankets or newspapers. Switch the thermostat off. Defrost the freezer compartment. You can speed up the defrosting process by placing a bowl of hot water in the freezer. Do not use sharp metal objects for this operation. They could puncture the refrigerator circuit and cause irreparable damage to the unit. Use a plastic scraper.

Clean and dry the freezer. Plug the appliance in and set the thermostat to the desired temperature setting. When the freezer compartment reaches its correct temperature, replace the food items.

Warning: Never remove the ice with the aid of sharp objects, defrost sprays, a hair-drier, a heater, or similar items. This may lead to unsafe situations and may cause irreparable damage to the appliance

REPLACING THE LED LIGHTING

This appliance is equipped with a LED light bulb. It can be used for a long time. In case, the LED bulb is blown, it must be replaced by a qualified person to avoid any hazard. Contact the Inventum service department.

7 troubleshooting

Problem Cause Solution
Appliance is not functioning; light does not work	Appliance is not plugged in Plug the appliance in the socket
Temperature inside the larder is too high or too low	Thermostat has been set incorrectly - Set the thermostat correctly- Check the freezer thermostat. Is it set to SOMMER or WINTER?
	Air circulation vents are blocked Clean the ventilation openings
Appliance is excessively noisy Has the appliance been installed correctly? Check the installation
			Are the pipes at the back touching or vibrating? Check it and move the appliance forwards

Note: gurgling and hissing noises due to expansion in the refrigerant circuit are normal.

It is possible to change the door opening from either the left or the right side. To change the opening direction, please follow these instructions. We recommend you have someone assist you.

fig.1

Simple line drawing of a 3D cube with a small protrusion on top (no text or symbols)

fig. 2fig. 2

Simple line drawing of a 3D cube with no text or symbols

fig. 3

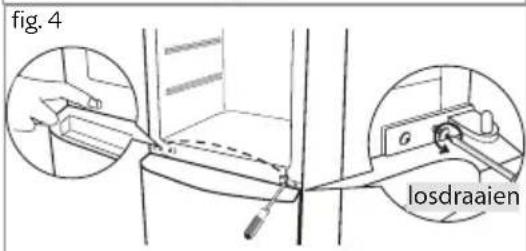

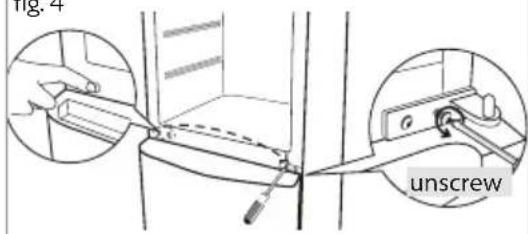

fig. 4

fig. 5

fig. 6

Line drawing of a multi-tiered refrigerator with shelves and drawers, showing internal compartments and a hanging device (no text or symbols)

Note: Before reversing the door swing, unplug the appliance from the mains. Empty the appliance, including the shelves before reversing the door opening.

• Remove the plastic covering from the top door hinge - fig.1.
• Remove from the right top side the hinge with the three bolts (mind the plastic parts between the hinge and the door). - fig.2. Remove two bolts from the left top side.
• Remove the top door by carefully lifting it from the hinge in the middle. Put the door in a safe place - fig. 3.
• Remove the hinge in the middle on the right side by losing the two bolts. Remove and fit the white plastic caps from the left side to the right side and place these where you have removed the middle hinge - fig. 4.
• Carefully remove the bottom door by lifting it from the bottom hinge- fig. 5. Put the door in a safe place.

- Remove and fit the plastic nog from the right side to the left side.

- Tilt the appliance 45^ .

- Remove the front leg on the left side and the two bolts.

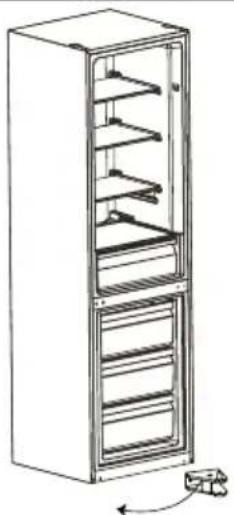

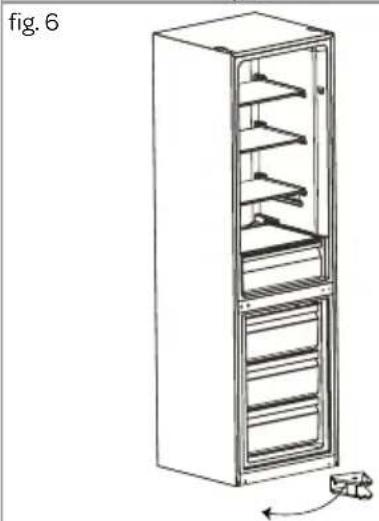

- Unscrew the two bolts and remove the bottom hinge - fig. 6. Install the bottom hinge on the opposite side und replace the bolts in the provided holes.

- Replace the front leg on the right side with the bolts.

- Place the bottom door against the appliance and make sure it is well fitted on the bottom hinge. Make sure the door is aligned with the outside of the appliance.

- Refit the middle hinge (mind the plastic parts) with the bolts - fig. 7. Make sure the door is aligned with the outside of the appliance.

- Place the top door against the appliance and make sure it is well fitted on the middle hinge. Make sure the door is aligned with the outside of the appliance.

- Refit the hinge on the left top side (mind the plastic parts) with the bolts - fig. 8. Make sure the door is aligned with the outside of the appliance.

- Set the appliance carefully upright.

- Screw the bolts back on the right top side.

- Refit the plastic covering on the top hinge.

- Leave the appliance to stand for at least 3 hours before you insert the plug into the socket.

fig. 7

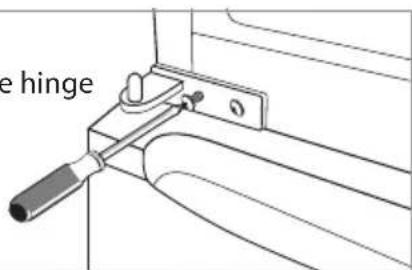

Middle hinge

fig. 8

Technical line drawing of a mechanical bracket with a screwdriver inserted (no text or symbols)

	INVENTUM
Model number	KV1880R
Type of appliance	refrigerator/freezer
Category	7
Energy-efficiency class	A++
Annual energy consumption [Aec]	224 kWh
Nett capacity - total	295 liter
Nett capacity - cooling compartment	219 liter
Nett capacity - freezer compartment ****	76 liter
Max. storage time in case of power failure	15 hours
Freezing capacity (kg/24 hour)	4,0
Climate class	N/T
Noise level dB(A)	40 dB
Type of appliance	freestanding
Defrost system	no-frost
Execution
Color	stainless steel
Number of doors	2
Door opening reversible	●
Eggholder included	1
Ice cube holder included	1
Number of glass shelves	4
Number of freezers drawers/ compartment	3
Total amount of door compartments/ bottle racks	5
Number of crisper drawers	1
CFK/HFK free	free
Type of cooling agent	R600a
Number of compressors	1
Technical specifications
Dimensions (wxdxh) in mm	595 x 630 x 1880
Nett weight in kg 68 kg
Gross weight in kg	75 kg
Power consumption [W]	170 w
Rated voltage [V] / frequency [Hz]	220-240V/50Hz
Lenght of power cord [m]	1,7
Type of plug	VDE plug 90°

Note: On the rating label - which you can find on the left inside the appliance - you can also find the technical specifications.

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

5-year Inventum warranty

1. Inventum offers a 5-year warranty on most large domestic appliances and a selection of small domestic appliances. This 5-year Inventum warranty consists of a 2-year full manufacturer's warranty, extended by a further 3-year warranty. The only thing you need to do to qualify for the 3-year extended warranty is to register the product within 45 days of purchase. You can read more about registering the product in the following paragraph.
2. In accordance with the 5-year Inventum warranty provisions, a faulty product or part will always be exchanged for a new model during the first 2 years under the warranty. During the 3rd to 5th year under the warranty, you will only pay the costs of exchange. The current costs of exchange are listed at www.inventum.eu/omruilkosten.
3. In order to claim under the 5-year Inventum warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
4. The 5-year warranty period starts from the date the product is bought.
5. In order to claim under the warranty, you must produce a copy of the original receipt.
6. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Product registration

1. The 3-year extended warranty is easy to obtain, free of charge, by registering the product within 45 days of purchase, via the website www.inventum.eu/garantie- registratie. If you did not register the product within 45 days of purchase, you can still do so up to 2 years after the purchase date. However, there will be a charge. The one-off registration charge is € 89 for each separate product. Registration is possible only for products that are subject to the 5-year Inventum warranty. Whether the product qualifies for the 5-year Inventum warranty is stated in the product user manual and in the product information sheet, on Inventum's website.
2. The warranty period always starts from the date the product is bought. If the product is registered for the extended warranty at a later date, the warranty period still starts from the original date of purchase.
3. The 3-year extended warranty can only be applied for if you are in the possession of a copy of the original receipt and the Inventum 5-year warranty certificate.

Large domestic appliances

1. Breakdowns or faults in large domestic appliances (separate and built-in white goods) can be registered via the form at www.inventum.eu/service-aanvraag, by calling the Inventum costumer service department or in the store where you bought the device. The telephone number of the costumer service department can be found at www.inventum.eu.
2. In the event of breakdowns or faults in large domestic appliances, Inventum will have the option to have a service engineer inspect the faulty device onsite at the customer in the Netherlands and to carry out repairs, there and then. The Inventum customer service department can also decide to have the device exchanged.
3. If you suffer a breakdown or fault in a large domestic appliance during the first 2 years from the date of purchase, Inventum will not charge any costs for the exchange, call-out or for parts and labour.
4. If you registered the product as described before at www.inventum.eu/garantie-registratie and you subsequently report a breakdown of a large domestic appliance in the 3rd to 5th year of the date of purchase, the 5-year Inventum warranty applies and the device will be repaired or exchanged, free of charge. In the event of a repair or exchange of the device, you only pay the costs of exchange. The current costs of exchange are listed at www.inventum.eu/omruilkosten. If you did not register the product, the 3-year extended warranty does not apply.
5. When reporting a breakdown or fault, a service engineer will contact the customer within 1 working day in order to make an appointment. When the report is made in a weekend or during a public holiday, this will be the next working day.
6. If you report a breakdown or fault via the form at www.inventum.eu/service-aanvraag, you will be kept informed of the progress via mobile messages and e-mail.
7. The warranty period starts from the date the product is bought.
8. In order to claim under the warranty, you must produce a copy of the original receipt and the Inventum 5-year warranty certificate.
9. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;
- improper use or misuse;
• insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
• non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   • external connection cables;

4. glass accessories and glass parts such as oven doors;
   • and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. Parts that have been replaced, packaging material and exchanged devices are taken back by the service engineer and become the property of Inventum.
3. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
4. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
5. Inventum cannot be held liable for damage as a result of devices built in incorrectly.
6. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
7. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.

klein huishoudelijk

witgoed vrijstaand

witgoed inbouw

twitter.com/inventum1908

facebook.com/inventum1908

youtube.com/inventum1908
