USER MANUAL GAF1500E GEMINI

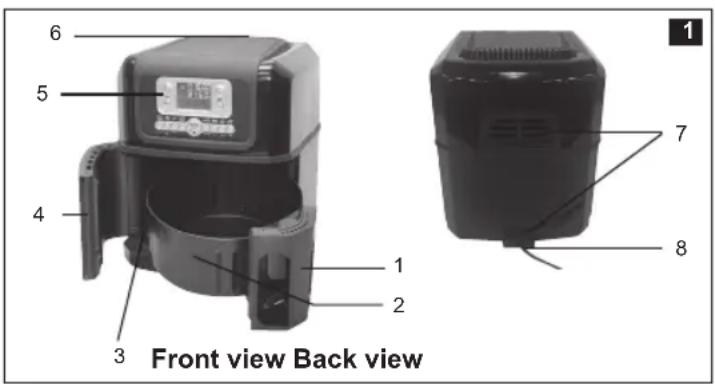

A. General description on Aria Fryer

1. Basket handle
2. Frying basket
3. Oil collection plate
4. Door handle
5. Control panel
6. Air Inlet
7. Air outlet
8. Main Cord

6 5 4 3 Front view Back view 1 2 7 8 1

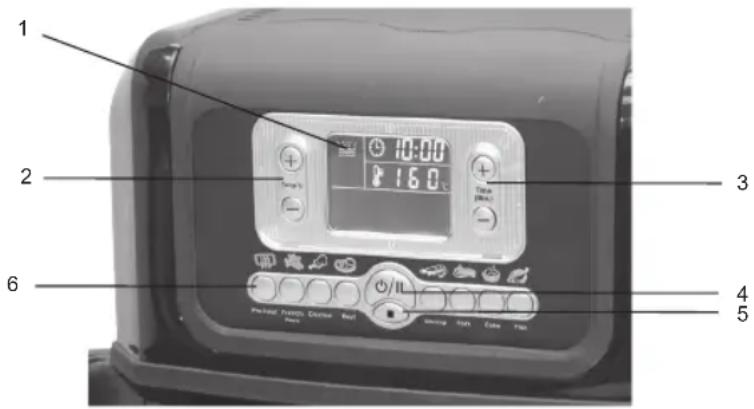

Control panel

1. LCD display
2. Temperature setting (80°C - 200°C)

(+ increase, - decrease)

1. Time setting (1 - 30mins)
   (+ increase, - decrease)
2. Start ⏻ Pause II
3. Cancel ■

( wait for 20 seconds to stop )

1. Cooking programs (from left to right):

Preheat, French fries, Chicken,

Beef, Shrimp, Pork, Cake, Fish

1 2 3 4 5 6 10:00 160 Preheat, Hotpot, Electric Heat Control Panel Color Control

Remarks:

When press the "Pause" or "Cancel" button, the heating pipe will be stopped immediately but the fan motor and the LCD display light will stop operation after 20 seconds.

B. Important

Please read this manual carefully before using this product as dangers may occur under incorrect operations.

C. Danger

• Do not immerse the main unit in water or rinse under the tap as that will harm the electrical and heating components.
• Avoid any liquid entering the appliance to prevent electric shock or short-circuit.
• Keep all ingredients in the frying basket to prevent any contact from heating elements.
• Do not cover the air inlet and air outlet when the appliance is in operation.
• Overflow of oil in the oil collection plate may cause a fire hazard.
• Do not touch the interior of the appliance while it is in operation.
• Do not put any glass, ceramic and plastic (heat resistance under 200^ C) objects in the Digital Aria Fryer.

D. Warning

• Check if the voltage indicated on the appliance fits with the power supply voltage.
• Do not use the appliance if there is any damage on plug, main cord or other parts.
• Do not go to any unauthorized person to replace or fix damaged main cord.
• Keep the appliance and its main cord away from children.
• Keep the main cord away from hot surfaces.
• Always make sure that the plug is inserted into the wall socket properly.
• Do not connect the appliance to an external timer switch.

- Do not place the appliance on or near combustible materials such as a tablecloth or curtain.

- Do not place the appliance against a wall or against other appliance.

- Do not place anything on top of the appliance or close to the air outlet.

- Do not use the appliance for any other purpose than described in this manual.

- Do not let the appliance operate unattended.

- During operation, hot steam is released through the air outlet. Keep your hands and face at a safe distance away from the steam and the air outlet. Also be careful of hot steam and air when you remove the frying basket from the appliance. (Fig.2)

- Pay attention to any accessible surfaces that may become hot during use.

- Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the basket from the appliance.

and f 2

E. Caution

• Ensure the appliance is in placed on a horizontal, even and stable surface.
• This appliance is designed for household use only. It is suitable to be used safely in environments such as staff kitchens, farms, motels, and other non-residential environments.
• The guarantee is invalid if the appliance is used for professional or semi-professional purposes, or it is not used according to instructions.
• Always unplug the appliance while not using.
• The appliance needs approximately 30 minutes to cool down for handling or cleaning safely.

F. Automatic switch-off

The appliance has a timer feature, it will automatically shut down the appliance when count down finished. You can manually switch off the appliance by pressing the "Cancel button and the machine will be completely stopped after 20 seconds.

G. Electromagnetic fields (EMF)

The appliance complies with all standards regarding Electro-Magnetic fields (EMF). Under proper handling, there is no harm for human body based on available scientific evidence.

H. Before the first use

1. Remove all packaging materials and stickers or labels.
2. Clean the frying basket and oil collection plate with hot water, and some detergent and a non-abrasive sponge. These parts are safe to be cleaned in a dishwasher.
3. Wipe the interior and exterior of the appliance with a cloth. No need to fill the oil collection plate with oil and frying fat as the appliance works on hot air.

I. Preparing for use

1. Place the appliance on a stable, horizontal and even surface.

Do not place the appliance on surface which cannot resist heat.

1. Put the frying basket onto the oil collection plate.

Do not fill the oil collection plate with oil or any other liquid.

Do not put anything on top of the appliance, the airflow will be disrupted.

J. Using the appliance

This appliance is able to prepare a wide range of dishes, you may refer to the recipe booklet.

1. Connect the main plug into an earthed wall socket.
2. Pull the frying basket out of the Digital Aria Fryer with the handle (fig.3).
3. Place the ingredients into the frying basket (fig 4).
4. Slide the frying basket back into the Digital Aria Fryer and close the door (fig.5).
5. Select the cooking program on the control panel.
6. You can change the setting according to section 'K' settings to determine the right temperature and time (fig.6). Just press the temperature setting (+,-) and time setting (+,-) for setting. Press the "Start Button for starting the program (fig.7).

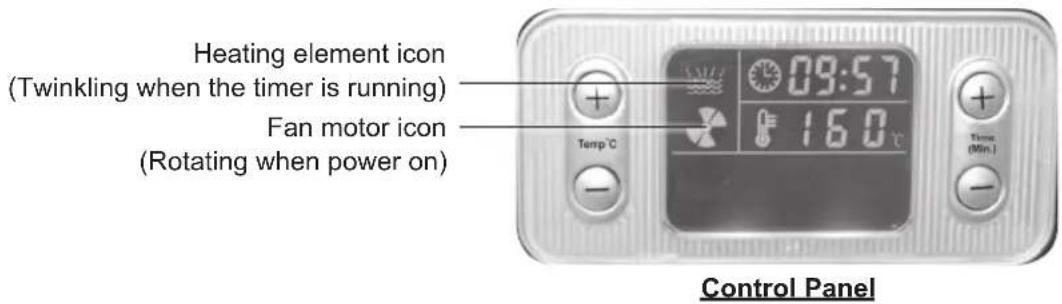

Heating element icon (Twinkling when the timer is running) Fan motor icon (Rotating when power on) 09:57 160°C Temp °C Control Panel

Pre-heat the appliance for 5 minutes if the appliance turns cold

Note: You can also pre-heat the appliance without any ingredients inside. In that case, press the "Pre-heat" program ☐ on the control panel and then press the "Start 🔊" button to start. Then fill the frying basket with food, choose the correct cooking program and start the program by pressing the "Start 🔊" button. The heating element and fan motor icons will light up to show the cooking status and the time will count down on LCD screen.

1. Some ingredients require to shake halfway during the operation (see section 'K' settings).

Pull the frying basket out of the appliance using the handle and shake it. Then slide the frying basket back into the fryer. (fig.8)

Tip: If you set the timer to half of the preparation time, you have to shake the ingredients when you hear the timer bell rings. However, it means that you have to set the timer again to the remained preparation time after shaking.

1. When you hear the timer alert, the operation is completed. Pull the frying basket out of the appliance and place it on the heat-resistant holder. (fig 9)

Note: You can also switch off the appliance manually by pressing the "Cancel" button. The appliance will be stopped completely after 20 seconds.

1. Check if the ingredients are ready.

If the menu are not fully-cooked yet, simply slide the frying basket back into the appliance and choose the program again but manually adjust the cooking time by reducing a few minutes.

1. Empty the frying basket into a bowl or onto a plate. (fig.10)

Tip: To remove large or fragile ingredients, lift the ingredients out of the frying basket by a pair of tongs.

1. When one batch of ingredients is ready, the fryer is instantly ready for preparing another batch.

*After the completion of each cooking program (with a "beep" tone alert) or press the "Start ⏻ / Pause ⏻" or "Cancel ■ buttons during cooking process, the appliance will be shut down automatically after 20 seconds*

Note:

If you want to stop the program for a while and continue later, you can press the "Start/ Pause" button to pause the process. And then press the "Start Pause" button again to continue the program.

If you press the "Start ⏻ Pause "|| button during cooking and then open the door, the operation will be paused. When you close the door again, the program will stop and reset to the basic setting.

Close-up of a black electronic device with a white arrow pointing to a button (no visible text or symbols)

Hand holding a black plastic container with granular material (no visible text or symbols)

Exterior view of a modern air fryer with a bowl of food inside (no visible text or symbols)

7:00 €16.0

7 0:00 8:15.0

Hand holding a black cooking pan with granular substance, no visible text or symbols

Exterior view of a portable air fryer with a bag of paper inside (no visible text or symbols)

Close-up of a hand holding a mesh sieve next to a bowl of food (no visible text or symbols)

K. Settings

This table below will help you select the basic settings for the ingredients.

Note: Keep in mind that these settings are indications only. As ingredients differ in origin, size, shape and brand, please adjust accordingly for the best setting for your ingredients.

Because air is heated up constantly inside the appliance, pulling the frying basket out of the appliance briefly during operation will not disturb the process.

Tips

• Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
• A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time.
• Shaking smaller ingredients halfway during the preparation time optimizes the end result and can help prevent unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the Digital Aria Fryer within a few minutes after you adding the oil.
• Do not prepare extremely greasy ingredients such as sausages in the Digital Aria Fryer.

Menu Program	Grams (g) Time (mins)	Temperature (°C)
Pre-heat - 5 80
French fries 400 - 700	20 200
Chicken 200 - 500 25	180
Beef 200 - 500 15 180
Shrimp 200 - 500 20	160
Pork 200 - 500 20 180
Cake 300 - 600 30 160
Fish 200 - 450 20 200

Note: Add 5 minutes to the cooking time or choose Pre-heat program if the inner cavity of the Digital Aria Fryer is cold before cooking.

L. Cleaning

Clean the appliance after every use. Do not clean the frying basket and the interior of the appliance by metal kitchen utensils or abrasive cleaning materials, as this may damage their non-stick coating.

1. Remove the plug from the socket and let the appliance cool down.
2. Wipe the exterior of the appliance with a moist cloth.
3. Clean the oil collection plate and frying basket with hot water, some detergent and a non-abrasive sponge.
4. Remove any remaining dirt by degreasing liquid.

Note: The oil collection plate and frying basket are dishwasher-proof.

Tip: If dirt is stuck to the frying basket or the bottom of the oil collection plate, fill the plate with hot water.

1. Clean the interior of the appliance with hot water and non-abrasive sponge.

2. Clean the heating element with a cleaning brush to remove any food residues.

M. Storage

1. Unplug the appliance and let it cool down completely.
2. Make sure all parts are cleaned and dry.

N. Environment

Do not throw away the appliance with the normal household waste, but bring it to the official collection point for recycling. In doing so, you do contribute to environmental protection.

O. Troubleshooting

Problem Possible	cause Solution
The Digital Aria Fryer does not work	The appliance is not plugged in	Put the main plug in an earthed wall socket.
	You have not set the Timer Ad	Adjust the timer to the required prepara-tion time to switch on the appliance.
The ingredients fried with the Digital Aria Fryer are not well cooked	The amount of ingredients in the frying basket is too big	Put smaller batches of ingredients into the frying basket. Smaller batches can be fried move evenly.
	The set temperature is too low	Adjust the temperature to the required temperature setting.(see “J. Using the appliance”)
The ingredients are fried unevenly in the Digital Aria Fryer	Certain types of ingredients need to be shaken halfway through the preparation time	Ingredients that lie on top of or across each other (e.g. fries) need to be shaken halfway through the preparation time.(see “J. Using the appliance”)
Fried snacks are not crispy	The type of snacksmeant to be prepared in a traditional deep fryer	Use oven snacks or lightly brush some oil onto the snacks for a crisper result.
White smoke comes out from the appliance	You are preparing greasy ingredients	When you fry greasy ingredients in the Aria fryer, a large amount of oil will leak into the plate. The oil produces white smoke and the plate may heat up more than usual.This does not affect the appliance or the end result.
	The plate still contains grease residues from previous use	White smoke is caused by grease heating up in the plate. Make sure you clean the plate properly after every use.
Fresh fries are fried unevenly in the Digital Aria Fryer	You did not use the right type of potato	Use fresh potatoes and make sure that they stay firm during frying.
	You did not rinse the potato sticks properly before you fried them.	Rinse the potato sticks properly to remove starch from the surface of the sticks.
Fresh fries are not crispy	The crispiness of the fries depends on the amount of oil and water in the fries	Make sure you dry the potato sticks properly before you add the oil.
		Cut the potato sticks smaller for a crispier result.
		Add little olive oil for a crisper result.

P. Product Specification

Model : GAF1500E

Voltage : 220-240V\~ 50Hz

Power : 1500W

Product Dimension : 260(W) X 280(D) X 318(H) mm
