Product Type	Steam Iron
Brand	Fakir
Model	Skyfall
Power Consumption	2800 W
Voltage	220-240 V, 50/60 Hz
Soleplate Material	Double soleplate with ceramic coating
Water Tank Capacity	250 ml
Automatic Shut-Off	Yes, 30 seconds horizontal, 8 minutes vertical
Steam Output	Variable steam, steam shot, spray mist
Steam Shot Function	Yes, for stubborn wrinkles
Anti-Drip System	Yes
Self-Clean Function	Yes
Auto-Decalcification	Yes, via decalcification box
Indicator Light	Heating indicator
360° Cord Bushing	Yes, free movement
Vertical Steam	Yes, for hanging clothes and curtains
Dimensions (approx.)	30 cm x 15 cm x 20 cm
Weight (approx.)	1.5 kg
Usage Life	7 years
Safety Features	Auto shut-off, non-slip heel rest

Frequently Asked Questions - Skyfall FAKIR

Why does the iron emit an odor when first used?

It is normal for a new iron to emit a slight odor during first use as the oils used in manufacture burn off. Allow the iron to heat for about 10 minutes on maximum temperature in a ventilated area until the odor disappears.

What should I do if the iron does not heat?

Check that the temperature dial is set to the desired setting and that the iron is plugged into a 230V AC outlet. The indicator light will illuminate when heating and turn off when the set temperature is reached.

How can I fix the iron if it is not producing steam?

Ensure the water tank is filled to at least the minimum level. Turn the variable steam button to a steam setting and allow the iron to heat fully. If still not steaming, check that the water inlet is not blocked.

Why does the burst of steam feature not work?

Make sure the water tank is at least 1/4 full, the temperature dial is set to high (steam range), and the iron is in a horizontal position. Press the steam shot button fully and allow a short pause between shots for the iron to reheat.

Why is water leaking from the soleplate?

Leaking usually occurs if the temperature is too low to produce steam. Set the temperature dial to a higher setting (wool or cotton) and ensure the variable steam button is set to a steam position until the iron is hot enough.

How do I use the self-clean function?

Fill the water tank to max, set temperature to max, and wait for the iron to heat (indicator off). Hold the iron over a sink, turn the steam button to Self Clean with slight force, and let steam and water flush out impurities. Release when water is empty.

What type of water should I use in the iron?

Use purified or distilled water with low calcium content to reduce scaling. Never use vinegar or chemical descalers, as they can damage the internal decalcification system.

Can I use the iron vertically?

Yes, the iron has a vertical steam shot function for removing creases from hanging clothes, curtains, and upholstery. Set the temperature to high and press the steam shot button while holding the iron upright.

How do I clean the soleplate?

Allow the iron to cool completely. Wipe the soleplate with a damp cloth or non-abrasive liquid cleaner. Do not use metal scouring pads or abrasive cleaners, as they can scratch the ceramic coating.

What is the auto shut-off feature?

The iron automatically turns off if left horizontal for 30 seconds or vertical for 8 minutes. This safety feature prevents accidents if the iron is left unattended. Simply move the iron to reactivate.

USER MANUAL Skyfall FAKIR

Exterior view of a black iron iron with visible steam iron and brand name (no text or symbols on the device itself)

Line drawing of an iron iron with a cup pouring liquid from it, labeled (Bild 1) at bottom (no text or symbols on diagram itself)

(Bild 2)

WARNUNG!

Line drawing of a boat hull viewed from the side, showing structural details without any text or symbols

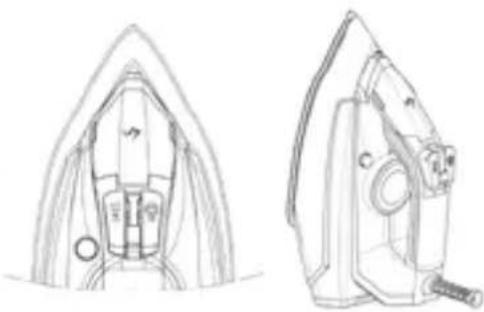

(Bild 3) (Bild 4)

Line drawing of a mechanical device with a bolt and handle (no text or symbols)

Important safeguards ....15

Important precautions....16

Product Description....17

Technical Specifications....17

Know Your Steam Iron 17

Before first use 18

Operation....19

After ironing....20

Self-clean function....20

Auto-decalcification feature 20

Ironing Tips....21

Troubleshooting....22

Liability 23

Unauthorized use 23

Usage Area....23

CE Declaration of Conformity....24

Thank you for purchasing Fakir Skyfall Steam Iron which has been designed and manufactured to give you many years of trouble-free service.

You may already be familiar with using a similar product, but do please take time to read these instructions – they have been written to ensure you get the very best from your purchase.

Important safeguards

Before using the electrical appliance, the following basic precautions should always be followed including the following:

Read all instructions before using

1. Read all instructions and save it for future reference.
2. Before using check that the voltage of wall outlet corresponds to the one shown on the rating plate.
3. Burns may occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down as there may be hot water in water tank.
4. If any part is damaged it must be replaced by the manufacturer or an or a qualified technician in order to avoid a hazard.
5. Don't operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner, Return the appliance to the nearest for examination, repair or electrical or mechanical adjustment.
6. Do not let cord hang over edge of table or hot surface.
7. The plug of power cord must be removed from outlet before water tank is filled with water.
8. Unplug from outlet when not in use, before filling water or cleaning.
9. Do not operate the iron for other than its intended use.
10. To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
11. Close supervision is necessary for any appliance being used by or near children.
12. Do not leave iron unattended when connected into power supply or on an ironing board.
13. Do not use outdoors.

Important precautions

When using your iron, basic safety precautions should always be followed, including the following:

1. Use the iron only for its intended use.
2. To protect against the risk of electric shock, do not immerse the iron in water or other liquids.
3. The iron should always be turned to "min" before plugging or unplugging from the mains outlet. Never pull the cord to disconnect from the mains: instead, grasp plug and pull to disconnect.
4. Do not allow the cord to touch hot surfaces. Allow the iron to cool completely before putting away.
5. Always disconnect the iron from the electrical outlet when filling with water or emptying and when not in use
6. Do not operate the iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron .take it to a Fakir Authorized Service Agent for examination and repair. Incorrect re-assembly, can cause a risk of electric shock when the iron is used.
7. Close supervision is necessary for any appliance being used by or near children. Do not leave the iron unattended when connected to the mains or on an ironing board.
8. Burns can occur from torching hot metal parts, hot water or steam, use caution when you turn a steam iron upside down-there may be hot water in the reservoir.
9. If the iron is not operating normally, disconnect from the power supply. And contact the nearest Fakir Authorized Service Agent.
10. Your iron is designed to rest on the heel. Do not leave the iron unattended when switched on. Do not place the iron on an unprotected surface even if it is on its heel rest.

While assembling your product; you can realise that some water drop might be on the water tank and the product body. This is caused by our quality tests which confirm the 100 % workability of the product. The product did not be used before and it is produced to give you many years of trouble-free service.

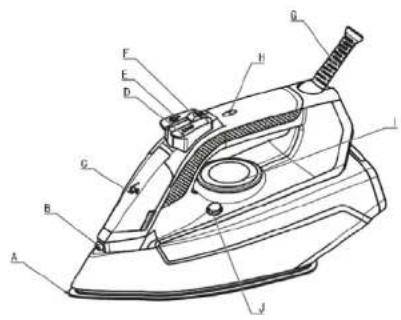

Product Description

A. Soleplate
B. Spraying nozzle
C. Water filling inlet
D. Spraying button
E. Steam shot button
F. Variable steam button
G. Cord bushing
H. Indicator light
I. Temperature dial
J. Self-cleaning button

Technical Specifications

2800 Watt

220-240 V

50/60 Hz

Usage Life: 7 Years

Know Your Steam Iron

Soleplate

Which is made of double soleplate with ceramic coating, it can be heated up and be used to iron the garment.

Spraying nozzle

When pressing spraying water button instantly, water is sprayed from this outlet.

Water tank inlet

Filling water into water tank from it, Make sure water should not exceed the Max level (250 ml) as indicated on water tank.

Variable steam button

Move the button to select the desired steam output for each garment, if selecting the "off" position, it indicates ironing without steam.

Spraying button

Pressing the button instantly provides a fine mist spray to dampen hard-to-iron fabrics.

Steam shot button

Pressing the button instantly provides a powerful shot of steam to eliminate stubborn wrinkles.

360° Cord bushing

Cord bushing allows free movement of power cord in any direction with great maneuverability when ironing.

Indicator light

When indicator light is illuminated, it indicates that the iron is heating; it will goes out when it has reached selected temperature.

Temperature dial

With this function, if without any move, the iron can automatically power off within 30 seconds if it is placed horizontally and 8 minutes.

Before first use

1. Remove any sticker, protective foil or storage cover from the soleplate.
2. Heat up the iron to maximum temperature and iron over a piece of damp cloth for several minutes on the purpose of removing any residue on the soleplate.

It is normal that strange odor comes out from the unit for the first use.

Operation

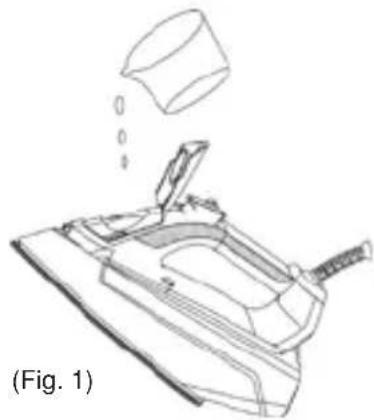

1. Hold the iron in a tilted position, then fill proper water into water tank. by measuring cup, you had better use purified water with less calcium particles and make sure not to exceed Max level on the tank. (See Fig 1.)

2. Press down cover of water tank and you will hear a click if it is in the correct position.

3. Connect plug to outlet and turn temperature dial to your desired setting, which is depended on the fabric of garment. And indicator light will be illuminated. Refer to Fig.2 and IRONING TIPS latter.

4. Make sure steam button is on dry position. (See fig 3), then place the iron vertically (See fig 4).

5. Once soleplate temperature has reached the preset temperature, indicator light will be off, then set steam button to your desired steam output or dry position and begin ironing.

WARNING!

Not touch hot soleplate at any time before cooling down!

1. Press spraying water button a couple of times to moisten the laundry if necessary, before spraying make sure that there is enough water in water tank.

2. Steam shot function had better be used at max temperature, as it helps remove stubborn creases.

3. The iron has an anti-drip function: if ironing garments for long time, soleplate temperature will fall off, the iron will stop coming out steam automatically and no water droplets can come out from soleplate.

4. "Steam shot" can also be applied when holding the iron in a vertical position, so this is useful for removing creases from hung clothes, curtains, etc.

Line drawing of an iron iron with a cup pouring liquid from it, labeled (Fig. 1)

(Fig. 2)

Technical line drawings of a boat hull and its side profile, showing internal components (no text or symbols)

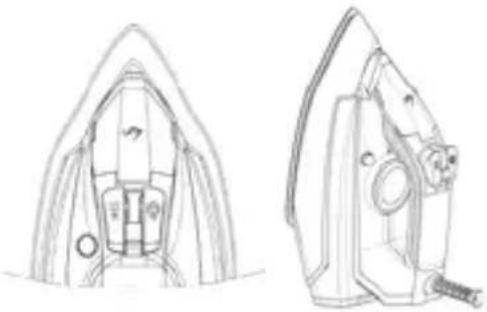

(Fig. 3) (Fig. 4)

After ironing

1. Disconnect power supply and empty the water left in water tank.
2. Reconnect into power supply and disconnect after indicator light goes off, make soleplate dry.
3. Let the iron completely cool down, then wipe flakes and any other deposits on the soleplate with a damp cloth or a non-abrasive (liquid) cleaner.
4. Clean the upper part of iron with a damp cloth.
5. Always store the emptied iron horizontally on a stable surface with a cloth protecting the soleplate.

Self-clean function

We should clean the unit regularly according to hardness of water and using frequency.

1. Fill water into the water tank and set the temperature selector to Max position
2. Connect into power supply and indicator light will be illuminated, make sure Steam button is in the Dry position, then place iron as fig.4

WARNING!

Never pour white vinegar or other liquid cleaners for eliminating calcium into water tank!

1. Once the light is off, hold the iron over the sink and turn steam button to SELF CLEAN position (Fig.3) with a little force. Steam and boiling water will come out of the soleplate while impurities and flakes will be flushed out.
2. Release the button as soon as water in the water tank has been used up.

Auto-decalcification feature

There is a decalcification box inside the appliance, which can absorb unsolvable calcium ion and send out solvable natrium ion so that water can be softened, and the process of calcium depositing would be much slower.

In order to keep soleplate smooth, never let any metal materials rubs against it!

Ironing Tips

1- Always check first whether a label with ironing instructions is attached to the article. Follow these ironing instructions in any case.
2- The iron heats up quicker than cooling it down, therefore, you should start ironing the articles requiring the lowest temperature such as those made of synthetic fibre.
3- If the fabric consists of various kinds of fibres, you must always select the lowest ironing temperature to iron the composition of those fibres.
4- Silk and other fabrics that are likely to become shiny should be ironed on the inner side. To prevent staining do not spray water straight on silk or other delicate fabrics.
5- Velvet and other textures that rapidly become shiny should be ironed in one direction with light pressure applied. Always keep the iron moving at any moment.
6- Pure woollen fabrics (100% wool) may be ironed with the iron set a steam position. Preferably set steam button to the maximum position and use a dry p cloth as a mat.

NOTE!

When ironing woolen fabrics, shining of the fabric may occur. So it is suggested that you should turn the article inside out and iron the reverse side.

Symbol	Fabric Temp	Variable	steam	Steam Shot	Spraying Water
	Synthetic fibres/Silk		×	×	√
	Wool		×	×	√
	Cotton Linen	MAX	√	√	√
Note: The symbol means: “This article cannot be ironed!”

Note: “ √” stands for being able to use ;
“×” stands for being NOT able to use.

Troubleshooting

Fault	Possible cause	Solution
Iron emits an odor or smoke	Iron gives off an odor when turned on for the first time.	Oils used during manufacture need to be burnt off allow ten minutes for odor to disappear.
Iron does not heat	The temperature dial did not set at the desired temperature.	The iron should be plugged into a 230 Volt, AC electrical outlet only. The temperature dial must be set at the desired temperature.
Iron does not steam	The water tank many be empty.	Turn the steam valve to “” and add water .Allow the iron to heat, and then set the steam dial to the steam setting.
Burst of steam feature does not work	The water tank can be empty and temperature button set to shouldn’t steam.	The water tank must be at least 1/4 full. Temperature must be set to steam position. Iron should be in the horizontal position. Prime pump briefly. Allow a short pause between shots. Be sure to fully depress the burst of steam button.
Spry mist feature does not work	The water tank must be at least 1/4 full.	Fill the iron as described in the section “how to fill the water tank”.
Iron is leaking	Temperature should be set to low level.	The variable steam dial must be set on“,until the iron is hot. The temperature setting is too low to produce steam. Shot of steam used too much, allow iron to re-heat.

Liability

Fakir Elektrikli Ev Aletleri Dış. Tic. A.Ş. will accept no liability for damages resulting from failure to comply with the operating instructions. Fakir Elektrikli Ev Aletleri Dış. Tic. A.Ş. cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Unauthorized use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury:

This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance. Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance.

Keep packaging films away from children - danger of suffocation!

Usage Area

This appliance is suitable for places; home. Do not use appliance for other than intended use and never use this appliance outdoors.

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives 2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC “Low-Voltage Directive.” The appliance bears the CE mark on the rating plate.

If the service life of the device has ended, in particular if functional disturbances occur, make the worn-out device unusable by cutting through the power cable.

Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste.

Bring the worn-out device to a collection center. The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them.

For advice on recycling, refer to your local authority or your

dealer.

Dispose of used dust bag and filters in domestic waste.

Dispatch:

Carry the appliance in the original package or a similar, wellpadded package to prevent damage to the appliance.

This product is produced on behalf of Fakir Elektrikli Ev Aletleri Dış Ticaret A.Ş. by NINGBO KAIBO GROUP CO. LTD., The Northern Industrial Park of Zhouxiang Cixi 315324 Ningbo China, Tel: [phone]

Line drawing of an iron iron with a cup pouring liquid from it, labeled (Res. 1) at bottom (no text or symbols on diagram)

(Res. 2)

Technical line drawing of a boat hull and its side view showing internal components (no text or symbols)

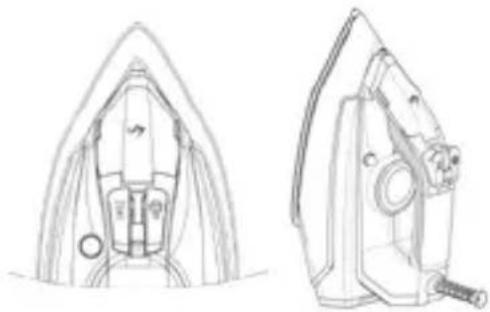

(Res 3) (Res. 4)
