USER MANUAL ZE-NC4121D (Hyundai) ZENEC

ABOUT THIS INSTRUCTION MANUAL

The instruction manual contains important information and warnings about the operation of this unit. Please store it inside your vehicle to have access to it any time. The contents of this document are provided "as is", as required by applicable law. No warranties of any kind, either expressed or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. ZENEC reserves the right to revise this document or withdraw it at any time without prior notice.

CONTENTS

SAFETY INSTRUCTIONS .... 3

FRONT PANEL BUTTONS 4-5

BASIC OPERATION 6-7

RADIO MODE 8-11

PLAYBACK/PLAYLIST AUDIO/VIDEO 12-17

BLUETOOTH MODE 18-25

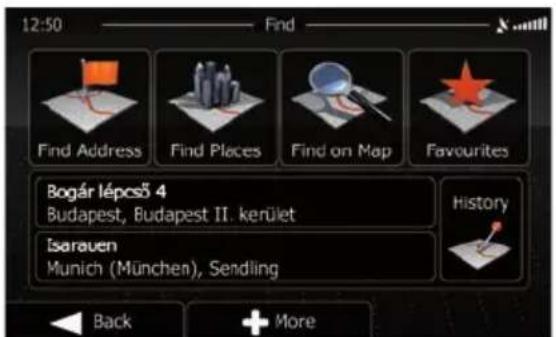

NAVIGATION MODE....26-27

SETUP....28-37

REMOTE CONTROL MAIN 38-39

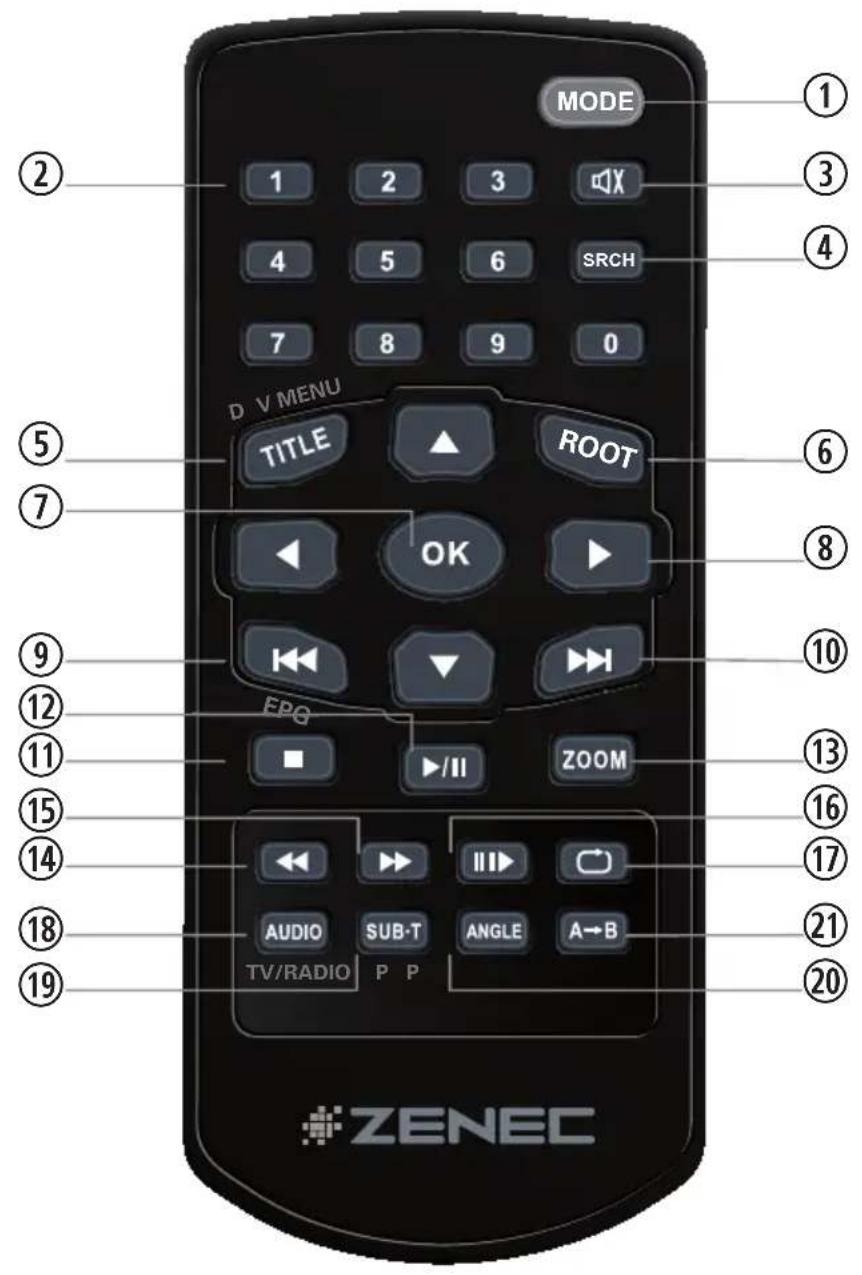

REMOTE CONTROL M-ZONE 40-41

EXTERNAL PLAYBACK SOURCES....42-43

GLOSSAR....44

TROUBLESHOOTING 45-46

SPECIFICATIONS......47

WARRANTY....94-95

⚠ Navigation manual is separate.

SAFETY INSTRUCTIONS

1. Read these instructions entirely.
2. Keep these instructions. Whoever uses the unit should have access to this manual.
3. Heed all warnings. Follow all instructions.
4. This unit is designed to be used in a vehicle with 12V DC battery and negative ground.
5. Do not operate the unit in any other way than described in this manual. Failure to follow the instructions within this manual may void your warranty.
6. Do not disassemble or alter the unit in any way, because it will void your warranty. Do not attempt to repair or to service the unit yourself, but contact an authorized ZENEC dealer instead.
7. Use only original accessories which are designed and manufactured for the unit, otherwise you will risk damage. Install the unit according to the mounting manual by using the supplied mounting accessories. The forces of acceleration for accidents are sometimes huge. Incorrect mounted units are a big risk for the driver and the car passengers, during an accident.
8. Protect the unit from water and other liquids, which can enter the casing. A short circuit or even fire could be the result.
9. To prevent a short circuit, never insert or stick any metallic objects (such as coins or metal tools) into the unit.
10. Before you replace a defective fuse, try to find the cause for the short circuit. Please pay attention to the cables of the power supply! If the short circuit doesn't result from a failure of the power supply or wiring, you can replace the defective fuse with a new one (same values). If the short-circuit is still existing, please contact an authorized ZENEC dealer.
11. When connecting to any other device, read its user's guide for detailed safety instructions. Do not connect incompatible products.
12. Be careful not to drain the car battery while using the unit when the car engine is turned off. Because the unit uses a considerable amount of energy and the battery will be charged only while the engine is running, it might happen that the battery will discharge to a point where it's not longer possible to start the engine.
13. According to the law in different European countries, driving with monitors which are showing movies in the viewing range of the driver is not allowed, because the driver might be distracted from the traffic. Please respect the traffic regulations of your country, or you might face penalties in case of an accident or even loose your insurance coverage. Please pay attention to the volume inside your vehicle, because you are obliged to notice exterior sounds like police sirens etc.
14. Don't expose the unit to hard impacts. A mechanical or electrical malfunction of the unit could be the result.
15. Should any problems or questions occur during installation, please consult your ZENEC dealer/importer.
16. This unit utilizes a laser class 1. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous exposure to coherent light. Do not open covers and do not repair yourself. Refer servicing to qualified personnel.

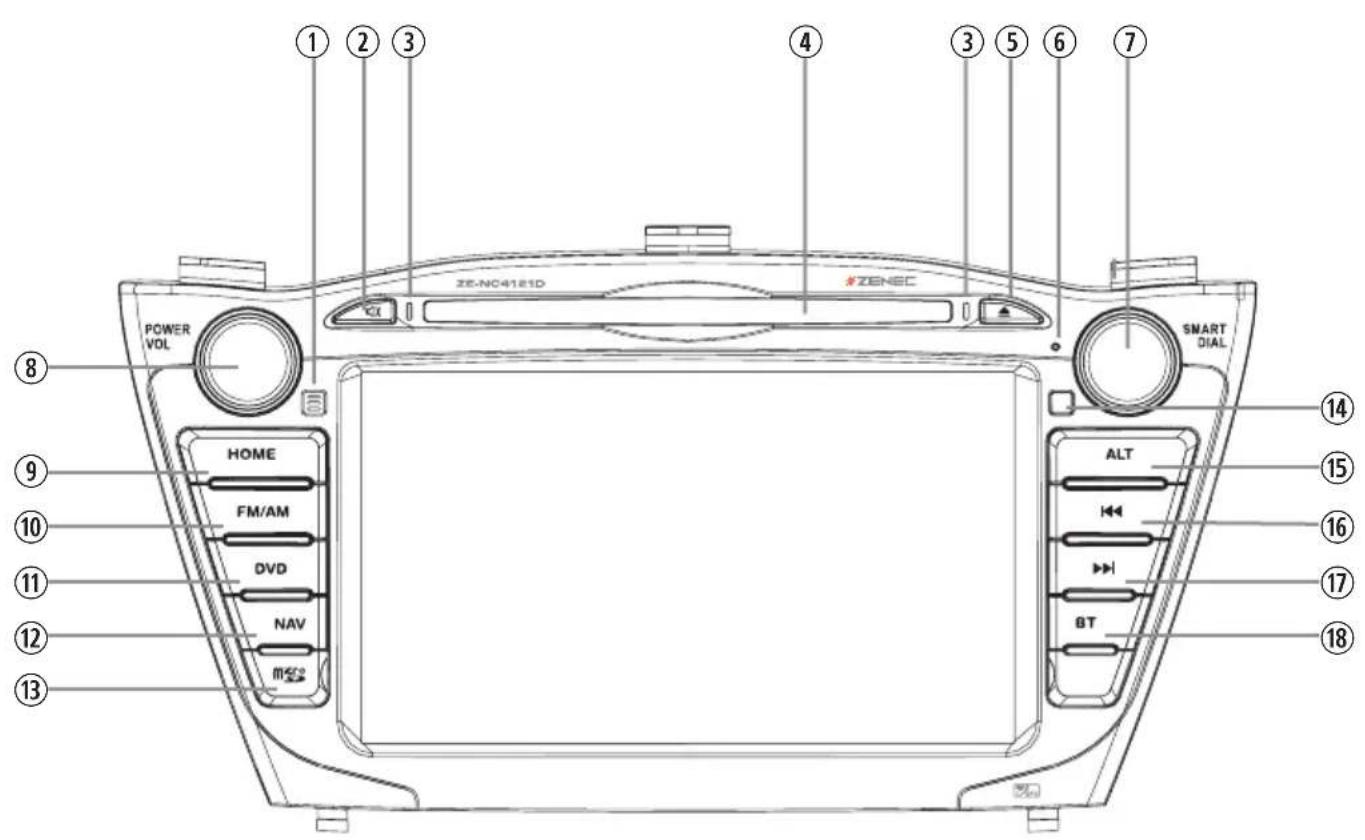

FRONT PANEL BUTTONS

Front Panel

1 2 3 ① ② ③ ZE-NC4121D ZENEC ④ ③ ⑤ ⑥ ⑦ POWER VOL SMART DIAL HOME FM/AM DVD NAV m50 ALT BT ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳

FRONT PANEL BUTTONS

1. INTERNAL MICROPHONE

2. MUTE

Press to mute/unmute audio

3. DISC INDICATOR

4. DISC SLOT

5. EJECT

Eject disc

6. RESET

Press to initiate a hardware reset

7. SMART DIAL

Rotate to move a cursor up and down

Press to confirm a selection

8. PWR/VOL

Rotate to increase/decrease volume, press and hold to switch device ON/OFF

9. HOME

Press to open Main Menu, hold to open EQ page

10.FM/AM

Press to switch to FM/AM source Press and hold to de- and activate TA funktion

11.DVD

Press to switch to DVD source

12. NAV

Press to switch between Navigation and playback page Press and hold to fade in/out the infobars manually

13. MICRO SD CARD SLOT

14. IRRECEIVER

15.ALT

Funktion can be set in Setup Press and hold to open the Video setup

16.PREVIOUS

Press to choose previous Track|Chapter|Station Press and hold to fast rewind

17.NEXT

Press to choose next Track|Chapter|Station Press and hold to fast forward

18. BT

Press to switch to BT source

BASIC OPERATION

POWER ON/OFF

Correctly installed, your device will power on together with the ignition. Ignition off: Device does not receive power. When the ignition is activated, you may also switch the device On and Off using the front panel power button.

SELECT A SOURCE

Enter main menu:

- Via Touchscreen:

Touch the icon in the upper left corner of the screen.

- Via "HOME" button:

Push "HOME" button to enter main menu.

Operation at main menu:

The main menu consists of three pages: 2 main pages and 1 M-Zone page.

There are two basic ways to get there:

- Slide You can slide the two main pages back and forth.

Just slide your fingertip onscreen in the respective direction. The M-Zone page (backseat area) cannot be accessed via sliding.

- Bar Tap on any of the three oval markers on top of the screen to navigate through all three main menu pages. M-Zone included.

Entering the main menu you have access to all playback sources and settings.

Main Menu 10:16 Navi DVD Tuner USB Camera iPod

Main menu 1 Main menu 2

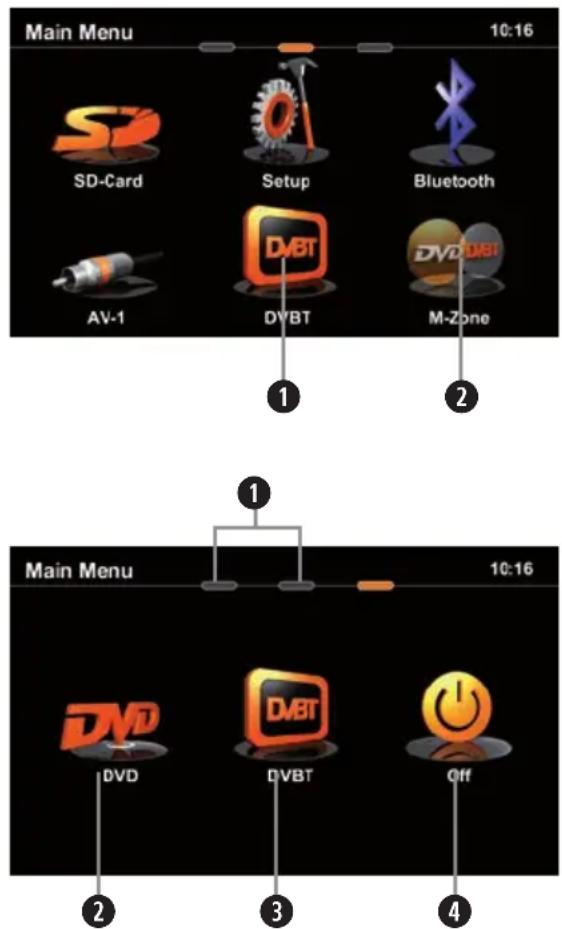

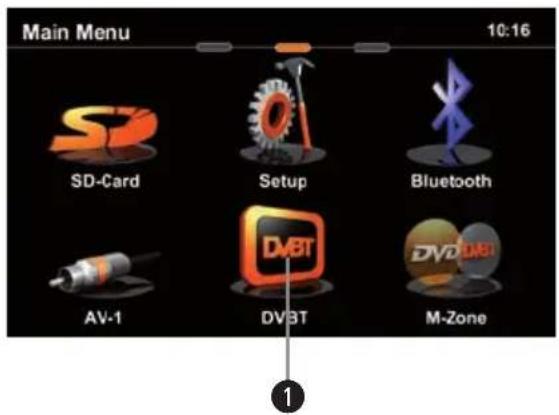

Main Menu 10:16 SD-Card Setup Bluetooth AV-1 DVBT M-Zone

M-Zone page

Main Menu 10:16 DV DVBT Off

Tap center header button or slide to second main menu page. Choose SETUP > GENERAL > LANGUAGE and adjust to your likings. You might want to adjust some other basic settings. See chapter "Setup".

BASIC OPERATION

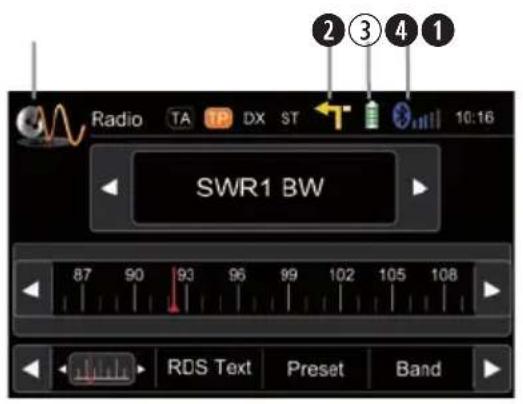

Basic elements (all playback sources)

Radio TA TP DX ST SWR1 BW 87 90 93 96 99 102 105 108 RDS Text Preset Band

Display & control elements:

① Indicates current source
- Tap to enter main menu
② Indicates when NAV infobar is available
- Tap to display NAV infobar
- Tap again to hide it
③ Connected cellphone battery status.
4 Cellphone GSM reception fi eld strength

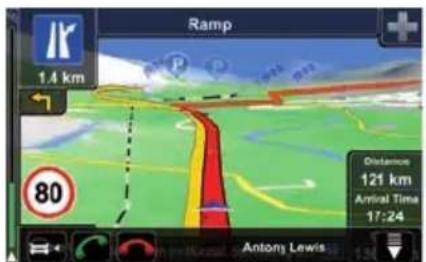

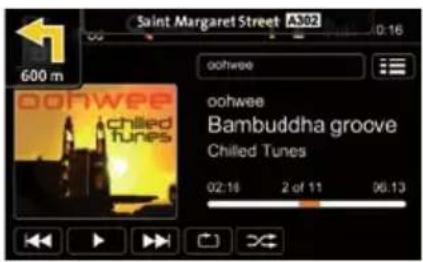

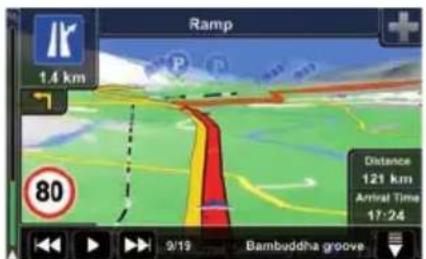

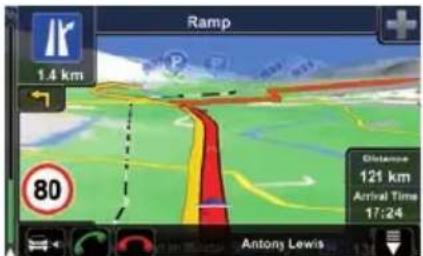

Three infobar styles:

Saint Margaret Street A302 600 m oohwee oohwee Chilled tunes Bambuddha groove Chilled Tunes 02:18 2 of 11 06:13

Ramp 1.4 km 80 Distance 121 km Arrival Time 17:24 S/19 Bambuddha groove

Ramp 1.4 km 80 Distance 121 km Arrival Time 17:24 Antony Lewis

NAV infobar Playback infobar BT infobar

NOTE:

■ Press and hold the NAV button to fade in/out the infobars manually.
Touch the icon to fade out the infobars manually.
■ NAV infobar is only available during active route guidance.
■ An incoming call or new playback information triggers the automatic pop-up of the other infobar types at NAV screen. They will fade out after five seconds.

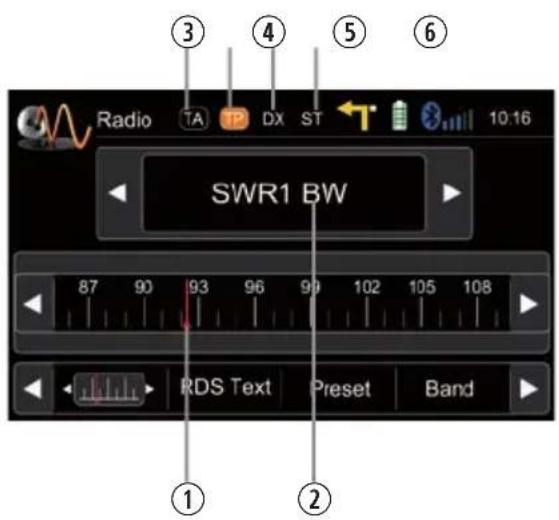

RADIO MODE

Radio TA DX ST 10.16 SWR1 BW 87 90 93 96 99 102 105 108 RDS Text Preset Band ① ②

Display elements:

① Red line marks current frequency
② Frequency or station name
③ Traffic c announcement status
④ Traffic announcements on carrier
⑤ LOC/DX status
⑥ Stereo reception status

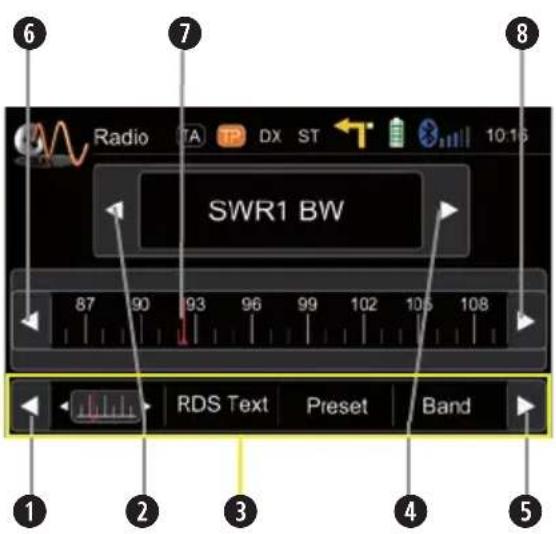

Radio TA DX ST 10:16 SWR1 BW 87 90 93 96 99 102 105 108 RDS Text Preset Band 1 2 3 4 5

Control elements:

① Scroll left
② Previous station
3 Tap to select center display content
④ Next station
⑤ Scroll right
6 100 kHz down
⑦ Drag to adjust frequency
8 100 kHz up

RADIO MODE

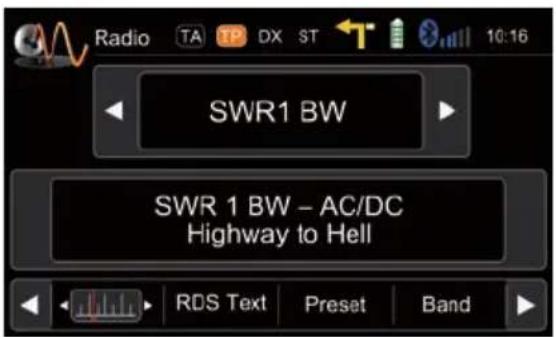

Radio TA DX ST 10:16 SWR1 BW SWR 1 BW - AC/DC Highway to Hell RDS Text Preset Band

RDS text allows a radio station to transmit free-form textual information that can be either static e.g. station slogans or in sync with the programming such as the title and artist of the currently playing song or even short ads. Availability depends on region, reception quality and carrier.

RADIO MODE

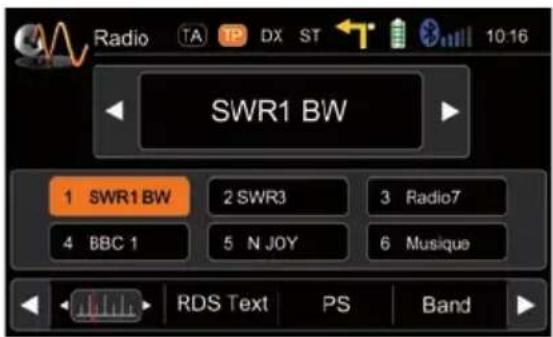

Radio TA TP DX ST SWR1 BW 1 SWR1 BW 2 SWR3 3 Radio7 4 BBC 1 5 N JOY 6 Musique RDS Text PS Band

Select preset or save a preset. Press and hold a center button to set a new frequency as preset.

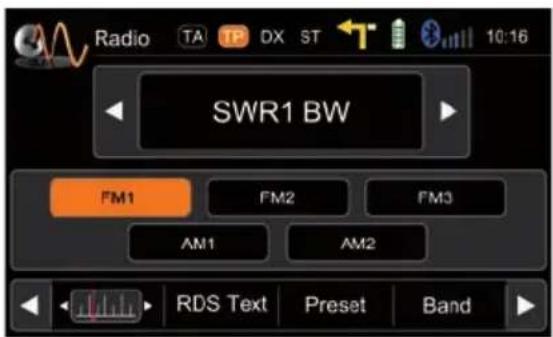

Radio TA TP DX ST 10:16 SWR1 BW FM1 FM2 FM3 AM1 AM2 RDS Text Preset Band

To select a radioband tap on a center button.

DIO MODE

Lower bar options:

The selected item is highlighted in orange onscreen:

AF ON/OFF: When activated, AF function automatically switches to an alternative frequency (AF) of your chosen station, in order to always offer the best possible reception quality.

TA ON/OFF: When activated, the radio temporarily switches, for the duration of the traffic announcement, to tuner mode.

AS Searches for the six strongest stations and saves them as preset.

SCAN Intro-scan of all stations in reception range. You can hear each station for a short moment. Lock to the one you like by pressing scan again.

REG ON/OFF: At certain daytimes some stations divide their program into regional subprograms. The REG function prevents your receiver from switching to an alternative frequency with different content.

LOC Touch LOC/DX to omit or allow reception of stations with weak signals. /DX If LOC is activated it will exclusively find strong stations.

NOTE:

This unit features an RDS tuner. RDS is a system which transmits data on top of the FM radio signal. Availability and content of the RDS data depend on the respective broadcast station and its signal strength. RDS does, for example, transmit alternative frequencies, which allow for frequency changes without user interaction. AM band doesn't support RDS functions.

■ You need to have the AF function activated in order to use the RDS feature. However, the AF function is deactivated ex factory. We recommend to activate it directly after mounting/installation of your device.

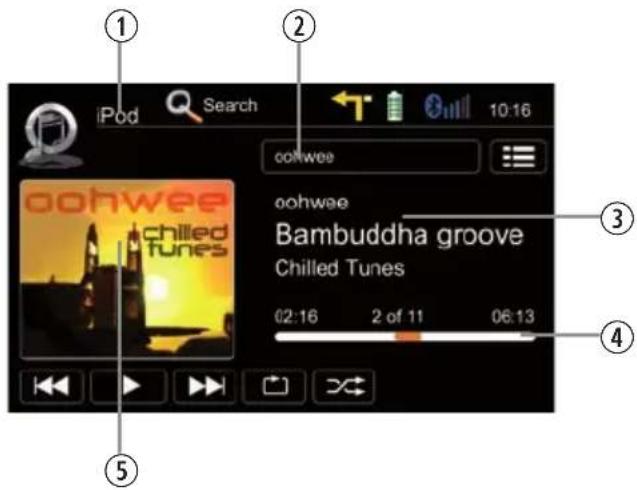

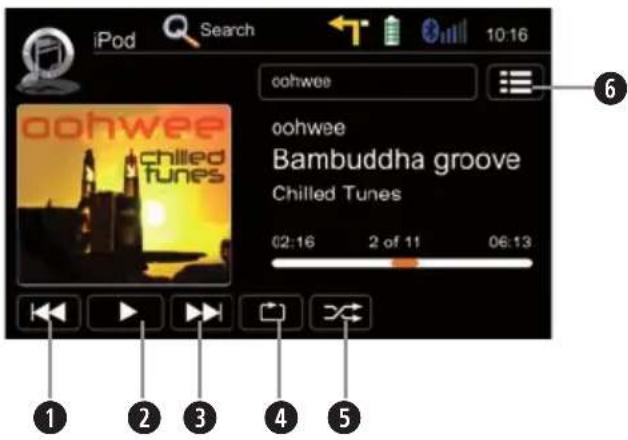

Playback page:

iPod Search 10:16 oohwee oohwee Chilled tunes Bambuddha groove Chilled Tunes 02:16 2 of 11 06:13 ① ② ③ ④ ⑤

Display elements:

① Source
② Current folder/playlist
③ ID3 tag info
④ Progress bar
⑤ Album Art

iPod Search 10:16 oohwee oohwee Chilled tunes Bambuddha groove Chilled Tunes 02:16 2 of 11 06:13 ① ② ③ ④ ⑤

Control elements:

① Previous track
② Play/Pause
③ Next track
4 Repeat
⑤ Shuffle
6 Switch to playlist page

PLAYBACK

IPOD/USB/SD/DISC

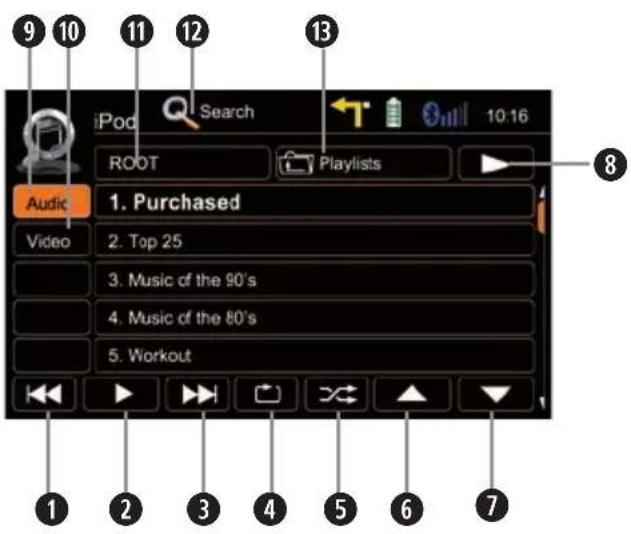

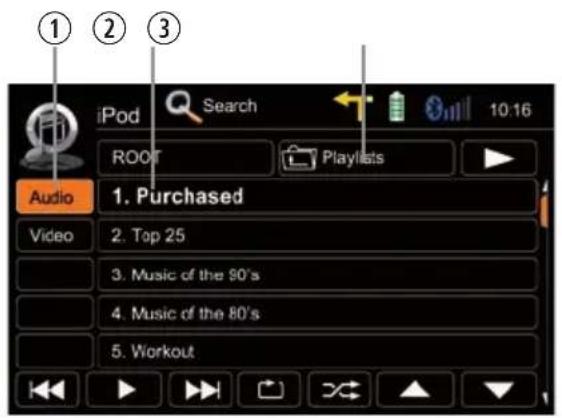

Playlist page iPod:

1 2 3 iPod Search 10:16 ROOT Playlists Audio 1. Purchased Video 2. Top 25 3. Music of the 90's 4. Music of the 80's 5. Workout

Display elements:

① iPod mode
② Track/folder/playlist
③ Current folder

9 10 11 12 13 iPod Search 10:16 ROOT Playlists Audic 1. Purchased Video 2. Top 25 3. Music of the 90's 4. Music of the 80's 5. Workout 1 2 3 4 5 6 7

Control elements:

① Previous track
② Play/Pause
③ Next track
④ Repeat
⑤ Shuffle
⑥ Cursor up
⑦ Cursor down
8 Switch to playback page
9 Switch to iPod audio mode
10 Switch to iPod video mode
11 Go to root directory
12 Search
13 Folder/playlist up

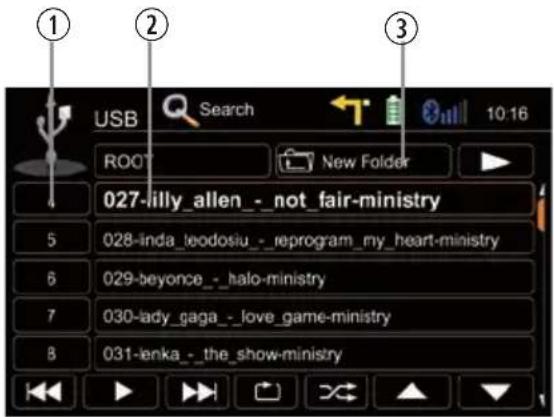

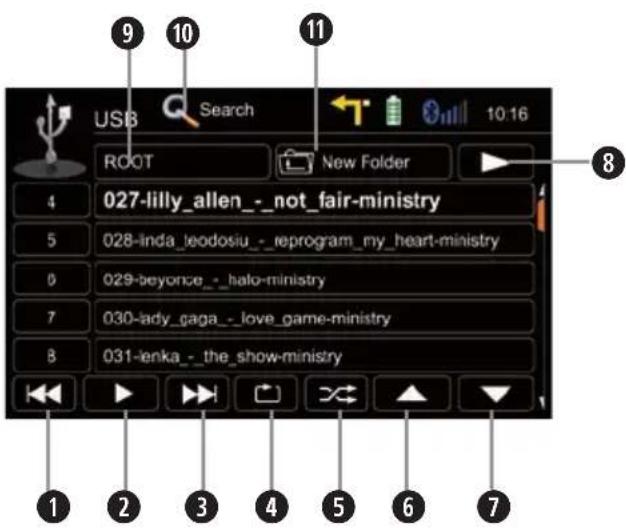

Playlist page USB/SD/Disc:

1 2 3 USB Search 10:16 ROOT New Folder 027-jilly_allen_-_not_fair-ministry 5 028-inda_leodosiu_-_reprogram_my_heart-ministry 6 029-beyonce_-_halo-ministry 7 030-lady_gaga_-_love_game-ministry 8 031-ienka_-_the_show-ministry

Display elements:

① Track index
② Track/folder
③ Current folder

USB Search 10:16 ROOT New Folder 4 027-lilly_allen_-_not_fair-ministry 5 028-inda_leodosiu_-_reprogram_my_heart-ministry 6 029-beyonce_-_halo-ministry 7 030-lady_gaga_-_love_game-ministry 8 031-enka_-_the_show-ministry 1 2 3 4 5 6 7

Control elements:

① Previous track
② Play/Pause
③ Next track
④ Repeat track
⑤ Shuffle
⑥ Cursor up
⑦ Cursor down
8 Switch to playback page
⑨ Go to root directory
10 Search
11 Folder up

PLAYBACK

IPOD/USB/SD/DISC

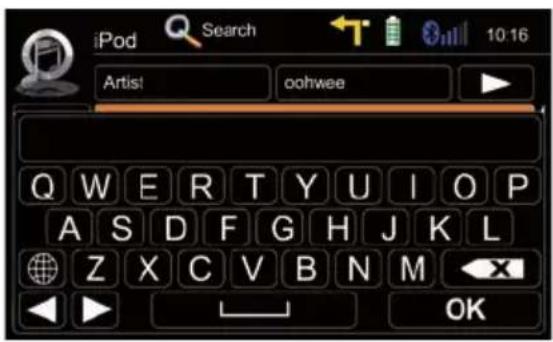

Search function:

iPod Search 10:16 Artist! oohwee Q W E R T Y U I O P A S D F G H J K L Z X C V B N M OK

iPod search:

Tapping on Search pops up an alphabetic keyboard, allowing you to enter an initial letter. Alphabetic search is unique for iPod mode.

Tapping on 📋 pops up the keyboard option allowing you to select your preferred keyboard language.

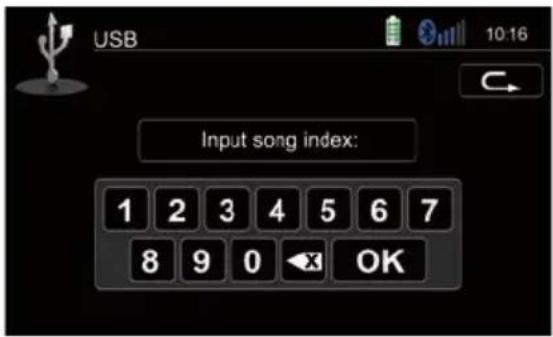

USB 10:16 Input song index: 1 2 3 4 5 6 7 8 9 0 OK

USB/SD/Disc modi search:

Tapping on 📄 Search pops up an numeric keyboard, allowing you to enter track numbers. Numeric search is unique for USB/SD/Disc modi.

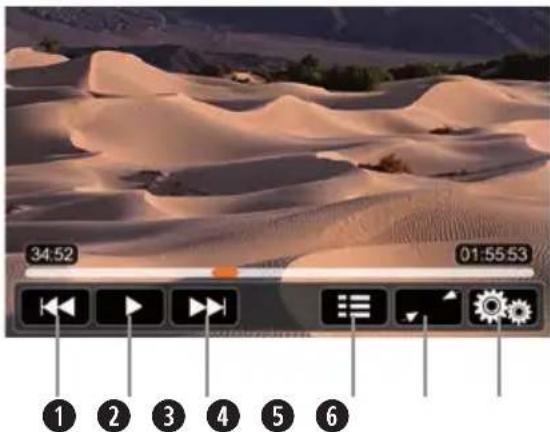

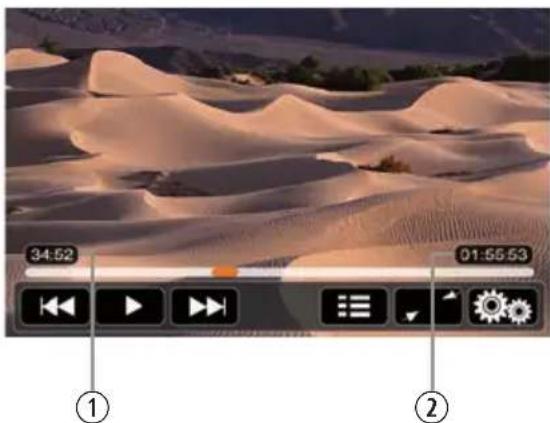

Elements to control playback of video files:

34:52 01:55:53 ① ②

Display elements:

① Current temporal position in track
② Total duration of track

34:52 01:55:53 ① ② ③ ④ ⑤ ⑥

Control elements:

① Previous title/track/chapter
② Play/Pause
③ Next title/track/chapter
4 To playlist/root menu of DVD
5 Full screen mode
⑥ DVD settings

PLAYBACK

IPOD/USB/SD/DISC

USB/SD/Disc mode:

■ Make sure your mass storage device is FAT32 formatted.
■ Depending on directory structure and contents the total number of available folders is limited.
■ Sorting and handling speed depends on speed and capacity of the mass storage used, as well as on the amount of stored data.
■ Connected USB hard disks have to be formatted with FAT32 and are only allowed to consume a maximum of 400mA (peak) current. Otherwise they must be considered incompatible and can't be used with the device.
■ Only iPod mode supports album art.

iPod mode:

■ Depending on the size of the search list, results may be delayed during first search. That is due to the iPod, which takes a moment to setup and provide the search index.
■ iPods/iPhones display, depending on content and sorting, an extended set of information on the playlist page.

NOTE:

See www.zenec.com for:

■ Compatible fi le formats and their possible restrictions.
■ iPod/iPhone compatibility list.

BLUETOOTH MODE

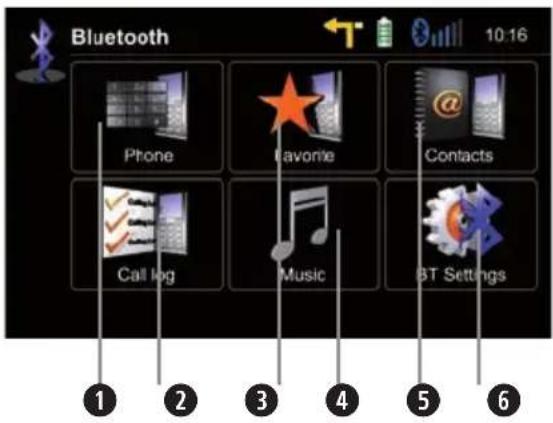

Bluetooth main menu:

Tap icon to enter

Bluetooth Phone Favorite Contacts Call log Music BT Settings ① ② ③ ④ ⑤ ⑥

Control elements:

① Onscreen keypad
② Call Log
3 Favourites
4 Audiostreaming (A2DP) toggle
⑤ Contacts
6 Bluetooth settings

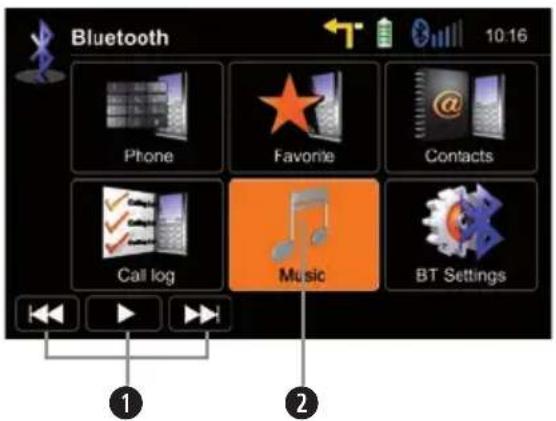

A2DP (de-)activation:

Bluetooth Phone Favorite Contacts Call log Music BT Settings ① ② 10:16

Control elements:

① Control Playback
② A2DP On/Off (highlighted=ON)

BLUETOOTH MODE

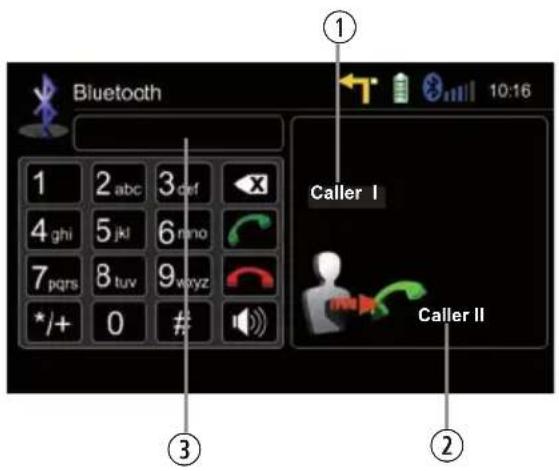

Accept call, dial, hang up, switch between calls:

Bluetooth 1 2 abc 3 cnf 4 ghi 5 jkl 6 rmo 7 pqrs 8 tuv 9 wxyz */+ 0 # Caller I Caller II ① ② ③

Display elements:

① First incoming call
② Second incoming call
③ Dialled number

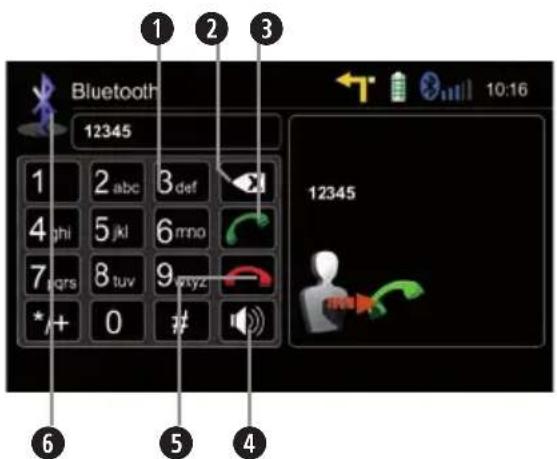

Bluetooth 12345 1 2 3 1 2 abc 3 def 4 ghi 5 jkl 6 rno 7 qrs 8 tuv 9 wyyz */+ 0 # 12345 10:16 6 5 4

Control elements:

① Keypad
② Deletes last digit
③ Pick up call/Switch to second call
④ Toggle to shift call between handsfree and mobile phone (privacy mode)
⑤ Hang up active call/Back to first call
6 Back to BT main menu

BLUETOOTH MODE

Pairing a mobile phone:

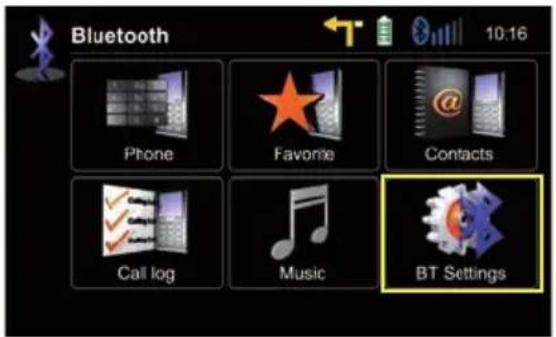

1 Enter BT settings > Device

Bluetooth Phone Favorite Contacts Call log Music BT Settings

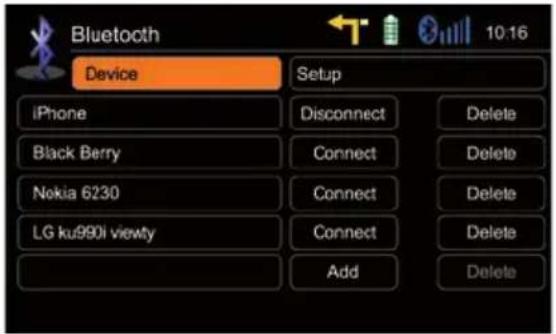

2 Tap on "Add" to trigger a search for BT devices.

Bluetooth Device Setup iPhone Disconnect Delete Black Berry Connect Delete Nokia 6230 Connect Delete LG ku990i viewty Connect Delete Add Delete

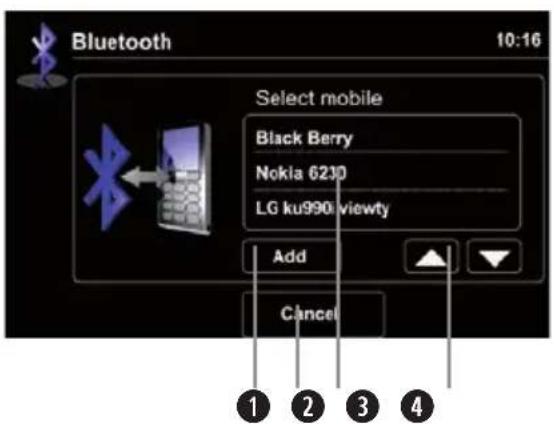

3 Choose your mobile phone from the list or retry searching. Press "Add".

Bluetooth 10:16 Select mobile Black Berry Nokia 6210 LG ku990 viewty Add Cancel ① ② ③ ④

Control elements:

① Add a mobile phone and input PIN for pairing
② Back to BT settings
3 Tap to select mobile phone
4 Browse list (up/down)

BLUETOOTH MODE

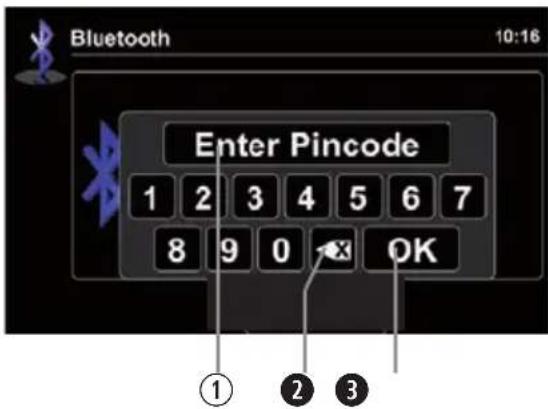

4 Enter pin code and tap OK or retry.

Bluetooth 10:16 Enter Pincode 1 2 3 4 5 6 7 8 9 0 OK ① ② ③

① Pin code
② Deletes the last digit
③ Acknowledge pincode and continue

5 Upon request enter identical pin code on your mobile and acknowledge. You should now get a screen saying "Device successfully paired".

NOTE:

If you are trying to pair more than one cell phone:

■ Switch off the "auto connect" function while pairing additional mobile phones with the device.
■ Use different pin code twins for each paired cell phone.

BLUETOOTH MODE

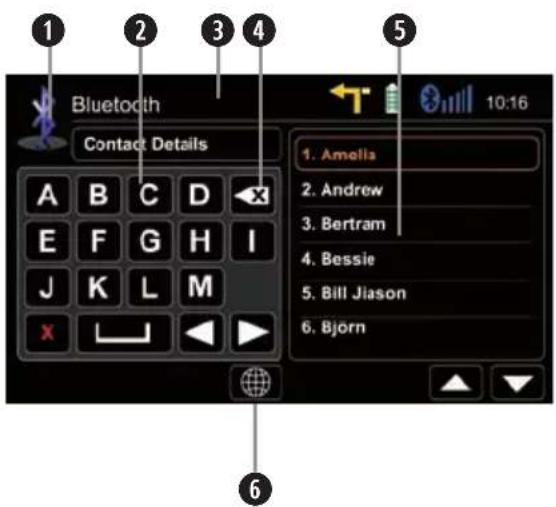

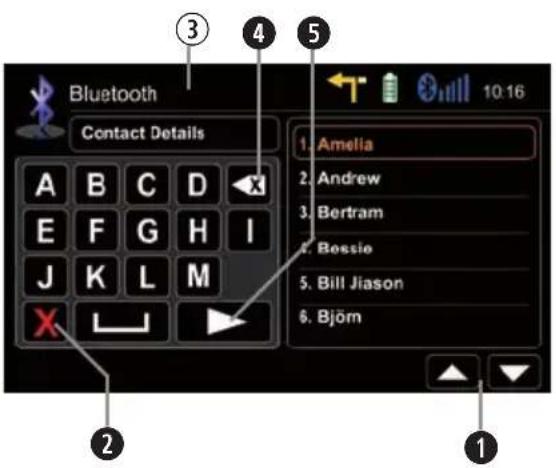

Contacts - Manage phonebook:

Bluetooth Contact Details 1. Amelia 2. Andrew 3. Bertram 4. Bessie 5. Bill Jiason 6. Bjorn

Control elements:

① Back to BT main menu
② Tap a contact number to start a call
③ Search
4 Tap on star to save as favourite
⑤ Choose contact name from list
6 Select your preferred keyboard language

Search for an entry:

Bluetooth Contact Details A B C D X E F G H I J K L M X 10:16 1. Amelia 2. Andrew 3. Bertram 4. Bossie 5. Bill Jiason 6. Björn 2 1

① No function, when keypad is active
② Quit keypad
③ Display input
4 Tap to delete last character
⑤ Switch to next page of keypad

NOTE:

■ You may search for up to 15 leading characters.

BLUETOOTH MODE

Manage phonebook:

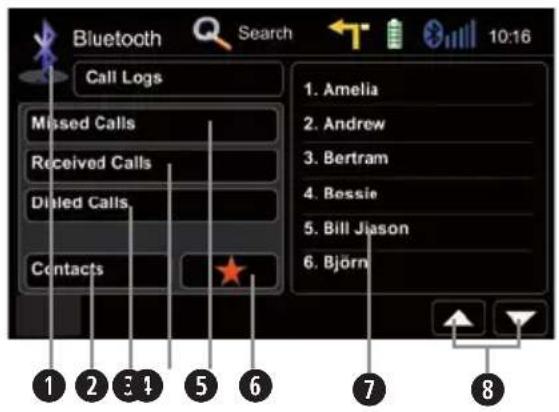

Bluetooth Search 10:16 Call Logs Missed Calls Received Calls Dialled Calls Contacts 1. Amelia 2. Andrew 3. Bertram 4. Bessie 5. Bill Jiason 6. Björn 7 8

Control elements:

① Go back to BT main menu
② Go to contacts page
③ Tap to display outgoing call list
4 Tap to display incoming call list
⑤ Tap to display missed call list
6 Go to favourites page
⑦ Tap on entry to call
⑧ Page up/down

NOTE:

■ The synchronisation, the transferring, the sorting as well as the display of the phone book entries depend on the mobile phone brand and model. If the synchronisation doesn't work properly, disconnect the cell phone and repeat the pairing process.
If automatic phone book synchronisation does not work, consult the manual of your mobile phone. Some mobile phones require explicit activation of that function.
■ After entering the BT main menu press & hold either the Contacts or Call-Log icon in order to force a resync of the entire phone book (if you have experienced syncing problems).

BLUETOOTH MODE

Manage favourites:

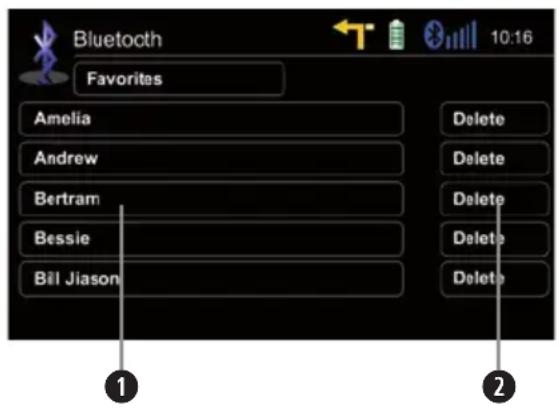

Bluetooth Favorites Amelia Andrew Bertram Bessie Bill Jiason Delete Delete Delete Delete Delete Delete

Control elements:

① Tap on entry to call favourite
② Delete favourite

NOTE:

- Be aware that solely terminating the connection, or deleting a connected mobile phone, does not affect the list of favorites. Favourites have to be explicitly deleted one by one.

Setup settings:

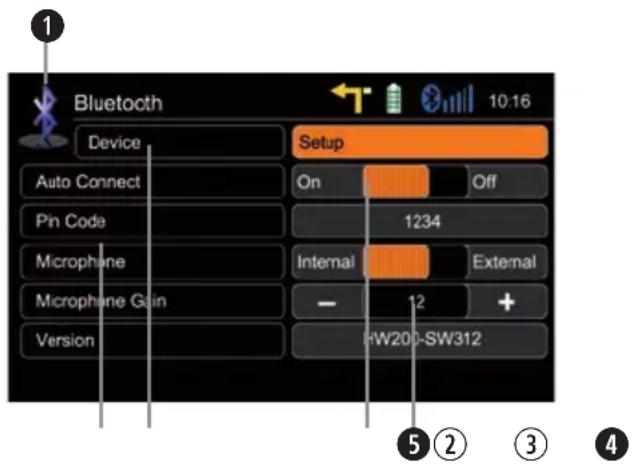

Bluetooth Device Setup On Off Auto Connect Pin Code 1234 Microphone Internal External Microphone Gain - 12 + Version HW200-SW312 ⑤②③④

① Back to BT main menu
② Options
③ BT device settings
4 Microphone selection
⑤ Tap +/- to adjust microphone gain

UETOOTH MODE

NOTE:

If your mobile phone is compatible and still does not appear in the device list, make sure Bluetooth is turned on and set to "visible for all devices".
■ Bluetooth connections usually work within a range of approx. 8 m. Obstacles in the way may shorten the distance.
■ You can pair up to five cell phones, and synchronise up to a thousand phonebook contacts each.
In order to use the built-in handsfree device you need to pair your mobile phone first.
It cannot be guaranteed, that all mobile phones can be paired and that all functions will work.
For the "BT compatibility list" of tested and compatible mobile phones as well as the latest software updates look out on www.zenec.com.

NAVIGATION MODE

How to input a destination and start a route guidance:

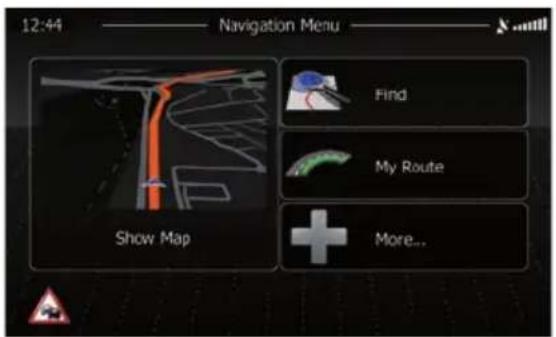

12:44 —— Navigation Menu —— Find My Route Show Map + More...

Tap on "Find".

Choose your preferred destination search method. Here, in our example, choose "Find address".

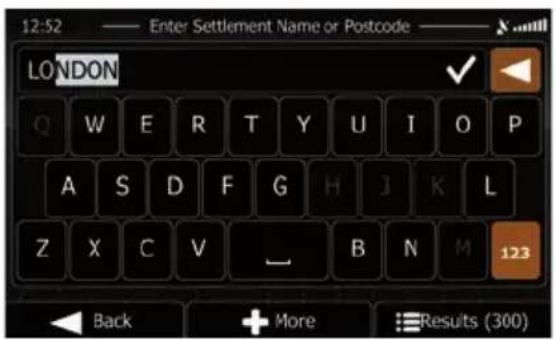

12:52 —— Enter Settlement Name or Postcode ——— LONDON Q W E R T Y U I O P A S D F G H J K L Z X C V —— B N M 123 Back + More Results (300)

Type in a city, street name, house number and confirm each step by tapping OK.

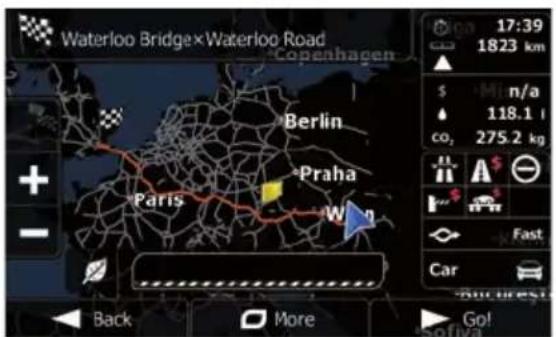

Waterloo Bridge×Waterloo Road Copenhagen + - Berlin Praha Paris W n 17:39 1823 km $ Min /a 118.1 l co₂ 275.2 kg Fast Car Back More Go!

The program is now calculating the desired route. Once route calculation has completed just tap "GO!" to start route guidance.

VIGATION MODE

NOTE:

■ For operation and detailed description of navigation features, please refer to the included, separate navigation manual.
■ You may listen to any playback source during navigating. The navigation software automatically manages volume levels during voice guidance.
■ If you change the volume level during voice guidance, the chosen volume level gets stored for later route guidance.
■ Audio playback is, during voice guidance, capped to volume 10. If the preset audio volume is below 10, it will be muted.

SETUP: MAIN / FIRST SETTINGS

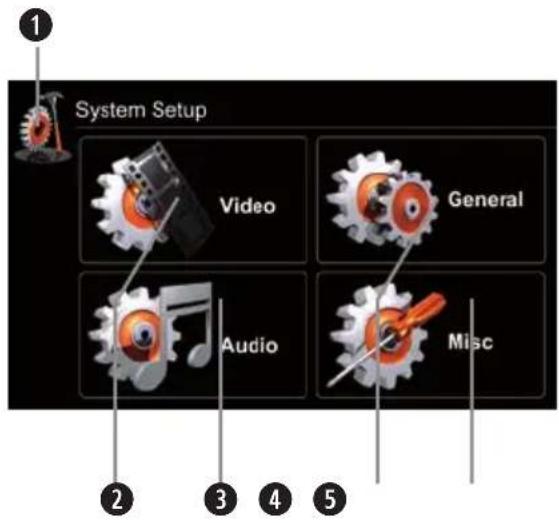

Main setup screen:

1 System Setup Video General Audio Misc 2 3 4 5

Control elements:

① Return to the previous menu. Works with all four submenus.
② See chapter Setup Video.
③ See chapter Setup Audio.
4 See chapter Setup General.
⑤ See chapter Setup Misc.

Settings to be made directly after mounting and initial startup:

Set OSD language: Go to Setup>General>Language

to choose your desired OSD language. Animated picture visualises your setting.

Set Reverse Camera: Go to Setup>General>Driver Assist

Needs to be enabled once in order to use the camera. Animated picture visualises your setting.

SETUP: IMPORT/EXPORT SYSTEM SETTINGS

Go to Setup>Misc>Help

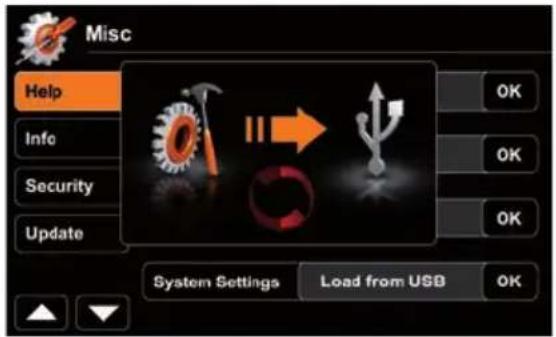

Export system settings:

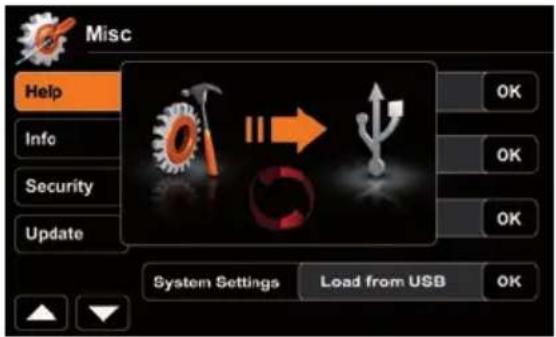

Misc Help Info Security Update System Settings Load from USB OK OK OK OK

1. Format USB flash drive with FAT32.
2. Connect USB flash drive to device.
3. Tap "OK", at System Settings-Export option, to launch export.

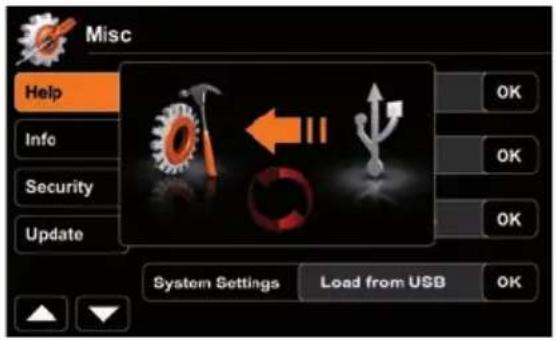

Import system settings:

Misc Help Info Security Update System Settings Load from USB OK

1. Connect USB flash drive to device.
2. Tap "OK", at System Settings-Import option, to launch import.
3. Restart device upon import completion.

NOTE:

■ Make sure the USB flash drive has been FAT32 formatted.
■ Refrain from manually modifying the generated export file. Re-import has to rely on proper file integrity.
■ After adding new functions, by means of a system update, they will always be initialised with standard default values. That compensates for lacking values from the import file content.
■ After a firmware update, check the update installation instructions for notes on system settings import and take them into consideration.

SETUP: VIDEO

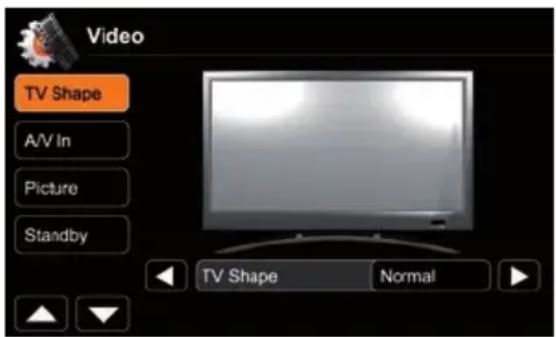

Video TV Shape A/V In Picture Standby TV Shape Normal

Animated picture visualises TV shape settings.

Video TV Shape A/V In Picture Standby Brightness Day +3 Brightness Night -3

Animated picture visualises your setting during adjusting TFT screen brightness.

Day-/Night TFT screen brightness is controlled by GPS time signal.

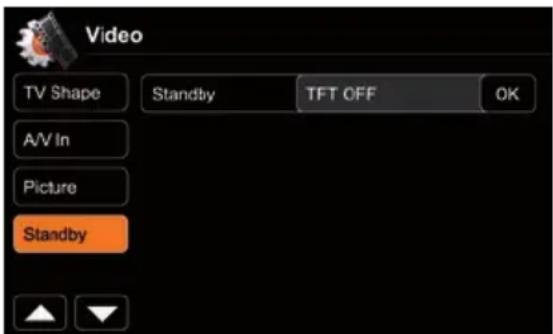

Video TV Shape Standby TFT OFF OK A/V In Picture Standby

Standby activation turns screen OFF. Apart from that, the device operates in a normal manner.

Tap somewhere on screen to reactivate it.

Name Descriptor Function Choice/Range
TV-Shape	Video display setting	TV-Shape	Normal
			Cinema

Picture	TFT brightness control	Brightness Day 0..	.20
		Brightness Night 0	..20

Standby TFT OFF

SETUP: AUDIO

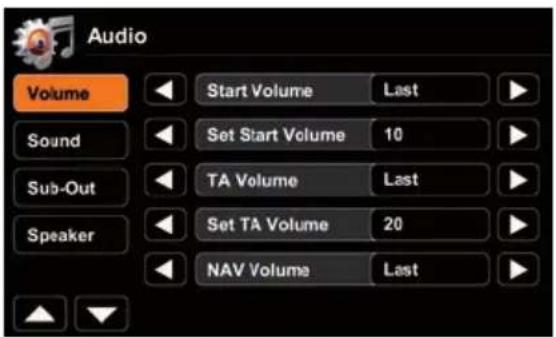

Audio Volume Start Volume Last Sound Set Start Volume 10 Sub-Out TA Volume Last Speaker Set TA Volume 20 NAV Volume Last

Audio mixer:

Choose "Last" to adjust to last volume. Choose "Set" to adjust to an arbitrary value.

Level adjustments for sources:

Adjust volume relative to other sources.

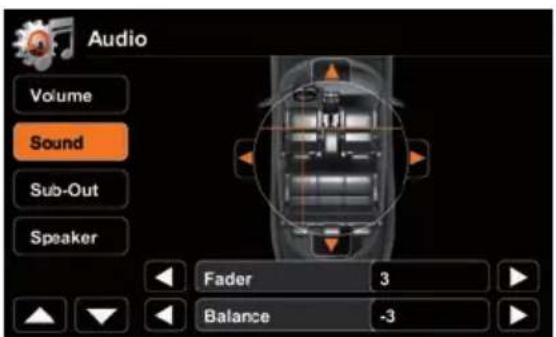

Audio Volume Sound Sub-Out Speaker Fader 3 Balance -3

Animated picture visualises fader and balance settings.

EQ frequency adjustments

Adjust EQ bands.

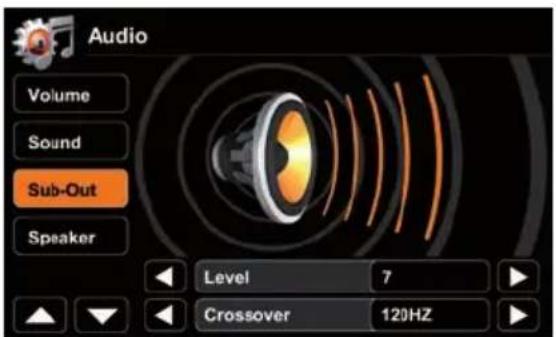

Audio Volume Sound Sub-Out Speaker Level 7 Crossover 120HZ

Animated picture visualises sub-out level.

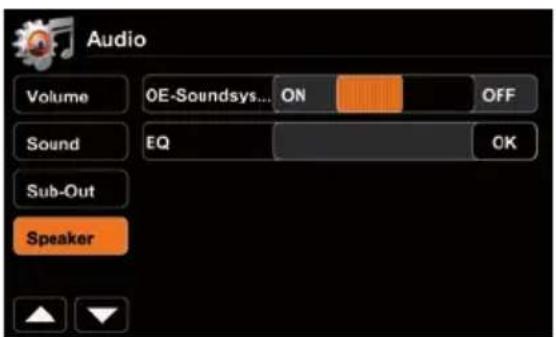

Audio Volume OE-Soundsys... ON OFF Sound EQ OK Sub-Out Speaker

If your vehicle is already equipped with an integrated OE Soundsystem, activate parameter "OE Soundsystem" in order to avoid audio distortion.

Tap "OK" at EQ to open equalizer page.

NOTE:

Volume	Descriptor Function Choice/Range
	Audio mixer	Start volume last value, set value
		Set start volume 0...40
		TA volume last value, set value
		Set TA volume 0...40
		NAV volume last value, set value
		Set NAV volume 0...40
	Level adjustment of sources	Tuner rel. 0...14
		CD/DVD rel. 0...14
		USB/SD/iPod rel. 0...14
		A/V In rel. 0...14

Sound	Level assignment	Fader	front 9, center 0, rear -9
		Balance	left -9, center 0, right 9
	EQ frequencies	Set bass frequency 50	100, 200 Hz
		Set mid frequency	0.5, 1, 2 kHz
		Set treble frequency	5, 10, 15 kHz
	Loudness		On, Off

Sub-Out	Sub-Out settings	Level rel. -7...+7
		Crossover	55, 80, 120 Hz

Speaker	Speaker system settings	OE Soundsystem	On, Off
		Open Equalizer	OK

SETUP: GENERAL

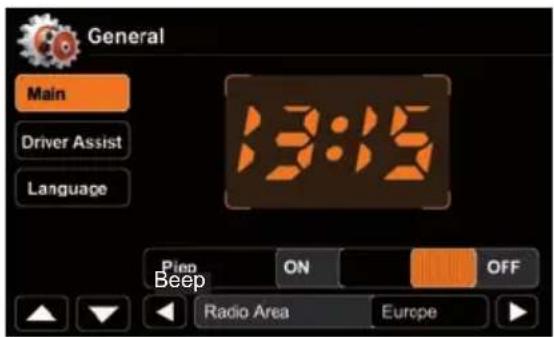

General Main Driver Assist Language 13:15 Pimp ON OFF Beep Radio Area Europe

System time gets periodically updated by GPS time stamp.

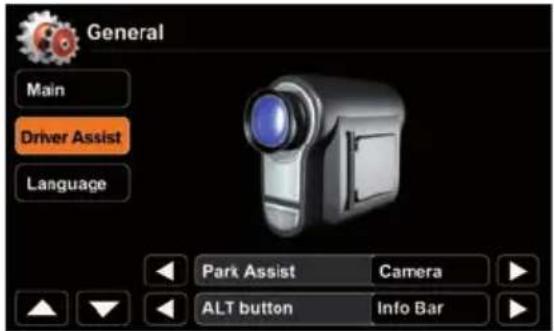

General Main Driver Assist Language Park Assist Camera ALT button Info Bar

Animated picture visualises your driver assist settings. Example: Reverse Camera.

Reverse mute: Mute audio when in reverse gear.

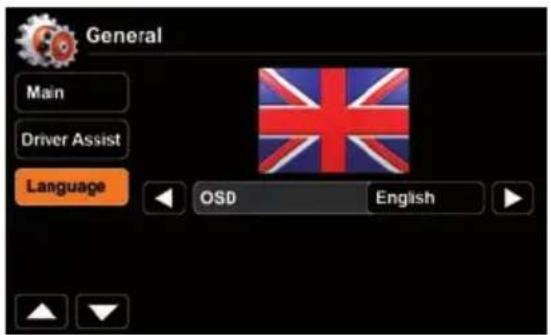

General Main Driver Assist Language OSD English

Shown flag visualises the chosen OSD language.

NOTE:

Name Function Choice/Range
Main	Beep On, Off
	Radio area Europe, USA, Latin (America)
	Bluetooth On, Off
	Volume Pop-Up On, Off
	Antenna supply On, Off

NOTE:

■ Switch above mentioned antenna supply parameter to "Off", in case your vehicle does not deploy an active antenna.

Driver assist	Parking assist	Off, Rear view camera
	Alt button	Infobar, Standby
	Reverse mute	On, Off

Language OSD

Set OSD language

SETUP: MISC

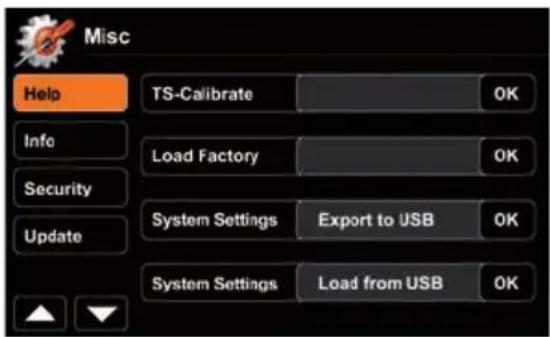

Misc Help TS-Calibrate OK Info Load Factory OK Security System Settings Export to USB OK Update System Settings Load from USB OK

You may export/import your system settings to/from a USB flash drive. A feature, that comes in very handy after a firmware update, or a complete power disconnection.

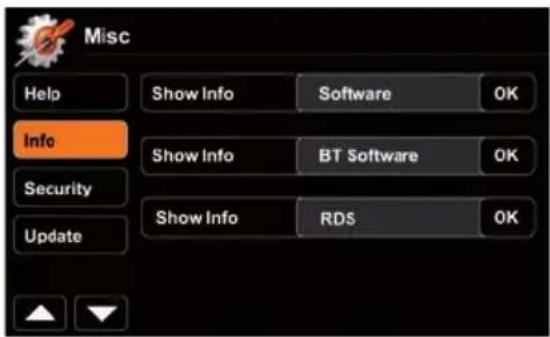

Misc Help Show Info Software OK Info Show Info BT Software OK Security Show Info RDS OK Update

Tap "OK" to display corresponding software version.

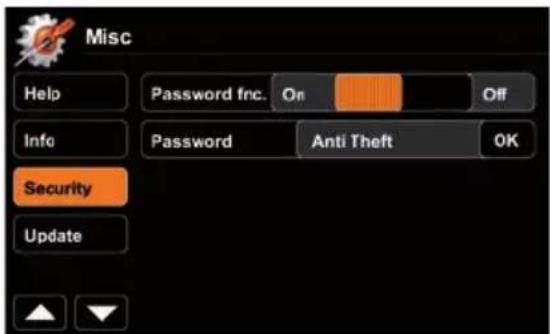

Misc Help Password Inc. On Off Info Password Anti Theft OK Security Update

Activate password function to secure device in case of temporary disconnection from power supply (theft). Use an arbitrary 4-digit code. To reset the code enter "0000" instead.

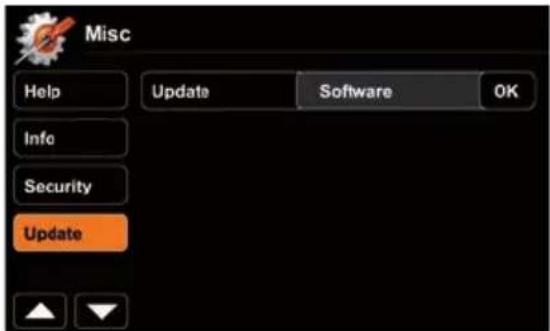

Misc Help Update Software OK Info Security Update

Press "OK" to launch a software update. For preparations and details, consult the accompanying update installation instructions BEFORE you actually update.

NOTE:

Help	Calibrate TS OK starts touchscreen calibration
	Load factory OK loads factory settings
	System settings	Export settings to USB
	System settings	Load settings from USB

Info	Show Info Software
	Show Info	BT Software
	Show Info	RDS

Security	Password enable On, Off
	Password	OK sets password

Update Update OK starts software update

NOTE:

■ Compare installed software version with the version from www.zenec.com (see support and download area for updates).

REMOTE CONTROL MAIN

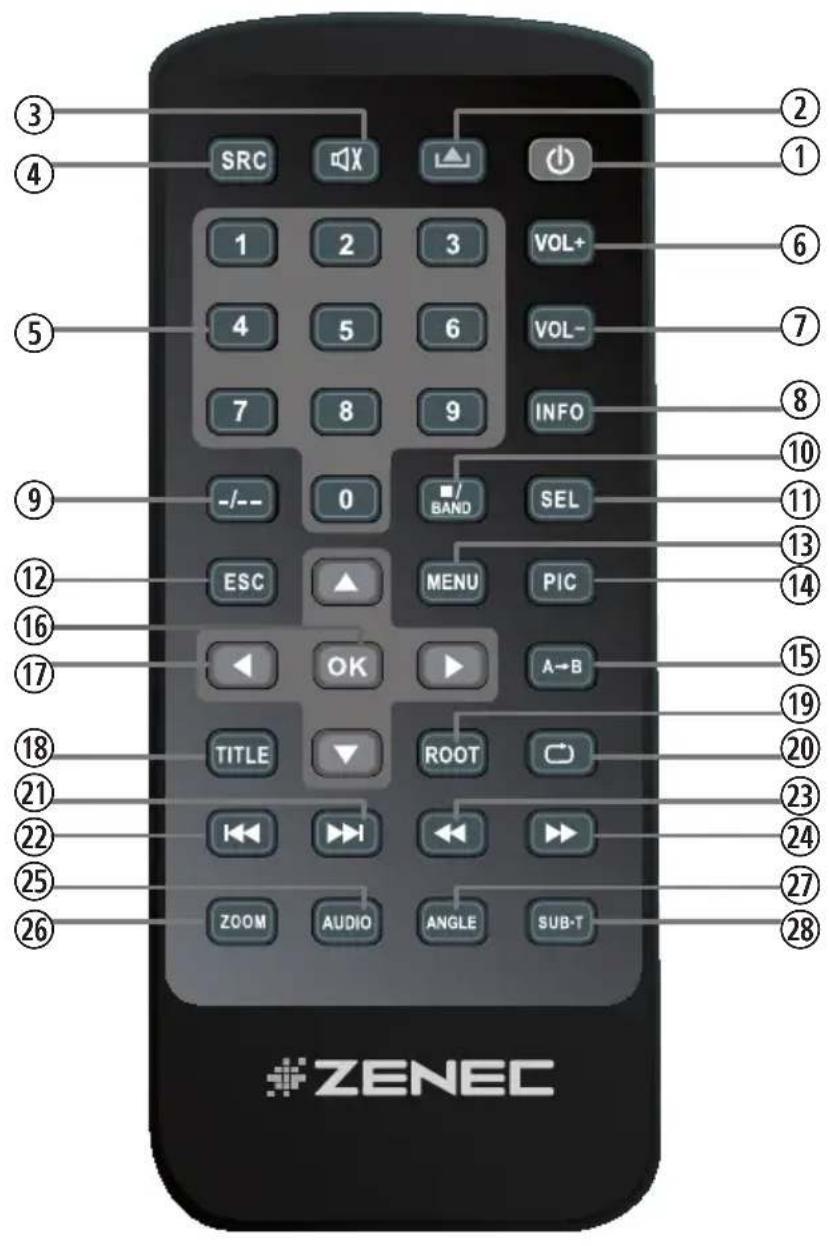

Remote Control Buttons

SRC 1 2 3 VOL+ 4 5 6 VOL- 7 8 9 INFO -/- - 0 BAND SEL ESC MENU PIC OK A→B TITLE ROOT ZOOM AUDIO ANGLE SUB-T ② ① ⑥ ⑦ ⑧ ⑩ ⑪ ⑬ ⑭ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉟C ZENEC

REMOTE CONTROL MAIN

1. POWER

Device ON/OFF

2. EJECT

Eject disc

3. MUTE

Mute/Un-mute audio output

4. SRC

Change sources

5. KEYPAD

Input track/chapter/title

6. VOL+

Increase volume

7. VOL-

Decrease volume

8. INFO

Show DVD info

9. GOTO

Open numeric onscreen keypad

10.STOP/BAND

Stop DVD/change radio band

11. SEL

Open EQ

12. ESC

Close menu/EQ

13. MENU

Open main menu

14.PIC

No function

15. REPEAT A B

Set start and end point at DVD to repeat

16. OK

Play/Pause; Confirm

17. DIRECTION BUTTONS

Select item; move cursor

18. TITLE

Open DVD Title menu

19. ROOT

Open DVD main menu

20. REPEAT

Repeat track/chapter/title

21. SKIP NEXT

Jump to next track/preset/chapter/title

22. SKIP PREVIOUS

Jump to previous track/preset/chapter/title

23. FAST REVERSE

Fast reverse; 50kHz down at tuner mode

24. FAST FORWARD

Fast forward, 50kHz up at tuner mode

25. AUDIO

Change DVD audio language

26. ZOOM

Zoom in/out

27. ANGLE

Change DVD viewing angle

28. SUB-T

Change DVD subtitle

NOTE:

■ Some functions may not be available; depending on your chosen mode and type of media.

REMOTE CONTROL M-ZONE

Remote Control Buttons

MODE 1 2 3 4 5 6 SRCH 7 8 9 0 D V MENU TITLE ROOT OK EPO /II ZOOM TV/RADIO P P AUDIO SUB-T ANGLE A→B ZENEC ① ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗

REMOTE CONTROL M-ZONE

1. MODE

Change source

2. KEYPAD

Input track/chapter/title

3. MUTE

Mute/un-mute audio output

4. GOTO

Open numeric onscreen keypad

5. TITLE

Open DVD Title menu

6. ROOT

Open DVD main menu

7. OK

Play/Pause; Confirm

8. DIRECTION BUTTONS

Select item; move cursor

9. SKIP PREVIOUS

Jump to previous track/preset/chapter/title

10. SKIP NEXT

Jump to next track/preset/chapter/title

11. STOP

Stop playback

12. PLAY/PAUSE

Play/pause playback

13. ZOOM

Zoom in/out

14. FAST REVERSE

Fast reverse

15. FAST FORWARD

Fast forward

16. SLOW

Slow motion playback

17. REPEAT

Repeat track/chapter/title

18. AUDIO

Change DVD audio language

19. SUB-T

Change DVD subtitle

20. ANGLE

Change DVD viewing angle

21. REPEAT A->B

Set start and end point at DVD to repeat

NOTE:

■ Some functions may not be available; depending on your chosen mode and type of media.

EXTERNAL PLAYBACK & SOURCES

M-Zone

Control elements:

① Direct access to DVB-T
② Direct access to M-Zone

Control elements:

① Direct access to main menu
② Choose DVD
3 Choose DVB-T
4 Deactivate M-Zone

NOTE:

■ With deactivated M-Zone you will not see any signal on connected M-Zone monitors (Blackscreen).
■ The M-Zone volume cannot be adjusted by the headunit. Use the control elements of the connected peripherals (i.e. roof monitor) instead to adjust the volume.
If the M-Zone and the front zone get both fed by one and the same media source, the M-Zone stereo output will be muted.
■ The headunit does not memorize that the M-Zone has been activated after shutting off. Therefore you have to reselect the M-Zone after re-starting the headunit.

EXTERNAL PLAYBACK & SOURCES

DVB-T

Main Menu 10:16 SD-Card Setup Bluetooth AV-1 DVBT M-Zone

Control elements:

① Direct access to DVB-T

① Tap into the upper right corner to return to the main menu

NOTE:

■ For DVB-T reception you need to connect an external ZENEC DVB-T receiver. For a perfect compatibility match check out the manual and the compatibility list in advance.
■ Compatible DVB-T devices sport easy operation by using the touchscreen of the headunit.
■ The headunit does not memorize that the DVB-T receiver has been activated after shutting off. Therefore you have to reselect DVB-T after re-starting the headunit.

GLOSSAR

A2DP Advanced Audio Distribution Profile, Bluetooth Audio

AC-Control Optical indication showing air condition status information

A/V In Audio-Video Input

AUX In Auxiliary Input, Audio only Input

CAN-Bus Controller Area Network-Bus; Automotive industrial standard bus system

CAN/Stalk IF Interface to communicate with CAN-Bus

DVB-T Digital Video Broadcasting – Terrestrial; TV transmission standard

EQ Equalizer

FAT32 File allocation table 32-bit

GSM Global System for Mobile Communications, Mobile phone network

GUI Graphical User Interface

HMI Human Machine Interface (graphical part = GUI)

ID3-Tag Format to display additional info together with MP3 audio files

Media Link box Box to reroute some inputs from the back of the headunit to easier accessible locations

M-Zone Rear seat entertainment area

OBC On Board Computer, Menu to control board computer

OE Original Equipment > OEM Original Equipment Manufacturer

OPS Optical Parking system (shows parking radar)

OSD On Screen Display

POI Navigation: Point of interest

Phantom pow. "In-line" antenna power supply; Power and antenna signals use the same wire

TMC/TMC Pro Traffic Message Channel/Traffic Message Channel Professional Pro with extended pay content

TROUBLESHOOTING

Problem Cause Solution
GENERAL
Unit will not power on.	Radio fuse blown. Install new fuse with correct rating.
	Car battery fuse blown. Install new fuse with correct rating.
	Illegal operation. Press the RESET button.
No/low audio output.	Improper audio output connection. Check wiring and correct.
	Volume set too low. Increase volume level.
	Speakers damaged. Replace speakers.
	Only one channel is playing.	Check the balance and fader adjustments.
	Speaker wiring is in contact with metal part of car.	Insulate all speaker wiring connections or replace the speaker cable.
	Mute is activated. Turn off the Mute function.
Poor sound quality or distortion.	Unauthorized disc is in use. Use original disc.
	Speaker power rating not compatible with unit.	Connect proper speakers.
	Speaker is shorted. Check speaker connections.
TFT MONITOR
No image.	The parking brake is not engaged.	Stop vehicle in a safe place and apply parking brake.
	The "Monitor off"-function is activated.	Touch the monitor to activate the display.
Prolonged image or improper height/ width ratio.	Improper aspect ratio setup. Use correct aspect ratio setting.
TUNER
Weak station searching.	Auto antenna not properly connected.	Connect the auto antenna cable properly.
	REG function is activated. Turn REG function off.
	The AF function is not activated. Activate the AF function.
MP3
The ID3 tags are shown incorrectly.	Message is longer than LCD can display or ID3 tag is not compatible.	Use proper ID3 tag information.

DVD-PLAYER
Disc does not play back.	[Bad Disc] Disc is warped or scratched. Use disc in good condition.
	[Bad Disc] Disc is dirty or wet. Clean disc with soft cloth.
	[Unknown Disc]	Incompatible disc is used. Use compatible disc.
	[Unknown Disc]	Disc rating exceeds parental lock rating limit.	Change parental lock settings to lower restriction.
	[Region Error]	Disc region code is not compatible with unit.	Use disc with proper region code.
	[Bad Disc] Disc is inserted upside down. Insert disc with label side up.
Cannot insert disc. Disc already inside unit.			Eject current disc and insert new one.

SPECIFICATIONS ZE-NC4121D

• 3D High-Definition navigation system
• TMC and TMC Pro receiver
• External GPS antenna
- 8 GB internal flash memory with map data for 43 Eastern and Western European countries and Premium POI database
• Graphical user interface and voice guidance in 28 different languages
• 2D or 3D map view with auto-zoom and display of 3D terrains and 3D landmarks
- Eco and Smart Route Planning, Outlook address import, Real Junction View and Real Signpost rendering etc.
• Text to Speech function

PARROT BLUETOOTH HANDS-FREE MODULE

• Synchronization of up to 1'000 contacts with max. 5 telephone numbers per contact
• Alphabetical search function for contacts
• Internal and external microphone
  • Future-proof upgradable Bluetooth firmware

MULTIMEDIA PLAYER

• DVD loader
  • USB 2.0 port (via Media-Link box)
• micro SD/SDHC card reader (up to 32 GB)
  • Made for iPod/Made for iPhone
• Playback DVD loader: CD, CD-R/RW, MP3, WMA, DVD, DVD±R/RW, DVD-MP3, AVI, Xvid and JPEG
• Playback SD/USB: MP3, WMA, AVI, Xvid, H.264 and JPEG

GENERAL FEATURES

• Intuitive, user friendly HMI in 20 different languages
• 6.5"/16.5 cm 16:9 HD TFT-LCD display with 800x480 pixel resolution and touchscreen control
  • RDS tuner with 30 preset stations (18 FM/12 AM)
• Multi zone function
• 4 x 50 watts class-D amplifier
• 2 x IR-remote control

A/V-CONNECTIONS

• 4.1-CH preamp line outputs
• 2-CH preamp line outputs without volume adjustment
• 2 x composite video outputs (NTSC)
- 1 x A/V-input
- 1 x video input for rear view camera with switching function
- Connectivity for compatible external DVB-T or DAB+ receivers

BRAND/VEHICLE SPECIFIC FEATURES

• Steering wheel remote control ready, via separate external Stalk/CAN interface
  • Red key illumination

NOTE: SPECIFICATIONS AND DESIGNS OF THIS MODEL ARE NECESSARILY SUBJECT TO CHANGE WITHOUT NOTICE.

ÜBER DIESES HANDBUCH

BLUETOOTH MODUS....64-71

NAVIGATIONS MODUS....72-73

SYSTEM SETUP....74-83

HAUPTFERNBEDIENUNG....84-85

M-ZONE FERNBEDIENUNG 86-87

EXTERNE WIEDERGABE UND QUELLEN 88-89

GLOSSAR....90

FEHLERSUCHE....91-92

SPEZIFIKATIONEN 93

GARANTIE....94-95

Saint Margaret Street A302 600 m Bohwee Bohwee Chilled Tunes Bambuddha groove Chilled Tunes 02:16 2 of 11 06:13

NAV Infobar

Ramp 1.4 km 7 80 Distance 121 km Arrival Time 17:24 3/19 Bambuddha groove

Wiedergabe Infobar

Ramp 1.4 km 80 Distance 121 km Arrival Time 17:24 Antony Lewis

BT Infobar

HINWEIS:

Radio TA TX DX ST SWR1 BW SWR 1 BW - AC/DC Highway to Hell RDS Text Preset Band

iPod Search 10:16 ROOT Playlists Audio 1. Purchased Video 2. Top 25 3. Music of the 90's 4. Music of the 80's 5. Workout

Anzeigeelemente:

9 10 11 12 13 iPod Search 10:16 ROOT Playlists Audic 1. Purchased Video 2. Top 25 3. Music of the 90's 4. Music of the 80's 5. Workout 1 2 3 4 5 6 7

Bedienelemente:

iPod Search 10:16 Artis! coohwee Q W E R T Y U I O P A S D F G H J K L Z X C V B N M OK

iPod Suche:

34:52 01:55:53 ① ②

Anzeigeelemente:

34:52 01:55:53 ① ② ③ ④ ⑤ ⑥

Bedienelemente:

Bluetooth Phone Favorite Contacts Call log Music BT Settings ① ②

Bedienelemente:

① Eingabetastatur
② Anrufl iste
③ Favoriten
4 A2DP Audiostreaming
5 Telefonbuch
6 Bluetooth Einstellungen

Bedienelemente:

① Wiedergabe Bedienelemente
② A2DP an/aus (orange hinterlegt=an)

BLUETOOTH MODUS

Bluetooth Phone Favorite Contacts Call log Music BT Settings

Bluetooth Device Setup iPhone Disconnect Delete Black Berry Connect Delete Nokia 6230 Connect Delete LG ku990i viewty Connect Delete Add Delete

Bluetooth Call Logs Missed Calls Received Calls Diluted Calls. Contacts 1. Amelia 2. Andrew 3. Bertram 4. Bessie 5. Bill Jiason 6. Björn ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Bedienelemente:

Bluetooth Favorites Amelia Andrew Bertram Bessie Bill Jiason Delete Delete Delete Delete Delete Delete

Bedienelemente:

1 System Setup Video General Audio Misc 2 3 4 5

Bedienelemente:

SETUP: IMPORT/EXPORT SYSTEM SETTINGS

Export System Settings:

Misc Help Info Security Update System Settings Load from USB OK OK OK OK

Import System Settings:

Misc Help Info Security Update System Settings Load from USB OK OK OK OK OK

Video TV Shape A/V In Picture Standby TV Shape Normal

Video TV Shape A/V In Picture Standby Brightness Day +3 Brightness Night -3

Audio Volume Start Volume Last Sound Set Start Volume 10 Sub-Out TA Volume Last Speaker Set TA Volume 20 NAV Volume Last

Audio Mixer:

General Main Driver Assist Language System 13:15 Pimp ON OFF Beep Radio Area Europe

General Main Driver Assist Language Park Assist Camera ALT button Info Bar

General Main Driver Assist Language System OSD English

Misc Help TS-Calibrate OK Info Load Factory OK Security System Settings Export to USB OK Update System Settings Load from USB OK

Misc Help Show Info Software OK Info Show Info BT Software OK Security Show Info RDS OK Update

Misc Help Password fnc. On Off Info Password Anti Theft OK Security Update

Misc Help Update Software OK Info Security Update

Update Update

OK startet Software Update

HINWEIS:

Thank you for purchasing this ZENEC product. It is advisable to keep the original packaging material for any future transporting of the product. Should your ZENEC product require warranty service, please return it to the retailer from whom it was purchased or the distributor in your country. This ZENEC product is warranted against defective materials or workmanship for a period of TWO years from date of purchase at retail to the original purchaser.

WARRANTY LIMITATIONS

This warranty does not cover any damage due to:

1. Improper installation, incorrect audio or mains connection(s).
2. Exposure to excessive humidity, fluids, heat sun rays or excessive dirt or dust.
3. Accidents or abuse, unauthorized repair attempts and modifications not explicitly authorized by the manufacturer.

This warranty is limited to the repair or the replacement of the defective product at the manufacturer's option and does not include any other form of damage, whether incidental, consequential or otherwise. The warranty does not cover any transport costs or damages caused by transport or shipment of the product. Warranty work will not be carried out unless this warranty certificate is presented fully completed with model, serial number, purchaser's address, purchasing date and dealer stamp together with the original sales slip!

2 JAHRE GARANTIE

Date of purchase: ....

Your name: ....

Your address: ....

City: ....

State: ZIP or postal code:

Country:

Dealer's address & stamp

If at any time in the future you should need to dispose this product, please note that waste electrical products are not be disposed with the household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice (Waste Electrical and Electronic Equipment Directive).

The packing material of this item and the finished product contained inside are fully compliant with RoHS directive. Halogenated flame retardants are not used in any of the plastic injection parts of the product, nor for the printed circuit boards.

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual party rights of Rovi corporation. Reverse engineering and disassembly are prohibited.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Parrot S.A. is under license. Other trademarks and trade names are those of their respective owners.

All Rights reserved. The Parrot trademarks appearing on this giftbox artwork are the sole and exclusive property of Parrot S.A. All the others trademarks are the property of their respective owners and are used under license by Parrot S.A.

"Made for iPod" and "Made for iPhone" mean that an electronic product has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this product with iPod or iPhone may affect wireless performance.
