Product Type	Bathroom Scale
Brand	Eldom
Model	TWO110W
Dimensions (approx)	30 cm x 30 cm x 2.5 cm
Weight (approx)	1.5 kg
Power Supply	2 x AAA batteries (not included)
Maximum Capacity	180 kg / 396 lb
Graduation	0.1 kg / 0.2 lb
Display Type	LCD, 4-digit
Platform Material	Tempered glass
Auto-Off	Yes, after ~10 seconds of inactivity
Auto-Zero	Yes
Overload Indicator	Yes, shows "Err"
Low Battery Indicator	Yes, shows battery symbol
Unit Switch	kg / lb
Maintenance	Clean with a damp cloth; do not immerse in water
Safety Warning	Use on a flat, hard surface; avoid stepping with wet feet
Spare Parts Available	Battery compartment cover, battery

Frequently Asked Questions - TWO110W Eldom

How do I change the battery in the Eldom TWO110W scale?

Locate the battery compartment on the bottom of the scale. Slide the cover open, remove the old batteries, and insert two new AAA batteries with correct polarity. Close the cover securely.

How should I clean my Eldom TWO110W scale?

Use a soft, damp cloth to wipe the surface. Do not use abrasive cleaners or immerse the scale in water to avoid damage.

What is the maximum weight capacity of this scale?

The Eldom TWO110W has a maximum capacity of 180 kg (396 lb). If exceeded, the display shows an overload error.

Can I switch between kilograms and pounds?

Yes, the scale has a unit switch button. Press it to toggle between kg and lb.

Why does my scale show inconsistent readings?

Make sure the scale is placed on a hard, flat surface (not carpet). Ensure the batteries are fresh and you stand still in the center of the platform. Also, avoid moving the scale between weighings.

What does 'Err' on the display mean?

'Err' indicates overload (weight exceeds 180 kg) or an internal error. Remove the weight and try again. If persistent, replace batteries.

How long does the auto-off feature take?

The scale automatically turns off after approximately 10 seconds of non-use to save battery life.

Is the scale water resistant?

No, the scale is not water resistant. Protect it from moisture and clean only with a damp cloth. Do not place it in wet areas.

Can I use this scale on a carpet?

For accurate readings, use the scale on a hard, level surface like tile or hardwood. Carpet can affect stability and accuracy.

What is the warranty period for the Eldom TWO110W?

Eldom typically offers a 2-year warranty against manufacturing defects. Check your purchase receipt for exact terms.

USER MANUAL TWO110W Eldom

ELECTRONIC PERSONAL SCALE TWO110W Body Fat/Hydration/Muscle Monitor Scale

This product is specially designed to test body fat/hydration, help keep a close eye on the daily change of your body fat, hydration,m and weight, providing information for your reference. Base on the analysis of your height, weight and age etc., it tells your body fat status and gives you an idea of your body condition. Please read this instruction carefully before use.

User-friendly Tips

During Measuring

A. Always remove your shoes and socks, wipe clean your feet before using.
B. It is advisable to take measurement at the same time of the day.
C. Measured result could be misleading after intensive exercise, excessive dieting or under extreme dehydration condition.
D. Always weigh/use the scale on a hard and flat surface. When you are measuring, please keep still.
E. The body fat/hydration measured data of the following people may have deviation:

- Children under 10 or adult over 70 (can only use the device under normal weighing mode)

- Body building athletes or other occupational athletes.

F. People with the following conditions should not use the device:

• Pregnant women
• Those on dialysis treatment
• Those who use heart pacemaker or with other implanted medical device.

Safety Warning

A. The Fat% Hydration% Muscle% content evaluated by this device is only for reference (not for medical purpose). If your Fat% Hydration% content is over/below normal level, please consult your doctor for more advice.
B. For the data accuracy of the scale, please keep it away from strong electromagnetic field.
C. It could be slippery if you weigh on a wet surface. Moreover, if the weighing platform surface is glazed, never step on the edge of the scale and do keep balance during your weighing.

Performance Index

Power	Min Weighing Capacity	Max Weighing Capacity	Division	Fat% Range	Fat% Division	Hydration% Range	Hydration% Division	Muscle% Range	Muscle Division
2x3V batteries (CR2032)	2 kg4,4 lb	150kg330 lb	0,1 kg0,2 lb	4,00%- 60,0% 0,1%		27,5%- 66,0%	0,1%	20,0%- 56,0%	0,1%

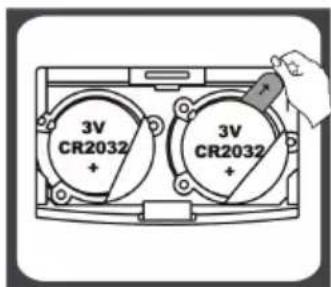

Battery

2x3V lithium batteries (CR2032). Please remove the isolation sheet from the battery contact before use. Observe the polarity.

Simple line drawing of a U-shaped pipe fitting with two horizontal leads (no text or symbols)

To Set Weight Unit

If your scale is available (or applicable) in kg/lb/st, you can set to the one you prefer by pressing the unit conversion button. Press the unit conversion button when scale is power off, LCD shows current weight unit.

After selecting the preferred unit, the scale will be auto-off after 3 seconds. Selected weight unit will be activated when the scale is turned on again.

• When setting lb/st as weight unit, the default height unit is feet/inch;
• When setting kg as weight unit, the default height unit is cm.

At the bottom of scale, you can find a unit conversion button as shown in picture.

Key Illustration (Touch button)

SET Turn on the scale and prompt to next parameter. (Please refer to the Setting Personal Parameter overleaf)
Advance the value by one interval each press. Continuous pressing will speed up the advance of value.
Decrease the value by one interval each press. Continuous pressing will speed up the decrease of value.

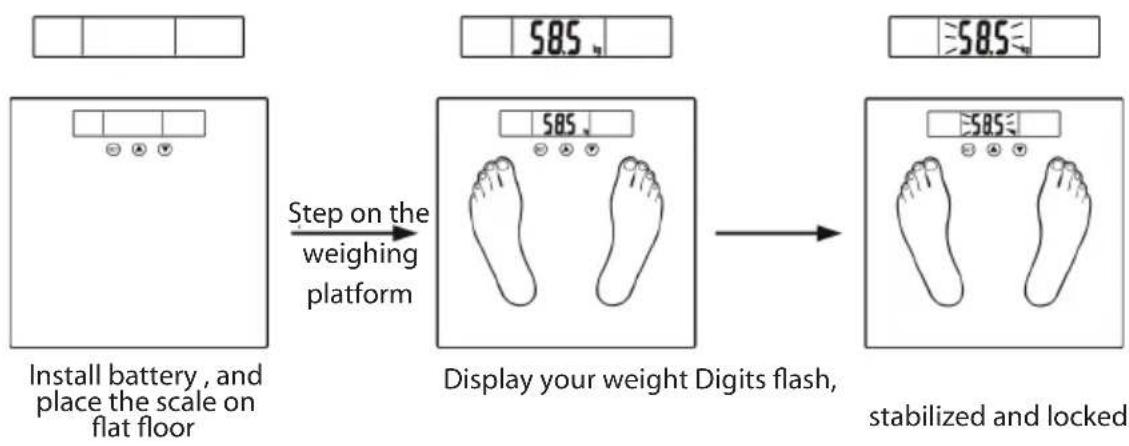

Optional Normal Weighing Mode (bypassing parameter setting)


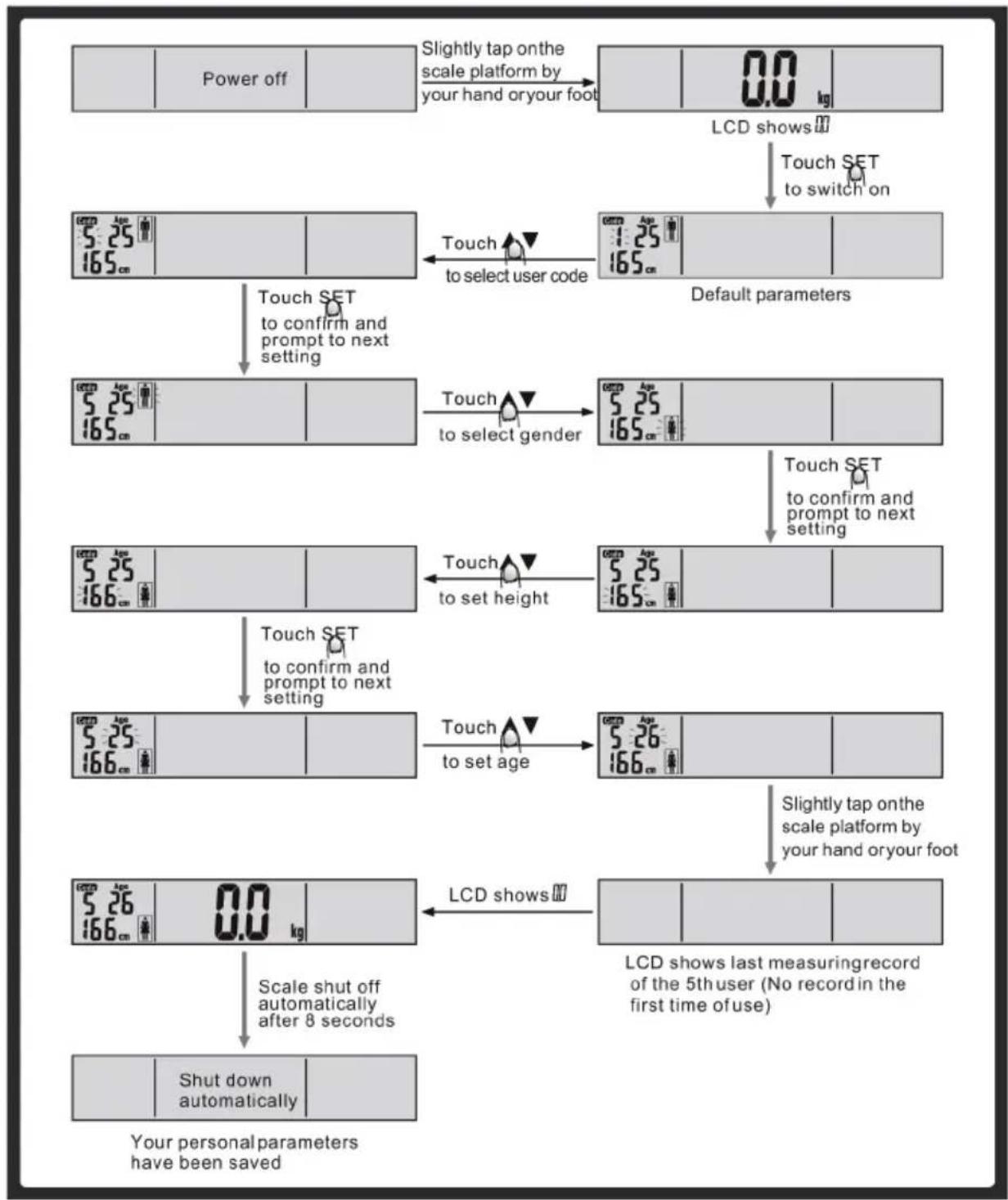

Fat/Hydration/Muscle Measuring Mode

To set personal parameters At the first time when you install battery and switch on, all default parameters are set as follow:

Gender	Height	Age
Male	165 cm/ 5'05.0"	25

Parameters can be set in the following range:

Memory	Gender	Height	Age
1-12	male/female	100-250 cm3'03.5"- 8'02,5"	10-100

Example: the 5th user, female, 166cm, 26 years old can set her parameters as follow:

Note:
During parameter setting, you can always tap on the scale platform by your hand or your foot any time to set the scale to zero-point. You can start measuring body fat/hydration based on the parameters just set/updated into the scale.
After completing the setting cycle, you can always continue on pressing SET again to go through another setting cycle of all parameters..

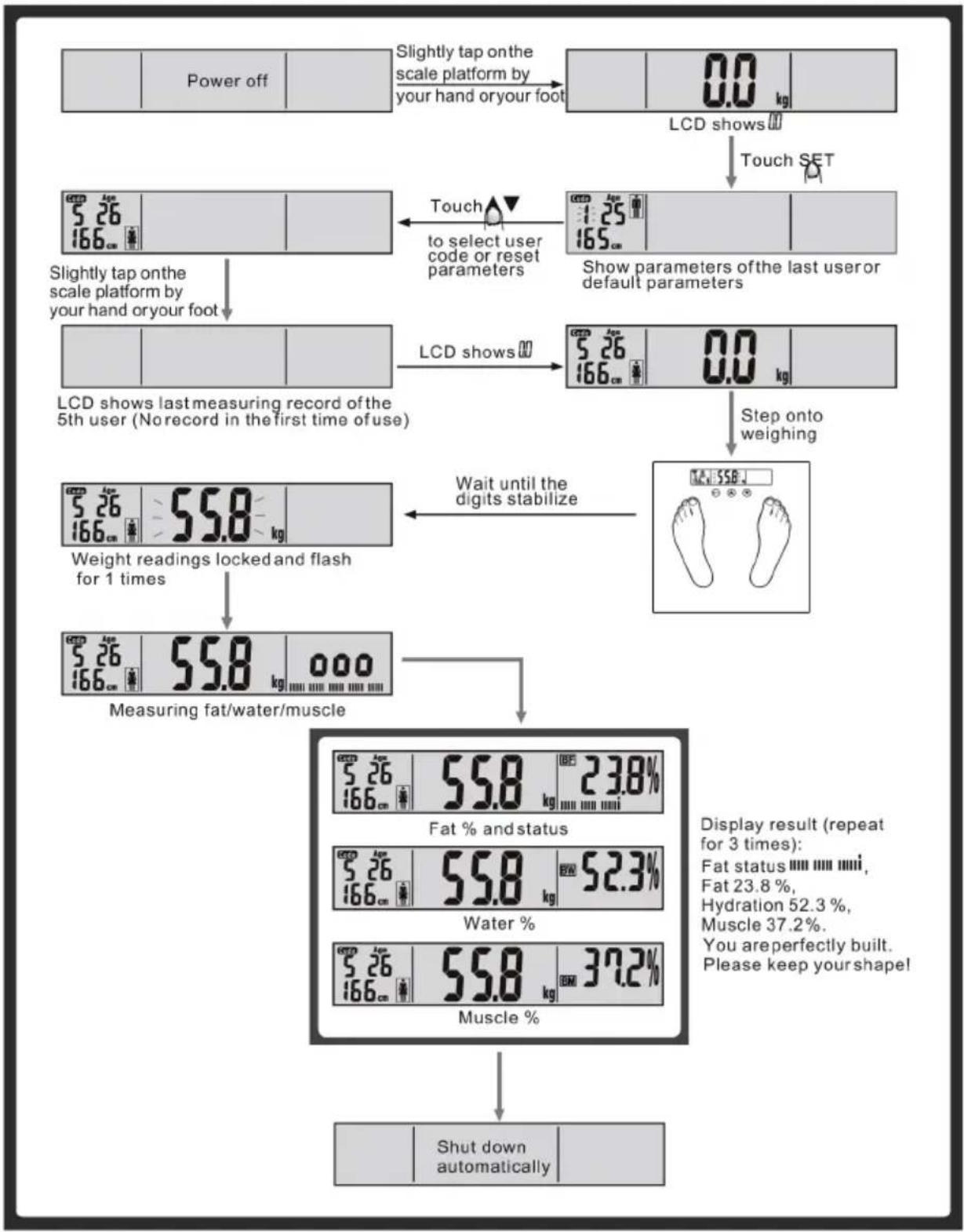

To Start Measuring

To ensure accuracy, please remove your shoes & socks before stepping on.

Example: the 5th user, female, 166cm, 26 years old can measure as follow:

Safety instructions:

This appliance is only intended for domestic use.

Do not step on the scale when it is wet.

Do not step on the scale with wet feet.

■ Store the scale in dark and dry place.

During storage do not place any other items on it.

The precision of the scales indications depends on the way it is operated.

Use it carefully. Do not jump on the scale or drop it.

Clean with moist soft cloth without using chemical detergents.

Clean dry. Do not immerse in water.

Only authorized service point can make any repairs. Any modernizations or using the spare parts or elements other that original is not allowed and can be dangerous to life.

Warning Indications

Low Battery Indication.

The battery power is running low, please replace with a new battery.

Over-load Indication

The weighing subject on the platform exceeds the maximum capability of scale. Please step off to avoid damage.

Low Fat% Indication

The Fat% is too low. Please lead a more nutritional diet and take good care of yourself.

High Fat% Indication

The Fat% is too high. Please watch your diet and do more exercise.

Re-test

Error exists, please re-test to get the correct result.

About Fat

1. About Fat%

Fat% is an index % of fat content in human body.

The fat content in human body is of a certain level, overabundance of fat will bring bad effects of metabolism, thereby, various illnesses may invade. Here goes an old saying, Obesity is hotbed of illness.

2. Working Principles

As electrical signal of certain frequency transmits through human body, the impedance of fat is stronger than that of muscle or other human tissues. Through the use of biological resistance analysis, this product will pass a safe frequency of low voltage electrical current through human body, thus, the Fat% will be reflected according to the resistance differences when the electrical signal transmitting through human body.

3. Fat/Hydration Content Fitness Assessment Chart

After your weighing, you can use the following Assessment Chart for reference:

Age	Fat(F)	Hydration(F)	Fat(M)	Hydration(M)	Status	Key Line Indication
≤30	4.0-16.0%	66.0-57.8%	4.0-11.0%	66.0-61.2%	Too lean	mmi
	16.1-20.5%	57.7-54.7%	11.1-15.5%	61.1-58.1%	Lean	mmii
	20.6-25.0%	54.6-51.6%	15.6-20.0%	58.0-55.0%	Normal	mmiii
	25.1-30.5%	51.5-47.8%	20.1-24.5%	54.9-51.9%	Fat	mmiii
	30.6-60.0%	47.7-27.5%	24.6-60.0%	51.8-27.5%	Too fat	mmiii
>30	4.0-20.0%	66.0-55.0%	4.0-15.0%	66.0-58.4%	Too lean	mmi
	20.1-25.0%	54.9-51.6%	15.1-19.5%	58.3-55.3%	Lean	mmii
	25.1-30.0%	51.5-48.1%	19.6-24.0%	55.2-52.3%	Normal	mmiii
	30.1-35.0%	48.0-44.7%	24.1-28.5%	52.2-49.2%	Fat	mmiii
	35.1-60.0%	44.6-27.5%	28.6-60.0%	49.1-27.5%	Too fat	mmiii

• The above information is only for reference

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled,
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment
