SPK414 Oregon - Pregnant Manta - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Manta
Model	SPK414 Oregon
Dimensions (W x H x D)	Approx. 20 cm x 15 cm x 10 cm
Weight	Approx. 0.8 kg
Power Source	Rechargeable lithium-ion battery, 5V USB charging
Battery Life	Up to 10 hours at moderate volume
Charging Time	Approx. 3-4 hours
Bluetooth Version	Bluetooth 5.0
Bluetooth Range	Up to 10 meters
Speaker Drivers	Full-range driver, passive radiator
Output Power	10W RMS
Frequency Response	80 Hz - 20 kHz
Inputs	Bluetooth, AUX 3.5mm, microSD card slot
Controls	Power, volume, play/pause, track skip, answer call
Built-in Microphone	Yes, for hands-free calling
Water Resistance	IPX4 (splash-proof)
Material	Plastic with fabric grille
Accessories Included	Micro USB charging cable, AUX cable, user manual
Maintenance	Clean with a soft dry cloth. Do not use solvents.
Safety	Do not expose to extreme temperatures or moisture. Keep away from children.
Spare Parts & Repairability	Contact Manta support for service. Battery replacement by qualified technician.

Frequently Asked Questions - SPK414 Oregon Manta

How do I pair the Manta SPK414 Oregon with my phone?

Turn on the speaker and enable Bluetooth on your phone. Select Manta SPK414 Oregon from the available devices. If prompted, enter PIN 0000.

Why is my speaker not turning on?

Ensure the battery is charged. Connect the speaker to a power source using the included USB cable. If still no power, try resetting by pressing the power button for 10 seconds.

How long does the battery last?

The battery lasts up to 10 hours at moderate volume. Actual battery life varies with volume level and audio content.

Can I use the speaker while charging?

Yes, you can use the speaker while it is connected to a power source. However, charging may take longer.

What is the Bluetooth range?

The Bluetooth range is up to 10 meters (33 feet) in open space. Walls and obstacles may reduce the range.

How do I reset the speaker?

To reset, press and hold the power button for about 10 seconds until the indicator flashes. The speaker will reboot.

Is the speaker waterproof?

The speaker has an IPX4 rating, meaning it is splash-proof. Do not submerge in water.

Can I connect two speakers together?

The SPK414 Oregon does not support True Wireless Stereo (TWS) pairing. Only one speaker can be connected at a time.

How do I play music from a microSD card?

Insert a microSD card into the slot. The speaker will automatically switch to card mode. Use the controls to navigate tracks.

What should I do if the sound is distorted?

Lower the volume on both the speaker and the connected device. Ensure the speaker is not placed in a confined space. If issue persists, check for Bluetooth interference or try a different audio source.

USER MANUAL SPK414 Oregon Manta

Portable Bluetooth Speaker OREGON and IDAHO

Model:

SPK414

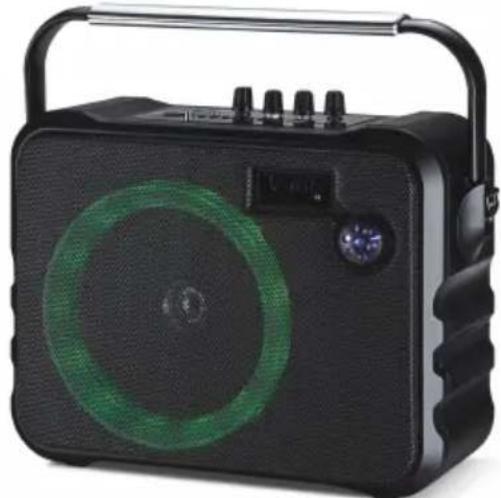

Black portable radio with green circular speaker grille and external antenna (no visible text or symbols)

SPK415

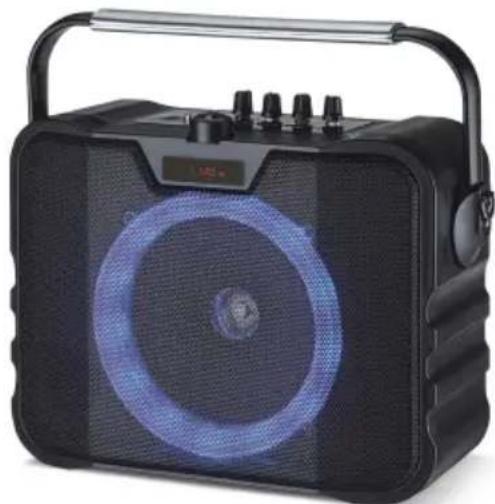

Black portable electronic device with a blue circular speaker grille and external antenna (no visible text or symbols)

Instrukcja obsługi

User's Manual

Bedienungsanleitung

Manual de usuario

Istruzioni d'uso

Návod k obsluze

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

1. Fashionable and chic moulding.
2. Built-in Digital Amplifier, voice is pure and graceful.
3. Connecting Cellphone, Mp3 and bluetooth ...etc.
4. Adjust function keys to your sasfied best sound effect.
5. High price-performance rao.

PANEL FUNCTION KEYS

VOLUME: Main volume knob.

POWER: Switch on / o.

TREBLE: Treble Adjustment.

ECHO: Adjust the microphone echo.

BASS: Adjust the bass enhancement.

MIC VOL: Adjust the volume of the microphone.

MIC PRIORITY: Selecng the microphone with music or without.

MODE: Select mode.

REC: Button sound recording from a microphone.

EQ: Equalizer.

TF CARD: SD card slot.

USB: USB socket.

DC 9V IN: Socket Charger 9V DC.

AUX: AUX port.

II: Play or Pause / Radio mode automatc tuning staon.

I: Next track / staon.

I<<: Previous track / station.

MAINTENANCE

1. After using this product, pull up the plug in me, be careful of the dust and dirt.

2. If the too large sound cause distoron, rstly try to turn down the volume, then adjust the main volume knob, the problem will be gone.

3. Before turning on the speaker, please Rotate the volume button, turn down it to be minimum volume in case the too large output power damage horn.

PRECAUTION

In order to prevent operating problems or serious damage to the device, please comply with the following remarks:

1. Operang audio appliances should be kept away from heang facilities
2. Do not attempt to x or revise the circuit
3. Do not touch the internal parts, otherwise electric shock or serious damage to the device might cause.
4. Ensure the audio product in a venlated dry condion with about 20mm space around as for heating dispersion
5. Keep the speaker far away from ame ignition source, water-drop, water-splash

*Serious warning:

It is strictly prohibited to open the speaker box, if you are Non-professional maintenance personnel.

Do not expose this appliance to rain or moisture, and vessel containing liquids such as a cup, vase, in not supposed to be placed on or above the appliance.

BATTERY CAUTION

1. You'd better turn o the device before baery charging.
2. Charging time: 3-4 hours, then pull the plug don't keep charging it too long.
3. When the device start getting stuck or the voice getting weaker when it's the me to charge
4. You should charge the device before the batter

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Correct Disposal of this product.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collecon systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Note!

Product design and Technical parameters may be change without noce. This mainly concerns parameters technical, soware and user manual present. User's Manual is a general orientation on service product. Manufacturer and distributor do not assume any responsibility as compensation for any inaccuracies errors in the descripons appearing in this user manual.

PRODUKTBESCHREIBUNG

Abstract black-and-white circular logo design with interlocking curved shapes (no text or symbols)

MANTA

INFOLINIA SERWISOWA

The manufacturer reserves the right to make changes to product specificaons without noce.

Home: www.manta.com.pl Home support: www.manta.info.pl

CE RoHS

Made in P.R.C. FOR MANTA EUROPE
