SPK415 Idaho - Loudspeaker Manta - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Manta
Model	SPK415 Idaho
Color	Black (typical)
Dimensions (WxHxD)	Approx. 18 x 6 x 6 cm
Weight	Approx. 400 g
Battery Capacity	1500 mAh rechargeable battery
Playback Time	Up to 6 hours at moderate volume
Charging Time	Approx. 3 hours via micro USB
Bluetooth Version	5.0
Operating Range	Up to 10 meters
Supported Audio Formats	MP3, WMA, WAV (via USB/SD)
Playback Sources	Bluetooth, FM Radio, USB, microSD, AUX
Speaker Output Power	5W RMS
Frequency Response	100 Hz - 20 kHz
FM Radio Range	87.5 - 108 MHz
Hands-free Calling	Yes, built-in microphone
Controls	Buttons on device: power, volume, mode, play/pause, next/prev
Maintenance	Clean with soft dry cloth; keep away from liquids
Safety	Do not expose to high temperatures; use only original charger
Spare Parts / Repairability	Battery replaceable; contact Manta service for parts
General Information	Portable design, suitable for indoor/outdoor use

Frequently Asked Questions - SPK415 Idaho Manta

How do I pair the speaker via Bluetooth?

Turn on the speaker. Press the Bluetooth button (or set mode to Bluetooth). On your device, search for 'SPK415 Idaho' and select it. Once connected, you'll hear a confirmation tone.

What is the battery life?

Battery life is up to 6 hours at moderate volume. Actual time may vary depending on volume and playback source.

How do I charge the speaker?

Connect the included micro USB cable to the speaker and a USB power adapter (5V, 1A). The LED indicator will show charging status. Full charge takes about 3 hours.

Can I use the speaker while charging?

Yes, you can play music while charging. However, it may take longer to fully charge and battery life might be affected.

How do I play music from an SD card?

Insert a microSD card (max 32GB) into the slot. Press Mode to switch to SD mode. The speaker will automatically play MP3 files.

How do I tune FM radio stations?

Switch to FM mode by pressing Mode. Then press and hold the Play/Pause button for auto-scan. Use Next/Prev to navigate saved stations.

Why is there no sound?

Check that the volume is turned up on both the speaker and your device. Ensure the speaker is in the correct mode (Bluetooth/SD/FM/AUX). For Bluetooth, confirm pairing.

How do I reset the speaker to factory settings?

With the speaker on, long-press the Volume - and Mode buttons simultaneously for 3 seconds. The speaker will restart and reset Bluetooth pairings.

What are the specifications of the speaker?

Output power: 5W. Speaker driver: single full-range. Frequency response: 100 Hz - 20 kHz. Bluetooth version: 5.0. Battery: 1500 mAh.

Is the speaker water-resistant?

No, the SPK415 Idaho is not water-resistant. Keep away from water and moisture to avoid damage.

USER MANUAL SPK415 Idaho Manta

Portable Bluetooth Speaker OREGON and IDAHO

Model:

SPK414

Black portable radio with green circular speaker grille and external antenna (no visible text or symbols)

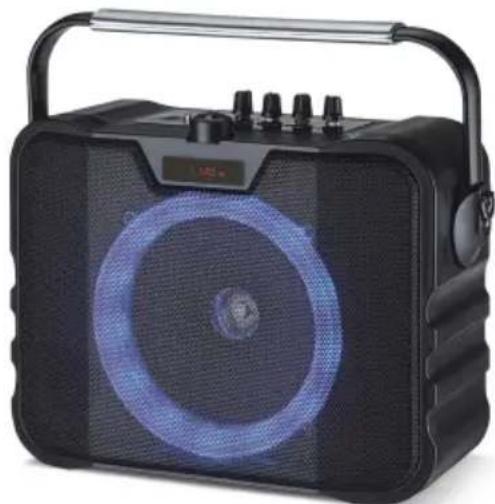

SPK415

Black portable electronic device with a blue circular speaker grille and external antenna (no visible text or symbols)

Instrukcja obsługi

User's Manual

Bedienungsanleitung

Manual de usuario

Istruzioni d'uso

Návod k obsluze

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

1. Fashionable and chic moulding.
2. Built-in Digital Amplifier, voice is pure and graceful.
3. Connecting Cellphone, Mp3 and bluetooth ...etc.
4. Adjust function keys to your sasfied best sound effect.
5. High price-performance rao.

PANEL FUNCTION KEYS

VOLUME: Main volume knob.

POWER: Switch on / o.

TREBLE: Treble Adjustment.

ECHO: Adjust the microphone echo.

BASS: Adjust the bass enhancement.

MIC VOL: Adjust the volume of the microphone.

MIC PRIORITY: Selecng the microphone with music or without.

MODE: Select mode.

REC: Button sound recording from a microphone.

EQ: Equalizer.

TF CARD: SD card slot.

USB: USB socket.

DC 9V IN: Socket Charger 9V DC.

AUX: AUX port.

II: Play or Pause / Radio mode automatc tuning staon.

I: Next track / staon.

I<<: Previous track / station.

MAINTENANCE

1. After using this product, pull up the plug in me, be careful of the dust and dirt.

2. If the too large sound cause distoron, rstly try to turn down the volume, then adjust the main volume knob, the problem will be gone.

3. Before turning on the speaker, please Rotate the volume button, turn down it to be minimum volume in case the too large output power damage horn.

PRECAUTION

In order to prevent operating problems or serious damage to the device, please comply with the following remarks:

1. Operang audio appliances should be kept away from heang facilities
2. Do not attempt to x or revise the circuit
3. Do not touch the internal parts, otherwise electric shock or serious damage to the device might cause.
4. Ensure the audio product in a venlated dry condion with about 20mm space around as for heating dispersion
5. Keep the speaker far away from ame ignition source, water-drop, water-splash

*Serious warning:

It is strictly prohibited to open the speaker box, if you are Non-professional maintenance personnel.

Do not expose this appliance to rain or moisture, and vessel containing liquids such as a cup, vase, in not supposed to be placed on or above the appliance.

BATTERY CAUTION

1. You'd better turn o the device before baery charging.
2. Charging time: 3-4 hours, then pull the plug don't keep charging it too long.
3. When the device start getting stuck or the voice getting weaker when it's the me to charge
4. You should charge the device before the batter

Symbol of a trash bin with crossed x and y axes, no text or labels present

Correct Disposal of this product.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collecon systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Note!

Product design and Technical parameters may be change without noce. This mainly concerns parameters technical, soware and user manual present. User's Manual is a general orientation on service product. Manufacturer and distributor do not assume any responsibility as compensation for any inaccuracies errors in the descripons appearing in this user manual.

PRODUKTBESCHREIBUNG

Abstract black-and-white circular logo design with interlocking curved shapes (no text or symbols)

MANTA

INFOLINIA SERWISOWA

The manufacturer reserves the right to make changes to product specificaons without noce.

Home: www.manta.com.pl Home support: www.manta.info.pl

Made in P.R.C. FOR MANTA EUROPE
