Product Type	Range Hood
Brand	AMICA
Model	OSC 6711 I
Installation Options	Wall-mounted, ceiling (island), built-in
Air Extraction Mode	Ducted (external) or Recirculation (with carbon filter)
Number of Fan Speeds	3
Control Type	Push buttons (1,2,3,L)
Lighting	Independent switch, compatible with incandescent/halogen/LED modules
Grease Filter	Aluminium, washable in dishwasher or by hand monthly
Charcoal Filter	Optional for recirculation, replace every 2 months
Acrylic Filter	Some models, replace every 2 months
Duct Diameter	120 mm
Maximum Duct Length	4-5 m
Minimum Distance from Hob	Refer to product technical sheet; follow gas cooker instructions if greater
Safety Features	Disconnect power before cleaning; no open flames; child supervision
Maintenance	Clean surfaces with damp cloth and neutral detergent; avoid solvents
Warranty	As per warranty card
Compliance	CE, Low Voltage Directive 2006/95/EC, EMC 2004/108/EC, ErP 2009/125/EC
Disposal	Do not mix with household waste; use WEEE collection points

Frequently Asked Questions - OSC 6711 I AMICA

How to install the range hood?

Follow the step-by-step instructions in the manual. Ensure the wall or ceiling is strong enough to support the hood. For extraction mode, connect to a suitable ventilation duct (120 mm diameter, max 4-5 m length). For recirculation, install a carbon filter and optional air guide.

How to clean the grease filter?

Remove the aluminium grease filter and clean it every month. It can be washed in a dishwasher or by hand using a mild detergent or liquid soap. After washing, let it dry completely before reinstalling.

How often should I replace the charcoal filter?

Replace the charcoal filter every 2 months, or more frequently if the hood is used intensively. Charcoal filters cannot be washed or regenerated; they must be replaced.

Can I use the hood without a duct?

Yes, in recirculation mode. Install an activated charcoal filter (not included) and the cleaned air will be returned to the room. No external duct is required, but an air guide is recommended.

How to switch between extraction and recirculation modes?

Some universal hoods have a lever inside (see Figure 8) to switch modes. For others, simply install or remove the charcoal filter and connect or disconnect the duct. Follow the manual for your specific model.

What is the recommended distance between the hob and the hood?

Refer to the product technical sheet. If the gas cooker installation instructions specify a greater distance, that must be followed. Typical distances are around 65-75 cm for electric and 75-85 cm for gas hobs.

How to replace the light bulb?

See Figure 7 in the manual. Use incandescent, halogen, or LED modules with the same specification as factory-installed. Ensure the hood is disconnected from power before replacing.

Why is my hood not working?

Check if the power cord is plugged in and the circuit breaker is on. Ensure the control buttons are pressed correctly. If the hood still doesn't work, inspect the filters for blockage and verify that the motor isn't obstructed.

Can I use the hood over a gas stove?

Yes, but maintain the minimum distance specified by the gas cooker manufacturer. Do not leave open flames under the hood and ensure the flame does not extend beyond the pot.

How to dispose of the old hood?

Do not dispose of the appliance with household waste. Follow local regulations for waste electrical and electronic equipment (WEEE). Cut the power cord and take the hood to a designated collection point.

USER MANUAL OSC 6711 I AMICA

Line drawing of a kitchen appliance with a mounted dish and a cabinet, no text or symbols present

0

1

2

3

L

3210

10

4

Diagram of a storage or ventilation system with rectangular tanks and a central oval chamber, no text or symbols present.

Pure diagram of a rectangular container with internal grid patterns and directional arrows, no text or symbols present.

Hand pressing a button on a surface with a downward arrow (no text or symbols)

5

Diagram showing four views of a solar panel installation with grid layouts and red arrows indicating direction (no text or symbols)

6

Illustration of a hand holding a device with a pen and arrow indicating rotation (no text or symbols)

7

Pure technical line drawing of a mechanical part with no text, numbers, or symbols

Diagram of a device with two fans and a black arrow pointing to the center (no text or symbols)

8

GRATULUJEMY WYBORU SPRZĘTU MARKI AMICA

Szanowni Państwo,

Simple line drawing of a recycling symbol (three chasing arrows) with no text or labels

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

THANK YOU FOR PURCHASING AN AMICA APPLIANCE

DEAR CUSTOMER!

You are now a user of a kitchen extractor hood. This hood has been designed and manufactured specially with a view to satisfying your expectations and it will certainly constitute a fitting element of a modern kitchen. The modern structural solutions and the newest technologies used in production of this hood guarantee its high effectiveness and good appearance.

Please read these instructions carefully before installing the hood. They will help you avoid mistakes during installation and operation of the hood.

We wish you a lot of satisfaction from choosing our kitchen extractor hood.

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Risks resulting from improper operation of the appliance. Activities that must be performed by a qualified technician.

Tips on how to use the appliance.

Information on how to protect the environment.

This indicates actions than must not be performed by the user.

TABLE OF CONTENTS

GUIDELINES CONCERNING THE SAFETY OF USE 37

INSTALLATION 41

fore using the appliance, please carefully read this manual!

The appliance is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

●The manufacturer will accept no responsibility for any damage due to installation or operation not conforming to these instructionsi
- Cooker hood is designed to remove cooking odours. Do not use co-oker hood for other purposes.
- Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The duct length (typically 120 or 150mm in diameter) should not exceed 4-5 m. The air exhaust duct is also required for telescopic and under furniture cooker hoods operating in air recirculation mode.

- Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane. (chimney cooker hoods only).

● The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.

- Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

- For details of the installation distance above an electric hob please refer to product technical sheet If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1a/b/c).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

- Any food cooked in fat shall be constantly monitored, since overheated fat can ignite very easily.

- Pull the plug of the power cord from a wall socket before any filter cleaning or repair operation.

- The textile grease filter should be replaced, and the aluminium filter should be cleaned at least every one month in connection with the existing fire danger (saturated fat is very flammable).

- If any other non-electric devices are used in the same room as the hood (e.g. liquid fuel ovens, flow-through or volumetric water heaters), it is necessary to provide appropriate ventilation (air supply). Safe operation is possible when during simultaneous operation of the hood and combustion devices dependent on air supply the negative pressure of not more than 0.004 milibar is maintained at the location of these devices inside the room (this point does not apply when the hood is used as an odour absorber).

- Do not abut against the hood

- The hood should be frequently cleaned inside and on the outside surfaces (at least once a month). See “Cleaning section” in this manual.

- If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.

- Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

● Children should be supervised to ensure that they do not play with the appliance.

- Check if the voltage indicated on the rating plate corresponds to the local power supply parameters.

● Before installing unwind and straighten the power cord.

- Warning! The packaging materials (polyethylene bags, small pieces of foamed polystyrene etc.) should be kept away from children while unpacking.

NOTE: Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. It is recommended to make sure the hood operates correctly before installation.

- Never use the hood without effectively mounted grating!

● The flaming of foods beneath the hood itself is severely prohibited.

- With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

● WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazardsii

Elements

kitchen hood consists of the following elements (Fig. 2...)

Installation

Step-by-step appliance installation is shown on Fig. 3...

Setting the air extractor mode of operation of the hood

In the extractor mode air is discharged to the outside by a special conduit. In that setting any carbon filters shall be removed. The hood should be connected to the opening discharging air to the outside by means of a rigid or flexible conduit of 120 mm diameter, which should be purchased in a shop selling installation materials.

A qualified installer should be commissioned to make the connection.

Setting the odour absorber mode of operation of the hood

In this option filtered air returns to the room through openings in the front of the hood. In this setting it is necessary to install the carbon filter. It is recommended to install the air guide (availability depending on model).

In some universal hoods you need to switch lever inside the hood (Fig. 8) to switch between the extraction and air recirculation modes. The cleaned air is returned to the room through the holes in the top of the unit.

Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Fan speeds

The lowest and medium speeds should be used under normal conditions and with low concentration of fumes. The maximum speed should be used in case of high concentration of kitchen fumes, e.g. during frying or grilling.

Use control panel to control your cooker hood (Fig. 4)

• 1, 2, 3 buttons control cooker hood fan speed in the range from 1 to 3,
• Lights "L" button switches cooker hood lights on/off independently of fan operation.

Regular maintenance and cleaning of the device will ensure faultless operation, and help extend the life of the unit. Attention should be paid to replacing grease and carbon filters according to instructions.

Aluminium grease filter

Cleaning

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

To replace:

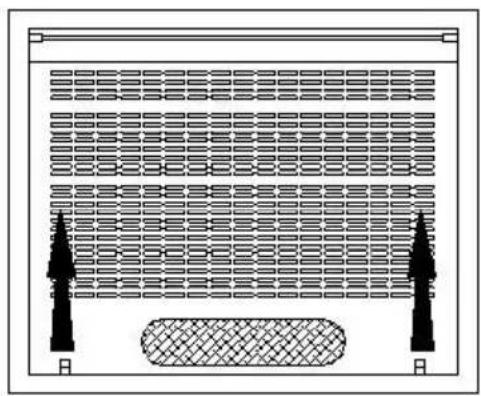

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Charcoal filter (only the recirculation version)

Operation - Carbon filters can be used only when the hood is not connected to any ventilation duct. Filters with active carbon can absorb odours until they are saturated. They cannot be washed or regenerated and should be replaced at least every 2 months or more frequently in case of very intensive use.

Replace:

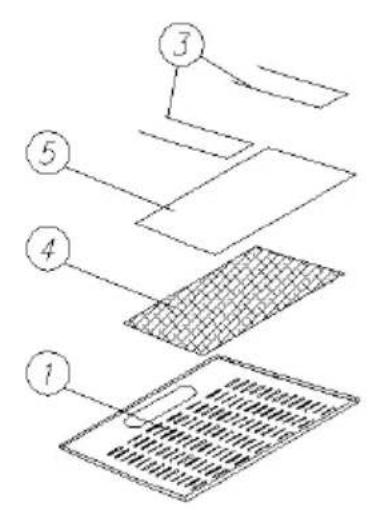

Dismantling of charcoal filter is shown on Figure 6.

Lighting

See Figure 7 for details how to replace lights. Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance.

Cleaning

Normal hood cleaning:

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.

It is recommend to use a damp cloth and a neutral detergent.

Aluminium filters may be washed in the dishwasher. The colour of aluminium filters may change after several washings. This is normal and it is not necessary to renew the filters.

Recycling of the packaging

Simple line drawing of a three chasing recycling symbol (no text or labels)

Our packaging is made of environmentally friendly materials, which can be reused:

● The external packaging is made of cardboard/foil
● The FCKW free shape of foamed polystyrene (PS)
● Polyethylene (PE) foils and bags

ELIMINATION / DISPOSAL OF THE EQUIPMENT

If the appliance is no longer in use, cut the connecting cable off the used equipment before scrapping. We also recommend that the appliance is locked or render it useless so that the appliance presents no danger to children while being stored for disposal. This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point authorised by the local authority. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment and any hazardous substances contained therein in a correct manner is vital to avoid damage the local natural environment. Therefore care and responsibility should always be taken in the disposal of these products

WARRANTY AND AFTER-SALE SERVICES

Warranty

Warranty service as stated on the warranty card

The manufacturer shall not be held liable for any damage caused by improper use of the product.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

● Low Voltage Directive 2006/95/EC,
● Electromagnetic Compatibility (EMC) Directive 2004/108/EC,
● ErP Directive 2009/125/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

Simple line drawing of a recycling symbol (three chasing arrows) with no text or labels

Simple line drawing of a three chasing recycling symbol (no text or labels)

Simple line drawing of a recycling symbol (three chasing arrows) with no text or labels

Abstract recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a recycling symbol (three chasing arrows) with no text or labels

Uređaj je za vreme transporta zaštićen od oštećenja.

Posle vađenja uređaja iz pakovanja molimo Vas da elemente ambalaže uklonite na način koji ne ugrožava prirodnu sredinu.

Svi materijali korišteni za ambalažu nisu štetni za prirodnu okolinu, 100% je moguća reciklaža:

● Vanjsko pakovanje papir/ folija
● Profil od penastog polistirena (PS) bez FCKW
● Folije i vrećice od polietilena (PE)

KRAJ EKSPLOATACIJE
