Product Type	LED TV
Screen Size	24 inches (61 cm)
Display Resolution	1366 x 768 (HD Ready)
Refresh Rate	60 Hz
Dimensions (with stand)	552 x 354 x 170 mm
Dimensions (without stand)	552 x 330 x 60 mm
Weight (with stand)	3.8 kg
Weight (without stand)	3.5 kg
Power Consumption (typical)	30 W
Standby Power Consumption	< 0.5 W
Power Supply	AC 100-240 V, 50/60 Hz
HDMI Inputs	2 x HDMI
USB Ports	1 x USB 2.0
Composite Input	1 x AV (shared with component via adapter)
VGA Input	1 x VGA (PC)
Headphone Output	1 x 3.5 mm
Audio Output (digital)	1 x Coaxial
Speaker Power	2 x 5W
VESA Mount Pattern	100 x 100 mm
Tuner	DVB-T2, DVB-C, DVB-S2
CI+ Slot	1
Energy Efficiency Class	A+
Cleaning Instructions	Wipe with soft dry cloth; avoid solvents
Spare Parts Availability	Remote, stand, power cord available via service

Frequently Asked Questions - 24FLKR274SVD Finlux

How do I turn on the TV for the first time?

How can I clean the TV screen?

Why is there no sound from the TV?

How do I connect a USB device to the TV?

Can I mount this TV on a wall?

How do I perform a factory reset?

What should I do if the remote control stops working?

How do I update the TV firmware?

What is the recommended way to dispose of the TV?

How can I improve the picture quality?

USER MANUAL 24FLKR274SVD Finlux

Black-and-white photo of a man and woman relaxing on a sofa in an office setting, with no visible text or symbols.

käyttöohje

bruksanvisning

owner's manual

Sisältö

CLASS 1 LASER PRODUCT

Diagram showing a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Black-and-white photo of a battery with visible text labels and polarity indicators, showing charge distribution.

Kytke Virta

CLASS 1 LASER PRODUCT

Diagram showing a mechanical or electrical component with numbered parts and directional arrows, likely illustrating a motion or flow mechanism.

Close-up of a cylindrical electronic component with two leads and a base, no visible text or symbols

Ansutningsström

Markings on the Product....46

Environmental Information....47

Features 48

Accessories Included....48

Standby Notifications....48

TV Control Switch & Operation....48

Inserting the Batteries into the Remote 49

Connect Power 49

Antenna Connection 49

Notification....49

Specification 50

Remote Control 51

Connections....52

Switching On/Off....53

First Time Installation....53

Media Playback via USB Input 53

Recording a Programme ....54

Timeshift Recording....54

Instant Recording 54

Watching Recorded Programmes ....54

Recording Configuration....54

Media Browser Menu....55

CEC and CEC RC Passthrough 55

TV Menu Contents....56

General TV Operation 60

Using the Channel List 60

Configuring Parental Settings....60

Electronic Programme Guide (EPG) 60

Teletext Services 61

Software Upgrade....61

Troubleshooting & Tips......62

PC Input Typical Display Modes....63

AV and HDMI Signal Compatibility 63

Supported Video File Formats for USB Mode .....64

Supported Picture File Formats for USB Mode ....64

Supported Audio File Formats for USB Mode .....65

Supported Subtitle File Formats for USB Mode ...66

Supported DVI Resolutions....67

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Don't operate your TV in extreme ambient conditions as this may cause damage to your TV.

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains. The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

This sign is present wherever there is very important information on operation and maintenance of the appliance in the literature accompanying it.

Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these tructions fully before installing or erating

WARNING: Never let people (including

children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge use electrical devices unsupervised.

• For ventilation purposes, leave a free space of at least 10 cm all around the set.
• Do not block ventilation holes.
• Do not place the TV on sloping or unstable surfaces, the TV may tip over.
• Use this device in moderate climates.

- The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.

- Do not use this TV in a humid or damp environment. Do not expose the TV to liquids. In case the cabinet contacts any liquids unplug the TV immediately and have it checked by qualified personnel before operating it any further.

- Do not expose the TV to direct sunlight, open flames or place it near intense heat sources such as electric heaters.

- Listening in excessive volumes from earphones and headphones may cause hearing loss.

• Ensure that no open flame sources, such as lit candles, are placed on top of the TV.
• To prevent injuries, this TV must be securely attached to a wall by carefully following the instructions (if the option is available).
• Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product. Take care not to scratch the screen with fingernails or other hard objects.
• Before cleaning, unplug the TV from the wall socket. Only use a soft, dry cloth while cleaning.

Warning	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Caution	Injury or property damage risk
Important	Operating the system correctly
Notice	Additional notes marked

Markings on the Product

The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.

Class II Equipment With Functional Earthing: This appliance is designed in such a way that it does not require a safety connection to electrical earth, the earth connection is used for functional purposes.

Protective Earth Connection: The marked terminal is intended for connection of the protective earthing conductor associated with pply wiring.

Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

CLASS 1 LASER PRODUCT

Class 1 Laser Product:

This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.

WARNING

Do not ingest the battery, Chemical Burn Hazard

(The accessories supplied with or) This product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as;

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on all furniture (for example, cupboards or bookcases) without acnhoring both the furniture and the television set to a suitable support.
  • Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

Environmental Information

This television is designed to be environment friendly. To reduce energy consumption, you can follow these steps:

If you set the Energy Saving to Minimum, Medium, Maximum or Auto the TV will reduce the energy consumption accordingly. If you like to set the Backlight to a fixed value set as Custom and adjust the Backlight (located under the Energy Saving setting) manually using Left or Right buttons on the remote. Set as Off to turn this setting off.

Note: Available Energy Saving options may differ depending on the selected Mode in the System>Picture menu.

The Energy Saving settings can be found in the System>Picture menu. Note that some picture settings will be unavailable to be changed.

If pressed Right button while Auto option is selected or Left button while Custom option is selected, "Screen will be off in 15 seconds." message will be displayed on the screen. Select Proceed and press OK to turn the screen off immediately. If you don't press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again.

Note: Screen Off option is not available if the Mode is set to Game.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Features

• Remote controlled colour TV
• Fully integrated digital terrestrial/cable TV (DVB-T-T2/C)
• HDMI inputs to connect other devices with HDMI sockets
• USB input
• OSD menu system
• Scart socket for external devices (such as DVD Players, PVR, video games, etc.)
• Stereo sound system
• Teletext
  • Headphone connection
  • Automatic programming system
• Manual tuning
  • Automatic power down after up to eight hours.
• Sleep timer
• Child lock
  • Automatic sound mute when no transmission.
• NTSC playback
  • AVL (Automatic Volume Limiting)
• PLL (Frequency Search)
• PC input
  • Game Mode (Optional)
• Picture off function
• Programme recording
• Programme timeshifting

Accessories Included

• Remote Control
• Batteries: 2 x AAA
• Instruction Book
• Quick Start Guide

Standby Notifications

If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 5 minutes, it will go into standby. When you next switch-on, the following message will be displayed: "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue.

If the TV is on and it isn't being operated for a while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because no operation was made for a long time." Press OK to continue.

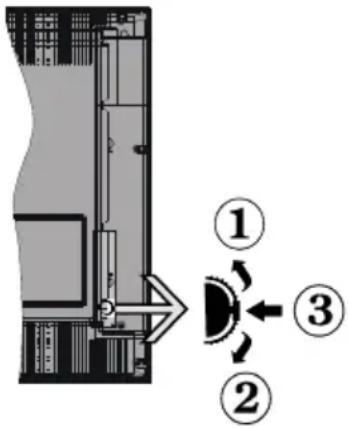

TV Control Switch & Operation

Diagram showing a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

1. Up direction
2. Down direction
3. Volume / Info / Sources List selection and Standby-On switch

The Control button allows you to control the Volume / Programme / Source and Standby-On functions of the TV.

To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the button down.

To change channel: Press the middle of the button, the information banner will appear on the screen. Scroll through the stored channels by pushing the button up or down.

To change source: Press the middle of the button twice(for the second time in total), the source list will appear on the screen. Scroll through the available sources by pushing the button up or down.

To turn the TV off: Press the middle of the button down and hold it down for a few seconds, the TV will turn into standby mode.

Notes:

- If you turn the TV off, this circle starts again beginning with the volume setting.

- Main menu OSD cannot be displayed via control button.

Operation with the Remote Control

Press the Menu button on your remote control to display main menu screen. Use the directional buttons to select a menu tab and press OK to enter. Use the directional buttons again to select or set an item. Press Return/Back or Menu button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press the Source button on your remote control consecutively to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume by using the Volume +/- and Programme +/- buttons on the remote.

Inserting the Batteries into the Remote

Remove the screw that secure the battery compartment cover on the back side of the remote control first. Lift the cover gently. Insert two AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Place the cover back on. Then screw the cover back on again.

Close-up of a cylindrical battery with two labeled terminals (no visible text or symbols)

Connect Power

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Antenna Connection

Connect the aerial or cable TV plug to the AERIAL INPUT (ANT) socket located on the back of the TV.

ANT.

Notification

TRADEMARK ACKNOWLEDGMENT

The terms HDMI and High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

DOLBY. DIGITAL PLUS

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a trademark of DTS, Inc.© DTS, Inc. All Rights Reserved.

TruSurround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0+Digital Out is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

2.0+Digital Out

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

Equipment bearing these symbols should not be disposed as general household waste.

You should look for appropriate recycling facilities and systems for the disposal of these products.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Battery

Specification

TV Broadcasting	PAL BG/DK/II'SECAM BG/DK
Receiving Channels	VHF (BAND I/III) - UHF(BAND U) - HYPERBAND
Digital Reception	Fully integrated digital terrestrial-cable TV(DVB-T-C)(DVB-T2 compliant)
Number of Preset Channels	1.000
Channel Indicator On Screen Display
RF Aerial Input 75 Ohm (unbalanced)
Operating Voltage 220-240V AC, 50Hz.
Audio DTS TruSurround
Audio Output Power (WRMS.) (10% THD)	2 x 6
Power Consumption (W) 65
TV Dimensions DxLxH(with foot) (mm)	193 x 735 x 493
TV Dimensions DxLxH(without foot) (mm)	78/135 x 735 x 438
Display 32"
Operation temperature and operation humidity	0°C up to 40°C, 85%humidity max

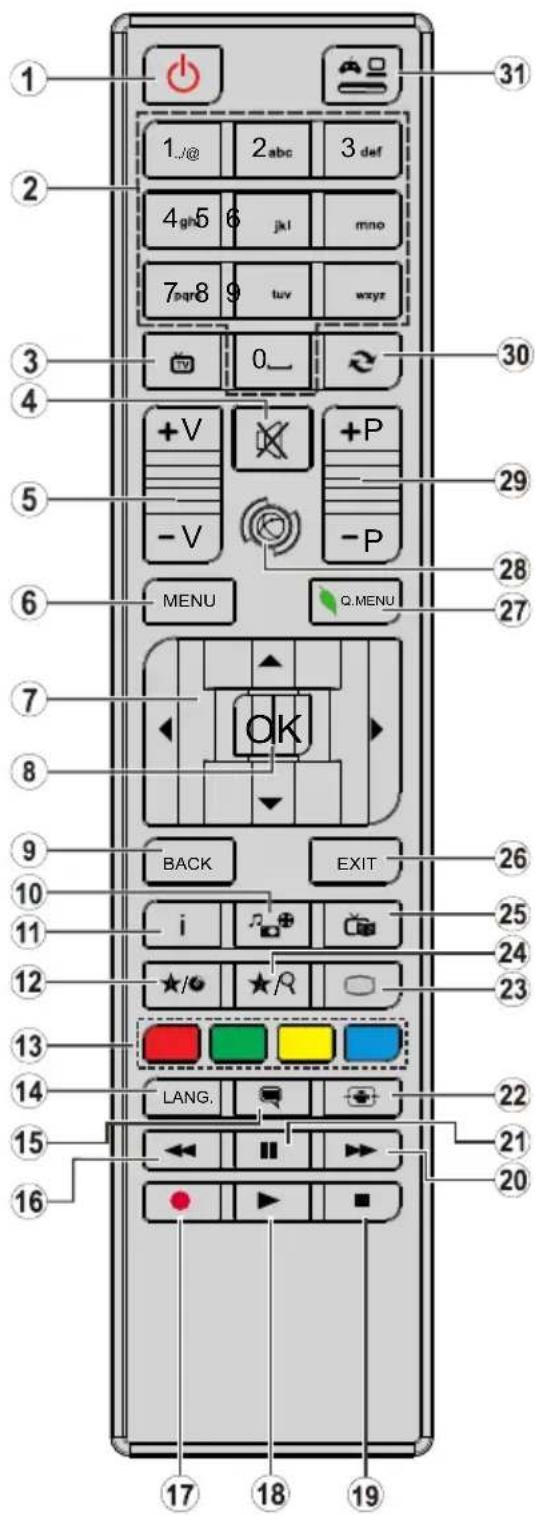

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

(\*) MY BUTTON 1 & MY BUTTON 2:

These buttons may have default functions depending on the model. However you can set a special function to these buttons by pressing on them for five seconds when on a desired source or channel. A confirmation message will be displayed on the screen. Now the selected MY BUTTON is associated with the selected function.

Note that if you perform First Time Installation, MY BUTTON 1&2 will return to their default function.

1. Standby: Switches On / Off the TV
2. Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen.
3. TV: Displays channel list / Switches to TV Source
4. Mute: Completely turns off the volume of the TV
5. Volume +/-
6. Menu: Displays TV menu
7. Directional buttons: Helps navigate menus, content etc. and displays the subpages in TXT mode when pressed Right or Left
8. OK: Confirms user selections, holds the page (in TXT mode), views channel list (DTV mode)
9. Back/Return: Returns to previous screen, opens index page (in TXT mode)
10. Media browser: Opens the media browsing screen
11. Info: Displays information about on-screen content, shows hidden information (reveal - in TXT mode)
12. My button 1 (*)
13. Coloured Buttons: Follow the on-screen instructions for coloured button functions
14. Language: Switches between sound modes (analogue TV), displays and changes audio/subtitle language (digital TV, where available)
15. Subtitles: Turns subtitles on and off (where available)
16. Rapid reverse: Moves frames backwards in media such as movies
17. Record: Records programmes
18. Play: Starts to play selected media
19. Stop: Stops the media being played
20. Rapid advance: Moves frames forward in media such as movies
21. Pause: Pauses the media being played, starts timeshift recording
22. Screen: Changes the aspect ratio of the screen
23. Text: Displays teletext (where available), press again to superimpose the teletext over a normal broadcast picture (mix)
24. My button 2 (*)
25. EPG (Electronic programme guide): Displays the electronic programme guide
26. Exit: Closes and exits from displayed menus or returns to previous screen
27. Quick Menu: Displays a list of menus for quick access
28. No function
29. Programme +/-
30. Swap: Quickly cycles between previous and current channels or sources
31. Source: Shows all available broadcast and content sources

Connections

Connector Type Cables Device
	Scart Connection (back)
	VGA Connection (back)
SIDE AV	PC/YPbPr Audio Connection (side)	YPbPr/PC Audio Cable (not supplied)
[IMAGE]	HDMI Connection (back)
SPDIF	SPDIF (Coaxial Out) Connection (back)
SIDE AV[D50H][2326]	Side AV (Audio/Video) Connection (side)	AV Cable (not supplied)
HEADPHONE	Headphone Connection (side)
YPBPR	YPbPr Video Connection (back)	PC to YPbPr Connection Cable (not supplied)
	USB Connection (side)
	CI Connection (side)

If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them.

Switching On/Off

To Switch the TV On

Connect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz).

To switch on the TV from standby mode either:

• Press the Standby button, Programme +/- or a numeric button on the remote control.
• Press the side function switch on the TV until the TV comes on from standby.

To Switch the TV Off

Press the Standby button on the remote control or press the side function switch on the TV until the TV switches into standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched into standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.

On the next screen, set your preferences using the directional buttons.

Note: Depending on the Country selection you may be asked to set and confirm a PIN at this point. The selected PIN cannot be 0000. You have to enter it if you are asked to enter a PIN for any menu operation later.

About Selecting Broadcast Type

Digital Aerial: If Digital Aerial broadcast search option is turned on, the TV will search for digital terrestrial broadcasts after other initial settings are completed.

Digital Cable: If Digital Cable broadcast search option is turned on, the TV will search for digital cable broadcasts after other initial settings are completed. According to your other preferences a confirmation message may be displayed before starting to search. Select YES and press OK to proceed. To cancel operation, select NO and press OK. You can select Network or set values such as Frequency, Network ID and Search Step. When finished, press OK button.

Note: Searching duration will change depending on the selected Search Step.

Analogue: If Analogue broadcast search option is turned on, the TV will search for analogue broadcasts after other initial settings are completed.

Additionally you can set a broadcast type as your favourite one. Priority will be given to the selected broadcast type during the search process and the channels of it will be listed on the top of the Channel List. When finished, press OK to continue.

You can activate Store Mode option at this point. This option will configure your TV's settings for store environment and depending on the TV model being used, the supported features of it may be displayed on the top of the screen as an info banner. This option is intended only for store use. It is recommended to select Home Mode for home use. This option will be available in System>Settings>More menu and can be turned off/on later.

Press OK button on the remote control to continue. After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types.

After all the available stations are stored, scan results will be displayed. Press OK to continue. The Edit Channel List menu will be displayed next. You can edit the channel list according to your preferences or press the Menu button to quit and watch TV.

While the search continues a message may appear, asking whether you want to sort channels according to the LCN^(*) . Select Yes and press OK to confirm.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available).

Note: Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection.

Media Playback via USB Input

You can connect 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.

IMPORTANT! Back up the files on your storage devices before connecting them to the TV. Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting but recording will not be available with NTFS formatted disks.

While formatting USB hard drives which have more than 1TB (Tera Byte) storage space you may experience some problems in the formatting process.

Wait a little while before each plugging and unplugging as the player may still be reading files. Failure to do so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a file.

You can use USB hubs with your TV's USB inputs. External power supplied USB hubs are recommended in such a case.

It is recommended to use the TV's USB input(s) directly, if you are going to connect a USB hard disk.

Note: When viewing image files the Media Browser menu can only display 1000 image files stored on the connected USB device.

Recording a Programme

IMPORTANT: When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's Format Disk option in the Media Browser>Settings>Recording Settings menu.

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.

To use recording your USB drive should have 2 GB free space and be USB 2.0 compatible. If the USB drive is not compatible an error message will be displayed.

To record long duration programmes such as movies, it is recommended to use USB Hard disk drives (HDD's).

Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings onto a computer; however, these files will not be available to be played on a computer. You can play the recordings only via your TV.

Lip Sync delay may occur during the timeshifting. Radio record is supported. The TV can record programmes up to ten hours.

Recorded programmes are split into 4GB partitions. If the writing speed of the connected USB disk is not sufficient, the recording may fail and the timeshifting feature may not be available.

It is recommended to use USB hard disk drives for recording HD programmes.

Do not pull out the USB/HDD during a recording. This may harm the connected USB/HDD.

If the AC cord is unplugged while there is an active USB-recording timer setting, it will be cancelled.

Multipartition support is available. A maximum of two different partitions are supported. The first partition of the USB disk is used for PVR ready features. It also must be formatted as the primary partition to be used for the PVR ready features.

Some stream packets may not be recorded because of signal problems, as a result sometimes videos may freeze during playback.

Record, Play, Pause, Display (for PlayListDialog) keys can not be used when teletext is on. If a recording starts from timer when teletext is on, teletext is automatically turned off. Also teletext usage is disabled when there is an ongoing recording or playback.

Timeshift Recording

Press Pause button while watching a broadcast to activate timeshifting mode. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk.

Press Play button again to resume the paused programme from where you stopped. Press the Stop button to stop timeshift recording and return to the live broadcast.

Timeshift cannot be used while in radio mode.

You cannot use the timeshift fast reverse feature before advancing the playback with the fast forward option.

Instant Recording

Press Record button to start recording an event instantly while watching a programme. You can press Record button on the remote control again to record the next event after selecting the next programme from within the EPG. Press Stop button to cancel instant recording.

You can not switch broadcasts or view the media browser during the recording mode. While recording a programme or during the timeshifting, a warning message appears on the screen if your USB device speed is not sufficient.

Watching Recorded Programmes

Select Recordings from the Media Browser menu. Select a recorded item from the list (if previously recorded). Press the OK button to view the Play Options. Select an option then press OK button.

Note: Viewing main menu and menu items will not be available during the playback.

Press the Stop button to stop a playback and return to the Recordings.

Slow Forward

If you press Pause button while watching recorded programmes, the slow forward feature will be available. You can use Rapid advance button to slow forward. Pressing Rapid advance button consecutively will change slow forwarding speed.

Recording Configuration

Select the Recording Settings item in the Media Browser>Settings menu to configure the recording settings.

Format Disk: You can use the Format Disk feature for formatting the connected USB disk. Your PIN is required to use the Format Disk feature.

Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.

IMPORTANT: Formatting your USB drive will erase ALL the data on it and it's file system will be converted to FAT32. In most cases operation errors will be fixed after a format but you will lose ALL your data.

If "USB disk writing speed too slow to record" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Media Browser Menu

You can play photo, music and movie files stored on USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the Menu button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the Menu button again will exit from this screen. You can set your Media Browser preferences by using the Settings menu.

Loop/Shuffle Mode Operation
Start playback with the Play button and activate	All files in the list will be continuously played in original order
Start playback with the OK button and activate	The same file will be played continuously (repeat)
Start playback with the Play button and activate	All files in the list will be played once in random order
Start playback with the Play button and activate	All files in the list will be continuously played in the same random order.

Custom Boot Up Logo

You can personalize your TV and see your favorite image or photo on the screen each time your TV boots up. To do this, copy your favorite image files into a USB disk and open them from the Media Browser menu. When you have chosen the desired image, highlight it and press OK to view it in full screen. Press OK again to choose the image as custom logo. A confirmation message will be displayed. Select Yes and press OK again. If the image is suitable(*) you will see it on the screen during the TV's next boot up.

Note: If you perform a First Time Installation the TV will return to using the default logo, if any.

(*) Images should have an aspect ratio of 16:9 and they should be in .jpg, .jpeg or .jpe file formats. Only files with sizes no greater than 300KB are supported. The image cannot be set as boot logo, which's resolution doesn't appear on the info banner.

CEC and CEC RC Passthrough

This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.

The CEC option in the System>Settings>More menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Sources List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the

connected HDMI ports name(such as DVD Player, Recorder 1 etc.).

The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected.

To terminate this operation and control the TV via the remote again, press Quick Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the System>Settings>More menu.

The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system).

When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device's volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device.

Note: ARC is supported only via the HDMI1 input.

System Audio Control

Allows an Audio Amplifier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Speakers option in the System>Settings>More menu as Amplifier. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system.

Note: The audio device should support System Audio Control feature and CEC option should be set as Enabled.

TV Menu Contents

System - Picture Menu Contents
Mode	You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural.
Contrast	Adjusts the light and dark values on the screen.
Brightness	Adjusts the brightness values on the screen.
Sharpness	Sets the sharpness value for the objects displayed on the screen.
Colour	Sets the colour value, adjusting the colours.
Energy Saving	For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Screen Off or Off.Note: Available options may differ depending on the selected Mode.
Backlight	This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other then Custom.
Advanced Settings
Dynamic Contrast	You can change the dynamic contrast ratio to desired value.
Noise Reduction	If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
Colour Temp	Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available.
White Point	If the Colour Temp option is set as Custom, this setting will be available. Increase the 'warmth' or 'coolness' of the picture by pressing Left or Right buttons.
Picture Zoom	Sets the desired image size format.
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone	Skin tone can be changed between -5 and 5.
Colour Shift	Adjust the desired colour tone.
HDMI Full Range	While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.
PC Position	Appears only when the input source is set to VGA/PC.
Autoposition	Automatically optimizes the display. Press OK to optimize.
H Position	This item shifts the image horizontally to the right hand side or left hand side of the screen.
V Position	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase	Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.
Reset	Resets the picture settings to factory default settings (except Game mode).
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.
System - Sound Menu Contents
Volume	Adjusts the volume level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in User mode.
Balance	Adjusts whether the sound comes from the left or right speaker.
Headphone	Sets headphone volume.Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
Sound Mode	You can select a sound mode (If the viewed channel supports).
AVL (Automatic Volume Limiting)	Sets the sound to obtain fixed output level between programmes.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.Please ensure before using headphones that this menu item is set to Headphone.If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing.
Dynamic Bass	Enables or disables the Dynamic Bass.
DTS TruSurround	Enables or disables the DTS TruSurround.
Digital Out	Sets digital out audio type.

System - Settings Menu Contents
Conditional Access		Controls conditional access modules when available.
Language		You may set a different language depending on the broadcaster and the country.
Parental		Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options.Note: Some menu options may not be available depending on the country selection in the First Time Installation. Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.
Timers		Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes.
Date/Time		Sets date and time.
Sources		Enables or disables selected source options.
Accessibility		Displays accessibility options of the TV.
	Hard of Hearing	Enables any special feature sent from the broadcaster.
	Audio Description	A narration track will be played for the blind or visually impaired audience. Press OK to see all available Audio Description menu options. This feature is available only if the broadcaster supports it.
More		Displays other setting options of the TV.
	Menu Timeout	Changes timeout duration for menu screens.
	Software Upgrade	Ensures that your TV has the latest firmware. Press OK to see the menu options.
	Application Version	Displays current software version.
	Subtitle Mode	This option is used to select which subtitle mode will be on the screen (DVB subtitle / Teletext subtitle) if both is available. Default value is DVB subtitle. This feature is available only for the country option of Norway.
	Auto TV OFF	Sets the desired time for the TV to automatically go into standby mode when not being operated.
	Store Mode	Select this mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available.
	Power Up Mode	This setting configures the power up mode preference. Last State and Standby options are available.
	CEC	With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
	CEC Auto Power On	This function allows the connected HDMI-CEC compatible device to turn on the TV and switch to its input source automatically. Press Left or Right button to enable or disable the feature.
	Speakers	To hear the TV audio from the connected compatible audio device set as Amplifier. You can use the remote control of the TV to control the volume of the audio device.
Installation Menu Contents
Automatic channel scan (Retune)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations.
Manual channel scan	This feature can be used for direct broadcast entry.
Network channel scan	Searches for the linked channels in the broadcast system. Digital Aerial: Searches for aerial network channels. Digital Cable: Searches for cable network channels.
Analogue fine tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
Installation Settings	Displays installation settings menu. Standby Search (Optional): Your TV will search for new or missing channels while in standby. Any new found broadcasts will be shown.
Clear Service List	Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Select Active Network	This setting allows you to select only the broadcasts within the selected network to be listed in the channel list. This feature is available only for the country option of Norway.
First time installation	Deletes all stored channels and settings, resets TV to factory settings.

General TV Operation

Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press the OK/TV button to open the Channel List. You can filter the listed channels by pressing the Blue button or open the Edit Channel List menu by pressing the Green button in order to make advanced changes in the current list.

Managing the Favourite Lists

You can create four different lists of your favourite channels. Enter the Channel List in the main menu or press the Green button while the Channel List is displayed on the screen in order to open the Edit Channel List menu. Select the desired channel on the list. You can make multiple choices by pressing the Yellow button. Then press the OK button to open the Channel Edit Options menu and select Add/Remove Favourites option. Press the OK button again. Set the desired list option to On. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to Off.

You can use the Filter function in the Edit Channel List menu to filter the channels in the Channel list permanently according to your preferences. Using this Filter option, you can set one of your four favourite lists to be displayed every time the Channel list is opened. The filtering function in the Channel list menu will only filter the currently displayed Channel list in order to find a channel and tune in to it. This changes will not remain the next time the Channel list is opened.

Configuring Parental Settings

The Parental Settings menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the System>Settings>Parental menu.

To display parental lock menu options, a PIN number should be entered. After coding the correct PIN number, Parental Settings menu will be displayed.

Menu Lock: This setting enables or disables access to all menus or installation menus of the TV.

Maturity Lock: If this option is set, TV gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Note: If the country option in the First Time Installation is set as France, Italy or Austria, Maturity Lock's value will be set to 18 as default.

Child Lock: If this option is set to ON, the TV can only be controlled by the remote control. In this case the control buttons on the TV will not work.

Set PIN: Defines a new PIN number.

Default CICAM PIN: This option will appear as greyed out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option.

Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.

Some options may not be available depending on the country selection in the First Time Installation.

Electronic Programme Guide (EPG)

Some channels send information about their broadcast schedules. Press the EPG button to view the Programme Guide menu.

There are 3 different types of schedule layouts available, Timeline Schedule, List Schedule and Now/Next Schedule. To switch between them follow the instructions on the bottom of the screen.

Timeline Schedule

Zoom (Yellow button): Press the Yellow button to see events in a wider time interval.

Filter (Blue button): Views filtering options.

Select Genre (Subtitles button): Displays Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted.

Options (OK button): Displays event options.

Event Details (Info button): Displays detailed information about selected events.

Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.

Search (Text button): Displays Guide Search menu. Now (Swap button): Displays current event of the highlighted channel.

Rec./Stop (Record button): The TV will start to record the selected event. You can press again to stop the recording.

IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.

Note: Switching to a different broadcast or source is not available during a recording.

List Schedule(\*)

(*) In this layout option, only the events of the highlighted channel will be listed.

Prev. Time Slice (Red button): Displays the events of previous time slice.

Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.

Event Details (Info button): Displays detailed information about selected events.

Filter (Text button): Views filtering options.

Next Time Slice (Green button): Displays the events of next time slice.

Options (OK button): Displays event options.

Rec./Stop (Record button): The TV will start to record the selected event. You can press again to stop the recording.

IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.

Note: Switching to a different broadcast or source is not available during a recording.

Now/Next Schedule

Options (OK button): Displays event options.

Event Details (Info button): Displays detailed information about selected events.

Filter (Blue button): Views filtering options.

Rec./Stop (Record button): The TV will start to record the selected events. You can press again to stop the recording.

IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.

Note: Switching to a different broadcast or source is not available during a recording.

Event Options

Use the directional buttons to highlight an event and press OK button to display Event Options menu. The following options are available.

Select Channel: Using this option, you can switch to the selected channel.

Record / Delete Rec. Timer: Select the Record option and press the OK button. If the event is going to be broadcasted at a future time, it will be added to Timers list to be recorded. If the selected event is being broadcasted at the moment, recording will start immediately.

To cancel an already set recording, highlight that event and press the OK button and select the option Delete Rec. Timer. The recording will be cancelled.

Set Timer on Event / Delete Timer on Event: After you have selected an event in the EPG menu, press the OK button. Select Set Timer on Event option and press the OK button. You can set a timer for future events. To cancel an already set timer, highlight that event and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled.

Notes: You cannot switch to any other channel or source while there is an active recording or timer on the current channel. It is not possible to set timer or record timer for two or more individual events at the same time interval.

Teletext Services

Press the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen.

Digital Teletext

Press the Text button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the Text button is pressed again, the TV returns to television broadcast.

Software Upgrade

Your TV is capable of finding and updating the firmware automatically via the broadcast signal.

Software upgrade search via user interface

On the main menu select System>Settings and then More. Navigate to Software upgrade and press the OK button. In Upgrade options menu select Scan for upgrade and press OK button to check for a new software upgrade.

If a new upgrade is found, it starts to download the upgrade. After the download is completed confirm the question asking about rebooting the TV by pressing the OK to continue with the reboot operation.

3 AM search and upgrade mode

Your TV will search for new upgrades at 3:00 o'clock if Automatic scanning option in the Upgrade options menu is set to Enabled and if the TV is connected to an aerial signal. If a new software is found and downloaded successfully, it will be installed at the next power on.

Note: Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in.

Troubleshooting & Tips

Tv will not turn on

Make sure the power cord is plugged in securely to wall outlet. Check if batteries are exhausted. Press the Power button on the TV.

Poor picture

• Check if you have selected the correct TV system.
• Low signal level can cause picture distortion. Please check antenna access.
• Check if you have entered the correct channel frequency if you have done manual tuning.
• The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

• This means your TV is not receiving any transmission. Make sure the correct source has been selected.
  • Is the antenna connected properly?
  • Is the antenna cable damaged?
• Are suitable plugs used to connect the antenna?
  • If you are in doubt, consult your dealer.

No sound

• Check if the TV is muted. Press the Mute button or increase the volume to check.
• Sound may be coming from only one speaker. Check the balance settings from Sound menu.

Remote control - no operation

- The batteries may be exhausted. Replace the batteries.

Input sources - can not be selected

• If you cannot select an input source, it is possible that no device is connected. If not;
• Check the AV cables and connections if you are trying to switch to the input source dedicated to the connected device.

Recording unavailable

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. If you cannot record, try switching off the TV and then re-inserting the USB device.

USB is too slow

If a "USB disk writing speed too slow to record" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

PC Input Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions.

Index	Resolution	Frequency
1	0x350 85Hz
2	0x400 70Hz
3	0x480 60Hz
4	0x480 66Hz
5	0x480 72Hz
6	0x480 75Hz
7	0x480 85Hz
8	0x600 56Hz
9	0x600 60Hz
10	00x600 70Hz
11	00x600 72Hz
12	00x600 75Hz
13	00x600 85Hz
14	82x624 75Hz
15	024x768 60Hz
16	024x768 66Hz
17	024x768 70Hz
18	024x768 72Hz
19	024x768 75Hz
20	024x768 85Hz
21	152x864 60Hz
22	152x864 70Hz
23	152x864 75Hz
24	152x864 85Hz
25	152x870 75Hz
26	280x768 60Hz
27	360x768 60Hz
28	280x768 75Hz
29	280x768 85Hz
30	280x960 60Hz
31	280x960 75Hz
32	280x960 85Hz
33	280x1024 60Hz
34	280x1024 75Hz
35	280x1024 85Hz
36	400x1050 60Hz
37	400x1050 75Hz
38	400x1050 85Hz
39	440x900 60Hz
40	440x900 75Hz
41	600x1200 60Hz
42	680x1050 60Hz
43	920x1080 60Hz
44	920x1200 60Hz

AV and HDMI Signal Compatibility

Source	Supported Signals		Available
EXT(SCART)	PAL O
	SECAM		O
	NTSC4.43		O
	NTSC3.58		O
	RGB 50/60		O
Side AV	PAL O
	SECAM		O
	NTSC4.43		O
	NTSC3.58		O
YPbPr	480i, 480p	60Hz	O
	576i, 576p	50Hz	O
	720p	50Hz,60Hz	O
	1080i	50Hz,60Hz	O
HDMI	480i, 480p	60Hz	O
	576i, 576p	50Hz	O
	720p	50Hz,60Hz	O
	1080i	50Hz,60Hz	O
	1080p	24Hz,25Hz,30Hz,50Hz,60Hz	O

(X: Not Available, O: Available)

In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Supported Video File Formats for USB Mode

Extension Video	Codec SPEC (Resolution) & Bit Rate
.dat, vob MPEG1/2		1080P@30fps - 40 Mbps
.mpg, .mpeg	MPEG1/2,MPEG4
.ts, .trp, .tp	MPEG1/2, H.264,AVS, MVC	H.264: 1080Px2@30fps - 62.5 Mbps, 1080P@60fps - 62.5 Mbps MVC:1080P@30fps - 62.5 Mbps Other: 1080P@30fps - 40Mbps
.mp4, .mov,.3gpp, .3gp	MPEG1/2,MPEG4, H.263,H.264, MotionJPEG	H.264: 1080Px2@30fps - 62.5 Mbps, 1080P@60fps - 62.5 Mbps Motion JPEG:640x480@30fps - 10 Mbps Other: 1080P@30fps - 40 Mbps
.avi MPEG1/2,	MPEG4,Sorenson H.263,H.263, H.264,WMV3, MotionJPEG
.mkv MPEG1/2,	MPEG4, H.263,H.264, WMV3,Motion JPEG
.asf Sorenson H.263,	H.264, WMV3,Motion JPEG
.flv WMV3 1080P	@30fps - 40 Mbps
.swf RV30/RV40 1080P@30fps - 40 Mbps
.wmv

Supported Picture File Formats for USB Mode

Image Photo Resolution (width x height) Remark
JPEG	Base-line 15360x8640		The limitation of max resolution depends on DRAM size
	Progressive 1024x768
PNG	non-interlace	9600x6400
	interlace 1200x800
BMP		9600x6400

Supported Audio File Formats for USB Mode

Extension	Audio Codec Bit Rate	Sample rate
.mp3,	MPEG1/2 Layer1 32Kbps ~ 448Kbps		16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384H
	MPEG1/2 Layer3 8Kbps ~ 320Kbps
.avi	MPEG1/2 Layer1 32Kbps ~ 448Kbps		16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384H
	MPEG1/2 Layer3 8Kbps ~ 320Kbps
	AC3 32Kbps ~ 640Kbps 32KHz, 44.1KHz, 48KHz
	AAC, HEAAC 8KHz ~ 48KHz
	WMA 128bps ~ 320Kbps 8KHz ~ 48KHz
	WMA 10 Pro M0 < 192kbps 48KHz
	WMA 10 Pro M1 < 384kbps 48KHz
	WMA 10 Pro M2 < 768kbps 96KHz
	LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz
	IMA-ADPCM, MS-ADPCM	384Kbps 8KHz ~ 48KHz
	G711 A/mu-law 64Kbps ~ 128Kbps 8KHz
.asf	MPEG1/2 Layer1 32Kbps ~ 448Kbps		16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384H
	MPEG1/2 Layer3 8Kbps ~ 320Kbps
	WMA 128bps ~ 320Kbps 8KHz ~ 48KHz
	WMA 10 Pro M0 < 192kbps 48KHz
	WMA 10 Pro M1 < 384kbps 48KHz
	WMA 10 Pro M2 < 768kbps 96KHz
.mkv, .mka	MPEG1/2 Layer1 32Kbps ~ 448Kbps		16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384H
	MPEG1/2 Layer3 8Kbps ~ 320Kbps
	AC3 32Kbps ~ 640Kbps 38KHz, 44.1KHz, 48KHz
	AAC, HEAAC 8KHz ~ 48KHz
	WMA 128bps ~ 320Kbps 8KHz ~ 48KHz
	WMA 10 Pro M0 < 192kbps 48KHz
	WRA 10 Pro M1 < 384kbps 48KHz
	WMA 10 Pro M2 < 768kbps 96KHz
	VORBIS Up to 48KHz
	LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz
	IMA-ADPCM, MS-ADPCM	384Kbps 8KHz ~ 48KHz
	G711 A/mu-law 64Kbps ~ 128Kbps 8KHz
	FLAC	< 1.6Mbps 8KHz ~ 96KHz
.ts, .trp, .tp, .dat, .vob, .mpg, .mpeg	MPEG1/2 Layer1 32Kbps ~ 448Kbps		16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384H
	MPEG1/2 Layer3 8Kbps ~ 320Kbps
	AC3 32Kbps ~ 640Kbps 33KHz, 44.1KHz, 48KHz
	EAC3	32Kbps ~ 6Mbps	32KHz, 44.1KHz, 48KHz
	AAC, HEAAC 8KHz ~ 48KHz
	LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz

Extension	Audio Codec Bit Rate	Sample rate
.wav	MPEG1/2 Layer1 32Kbps ~ 448Kbps		16KHz ~ 48KHzMPEG1/2 La
	MPEG1/2 Layer3 8Kbps ~ 320Kbps
	LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz
	IMA-ADPCM, MS-ADPCM	384Kbps 8KHz ~ 48KHz
	G711 A/mu-law 64Kbps ~ 128Kbps 8KHz
.3gpp, .3gp, .mp4, .mov, .m4a	MPEG1/2 Layer3 8Kbps ~ 320Kbps 16KHz ~ 48KHz
	AC3 32Kbps ~ 640Kbps	32KHz, 44.1KHz, 48KHz
	EAC3 32Kbps ~ 6Mbps	32KHz, 44.1KHz, 48KHz
	AAC, HEAAC 8KHz ~ 48KHz
	VORBIS Up to 48KHz
	LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz
	IMA-ADPCM, MS-ADPCM	384Kbps 8KHz ~ 48KHz
	G711 A/mu-law 64Kbps ~ 128Kbps 8KHz
.flv	MPEG1/2 Layer3 8Kbps ~ 320Kbps 16KHz ~ 48KHz
	AAC, HEAAC 8KHz ~ 48KHz
.ac3	AC3 32Kbps ~ 640Kbps	32KHz, 44.1KHz, 48KHz
	AAC, HEAAC 8KHz ~ 48KHz
.swf	MPEG1/2 Layer3 8Kbps ~ 320Kbps 16KHz ~ 48KHz
.ec3	EAC3 32Kbps ~ 6Mbps	32KHz, 44.1KHz, 48KHz
.rm, .rmvb, .ra	AAC, HEAAC 8KHz ~ 48KHz
	LBR (cook)	6Kbps ~ 128Kbps	8KHz, 11.025KHz, 22.05KHz, 44.1KHz
.wma, .wmv	WMA	128bps ~ 320Kbps 8KHz ~ 48KHz
	WMA 10 Pro M0 < 192kbps	48KHz
	WMA 10 Pro M1 < 384kbps	48KHz
	WMA 10 Pro M2 < 768kbps	96KHz
.webm	VORBIS Up to 48KHz

yer2 8Kbps \~ 384Kb

Supported Subtitle File Formats for USB Mode

Internal Subtitles
Extension Container	Subtitle Code
dat, mpg, mpeg, vob	MPG, MPEG	DVD Subtitle
ts, trp, tp	TS	DVB Subtitle
mp4	MP4	DVD SubtitleUTF-8 Plain Text
mkv	MKV	ASSSSAUTF-8 Plain TextVobSubDVD Subtitle

External Subtitles
Extension	Subtitle Parser	Remark
.srt	Subrip
.ssa/.ass	SubStation Alpha
.smi	SAMI
.sub	SubViewerMicroDVDDVDSusbtitleSystemSubIdx (VobSub)	SubViewer 1.0 & 2.0 Only
.txt	TMPlayer

Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information.

	56Hz 60Hz	66Hz 70Hz	72Hz 75Hz
640x400				☑
640x480		☑ ☑ ☑	☑
800x600	☑ ☑ ☑	☑ ☑
832x624						☑
1024x768		☑ ☑ ☑	☑ ☑
1152x864		☑ ☑ ☑
1152x870						☑
1280x768		☑				☑
1360x768		☑
1280x960		☑				☑
1280x1024		☑				☑
1400x1050		☑				☑
1440x900		☑				☑
1600x1200		☑
1680x1050		☑
1920x1080		☑

A	Product Fiche
B	Commercial Brand:FINLUX
C	Product No.	10105370
D	Model No.	32-FWA-4110
E	Energy efficiency class	A+
F	Visible screen size (diagonal,approx.) (inch/cm)	32 inches	81 cm
G	On mode average power consumption (Watt)	31
H	Annual energy consumption (kWh/annum)	45
I	Stand by power consumption (Watt)	0,5
J	Off mode power consumption (Watt)	0
K	Display resolution (px)	1366x768

	A B C D E F					Visible screen size(diagonal, approx.) (inch/cm)
English	Product Fiche Commercial Brand Product No. Model No. Energy efficiency class					Sichtbare Bildschirmgroße(diagonal,ca.) (Zoll /cm)
Deutsch	Produkt-Datenblatt Markenzeichen Produkt-Nr. Modell-Nr. Energieeffizienzklasse					(العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية)
عربي	العربية المتج	العربية التجارية: تيويтки	رقم المتج	رقم المتج	تقيمة الطاقة	(العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (العBritish) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع British) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (العBritain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Brit) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Britain) (الع Biton) (الع Biton) (الع Biton) (الع Biton) (الع Biton) (الع Biton) (الع Biton) (الع Biton) (الع Biton) (الع Biton) (الع Biton) (الع Biton) (الع Biton) (الع Biton) (الع Biton) (الع Biton) (الع Biton) (الg Biton) (الg Biton) (الg Biton) (الg Biton) (الg Biton) (الg Biton) (الg Biton) (الg Biton) (الg Biton) (الg Biton) (الg Biton) (الg Biton) (الg Biton) (الg Biton) (الg Biton) (الg Biton) (الg Biton)	(العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele)	(العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (العربية) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton)	(الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-biton) (الع-bitON) (الع-bitON) (الع-bitON) (الع-bitON) (الع-bitON) (الع-bitON) (الع-bitON) (الع-bitON) (الع-bitON) (الع-bitON) (الع-bitON) (الع-bitON) (الع-bitON) (الع-bitON) (الع-bitON) (الع-bitON) (الع-bitON) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele) (الebergele)
Български	Справочен лист с техническите данни	Търовска марка	Продукт No	Модел No	Клас на енергийна ефективност	Видим размер на екрана (диагонал,прибли.) (инча /см )
čeština	Informačni list	Značka výrobce	Čísló produktu	Model č.	Energetická třída	Viditelna velikost obrazovky (úhlopřicka,přibl.(palců /см )
Dansk	Produktoplysningsskema	Varemærke	Produktnr.	Model nr.	Energieffektivitetsklasse	Synlig skærmstørrelse (diagonalt,ca.) (HK/cm)
Suomi	Tuote fiche	Kaupallinen merkki	Tuote nro.	Malli nro.	Virran tehokkuusluokka	Nakyvan kuvaruudun koko (diagonaalinen,n.) (tuumaa/cm)
Français	Fiche du produit	Marque commerciale	Produit N°	Modèle N°	Classe d'efficacité énergétique	Taille d'écran visible (diagonale,approx (pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka	Br.proizvoda	Br.modela	Klasa energetske učinkovitosti	Vidljva velicina ekran a(dijagonalna,približno) (inča/cm)
Nederlands	Productliche	Commercieel merk.	Productnr.	Modelnr.	Energie efficiëntie klasse	Zichtbare schermgrootte (diagonaal,ca.) (inches/cm)
Español	Ficha del Producto	Marca Comercial	N° de Producto	N° de Modelo	Clasificación Energética	Tamaño de pantalla visible (diagonal,aprox.) (pulgadas/cm)
Svenska	Produktspecifikation	Varumárke	Produktnr.	Modellnr.	Energiklass	Synlig skærmstorlek (diagonal,ungefärlig) (tum/cm)
Italiano	Scheda prodotto	Marchio commerciale	Numero prodotto	Numero modello	Classe di efficienza energetica	Dimensioni visibili dello schermo (diagonale,circa)(pollici/cm)
Polski	KARTA PRODUKTU	Marka produktu Nr produktu	Nkr modelu	Klasa efektywności energetycznej	Klasa efektywności energetycznej	Widoczny obraz ekranu (przekątna,okolo)(cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi marka	Termékszám	Modellszám	Energiahatékonysági osztály	Látható képtartomány (diagonális,kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare	Produktnr.	Modellnr.	Energieffektivitet klasse	Synlig skjermstørrelse (diagonal,ca.) (tommer/cm)
Português	Ficha do produto	Marca Comercial	ProduktNo	Modelo No	Classificação eficiência energética	Tamanho ecrà visivel (diagonal,aprox. (polegadas/cm)
Română	Fişă produs	Marcă comercială	Nr.Produs	Nr.Model	Clasa de eficiență energetica	Dimensiunea ecranului vizibil (diagonală,aprox.) (inch/cm)
Русский	Справочный листок технических данных изделия	Торговая марка	Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали.Около) (дюймов/см )
беларуская	Справочный листок технических данных изделия	Торговая марка	Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали.Около)(дюймов/см )
македонски	Технички податоци	Комерцијална марка	Производ бр.	Модел бр.	Класа на енергетска ефикасност	Големина на видлив екран (дијагонала,околу) (инчи/см )
український	Технічні дані	Кормеційна марка	Артикул	Модель	Клас енергоспоживання	Видимий розмір екрана (диагональ,Приблизно) (дюймів/см )
Srpski	Tehnicke odlike	Komercijalna marka	Proizvod br.	Model br.	Klasa energetske efikasnosti	Viditelná velikost'obrazovky (uhlopriečka,zhruba)(palcov/cm)
Slovenčina	Informačný list	Značka výrobcu	Čísló produktu	Model č.	Energetická trieda	Viditelná velikost'obrazovky (uhlopriečka,zhruba)(palcov/cm)
Slovenščina	Opis izdelka	Komercialna znamka	Št.Izdelka	Št.Modela	Razred energetske učinkovitosti	Viditelná velikost'obrazovky (uhlopriečka,zhruba)(palcov/cm)
Еллянік	Делтіо проϊόντος	Еупторіко о́ніца	Ар. Проϊόντος	Ар. Movtélου	Катуура івергейсякіє ато́доооєні	Орото мэгевос овбөніς (діагонівіо,тер.) (ітюєс/см )
Bosanski	Tehnički podaci	Komercijalna marka	Produktbr.	Model br.	Klasa energetske efikasnosti	Vidljva velicina ekranа (diagonala,прибли.No.) (inch/cm)
نить	نить о́ніца	نить о́ніца	نить о́ніца	نить о́ніца	نить о́ніца	(с/яжк) (найын підізік) (найын підізік)
Türkçe	Ürün fişi	Ticari Marka	Ürün No.	Model No.	Enerji verimiliği sinifi	Gorulien ekran boyutu (çapraz,yakışık.) (inch/cm)
Shqip	Tě dhēnat e produktit	Marka tregtare	Nr.i produktit.	Nr.i modelit.	Klasa еEficiencês sè energjisè	Madhésia e ekranit tè dukshēm (diagonal,afërsisth)(inch/cm)
Lietuvių	Gaminio etiketė	Gamintojas	Gaminio Nr.	Modelio Nr.	Energetinio efektyvumo klasé	Matomas ekran odydis (istnăainė,approx.) (coliu/cm)
Latviešu	Produkta apraksts	Marka	Produkta nr.	Modelja nr.	Energoefektivitätes klase	Ekrána izmërs (pa diognăli,apmcram)(collas/cm)
Eesti	TOOTEKIRJELDUS	Toolja firma	Toote nr.	Mudeli nr.	Energiaklass	Vaadatava ekraani suurus (diagonaal,umbes)(tolli/cm)
فارسی	مشخصات محصول	مارک تJEاری	stmayerه محصول	stmayerه منل	گروه کارابی اترزی	(اندار صفحه ث fell مساده (هندسته قریب /بیح) (انزی متر)

	GHIJ	K
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschaltetem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr) Standby-Stromverbrauch	(Watt)	Stromverbrauch im ausgeschaltetem Zustand (Watt) Display-Auflösung (px)
عربي	متوسط استهلاك الطاقة عن التسجيل(وقيمة)	(الاستهلاك السنوي وطلاكلايير وطلاكلايير)	(استهلاك الطاقة في ضيع الاستعداد(وقيمة)	(ستهلاك الطاقة في ضيع الابعفة)(وقيمة)	(우StrongRiskability)
Български	Средна консумация на електроенергия във включено състояние(Watt)	Годишна консумация на електроенергия (kWh/Годишна)	Консумация на електроенергия в режим на готовность (Watt)	Консумация на електроенергия в изключено състояние (Watt)	Разделителна способност на дисплея(пиксела)
čeština	Průměrná spotřeba elektrické energie v zapnutém režimu (Wattu)	Roční spotřeba energie (kWh/Roční)	Spotřeba elektrické energie v pohotovostním režimu (Wattu)	Spotřeba elektrické energie ve vypnutém režimu (Wattu) Rozlišení displiceje (px)	Peje (px)
Dansk	Gennemsnitligt stromforbrug i taëndt tiistand (Watt)	Ärligt energiforbrug (kWh/Ärligt)	Stromforbrug (standby)(Watt)	Stromforbrug i slukket tilstand (Watt)	Skæmoplopsning (px)
Suomi	Păällă-tilan keskimăäräinen virrankulutus (Wattia)	Vuosittainen sähkönkulutu (kWh/Vuosittainen)	Vakiovirran kulutus (Wattia)	Pols-tilan virrankulutus (Wattia)	Nâytön erottelukyky (pikseila)
Français	Consommation énergétique moyenne en mode "marche" (Watt)	Consommation énergétique annuelle (kWh/annuel)	Consommation d'énergie en veille (Watt)	Consommation d'énergie en mode "arrêt" (Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna potrošnja el. energije kada je proizvod uključen (Watta)	Godišnja potrošnja el. Energije (kWh/Godišnja)	Potrošnja el. energije u modu pripravnosti (Watta)	Potrošnja el. energije kada je proizvod isključen (Watta)	Rezolucija zaslona (piksela)
Nederlands	Aan-modus gemiddeld stroomverbruik (Watt)	Jaarlijks energieverbruik(kWh/Jaarlijks )	Stand-by stroomverbruik (Watt)	Uit-modus stroomverbruik (Watt)	Schermresolutie (px)
Español	Consumo eléctrico medio, en funcionamiento (Vatio)	Consumo eléctrico anual (kWh/anual)	Consumo en modo en espera (Vatio)	Consumo eléctrico modo apagado (Vatio)	Resolución de pantalla (px)
Svenska	Strömkonsumtion i PÅ-läge (Watt)	Energiokonsumtion per år (kWh/Ärlig)	Strömkonsumtion i viloläge (Watt)	Strömkonsumtion i AV-läge (Watt)	Skärmupplösning (pixlar)
Italiano	Consumo di corrente medio da accesa (Watt)	Consumo annuale di energia (kWh/annuo)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	Risoluzione del display (px)
Polski	Srednie zużycie energii w trybie włączonym (Watów)	Roczne zużycie energii (kWh/Roczne)	Srednie zużycie energii w trybie oczekiwania (Watów)	Zużycie energii w trybie włączonym (Watów)	Rozdzielczość obrazu (pikseli)
Magyar	Energiafogyasztás bekapcsolva hagyott üzemmódban (Watt) Éves energiafogyasztás	(kWh/Éves)	Energiafogyasztás standby üzemmódban (Watt)	Energiafogyasztás kikapcsolt üzemmódban (Watt)	Képernyőfelbontás (px)
Norsk	Pámodus gjennomsnittlig stromförbruk (Watt)	Ärlig stromförbruk (kWh/Ärlig)	Hvilemodus stromförbruk (Watt)	Av-modus stromförbruk (Watt)	Skjermoplopsning (piksel)
Português	Consumo energia em modo médio (Watt)	Consumo annual energia (kWh/anual)	Consumo energia em stand-by (Watt)	Consumo energia em modo alimentação (Watt)	Resolução do visor (pixel)
Română	Consum electric mediu in modul pornit (Watj)	Consum anual de energie (kWh/anual)	Consum electric in stare de repaus (Watj)	Consum electric in modul oprit (Watj)	Rezoluția ecranului (pixeli)
Русский	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kВтч/Годовое)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
беларуская	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kWh/гарадовое)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
македонски	Просечна потрошувачка кога в включен	Годишна потрошувачка на енергија (kWh/Годишна)	Потрошувачка во мирување (вати)	Потрошувачка кога е исклучен (вати)	Резолуција на екран (пиксели)
український	Середня споживана потужність у робочому режимі (Вт)	Середньорічна споживана потужність (kWh/Річне)	Споживана потужність у режимі очікування (Вт)	Споживана потужність у вимкненому стані (Вт)	Роздільна здатність экрана (пикселів)
Srpski	Prosečna potrošnja kada je uključeni (Vati)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Vati)	Potrošnja kada je isključeni (Vati)	Rezolucija displeja (piks.)
Slovenčina	Priemerná spotreba elektrickej energie v zapnutom režime (Wattov)	Ročná spotreba energie (kWh/Ročná)	Spotreba elektrickej energie v pohotovostnom režime (Wattov)	Spotreba elektrickej energie vo vypnutom režime (Wattov)	Rozlišenie displeja (pixl.)
Slovenščina	Poraba elektricne energije v povprečnem načinu (Wattov)	Letna poraba energije (kWh/Letna)	Poraba energije v stanju pripravljenosti (Wattov)	Poraba energije načinu izklopa (Wattov)	Resolucija zaslona (piks.)
Еллёнvik	Ме́он катанدّلsson реúματος λειτουργίος (Watt)	Ετήσια κατανάλωση ενέργειας (kWh/Eτήσια)	Κατανάλωση ρεύματος στην αναμονή (Watt)	Κατανάλωση ρεύματος στανενεργοτοῖοιηση (Watt)	Ανάλυση οθόνης (Пілєл)
Bosanski	Prosječna potrošnja kada je uključen (Watt)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Watt)	Potrošnja kada je isključen (Watt)	Rezolucija ekrana (piks.)
Түйкçe	(उति) निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निप्ति (Watt)	(उति) निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम चारी (Watt)	(उति) निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम चारी (Watt)	(ुति) निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम निम
Türkçe	Аçık moddaki ortalama güc tüketimi (Watt)	Yıllık enerji tüketimi (kWh/yıllık)	Bekleme durumunda enerji tüketimi (Watt)	Kapalı moddaki güc tüketimi (Watt)	Ekran çözünürtiğü (piks.)
Shqip	Konsumi mesatar i energijlsê si i ndezur (Watt)	Konsumi vjetor i energijlsê (kWh/vjetor)	Konsumi i energijlsê si nê gatlishmēri (Watt)	Konsumi i energijlsê si i fikur (Watt)	Rezolucioni i ekranit (piks.)
Lietuvii	Vidutinês energijos şaṇaudos jungus (Vatai)	Metinês energijos şaṇaudos (kWh/Metinês)	Energijos şaṇaudos budėjimo režimu (Vatai)	Energijos şaṇaudos išjungus (Vatai)	Ekranо skiriamoji geba (pikselių)
Latviešu	Energijas patērīņš aktīvā režimā (Vati)	Gada energijas patērīņš (kWh/gada)	Energijas patērīņš gaidīšanas režimā (Vati)	Energijas patērīņš izslēgta stavokī (Vati)	Displeja rezolúcija (pikseliem)
Eesti	Keskmine energiakulu töörežimil (Vatti)	Aastane energiakulu (kWh/aastane)	Energiakulu ooterežimil (Vatti)	Energiakulu väljalūltatud olekus (Vatti)	Ekraani resolutsion (pikslt)
قفراسی	(مYZAN متوسط مصرف برق د高清 فкал (وات)	(مYZAN متوسط مصرف برق د高清 فкал (وات)	(مصرف برق حängت ا sandانه به کار (وات)	(مYZAN مصرف برق نر خز عيرбол (وات)	(وأحجش ناهيمش(حناfter)
