Product Type	Bluetooth Headset
Brand	Nokia
Model	BH-800
Bluetooth Version	2.0 + EDR
Supported Profiles	Headset Profile 1.1, Hands-Free Profile 1.5
Operating Range	Up to 10 meters (30 feet)
Battery Type	Internal rechargeable lithium-ion
Talk Time	Up to 6 hours
Standby Time	Up to 160 hours
Charging Time	Up to 2 hours
Charger Compatibility	AC-3, AC-4, DC-4
Weight	Approximately 12 g
Dimensions	Approximately 50 x 20 x 15 mm
Key Features	Answer/end key, volume key, power key, indicator light, earloop, strap, pouch
Multi-Device Pairing	Up to 8 phones, connected to 1 at a time
Voice Dialing Support	Yes
Redial Support	Yes
Mute Function	Yes
Automatic Answer	Yes (if supported by phone)
Cleaning	Do not use harsh chemicals; keep dry
Storage Temperature	15°C to 25°C (59°F to 77°F)

Frequently Asked Questions - BH-800 NOKIA

How do I pair the Nokia BH-800 headset with my phone?

Switch on your phone and the headset. Activate Bluetooth on your phone and search for devices. Select 'Nokia BH-800' from the list and enter passcode 0000 to pair and connect.

How do I charge the headset?

Connect the charger cable to the headset, then plug the charger into a wall outlet. The red indicator light shows during charging. Charging takes up to 2 hours. When fully charged, the red light turns off.

What is the battery life of the BH-800?

The fully charged battery provides up to 6 hours of talk time and up to 160 hours of standby time. Actual performance may vary.

How do I reset the headset if it stops working?

Plug the headset into a charger, then briefly press the power key and the middle of the volume key. This reset does not clear your pairing settings.

How do I clear all settings (paired devices) from the headset?

Press and hold the power key and volume key up for 10 seconds. The headset beeps twice and indicator lights alternate. All settings are then cleared.

Can I pair the headset with multiple phones?

Yes, you can pair with up to 8 phones, but it can only be connected to one phone at a time. The first paired phone is the default.

How do I answer or end a call?

Press the answer/end key to answer an incoming call. To end a call, press the same key again. You can also use your phone's keys.

How do I adjust the volume during a call?

Press the volume key up to increase volume, or volume key down to decrease. Hold the key for quick adjustment.

How do I mute the microphone?

During a call, briefly press the middle of the volume key. A long tone is played and the headset beeps regularly until you unmute by pressing the middle again.

How do I wear the headset with the earloop?

Insert the earloop into the opening at the back. For right ear, rotate so loop is to the right of 'Nokia' text. Slide over ear and adjust length. For left ear, rotate loop to the left.

USER MANUAL BH-800 NOKIA

Nokia Bluetooth Headset BH-800 User Guide

Line drawing of a handheld device with wires and a small speaker (no text or symbols)

9246974

Issue 2

DECLARATION OF CONFORMITY

We, NOKIA CORPORATION declare under our sole responsibility that the product HS-24W is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/declaration_of_conformity/.

C€0560

The crossed-out wheeled bin means that within the European Union the product must be taken to separate collection at the product end-of-life. Do not dispose of these products as unsorted municipal waste. For more information, see product Eco-Declaration or country specific information at www.nokia.com.

© 2006 Nokia. All rights reserved.

Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited.

Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you.

Unauthorized changes or modifications to this device may void the user's authority to operate the equipment.

Export Controls

This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited.

9246974 / Issue 2 EN

Contents

1. Introduction 5

Bluetooth wireless technology...... 5

1. Get started 7

Overview....7

Chargers and batteries 7

Charge the battery 8

Switch the headset on or off...... 9

Pair the headset with

a compatible phone.... 9

Disconnect the headset

from the phone 10

Reconnect the paired headset

to your phone 10

Troubleshooting.... 10

1. Basic use 12

Place the headset over your ear ..... 12

Carry the headset in the strap ..... 13

Store the headset in the pouch ..... 14

Call handling 14

Adjust the earphone volume...... 15

Mute or unmute the microphone... 15

Switch the call between

phone and headset 15

Use the headset with

several phones 15

Clear the settings.... 16

1. Battery information ...... 17

Care and maintenance...... 18

1. Introduction

The Nokia Bluetooth Headset BH-800 allows you freedom to make and receive calls while on the move or in the office. You can connect the headset to a compatible phone that supports Bluetooth wireless technology.

Read this user guide carefully before using the headset. Read also the user guide for your phone, which provides important safety and maintenance information. Keep the headset and its accessories out of reach of small children.

Bluetooth wireless technology

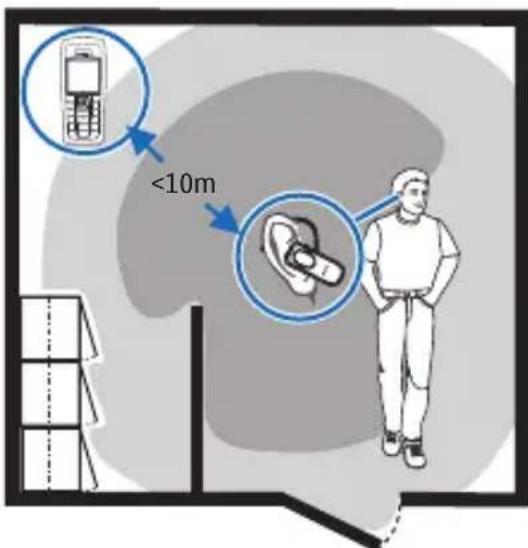

Bluetooth wireless technology allows you to connect compatible devices without cables. A Bluetooth connection does not require that the phone and the headset be in line of sight, but the maximum distance between the devices is 10 meters (30 feet). The closer the phone and the headset are to each other, the better is the performance. The optimal operating range is shown in dark grey in the picture. The connection is subject to interference from distance and obstructions (shown in light grey) or other electronic devices.

Introduction

The headset is compliant with the Bluetooth Specification 2.0 + EDR supporting the following profiles: Headset Profile 1.1 and Hands-Free Profile 1.5. Check with the manufacturers of other devices to determine their compatibility with this device.

There may be restrictions on using Bluetooth technology in some locations. Check with your local authorities or service provider.

2. Get started

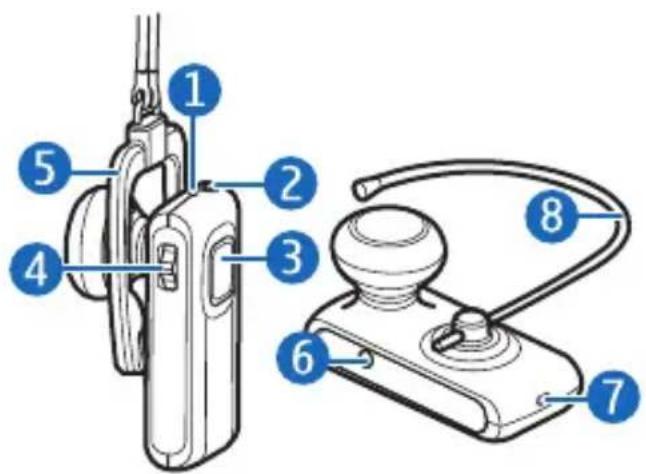

Overview

The headset contains the following parts:

• Indicator light (1)
• Power key (2)
• Answer/end key (3)
  • Volume key (4)
• Strap catch (5)
• Charger connector (6)
• Microphone (7)
• Earloop (8)

Before you can start using the headset, you must charge the battery and pair the headset with a compatible phone.

Note: Parts of the headset are magnetic. Metallic materials may be attracted to the headset. Do not place credit cards or other magnetic storage media near the headset, because information stored on them may be erased.

■Chargers and batteries

Check the model number of any charger before using it with this headset. The headset is intended for use with the AC-3, AC-4, and DC-4 chargers.

Warning: Use only batteries and chargers approved by Nokia for use with this particular enhancement. The use of any other types may invalidate any approval or warranty, and may be dangerous.

For availability of approved enhancements, please check with your dealer. When you disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.

Charge the battery

This device has an internal, nonremovable, rechargeable battery. Do not attempt to remove the battery from the device as you may damage the device.

1. Connect the charger cable to the headset.
2. Connect the charger to a wall outlet. The red indicator light is displayed during charging. It may take a while before charging starts. If charging does not start, disconnect the charger, plug it in again, and retry. Charging the battery fully may take up to 2 hours.

Ensure that you do not accidentally insert the earloop into the charger connector.

1. When the battery is fully charged, the red indicator light turns off. Disconnect the charger from the wall outlet and the headset.

Illustration of a joystick controller with a blue arrow pointing to it (no text or symbols)

Simple line drawing of a crossed-out X symbol with a curved line and arrow, no text or symbols present.

The fully charged battery has power for up to 6 hours of talk-time or up to 160 hours of standby time. However, the talk and standby times may vary

with different mobile phones, products that use a Bluetooth connection, usage settings, usage styles, and environments.

When battery power is low, the headset beeps, and the red indicator light starts to flash.

■Switch the headset on or off

To switch on, press and hold the power key. The headset beeps, and the green indicator light is displayed briefly. When the headset is connected to a paired phone and is ready for use, the blue indicator light flashes slowly. If the headset is not connected to a phone, the green indicator light flashes slowly.

To switch off, press and hold the power key. The headset beeps, and the red indicator light is displayed briefly.

■Pair the headset with a compatible phone

1. Switch on your phone and the headset.
2. Activate the Bluetooth feature on the phone, and set the phone to search for Bluetooth devices. See the user guide of your phone for instructions.
3. Select the headset (Nokia BH-800) from the list of found devices.
4. Enter the passcode 0000 to pair and connect the headset to your phone. In some phones you may need to make the connection separately after pairing. See the user guide of your phone for details. You only need to pair the headset with your phone once.

Get started

1. If the pairing is successful, the headset beeps and appears in the phone menu where you can view the currently paired Bluetooth devices.

Disconnect the headset from the phone

To disconnect the headset from your phone (for example, to connect the phone to another Bluetooth device), do one of the following:

• Switch off the headset.
• Disconnect the headset in the Bluetooth menu of your phone.
• Move the headset more than 10 meters (30 feet) away from the phone.
  You do not need to delete the pairing with the headset to disconnect it.

Reconnect the paired headset to your phone

To connect the headset to your phone, switch on the headset, make the connection in the Bluetooth menu of your phone, or press and hold the answer/end key.

You can set your phone to connect with the headset automatically when the headset is switched on. To do this in Nokia phones, change your paired device settings in the Bluetooth menu.

Troubleshooting

If you cannot connect the headset to your phone, do as follows:

- Ensure that the headset is charged, switched on, and paired with and connected to your phone.

• Ensure that the Bluetooth feature is activated on your phone.
• Check that the headset is within 10 meters (30 feet) of your phone and that there are no obstructions between the headset and the phone, such as walls or other electronic devices.
• To reset the headset if it stops functioning, although it is charged, plug the headset into a charger, and briefly press the power key and the middle of the volume key. This reset does not clear your settings (for example, pairing settings).

3. Basic use

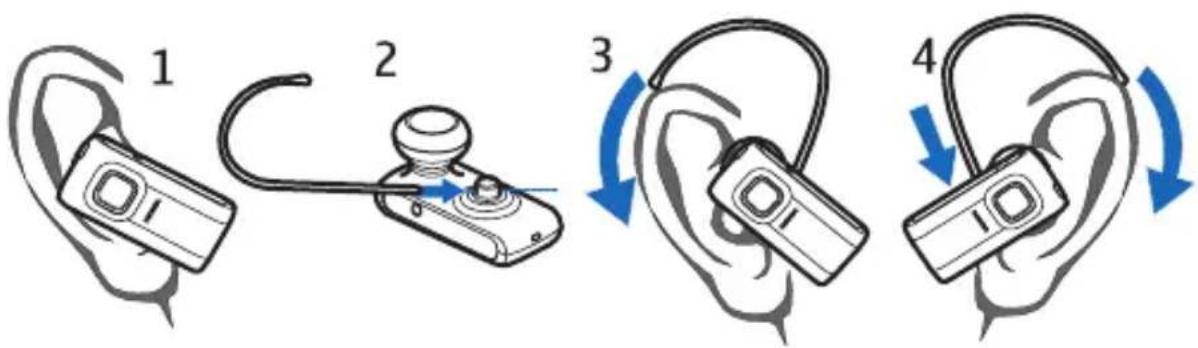

Place the headset over your ear

The headset is provided with an earloop that you can use for a better fit on your ear.

To use the headset without the earloop, plug the headset into your ear (1), and point the headset toward your mouth.

To use the headset with the earloop, insert the earloop into the small opening at the back of the headset (2). To wear the headset on the right ear, rotate the earloop so that the loop is to the right of the "Nokia" text. Slide the earloop over your ear (3), and push or pull the earloop to set its length (4). Set the headset so that it points toward your mouth.

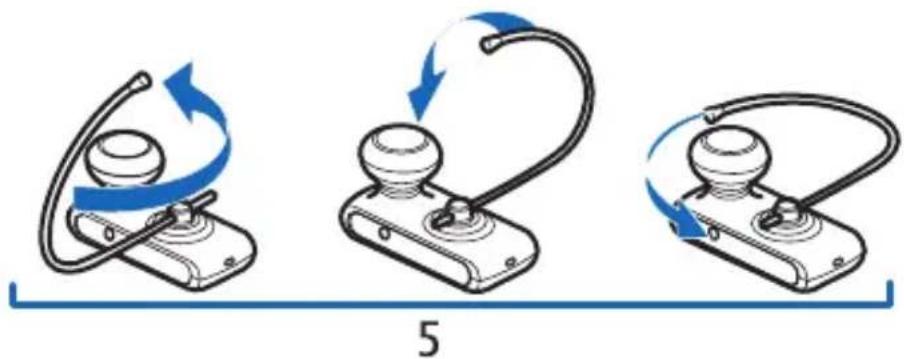

To use the headset on the left ear, rotate the earloop so that the loop is to the left of the text (5).

Three-step diagram showing a device with rotating arms and a curved handle, labeled '5' at the bottom (no text or symbols on the devices themselves)

To detach the earloop (for example, to clean it), gently pull it from the headset.

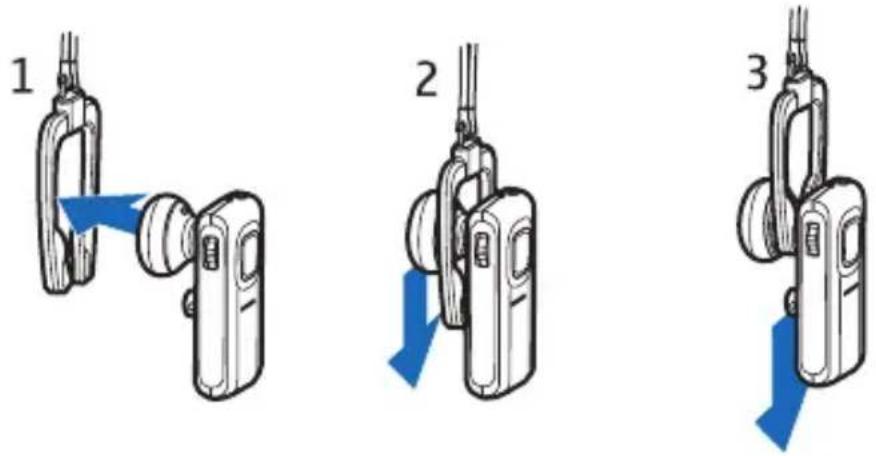

Carry the headset in the strap

The headset is supplied with a strap. When you do not keep the headset on your ear, you can wear it on your neck using the strap. To fix the headset to the strap, insert the headset into the catch (1), and gently push it downwards (2) until it locks into place. To detach the headset, slide it out through the catch (3).

■Store the headset in the pouch

To avoid the headset from being scratched, store the headset and the strap in the supplied pouch when you do not use them.

The pouch has two compartments. Store the headset in one compartment and the strap in the other.

Call handling

To make a call, use your phone in the normal way when the headset is connected to your phone. The blue indicator light flashes slowly during the call.

If your phone supports redialing with this device, briefly press the answer/end key twice when no call is in progress.

If your phone supports voice dialing with this device, press and hold the answer/end key when no call is in progress, and proceed as described in the user guide of your phone.

When you receive a call, the blue indicator light flashes quickly, and you hear a ringing tone through the headset. To answer the call, press the answer/end key, or use the phone keys. If the automatic answer function is on, the phone automatically answers the incoming call after one ring.

To reject an incoming call, briefly press the answer/end key twice, or use the phone keys.

To end a call, press the answer/end key, or use the phone keys.

■Adjust the earphone volume

Press the volume key up to increase or down to decrease the volume during a call. To adjust the volume quickly, press and hold the key in the desired direction.

■Mute or unmute the microphone

To mute or unmute the microphone during a call, briefly press the middle of the volume key. A long tone is played, and the headset beeps at regular intervals until you unmute the microphone.

■Switch the call between phone and headset

To switch the call between the headset and a compatible phone, press and hold the answer/end key, or use the respective function in your phone.

■Use the headset with several phones

You can pair the headset with up to eight phones but connect it to only one phone at a time.

The phone that was first paired with the headset is the default phone. If the headset is switched on within 10 meters (30 feet) of several paired phones, the headset tries to connect to the default phone.

If the headset cannot connect to the default phone, the headset tries to connect to the last used phone. If the headset cannot connect to this phone either, one of the other six paired phones can be connected to the headset. To make the connection, see the user guide of your phone.

Basic use

Clear the settings

If you want to clear all the settings from the headset (for example, the list of paired devices), press and hold the power key and the volume key up for 10 seconds. After the settings are cleared, the headset beeps twice, and the indicator lights alternate for several seconds.

4. Battery information

Your device is powered by a rechargeable battery. The full performance of a new battery is achieved only after two or three complete charge and discharge cycles. The battery can be charged and discharged hundreds of times, but it will eventually wear out. Recharge your battery only with Nokia approved chargers designated for this device.

Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime. If left unused, a fully charged battery will lose its charge over time.

Never use any charger that is damaged.

Leaving the device in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77°F). A device with a hot or cold battery may not work temporarily, even when the battery is fully charged. Battery performance is particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged. Dispose of batteries according to local regulations. Please recycle when possible. Do not dispose as household waste.

Care and maintenance

Your device is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you protect your warranty coverage.

• Keep all accessories and enhancements out of the reach of small children.
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits. If your device does get wet, allow it to dry completely.
• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device and damage electronic circuit boards.
• Do not attempt to open the device.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper operation.

All of the above suggestions apply equally to your device, battery, charger, or any enhancement. If any device is not working properly, take it to the nearest authorized service facility for service.
