Product Type	Hi-Fi System
Brand	Nokia
Model	BH-702
Dimensions	150 x 70 x 40 mm
Weight	200 g
Power Source	Built-in rechargeable battery, USB charging
Connectivity	Bluetooth 5.0, 3.5 mm auxiliary input
Main Functions	Wireless audio streaming, hands-free calling, volume control, track control
Battery Life	Up to 10 hours of playtime
Charging Time	Approximately 2 hours
Charging Port	Micro USB
Wireless Range	Up to 10 meters
Frequency Response	20 Hz – 20 kHz
Speaker Configuration	Mono speaker
Microphone	Built-in for hands-free calls
Compatibility	Smartphones, tablets, computers with Bluetooth or audio jack
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquids or abrasives.
Safety Precautions	Do not immerse in water. Avoid exposure to extreme temperatures.
Spare Parts Availability	Not sold separately. Contact Nokia support for repairs.
Repair Service	Authorized service centers only. Do not disassemble.
Package Contents	BH-702 Hi-Fi System, USB cable, user manual

Frequently Asked Questions - BH-702 NOKIA

How do I pair the Nokia BH-702 with my smartphone?

Turn on the device, enable Bluetooth on your phone, and select 'Nokia BH-702' from the list of available devices. If prompted, enter PIN 0000.

How do I charge the BH-702?

Connect the provided Micro USB cable to the charging port and a USB power source. A red light indicates charging; the light turns off when fully charged.

How do I adjust the volume?

Press the volume up or volume down buttons on the device. You can also adjust volume from your connected device.

How do I reset the device?

To reset, turn off the device, then press and hold the power button for 10 seconds until the indicator flashes red and blue. Release and turn on again.

What is the battery life and how long does it take to charge?

Battery life is up to 10 hours of playtime. Charging takes approximately 2 hours.

Can I clean the BH-702 with water or cleaning agents?

No, use only a soft, dry cloth to wipe the exterior. Avoid liquids, solvents, or abrasive cleaners.

Is the BH-702 compatible with non-Bluetooth devices?

Yes, it includes a 3.5 mm auxiliary input for wired connection to devices without Bluetooth.

What is the wireless range?

The effective Bluetooth range is up to 10 meters (33 feet) in open space. Obstacles may reduce range.

Can I connect the BH-702 to multiple devices at once?

The device supports multipoint connection for up to two devices, allowing you to switch seamlessly.

What should I do if the device is not turning on?

Ensure the battery is charged. If it still fails, try a reset (press and hold power button for 10 seconds). If the issue persists, contact Nokia support.

USER MANUAL BH-702 NOKIA

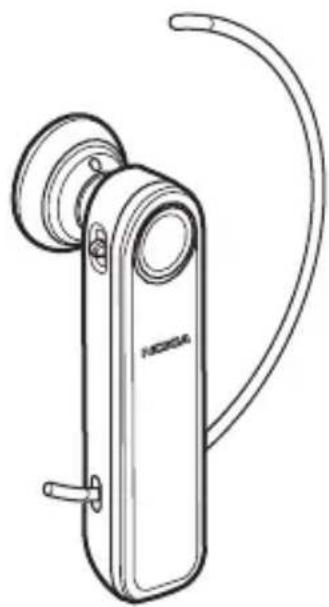

Nokia Bluetooth Headset BH-702 User Guide

Line drawing of a handheld device with a curved handle and circular ports (no text or symbols)

Issue 1 EN

DECLARATION OF CONFORMITY

Hereby, NOKIA CORPORATION declares that this HS-100W product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/declaration_of_conformity/.

C€0560

© 2007 Nokia. All rights reserved.

Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited.

Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you.

Unauthorized changes or modifications to this device may void the user's authority to operate the equipment.

Export Controls

This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited.

Issue 1 EN

Contents

1. Introduction 5

Bluetooth wireless technology...... 5

2. Get started 7

Overview 7

Chargers and batteries.... 7

Charge the battery.... 8

Switch the headset on or off ...... 9

Pair the headset.... 9

Disconnect the headset.... 10

Reconnect the headset.... 10

Troubleshooting 10

3. Basic use 12

Place the headset on the ear ..... 12

Call handling.... 13

Adjust the headset volume...... 13

Mute or unmute the microphone ... 14

Switch the call between headset and mobile device 14

Clear settings or reset...... 14

4. Battery information ..... 15

Care and maintenance...... 16

1. Introduction

With the Nokia Bluetooth Headset BH-702 you can make and receive calls while on the move and use your mobile device hands free. You can use the headset with compatible devices that support Bluetooth wireless technology.

Read this user guide carefully before using the headset. Also read the user guide for your mobile device, which provides important safety and maintenance information. Keep the headset and its accessories out of reach of small children.

Bluetooth wireless technology

Bluetooth wireless technology allows you to connect compatible devices without cables. A Bluetooth connection does not require that the mobile device and the headset be in line of sight, but the maximum distance between the devices is 10 meters (33 feet). The closer the mobile device and the headset are to each other, the better is the performance. The optimal operating range is shown in dark grey in the picture. The connection is subject to interference from distance and obstructions (shown in light grey) or other electronic devices.

Introduction

The headset is compliant with the Bluetooth Specification 2.0 + EDR supporting the following profiles: Headset Profile 1.1 and Hands-Free Profile 1.5. Check with the manufacturers of other devices to determine their compatibility with this device.

There may be restrictions on using Bluetooth technology in some locations. Check with your local authorities or service provider.

2. Get started

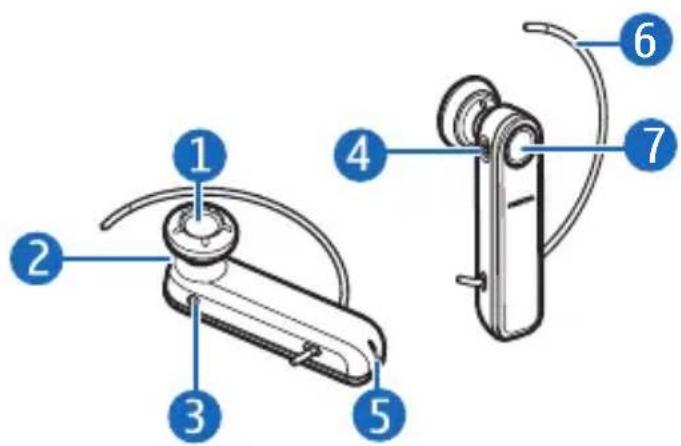

Overview

The headset contains the following parts:

• Earpiece (1)
• Indicator light (2)
• Charger connector (3)
  • Volume key (4)
• Microphone (5)
• Earloop (6)
• Multifunction key (7)

Before you can start using the

headset, you must charge the battery and pair the headset with a compatible device.

Parts of the headset are magnetic. Metallic materials may be attracted to the headset. Do not place credit cards or other magnetic storage media near the headset, because information stored on them may be erased.

Chargers and batteries

Check the model number of any charger before using it with this headset. The headset is intended for use with the AC-3, AC-4, and DC-4 chargers.

Warning: Use only batteries and chargers approved by Nokia for use with this particular enhancement. The use of any other types may invalidate any approval or warranty, and may be dangerous.

When you disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.

Charge the battery

The headset has an internal, nonremovable, rechargeable battery. Do not attempt to remove the battery from the headset, as you may damage the headset.

1. Connect the charger to a wall outlet.
2. Connect the charger cable to the charger connector. The indicator light is red while charging. It may take a while before charging starts. If charging does not start, disconnect

the charger, plug it in again, and retry. Charging the battery fully may take up to 2 hours.

Illustration of a handheld device with a blue arrow pointing to its tip (no text or symbols present)

1. When the battery is fully charged, the indicator light turns green.

Disconnect the charger from the headset and the wall outlet.

The fully charged battery has power for up to 6 hours of talk time or up to 160 hours of standby time. However, the talk and standby times may vary when used with different compatible Bluetooth devices, usage settings, usage styles, and environments.

When battery power is low, the headset beeps at regular intervals, and the indicator light flashes red.

■Switch the headset on or off

To switch on, press and hold the multifunction key until the headset beeps and the indicator light turns on. When the headset tries to connect to a paired device, the indicator light flashes green slowly. When the headset is connected to a paired device and is ready for use, the indicator light flashes blue slowly. If the headset has not been paired with a device, it automatically enters the pairing mode (see "Pair the headset," p. 9).

To switch off, press and hold the multifunction key for at least 5 seconds until the indicator light turns red.

Pair the headset

1. Ensure that your mobile device is switched on.
2. To pair the headset if it has not been previously paired with a device, switch on the headset. The headset enters the pairing mode, and the indicator light starts to flash blue quickly.
   To pair the headset if it has been previously paired with another device, ensure that the headset is switched off, and press and hold the multifunction key until the indicator lights starts to flash blue quickly.
3. Activate the Bluetooth feature on the mobile device, and set it to search for Bluetooth devices. See the user guide of your device for instructions.
4. Select the headset (Nokia BH-702) from the list of found devices.
5. Enter the passcode 0000 to pair and connect the headset to your device. In some mobile devices, you may need to make the connection

Get started

separately after pairing. See the user guide of your device for details.

You only need to pair the headset with your device once.

If the pairing is successful, the headset appears in the menu of the mobile device where you can view the currently paired Bluetooth devices.

Disconnect the headset

To disconnect the headset from your mobile device, switch off the headset, or disconnect the headset in the Bluetooth menu of your device.

You do not need to delete the pairing with the headset to disconnect it.

Reconnect the headset

To connect the headset to your mobile device, make the connection in the Bluetooth menu of your device; or switch on the headset, and press and hold the multifunction key for about 2 to 3 seconds until you hear a short beep.

You can set your device to connect with the headset automatically when the headset is switched on. To do this in Nokia devices, change your paired device settings in the Bluetooth menu.

Troubleshooting

If you cannot connect the headset to your mobile device, do as follows:

• Ensure that the headset is charged, switched on, and paired with your device.
• Ensure that the Bluetooth feature is activated on your device.

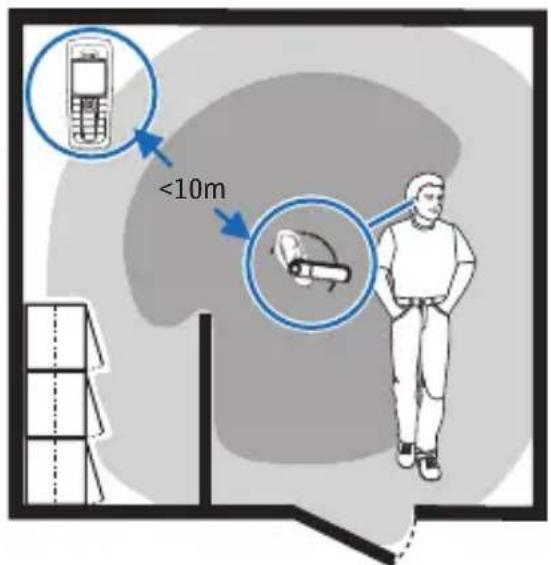

- Ensure that the headset is within 10 meters (33 feet) of your device and that there are no obstructions between the headset and the device, such as walls, or other electronic devices.

3. Basic use

Place the headset on the ear

The headset is provided with an earloop that you can use for a better fit on your ear.

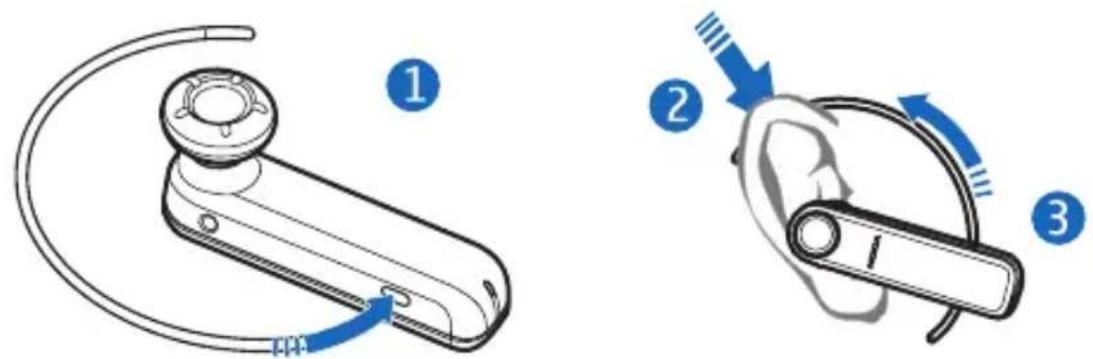

To use the headset with the earloop on the right ear, insert the earloop into the headset (1). Slide the earloop over your ear (2), and gently plug the earpiece into your ear. Push or pull the earloop to set its length. Set the headset so that it points toward your mouth (3).

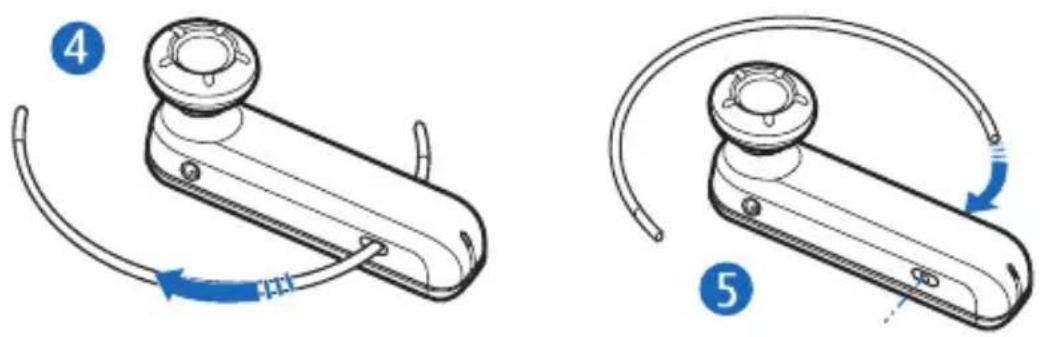

To use the headset on the left ear, gently pull the earloop from the headset (4), and insert it into the opposite side (5).

Call handling

To make a call, use your mobile device in the normal way when the headset is connected to it. The blue indicator light flashes slowly during the call.

If your device supports last number redialing with the headset, press the multifunction key twice when no call is in progress.

If your device supports voice dialing with the headset, press and hold the multifunction key for about 2 to 3 seconds until the mobile device starts voice dialing, and proceed as described in the user guide of the device. Voice dialing cannot be used during a call.

When you receive a call, the indicator light flashes blue quickly, and you hear a ringing tone through the headset. To answer the call, press the multifunction key, or use the keys of the mobile device.

To reject an incoming call, press the multifunction key twice, or use the keys of the mobile device.

To end a call, press the multifunction key, or use the keys of the mobile device.

■Adjust the headset volume

Press the volume key up to increase or down to decrease the volume during a call, or use the keys of the mobile device. To adjust the volume quickly, press and hold the volume key in the desired direction.

■Mute or unmute the microphone

To mute or unmute the microphone during a call, use the respective function in your mobile device.

■Switch the call between headset and mobile device

To switch the call between the headset and a connected mobile device, press and hold the multifunction key for about 2 to 3 seconds, or use the respective function in your device.

Clear settings or reset

To clear all the pairing settings from the headset, press and hold the multifunction key and the volume key up until the indicator light alternates red, green, and blue twice. After the settings are cleared, the headset enters the pairing mode for about 5 minutes (the indicator light flashes blue quickly).

To reset the headset if it stops functioning, although it is charged, plug the charger into the headset while you press and hold the multifunction key. The headset switches off. To use the headset, reconnect it to your mobile device. The reset does not clear the headset settings.

4. Battery information

Your device is powered by a rechargeable battery. The battery can be charged and discharged hundreds of times, but it will eventually wear out. Recharge your battery only with Nokia approved chargers designated for this device.

Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime. If left unused, a fully charged battery will lose its charge over time.

Never use any charger that is damaged.

Leaving the device in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15^ C and 25^ C ( 59^ F and 77^ F). A device with a hot or cold battery may not work temporarily, even when the battery is fully charged. Battery performance is particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged. Dispose of batteries according to local regulations. Please recycle when possible. Do not dispose as household waste.

Care and maintenance

Your device is a product of superior design and craftsmanship and should be treated with care. The following suggestions will help you protect your warranty coverage.

• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits. If your device does get wet, allow it to dry completely.
• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device and damage electronic circuit boards.
• Do not attempt to open the device.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper operation.

All of the above suggestions apply equally to your device, battery, charger, or any enhancement. If any device is not working properly, take it to the nearest authorized service facility for service.
