HXS 900 BT - Hi-Fi System XORO - Free user manual and instructions

Product Type	Hi-Fi System (Portable Bluetooth Speaker)
Brand	Xoro
Model	HXS 900 BT
Output Power (RMS)	2.5 + 2.5 + 5 W
Bluetooth Version	CSR Bluetooth v4.0
Bluetooth Profiles	A2DP, AVRCP, HSP, HFP, aptX
NFC	Yes
Battery Type	Integrated Li-Ion (2 x 2500 mAh / 3.7 V)
Charging Time (Power Supply)	Approx. 6 hours
Charging Time (USB)	Approx. 11 hours
Power Supply Input	9.5 V DC / 1500 mA
USB Charging Output	5 V DC / max 1000 mA
Audio Input	3.5 mm Stereo Jack (AUX)
Microphone	Yes
Operating Temperature	10°C to 30°C
Status LED Indication	Red (low battery/charging), Green (ready/connected)
Cleaning	Use a soft cloth; never use solvents
Safety	Keep away from water, pacemakers, and magnetic fields
Repair	Only qualified personnel should open the device
Manufacturer	MAS Elektronik AG, Germany

Frequently Asked Questions - HXS 900 BT XORO

How do I pair my smartphone with the Xoro HXS 900 BT via Bluetooth?

Set the power switch to ON. Wait for the status LED to flash green. On your phone, enable Bluetooth and search for devices. Select 'XORO HXS900' and accept pairing. If prompted, enter PIN '0000'.

Can I charge the speaker and play music at the same time?

Yes, you can charge the speaker while using it. However, do not use both the USB port and the power supply unit simultaneously for charging.

How do I use NFC to connect to the speaker?

Activate NFC on your Bluetooth device and bring it close to the NFC area on the speaker. Your device will ask to confirm pairing; accept to complete the connection.

What should I do if the speaker does not pair?

Turn the speaker off and on again, then repeat the pairing process. Ensure your device's Bluetooth is active and that the speaker is in pairing mode (green flashing LED).

How long does it take to fully charge the battery?

Charging via the power supply unit takes about 6 hours. Charging via USB takes about 11 hours. The LED turns off when fully charged.

Can I use the speaker with a device that does not have Bluetooth?

Yes, use the 3.5 mm AUX input. Connect the audio cable from your device to the AUX jack on the speaker. Set the power switch to ON.

How do I use the speaker for phone calls?

When connected via Bluetooth, incoming calls are automatically transferred to the speaker. You can answer by pressing the Play/Pause button. The speaker has a built-in microphone.

What does the status LED indicate?

Red flashing: low battery. Red solid: charging. Green flashing: ready to pair. Green solid: Bluetooth connected.

Is the speaker waterproof?

No, the speaker is not waterproof. Keep it away from water and moisture to avoid damage.

What is the output power of the speaker?

The total RMS output power is 10 W (2.5 + 2.5 + 5 W).

USER MANUAL HXS 900 BT XORO

Technically unlimited

MAS

Elektronik AG

ENG-1

XORO HXS 900 OFC ENGLISH

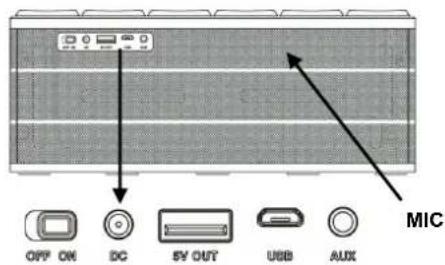

Overview

OFF | ON: Power Switch

DC: Connector for Power Supply Unit.

5V OUT: USB-Port for charging your mobile devices

USB: Micro USB-Port to charge the speakers internal Battery

AUX: 3,5mm Stereo Jack

MIC: Microphone

1. Status LED
2. NFC Area
3. Previous Title
4. Next Title
5. Play/Pause. Answer incoming calls.
6. Decrease (-) or increase (+) Volume.

Note: The buttons 3-6 are touch-sensitive. You do not need to press the buttons. Just touch it carefully with your fingers. The buttons 3,4 and 5 are only available if Bluetooth connection is in use and your Bluetooth-Device supports those functions.

Volume-Control of the speaker and your Bluetooth-Device are independent.

ENG-3

Status LED

LED	Condition
red	Flashing: Low Battery. Please recharge BatterySolid: Charging in progress
green	Flashing: Ready for new Bluetooth ConnectionSolid: Bluetooth Connection established

Charging the integrated Battery

There are two ways to charge the Battery:

Do not use USB and Power Supply Unit to charge Battery at the same time.

ENG - 4

1.) Charging the Battery using the Power Supply Unit Connect the Power Supply Unit to the Speaker (DC). Connect the Power Supply Unit to a Mains Socket. Charging the Battery takes approx. 6 hours. Once the Battery is fully charged, the Status LED turns off (if Power Switch is set to OFF).

2.) Charging the Battery using USB-Connection Connect the Speaker (USB) to a USB-Port (Computer, Laptop etc.) Charging the Battery takes approx. 11 hours. Once the Battery is fully charged, the Status LED turns off.

Because the current supplied by an USB-Port is limited, charging by USB takes more time and the Power Switch must be set to OFF.

ENG - 5

Bluetooth Connection

• Set the Power Switch to ON.
• Wait until the Status LED is flashing green.
• Make sure the device's Bluetooth is activated and search for the speaker. (This is usually found under the "setup", "connect" or "Bluetooth" menu on your device).
• Follow your device's instruction guide on pairing.
• The Bluetooth Speaker will be recognised by the name "XORO HXS900". Accept the pairing by pressing "OK" or "YES" and confirm with the PIN "0000" (if PIN is required).

Your device will confirm pairing once completed. Should pairing be unsuccessful, switch off/on the speaker and try again.

The Bluetooth-Speaker support the following Bluetooth Profiles:

• A2DP
- AVCRP
• HSP
• HFP
- aptX

ENG-6

Using NFC to connect to the Speaker

Please activate the NFC function of your Bluetooth device. Bring your Bluetooth device close to the speakers NFC-Area. Your Bluetooth device will ask you whether you want to pair the speaker, confirm by "Yes" or "OK", then the pairing process is completed. Please read the instruction manual of your Bluetooth-Device.

ENG-7

Make a call

When you make a call from your mobile phone, the call will be (according to your phones settings) automatically transferred to the speaker. Please refer to the manual of your mobile phone.

Audio Input

Audio Input can be used for audio input from a device that does not support Bluetooth function (MP3 Player, Notebook etc.)

• connect the speaker and your audio-source via the Audio-Cable.
• Set the Switch of the Bluetooth-Speaker to ON.

ENG - 8

Charging of mobile Devices

You can connect your mobile devices to 5V OUT (USB Port) to charge their batteries.

• Set the Power Switch to ON.
- Connect your mobile device to 5V OUT using an appropriate USB-Cable.

Output: 5V DC, max. 1000mA

Safety Instruction

• The radio wave of this Bluetooth Speaker may impair the operation of other electric or medical devices. Keep this Bluetooth Speaker at least 60cm from pacemakers or other medical devices. Switch off the device in areas where the use is prohibited (For example: Aircraft, medical facilities, refuelling points or close to automatic controlled devices.)
• Keep the Speaker away from hard disc drives, floppy discs, credit cards and other objects that can be damaged by magnetic fields.
• Leaving the Device in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the integrated battery. Always try to keep the battery between 15°C and 25°C (59°F and 77°F). A device with a hot or cold battery may not work temporarily, even when the battery is fully charged.

ENG - 9

• Keep batteries out of reach of small children. If swallowed, consult a health professional immediately. Should a battery leak, the device may become damaged. Clean the battery compartment immediately, avoiding contact with your skin.
• If the device is not used for a long period of time, the battery may lose its charge. Please recharge the battery.
• Do not attempt to open the Bluetooth Speaker, the rechargeable battery or the battery pack.
• Do not dispose the Speaker in a fire as the internal batteries may explode.
• Do not drop, crush, bend, or apply excessive force to the device.
• Clean the unit with a soft cloth. Never use solvents.
• The unit must only be opened by qualified personnel.
• Keep the Speaker away from water. It is not water proof!
• Speaker and Power Supply unit may get warm during normal operation. Do not cover the device to avoid overheating.
• Check your Mains Voltage before you connect the Power Supply Unit.
• This symbol means that electrical and electronic equipment, at their end-of-life, shall be disposed of separately from your household waste.

Technical Data

Output Power: 2,5+2,5+5W (RMS), Supply: Integrated Li-Ion Battery (2x 2500mAh/3.7V)/USB Cable (5V 650mA)/Power Supply Unit (9.5V/1500mA), CSR Bluetooth v4.0, Operating Temperature: 10°-30°C

ENG-10

Warranty

In case the products delivered are not free from defects in material or workmanship, MAS

Elektronik AG has the right to either repair or replace the defective product at its choice. The warranty for wearing parts (e.g. rechargeable batteries) is limited to 6 months. MAS Elektronik AG is not liable for any accessories not belonging to original package content such as DVDs, hard disc drives,

Flash storage devices, batteries, etc. This limited warranty covers the warranty requirements set by authorities in your country. This limited warranty is valid in the country the product was purchased only. For a correct and frictionless completion of warranty or repairs you need a RMA No. You may obtain a RMA on the internet at www.xoro.de or by telephone.

MAS Elektronik AG

Weidegrund 3

21614 Buxtehude

Germany

Support: [e-mail]

Hotline: [phone]

Konformität

Declaration of conformity

The following wireless features are delivered with this device: Bluetooth

MAS Elektronik AG hereby declares that this device conforms to the fundamental requirements and the remaining relevant regulations of the 1999/5/EC RTTE directive.

Declaration of conformity are available at www.xoro.de/downloads

CE
