USER MANUAL FRT 2145 Rommelsbacher

Abstract geometric pattern with interlocking vertical lines inside a circle (no text or symbols)

ROMMELSBACHER

Exterior view of a modern kitchen grater with visible branding and control buttons (no text-heavy elements)

FRT 2145/E Family

Fritteuse · Deep-Fryer

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram showing assembly steps of a mechanical component with numbered parts and exploded view

3 in 1

Description and Drawing 10

Introduction

Intended use 11

Technical data 11

Scope of supply 11

For your safety 11

Important safety notes 12

Prior to initial use 12

What frying oil/fat to choose 12

How to operate your appliance

Switching on 13

Frying 13

Switching off 13

Different frying baskets 13

Frying time and temperature chart 14

Cleaning and maintenance 14

Disposal 15

The appliance

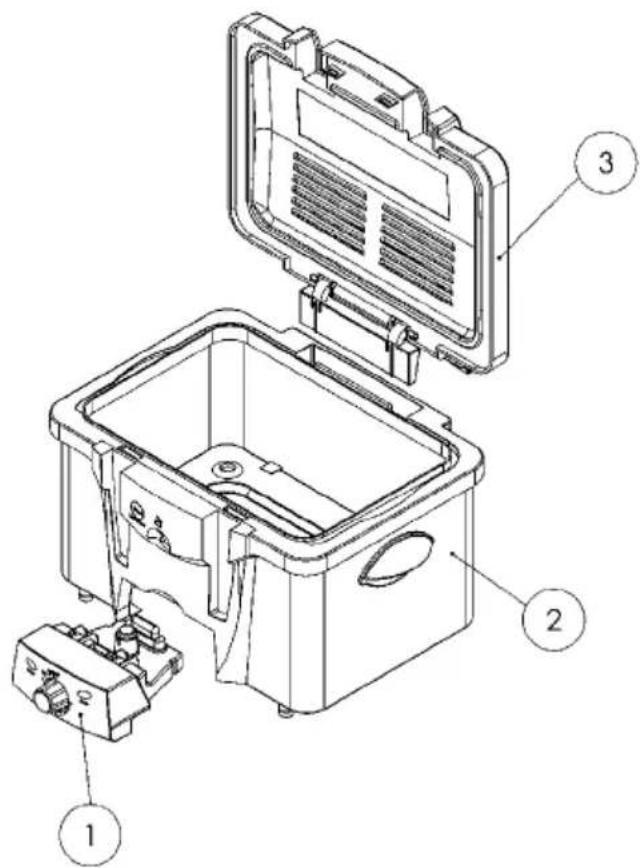

Description and Drawing

1 Operating panel
2 Casing
3 Cover

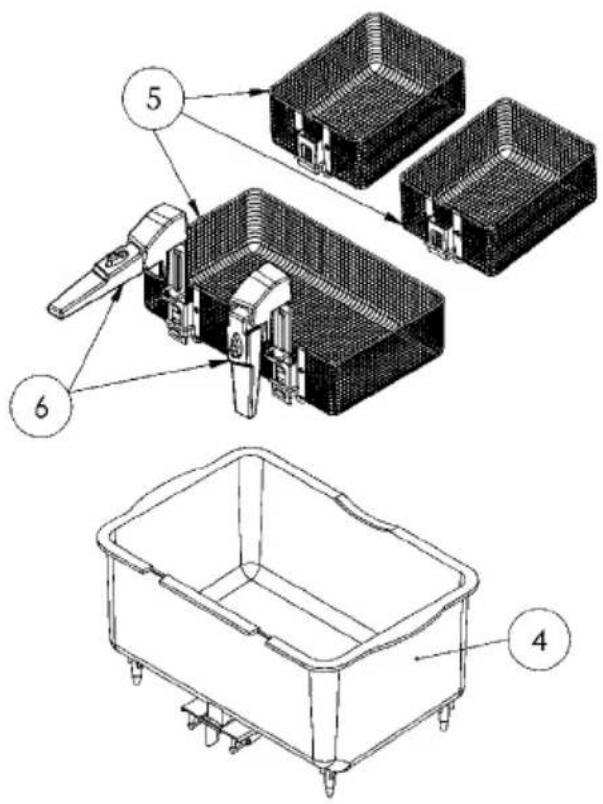

4 Frying container
5 Frying baskets with mounting for depositing on the frame of the frying container
6 Hinged handles

Technical diagram of a device with labeled parts, showing internal components and mounting hardware.

Technical diagram showing exploded and assembled views of a mechanical component with numbered parts labeled 4, 5, and 6.

3 in 1

According to your personal wishes you may use the large frying basket for a chicken half, complete fishes or any other bigger portion (1.2 kg maximum fill quantity). Or you may use the two small baskets at the same time and prepare different kinds of food in each (500 g maximum fill quantity per basket). Just like you wish. Or in case just small portions are needed you can simply use one of the small baskets only.

Total Clean

This unit can be completely disassembled for cleaning purpose. All parts – except for the operating panel – are dishwasher proof. This grants a high level of cleaning convenience.

Introduction

Congratulations, you have decided in favour of a very special deep fryer!

Before starting with frying, we ask you for carefully reading through and observing the following notes. Keep this instruction manual safely. Hand out all documents when passing on the appliance to third persons. Thank you very much.

Intended use

The appliance is designed for frying food. Other uses or modifications of the appliance are not intended and harbour considerable risks. For damage arising from inappropriate use, the manufacturer does not assume liability. The appliance is not designed for commercial use.

Technical data

Nominal voltage: 230 V \~ 50 Hz

Nominal power: 2100 W

Dimensions appliance: 36 x 30 x 25 cm

Weight: 6 kg

Oil volume: max. 3.5 l

Filling quantity: large frying basket: max. 1.2 kg

small frying basket: 2 x max. 500 g

Scope of supply

Check the scope of supply for completeness as well as the soundness of the product and all components immediately after unpacking.

1 Deep fryer composed of

• casing with operating panel
• frying container made of aluminium die cast
• removable cover with permanent filter and inspection window
• 1 large frying basket
• 2 small frying baskets
• 2 handles, easy to release

Please make sure the handles are positioned correctly: "L" on the left and "R" on the right.

1 instruction manual

For your safety

Warning: Read all safety advices and instructions. Non-observance of the safety advices and instructions may cause electric shock, fire and/or bad injuries.

• Never leave children unsupervised with the packing material and the appliance. There is the hazard of chocking by packing material and the hazard of life by burns. Children often underrate the risks. Always keep children away from the product.
• Do not operate the appliance in explosive environments, where inflammable liquids or gases are located.
• Children or persons, not having the knowledge or experience in operating the appliance or having handicaps of physical, sensorial or mental nature must not operate the appliance without supervision or instruction by a person, responsible for their safety. Children must be supervised in order to ensure that they do not play with the appliance.
• Never leave the appliance unattended during operation.
• Pull the mains plug after each use. Never let the cord hang down over the edge of the work surface so that the appliance cannot be pulled down accidentally.

• The power cord, as well as those of other neighbouring electrical appliances, must not touch any hot parts of the appliance or hang down over the edge of the table.

• Place the appliance on a heat-resistant, stable and even surface and do not operate it in the vicinity of other sources of heat (oven, gas flame, etc.). The space above the appliance has to be kept free, the distance to all walls must be at least 10 cm. Unhindered air supply has to be ensured.

• Attention! Hazard of burns! During operation, the appliance's surfaces are getting hot and firstly stay hot even after switching off the appliance. Mind the hazard of burns when touching the appliance.
• Attention! Hazard of fire! Overheated fats and oils can inflame. Therefore, food containing fats and oils may only be prepared under supervision.
• Attention! Hazard of burns! Do not operate the deep fryer in the proximity of or below curtains, cupboards or other inflammable materials.
• Place the appliance on a heat-resistant surface (no varnished tables, no table cloths). Otherwise, the appliance and/or pieces of furniture may be damaged.
• Do not at all operate this unit with an external timer or a separate telecontrol system.
• Check the power cord regularly for damage and deteriorations. Do not operate the appliance when the power cord or the mains plug is damaged.
  Attention! A damage power cord presents a hazard of life by electric shock. Have appliances, which do not work faultlessly or which are damaged, immediately and only checked and repaired by the after-sales service.
• Do not misuse the power cord for unplugging the appliance by pulling at the cord. Keep the power cord away from hot surfaces, sharp edges and mechanical forces. Damaged or entangled cords increase the risk of an electric shock.
• Do not use the appliance as depositing rack and do not transport it when hot.
• Never immerse the appliance in water for cleaning. Make sure no steam or water can infiltrate the underside.
• This electrical appliance complies with the relevant safety standards. In case of signs of damage to the appliance or the power cord, unplug the appliance immediately. Repairs may be effected by authorised specialist shops only. Improper repairs may result in considerable dangers for the user.

Important safety notes

• Never cover the permanent filter (cover) and be wary of steam escaping.
• Wipe the frying container dry before filling it with oil/fat. Check to see that the cover with permanent filter and frying baskets are completely dry before using the deep fryer.
• The level of the oil/fat must always range between the MIN and MAX marks. The marks are at the back wall of the oil tank. Never use the deep fryer without oil/fat in it.
• Moist food needs to be dabbed dry before deep-fried. Remove any loose ice from frozen food. Close the cover before deep-frying, lower the basket gradually into the frying oil/fat.
• Make sure there are no inflammable objects located above or beside the appliance. In case the oil/fat catches fire due to overheating pull the mains plug and keep the cover closed. If the deep fryer is open, close the cover. Never use water to extinguish the fire.
• Never immerse the operating panel, the cord or the plug in water.

ATTENTION

- To reduce the injury risk by tangling in a too long cord or by stumbling across it, the appliance has a short cord. Using extension cords for deep fryers is not recommended.

Prior to initial use

Remove all packaging from both appliance and equipment. Before using for the first time clean the appliance according to the “cleaning and maintenance” instructions. Afterwards re-assemble the appliance according to the drawing. Make sure that the deep fryer, cover with permanent filter and the frying baskets are completely dry and there is no residual water at or in the appliance.

What frying oil/fat to choose

Primarily opt for special frying oil/fat, such as sun flower oil, peanut oil, grape seed oil, palm oil, maize germ oil,. When using solid fat, cut it into pieces and do them into the frying container, never into the frying basket. Melt the fat at max. 150°C. Follow the instructions of the fat manufacturer for frying.

ATTENTION

Do not mix different sorts of fat. Waste fat or oil should not be disposed of with your organic or household waste. Please turn to your local authorities to find out on the appropriate collecting points.

How to operate your appliance

Open the cover by pressing the release button.

Remove the frying basket/s from the deep fryer.

Pour good-quality frying oil/fat in the frying container until it reaches between the MIN and MAX oil level mark (approx. 3.5 litres). Never operate the appliance without or with insufficient oil in the frying container. Close the cover.

ATTENTION

Prior to frying, make sure that the basket handles are correctly fixed at the respective basket. Please pay attention to the markings “R” for right and “L” for left. The basket handles can be easily slotted in the mounting at the frying basket and be fixed. The handles can be disengaged by slightly applying pressure downwards and then pulled out of the mounting at the frying basket.

Switching on

Connect the appliance to the electrical outlet. The red pilot lamp lights up.

Switch on the deep fryer by turning the temperature regulator clockwise to the desired temperature (see frying time and temperature chart). The green pilot lamp lights up. That indicates the heating-up of the deep fryer. When the temperature is reached, the power supply will be interrupted and the green pilot lamp will go off. When the temperature drops, both heating element and pilot lamp will automatically turn on anew.

Frying

Place the food in the frying basket. Dab it with paper towels first.

Open the cover and fix the respective frying basket with the mounting in the intended guiding at the frying container's rim. Now close the cover and lower the basket slowly into the oil/fat. For this purpose, lift the frying basket out of the fixing by means of the flapped handles and slightly move it forward. Not later than now, the temperature of the regulator should be reduced to max. 170°C.

ATTENTION

To prevent and reduce the formation of Acrylamid we recommend frying the food always until it is golden instead of dark or brown and removing burnt remains instead of eating them. Food containing starch, especially such derived from cereals and potatoes or breaded food, should not be fried at temperatures beyond 170°C.

When the frying process is finished, lift the frying basket, fix the basket handles with the mounting in the intended guiding at the container's rim and let drip the oil/fat. Now open the cover, the food is ready for serving.

Switching off

Switch off the appliance by turning the temperature regulator anticlockwise to the zero-position and pulling the mains plug.

Different frying baskets

Large frying basket

Capacity: max. 1.2 kg

Sufficient for 1 carp or any other whole fish, 1/2 chicken, larger portions of chips.

Two small frying baskets

Capacity: 2 x max. 500 g

Suitable for frying different kinds of food at the same time. Please consider the different temperatures and frying times according to the frying time and temperature chart.

Note: Please be aware of the impairment of flavour when preparing different food at the same time.

Frying time and temperature chart

This chart is applicable when using the big frying basket. Frying in the small baskets requires a corresponding reduction of the quantities.

The times given are only approximate. They can be varied according to quantity, temperature and consistency of the food as well as of the personal taste.

Food Temperature		Maximum Quantity	Time	Recommended filling quantity	Time
fresh chips	180°C	1200g	10-12	min 600g	6-9 min
frozen chips	180°C	1200g	12-15	min	5-850in
country potatoes	180°C	400g	20-25 min
fresh poultry	170°C	400g	20-25 min
frozen poultry	170°C	400g	25-30 min
fresh escalope	160°C		4-5 min
fresh fish fillet	170°C	400g	8-10 min
frozen fish fillet	170°C	400g	10-15 min
shrimps in batter	170°C		4-5 min
onion rings	150°C	300g	5-7 min
mushrooms	150°C	300g	7-10 min
breaded camembert	180°C		2-3 min
doughnuts	180°C		5-6 min
fried pies	180°C		5-6 min
apple fritters	170°C		5-6 min

The basic rule of thumb is: The food to be fried must be floating in the oil/fat freely to guarantee proper frying results with food turning out crisp and evenly brown.

Tip: For uniform frying results cut the food into pieces of equal size making sure those do not become too thick. Fry by portions. Reduce the quantity of food, especially when frying frozen food.

Tip: You can extend the oil's/fat's shelf-life if doing without salting or flavouring the fried food over the uncovered frying container. Filtering the oil/fat and keeping it in the fridge after use will have a positive effect on its shelf-life. We recommend replacing the oil/fat after every 10^th use at the latest or replacing a part of the oil/fat at regular intervals.

Tips for preparing chips low of Acrylamid

1. Keep oil/fat slightly below 180^ C. In hotter oil, overfried spots with very high Acrylamid contents quickly emerge. Important:

2. Portions of about 50-100 g potatoes per litre oil in the deep fryer: the oil/fat temperature shall decrease slightly but not fall below approx. 145^ C.

Fry larger quantities in portions whereas the oil/fat has to be reheated between every single portion.

1. Acrylamid forms only at the end of the frying process whereas its concentration increases very quickly (depending on the quantity of food). Chips must not be overfried.

Observe carefully!

Good chips with little Acrylamid are golden and have slightly browned ends (flavour). The general browning has not been started yet.

Cleaning and maintenance

Your deep fryer can be completely disassembled for a most convenient cleaning procedure (Total-Clean system).

Always pull the mains plug and let the appliance cool down before cleaning it!

Open the cover and remove the frying basket. Then lift the cover off the hinge and take out the frying

container holding it at its rim. Use caution when there is oil/fat in the container. Dispose of the oil/fat, pouring it in a suitable container.

Withdraw the operating panel from the deep fryer pulling to the front. It must not become wet.

For the cleaning of frying basket, frying container, cover, casing and accessories we recommend handwash in hot soapy water. Cleaning in the dishwasher might corrode the surfaces because of the used dishwasher salt. Do not use sharp objects, brushes or abrasives.

Never immerse the heating element with the control element in water.

Use a damp cloth only for cleaning it.

Thereafter, dry all parts thoroughly, particularly the contacts joining the heating element. The guide rails in the cover are simultaneously condensate collection area. Regularly dispose of the water gathered there.

After cleaning, make sure the deep fryer is properly re-assembled in the reverse order of its disassembly. Make sure that the locking at the heating element (frying container, frontal bottom side) engages correctly in the fastener.

The permanent filter provided in the cover can be removed as required and cleaned in hot water using a brush.

ATTENTION

The deep fryer and all parts must be completely dry before each time of use.

Disposal

Symbol of a trash bin crossed with diagonal lines, indicating no waste or discharge

According to the Waste Electrical and Electronic Equipment Directive, this product must not be disposed of with your normal domestic waste at the end of its life-span. Therefore, please deliver it at no charge to your appropriately licensed local collecting facilities (e.g. recycling yard) concerned with the recycling of electrical and electronic equipment. Please approach your local authorities for how to dispose of the product.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a blank rectangular block below (no text or symbols)
