Operating Instructions.

Close-up of a dark, textured object with a light edge, possibly a panel or panel frame (no visible text or symbols)

• Calida 5784 ZP
• Planus 4663 Z
• Planus 4670 ZW
• Planus 4672 ZP
• Planus 4872 Z

TV.

Television HomeMultiMedia DVD/Video Audio Telekommunikation

LOEWE.

Contents

Remote control – TV functions 3

Control panels 4

Rear connections 5

Welcome 6

Thank you

TV equipment

Setup and cleaning

For your own safety 7 - 8

Initial installation 9

Batteries – remote control

Connection

Switching on

Initial installation

Daily handling 10

Switching on/off 10

Changing channels 10

General menu operation 11

Adjusting the sound 11

Adjusting the picture 11

Operation on the set 11

Modes of operation 12 - 17

TV mode 12

Picture in picture 13

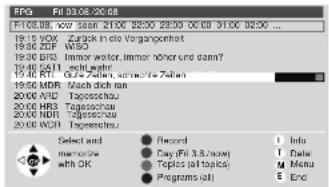

EPG mode 14-15

Teletext mode 16

Video mode 17

Operating additional equipment 18 - 20

Logging in and connecting

AV equipment 18

Video playback 19

Loewe video recorders and direct

operation of Loewe DVD players 20

What to do if ... 21 - 22

Technical data

Mechanical data

Electrical data

Accessories

Service addresses 24

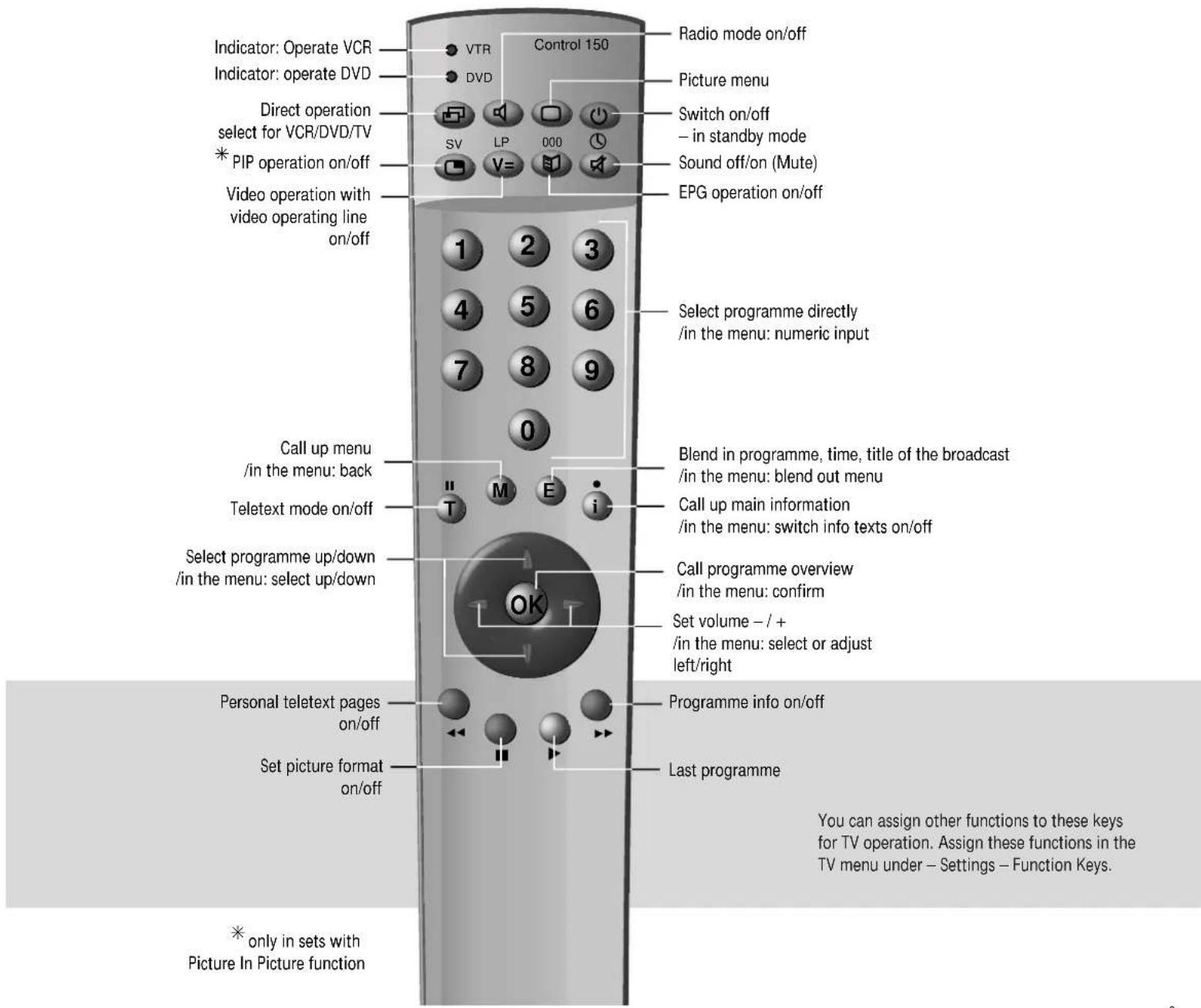

Remote control – TV functions

Indicator: Operate VCR Indicator: operate DVD Direct operation select for VCR/DVD/TV * PIP operation on/off Video operation with video operating line on/off Control 150 VTR DVD SV LP 000 EPG operation on/off Radio mode on/off Picture menu Switch on/off - in standby mode Sound off/on (Mute) Select programme directly /in the menu: numeric input 1 2 3 4 5 6 7 8 9 0 Call up menu /in the menu: back Teletext mode on/off Select programme up/down /in the menu: select up/down " M E i" OK Blend in programme, time, title of the broadcast /in the menu: blend out menu Call up main information /in the menu: switch info texts on/off Call programme overview /in the menu: confirm Set volume - / + /in the menu: select or adjust left/right Personal teletext pages on/off Set picture format on/off Programme info on/off Last programme * only in sets with Picture In Picture function You can assign other functions to these keys for TV operation. Assign these functions in the TV menu under - Settings - Function Keys.

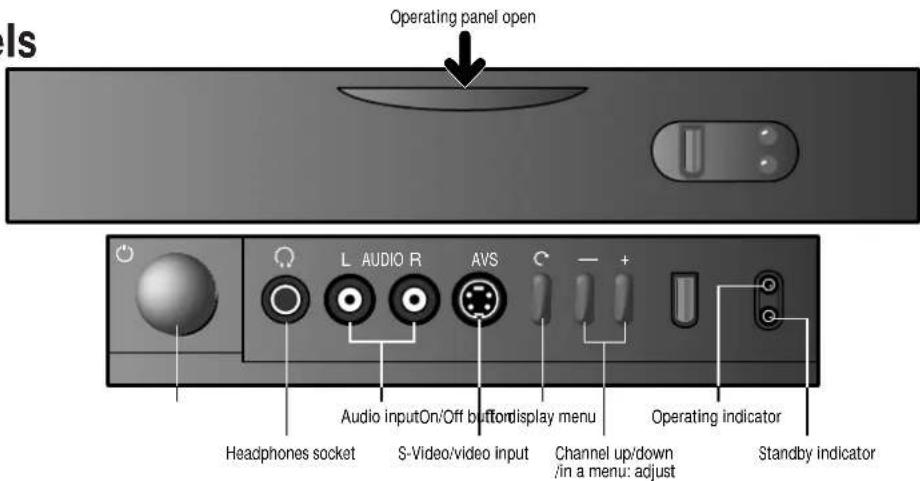

Control panels
Calida 5784 ZP

Is Operating panel open L AUDIO R AVS C - + Audio input On/Off button display menu Headphones socket S-Video/video input Channel up/down /in a menu: adjust Operating indicator Standby indicator

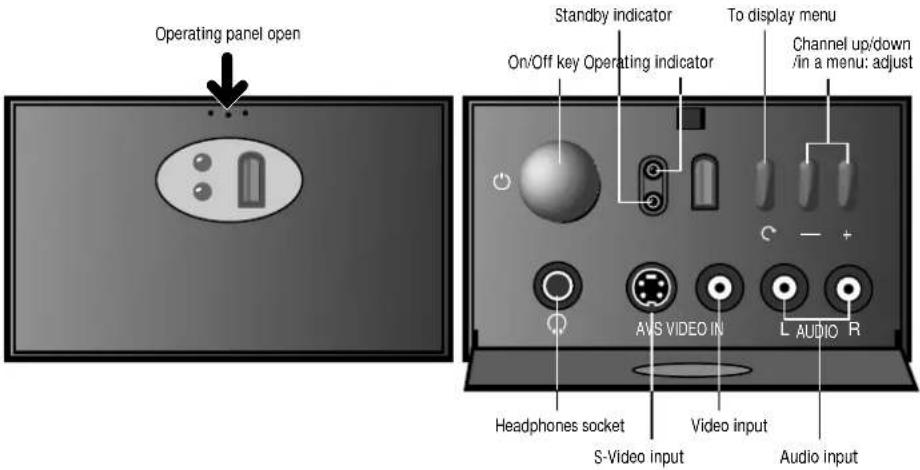

Planus 4872 Z

Operating panel open Standby indicator On/Off key Operating indicator To display menu Channel up/down /in a menu: adjust AVS VIDEO IN L AUDIO R Headphones socket Video input S-Video input Audio input

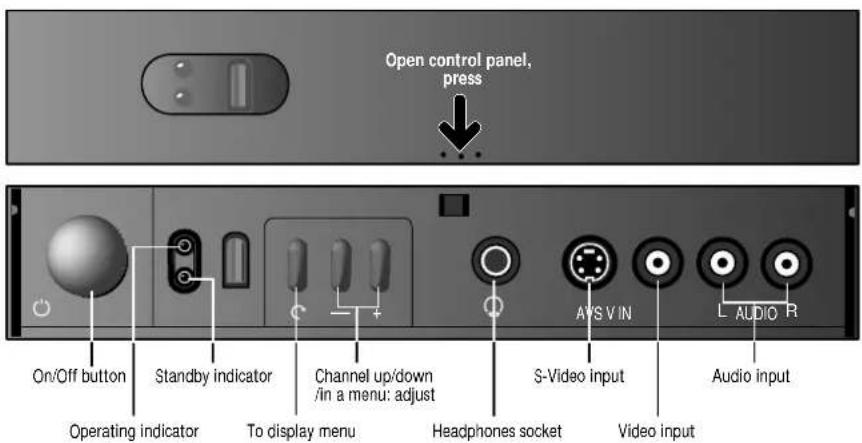

Planus

Open control panel, press On/Off button Standby indicator Channel up/down /in a menu: adjust Operating indicator To display menu Headphones socket S-Video input Audio input AVS VIN L AUDIO R

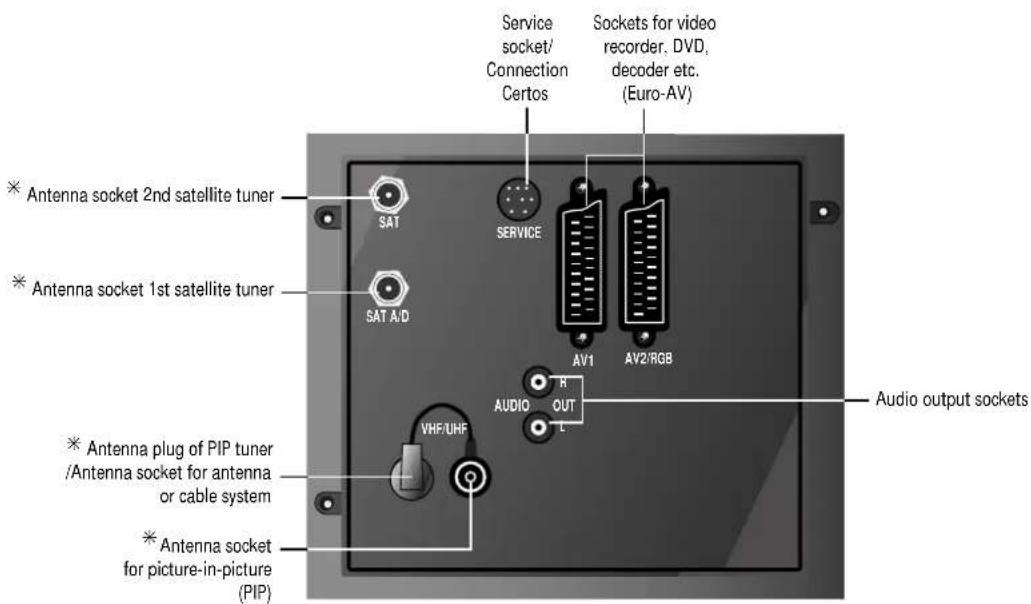

Rear connections

Service socket/ Connection Certos Sockets for video recorder. DVD, decoder etc. (Euro-AV) Antenna socket 2nd satellite tuner SAT SERVICE Antenna socket 1st satellite tuner SAT A/D AV1 AV2/RGB Audio output sockets VHF/UHF R OUT L Antenna plug of PIP tuner /Antenna socket for antenna or cable system Antenna socket for picture-in-picture (PIP)

* depending on equipment and type of set or retrofittable

Welcome

Thank you,

for choosing a Loewe product.

We are very happy to have you as a customer.

Loewe combines high quality in technology, design and user friendliness. This applies equally for TV, video and accessories.

Neither the technology nor the design are an end in themselves but serve to give our customers pure watching and listening enjoyment.

We have not allowed ourselves to be led astray by short-lived fashion trends in the design. You have, after all, purchased a high-quality piece of equipment which you don't want to get tired of looking at tomorrow or the day after.

About the set

We have designed the TV set in such a way that it is easy to operate with menus. If you need information about how to operate it, just display the info texts with the i button, you will soon get a grasp of the relationships.

You will find the answers to many technical questions in the index of your TV set. If it's a matter of operating the TV, you can access a function directly from the index. This saves you from having to read through detailed operating instructions and is the reason why this operating manual you are reading only explains the most important operating steps.

With the remote control, you can operate three Loewe units, this TV, a Loewe video recorder and a Loewe DVD player.

TV equipment

This operating manual describes the maximum equipment.

Functions marked by ^* are not available in all TV sets.

The illustrated menu contents may vary depending on the TV equipment.

You can find out what equipment your TV has in the main information – Technical spec. of TV set.

Setup and cleaning

Please note that the feet of the TV set could leave marks on soft wood furniture (e.g. deal, pine, fir etc.) due to the weight and moving the set about.

The plastic material of the feet contains softeners which could in some cases etch the surfaces of furniture.

In such cases you should place a firm underlay about the same size as the base of the TV set underneath it.

Please also read and observe the safety instructions on the following pages.

Make sure no bright light or sunlight falls on the screen and impairs the picture by reflections.

Clean the TV set only with a damp, soft, clean cloth (never use aggressive or abrasive cleaning agents).

For your own safety

For your own safety and in order to avoid unnecessarily damaging your TV set, please read and observe the following safety instructions:

• This TV set is designed exclusively for receiving and reproducing audio and visual (AV) signals.
• It is designed for the home or office and may not be used in rooms with high humidity (e.g. bathroom, sauna) or a high concentration of dust (e.g. workshops). If the TV set is occasionally used outdoors, you should make sure that is protected from water (rain, splashing, dew). High moisture and dust concentrations produce creep currents in the set which can lead to danger of electric shock or fire.

The manufacturer's warranty is only valid for use of the TV set in the specified permissible environment.

• This set may only be connected to a power supply with the voltage and frequency specified on the rating plate using the enclosed power cable. The wrong voltages can damage the set.
• If the set is moved from a cold environment to a warm room, condensation forms on all parts of the set. Moisture produces creep currents in the set which can cause a fire. In this case, you should leave the set for a reasonable time to acclimatize (when the condensation on the screen has evaporated) before switching it on.

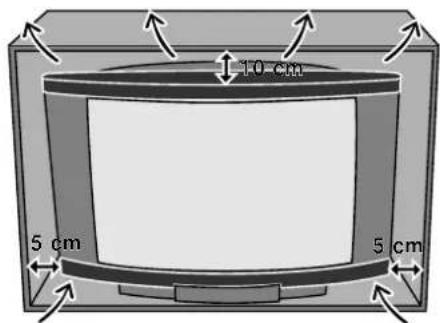

- Like every piece of electronic equipment, your TV needs air for cooling. Obstructing the air supply to the set can cause fires. The air vents on the back of the TV set must always be kept free. Do not leave newspapers or cloths lying on the TV set. The air supply is also impaired when the TV set is placed on a blanket or a thick pile carpet.

10 cm 5 cm 5 cm

If the TV set is placed in a cabinet or on a shelf, at least 5 cm clearance at the sides and at least 10 cm at the top must be left to allow air to circulate.

Stand the TV set in a place where it is not exposed to direct sunlight or additional heating from radiators.

- Magnetic fields influence the picture quality of the TV set. Do not place loudspeakers or other magnetic sources immediately next to the TV set.

- Avoid dropping metal objects, needles, paper clips, liquids, wax or similar into the air vents at the back of the set. This causes short circuiting of the set and could start a fire. If anything should get inside the set, switch it off immediately, pull out the plug and call the after-sales service to check it.

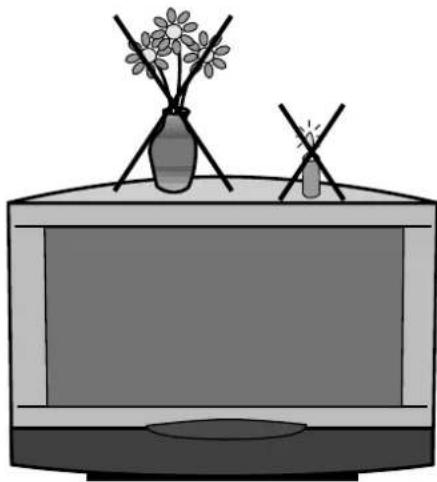

Illustration of a flat-screen TV with two decorative vases and dried flowers on top (no text or symbols)

Do not place vases filled with water, lighted candles etc. on the top of the TV set.

For your own safety

• You should never attempt to remove the rear panel of the TV yourself. The set operates with high voltages which could be fatal. Leave repairs and servicing of your TV set to authorized TV technicians.

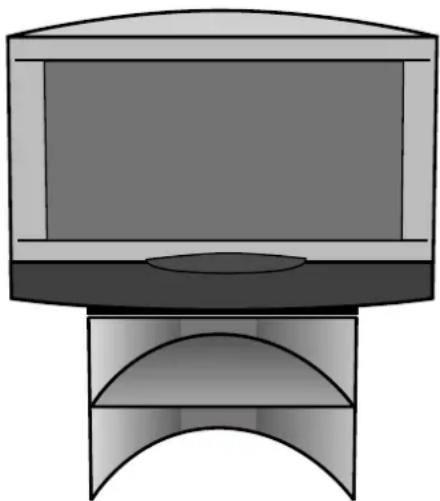

• Due to the picture tube, TV sets have their center of gravity fairly near to the front. The TV set therefore has a tendency to tip forward relatively easily which could cause injury to persons.

Only stand the TV set on a level, firm base. The set must stand on all feet. The TV should not overhang particularly when it is placed in a cabinet or on a shelf. If the TV is placed on a stand, makes sure this is larger than the surface area of the base of the TV.

When using turntables and drawer shelves, make sure they have a sufficient load capacity.

Simple line drawing of a monitor with an arched base (no text or symbols)

We recommend you to use only original parts, e.g. Loewe racks and stands.

If the TV set is placed on a console with castors, move the console carefully because the console and the TV could tip over. Consoles with castors may considerably reduce the stability of the sets placed on them so only use consoles specially designed and approved for the TV. Never allow children to handle the TV set unsupervised.

Do not allow children to play close to the TV set, they could knock, push or pull it from the stand and injure someone.

• Do not place the TV anywhere where it may be exposed to vibrations because this can lead to overloading of materials.
• Do not leave the TV on unsupervised.
• Pull out the antenna and mains plugs during a thunderstorm. Surge voltages from lighting strikes can damage the set both through the antenna system and the mains. You should also pull out the antenna and mains plugs during long periods of absence.
• The mains plug of the TV must be easily accessible so that it can be disconnected from the mains quickly at any time.
• Lay the power cable so that it cannot be damaged. The power cable may not be kinked or laid over sharp edges, and may not be walked over or exposed to chemicals; the latter applies for the entire TV set. A power cable with defective insulation can lead to electric shocks and is a fire risk.
• When you pull out the mains plug, do not tug the cable but hold the housing of the plug. The cables in the mains plug could be damaged and cause a short circuit the next time it is plugged in.

Initial installation

Batteries – Remote control

To insert or change the batteries, press the point marked by an embossed arrow. Push the cover of the battery compartment down and remove it. Insert the batteries of the alkaline manganese type LR 03 (AAA) with the correct polarity (+/-).

Simple 3D illustration of a cylindrical container with three small dots and a triangular indentation (no text or symbols)

Cross-sectional diagram of two cylindrical batteries with positive charge indicators (no text or symbols)

Then push the cover back on.

Note on disposal of batteries:

The original batteries do not contain any pollutants such as cadmium, lead and mercury. Used batteries do not belong in the domestic waste. They must be taken to the appropriate collection points according to the national laws. Ask your dealer.

Connection

Mains

Connect the TV set to a 230V/50–60 Hertz outlet.

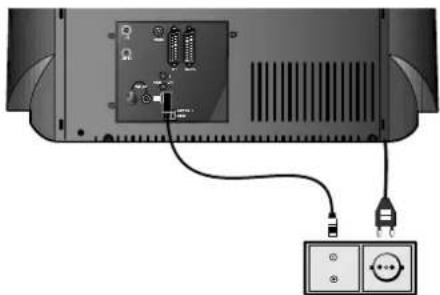

Antennae

Connect your antenna or cable system to the VHF/UHF antenna socket. If your TV is equipped with a picture-in-picture tuner (PIP), plug the antenna plug protruding from above the PIP antenna socket into the antenna socket for the VHF/UHF tuner. Plug the antenna plug of your antenna or cable system into the socket of the PIP tuner. If your TV set is equipped with one or two satellite tuners, connect the SAT antennae to the SAT sockets (see figure on page 5).

Back view of a computer monitor with an attached power outlet and cable (no text or symbols visible)

Switching on

You will find the ON/Off button of the TV behind the control panel cover. Open the control panel flap.

Press the On/Off button so that it snaps in.

Initial installation

Automatic programming of the TV set is started the first time you switch it on. Follow the menus.

First you have to select the menu language for your set. Then you specify which antenna you have connected to your TV and in what country you are using it. Then you start the station search. The TV searches for, stores and sorts all the stations which your antenna system receives. You then see a list of the stored stations in which you can mark your favorites. Then you log in your video recorders and connect them as shown in the wiring diagram.

Select the settings with the arrows on the ring ...

... confirm the settings with OK. You then move on to the next menu ...

... press this button if you want information about the settings.

You can repeat initial installation at any time, e.g. after moving house. Call the index in the main information (i button). Then select the item "Repeat initial installation". Then start "Initial installation" with OK.

Daily handling

Switching on/off

Your TV set is equipped with an eco-standby power supply unit. The power consumption drops to low power in standby mode. If you want to save even more energy, switch the set off with the On/Off switch. However, please note that EPG data are then lost and timer recordings programmed on the TV set will not be carried out.

If the TV is switched on, you can switch it off with the blue On/Off button on the remote control. The red standby LED on the set lights up. If the green LED also lights, a timer recording is programmed, EPG data is being acquired or radio mode without screen display is active.

From standby it is best to switch back on with the blue On/Off button or with a numeric key (station 0-9). The green operating LED then lights up.

When you switch on the TV with OK, you see the station table and can choose a station.

Switch on in the radio mode.

You will find the On/Off button of the TV behind the control panel cover.

None of the indicators lights up when you switch off the TV set with the On/Off button on the set.

Switch on the TV set with the On/Off button on the set when it is switched off.

Changing channels

Channels up/down (only favorite stations if these are shown in the station table).

With the numeric keys on the remote control The set has a dynamic memory with 220/with DVB 1470 memory slots. If up to 9 stations are stored, you only need to enter one number, up to 99 two numbers, up to 999 three numbers and above 999 four numbers (please look in the station table to find out how many stations have been stored).

long

short long

short short long

1-digit stations

Keep the button 0 – 9 pressed for one second, the channel then changes immediately. or press the button 0 – 9 briefly, the channel then changes after 2 seconds (immediately when up to 9 stations are stored).

2-digit stations

Keep the second numeric key pressed for one second, the channel then changes immediately. or press both numeric keys briefly, the channel then changes after 2 seconds (immediately when up to 99 stations are stored).

3-digit stations

Keep the third numeric key pressed for one second, the channel then changes immediately. or press the three numeric keys briefly, the channel then changes after 2 seconds (immediately when up to 999 stations are stored).

4-digit stations

Press the four numeric keys briefly, the channel then changes immediately.

all short

Depending on how many stations have been stored, you can place one or more zeros in front of the number and select for example station 7 = 07 or 007 or 0007.

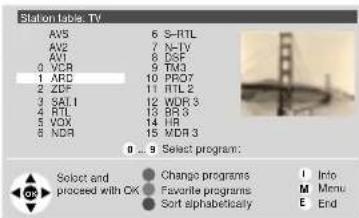

About the station table

Call the station table with OK

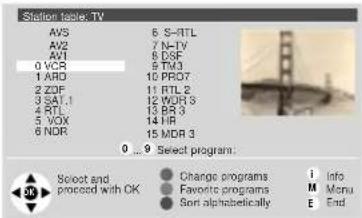

Station table. TV AVS 6 S-RTL AV2 7 N-IV AV1 8 DSF 0 VCR 9 TM3 1 ARD 10 PRQ7 2 ZDF 11 RTL 2 3 SAL1 12 WDR 3 4 RTL 13 BR 3 5 VOX 14 RB 6 NDR 15 WDR 3 0 ... 9 Select program: Select end proceed with OK Change programs Favorite programs Sort alphabetically I Info M Menu E End

Mark the station (the marked station is shown in the PIP picture*)

or

Mark with numeric keys

Call the marked station

Sort alphabetically/numerically (blue button)

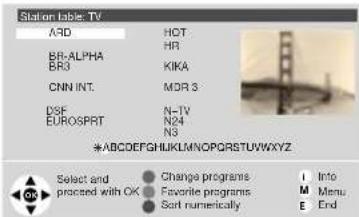

Station table: TV ARD HOT HR BR-ALPHA BR3 KIKA CNN INT.MOR 3 DSF N-TV EUROSPRT N24 N3 *ABCDEFGHIJKLMNOPQRSTUVWXYZ Select and proceed with OK Change programs I Into ● Favorite programs M Menu ● Sort numerically E End

Display favorite stations only (yellow button)

Call Audio/Video programs – AV selection

for playing AV equipment (see also page 19).

AV Selection VCR AV1 AV2 AVS

Select AV socket or VCR for VCR station.

Daily handling

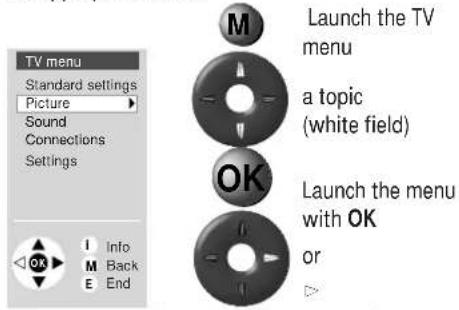

General menu operation

With the TV and picture menus, we show you how to navigate within the menus. Which buttons you can use for operation is shown at the bottom of the appropriate menu.

Launch the TV menu

a topic (white field)

Launch the menu with OK

s cannot be

Grey menu items cannot be selected

Set (setting value and bar)

Mark other menu items

i Info M Back

1. End

Select (frame)

Show/hide control bar

mal

ma,

I DNC [Digital Noise Control] With DNC you can eliminate or reduce picture interference, e.g. due to poor reception.

Back to the previous menu level

Hide all menus

Adjusting the sound

Adjusting the volume

Adjust the volume

Volume 36

Mute

Sound off; Sound on: press button again or adjust volume

Sound off

Sound or

Call sound menu

Call TV menu

Mark "Sound"

Call sound functions

Select sound settings

Mark sound function

Set/ select

Set teletext volume

Sound off

Set volume

Adjusting the picture

Call the Picture menu

Call the TV menu

Mark "Picture"

Call picture functions

Call picture settings

Mark picture function

Set/ select

Operation on the TV set

Changing channels on the TV set

Channel up

Channel down

Volume, contrast and color

Direct control on TV Volume 16 Contrast Colour Station -/+ Service Mark Change

Press the function button until the desired function is marked

More volume, contrast or color

Less volume, contrast or color

Modes of operation

TV mode

In initial installation and daily operation, the TV set is in TV mode. This is also the case when none of the other modes of operation such as EPG, Teletext, PIP, Video or Radio is selected. Every one of these modes of operation has a menu which you can call with the M-button and with some color button assignments.

Function of the color buttons in TV mode

You can assign the functions of the four color buttons yourself. The following functions are set at the factory:

red: list or call personal teletext pages

green: call picture format setting

yellow: call last viewed station

blue: call station info

You can assign other functions to the buttons in the TV menu "Settings" – "Function keys".

Status display

Show/hide status

Clock 20:15

1 ARD Stereo

Station table

Show/hide table

Station table: TV AVS 6 S-FTL AV2 7 N-TV AV1 8 DSP 0 VCR 9 TM3 1 AHD 10 PSDDY 2 ZDF 11 RTL 2 3 SAT 12 WDR 3 4 FTL 13 DR 3 5 VOX 14 HR 6 NDR 15 MDR 3 0 Select program: Select and proceed with OK Change programs Favorite programs Sort alphabetically Info Menu End

Main information

Call main information

Main information Autom. channel search Connections Operating Information Explanation of the remote control Index Technical spec. of TV set Select control level OK Select and call up with OK Info M Back E End

The explanation of the remote control shows the function of every button in different modes of operation of the TV set and the remote control.

The index answers many questions regarding all aspects of the TV. If it is a question about the operation, you have direct access to the operating function from the index.

Loewe TV sets are supplied in different models with different equipment. You can find out what equipment your TV has under the menu item "Technical spec. of the TV set".

When you have made all the settings and connections, you can switch over to "Simplified control" using "Select Mode". Then the "Settings" and "Connections" can no longer be launched in all modes of operation menus. Switch "Simplified control" back off when you want to make settings.

TV menu

Call the TV menu

TV menu Standard settings Picture Sound Connections Settings i Info M Back E End

Standard settings

You can save the setting for picture and sound you have made in this menu and call them again later.

Connections

You will find information about this in the chapter "Logging in and connecting AV equipment" on page 18.

Some settings in the TV menu:

Child lock

Use the child lock if you want to prevent your children watching after a certain time, once or daily, all or certain programs.

On-screen displays

You can set the duration and position of the displays and define the content of the status display.

Timer functions

You can have your TV switch on and off at specific times or have yourself reminded by a signal tone.

Time and date

When you receive teletext, the TV records the right date and time settings. The time serves as information for timer recordings, timer functions and EPG. If you do not receive teletext you should set the date and time and not switch the TV off with the mains button as the settings will then be lost.

Language

If "your" menu language is not set, you have to select the "Language" menu in a language you cannot understand:

Press the M-button (TV menu), mark the last menu item (settings), press the OK-button and mark the last menu item (Language) under "other ...". and press the OK button.

Now select the right language and confirm with OK.

Modes of operation

Picture in Picture (PIP) \*

You can display a small picture inside the TV picture.

Show/hide PIP picture

Black-and-white photo of a suspension bridge with two towers and an inset image showing a flying aircraft over water (no text or symbols visible)

PIP picture as still frame

The frame around the PIP picture must be green. If it is not, press the green button.

Press the red button to freeze the PIP picture.

Press again – moving picture.

Changing the station of the PIP picture

The frame around the PIP picture must be green. If not, press the green button.

Then select the station as normal.

Black-and-white photo of a suspension bridge with visible towers and cables, no text or symbols present.

Changing the station of the TV picture

The frame around the PIP picture must be white. If it is not, press the green button.

Then select the station as normal.

Close-up of a dried, spiky object with a bright light source, possibly a mushroom or flower (no visible text or symbols)

Station scan

The frame around the PIP picture must be green. If it is not, press the green button.

Start the station scan with the blue button. The PIP frame turns blue.

Stop the station scan with the blue button. The PIP frame turns green again.

Close-up of a bright, spiky object with a scale bar labeled '1 ARD' in the corner (no other text or symbols visible)

Changing PIP picture/TV picture

The frame around the PIP picture must be green. If it is not, press the green button.

Change the pictures with the yellow button.

Black-and-white photo of a suspension bridge with an inset image showing a magnified view labeled '2 ZOF' and '1 ARD' (no readable text or symbols beyond labels)

Position of the PIP picture

Call the PIP menu with the M-button.

Select the symbols for the position.

RF-aster Color 1 Info 2 Black 3 End

Modes of operation

EPG mode

EPG is the electronic program guide for TV programs. With this system, you can easily find the stations that interest you (sorted according to time, day, topics and programs). You can memorize stations and station recordings.

A wizard is activated the first time you use EPG (not with DVB) which guides you through the necessary settings. Then run the data acquisition (see page 15).

Using the EPG

Switch EPG on/off

FPO File 03.08:200.08 F108.08, now seen 21:00 23:00 25:00 00:00 31:00 02:00 ... 19:15 VOX Zurück in die Vergangenheit 19:06 ZDF WISO 19:00 DRS Immor weler, immer höher und dann? 19:40 SATI echt arrow 19:40 RTI Güre Zellen, schriftel Zellen 19:50 MDR Nach dich ran 20:00 AID Taposschau 20:00 HRS Taposschau 20:00 NDR Taposschau 20:00 WCH Taposschau Select and membrane with OK Record Day (Fri 3.8 now) Topics (all tasks) Programs (all) Info Date Menu End

The first line is framed initially in green. The green frame stands for time and date, with the green button you switch between time and day or, if the frame has a different color, back to the green frame. With the arrow buttons < ▶ you select: now, later, the time or day for starting stations. The list of stations below is updated accordingly. With the buttons ▽ ∧ you mark a station you want to watch (now running), memorize or record.

EPS Edit 03.06.2020 Player: Topic all ... Holiday Start Child Knowledge Music 12:00 NDR: WarenFlex-13:00 14:03 ARD: WunschBox 20:45 MDR: Sas deutsche Schlagemnagath 21:00 NDR: Glurs to Hus 22:05 NDR: Glurs to Hus 12:00 NDR: WarenFlex 14:03 AID: WunschBox Select record Info and view Day (8.8.12:00) Menu with OK Topbox (music) Find Programs all

The frame turns yellow when you press the yellow button. The yellow frame means you can select topics. With the arrow buttons ≤slant ▷ you choose between personal topics, all topics and the individual main topics such as Film, News, Show, Music etc. The list of stations below is updated accordingly. With the ∨ △ buttons, you

mark a station you want to watch (currently running), memorize or record.

EP3 Favorite programs all ARD ▶ Selection 14:00 ARD WunschBox 15:89 20:45 MDR Das deutsche Schlagenmagazin 14:08 ARD WunschBox Select and memolize with OK Record Info Time [Sat 4.8/14:08] Monu Topics [Music] List

The frame turns blue when you press the blue button. The blue frame signifies station selection. Use the arrow buttons ≤slant to choose between your favourite stations, all stations or the station just set. You can select another individual station by moving to Select with > , marking a station in the list and storing it with OK. The respective current settings you last made in the colour-framed first line are shown in addition to the operating notes for the green, yellow and blue buttons.

Direct input of time

You can also enter the time directly with the numeric keys of the keypad. After entering the first digit, the time is displayed first next to the symbol of the green button by asterisks and is then replaced by the entered numbers, e.g. 2100. If the entered time has already passed, its entry is used for the following day.

Watch a station or watch a memorized station or memorize a station

You memorize the station marked with the ▼ ▲ buttons by pressing the OK-button. The symbol + is placed in front of the title of the station. The TV switches over to this station when it starts.

Programming a VCR recording

You prepare the station marked with the ∨ △ buttons for recording by pressing the red button.

Calling detailed information

If detailed information about the selected station is available, you will see the T-button displayed additionally. You can call the detailed information with this button.

Other functions in the EPG menu:

List of memorized stations

You will find the stations you have memorized in a list, also DVB radio stations.

Switch on TV at memo

You can have the TV switched on automatically from standby at the time of the memorized station. If you are not in at the time, a safety prompt makes sure the TV switches off again after 5 minutes.

Indicate/start memorized station

If the TV is already on when the memorized station starts you can have the start of the station indicated or the TV switched over immediately.

Short info lines

Short infos are broadcast for many programs. Set how many lines this information should have or switch the short info lines off.

EPG entry

If you want to start EPG operation, you can retain your last settings for topic and program selection or start with all topics and all programs.

Modes of operation

EPG settings

If you want to change the provider or want to have other programs evaluated, you can do this in the EPG menu.

Provider search

EPG on/off

Call EPG menu

EPG menu List of memorized stations Select provider/program Favorite programs Select personal topics Switch on TV when marked yes Memorized stations first report other... i Info M Back E Ens

Mark "Provider/Select station"

Call

Select provider SPAT PRJ07 RTL2 TV5 TRT1 Select provider and confirm with OK Provider search Change provider list Program selection Info M Back E End

Start provider search (green button). This may take some time.

Mark the provider

Save the provider

This is followed by a station search and a list of TV stations is displayed which transmit data. Move on to the provider selection with the OK-button. If the stations offered are what you want, move on to the station selection with the blue button.

Selecting stations for EPG

Select the stations here for which information is to be collected.

Program selection: 3SAT 0 VCR 1-ATD E 2-ZDF E 3-SAT1 E 4-RTL E 5-RTX E 6-S-RTL E 7-N-TV E 8 DSE E Select programs and mark with OK S - Mark Mark all Mark only E 18 KIKA 19 PHOENIX E 20 EUROSPRT 21 KABLI 1 22 MTCV 23 QNN INT. 24 HOT 25 TV S 26 VWA Mark Mark all Mark only Info M Back E End

Stations marked by + are favorite stations. The provider supplies information for stations marked by E (terrestrial, cable and analog satellites) and D (digital), these are already marked (blue letters).

Mark the station/Remove the marking

red: Only mark favorite stations

green: Mark all stations

yellow: Only mark this station

Back to the EPG menu

Switching data acquisition on/off

Mark "Data acquisition" in the EPG menu under "other"

Select data acquisition off/on

EPG menu other ... Data acquisition off on Short info lines nons EPG entry last setting Info Back End

If, for example, you cannot receive any EPG providers and no DVB is installed in the TV set, you should switch off the data acquisition.

Performing data acquisition

The data must be collected first after these settings or every time the TV is switched off. To do this, select the program which you have defined as a provider and leave it switched on for about one hour or switch the TV set to standby mode. The green LED lights up in addition to the red LED after about two minutes. Data acquisition takes about one hour, in sets with a DVB module a little longer. The data are automatically collected between 2 and 5 in the morning when the TV is switched off to standby.

Defining personal topics

You will find the programs that interest you faster when you define your personal topics. Mark "Select personal topics" in the EPG menu and put together your list of personal topics.

Selected enhanced topics Film Nass Show Hobby Sport Child Knowledge Mask Culture General music Jazz Pop/Pop Granola Polo/Easy-Jacking Musicians/Opera Other Search topics and mark with OK mark sit Mark only Info M Back E Find

Radio mode

You can switch the radio mode on and off with the □ button. If at least one satellite tuner and possibly a DVB module are installed in your TV set, you will be able to receive radio stations. If none of these additional modules is installed, you can only select the audio inputs and play back through these with the station table or the √ △ buttons.

Modes of operation

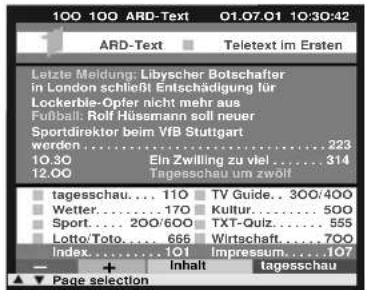

Teletext mode

Teletext transmits information such as News, Weather, Sport, Program Previews and Subtitles.

Teletext on/off

Many stations use the TOP operating system, some use FLOF. Your TV supports both these systems. The pages are divided into general topics and topics. After switching on the teletext, up to 300 pages are stored for fast access.

Selecting pages with the colored buttons

The colored bars (in TOP) or the colored writing (in FLOF) show you which colored buttons to use to scroll to general topics and topics.

red: back to previously viewed page (not with FLOF)

green: forward to next page (not with FLOF)

yellow: to the next topic (only in TOP and FLOF)

blue: to the next topic (only in TOP and FLOF)

Other functions for selecting pages

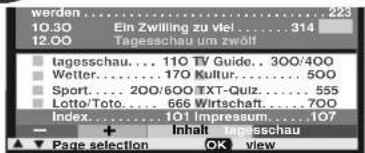

Mark a specified page number on the page (Page Catching)

werden....223 10.3Q Ein Zwilling zu viel....314 12.00 Tagesschau um zwölt tagesschau....110 TV Guide....300/400 Wetter....170 Kultur....500 Sport....200/600 TXT-Quiz....555 Lotto/Toto....666 Wirtschaft....700 Index....101 Impressum....107 + Inhalt tagesschau Page selection OK view

Call

Scrolling in stored sub-pages. In the bottom line you will see which sub-pages you can already call.

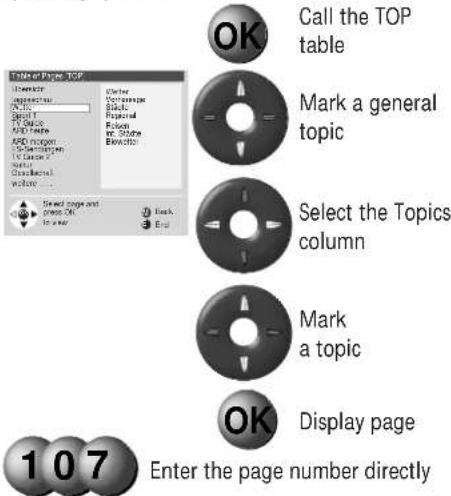

Call contents page 100

The TOP table is a general list of teletext. You can only call the table on stations which use the TOP operating system.

Table of Page: TOP Description View: Close Set up View down Enter Enter page Edit Reported Print Show Show page and Show On Select the Topics column Select the Topics column Mark a topic Mark a general topic Select the Topics column OK Call the TOP table 107 Enter the page number directly

Displaying teletext pages

Stop self-turning pages (HOLD)

zoom: top half—bottom half—normal size

TV picture on/off (Split text)

Scanned screenshot of a mobile phone interface showing address bar, time, and navigation menu with Chinese text.

Teletext menu

Display teletext menu

Here you will find functions such as "New message", "Reveal" hidden information, switch to other stations (if another tuner is available), enter 4-digit sub-page number directly and program video timer recordings via teletext. In the settings you will find menus to define the preview pages, subtitle pages and personal teletext pages.

Adjusting the volume

You can adjust the volume in teletext mode after pressing the sound off/on button ↗.

Modes of operation

Video mode

You can operate Loewe video recorders and DVD players with the video control bars even if they are hidden. The VCR's must be connected to the Euro AV sockets (Scart) and logged in under the "Connections" menu.

Digital Link must be switched on on the Loewe video recorder. Only then can you use the control bar. You also need Digital Link for timer recordings of satellite programs controlled by the TV set.

You can display up to two control bars but they are only displayed by logged in VCR's and DVD players.

Show/hide video control bar

AV2 STOP AV1 STOP AUX i Info M Menu E End

Select the video control bar if several VCR's or a DVD player and a VCR are connected.

Select function

Switch VCR/DVD on/off

Select video input (Euro-AV socket) for the VCR

Rewind (only for VCR) or Scan in rewind

Stop (STOP)

Playback (PLAY)

Fast forward (only for VCR) or Scan in fast forward

Pause (PAUSE)

Next chapter (only for DVD)

Previous chapter (only for DVD)

Record (only for VCR)

Perform selected function.

When you start a recording, the program you have just selected is recorded. You cannot switch over to another channel, it is locked. You can only switch over when the recording has finished.

Exceptions:

1. You have installed several tuners (not PIP tuners) in the TV set, then you can watch another channel with the second tuner.
2. You can also watch the signal via an AV connection (e.g. DVD player or a second VCR).
3. In a VCR with Digital Link Plus the VCR tuner is used for the recording (not for satellite programs).

Video menu

Show the Video menu

Video menu Timer recording ▶ Timer change Delete timer Connections i Info M Back E End

The Video menu provides you with options for timer programming by EPG, teletext or manually. You can also change or delete timer data.

In the "Connections" menu you can log other AV equipment on or off and make a "Digital Link Plus data transfer. This serves to transfer the transmitter data of the TV set (not satellite stations) to the Digital Link Plus VCR.

Digital Link Plus VCRs have the possibility for transferring the station data from the TV set to the VCR via the Euro-AV cable (not for satellite stations). Every time you change the station memory of the TV, you are asked whether you want to make a data transfer.

The receiver unit of the VCR is always used for recording with a Digital Link Plus video recorder (not satellite stations) and the tuner of the TV set is available for watching TV.

Loewe VCRs also have Digital Link, a system for controlling Loewe VCRs via the Euro-AV cable. The TV tuner is used for recording here. If you have installed your Loewe VCR in a concealed place, you can operate the Loewe VCR with the remote control. Operation with the control bar also works with Digital Link.

Digital Link must be switched on on the video recorder.

Only use fully wired Euro-AV cables, otherwise Digital Link or Digital Link Plus will not work.

Operating additional equipment

Logging in AV equipment

You have already logged in and connected all the connected videos with the connection wizard in initial installation. If you now want to connect additional or different equipment, you have to launch the connection wizard in the TV menu "Connections".

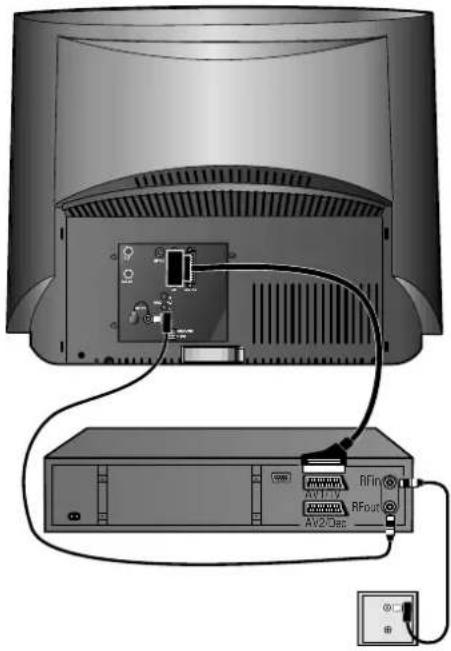

Connecting VCR equipment

In addition to the connection via the Euro-AV socket, you also have to connect the antenna (only for antenna or cable systems) through the VCR to the TV set. The antenna signal is then available both to the tuner in the VCR and the TV tuner.

Diagram of a computer monitor connected to an RJFin network via cable, showing ports and connections (no text or symbols present)

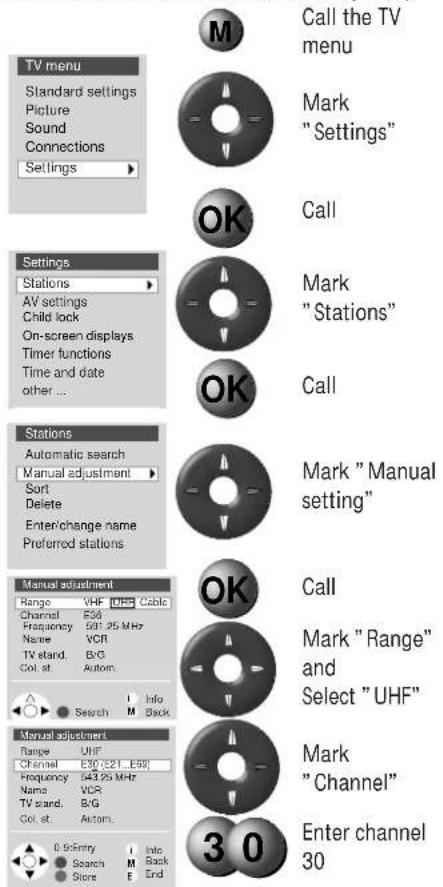

Search for and store the VCR station (if there is no Euro AV cable)

Switch on the test station on the VCR or insert a recorded tape and start playback.

Then call program 0 on the TV set (set ex-factory to channel 36). Select the first menu item (VCR) in the AV selection list.

To prevent "normal" TV stations being found in the search, pull out the antenna plug from the antenna input of the VCR temporarily (the plug attached to the cable to the antenna system).

TV menu Standard settings Picture Sound Connections Settings Call the TV menu Mark "Settings" OK Call Settings Stations AV settings Child lock On-screen displays Timer functions Time and date other ... Standings Automatic search Manual adjustment Sort Delete Enterchange name Preferred stations Mark "Manual setting" OK Call Manual adjustment Range VH OFF Cable Channel E50 Frequency 591.25 MHz Name VCR TV stand. B/G Col. st. Autom. Search Info Back Manual adjustment Range UHF Channel E30:251...E50 Frequency 543.25 MHz Name VCR TV stand. B/G Col. st. Autom. Mark "Range" and Select "UHF" Mark "Channel" Enter channel 30

Search for channel (blue button)

When the station is found:

Store (red button)

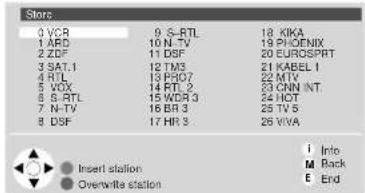

A list of the stored stations is displayed

Stores 0 VCR 9 S-RTL 18 KIKA 1 ARD 10 N-TV 15 PHOENIX 2 ZDF 11 DSF 20 EUROSPRT 3 SAT.1 12 TMS 21 KABEL 1 4 RTL 13 PRO7 22 MTV 5 VOX 14 RTL_2 23 CNN INT. 6 S-RTL 15 WCR 3 24 HOT 7 N-TV 16 BR 3 25 TVS 8 DSF 17 HR 3 26 VIVA ● Insert station ● Overwrite station i Info M Back E End

Overwrite program (program 0 marked)

Hide menus

Plug the antenna plug back into the VCR. If you now get interference because a TV station is transmitting on the same channel as the VCR station, you have to change the transmitting station on the VCR (see operating instructions of the VCR) and search for the VCR station on the TV again.

Operating additional equipment

Video playback

In order to see the VCR picture on your TV and hear its sound you have several possibilities:

1. You can use the Euro-AV sockets on the TV set and on the VCR. This is the best option of all – good picture and sound quality. If you are playing back from a VCR with Digital Link Plus, the VCR picture is shown on the current station slot. If you are playing back from a standard VCR, DVD player or camcorder, select the AV socket to which the video signal is connected in the AV selection list or the station table. Video recorders emit a switching voltage during playback which the TV set can decode (can be activated for every VCR in the connection wizard). Then the VCR picture is shown on the current station slot as in Digital Link Plus VCR's.

2. You use the antenna connection between the VCR and the TV set. The sound is only broadcast in mono. To do this, select the first menu item, e.g. VCR, in the AV selection list.

Calling an AV program in the AV selection list

Call AV selection list

AV Selection VCR AV1 AV2 AVS

Select AV socket or VCR for VCR transmitter.

Now you will see the playback from the connected AV unit.

Calling an AV in the station table

Call the station table

Station ticker: TV AVS 6 S-RTL AVI 7 M-TV 0 VCR 8 DSF 1 ARD 9 TW3 2 ZDF 10 PRO7 3 SAT.1 11 RTL 2 4 RTL 12 WDR 3 5 VOX 13 BS 3 6 NDR 14 HR 15 MDR 3 0 ... 9 Select program: Select and proceed with OK ● Change programs Info ● Favorites programs M menu ● Sorti alphabetically E End

In the numeric sorting you will always find the AV sockets at the top of the list without station numbers.

Mark the AV socket

Now you will see the playback from the connected AV unit.

Operating additional equipment

Operating Loewe video recorders and Loewe DVD players directly

You can switch over the remote control of the TV set to operate Loewe video recorders and Loewe DVD players. These devices can be operated directly or, in the case of equipment installed in a concealed place, by the TV set. In this case the Digital Link function of the VCR must be switched on.

Select the device to be operated:

for VCR:

the VTR indicator on the remote control lights up ...

press again, the DVD indicator lights up ...

press again, none of the indicators lights, the TV is then activated.

The TV cannot be operated if VTR or DVD is switched on. In this case switch back to TV or wait 20 seconds until the remote control automatically switches back to TV mode (none of the indicators lights).

Loewe VCRs VV3600H, VV8500H and VV5000M cannot be controlled with this remote control. Please use the original remote control or the video bar.

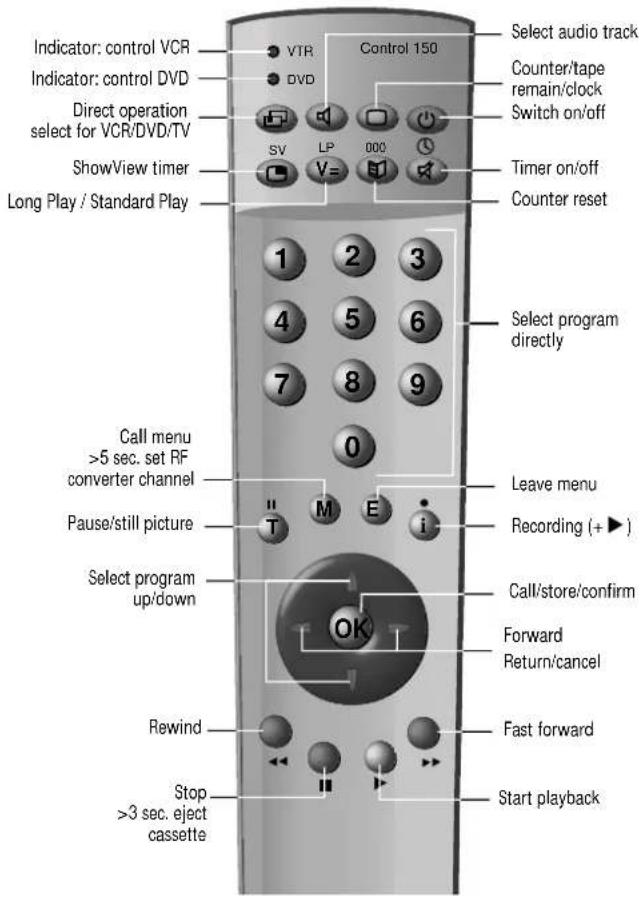

Functions for Loewe video recorders

Indicator: control VCR Indicator: control DVD Direct operation select for VCR/DVD/TV ShowView timer Long Play / Standard Play VTR DVD SV LP 000 Control 150 Select audio track Counter/tape remain/clock Switch on/off Timer on/off Counter reset 1 2 3 4 5 6 7 8 9 0 Select program directly Call menu >5 sec. set RF converter channel Pause/still picture Select program up/down M E i Leave menu Recording (+▶) Call/store/confirm Forward Return/cancel Rewind Stop >3 sec. eject cassette Fast forward Start playback

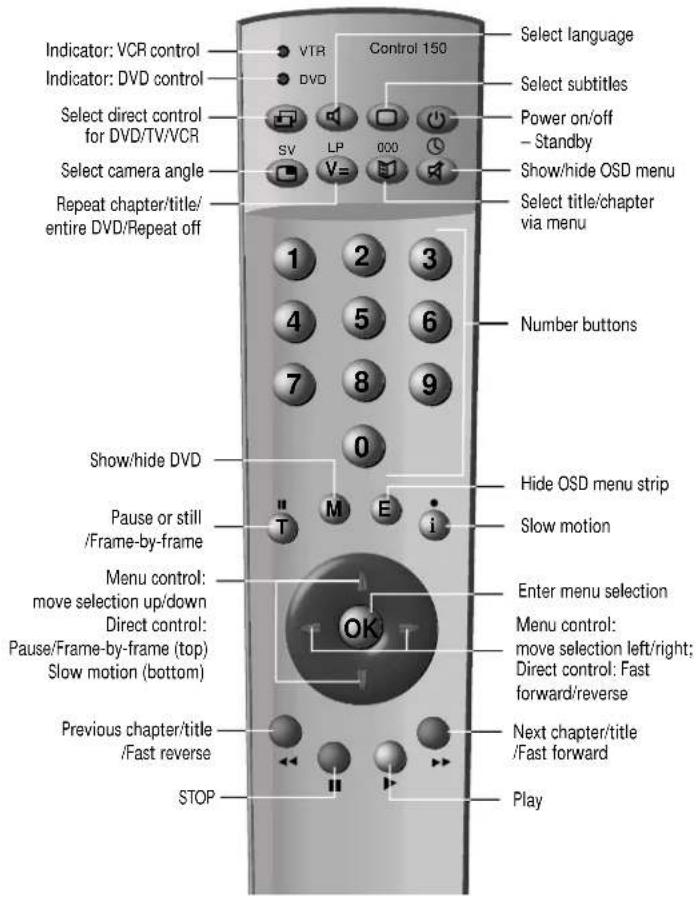

Functions for Loewe DVD players

Indicator: VCR control Indicator: DVD control Select direct control for DVD/TV/VCR Select camera angle Repeat chapter/title/ entire DVD/Repeat off VTR DVD Control 150 Select language Select subtitles Power on/off - Standby Show/hide OSD menu Select title/chapter via menu Number buttons Show/hide DVD Pause or still /Frame-by-frame Menu control: move selection up/down Direct control: Pause/Frame-by-frame (top) Slow motion (bottom) Previous chapter/title /Fast reverse STOP Hide OSD menu strip Slow motion Enter menu selection Menu control: move selection left/right; Direct control: Fast forward/reverse Next chapter/title /Fast forward Play

What to do when ...

Problem	Possible cause	Remedy
Various menu items cannot be called (shown in gray) or the menus for the EPG and teletext modes of operation cannot be called	"Simplified control" activated in main information	Deactivate "Simplified control" in the main information. Press the I-button, select "Select control level" and call with OK. Set the "Simplified control" to "no".
Timer recording, Change timer and Clear timer are not shown in the Video menu	No video recorder logged in	Log in VCR in the TV menu – Connections.
"Connections" cannot be called in the Video menu (shown in gray)	a) A timer recording is currently in progressb) You are recording from the TV set with the video bar	a) Wait until the timer recording has ended or clear the timer.b) Wait until you stop recording.
The "Stations" item in the TV menu and the "Automatic station search" item in the main information cannot be called	The child lock is activated. If these menus were accessible, children could still set the programs.	Deactivate program-related child lock: Switch off child lock or enter PIN in the TV menu - Settings.
Control of the Loewe VCR with the video control bar and the timer does not work or does not work properly	a) The VCR's Digital Link function is not activated or not possibleb) Euro-AV cable not connectedc) Video recorder not logged in	a) Activate Digital Link in the VCR (see operating instructions of the VCR)b) Connect the Euro-AV cablec) Log in the VCR
General problems with connecting external devices through an AV input	a) The device is not logged in in the "Connections" menu or is connected differently to shown in the connection diagramb) The AV norm is set incorrectlyc) The AV signal is set incorrectly	a) Compare the connection diagram with the actual installation in the "Main information" under "Connections" and connect as shown if necessary.b) Set the correct norm.c) Set the correct AV signal.If "Automatic" is set for AV norm or AV signal, this can lead to wrong detection in the case of non-standardized signals. In this case the norm and signal must be set according to the operating instructions of the external device.
Picture shifted horizontally	The TV set is in the Southern hemisphere (e.g. Australia, South Africa)	Set the horizontal position:1. Call the main information with i2. Call Index – Set picture – Horizontal displacement3. Set horizontal picture position.

What to do when ...

Problem	Possible cause	Remedy
Connection of a decoder does not work or does not work properly	a) The signal is not decoded because the correct decoder programs have not been selected in the TV menu - Connectionsb) The sound is missing in decoder mode because the wrong decoder sound is allocated in the TV menu - Connections	a) Follow the instructions in the TV menu – Connections again and select the appropriate decoder programs.b) Follow the instructions in the TV menu – Connections again and select the right sound source (decoder, TV or Autom.), see instructions of the decoder.
No sound through the TV loudspeakers	The item "Sound from..." in the Sound menu under "Sound" is not set to "TV"	Change the setting to "TV".
All menus appear in the wrong language	The wrong menu language has been set	Set your menu language:1. Switch off picture-in-picture (PIP) * and switch off all on-screen displays, press the E button2. Call the TV menu, press the M button3. Select the last menu item and press OK4. Select the last menu item on the last page and press the OK button5. Now select the right language and 6. ... confirm with OK.
Digital Link Plus does not work	a) The VCR has not been logged in as a Digital Link Plus device or has been connected to the wrong socketb) The Euro-AV cable is not fully wired (Pin 10 not wired)c) Some video recorders can only take over the stations from the TV in initial installationd) All or some terrestrial or cable stations are stored at station slots ≥ 99	a) Log in the Digital Link Plus VCR under "Connections" and connect according to the diagram.b) Change the Euro-AV cablec) Reinstate the original state (ex-factory) of the VCR (see operating instructions of the VCR)d) Sort the terrestrial and cable stations so that they are between 1 and 99.
Various characters are displayed incorrectly in teletext	The wrong character set is set in the teletext menu	Set the right character set: Teletext menu – Settings – Character set – Standard or the appropriate character set.

Technical data

Mechanical data

Calida 5784 ZP Article no. 61412

Dimensions (cm) 79x73x54 (WxHxD)

Weight (kg) 54

Picture tube Blackline S

Format 4:3

Screen class 84, visible 81 cm

Planus 1663 Z Article no. 59115

Dimensions (cm) 73.0x54.5x46.0 (WxHxD)

Weight (kg) 40

Picture tube Blackline S

Format 4:3

Screen class 63 cm, visible 59 cm

Planus 4670 ZW Article no. 61419

Dimensions (cm) 83.5x52.5x52.0 (WxHxD)

Weight (kg) 39

Picture tube Super Flatline

Format 16:9

Screen class 70, visible 65 cm

Planus 4672 ZP Article no. 61419

Dimensions (cm) 81.6x60.2x49.2 (WxHxD)

Weight (kg) 42.5

Picture tube Super Flatline

Format 4:3

Screen class 72, visible 68 cm

Planus 4872 Z Article no. 61416

Dimensions (cm) 69.4x63.8x50.7 (WxHxD)

Weight (kg) 41

Picture tube Super Flatline

Format 4:3

Screen class 72, visible 68 cm

Electrical data

Chassis name Media Plus (Q2500/B)

Image refresh frequency PAL/Secam 100 Hz

*PAL 60/NTSC 120 Hz

Full Digital 100 AMD*/DNC

Power supply 220V up to 240V/50–60Hz

Power consumption in operation approx.145 Watt

Standby <2.5 Watt

Ambient temperature 5^-40^ Celsius

Tuner VHF/UHF/cable

(Hyperband 8 MHz) 42 MHz – 860 MHz

220/with DVB:1470

TV norms ^* B/G, I, DK, L, L', M, N

Color norms ^* PAL, SECAM,

NTSC, NTSC 4,43

Sound norm ^* FM, AM, Nicam

mono/stereo/2-sound

Audio rated output 2 x 15 Watt / 4 Ohm

Audio music output 2 x 20 Watt / 4 Ohm

Teletext HiText (Level 2.5)

Connections

Mini-DIN (Front) Video IN S-VHS / Hi 8

Cinch (Front)* Video IN VHS / 8 mm

Cinch (Front) Audio IN L + R

Jack 6.3mm (Front) headphones 32–200 Ohm

IEC socket 75 Ohm antenna / cable

AV 1 Video IN/OUT S-VHS / Hi8

Video IN/OUT VHS / 8 mm

Audio IN/OUT L + R

AV 2 Video IN/OUT** S-VHS / Hi8

Video IN/OUT VHS / 8 mm

Video IN RGB

Audio IN/OUT L + R

Cinch Audio OUT level adjustable/fixed

Mini-DIN 8-pole Service and AHS

* depending on equipment and type of set

** OUT only in Digital Link Plus video recorders

Accessories available

Racks

Ask your dealer, he will be able to offer you the right rack from the Loewe range to suit your TV set.

Single-/Twin-Sat-Tuner and Digital TV module

Your TV set can be retrofitted with the integrated satellite tuner 6 and the TV Digital Module. This allows reception of analog and digital satellite programs.

Service addresses

Australia

International Dynamics Australasia Pty Ltd.

129 Palmer Street

AUS - Richmond, Victoria 3121

Tel. [phone]

Fax [phone]

Austria

Robert Bosch AG

Postfach 146

A-1011 Wien

Tel [phone]

Fax [phone]

Benelux

Loewe Opta Benelux NV/SA

Lt. Lippenslaan, 54B

B-2140 Antwerp

Tel. [phone]

Fax [phone]

Service Center Loewe

ul. Verkhnyaya Maslovka, d. 29

RUS-125083 Moscow

Tel. [phone]

Fax [phone]

Cyprus

Pangratis Liveras & Son Ltd

P.O. Box 3426

Liveras Building

7 Ajax Street Saint Omologite

CY-Nicosia

Tel. [phone]

Fax [phone], 66 79 36

A. Sedat & Sons Ltd

16-18-20 Muftu Ziyai St.

Lefkosa, Via Mersin 10

Turkey

Tel. [phone]

Fax [phone]

Czech Republic

TIPA Spol. sr.o.

Dolí námestí 9

CZ-74601 Opava

Tel. [phone]

Fax [phone]

Denmark

Semi-Tech Consumer

Electronics (Denmark) A/S

Hørskætten 3

DK-2630 Taastrup

Tel. [phone]

Fax [phone]

France

Sorep Import S.A.

Loewe Opta

Linn Products Limited

PO Box 8465

Prestwick

UK-KA 72YF

Tel. [phone]

Fax [phone]

Greece

SOUND HELLAS S.A.

Kleanthous Str. 10

GR-54642 Thessaloniki

Tel. [phone]

Fax [phone]

Hungary

Basys Magyarorszagi KFT

Epitok utja 2–4

H-2040 Budaörs

Tel. [phone]

Fax [phone]

Italy

General Trading SpA

Via Vittorio Emanuele, 33

I-50041 Calenzano (FI)

Tel. [phone]

Fax [phone]

Malta

Mirage Holdings Ltd

Flamingo Complex

Cannon Road

M-Qormi

Tel. 49 71 82

Fax 44 59 83

Norway

CableCom AS

Bekkevn, 9

N-3218 Sandefjord

Tel. [phone]

Fax [phone]

Poland

PPHU PAROS Sp. z o. o.

ul. Ustronie 1–3

PL-50-302 Wroclaw

Tel. [phone]

Fax [phone]

Portugal

Videoacustica

Super Trading Establishment

P.O. Box 46409

Abu Dhabi - U.A.E.

Tel. [phone]

Fax [phone]

Printed in Germany

3/02.02/10,0

Subject to modification!

ne code

- the number 3001 cancels out a secret code and with it the child lock. Please keep it in a safe place.
