Product Type	Power Distribution Unit (PDU) / Extension Module
Brand	Ubiquiti Networks
Model	mPower
Dimensions (W x D x H)	120 mm x 80 mm x 30 mm
Weight	200 g
Power Input	100-240 V AC, 50/60 Hz, 1 A
Power Output	4 x AC outlets, max 10 A total
Main Functions	Remote power on/off, power cycling, energy monitoring, PoE passthrough (ports 2-4)
Network Interface	1 x 10/100/1000 Ethernet port
Management	Web UI, SSH, SNMP, Ubiquiti UNMS
Power Monitoring	Real-time current, voltage, power, energy consumption per outlet
Safety Features	Overload protection, short circuit protection, surge protection
Operating Temperature	0 °C to 40 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% non-condensing
Mounting	Wall-mountable, rack-mountable with optional bracket
Certifications	CE, FCC, IC
Warranty	1 year limited

Frequently Asked Questions - mPower Ubiquiti Networks

How do I reset the mPower to factory defaults?

Press and hold the reset button on the device for 10 seconds until the LEDs flash. The device will reboot with factory settings.

What is the maximum power output per outlet?

Each outlet is rated for a maximum of 10 A (2200 W at 220 V). Total device load should not exceed 10 A across all outlets.

Can I control the mPower remotely?

Yes, via the web interface, SSH, or Ubiquiti's UNMS platform. An active network connection is required.

Does the mPower support PoE passthrough?

Yes, ports 2-4 support PoE passthrough (802.3af/at) when powered by the mains adapter.

How do I access the mPower web interface?

Connect to the same network, find the IP via DHCP or use Ubiquiti Discovery Tool. Default credentials: ubnt/ubnt.

What should I do if the device is not powering on?

Check the power cable and mains supply. Ensure the voltage matches specifications. Try a factory reset.

Can I update the firmware?

Yes, download the latest firmware from Ubiquiti's website and upload via the web interface under System > Firmware Update.

Is the mPower suitable for outdoor use?

No, it is designed for indoor use only. Exposure to moisture or extreme temperatures may damage the device.

How do I clean the mPower?

Disconnect power and wipe the exterior with a dry, soft cloth. Do not use liquids or cleaners.

Are replacement parts available?

Ubiquiti does not offer spare parts. Contact support for RMA if the device is under warranty.

USER MANUAL mPower Ubiquiti Networks

White electrical plug with three white socket plugs and a cable, no visible text or symbols on the plug itself.

mPower™

mFi Power Strip with

Wi-Fi Connectivity

Model: mPower (EU)

Introduction

Thank you for purchasing the Ubiquiti Networks® mFi® mPower™ (EU). The mPower (EU) is a power strip with Wi-Fi capability that is designed for use in Europe with the Ubiquiti mFi platform. Once connected, you can use the mFi Controller software to define rules using your web browser. Rules detail what actions occur when trigger conditions are met. This Quick Start Guide is designed to guide you through the installation and also includes the warranty terms.

Package Contents

Requirements

• Wi-Fi Network
• Drill with 6 mm Drill Bit (Optional for Wall-Mount)
  • Phillips Screwdriver (Optional for Wall-Mount)

Hardware Overview

Top

Front

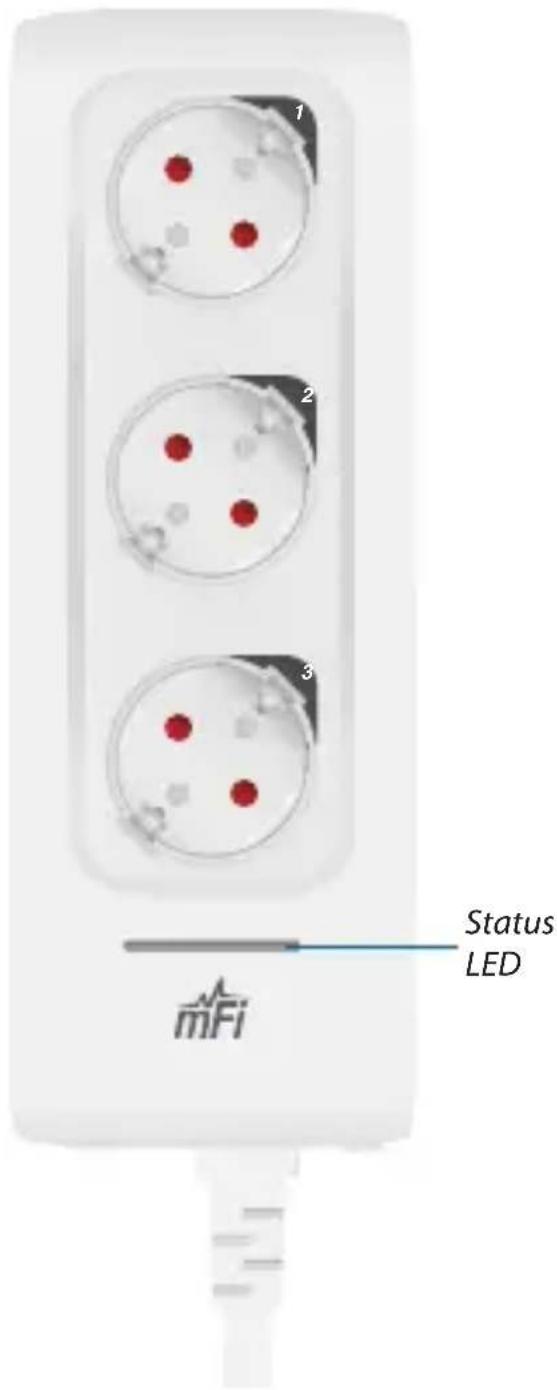

Status LED The Status LED has four primary states:

Close-up of a white electrical plug socket with three red indicator lights and a yellow indicator light (no text or symbols visible)

• Solid yellow When first powered on in factory default mode.
• Flashing yellow Connecting to a Wi-Fi network.

Close-up of a white electronic device with three circular connectors and red dots, labeled 1, 2, and 3, with a blue indicator light and 'MP' logo at the bottom (no readable text or symbols on components)

• Solid blue Successfully connected to mFi Controller.
• Flashing blue Connecting to mFi Controller.

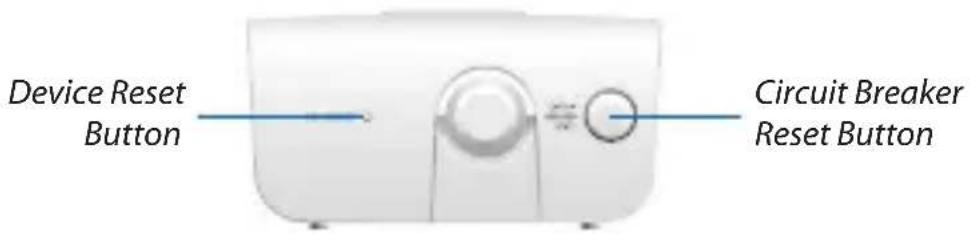

Device Reset Button The Device Reset button serves two functions:

• Restart Restarts the device when you press and release it quickly.
• Restore Factory Defaults Press and hold until the LED alternates colors and then remains steady yellow to restore the device to the factory default settings.

Circuit Breaker Reset Button When excessive current triggers the circuit breaker, the outlets will shut off. Press this button to reset the unit.

Hardware Installation

The mPower (EU) includes an optional mounting plate.

Wall-Mount

1. Position the Mounting Plate on the wall with the text in the proper orientation, and mark the mounting holes on the wall.

1. Use a 6 mm drill bit to drill the holes.
2. Insert the anchors into the holes and use a Phillips screwdriver to secure Screws through the Mounting Plate into the Anchors.

1. Align the back of the mPower (EU) with the Mounting Plate. Slide the Power Strip to the right to lock it into place.

3D diagram of a white electrical outlet with three rows of internal components and connection lines (no text or symbols)

Software Download and Installation

For local mFi Controller installations, the mFi Controller software is installed just once when you initially create a mFi network. Devices can be added at any time through the controller interface, but you do not need to go through the software installation process every time you add another mFi device.

The mFi Controller software can be downloaded from the Ubiquiti Networks website.

1. Go to downloads.ubnt.com/mfi
2. Mac users should download mFi.dmg and Windows users should download mFi-installer.exe.
3. Follow the instructions for your computer type.

Mac Users

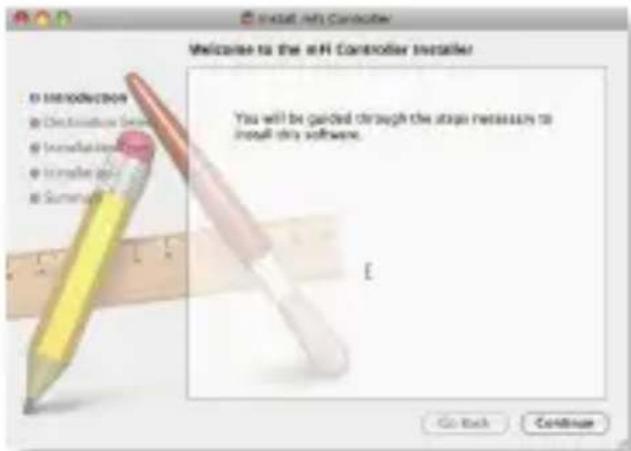

1. Click the Install icon.

1. Click Continue and follow the on-screen instructions to install the software.

1. Go to Go > Applications and double-click the mFi icon.

Proceed to the Configuring the mFi Controller Software section.

PC Users

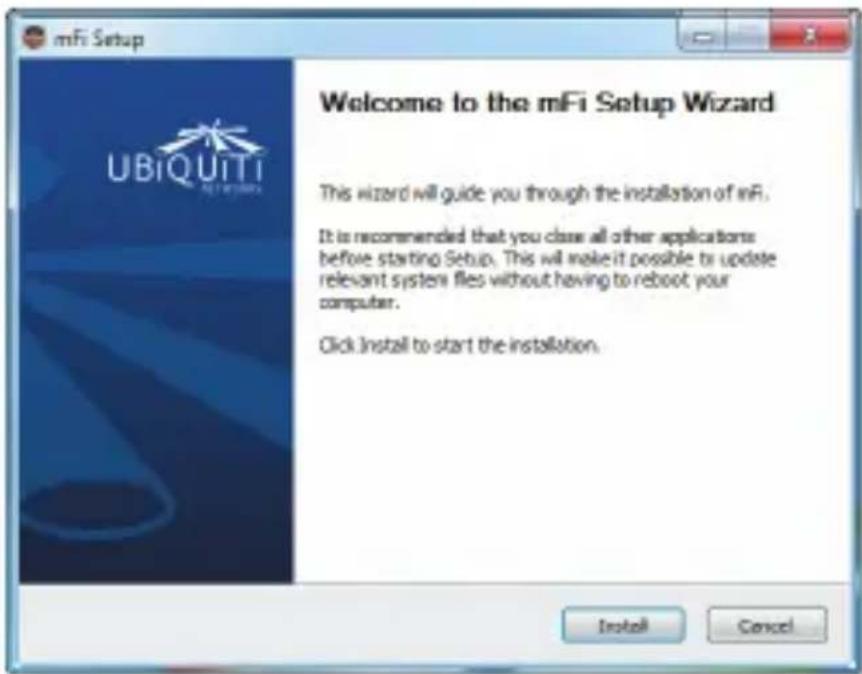

1. Launch mFi-installer.exe.
2. Click Install.

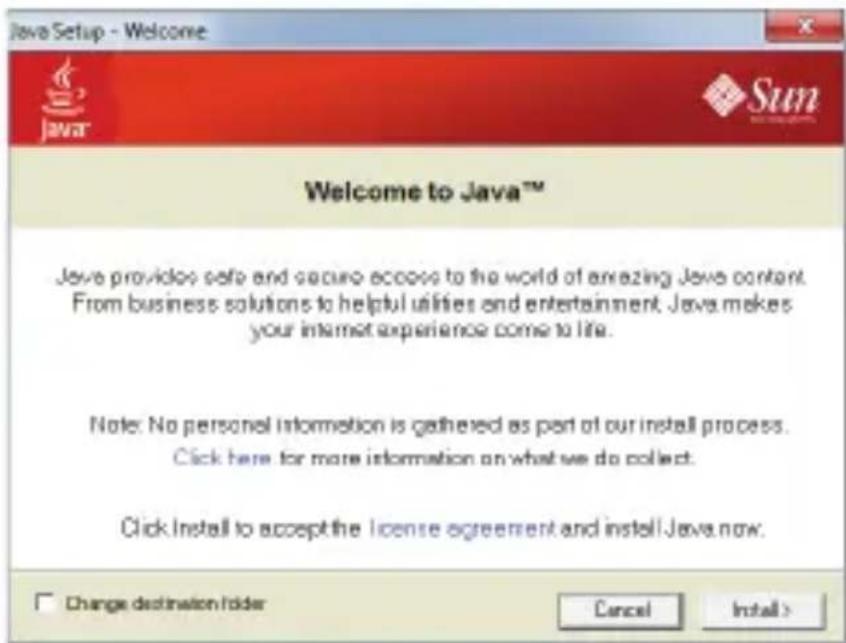

1. If your computer doesn't have Java 1.6 or above installed, you will be prompted to install it. Click Install to continue.

1. Ensure the Start mFi Controller after installation option is checked and click Finish.

Note: The mFi Controller software can also be launched from Start > All Programs.

Configuring the mFi Controller Software

1. The mFi Controller software startup will begin. Click Launch a Browser to Manage the Network.

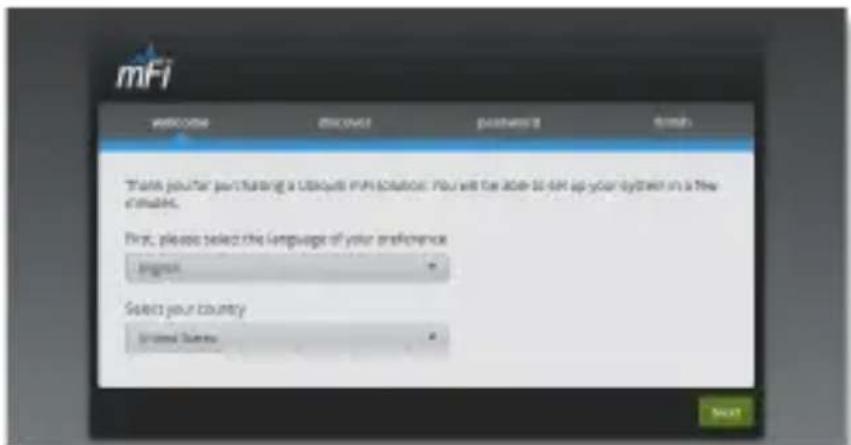

1. The mFi Configuration Wizard will appear the first time you launch the mFi Controller software. On the Welcome screen, select your language and country.Click Next.

1. Select the device(s) that you want to configure. The Refresh button can be used to refresh the list of devices. Click Next to continue.

1. Enter an administrator name in the Admin Name field. Enter a password in the Password and Confirm fields. Click Next.

1. Click Finish to confirm your settings.

1. A login screen will appear for the mFi Controller management interface. Enter the Admin Name and Password that you created and click Login.

Configuring the mPower (EU) via Wi-Fi

To configure the mPower (EU), you must access it via Wi-Fi from a computer. The mPower (EU) has a default SSID (wireless network name) labeled mFi followed by the last six characters of the MAC address.

Windows

1. Go to Connect to Network.

- Windows 8 Click the Network icon.

- Windows 7 Right-click the Network icon.

- Windows Vista Go to Start > Connect To. .

1. Select the wireless network (SSID) that begins with mFi and then click Connect. Go to the Accessing the Configuration Portal section.

Mac

1. Click the AirPort icon in the menu bar (top right side of the screen).

2. Select the wireless network (SSID) that begins with mFi. Once connected, the AirPort icon will change from gray to solid black.

Accessing the Configuration Portal

1. Launch your web browser. Type https://192.168.2.20 in the address field. Press enter (PC) or return (Mac).

1. You may receive a security certificate warning. Click Proceed Anyway.

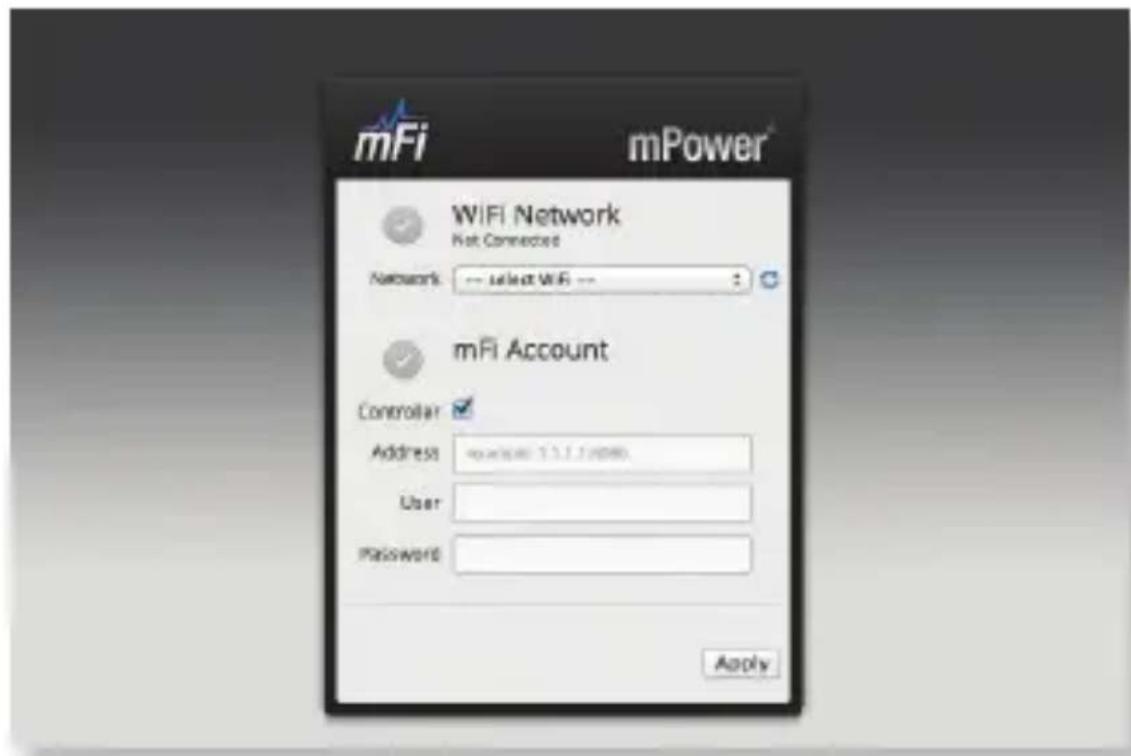

2. The Configuration Portal will appear. Select the wireless network name (SSID) of your existing wireless network from the drop-down list. To refresh the list, click the blue arrows on the right.

1. Enter your Wi-Fi security credentials. The options that appear are based on the encryption method used on your Wi-Fi network.

1. Enter the account settings:

• Address The IP address and http port used by the Controller. (The port is usually 6080, for example: 1.1.1.1:6080 or mfi.acme.com:6080).
• User The user name defined during the mFi Configuration Wizard.

• Password The password defined during the mFi Configuration Wizard.

• Click Apply.

• A flashing yellow checkmark will appear while attempting to connect to the Wi-Fi network. It will appear green once the mPower (EU) is connected.

1. A flashing yellow checkmark will appear while attempting to connect to the Controller. It will appear green once the mPower (EU) is connected.

1. Reconnect your computer to your wireless network by selecting the SSID from your wireless network utility.
2. Access your Controller, and the mPower (EU) appears with

the mPower

icon in the left panel under the Drag on You can position the mPower (EU) in the tion.

For additional details on the mFi Controller software, please refer to the mFi User Guide available on our website at: documentation.ubnt.com/mfi

Specifications

mPower (EU)
Dimensions 240 x 82,8 x 41,5 mm
Weight 545 g
Mounting Wall (Kit Included)
Power 220-250VAC, 50 Hz,	16 A Per Outlet,16 A Total
Outlets 3
Memory 16 MB RAM, 8 MB Flash
Wi-Fi Standards 802.11b/g/n
LEDs 1 LED (Status)
Operating Temperature 0 to 40°C
Humidity 95% RH Max.

Safety Notices

1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.

WARNING: Use only in a dry location.

WARNING: Do not plug in to another relocatable power tap.

WARNING: To reduce the risk of electric shock, use only indoors.

WARNING: Do not operate when covered.

WARNING: Power is dead only when unplugged.

German Safety Notices

UBIQUITI NETWORKS, Inc ("UBIQUITI NETWORKS") warrants that the product(s) furnished hereunder (the "Product(s)") shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS' sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period. The expense of removal and reinstallation of any Product is not included in this warranty. The warranty period of any repaired or replaced Product shall not extend beyond its original term.

Warranty Conditions

The above warranty does not apply if the Product:

(I) has been modified and/or altered, or an addition made thereto, except by Ubiquiti Networks, or Ubiquiti Networks' authorized representatives, or as approved by Ubiquiti Networks in writing;
(II) has been painted, rebranded or physically modified in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal physical, electromagnetic or electrical stress, including lightning strikes, or accident;
(V) has been damaged or impaired as a result of using third party firmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.

In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation; all Ethernet cabling runs use CAT5 (or above), and for outdoor installations, shielded Ethernet cabling is used, and for indoor installations, indoor cabling requirements are followed.

Returns

No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS' facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be returned freight collect or subject to disposal. Information on the RMA process and obtaining an RMA number can be found at: www.ubnt.com/support/warranty.

Disclaimer

EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA, SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF MERCHANTABILITY, ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY, SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT AND ANY WARRANTIES ARISING FROM ANY COURSE OF DEALING, USAGE OR TRADE PRACTICE IN CONNECTION WITH SUCH PRODUCTS AND SERVICES. BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI NETWORKS NOR ITS THIRD PARTY PROVIDERS CONTROL BUYER'S EQUIPMENT OR THE TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the operation of the Products will be error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer's selection of products (including the Products) for buyer's application and/or failure of products (including the Products) to meet government or regulatory requirements.

Limitation of Liability

EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Note

Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you. EXCEPT TO THE EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY TERMS DO NOT EXCLUDE, RESTRICT OR MODIFY, AND ARE IN ADDITION TO, THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF ANY SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to any transactions regarding the sale of the Products.

Compliance

CE Marking

CE marking on this product represents the product is in compliance with all directives that are applicable to it.

RoHS/WEEE Compliance Statement

English

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

Deutsch

Declaration of Conformity

Česky [Czech]	UBIQUITI NETWORKS tímto prohlašuje, že toto UBIQUITI NETWORKS zařízení, je ve shod se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk [Danish]	Hermed, UBIQUITI NETWORKS, erklærer at denne UBIQUITI NETWORKS enhed, er i overensstemmelse med de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Nederlands [Dutch]	Hierbij verklaart UBIQUITI NETWORKS, dat deze UBIQUITI NETWORKS apparaat, in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EC.
English	Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI NETWORKS device, is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Eesti [Estonian]	Käesolevaga UBIQUITI NETWORKS kinnitab, et antud UBIQUITI NETWORKS seade, on vastavus olulistele nõuetele ja teistele asjakohastele sätetele direktiivi 1999/5/EÜ.
Suomi [Finnish]	Täten UBIQUITI NETWORKS vakuuttaa, että tämä UBIQUITI NETWORKS laite, on yhdenmukainen olennaisten vaatimusten ja muiden sitä koskevien direktiivin 1999/5/EY.
Français [French]	Par la présente UBIQUITI NETWORKS déclare que l’appareil UBIQUITI NETWORKS, est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Deutsch [German]	Hiermit erklärt UBIQUITI NETWORKS, dass sich dieses UBIQUITI NETWORKS Gerät, in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet.
Ελληνική [Greek]	Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/EK.
Magyar [Hungarian]	Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI NETWORKS készülék megfelel az alapvető követelményeknek és más vonatkozó 1999/5/EK irányely rendelkezéseit.
Íslenska [Icelandic]	Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipun 1999/5/EC.
Italiano [Italian]	Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo UBIQUITI NETWORKS, è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti della direttiva 1999/5/CE.
Latviski [Latvian]	Ar šo, UBIQUITI NETWORKS, deklarē, ka UBIQUITI NETWORKS ierīce, ir saskaņā ar būtiskajām prasībām un citiem attiecīgiem noteikumiem Direktīvā 1999/5/EK.
Lietuviškai [Lithuanian]	UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Malti [Maltese]	Hawnhekk, UBIQUITI NETWORKS, tiddikjara li dan il-mezz UBIQUITI NETWORKS huwa konformi mar-rekwiziti essenzjali u dispożizzjonijiet rilevanti oħrajn ta ‘Direttiva 1999/5/EC.
Norsk [Norwegian]	Herved UBIQUITI NETWORKS, erklærer at denne UBIQUITI NETWORKS enheten, er i samsvar med de grunnleggende kravene og andre relevante bestemmelser i direktiv 1999/5/EF.
Slovensky [Slovak]	TýmtoUBIQUITI NETWORKS, prehlasuje, że toto UBIQUITI NETWORKS zariadenie, je v súlade so základnými požiadavkami a d’alšími relevantnými ustanoveniami smernice 1999/5/ES.
Svenska [Swedish]	Härmed UBIQUITI NETWORKS, intygar att denna UBIQUITI NETWORKS enhet är i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Español [Spanish]	Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Polski [Polish]	Niniejszym, Ubiquiti Networks, oświadcza, że urządzenie UBIQUITI NETWORKS, jest zgodny z zasadniczymi wymaganiami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese]	UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Română [Romanian]	Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv UBIQUITI NETWORKS este în conformitate cu cerințele esențiale și alte prevederi relevante ale Directivei 1999/5/CE.

Online Resources

Support support.ubnt.com

Community community.ubnt.com

Downloads downloads.ubnt.com

Abstract geometric pattern with radiating lines and a small circle at the bottom (no text or symbols)

www.ubnt.com

©2012-2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, mFi, and mPower are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners. RRJL042815
