USER MANUAL GSM908 BOSCH

For your safety

Please pay special attention to the following simple guidelines. Breaking the rules may be dangerous or illegal.

In-car safety

Do not use your mobile phone when driving a vehicle except from in emergency cases. Always park the vehicle and take the ignition before using the phone.

Interference with other electronics

Mobile phones may interfere with other nearby electronics if these are not sufficiently protected from radio signals. Do not use your mobile phone near telephones, televisions, radios, personal computers, etc.

Risk of explosion

Don't use your mobile phone at petrol stations, fuel depots, chemical plants, etc. Always switch off your telephone before entering such areas, and observe any restrictions, regulations and rules.

Aircraft safety

The use of mobile telephones in an aircraft may be dangerous to the operation of the aircraft and is illegal. Switch off your mobile phone before boarding an aircraft. Before using your mobile phone near an aircraft, consult the crew.

Blasting

Don't use your mobile phone where blasting is in progress. Observe any restrictions, regulations and rules.

Medical electronics

Mobile telephones may interfere with the functionality of inadequately protected medical devices. Consult your physician or the manufacturer of the medical device if in doubt. Always switch off your mobile phone before visiting a hospital and observe the local regulations and rules.

Radiation

As with other mobile radio transmitting equipment, users are advised that for satisfactory operation of the equipment and for the safety of personnel, it is recommended that no part of the human body should be allowed to come too close to the antenna during operation of the equipment.

Children

A mobile telephone is not a toy. Keep the phone in a safe place out of children's reach. Children may harm themselves or others and they may damage the phone.

Electrical safety

This mobile telephone is intended for use when supplied with power from MA 1000, MA 1001, MA 1002, or MA 1003 chargers. The use of any other battery charging equipment will invalidate any approval given to this apparatus as well as the manufacturer's warranty.

Batteries

Batteries may explode if incinerated. To prevent any injury or burn please observe that the battery terminals never get in contact with conducting objects or are short circuited.

SIM card limitations

Network operators offer different kinds of services and different kinds of SIM cards. Please contact your network operator for further details.

Depending on your type of SIM card some features described in this user guide may not be available to you or may not be operated in the way described. Where a feature relates to the network you will see this symbol in the user guide.

The memory capacity of your SIM card may differ from one type of card to another.

Batteries

Never dispose of old batteries in your household refuse. Return them to the place of purchase or take them to a recycling centre so that they may be disposed of in an environmentally friendly manner.

Accessories

The use of other types of chargers, batteries or any accessories other than those recommended for use with this telephone will invalidate any approval given to this apparatus as well as the manufacturer's warranty on the telephone.

Care of your phone

Do not try to open the phone as this might damage vital parts. The phone contains no components which can be repaired by the user. Any repair requires expertise and should be carried out only by an authorized service centre.

To clean your phone, wipe over with a soft cloth. Do not use alcohol or other solvents as these will harm your phone.

Do not use your mobile phone in high humidity environments or where the temperature falls below -10^ or exceeds +55^ C.

CONTENTS

Precautions ...... Page 3
Important notice ...... Page 4
Keypad functions ...... Page 6
Display symbols ...... Page 7
Before you start ...... Page 8
Making your first call ..... Page 10
Options when in conversation ..... Page 12
Phone book ...... Page 14
Phone book editing ..... Page 15
Alternative phone books ... Page 17
List menu system ...... Page 18
Outgoing calls ...... Page 19
Answered calls ...... Page 19
Missed calls ...... Page 20
Messages ...... Page 21
Setup menu system ...... Page 24
Call divert ...... Page 26
Call barring ...... Page 28
Call waiting ...... Page 29
Supplementary network services .... Page 30

Tones setup ...... Page 31
Phone setup ...... Page 32
Message setup ...... Page 34
Phone book setup ...... Page 35
Call timers and charge ..... Page 35
Security Page 36
Calculator Page 38
Accessories ...... Page 39
Index Page 44

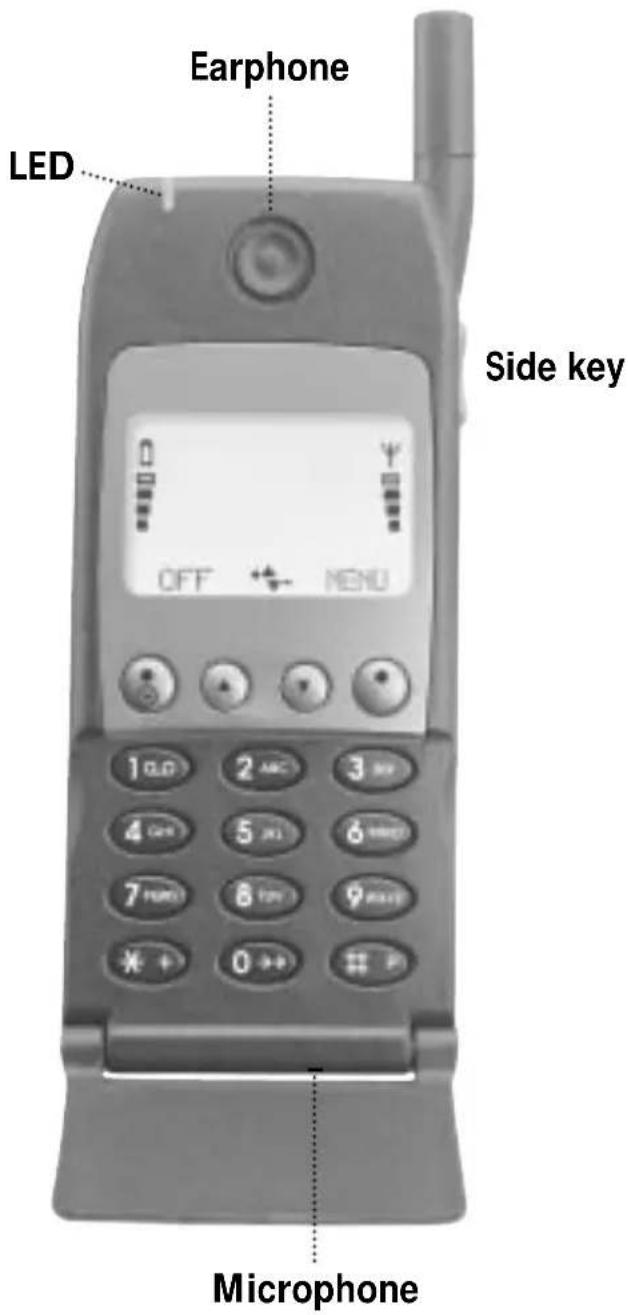

KEYPAD FUNCTIONS

LED (Status indicator)

Slow green flash: Your phone is in contact with a network.

Fast green flash: Indicates an incoming call.

Slow red flash: Your phone cannot get in contact with a network.

Fast red flash: The battery needs recharging.

On/off key

Press the key for one second to switch your telephone on or off.

Function keys with text line in display

The function of each key varies according to whether you are in standby, menu or conversation mode. The text line at the bottom of the display will inform you of the actual function of each key at any time.

Arrow keys

In standby mode: Scroll through menus, phone book, lists, messages etc.

In conversation mode: Volume up/down.

Side key

Same function as the arrow keys.

Voice mail key

Quick access to your voice mail.

Key

Inserts the "+" before international phone numbers.

Last outgoing call

Press for one second and the call is initiated automatically.

# P Key

Inserts a pause between the main number and the extension number.

Introduction

Making a call

Enter phone number. Press CALL

Answering a call

The telephone rings. Press ANSWER

Ending a call

Press END

Back to standby mode

Press EXIT

The telephone automatically returns to stand-by mode when no key has been pressed for 60 seconds.

Battery level indicator

See page 8 for more information.

Signal strength indicator

The stronger the signal (more signal bars displayed), the better the radio connection.

List menu indicator

Phone book indicator

Scroll indicators

Shows you that there are more functions up or down which you can access. Also used for scrolling though the list menus.

Indicates which key to press to increase and decrease the volume level.

Speech call indicator

Fax call indicator

Data call indicator

SMS message indicators

There is a new message for you.

On: There are still unread messages. Flashing: The SMS memory is full.

Voice mail indicator

Indicates that there is a voice mail for you.

Call divert indicator

On: All calls to your mobile telephone are diverted to another telephone number.

Flashing: Check the status of your call diverts.

Microphone off indicator

Volume level indicator

Indicates volume level when adjusting.

Ring volume off indicator

All-tones-off indicator

See page 31 for more information.

Calculator

Survey of arithmetic operations in the calculator menu.

Display and keypad backlighting

The backlight switches on automatically when you press a key. In standby mode the light will automatically switch off if no key is pressed for 10 seconds or more.

BEFORE YOU START

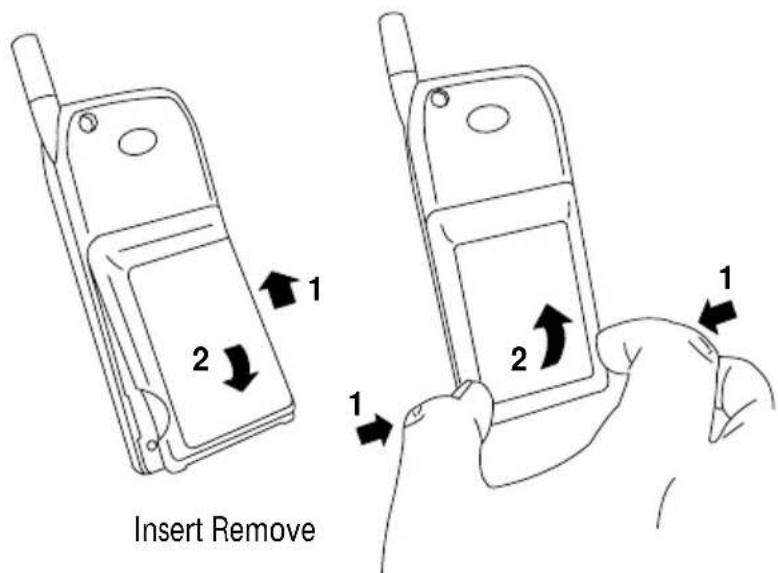

Insert rechargeable battery

When changing the battery your phone should always be switched off.

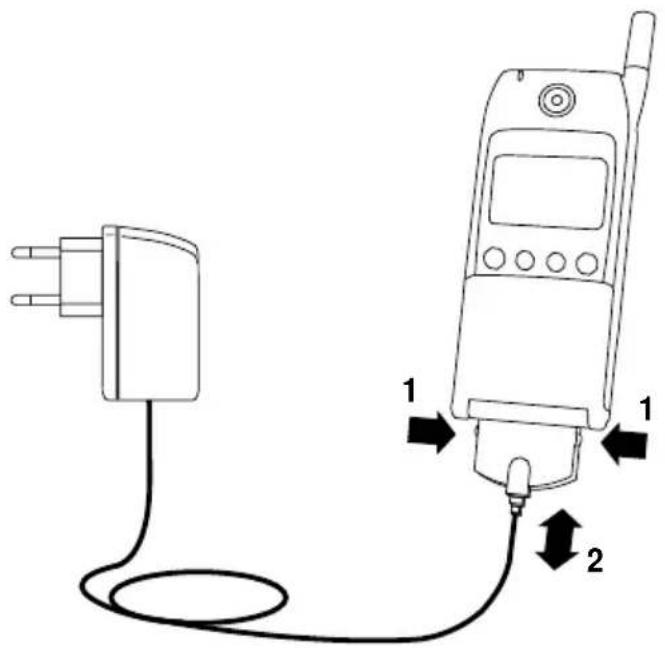

Charge the battery

The battery supplied with this telephone is completely discharged. The telephone will initiate charging as soon as you have inserted the charger plug. The battery takes 1 to 5 hours to become fully charged depending on type and size of the battery.

To obtain optimum battery performance in daily use, wait until the battery is completely discharged, before recharging to full capacity.

Battery level indicator

During charging the battery symbols will flash on and off one after another continuously from the bottom of the display up. When the battery is fully charged all 4 symbols are permanently displayed as long as the phone is switched on.

4 batteries: Battery is fully charged.

1-3 batteries: Battery is partly discharged.

0 batteries: Battery needs recharging. You

have limited conversation time left. At the same time the phone will emit a short warning tone and the LED on top of the phone will emit a fast red flash.

If you insert another battery, this should be fully charged in order to read out the battery capacity accurately.

Insert SIM card

Before you can make a call on your mobile phone you have to insert the SIM card.

Should you have forgotten to insert the SIM card the telephone will ask you to do so.

Before inserting the SIM card into the phone please make sure that any plastic remains from the frame punching have been removed.

Switch off your phone and remove the battery if attached on the phone.

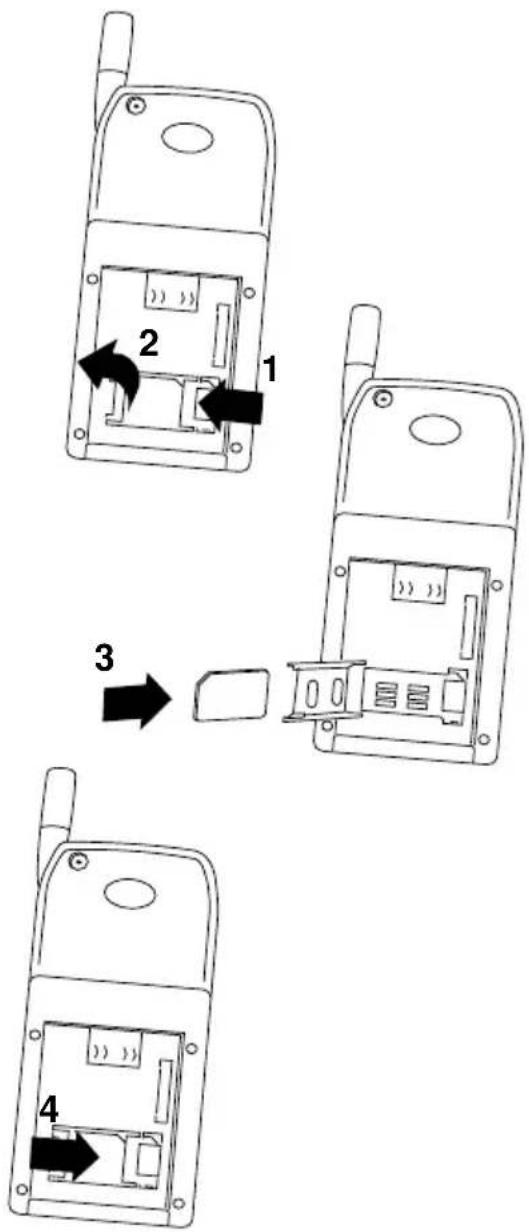

1. Open the SIM card holder by sliding the catch to the left.
2. Lift the holder.
3. Insert the SIM card with its cut corner pointing up and left.
4. Close the holder and slide the catch back into place.
5. Insert the battery.
6. Switch on the telephone.

The phone will display a welcome greeting.

1. Enter PIN code, if requested, and confirm by pressing OK

The telephone will now start searching for your home network. When connection is successfully established, the name of your network operator will be displayed.

If the telephone cannot get in touch with your home network it will start searching for another co-operating network.

If the phone cannot establish contact with any network at all and you attempt to make a call, the display will show please redial later.

MAKING YOUR FIRST CALL

Selection of language

The display language of your phone is normally the national language of the country in which you purchased your SIM card. If this is not the case the display language will be English. You have the option of choosing between different languages.

If by mistake you select a language which you don't understand you can return to your own language by pressing the following keys:

* # 0000 #

1. Press MENU
2. Press 31
3. Select language using
4. Confirm by pressing OK
5. Press EXIT

Making your first call

1. Enter the phone number you want to call.
2. Press CALL to make the call.
3. Press END to end the call.

If you call a phone number which is diverted to another phone number, the display will show the phone number to which you are connected and not the one entered by you.

International calls

When making an international call, enter "+" by pressing the *key for one second and then enter the relevant national code number before the telephone number (e.g. +45 for Denmark).

Phone numbers with extension number

Extension numbers can be dialled by entering a pause between the main number and the extension number. To enter a pause, press the key for one second until the pause code F appears on the display.

Emergency calls

In most cases emergency calls can be made with or without a SIM card. To make an emergency call without a SIM card just enter the worldwide mobile phone emergency number 112, press SOS and confirm by pressing CALL.

Answering a call

1. Press ANSWER when the phone rings.
2. Press END to end the call.

Use the arrow keys and to increase and decrease the speaker volume.

OPTIONS WHEN IN CONVERSATION

Muting the microphone

While having a call, you may wish to have a private conversation with someone else. You will hear everything your caller says but you cannot be heard by the caller.

To switch off the microphone:

1. Press MENU
2. Select Microphone off

To return to your telephone conversation:

1. Press MENU
2. Select Microphone on

Your telephone supports the following network options: Having more than one conversation at a time, placing calls on hold, switching between calls, joining calls and transferring a conversation to another phone number.

How to proceed

1. Press MENU when in conversation.
2. Select using either

Microphone off

Hold call

Continue call

Switch calls

Drop active

Join calls

Private

Drop held

Transfer call

Phone book

Send message

1. Confirm by pressing OK

Note: The status of the call determines which menu items are visible and available for you to select.

Putting a call on hold

You can make a second call without having to end a call that is currently active. Key in the second phone number and press CALL.

The first call will automatically be put on hold. Please be aware that you can only have one call on hold at a time. You can also put calls on hold manually by selecting Hold call.

Continuing a call

When you want to retrieve the call put on hold, just select Continue call.

Switching between calls

If you select Switch calls, the active call will be put on hold and the call on hold will now be active. In this way you can switch between your conversations.

Ending an active call while another is on hold

An active call can be ended by selecting Drop active. The held call will remain on hold and you have to retrieve it to continue conversation.

Joining calls

If you have an active call and a call on hold at the same time, you can select Join calls to enable all of you to speak together.

Having a private call while others are on hold

If you have joined all calls and want to have a private conversation with one of the callers, select Private. The other calls will be put on hold.

Ending a call put on hold

You can end the call put on hold by selecting Drop held.

Transferring a call

If you have an active call and a call on hold you can transfer the call without breaking the connection by selecting Transfer call so that the other parties can continue speaking to each other.

Calling a number in the phone book

During a conversation you can make a new call to a number stored in your phone book by selecting Phone book.

Sending an SMS message

If you want to send a message to a third party select Send message.

How to lock the keypad

To avoid making calls accidentally you can lock the keypad.

1. Press MENU

2. Press #

If you try to activate one of the keys, the display will tell you that the keypad is locked.

How to unlock the keypad

The keypad lock is automatically disabled

- during an incoming call until you have finished your conversation - when the telephone is placed in the hands-free car installation kit

1. Press UNLOCK

2. Press #

You can store names and telephone numbers in a phone book. The entries are stored on the SIM card and the number of entries is dependent on the capacity of the SIM card.

The length of a name or a telephone number depends on your SIM card.

There are several characters available on each key, as shown in the table below. Press once to get the first character, twice to get the second character, and so on. When you need a space between two characters, press #

Holding down one of the keys for one second will give you the option of lower case. Just press the key again for one second to return to upper case.

	1.,;:'!i?¿&%£$¥@§¤
—	ABC2ÆÄÄÇabc2æåäå	—
	DEF3ÉΔdef3éè
	GHI4Γghi4ì
	JKL5ʌjkl5
	MNO6∅NÖΩmno6øñöò		[HCG2]

How to edit a name and a phone number

Press CLEAR briefly

- one character will be deleted

Press CLEAR for one second

– the entire display will be deleted

How to store a name and a telephone number

If you enter the phone number with the help of "+" followed by the national code you can use your phone book abroad without having to think about international codes.

1. Enter the phone number.
2. Press ▼
3. Enter name and press OK

The telephone will suggest that the name/number should be stored under the first vacant location number.

1. Confirm the location number by pressing OK

How to select your own location number

If you do not want to store the entry under the suggested location number, you can select a number of your own choice. Store frequently used numbers in location numbers 1 to 9 so that you can speed dial them by pressing only one key (see page 15).

1. Store telephone number and name as described previously in steps 1. to 3.
2. Press CLEAR and enter a location number of your own choice (up to 3 digits).
3. Confirm by pressing OK

If you choose a location number that is occupied, the phone will give you the option of overwriting the existing entry. If you do not want to overwrite the existing entry, press EXIT and the location number suggested will be visible again.

Voice mail number

If you have a voice mail number stored in your phone book this should be stored under location 1. On some networks this has already been done by the operator. Contact your network operator for further details on how to activate your voice mail.

How to find a name and a telephone number

1. Press
2. Enter one or more letters of the name you wish to find.
3. The name and telephone number will be displayed.

If there is more than one name matching the entered letters, use the arrow keys to scroll through to find the required name.

If there is no name to match the entered letters, the display gives you the best match in the phone book.

1. Press CALL to make the call.

When making a call the name will be shown on the display. If the entry has no name the telephone number will be displayed.

Speed dialling

It is possible to make calls to any number stored in the phone book more easily by using the location number (up to 3 digits).

To be able to use the speed dialling function it must be switched on (see page 32).

1. Press the location number for one second.

If the location number consists of more than 1 digit, press the first digit(s) and hold the last digit for one second.

1. The call will automatically be initiated.

How to edit a name or a telephone number

1. Press to enter the List menu system.
2. Select Phone book and press SELECT
3. Select Edit entry and press OK
4. Enter one or more letters of the entry you wish to edit or select it by using ▼
5. Press EDIT
6. Change the number using CLEAR
7. Enter the correct phone number.
8. Confirm the change by pressing OK
9. Change name and location number in the same way, if necessary.

How to delete a name and a telephone number

1. Press to enter the List menu system.
2. Select Phone book and press SELECT
3. Select Delete entry and press OK
4. Enter one or more letters of the entry you wish to delete or select it by using ▼
5. Press DELETE
6. Reconfirm by pressing OK

PHONE BOOK STATUS / PREFIX TELEPHONE NUMBERS

How to see the status of your phone book

The telephone can display the total number of locations on your SIM card and inform you how many of these are free.

1. Press to enter the List menu system.
2. Select Phone book and press SELECT
3. Select Status and press OK

Prefix telephone numbers

In your phone book you can store prefix phone numbers and add additional digits to these. A useful feature if for instance you often call a company with a switchboard with direct dialling facility.

How to enter a prefix telephone number

1. Enter the prefix digits of the telephone number.
2. Hold down the key for approx. 2 seconds, and you will see a w on the display.
3. Repeat, holding down the key for each character you wish to add to the prefix number.
4. Press ▼
5. Enter name and location number and press OK

How to call a prefix telephone number

1. Press ▼
2. Find the number you wish to call in your phone book.
3. Press CALL
4. Enter the actual digits to replace the W
5. The call will automatically be initiated.

Depending on your SIM card you may have different alternative phone books. These phone books will be visible in the phone display only if they are available and enabled.

Fixed numbers

With the help of this alternative phone book you can restrict the use of your phone only to numbers stored in this special phone book. This telephone book operates in exactly the same way as your ordinary phone book.

However, in order to be able to make such a phone book you need to have a PUK2 code from your network operator and to use a PIN2 code of your own choice.

See on page 35 under Phone book setup how to make use of fixed numbers.

Service numbers

This phone book contains customer care, hotline service numbers, etc. Your network operator defines the numbers stored in this phone book and the contents cannot be changed by you.

Barred numbers

In this phone book you can store numbers to which you do not allow any calls. This phone book operates in exactly the same way as your ordinary phone book.

In order to be able to make such a phone book you also need to have a PUK2 code from your network operator and to use a PIN2 code of your own choice.

See page 35 under Phone Book Setup how to make use of barred numbers.

Own numbers

Some networks offer the possibility of having more than one phone number on the same SIM card. For instance one for normal conversations, one for fax and one for data transmission.

This sub menu operates in the same way as the ordinary phone book menu giving you the possibilities of finding, adding, editing and deleting the entries.

Information about outgoing, answered and missed calls as well as SMS messages are automatically stored in lists:

Outgoing calls

• View names/phone numbers of your latest outgoing calls

Answered calls

• View names/phone numbers of your latest answered calls

Missed calls

- View names/phone numbers of you latest calls received but not answered

Phone book

• Find, add, edit or delete entries
- Phone book status

Fixed number phone book

• Find, add, edit or delete entries
- Phone book status

Service number phone book

- Find entries

Barred number phone book

• Find, add, edit or delete entries
- Phone book status

Own numbers

• Find, add, edit or delete entries

Messages

• Inbox for received point-to-point messages
• Outbox for sent point-to-point messages
• Favourite messages
• Send messages
• Read broadcast messages

How to access the List menu system

1. Press ▲
2. Select the menu you want to access by using △ ▼
3. Confirm by pressing SELECT/OK
4. Select the sub menu you want to access using and press SELECT/OK

Back to standby mode

While you are in menu mode, pressing EXIT briefly will bring you one level up in the system. Holding EXIT will always bring you to the standby mode.

The telephone automatically returns to standby mode when no key has been pressed for 60 seconds.

Outgoing calls

Your phone has memory for your last 10 dialled telephone numbers.

How to see the list of last outgoing calls

1. Press to enter the List menu system.
2. Select Outgoing calls and press OK
3. Scroll through the telephone numbers.
4. When the telephone number you wish to redial is displayed, press SELECT
5. Press CALL to initiate the call.

Shortcut to your last outgoing call

However, to use this facility you must enter the Phone setup menu and select Speed dialling on (see page 32).

1. Just press 0 for one second and the call is initiated automatically.

Who is calling?

Calling Line Identification (CLI) is a network feature whereby the phone numbers of callers to your phone are shown on your phone's display. If your caller is one of the entries that you have stored in your phone book, then his name will appear on your display.

To enable the telephone to identify the calls it is a condition that the network supports Calling Line Identification.

Answered calls

Your phone remembers the last 10 calls your phone has received.

How to see the list of answered calls

1. Press to enter the List menu system.
2. Select Answered calls and press OK
3. Scroll through the telephone numbers.
4. When the telephone number you wish to redial is displayed, press SELECT
5. Press CALL to initiate the call.

Missed calls

Your phone remembers the last 10 incoming calls which you did not answer.

The display will tell you how many missed calls your phone has received. If, for instance, there are 15 missed calls the standby display will show (8)·15.

As the telephone registers only identified calls in the list, the number of missed calls shown on the display and the number of phone numbers actually listed may be different.

Immediate access to the list of missed calls

1. Press ▲
2. Scroll through the telephone numbers using ▼ or ▲
3. When the telephone number you wish to dial is displayed, press SELECT
4. Press CALL to initiate the call.

How to see the list of missed calls at a later moment

As soon as you have used the list, either to make a call or to view numbers, the symbol will disappear from the display. However, the list will always be available through the List menu system.

1. Press to enter the List menu system.
2. Select Missed calls and press OK

The telephone number will be deleted from the list as soon as you have called it, but you can always find it again in the list of last outgoing calls.

How to copy a phone number from one of the lists into your phone book

1. Press to enter the List menu system.
2. Select the actual menu and the phone number you wish to copy into your phone book.
3. Confirm by pressing SELECT
4. Press to access your phone book.
5. Give the number a name and a location number and press OK

How to delete call information

You can delete all entries stored in the Outgoing, Answered and Missed calls lists. Select the sub menu Delete call information in the Phone book setup menu and select the list which you want to delete.

Short Message Services (SMS)

Your phone can receive and send short text messages via the network. On some networks you have to subscribe to this facility.

There are two types of messages: point-to-point messages which you can both receive and send, and cell broadcast messages which you can only receive.

Point-to-point messages

A new incoming message will be indicated by the SMS indicator on the standby display, as well as by a message tone (if enabled – see page 31). The display will also inform you how many new messages there are for you.

How to read a new message

1. Press to access the messages.

The display will show date and time of receipt of each individual message.

1. Select the message you want to read by means of or and confirm by pressing SELECT

The phone number of the message sender will be displayed in front of the message. You can now scroll through the message by using the arrow keys.

The message is automatically stored in the inbox if you do not delete it.

In addition to reading the message, you can either

• delete it
• send a reply
  – forward it to another phone number
  – edit it before sending
• extract a phone number, if any, from the message to call or to store in your phone book

• call back to the sender

• Press OPTION

• Select the option you wish to enter and confirm by pressing OK
• The display will guide you through the next steps.

When a message has been read it will be indicated by a √ to the left of the date of receipt.

The SMS indicator remains on the standby display as long as there are unread messages.

Delete messages

If the SMS indicator is flashing, it indicates that the message memory is full.

You can delete all messages stored either in the Inbox or the Outbox at the same time.

1. Enter the sub menu
   Delete messages
2. Confirm by pressing OK

How to read a message again

1. Press to enter the List menu system.
2. Select Messages and press SELECT
3. Select Inbox by pressing OK
4. Scroll through the list of messages and confirm your choice by pressing SELECT

How to send a message

Before you can send a message you have to enter your network operator's telephone number for this special service. Contact your network operator to obtain this number. On page 34 you can see how you enter this special phone number and how to select validity period, transmission format etc. once for all. If you do not specify these parameters in the Setup menu system you will be asked for a specification each time you wish to send a message.

1. Press to enter the List menu system.
2. Select Messages and press SELECT
3. Select New message by pressing OK

Start entering your message using the keypad in the same way as you enter a name or a telephone number in the phone book. ▼ moves the cursor to the left, ▼ moves the cursor to the right. Delete unwanted characters by pressing CLEAR.

If you want to use the symbol in your SMS message press the key briefly twice.

1. End your message by pressing OK

2. Select whether you wish to Send message at once or whether you wish to Save message for sending it later on.

3. Confirm your choice by pressing SELECT

Having selected Send message the phone will ask for a phone number to send the message to. Either enter a phone number or select one from your phone book using ▼

The message is automatically stored in Outbox under Messages in the List menu system.

Favourite messages

Your phone contains a list of frequently used messages, e.g.

The meeting .. is moved to .. You only need to insert name, place or time in the empty spaces. You may also add or delete words, as required.

1. Press to enter the List menu system.
2. Select Messages and press SELECT
3. Select Favourites and press OK
4. Select the message you want to use and confirm by pressing SELECT

The cursor automatically points at the first empty space. Once you have filled this in, you can move the cursor to the next empty space simply by pressing NEXT. The cursor can also be moved forward and backward by pressing or respectively.

1. Complete the message by pressing OK
2. Send the message, or save it for later use.

How to edit an old message

1. Press to enter the List menu system.
2. Select Messages and press SELECT
3. Select Inbox, Outbox or Favourites by pressing OK
4. Select the message you wish to edit and confirm by pressing SELECT
5. Press OPTION
6. Select Edit message and press OK

A digit between the scroll indicators on the display indicates the number of the individual messages.

Cell broadcast messages

To select whether you want the cell broadcast option to be on or off you must enter the Message setup menu and select Broadcast setup (see page 34).

These are general messages broadcast to a group of telephones and are available to network subscribers only. Cell broadcast messages are typically local weather and traffic reports, stock market prices, sports results etc. If you have selected Roaming, i.e. if you are abroad and connected to a foreign network (see page 28), you may be able to receive cell broadcast messages from other networks, too.

The messages are transmitted in numbered channels and in general each channel will contain information of the same type. Cell broadcast messages may be sent out in different languages. Contact your network operator for further details.

Cell broadcast channel list

To be able to receive cell broadcast messages you have to set up a list of the channels from which you want to receive information. See page 34 for how to set up this list and to specify what kind of information you wish to receive.

How to read a cell broadcast message

A cell broadcast message is scrolled twice on the display at the time of reception. If you don't see it at that time, you can read it via the List menu system by pressing selecting Messages and then Broadcasts.

The display will show the Broadcast ID number and you can thus identify the kind of message received. Messages are read in exactly the same way as Point-to-point messages. A read message will be marked by √.

In addition to reading the message, you can either

• delete it
• store it on your SIM card
  – forward it to another phone number

• extract a phone number, if any, from the message to call or to store in your phone book

• Press OPTION

• Select the option you wish to enter and confirm by pressing OK
• The display will guide you through the next steps.

A cell broadcast message will be deleted when you switch off your telephone – even if the message has not been read.

The setup menu system offers you the possibility of setting the individual sub menus and options according to your own personal wishes.

Network services (Menu 1)

11 Call divert
12 Call barring
13 Call waiting
14 Closed user group
15 Outgoing call identification

Tones setup (Menu 2)

21 Ring tone
22 Trembler (optional extra)
23 Message tone
24 Broadcast tone
25 Key tone
26 Factory settings

Phone setup (Menu 3)

31 Selection of language
32 Dial setup
33 Selection of network
34 Power saving function
35 Car kit options
36 Edit welcome greeting
37 Incoming call setup
38 Any key answer
39 Factory settings

Message setup (Menu 4)

41 Setup for sending Point-to-point messages
42 Setup for receiving Cell broadcast messages
43 Delete messages

Phone book setup (Menu 5)

51 Fixed dialling on/off
52 Barred dialling on/off
53 Phone book sorting
54 Delete all entries stored in the lists (Outgoing, Answered, Missed)

Call timers and charge (Menu 6)

61 View duration and cost of last call
62 View duration and cost of total calls
63 Reset call timers
64 Display call timer and cost during conversation
65 Call charge

Security (Menu 7)

71 PIN code
72 SIM card lock
73 Change network password
74 Encryption indication

Calculator (Menu 8)

Applications (Menu 9)

The availability of this menu depends on your SIM card. The options in this special menu are defined by your network operator. The menu allows you to set up a dialogue between you, your SIM card and your network operator.

How to access the Setup menu system

1. Press MENU
2. Select the menu you want to access using ▼
3. Confirm by pressing SELECT
4. Select the sub menu you want to access using ▼
5. Confirm by pressing SELECT

Menu numbers

On the right hand side in the first line of the display you will always see the number of the menu and sub menu in which you are operating. This is indicated by up to 6 digits.

Example: 62

6 = Menu 6: Call timers and charge
2 = Sub menu 2: View total calls

A √ before the sub menu/option number indicates the option you have selected.

Shortcut to the setup menu system

As you get more familiar with the Setup menu system, you will probably find it easier to access some of the menus simply by pressing the menu code number.

For example, to see the duration of your total calls:

1. Press MENU
2. Press 62

Back to standby mode

While you are in menu mode, holding EXIT will always bring you to the standby mode.

The telephone automatically returns to standby mode when no key has been pressed for 60 seconds.

You have the option of diverting all calls or choosing to divert incoming calls only if unanswered. The unanswered calls option diverts calls

• if you are busy
• if you do not reply
• if there is no contact

Registration

Φ-3

To enable a call divert you must register it first. You will be asked to specify whether you want the call divert function to apply to all services, speech, data services, fax services or message services (SMS).

Deactivation/activation

1

You may not be able to make use of the deactivate and activate options. In that case you must cancel a call diversion by selecting Cancel. Next time you want your incoming calls diverted, select Register.

Calls can be diverted to a telephone number stored in your phone book or to any other number. Access your phone book by pressing ▼ enter a phone number via the keypad.

If you have chosen to have all calls diverted, the call divert indicator will be visible on the standby display.

If you wish to suspend your calls being diverted for a time, select Deactivate. All registrations will remain in the network, so next time you wish to divert your calls to the same number, simply select Activate.

Validity time

If you have selected

Divert if unanswered or

Divert if no reply

you can specify that a period of time must elapse before the call is diverted. This period can be from 5 to 30 seconds at intervals of 5 seconds.

It is always possible to see the status of the activated call diversions by selecting Status. Registered call diversions can be cancelled individually or can all be cancelled at once by selecting Cancel all.

How to activate call divert for all calls

0-0

1. Press MENU
2. Select Network services by pressing SELECT
3. Confirm by pressing SELECT once more to indicate that you want access to the call divert menu.
4. Select using ▼
5. Confirm your choice by pressing OK

Divert all calls
Register
- All services
- Speech
- Data services
- Fax services
- Message services
- Number
Activate
Deactivate
Status
Cancel
Status
Cancel all (call diverts)

If you want to activate a call divert on the basis of

Divert if unanswered

Divert if busy

Divert if no reply

Divert if no contact

just follow the procedure described above giving you the same options.

You can set up call barring for different types of outgoing and incoming calls to restrict the use of your phone.

You have to activate the type of call barring you wish to set up. You are asked to specify whether you want the call barring to apply for all services, speech, data services, fax services or message services (SMS).

When setting up or cancelling any call barring, you will be asked to enter your 4-digit password provided by your network operator.

You can always see the status of the actually activated call barring by selecting Status.

Outgoing call barring

Select All calls if you want to bar all outgoing calls. Select International if you want to bar international calls only. Select Roaming if you want outgoing calls to be barred when you are connected to a foreign network – this still leaves you the possibility of making calls to your home country.

Calls to Emergency Services (see page 11) can still be made even if all outgoing calls are barred.

1. Press MENU
2. Select Network services by pressing SELECT
3. Select Call barring using ▼ and confirm by pressing SELECT
4. Select using ▼

Outgoing calls
All calls
Activate
- All services
- Speech
- Data services
- Fax services
- Message services
Status
Cancel
Status
Cancel all (call barrings)

1. Confirm your choice by pressing OK

If you want to activate call barring for

International calls

Roaming calls

just follow the procedure described above giving you the same options.

Call barring of incoming calls is activated and cancelled in exactly the same way covering the sub menus

All calls

Roaming calls

Incoming call barring

Select All calls if you want to bar all incoming calls. Select Roaming if you want incoming calls to be barred only when you are connected to a foreign network.

Cancelling call barrings

Call barrings can be cancelled individually or by selecting Cancel all.

Call waiting

During a conversation your telephone can notify you that a new call is waiting. This is indicated by a special ringing tone in the earphone. To activate this function just select Activate in the Call waiting option.

If you want to answer the new call press ANSWER

The active call will be put on hold automatically.

See page 12 for further details on how to handle multi-party calls.

If you do not want to answer the call, press REJECT instead. You can have the new call diverted to, for example, your telephone answering service. See page 26 for how to set up a call divert.

If you do not want to be disturbed by new incoming calls you can disable the function by selecting Cancel in the Call waiting option.

You can always see whether Call waiting is activated or not by selecting Status.

SUPPLEMENTARY NETWORK SERVICES

Closed user group

This is a network feature by which the use of your telephone is restricted to certain phone numbers within a group defined by the network operator and the owner of the SIM card. You may be a member of different groups. Each group has its own ID number. The network defines which group is your default user group. You have the option of calling outside the group – perhaps at a higher charge.

Outgoing call identification

You can select whether you want your phone number to be shown or not at the next outgoing call. In Network Service select the option Outgoing call identification, then Show info for next call and confirm your choice by pressing OK.

Unstructured supplementary services (USSD)

On some networks you have the possibility of sending unstructured supplementary service strings. An USSD service string should always be terminated by pressing the Key.

In order to be able to send USSD service strings you must enter the Phone setup menu and select Speed dialling off. Pressing the relevant keys 0 to 9 for one second will lead you to the alpha mode enabling you to enter letters and digits instead of only digits.

Contact your network operator for further information on these supplementary services.

How to adjust tones

1. Press MENU

2. Select Tones setup using ▼

3. Confirm by pressing SELECT

4. Select using either

Rinsina tone Trembler (Optional extra) Message tone Broadcast tone Key tone Factory settings

1. Confirm by pressing SELECT

2. Select the volume or pattern you want to change using ▼

3. Confirm by pressing OK

Ringing volume level and ringing tones

You can adjust the ringing volume level and select the ringing tones according to your surroundings and preferences.

Ringing volume levels are high, medium, low, escalating and off. The LED on top of the phone will emit a fast green flash to indicate an incoming call. If the ringing tone is set to off you will see the symbol on the standby display.

You have the option of selecting between 27 different ringing tone patterns.

The selected ringing tone will sound at the relevant ringing volume level when making your selection.

You can disable all kinds of tones by pressing

MENU and then *In that case the symbol will be seen in the display. Just press MENU and * again to revert to your original settings.

Trembler

If you have a trembler battery you can select whether the trembler should be active or not at an incoming call.

Message tone

Your telephone can alert you to the arrival of a SMS message by means of different alert tones.

Keypad tone

To help you keep check on your dialling, the phone can be set to give 8 different tone patterns following every key pressed.

Factory settings

You can always return to the original tones setup of your phone. The phone is set up by the manufacturer as follows:

Ringing volume

level: Loud

Ringing tone: British

Trembler: Off

Message tone: Simple

Broadcast tone: Discreet 1

Key tone: 3

This menu offers you the possibility of setting some of the telephone's options according to your own personal wishes.

How to set up options

1. Press MENU
2. Select Phone setup using ▼
3. Confirm by pressing SELECT
4. Select using either

Language
Dial setup
Network selection
Power saving
Car kit
Greeting
Incoming call setup
Any key answer
Factory settings

1. Confirm by pressing SELECT
2. Make your selection using ▼
3. Confirm by pressing OK

Language selection

The display language of your phone is normally the national language of the country in which you purchased your SIM card. If this is not the case the display language will be English. You have the option of choosing between different languages. (See page 10 for how to select language).

Dial setup

Automatic redial

If the phone number you are calling is busy or your call is not answered, you can let your phone make up to 10 automatic redial attempts. A special redialling success tone sounds when the attempt is successful. To cancel the auto redialling attempts just press the left function key.

Speed dialling

To speed dial using your location numbers, you have to select Speed dialling on. If you do not want to make use of this feature, select Speed dialling off.

Network selection

When you wish to use your phone abroad, you have to select a foreign network. This can be done either manually or by letting your telephone do it for you automatically.

In the automatic mode, your phone will automatically try to reach your home network first, then, alternatively to find another available network stored in a preferred list made by you (see below).

In the manual mode, the phone will always start searching for the network with which it was in contact when it was switched off. If the phone cannot locate this network it will present some alternative networks on the display, and you can then select one manually.

You can select any network from the list, but your phone can get in contact only with co-operating networks (Roaming). The telephone can get into contact with other networks but only for emergency calls.

Your dealer or network operator can tell you which networks are co-operating.

Preferred list

The list of networks on your SIM card defines the order of preference in which your phone will select a network in automatic mode. Network operators offer different services and call charges; therefore it may be beneficial for you to make a preferred list of your own. Enter the individual networks in your own order of preference and store them on your SIM card.

To do this, you must access the Selection of network sub menu, select the Set preferred list option and use to select the empty location in which you want to store the new network. Pressing EDIT will give you a list of available networks. Scroll through the list using .When you see a network you wish to store in your preferred list, just press OK. If you select a currently used location and press EDIT, the former occupant can be deleted when you enter the new one. Just press EXIT to leave the list as it was.

Once a network is stored in the preferred list, you can always see the country and network code of the actual network by pressing EDIT in the Set preferred list option.

Power saving

To save your battery and thus increase both conversation and standby times you can select whether you want the display contents to be visible or not in standby mode.

Select Display remains on if you want it to be visible, and Display switches off if you want it not to be visible. The display will switch off after 3 minutes in standby mode.

In standby mode the display and keypad backlight will always switch off after 10 seconds if your telephone is set to Backlight on. However, you have the option of having the backlight switched off permanently by selecting Backlight off.

Car kit installation

This option is only effective if the phone is connected to a handsfree car kit. See page 39 for more information.

Welcome greeting

You can change the welcome greeting of your phone according to your own wishes. Delete the old message by holding CLEAR, enter the new greeting via the keypad and confirm by pressing OK.

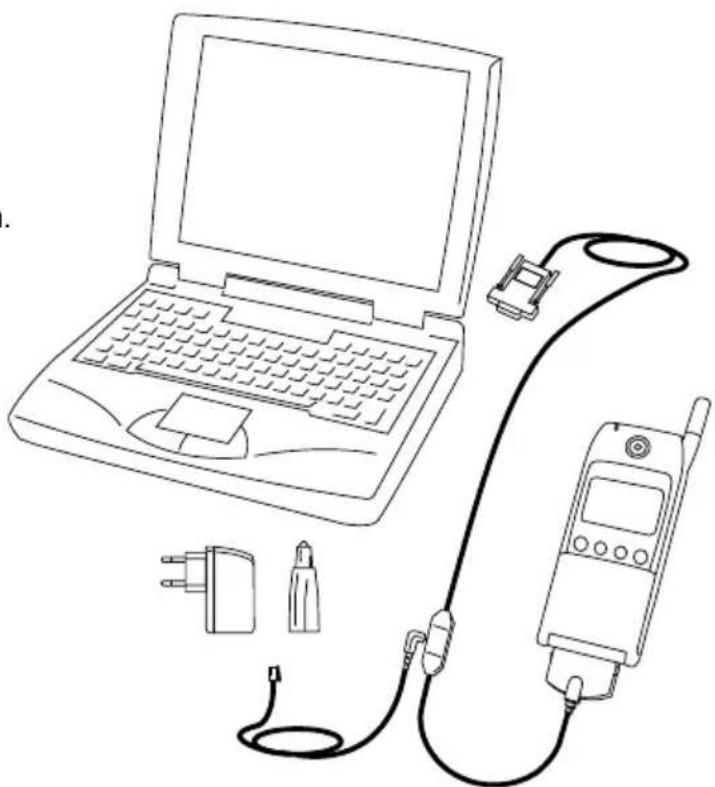

Incoming call setup (fax/data)

Do not enter this menu unless you are using your phone for fax and data communications! Fax and data capability will require a separate data interface kit (optional). The menu settings are explained in the user guide supplied with this kit.

Any key answer

You can answer an incoming call by pressing any key you like except for the left function key and the arrow keys if you select

Any key answer on.

Factory settings

You can always return to the original setup of your phone. The phone is set up by the manufacturer as follows:

Language: Automatic

Dial setup: Autoredial off

Speed dialling on

Network: Automatic

Power saving: Display on

Backlight on

Car kit: Auto answer off

Auto power off automatic

Greeting: Welcome

Incoming call setup: Next call type: Speech

All call type: Speech

Any key answer: Off

Send message setup

Before you can send a message you have to enter your network operator's telephone number for this special service. Contact your network operator to obtain this number.

1. Press MENU
2. Select Message setup using ▼ and confirm by pressing SELECT
3. Select Send message setup
4. Select Service centre
5. Confirm by pressing SELECT
6. Enter the SMS operator telephone number. Remember to add "+" and national code before the number.
7. Press OK

The number will automatically be used for sending all future messages.

Having stored a service centre number you have the option of adding a new service centre, deleting a service centre or editing the number of an existing service centre by pressing and confirm your choice by pressing OK.

The option of storing more than one service centre number may not be available with all SIM cards.

If for some reason your message cannot be delivered, it will remain with your SMS operator for a period of time specified by you under Validity period.

Under the option Teleservice you can specify in what format you want your messages to be sent - for instance select Text message if you want to send it to another mobile telephone.

For messages that have to be sent via several service centres to reach the recipient, some networks offer the feature of sending a reply, if any,

back to you through the same chain of service centres. To keep this possibility open, you must enter the Send Message Setup option and select Reply Path on.

Broadcast setup

To set up the list covering the kind of information you wish to receive, select the option Broadcast channels. The display will show you various locations in which you can store the individual channels. Pressing EDIT will give you a range of different kinds of information. Use to scroll through the possibilities and confirm your choice by pressing SELECT. The selected kind of information is now stored in the channel list. Proceed in the same way if you want to receive other kinds of information.

Some network operators offer cell broadcast messages in different languages. Select the option Broadcast language and confirm your choice by pressing OK.

You can select whether you want the cell broadcast option to be on or off by selecting Broadcast settings and using to select whether the function should be on or off.

PHONE BOOK SETUP / CALL TIMERS AND CHARGE

Fixed dialling

In order to enable you to make use of fixed dial-ling numbers stored in an alternative phone book defined by you, select Fixed dialling on. Having selected Fixed dialling on your ordinary phone book will not be visible on the display and can thus not be accessed, but, of course, it will remain on your SIM card and can be accessed again by selecting Fixed dialling off.

Barred dialling

If you have a barred dialling phone book on your SIM card you must select Barred dialling on to enable it. Having selected Barred dialling on any attempt to make a call will make the phone compare the dialled number with the numbers stored in this special phone book. If the dialled number is stored in the Barred numbers phone book the call will be refused.

To enable the fixed dialling and the barred dial-ling phone books you have to enter your PIN2 code.

Phone book sorting

You have the option of selecting whether you want your phone book sorted by name or by location.

Delete call information

You can delete all entries stored in the Outgoing, Answered and Missed calls lists. Select the sub menu Delete call information and select the list which you want to delete.

Call timers and charge

Your telephone can display the actual duration and cost of an ongoing conversation if you so wish. It can also show you the duration and cost of the last call and all calls made with your SIM card since the timer was last reset. However, the call charge feature must be supported by your network.

In order to be able to see the cost in the display you have to enter a unit price and the actual currency. You can also enter a maximum call charge limit, so that when this maximum has been reached no more phone calls can be made. The telephone will inform you about the remaining call charge balance.

To enter or change call charge and currency you will be requested to enter your PIN2 code.

How to see timers

1. Press MENU
2. Select Call timers and charge using ▼
3. Confirm by pressing SELECT
4. Select using either
   Last call Total calls Reset timers Display timer (on display) Call charge
5. maximum
6. unit price
7. currency

8. remaining

9. Confirm by pressing OK

PIN code

To prevent misuse of your SIM card, e.g. if it is lost or stolen, you can select a PIN code to be entered each time you switch on the phone.

The PIN code is a 4 to 8-digit number of your own choice, which you can change any time you like.

If you enter an invalid PIN code three times, your SIM card will be blocked and to unblock it you have to enter the PIN Unblocking Key (PUK) code supplied by your network operator. This procedure prevents unauthorized person from working out your PIN code by repeatedly entering different combinations of numbers.

The display will inform you how many tries you have left before the SIM card is blocked. If you enter an invalid PUK code 10 times, your SIM card will be permanently blocked and you have to contact your network operator to have it unblocked.

Some SIM cards use a PIN2 code for accessing special functions. Contact your network operator for further information on PUK2 and PIN2 codes.

How to enable, disable and change PIN codes

1. Press MENU
2. Select Security using ▼
3. Confirm by pressing SELECT
4. Select using either

PIN code
- PIN code on
- PIN code off
- PIN code change
- Change PIN
- Change PIN2
SIM lock
- SIM lock on
- SIM lock off
Network Password
Encryption indication
- Encryption indication on
- Encryption indication off

1. Confirm your choice by pressing OK

SIM lock

You can link your telephone and your SIM card together. This means that if, for instance, your phone is stolen it cannot be used together with another SIM card. To enable this feature just select SIM lock on and enter an 6 to 16-digit code of your own choice. For your own sake remember to write down this code to be able to deactivate the lock at a later time. You have 10 attempts before the phone is blocked.

How to change password

If you subscribe to a call barring service your network operator will have supplied you with a 4-digit password. If you want to change this, select Network Password in the Security menu.

Encryption indication

If you connect to a network which does not support encryption, you will get a warning in the display when trying to make a call. You have the option of turning off this network warning by selecting Encryption indication off in the security menu.

You can use your mobile phone as an ordinary calculator.

How to use the calculator

1. Press MENU
2. Select Calculator using ▲
3. Confirm by pressing OK

Your telephone now acts as a normal calculator. The equal-sign (=) is found on the right hand function key.

Hold down the relevant key for one second to get the desired arithmetic operation.

By pressing you get access to a survey of what arithmetic operation is placed on what key.

Key Operation

1 Addition (+)
2 Multiplication (*)
3 Square function (x 2)
4 Subtraction (-)
5 Division (/)
6 Square root (√)
7 Percentage (%)
8 Fractions (1/x)
9 Exponent (E)

* M+ or decimal point (press briefly)

0 MC

# MR or -/+ (neg./pos.) (press briefly)

Calculation examples

5 plus 2

Press 5, hold down 1 for one second, press 2 and press = (7)

8 divided by 4

Press 8, hold down 5 for one second, press 4 and press = (2)

Square root of 8

Press 8 and hold down 6 for one second (2.8284271)

15 per cent of 60

Press 6, 0, hold down 2 for one second, press 1, 5, hold down 7 for one second (9)

-5.2 times 10,000

Press 5, , 2, , hold down 2 for one second, press 1, hold down 9 for one second, press 4 and finally = (-52000)

As soon as a figure is stored in the memory this will be indicated on the display by an M. You can access the memory by pressing or the -key (MR).

The memory is reset each time you switch off your phone.

Professional Handsfree Car Kit

Remove the rubber plug covering the antenna hole on the back of the handset.

When placing the phone in the cradle, make sure that the antenna catch is open (slider in left hand side position). When the phone is in place, move the slider to the right hand side for locked position.

When your phone is placed in the cradle, it will switch on automatically with the car ignition. You can select whether you want the telephone to switch off automatically with the car ignition after a delay of 1 hour or whether you want to switch it off manually.

If you have selected

Switch off automatically

and want to switch your telephone off while the ignition is still on, you must do so manually.

The display and keypad backlighting on your phone will switch on and off automatically with the car ignition. While the phone is switched on and placed in the cradle the backlighting will remain on continuously.

The battery will be automatically recharged as necessary.

How to make a hands-free call

1. Enter the phone number you wish to call or retrieve it from the phone book.
2. Press CALL to let the conversation take place via the external speaker and microphone.
3. Press END to end your call.

How to receive a hands-free call

1. Press ANSWER when the phone rings.
2. Press END to end your call.

By selecting Car kit auto answer on you can set your telephone to answer a call automatically after 5 seconds. This option is only effective when the car ignition is on.

If you have selected Any key answer on in the Phone setup menu you can, of course, answer the call by pressing any key.

ACCESSORIES

If you want to switch from hands-free mode to normal mode, just lift the handset and cradle as one complete unit – and back again for returning to hands-free. The switching is performed automatically.

Basic Car Kit

Remove the rubber plug covering the antenna hole on the back of the handset.

When placing the phone in the cradle, make sure that the antenna catch is open (slider in left hand side position). When the phone is in place, move the slider to the right hand side for locked position.

The cradle connects to the car's cigar lighter plug and external antenna.

The battery will be automatically recharged as necessary.

When your phone is switched on and placed in the cradle, the backlighting will remain on.

An external antenna must be connected, since the handset antenna is disconnected when the phone is placed in the cradle.

Simple Car Holder

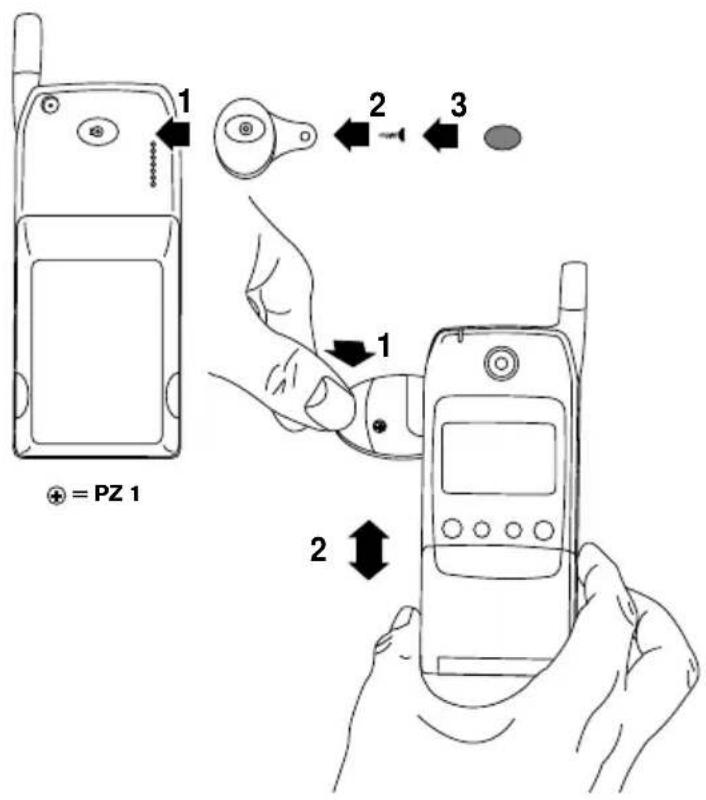

Using the Simple Car Holder will require a special knob to be fitted on the back of your phone. The necessary parts come with the package.

How to fit the knob:

Remove the label from the back of the phone. The knob can now be fitted by means of a screwdriver. Place the new label to cover the screw.

Headset

How to make a hands-free call

1. Enter the phone number you wish to call or retrieve it from the phone book.
2. Press CALL to let the conversation take place via the external speaker and microphone.
3. Press END to end your call.

How to receive a hands-free call

1. Press ANSWER when the phone rings.
2. Press END to end your call.

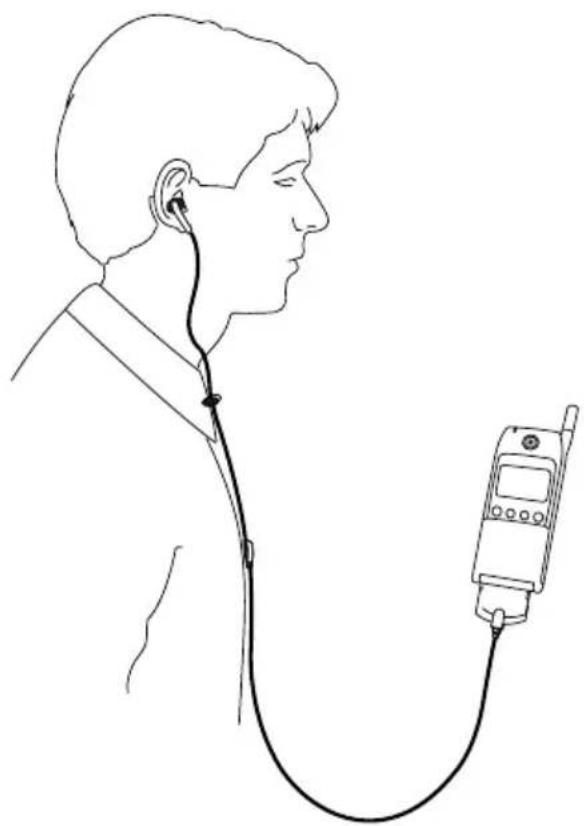

Line drawing of a person listening to a mobile phone connected to earphones (no text or symbols)

Desktop charger

The desktop charger is powered by means of the charger supplied with your telephone.

When you place the telephone in the desktop charger you have to make sure that the battery symbols on the display start flashing. The battery takes 1 to 5 hours to become fully charged depending on type and size of the battery. During charging the battery symbols on the display of your telephone will flash on and off one after another. When the battery is fully charged all 4 symbols are permanently displayed.

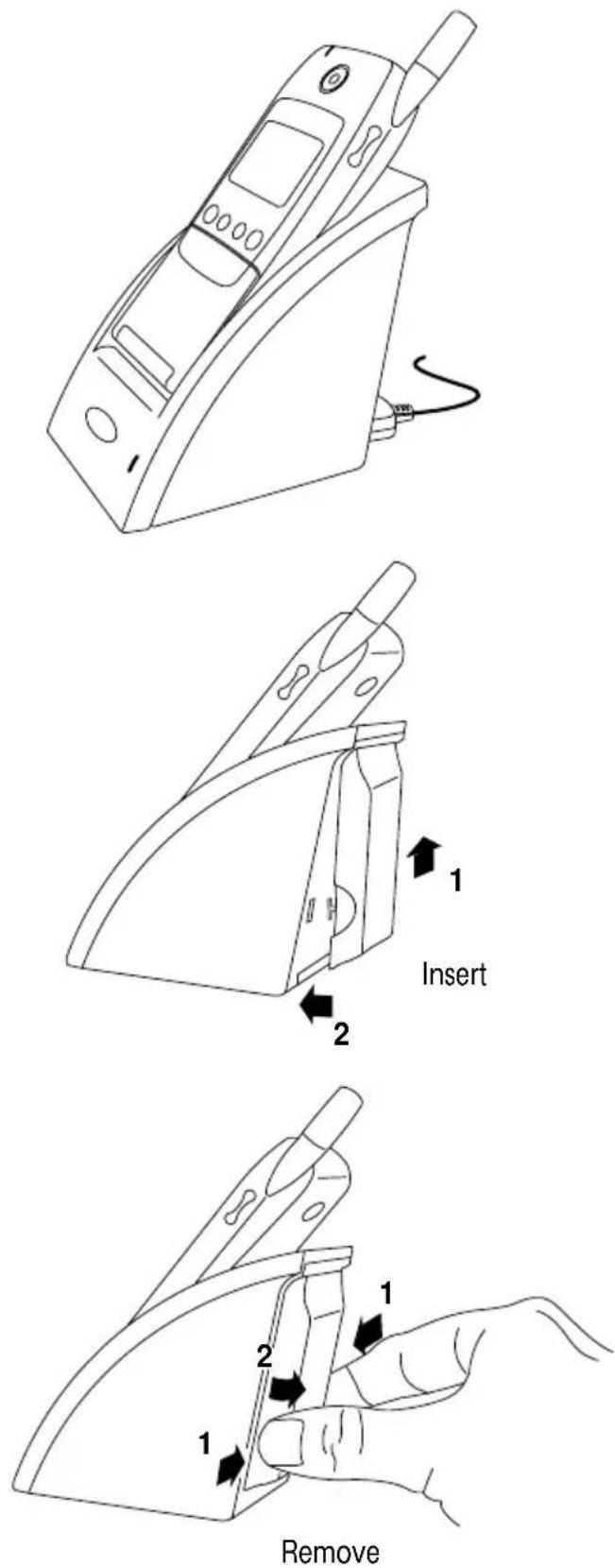

A spare battery can be attached for charging on the back of the desktop charger. The LED indicator on the front will show a red light during charging and a green light when the spare battery is fully charged. The indicator will be off when there is no spare battery attached.

Belt clip

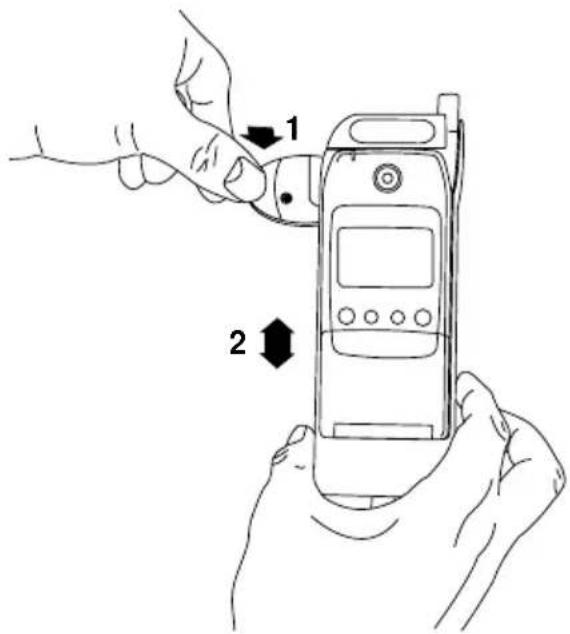

The necessary parts for fitting the belt clip to your phone comes with the package.

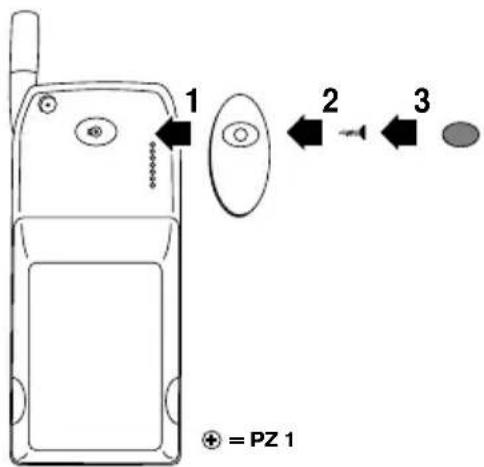

How to fit the belt clip:

Remove the label from the back of the phone. The belt clip can now be fitted by means of a screwdriver. Place the new label to cover the screw.

Data Interface

Your phone can be connected to your PC or laptop computer for data and fax communication. Please refer to separate user guide supplied with the kit.

Line drawing of a laptop connected to a mobile phone via cable, with two plug plugs and a power outlet nearby (no text or symbols)

Other accessories

Extra Light 350 mAh Li-ION battery

Vibra-Alarm 650 mAh Li-ION battery

Light 650 mAh Li-ION battery

Light 750 mAh NiMH battery

High Power 1800 mAh Li-ION battery

Travel Charger

Cigarlighter Charger 12/24 V

Accessories 39

Alternative phone books 17

Answered calls 19

Answering a call 7, 11

Any key answer 33

Auto answer 39

Automatic redial 32

Automatic switch off 39

Barred numbers 17

Basic car kit 40

Battery 8

Battery level indicator 8

Before sending messages 22

Before you start 8

Belt clip 43

Broadcast channel list 34

Broadcast language 34

Broadcast setup 34

Calculator 38

Call barring 28

Call divert 26

Call timers/charge 35

Call waiting 29

Car kit installation 39

CLI 19

Closed user group 30

Continuing calls 12

Currency/Call charge 35

Data/fax transmission 33

Data interface 43

Delete all messages 21

Delete a name/number 15

Delete call information 35

Desktop charger 42

Display 7

Duration of last call 35

Duration of total calls 35

Edit an old message 23

Edit a name/number 15

Emergency calls 11

Encryption indication 37

Extension numbers 11

Factory settings

- telephone 33

- tones 31

Find a name/number 15

Fixed numbers 17

Greeting 33

Headset 41

Important notice 4

Incoming call setup 33

International calls 10

Joining calls 13

Keypad 6

Keypad lock 13

Keypad tone 31

Language 10

List menu system 18

Location numbers 14

Making a call 7,10

Maximum call charge 35

Menu numbers 25

Messages

- cell broadcast 23

- favourites 22

- point-to-point 21

Message setup

- cell broadcast 34

- point-to-point 34

Message tones 31

Missed calls 20

Muting the microphone 12

Network password 37

Network selection 32

Options in conversation 12

Outgoing calls 19

Outgoing call identity 30

Own numbers 17

Phone book 14

Phone book sorting 35

Phone book status 16

Phone setup 32

PIN code 36

PIN2 code 36

Power saving 33

Precautions 3

Preferred list 32

Prefix telephone numbers 16

Private calls 13

Professional handsfree

car kit 39

PUK code 36

PUK2 code 36

Putting a call on hold 12

Reading a message

- cell broadcast 23

- point-to-point 21

Remaining call charge 35

Reset timers 35

Ringing tones 31

Security 36

Selection of language 10

Selection of network 32

Sending a new message 22

Service centre (SMS) 34

Service numbers 17

Setup menu system 24

SIM card 9

SIM card limitations 4

SIM lock 36

Simple car holder 41

Speed dialling 15

Store a name/number 14

Supplementary network

services 30

Switching calls 13

Tones setup 31

Transferring calls 13

Trembler 31

Unit price 35

USSD 30

Voice mail 15

Volume control 7

Welcome greeting 33

BOSCH EASY SETS

Accessories for Bosch mobile phones

GSM 908

Close-up of a man in a suit talking on a phone, smiling (no visible text or symbols)

Black mobile phone with a digital display and antenna (no visible text or symbols)

For the car

Professional Handsfree Car Kit		101
Basic Car Kit		102
Simple Car Holder		103
Cigarlighter Charger 12V/24V		104

For the computer

Data Interface	201
For charging
Desktop Charger	305
Travel Charger - EU	301
Travel Charger - UK	302
Travel Charger - AUS	303
Travel Charger - US	304

For power

Extra Light 350 mAh Li-Ion battery		501
Light 650 mAh Li-Ion battery		502
Vibra-Alarm 650 mAh Li-Ion battery		503
Light 750 mAh NiMH battery		505
High Power 1800 mAh Li-Ion battery		504

Outfit

Headset		701
Belt clip		702

GB Robert Bosch Ltd. Sales Communication Equipment P.O. Box 98 Uxbridge, Middlesex UB9 5HJ Tel. [phone]

Robert Bosch Industriale e Commerciale S.P.A. Via M.A. Colonna 35, 20149 Milano, Tel. [phone]

N Robert Bosch AS Postboks 629, 1411 Kolbotn, Tel. [phone]

S Robert Bosch Aktiebolag Box 1154, 164 26 Kista, Tel. [phone]

P Robert Bosch Lda. Av. Infante D. Henrique, Lotes 1E, 2E, Apartado 8058, 1801 Lisboa Codex, Tel. [phone]

E Robert Bosch SA Ctra. Nacional VI, km. 18,150, 28230 Las Rozas Madrid Tel. [phone]

A Robert Bosch AG Postfach 146, 1110 Wien, Tel. [phone]

CH Robert Bosch AG Industriestr. 31, 8112 Otelfingen, Tel. [phone]

TR Bosch Sanayi ve Ticaret A.S. Ambariar CAD No. 4, 34780 Zeytinburnu-Istanbul Tel. [phone]

H Robert Bosch Kft. P.O. Box 331, 1475 Budapest Tel. [phone]

SF OY Hedengren AB Lauttasaarentie 50, 00200 Helsinki Tel. [phone]

IRL Beaver Distribution Ltd. Greenhills Road, Tallaghl, Dublin 24, Tel. [phone]

L Central Import Export Corporation Zone Industrielle, Rue des Jones, 1818 Howald, Tel. [phone]

SGP Robert Bosch Pte Ltd 38c Jalan Pemimpin, Singapore 57180, Tel. [phone]

ZA Robert Bosch (Pty) Ltd. Private Bag X118, Randjespark, Midrand 1685 Rep. of South Africa Tel. [phone]
