USER MANUAL Tangent 503 AUDIOLINE

Cordless DECT/GAP telephone

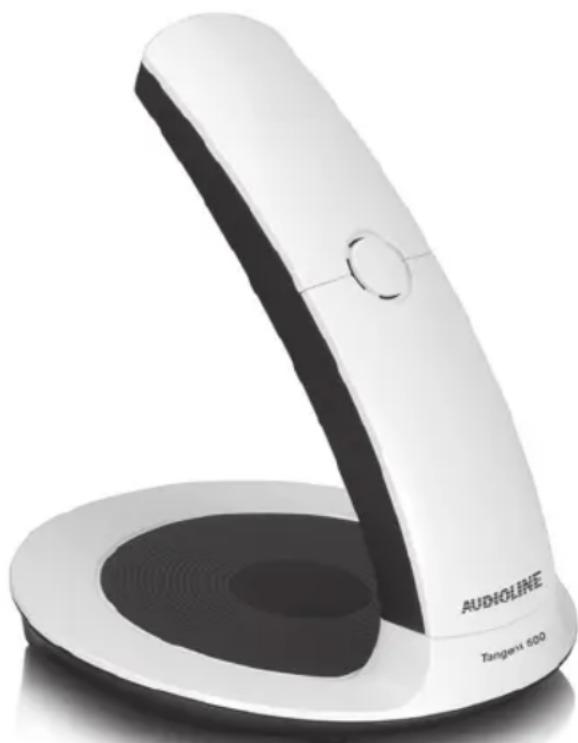

White Audioline 600 stand with black speaker grille and circular base (no text or symbols on device body)

Bedienungsanleitung

Operating Instructions

Tangent 500, 502, 503, 504

Technical line drawing of a remote control casing with internal components and housing (no text or labels)

400 mAh = ca. 100 h / ca. 10 h

Installation location 4

Power adapter plug 4

Rechargeable batteries 4

Power failure 4

Medical equipment 4

Disposal 5

2 Preparing the Telephone 6

Safety information 6

Checking the package contents 6

Connecting the base station 6

Connecting the charging station 7

Inserting the batteries 7

Charging the batteries 7

Operating Elements 8

Icons in the handset display 9

3 Preliminary Information ....10

Navigating in the menu 10

Standby mode 10

Low-radiation operation (Eco mode) 10

Setting the time and date on the handset 10

Setting the display language 10

Auto Answer....10

4 Telephoning 11

Taking a call 11

Making a call 11

Hands-free 11

Ending a call 11

Redial 11

Making a call from the call list 12

Making a call from the phone book 12

Call timer 12

Table of contents

Setting the earpiece/loudspeaker volume 12

Muting the microphone 12

Internal calls 13

5 Other features .....14

Key lock 14

Switching the handset ringer on/off 14

Switching off the handset 14

6 Call list / Redial .....15

Editing the call list 15

Editing the redial list 15

7 Phone book 16

Creating a new entry 16

Editing telephone book entries 16

Deleting telephone book entries 16

8 Setting the telephone 17

Date/Time 17

Alarm 17

Setting the tones for the handset (ringer/attention tones) 17

Setting the display language 18

Setting the handset name ....18

Setting the Eco mode 18

Setting Auto answer 18

Setting the dial mode 18

Setting the Flash Time / Recall time 19

Editing the PIN 19

Setting the Intrusion mode / Conference 19

Resetting your phone 20

9 Registering/de-registering handsets .....21

Registering a handset of the same type 21

De-registering a handset 21

10 PBX / Supplementary Services .....22

PBX 22

Supplementary services 22

Table of contents

11 Appendix ......23

Menu Structure 23

In Case of Problems 24

Default settings 24

Technical data 25

Declaration of Conformity 26

Maintenance 26

Guarantee 26

Index 27

GB

1 Safety Information

Please read this operating instruction manual thoroughly.

Intended use

The telephone is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

Installation location

Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight. Do not use the handset in potentially explosive areas.

Power adapter plug

⚠ Attention: Only use the power adapter plug supplied because other power supplies could damage the telephone. Ensure access to the power adapter plug is not obstructed by furniture or such.

Rechargeable batteries

⚠ Attention: Never throw batteries into a fire. Only use batteries of the same type. Pay attention to the correct polarity. Incorrect polarity of the batteries represents a risk of explosion during charging.

Power failure

The telephone cannot be used to make calls in the event of a power failure.

Always keep a cord connected telephone which operates without an external power supply available in case of emergency situations.

Medical equipment

⚠ Attention: Never use the telephone in the vicinity of medical equipment. Effects on such equipment cannot be fully ruled out.

DECT ^1 telephones can cause an unpleasant humming sound in hearing aids.

^1 DECT: Digital Enhanced Cordless Telecommunication = Standard for cordless telephones.

Disposal

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container.

The adjacent symbol indicates that the device must not be disposed of in normal domestic waste!

Batteries represent a hazard to both health and the environment! Never open, damage or swallow batteries, nor allow them to get into the environment.

They may contain toxic and ecologically hazardous heavy

metals. You are legally obliged to dispose of batteries at the point of sale or at appropriate collection points provided by your local public waste authorities. Disposal is free of charge. The adjacent symbols indicate that batteries must not be disposed of in normal domestic waste and but at authorised collection points.

Packaging materials must be disposed of according to local regulations.

GB

Preparing the Telephone

2 Preparing the Telephone

Safety information

⚠ Attention: It is essential to read the Safety Information in Chapter 1 before starting up.

Checking the package contents
Content Tangent 50x model

		500^1	502^1	503^1	504^1
Base station with power adapter plug 1 1 1 1
Charging station with power adapter plug - 1 2 3
Handset	1	2	3	4
Telephone	connection	cable	1	1	1	1
Rechargeable	batteries	2	4	6	8
Operating	instructions	1	1	1	1

^1 Visit www.audioline.de to find out whether this telephone is available.

The power adapter plugs supplied fulfils the eco-design directive of the European Council (Directive 2005/32/EC). This means that power consumption is considerably lower than power adapter plugs of an earlier design both in operating and idling modes.

Connecting the base station

⚠ Attention: Position the base station at least 1 m away from other electronic devices, otherwise there is a risk of mutual disturbance.

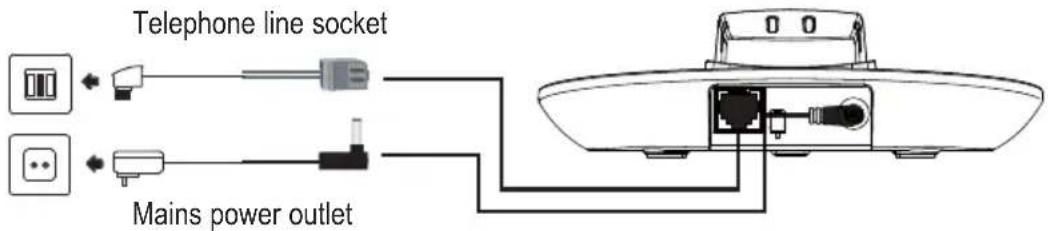

Connect the base station as illustrated in the diagram. For reasons of safety, only use the power adapter plug and telephone connection line supplied.

Telephone line socket Mains power outlet

⚠ Attention: Use only the power adapter plug supplied with the base station!

Connecting the charging station ^2

Connect the charging station to a suitable mains power outlet. For safety reasons, only use the power adapter plug supplied.

⚠ Attention: Use only the power adapter plug supplied with the charging station!

2 Only applies to telephone sets with at least two handsets, see "Checking the package content".

Inserting the batteries

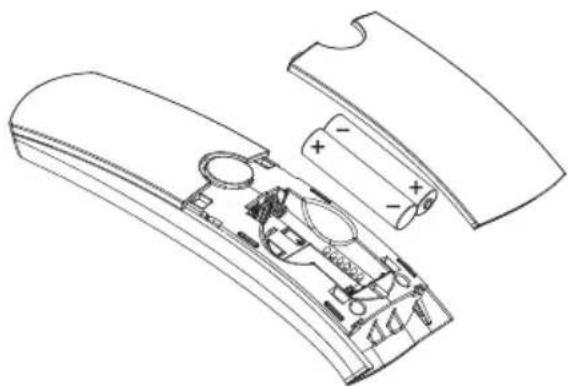

Open the battery compartment cover. Put in the batteries. Observe the correct polarity. Close the battery compartment cover.

Technical line drawing of a remote control casing with internal components and battery housing (no text or labels)

⚠ Attention: Use only type AAA NiMH 400 mAh rechargeable batteries. Never use normal batteries / primary cell batteries. Observe the correct polarity!

Charging the batteries

Before the handset is used for the first time, insert it in the base station / charging station for at least 10 hours.

The handset warms up during the charging process. This is normal and does not represent a risk. Use only the adapter plug unit provided for the charging station. The battery status is shown on the display. When the battery capacity is nearly exhausted, the battery symbol ( flash in the display and you will hear a warning tone. You still have up to ten minutes of talk time.

GB

Preparing the Telephone

Operating Elements

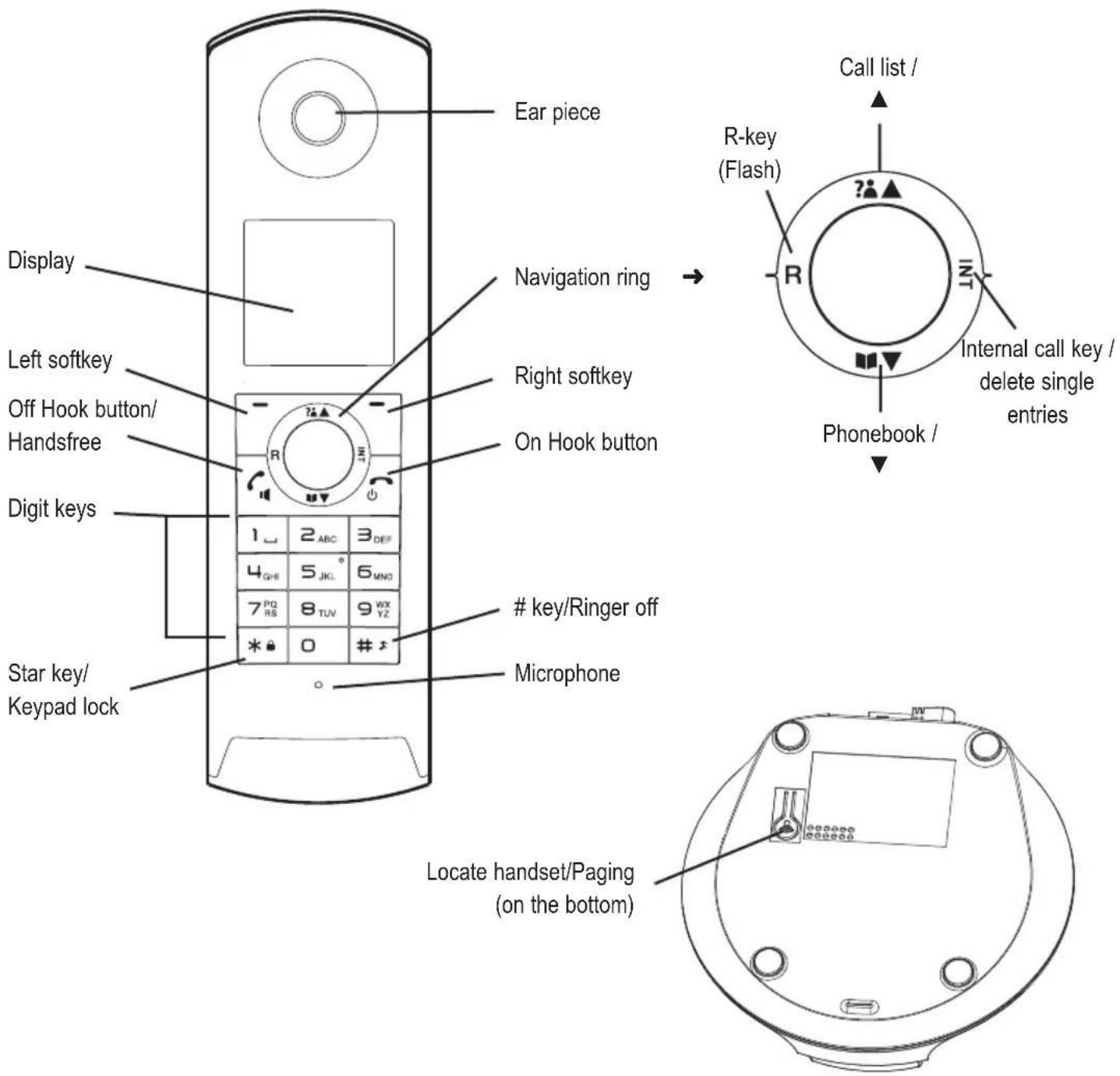

Ear piece Display Left softkey Off Hook button/ Handsfree Digit keys Star key/ Keypad lock Navigation ring Right softkey On Hook button 1 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO 7 PQ RS 8 TUV 9 WX YZ * # 0 #

key/Ringer off

Microphone Locate handset/Paging (on the bottom) Call list / R-key (Flash) R INT Internal call key / delete single entries Phonebook /

key/Ringer off

Icons in the handset display

Icon	Description
	On: The connection to the base station is good.Flashing: The connection to the base station is lost.
	Eco mode on.
	On: Indicates the battery charge status.Flashing while handset in base:Batteries are being charged.
	On: Batteries need charging.Flashing: Batteries should be charged immediately.
	On: A call is currently being made.Flashing: A call has been received.
	Handsfree mode is activated.
	The ringing tone has been switched off.
	On: The alarm function is activated.Flashing: The alarm is ringing.
	You received a message in your answering machine provided by the telephone network (depending on telephone network/provider).
	Not answered call in the call list.

The functions assigned to the two softkeys are shown in the lowest line of the display. The key function changes automatically according to the operating status of the handset, e. g. Menu, OK, Back.

GB

3 Preliminary Information

Navigating in the menu

All the functions can be accessed via the various menus. The entire menu structure can be found in the appendix.

The softkeys and the navigation keys ▲/▼ (on top/bottom of the navigation ring) are used for navigation in the menu.

The menu is opened with the softkey Menu.

Use the navigation keys ▲/▼ to move within the menu

Press OK to open a sub menu.

To return to the main menu press Back briefly. With a long press you will return to the standby state.

Standby mode

All descriptions in this operating manual assume that the handset is in Standby mode. The system switches to Standby mode by pressing the button.

Low-radiation operation (Eco mode)

In call mode, depending of the distance between between handset and base station, the radiation is reduced considerably as compared to standard, cordless DECT telephones.

Setting the time and date on the handset

At initial operation the handset does not have the correct time (e.g. for entries in the call list). Date and time are set through the menu item "Basic settings / Set date/time".

Setting the display language

The display language is available in different languages. The default setting is "German (Deutsch)". Set the language using the menu item "Basiseinstell. / Sprache".

Auto Answer

If this function is activated, an incoming call is taken when the handset is removed from the base station. The automatic answering function is activated and deactivated using the menu item "Basic settings / Auto answer".

4 Telephoning

Taking a call

Your phone is ringing.

If the handset is not in the base station:

Press the Off Hook button.

If the handset is in the base station and Auto answer is not activated:

Remove the handset from the base and press the Off Hook button.

If the handset is in the base station and Auto answer is activated:

Remove the handset from the base - the call will be taken automatically.

Making a call

Enter the telephone number.

Delete wrong characters pressing Clear.

The telephone number is being dialled.

You can also press the Off Hook button and you will hear the dialling tone. The entered number will be dialled immediately. It is not possible to correct wrong digits individually using this dialling procedure.

Hands-free

For switching hands-free on or off press the Off Hook button.

Ending a call

Press the On Hook button or replace the handset in the base station.

Redial

Your handset saves the last 20 dialled telephone numbers. If a caller is stored in your phone book, the name will be displayed. Whilst the name is displayed to show the respective number press OK.

The most recent last number will be displayed at the top of the list.

Redial Open the redial list.

▲/▼ Select an entry.

Dial out the telephone number.

Telephoning

Making a call from the call list

Your handset saves the numbers of the last 50 incoming calls in the call list. If a caller is stored in your phone book, the name will be displayed. Whilst the name is displayed to show the respective number press OK. Saving can only take place if the function "Phone number transmission (CLIP)" is available at your connection and caller ID is not suppressed by the caller or was not transmitted for any other reason.

▲ Open the call list.

▲/▼ Select an entry.

Dial out the telephone number.

Making a call from the phone book

You can store up to 100 entries in the phone book. For creating entries see section "Phone book".

▼ Open the telephone book.

▲/▼ Select the name of the person you wish to call.

Dial out the telephone number.

Call timer

Your handset automatically times the duration of every call in hours, minutes and seconds.

Setting the earpiece/loudspeaker volume

▲/▼ During a call you can adjust the volume in 5 levels (if telephoning "normally" -> earpiece volume, with hands-free -> loudspeaker volume). These separate settings will remain at the last selected level when you end the call.

Muting the microphone

Mute Pressing the right softkey you can switch your handset's microphone off during a call. The display shows Mute on.

Unmute To unmute press the right softkey again.

Internal calls

Internal calls, transfers and conference calls are only possible if multiple handsets are registered. If this is not the case FAILED will be indicated on the display.

Making an internal call

Press the INT key (navigation ring ▶). If two handsets are registered to the base station the other handset will be called immediately.

If three or more handsets are registered to the base station they will be displayed (for example Handset 2, Handset 3 etc.). Select the desired handset and press OK.

Brokering/Transferring an external call to another handset

During an external call ...

Press the INT key (navigation ring ▶) and select the desired handset if necessary.

The external call is put on hold. When the called handset answers you can announce the call transfer.

Press INT to toggle between the external and the internal call (Brokering).

Whilst connected with the internal subscriber press the On-Hook button. The external call will be transferred.

3-Party Conference

During an external call ...

Press the INT key (navigation ring ▶) and select the desired handset if necessary.

When the called handset answers ... press CONF. The 3-party conference is established.

Any handset hangs up during a conference call will leave the other handset still in connection with the external call. If “Intrusion mode/Conference” is activated, see page 19, an additional handset registered to the same base is allowed to intrude a current external call by simply pressing the Off-Hook button and with this establish a 3-party conference.

5 Other features

Key lock

The key lock prevents functions assigned to buttons being activated inadvertently. Incoming calls can still be taken in the normal way even when the key lock function is activated.

Press and hold down the star-key until Key locked appears in the display.

For unlocking the keypad again press and hold down the star-key.

Switching the handset ringer on/off

You can turn off the ringer via the menu item "Basic settings/Handset tones/Ring volume" as well.

Press and hold down the #-key until the icon appears in the display.

For turning the ringer on again press and hold down the #-key until the icon disappears.

Switching off the handset

You can switch off the handset for saving battery capacity.

Press and hold down the On Hook-button. After a few seconds the handset will be switched off.

For switching the handset on again press and hold down the On Hook-button until the display is activated again. You can also simply put the handset into the base station.

6 Call list / Redial

Editing the call list

▲ Open the call list.

▲/▼ Select an entry.

Option Press Option.

▲/▼

Select one of the following options and confirm with OK:

View The telephone number is displayed. Press Save to enter a name for storing the entry in the phonebook. Press OK, edit the telephone number if necessary and press Save.

Save number The telephone number will be stored in the telephone book. Enter a name, press OK, edit the telephone number if necessary and press Save.

Delete all The complete list will be deleted after a confirmation query.

For deleting a single entry press INT (▶), whilst the respective entry is displayed.

Editing the redial list

Redial Open the redial list.

▲/▼ Select an entry.

OK Press OK.

Option Press Option.

▲/▼

Select one of the following options and confirm with OK:

Save number The telephone number will be stored in the telephone book. Enter a name, press OK, edit the telephone number if necessary and press Save.

Delete all The complete list will be deleted after a confirmation query.

For deleting a single entry press INT (▶), whilst the respective entry is displayed.

7 Phone book

Your phone can store up to 100 private phonebook entries with names and numbers. Always enter the phone numbers with the area code; this enables a correct display of the respective caller for whom there is an existing entry and whose phone number transmission to your connection is available.

Creating a new entry

Menu	Press Menu, select Phonebook and press OK.
▲/▼	Select Add new and press OK.
###	Enter the name (max. 14 digits).
	Letters are also imprinted on the digit keys. Letters, digits and special characters are entered by pressing the relevant key the respective number of times. After a short time the cursor skips one position forwards.
	Press and hold down (approx. 2 s) the # key to toggle between uppercase (ABC), lower case (abc) and “First character capitalised” (Abc).

OK Confirm with OK.

Enter the phone number (max. 24 digits). If your telephone is connected to a PBX start the telephone number with the access code. If a dialling pause is needed, press after the access code the # key for approx. 2 sec. A P appears in the display.

Save Confirm with Save.

Editing telephone book entries

Menu	Press Menu, select Phonebook and press OK.
▲/▼	Select View and press OK.
▲/▼	Select an entry and press OK.
Edit	Press Edit to edit the entry. Use Clear to delete characters and numbers then add new characters and numbers as required. Please refer to “Creating a new entry”.

Deleting telephone book entries

Menu	Press Menu, select Phonebook and press OK.
▲/▼	Select Delete all and confirm with OK. The complete list will be deleted after a confirmation query.

For deleting a single entry press INT (▶), whilst the respective entry is displayed.

8 Setting the telephone

Date/Time

Menu Press Menu.

▲/▼	Select Basic settings and press OK.
▲/▼	Select Set date/time and press OK.
###	Enter the date using the digit keys and press OK.
▲/▼	Select the desired date format ( dd/mm = day/month or mm/dd = month/day) and press OK.
###	Enter the time using the digit keys and press OK.
▲/▼	Select the desired time format (12 Hours or 24 Hours) and press OK.

In case of mains failure this setting will be deleted when simultaneously the handset will be switched off or the batteries will be empty.

Alarm

Menu Press Menu.

▲/▼	Select Alarm and press OK.
▲/▼	Select one of the following options and confirm with OK:Off The alarm function is turned off.
	On once	Enter the alarm time using the digit keys and press OK. The alarm signal is given once at the specified time.
	On daily	Enter the alarm time using the digit keys and press OK. The alarm signal is repeated daily at the specified time.

Setting the tones for the handset (ringer/attention tones)

Menu Press Menu.

▲/▼	Select Basic settings and press OK.
▲/▼	Select Handset tones and press OK.
▲/▼	Select one of the following options and confirm with OK: Ring volume Select the volume for the ringer. Ring melody Select a melody for incoming calls. Key beep Switch the keytone on or off. Parking tone Switch on or off the beep for the handset being replaced back to the base charger cradle.

Setting the telephone

Setting the display language

Menu Press Menu.

▲/▼ Select Basic settings and press OK.
▲/▼ Select Language and press OK.
▲/▼ Select a language and press OK.

Setting the handset name

Menu Press Menu.

▲/▼ Select Basic settings and press OK.
▲/▼ Select Handset name and press OK.
Delete the old name with Clear, enter a new name using the digit keys and confirm with OK.

Setting the Eco mode

Menu Press Menu.

▲/▼ Select Basic settings and press OK.
▲/▼ Select Eco mode and press OK.
▲/▼ Select whether the Eco mode function will be on or off and confirm with OK.

If Eco mode is on, the handset's transmission power and thus the radiation will be reduced to the necessary minimum, depending on the distance to the base station.

Setting Auto answer

Menu Press Menu.

▲/▼ Select Basic settings and press OK.
▲/▼ Select Auto answer and press OK.
▲/▼ Select whether the automatic answer function will be on or off and confirm with OK.

If Auto answer is on an incoming call will immediately be taken when the handset is taken from the base.

Setting the dial mode

Menu Press Menu.

▲/▼ Select Adv. settings and press OK.
▲/▼ Select Dial mode and press OK.
▲/▼ Select Tone or Pulse and confirm with OK.

In most situations the Tone option should be selected.

Setting the Flash Time / Recall time

Menu Press Menu.

▲/▼	Select Adv. settings and press OK.
▲/▼	Select Recall time and press OK.
▲/▼	Select Short (100 ms), Medium (270 ms) or long (600 ms) and confirm with OK.

Please consult your telephone service provide for the timing information.

Editing the PIN

Menu Press Menu.

▲/▼	Select Adv. settings and press OK.
▲/▼	Select Change PIN and press OK.
	Enter the relevant PIN (default 0 0 0 0) and press OK.
	Enter the new PIN and press OK.
	Enter the new PIN again and press OK.

The four digit PIN protects some settings against unauthorized changes. If you have forgotten your PIN please call our service hotline.

Setting the Intrusion mode / Conference

Menu Press Menu.

▲/▼	Select Adv. settings and press OK.
▲/▼	Select Conference and press OK.
▲/▼	Select Auto to activate or choose Off to turn off the intrusion mode of conference call and press OK.

If the intrusive conference mode is being activated, you can allow a second handset to join in an external call when the second handset user presses the talk key.

GB

Resetting your phone

Menu Press Menu.

▲/▼

Select Adv. settings and press OK.

▲/▼

Select Reset and press OK.

Enter the relevant PIN (default 0 0 0 0) and press OK.

Confirm the confirmation query with OK.

The phone book entries will not be deleted. Please delete the phone book using the menu item "Phonebook / Delete all". The registration of handsets will not be changed.

9 Registering/de-registering handsets

5 handsets can be registered to a base station. The handsets delivered with your telephone are already registered. To register a "foreign" handset please refer to it's user manual.

Registering a handset of the same type

Menu Press Menu.

▲/▼	Select Adv. settings and press OK.
▲/▼	Select Register and press OK.
	Enter the relevant PIN for the base, the new handset should be registered on, and press OK.

Press and hold down the paging key on the base station for approx. 5 seconds.

After a few seconds the antenna icon on the display is on. The handset is registered.

De-registering a handset

Menu Press Menu.

▲/▼	Select Adv. settings and press OK.
▲/▼	Select Deregister and press OK.
###	Enter the relevant PIN and press OK.
▲/▼	Select a handset and press OK.

You cannot de-register the handset you are currently using.

10 PBX / Supplementary Services

PBX

If the telephone is connected to a private branch exchange, functions such as transferring calls and automatic call back can be used via the R button.

Refer to the operating manual provided with your private branch exchange as to which Flash time must be set in order to use these functions. The sales outlet where you purchased the exchange can provide information as to whether the telephone will work properly with the exchange.

Please remember to enter the access code and a neccessary dialling pause (longpress “#”) when creating phone book entries.

Supplementary services

Your telephone supports supplementary services provided by your telephone network provider, such as brokering, call waiting and conference facilities. These supplementary services can be used via the R-button.

Please contact your telephone network provider regarding which Flash time must be set to use the supplementary services. Contact your telephone network provider with regard to enabling supplementary services.

11 Appendix

Menu Structure

Phonebook View/Add-new/Delete all

Alarm	Off/On	once/On	daily
Basic settings Handset tones Ring volume
		Ring	melody
		Key	beep
		Parking	tone
	Eco	mode
	Handset	name
	Set	date/time
	Language
	Auto	answer
Adv. settings Conference
	Recall	time
	Dial	mode
	Change	PIN
	Register
	Deregister
	Reset

GB

Appendix

In Case of Problems

Should problems arise with the telephone, please refer to the following information first.

In the case of technical problems, contact our Hotline. Please refer to our website www.audioline.de for the telephone number.

In the case of claims under the terms of guarantee, contact your sales outlet. There is a 2 year period of guarantee.

• After pressing the on hook button, no ring tone is audible, the line is not engaged.
• Check the telephone connector on the base station and on the wall socket.
• Check power connector on the base station and on 230 V.
• The line is being occupied by another handset. Wait until the connection is terminated.
• Display: "Searching...".
• Check power connector on the base station and on 230 V.
• Reduce range.
• Register handset.
• No display.
• Handset turned off -> turn on.
• Battery empty -> recharge.

Default settings

Call list No entry

Phonebook No entry

Alarm Off

Ringer handset Melody 1 / Volume 3

Earpiece/speaker volume 3

Tone setup Key tone: On / Parking tone: On

Language German

Handset name Handset 1

Auto answer On

Date / Time 00:00 / 01.01.2014 / date format: DD/MM / time format: 24 hours

Dial mode Tone

Flash time Short (100 ms)

PIN 0000

Conference Off

Technical data

Standard: DECT / GAP

Number of channels: 120 duplex channels

Frequencies: 1880 MHz to 1900 MHz

Duplex mode: Time division multiplex, 10ms frame length

Channel spacing: 1728 kHz

Bit rate: 1152 kBit / s

Modulation: GFSK

Voice encoding: 32 kBit / s

Transmitter power: 10 mW (average power per channel)

Range: up to 300 m outside, up to 50 m inside buildings

Electricity supply base station: 100\~240 V AC, 6 V DC / 500 mA

Electricity supply charger: 100\~240 V AC, 6 V DC / 150 mA

Electricity supply handset: 2 x AAA NiMH / 400 mAh

Handset: Operating time: Stand-by time / Talk time

400 mAh = up to 100 h / up to 10 h

Charging time: approx. 10 hours

Operating temperature for handset operation:

5°C to 45°C ; 20 % to 75 % rel. humidity

Operating temperature for base station operation:

5°C to 45°C ; 20 % to 75 % rel. humidity

Storage temperature: -10°C to +60°C

Dial mode: Tone / Pulse

R-key : Flash time (Short -100 ms/Medium-270 ms/Long-600 ms)

Base station dimensions (mm): ∅ / H = approx. 144 x 42

Handset dimensions (mm): L / W / H = approx. 169 x 48 x 26

Telephone line cord: TSV on Pin 3 and 4 according to CTR 37 (Euro)

Adapter plug: European-type mains connector

GB

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directives:

- 1999/5/EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.

- 2005/32/EU directive "Energy-using products".

Conformity with the above mentioned directives is confirmed by the CE symbol on the device.

To view the complete Declaration of Conformity, please refer to the free download available on our web site www.audioline.de.

Maintenance

Clean the housing surfaces with a soft, fluff-free cloth.

Do not use any cleaning agents or solvents.

Guarantee

AUDIOLINE equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies related to material or manufacturing errors within the period of guarantee will be redressed free of charge. Rights to claims under the terms of guarantee are annulled following tampering by the purchaser or third parties. Damage caused as the result of improper handling or operation, normal wear and tear, incorrect positioning or storage, improper connection or installation or Acts of God and other external influences are excluded from the terms of guarantee. In the case of complaints, we reserve the right to repair defect parts, replace them or replace the entire device. Replaced parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your device shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the AUDIOLINE device together with the purchase receipt. All claims under the terms of guarantee in accordance with this agreement can only be asserted at the sales outlet.

No claims under the terms of guarantee can be asserted after a period of two years from the date of purchase and hand-over of the product.

Index

A

Alarm 17

Attention tones .....17

Auto Answer .....10, 18

C

Call list....12, 15

Call timer 12

Charging the batteries .....7

Conference .....13, 19

Connecting the base station .....6

Connecting the charging station . .7

D

Date/time .....10, 17

Declaration of Conformity .....26

Dial mode .....18

Disposal 5

E

Earpiece/loudspeaker volume ...12

Eco mode .....10, 18

Ending a call .....11

F

Flash Time .....19

G

Guarantee 26

H

Hands-free .....11

Handset name .....18

|

Icons 9

In Case of Problems .....24

Inserting the batteries .....7

Installation location .....4

Intended use 4

Internal calls .....13

Intrusion mode .....19

K

Key lock....14

L

Language .....10, 18

Low-radiation operation .....10

M

Maintenance .....26

Making a call .....11

Medical equipment 4

Menu Structure .....23

Muting the microphone .....12

N

Navigating in the menu .....10

P

Package contents .....6

PBX 22

Phone book .....12, 16

PIN 19

Power adapter plug ....4

Power failure 4

R

Recall time .....19

Rechargeable batteries .....4

Redial .....11, 15

Registering/de-registering

handsets 21

Reset 20

Ringer .....17

S

Safety Information 4

Standby mode .....10

Supplementary services .....22

Switching off the handset .....14

Switching the handset ringer on/off ....14

T

Taking a call....11

Technical data .....25

Transferring an external call ....13

V

Volume (earpiece/loudspeaker) ..12

Appendix
