USER MANUAL Team 303 AUDIOLINE

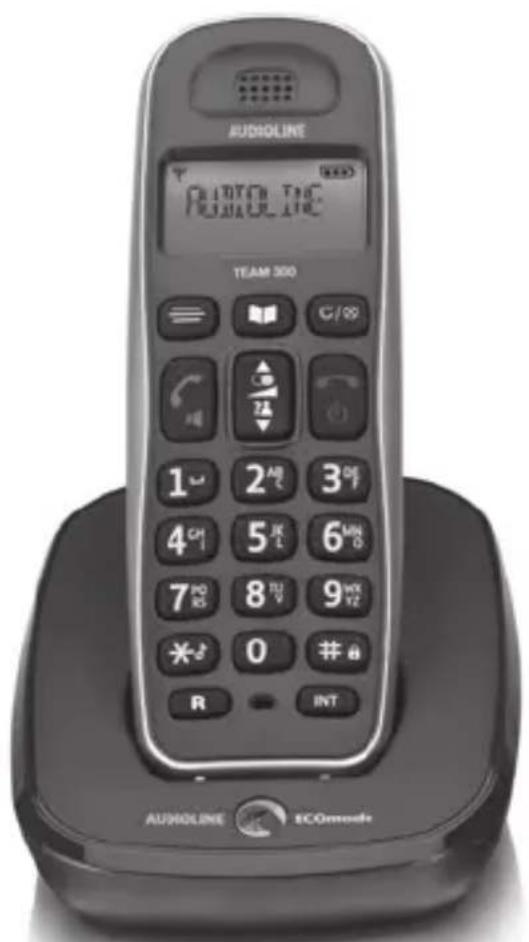

Schnurloses DECT-/GAP-Telefon Cordless DECT/GAP telephone

AUDIOLINE T AUDIO TNC AUDIOLINE TEAM 300 1 2 3 4 5 6 7 8 9 R 0 INT AUDIOLINE ECOmode

Bedienungsanleitung

Operating Instructions

Team 300, 302, 303, 304

Line drawing of a remote control device with internal components and external casing (no text or symbols)

400 mAh = ca. 100 h / ca. 10 h

Installation location 4

Power adapter plug 4

Rechargeable batteries 4

Power failure 4

Medical equipment 5

Disposal 5

2 Preparing the Telephone 6

Safety information 6

Checking the package contents 6

Connecting the base station 7

Connecting the charging station 7

Inserting the batteries ....8

Charging the batteries 8

Setting the time and date on the handset 8

Setting the display language 8

Auto Answer 9

3 Operating Elements ....10

4 Preliminary Information .....12

Icons in the handset display ....12

Standby mode 14

Low-radiation operation (ECO mode) .....14

Navigating in the menu .....14

5 Telephoning ....15

Taking a call 15

Making a call....15

Hands-free 15

Ending a call....15

Redial 16

Table of contents

Making a call from the call list .....16

Making a call from the phone book .....16

Call timer 17

Setting the earpiece/loudspeaker volume .....17

Muting the microphone .....17

Internal calls ....17

6 Other features .....19

Key lock 19

Switching the handset ringer on/off .....19

Switching off the handset 19

7 Call list / Redial .....20

Editing the call list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Editing the redial list .....20

8 Phone book .....21

Creating a new entry .....21

Editing telephone book entries .....22

9 Setting the telephone .....23

Date/Time 23

Alarm 23

Setting the ringer for the handset .....24

Setting the alert tones .....24

Setting the display language .....24

Setting the handset name .....25

Setting the display .....25

Setting Auto Answer 25

Setting the dial mode .....25

Setting the Flash Time .....26

Editing the PIN .26

Resetting your phone .....26

10 Registering/de-registering handsets .....27

Registering a handset of the same type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Deleting a handset .....27

11 PBX / Supplementary Services .....28

PBX....28

Supplementary services .....28

12 Appendix .....29

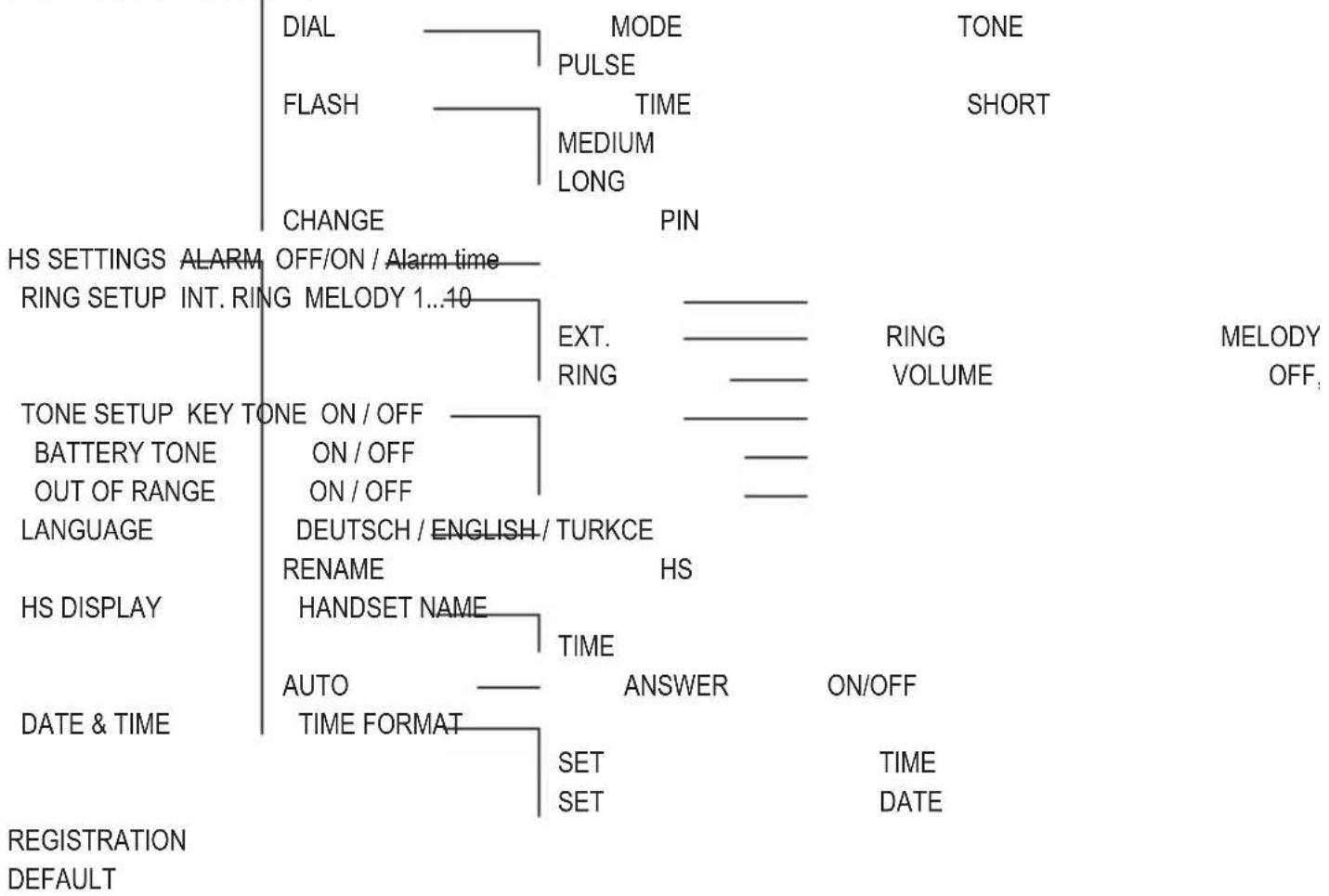

Menu Structure .....29

In Case of Problems ....30

Default settings....31

Technical data....32

Declaration of Conformity....33

Maintenance ....33

Guarantee 33

1 Safety Information

Please read this operating instruction manual thoroughly.

Intended use

The telephone is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

Installation location

Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Do not use the handset in potentially explosive areas.

Power adapter plug

⚠ Attention: Only use the power adapter plug supplied because other power supplies could damage the telephone.

Ensure access to the power adapter plug is not obstructed by furniture or such.

Rechargeable batteries

⚠ Attention: Never throw batteries into a fire. Only use batteries of the same type. Pay attention to the correct polarity. Incorrect polarity of the batteries represents a risk of explosion during charging.

Power failure

The telephone cannot be used to make calls in the event of a power failure. Always keep a cord connected telephone which operates without an external power supply available in case of emergency situations.

Medical equipment

Attention: Never use the telephone in the vicinity of medical ipment. Effects on such equipment cannot be fully ruled out.

DECT ^1 telephones can cause an unpleasant humming sound in hearing aids.

Disposal

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre).

According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container.

The adjacent symbol indicates that the device must not be disposed of in normal domestic waste!

Batteries represent a hazard to both health and the environment! Never open, damage or swallow batteries, nor allow them to get into the environment.

They may contain toxic and ecologically hazardous heavy metals. You are legally obliged to dispose of batteries at the point of sale or at appropriate collection points provided by your local public waste authorities. Disposal is free of charge. The adjacent symbols indicate that batteries must not be disposed of in normal domestic waste and but at authorised collection points.

Packaging materials must be disposed of according to local regulations.

^1 DECT: Digital Enhanced Cordless Telecommunication = Standard for cordless telephones.

GB

2 Preparing the Telephone

Safety information

⚠ Attention: It is essential to read the Safety Information in Chapter 1 before starting up.

Checking the package contents
The package contains: Content Team 30x model

		300^1	302^1	303^1	304^1
Base station with power
adapter plug 1 1 1 1
Charging station with power
adapter	plug	-	1	2	3
Handset	1	2	3	4
Telephone	connection		cable	1	1	1
Rechargeable	batteries		2	4	6	8
Operating	instructions		1	1	1	1

^1 Visit www.audioline.de to find out whether this telephone is available.

The power adapter plugs supplied fulfils the eco-design directive of the European Council (Directive 2005/32/EC). This means that power consumption is considerably lower than power adapter plugs of an earlier design both in operating and idling modes.

Connecting the base station

⚠ Attention: Position the base station at least 1 m away from other electronic devices, otherwise there is a risk of mutual disturbance.

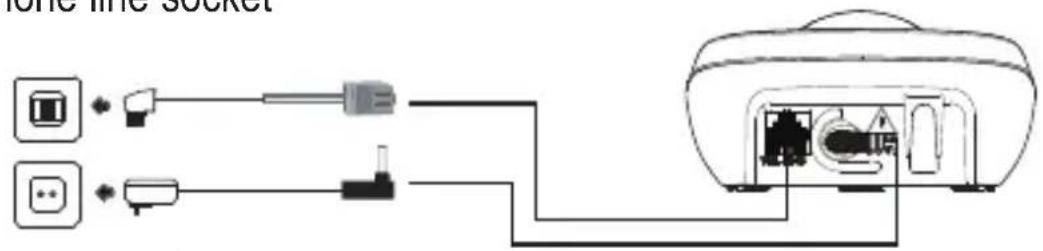

Connect the base station as illustrated in the diagram. For reasons of safety, only use the power adapter plug and telephone connection line supplied.

Telephone line socket

one line socket

Mains power outlet

⚠ Attention: Use only the power adapter plug supplied with the base station!

Connecting the charging station ^2

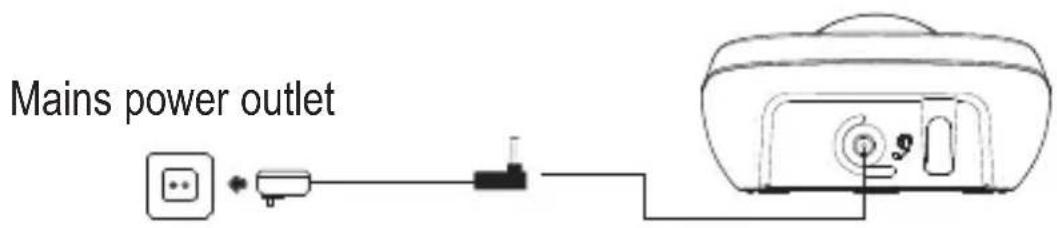

Connect the charging station as illustrated in the diagram.

For safety reasons, only use the power adapter plug supplied.

Mains power outlet

⚠ Attention: Use only the power adapter plug supplied with the charging station!

^2 Only applies to telephone sets with at least two handsets, see “Checking the package content”.

Preparing the Telephone

Inserting the batteries

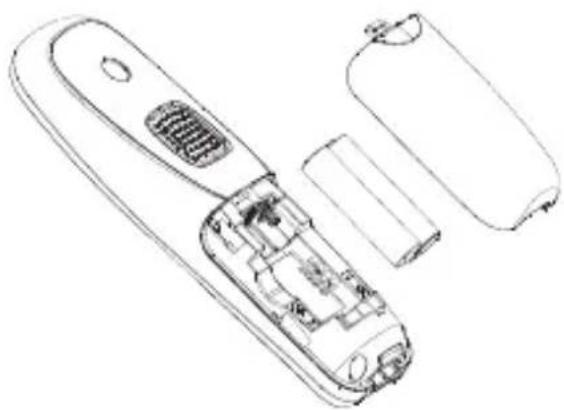

Open the battery compartment cover.

Put in the batteries.

Close the battery compartment cover.

Line drawing of a remote control device with internal components and housing (no text or symbols)

Attention: Use only type AAA NiMH 400 mAh rechargeable batteries.

Never use normal batteries / primary cell batteries.

Observe the correct polarity!

Charging the batteries

Before the handset is used for the first time, insert it in the base station / charging station for at least 14 hours.

The handset warms up during the charging process. This is normal and does not represent a risk. Use only the adapter plug unit provided for the charging station. The battery status is shown on the display. When the battery capacity is nearly exhausted, the battery symbol ( ) will flash in the display and you will hear the battery warning sound (if the option is switched on) / menu item “HS SETTINGS/TONE SETUP/BATTERY TONE“). You still have up to ten minutes of talk time.

Setting the time and date on the handset

At initial operation the handset does not have the correct time (e.g. for entries in the call list). Date and time are set through the menu item "HS SETTINGS/ DATE & TIME".

Setting the display language

The display language is available 3 languages. The default setting is "German (Deutsch)". Set the language using the menu item "MT-EINSTEL. / SPRACHE".

Auto Answer

If this function is activated, an incoming call is taken when the handset is removed from the base station. The automatic answering function is activated and deactivated using the menu item "HS SETTINGS/ AUTO ANSWER".

3 Operating Elements

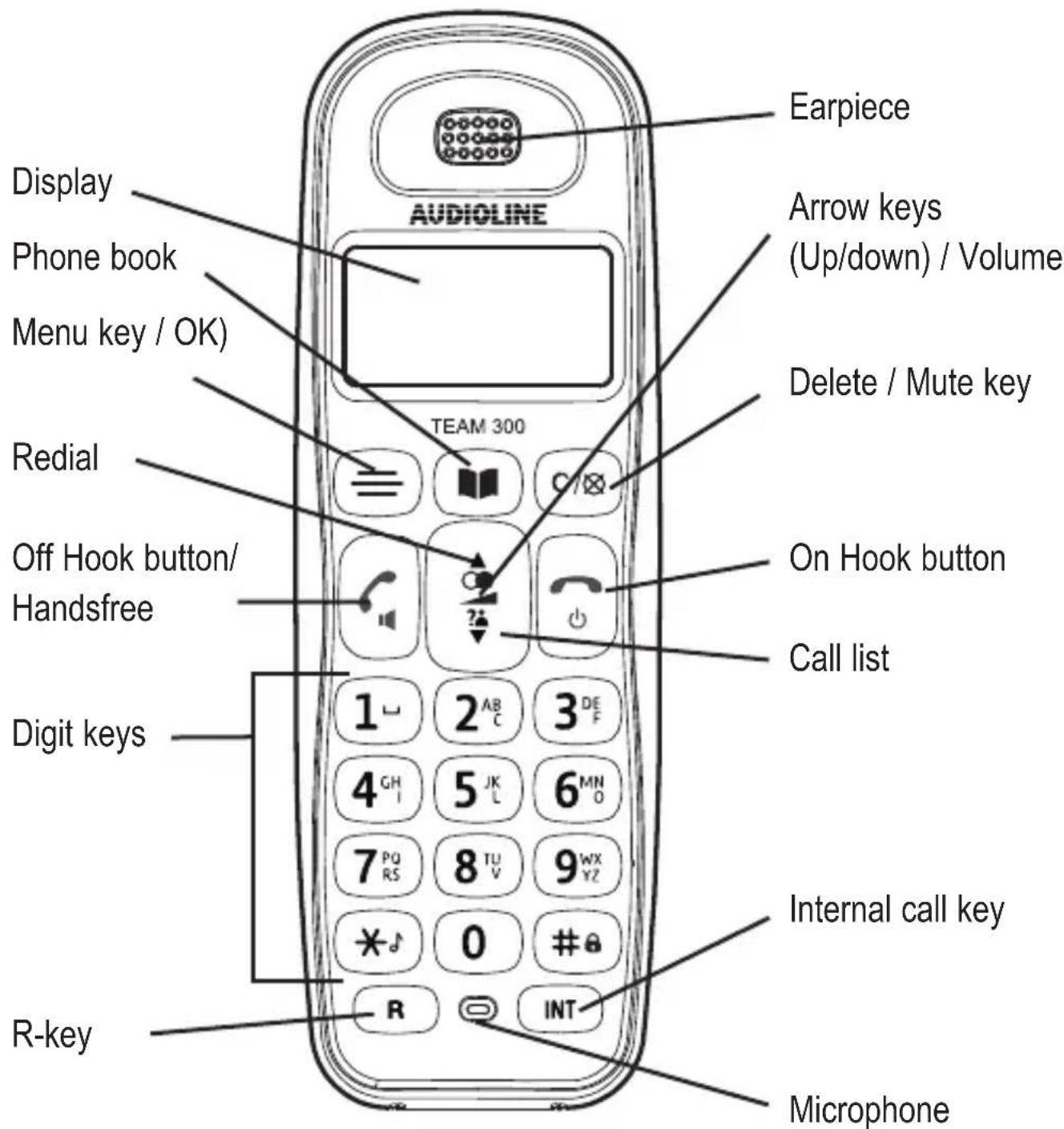

Display Phone book Menu key / OK) Redial Off Hook button/ Handsfree Digit keys R-key Audioline TEAM 300 Earpiece Arrow keys (Up/down) / Volume Delete / Mute key On Hook button Call list 1 2 ABC 3 DEF 4 GH 5 JK 6 MN 7 PQ 8 TU 9 WX RS 9 YZ * J 0 # R INT Internal call key Microphone

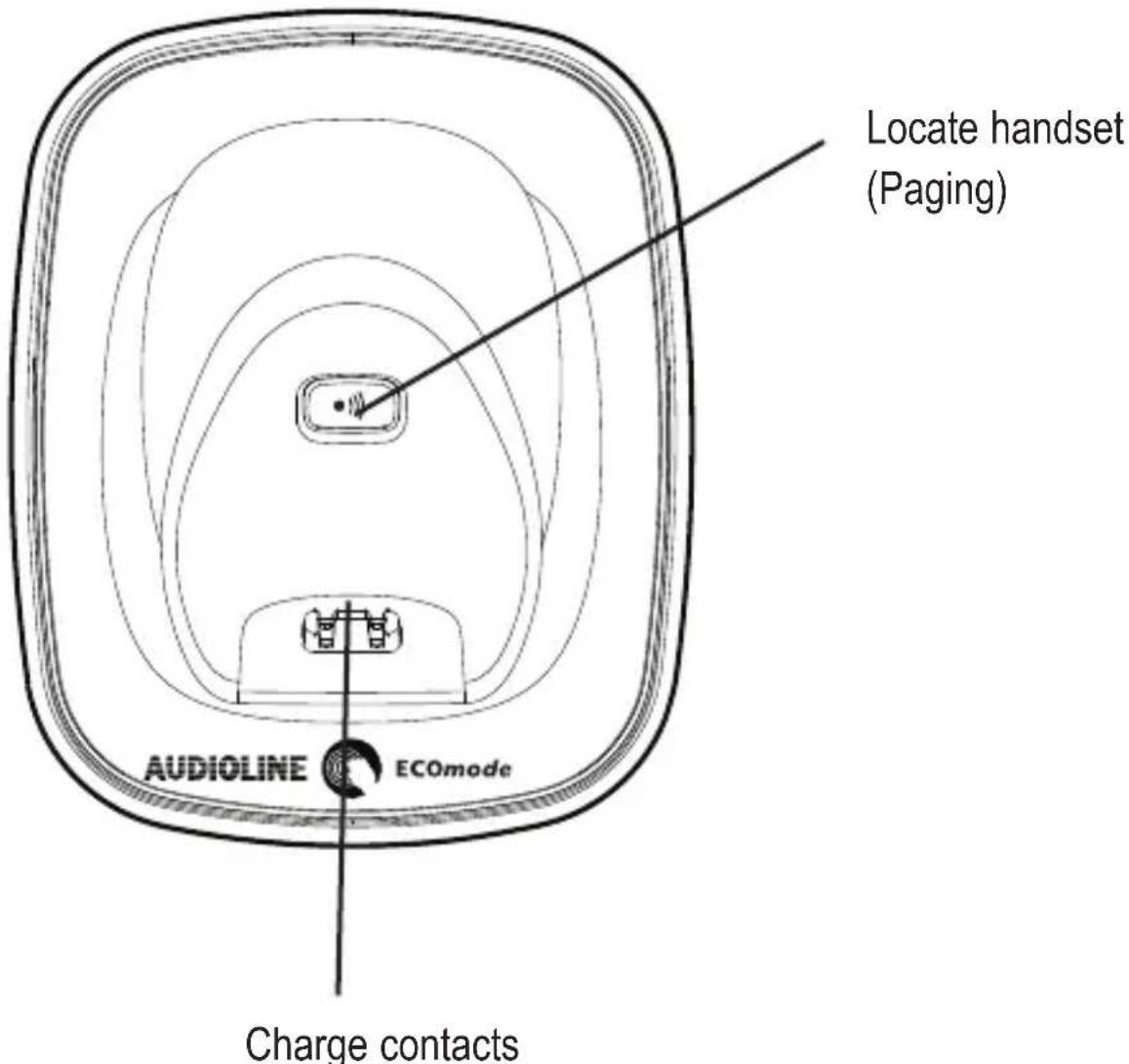

Audioline ECOmode Charge contacts Locate handset (Paging)

4 Preliminary Information

Icons in the handset display

Icon	Description
	On: The connection to the base station is good.Flashing: The connection to the base station is lost.
	On: Indicates the battery charge status.Flashing while handset in base:Batteries are being charged.
	On: Batteries need charging.Flashing: Batteries should be charged immediately.
	On: A call is currently being made.Flashing: A call has been received.
	Handsfree mode is activated.
	The ringing tone has been switched off.
	On: The alarm function is activated.Flashing: The alarm is ringing.
	The key lock is activated
	You received a message in your answering machine provided by the telephone network (depending on telephone network/provider).
	On: You can conduct an internal call (only with several handsets registered on the base station).Flashing: Incoming internal call.

New call in the call list.

Character overflow left/right. Use to scroll.

The functions assigned to the two keys and are shown in the lowest line of the display. The key function changes automatically according to the operating status of the handset.

Confirmation.

Back to the previous menu or cancel programming.

Backwards deleting of characters during entry (brief pressing deletes one character, long pressing deletes the whole line),

Muting/unmuting the microphone during a call.

Standby mode

All descriptions in this operating manual assume that the handset is in Standby mode. The system switches to Standby mode by pressing the

button.

Low-radiation operation (ECO mode)

In call mode, the radiation is reduced considerably as compared to standard, cordless DECT telephones.

Navigating in the menu

All the functions can be accessed via the various menus. The entire menu structure can be found in the appendix.

The softkeys and the arrow keys are used for navigation in the menu.

The menu is opened with the key

Use the arrow keys and? to move within the menu

Press to open a sub menu.

To return to the main menu press briefly. With a long press you will return to the standby state.

5 Telephoning

Taking a call

Your phone is ringing.

If the handset is not in the base station:

Press the Off Hook button.

If the handset is in the base station and AUTO ANSWER is not activated:

Remove the handset from the base and press the Off Hook button.

If the handset is in the base station and AUTO ANSWER is activated:

Remove the handset from the base - the call will be taken automatically.

Making a call

Enter the telephone number.

Delete wrong characters pressing

The telephone number is being dialled.

You can also press the Off Hook button and you will hear the dialling tone. The entered number will be dialled immediately. It is not possible to correct wrong digits individually using this dialling procedure.

Hands-free

For switching hands-free on or off press the Off Hook button.

Ending a call

Press the On Hook button or replace the handset in the base station.

GB

Redial

Your handset saves the last 5 dialled telephone numbers. If a caller is stored in your phone book, the name will be displayed.

Whilst the name is displayed to show the respective number press The most recent last number will be displayed at the top of the list.

Open the redial list.

Select an entry.

Dial out the telephone number.

Making a call from the call list

Your handset saves the numbers of the last 10 incoming calls in the call list. If a caller is stored in your phone book, the name will be displayed.

Whilst the name is displayed to show the respective number press

Saving can only take place if the function “Phone number transmission (CLIP)” is available at your connection and caller ID is not suppressed by the caller or was not transmitted for any other reason.

Open the call list.

Select an entry.

Dial out the telephone number.

Making a call from the phone book

You can store up to 20 entries in the phone book.

For creating entries see section "Phone book".

Open the telephone book.

Select the name of the person you wish to call.

Dial out the telephone number.

Call timer

Your handset automatically times the duration of every call in hours, minutes and seconds.

Setting the earpiece/loudspeaker volume

During a call you can adjust the volume in 5 levels (if telephoning "normally" -> earpiece volume, with hands-free -> loudspeaker volume).

These separate settings will remain at the last selected level when you end the call.

Muting the microphone

During a call you can switch your handset's microphone off. The display shows MUTED.

To unmute press the key again.

Internal calls

Internal calls, transfers and conference calls are only possible if multiple handsets are registered. If this is not the case NOT POSSIBLE will be indicated on the display.

Making an internal call

Press the INT key. If two handsets are registered to the base station the other handset will be called immediately. If three or more handsets are registered to the base station their internal numbers will be displayed (for example 234). Press the internal number you want to call.

If you press "9" in the case of several registered handsets all will be called at the same time.

GB

Transferring an external call to another handset

INT

During an external call . . .Press the INT key and enter the internal telephone number you want to call if necessary.orPress the Menu key, select INTERCOM and press the Menu key. Enter the internal telephone number you want to call if necessary.The external call is put on hold. When the called handset answers you can announce the call transfer.Press the On-Hook key. The call will be transferred.

3-Party Conference

INT	During an external call . . .Press the INT key and enter the internal telephone number you want to call if necessary.or
	Press the Menu key, select INTERCOM and press the Menu key. Enter the internal telephone number you want to call if necessary.
	When the called handset answers ... press and hold down the star key until CONFERENCE appears in the display.

Any handset hangs up during a conference call will leave the other handset still in connection with the external call.

6 Other features

Key lock

The key lock prevents functions assigned to buttons being activated inadvertently. Incoming calls can still be taken in the normal way even when the key lock function is activated.

Press and hold down the #-key until the key lock icon appears in the display.

For unlocking the keypad again press and hold down the #-key until the icon disappears.

Switching the handset ringer on/off

You can turn off the ringer via the menu item "HS SETTINGS/RING SETUP/RING VOLUME" as well.

Press and hold down the star-key until the icon appears in the display.

For turning the ringer on again press and hold down the star-key until the icon disappears.

Switching off the handset

You can switch off the handset for saving battery capacity.

Press and hold down the On Hook-button. After a few seconds the handset will be switched off. The display illumination goes down.

For switching the handset on again press and hold down the On Hook-button until the display is activated again. You can also simply put the handset into the base station.

GB

7 Call list / Redial

Editing the call list

Open the call list.

t an entry.

Press the Menu key.

t one of the following options and confirm with the

Menu key:

ADD TO PB The telephone number will be stored in the telephone book. Enter a name, confirm or edit the telephone number and select a ringtone melody for the entry.

DELETE The entry will be deleted.

DELETE ALL The complete list will be deleted after a confirmation query.

DETAILS The respective call's date and time is shown.

You can access the call list via the menu as well:

Editing the redial list

Open the redial list.

t an entry.

Press the Menu key.

t one of the following options and confirm with the

Menu key:

ADD TO PB The telephone number will be stored in the telephone book. Enter a name, confirm or edit the telephone number and select a ringtone melody for the entry.

DELETE The entry will be deleted.

DELETE ALL The complete list will be deleted after a confirmation query.

8 Phone book

Your phone can store up to 20 private phonebook entries with names and numbers. You can also select different ringtones for your phonebook entries. Always enter the phone numbers with the area code; this enables a correct display of the respective caller for whom there is an existing entry and whose phone number transmission to your connection is available.

Creating a new entry

Press the phone book key.

Empty telephone book: EMPTY is shown.

If there are entries yet: the first entry is shown.

Press the Menu key.

Confirm ADD with the Menu key.

Enter the name (max. 12 digits).

Letters are also imprinted on the digit keys. Letters, digits and special characters are entered by pressing the relevant key the respective number of times.

After a short time the cursor skips one position forwards.

Confirm with the Menu key.

Enter the phone number (max. 20 digits). If your telephone is connected to a PBX start the telephone number with the access code. If a dialling pause is needed, press after the access code the 0 key for approx. 2 sec. A P appears in the display.

Confirm with the Menu key.

/ Select a melody for the entry.

Confirm with the Menu key.

Back to Standby mode.

GB

You can access the telephone book via the menu as well:

PHONEBOOK

Editing telephone book entries

Press the phone book key.

an entry.

Press the Menu key.

one of the following options and confirm with the

Menu key:

ADD You can create a new entry.

VIEW The entry is shown. Using the up/down key you switch between name, number and melody.

EDIT You can edit the entry. Use the key to delete cha-

ractors and numbers then add new characters and numbers as required. Please refer to "Creating a new entry".

DELETE The entry will be deleted.

DELETE ALL The complete list will be deleted after a confirmation query.

PB STATUS The current allocation will be displayed (e.g. 07/20 USED: 7 of 20 possible entries are present).

9 Setting the telephone

Date/Time

Press the Menu key.

Select HS SETTINGS and press the Menu key.

Select DATE & TIME and press the Menu key.

one of the following options and confirm with the

Menu key:

TIME FORMAT You can select your desired time format:

(24 hours or 12 hours).

SET TIME Enter the time using the digit keys.

SET DATE Enter the date using the digit keys.

In case of mains failure this setting will be deleted when simultaneously the handset will be switched off or the batteries will be empty.

Alarm

Press the Menu key.

Select HS SETTINGS and press the Menu key.

Select ALARM and press the Menu key.

Select ON and press the Menu key.

Enter the alarm time using the digit keys.

SNOOZE Press the Menu key.

Select ON or OFF and press the Menu key.

If “Snooze” is turned on it means that the alarm signal is being repeated after 7 minutes until this function is terminated by pressing and holding the off hook button.

If "Snooze" is turned off the alarm signal is given once at the specified time. To confirm the alarm signal, press any key.

GB

Setting the ringer for the handset

Press the Menu key.

Select HS SETTINGS and press the Menu key.

Select RING SETUP and press the Menu key.

one of the following options and confirm with the

Menu key:

INT. RING Select a melody for internal calls.

EXT. RING Select a melody for external calls.

RING VOLUME Select the volume. If you select „VOLUME OFF“ the respective icon appears in the display.

Setting the alert tones

Press the Menu key.

Select HS SETTINGS and press the Menu key.

Select TONE SETUP and press the Menu key.

one of the following options and confirm with the

Menu key:

KEY TONE Switch the keytone on or off.

BATTERY TONE Switch the alert tone on or off. The tone sounds if "Low battery" is detected.

OUT OF RANGE Switch the alert tone on or off. The tone sounds if “Out of range” is detected.

Setting the display language

Press the Menu key.

Select HS SETTINGS and press the Menu key.

Select LANGUAGE and press the Menu key.

a language and press the Menu key.

Setting the handset name

Press the Menu key.

Select HS SETTINGS and press the Menu key.

Select RENAME HS and press the Menu key.

Delete the old name with C/8, enter a new name using the digit keys and confirm with the Menu key.

Setting the display

Press the Menu key.

Select HS SETTINGS and press the Menu key.

Select HS DISPLAY and press the Menu key.

ether in standby-mode the handset's name or the time will be displayed and confirm with the Menu key.

Setting Auto Answer

Press the Menu key.

Select HS SETTINGS and press the Menu key.

Select AUTO ANSWER and press the Menu key.

ether the automatic answer function will be on or off and confirm with the Menu key.

If AUTO ANSWER is on an incoming call will immediately be taken when the handset is taken from the base.

Setting the dial mode

Press the Menu key.

Select BS SETTINGS and press the Menu key.

Select DIAL MODE and press the Menu key.

ONE or PULSE and press the Menu key.

In most situations the TONE option should be selected.

GB

Setting the Flash Time

Press the Menu key.

Select BS SETTINGS and press the Menu key.

Select FLASH TIME and press the Menu key.

SHORT (100 ms), MEDIUM (250 ms) or LONG

(600 ms) and confirm with the Menu key.

Editing the PIN

Press the Menu key.

Select BS SETTINGS and press the Menu key.

Select CHANGE PIN and press the Menu key.

Enter the relevant PIN (default 0 0 0 0) and press the Menu key.

Enter the new PIN and press the Menu key.

Enter the new PIN again and press the Menu key.

The four digit PIN protects some settings against unauthorized changes. If you have forgotten your PIN please call our service hotline.

Resetting your phone

Press the Menu key.

Select DEFAULT and press the Menu key.

Enter the relevant PIN (default 0 0 0 0) and press the Menu key.

Confirm the confirmation query with the Menu key.

The phone book entries will not be deleted. Please delete the phone book using the menu item "PHONE BOOK/DELETE ALL"

The registration of handsets will not be changed.

10 Registering/de-registering handsets

5 handsets can be registered to a base station. The handsets delivered with your telephone are already registered. To register a “foreign” handset please refer to it’s user manual.

Registering a handset of the same type

Diagram showing three basic symbols: horizontal lines, a downward arrow with a question mark, and an upward triangle with a circle.

Press the Menu key.

Select REGISTRATION and press the Menu key.

Enter the relevant PIN for the base, the new handset should be registered on, and press the Menu key.

Press and hold down the paging key on the base station until a short beep is to be heard (approx. 5 sec).

After a few seconds the antenna icon on the display is on. The handset is registered.

Deleting a handset

Cropped image showing a grid of icons and symbols, including three black shapes with question marks and selection labels.

Press the Menu key.

Select BS SETTINGS and press the Menu key.

Select DELETE HS and press the Menu key.

Enter the relevant PIN and press the Menu key.

▼? / Select a handset and press the Menu key.

You cannot de-register the handset you are currently using.

11 PBX / Supplementary Services

PBX

If the telephone is connected to a private branch exchange, functions such as transferring calls and automatic call back can be used via the R button. Refer to the operating manual provided with your private branch exchange as to which Flash time must be set in order to use these functions. The sales outlet where you purchased the exchange can provide information as to whether the telephone will work properly with the exchange.

Please remember to enter the access code and a neccessary dialling pause (longpress "0") when creating phone book entries.

Supplementary services

Your telephone supports supplementary services provided by your telephone network provider, such as brokering, call waiting and conference facilities. These supplementary services can be used via the R-button.

Please contact your telephone network provider regarding which Flash time must be set to use the supplementary services. Contact your telephone network provider with regard to enabling supplementary services.

12 Appendix

Menu Structure

CALL LIST

PHONEBOOK

BS SETTINGS DELETE HS

    I["FLASH"] --> J["TONE"]
    K["RING SETUP INT. RING MELODY 1...10"] --> L["EXT."]
    L --> M["RING"]
    M --> N["VOLUME"]
    O["TONE SETUP KEY TONE ON/OFF"] --> P["RENAME"]
    Q["BATTERY TONE ON/OFF"] --> R["HANDSET NAME"]
    S["OUT OF RANGE ON/OFF"] --> T["AUTO"]
    U["LANGUAGE DEUTSCH/ENGLISH/TURKCE"] --> V["ANSWER"]
    W["HS DISPLAY"] --> X["SET"]
    Y["DATE & TIME TIME FORMAT"] --> Z["SET"]
    AA["REGISTRATION"] --> AB["DEFAULT"]

    AC["TONE"] --> AD["RING"]
    AE["MELODY"] --> AF["VOLUME"]
    AG["START"] --> AH["ON/OFF"]
    AI["START"] --> AJ["SET"]
    AK["START"] --> AL["SET"]
    AM["START"] --> AN["SET"]
    AO["START"] --> AP["SET"]
    AQ["START"] --> AR["SET"]

In Case of Problems

Should problems arise with the telephone, please refer to the following information first.

In the case of technical problems, contact our Hotline. Please refer to our website www.audioline.de for the telephone number.

In the case of claims under the terms of guarantee, contact your sales outlet. There is a 2 year period of guarantee.

- After pressing the on hook button, no ring tone is audible, the line is not engaged.

- Check the telephone connector on the base station and on the wall socket.

- Check power connector on the base station and on 230 V.

- The line is being occupied by another handset. Wait until the connection is terminated.

- Display:„SEARCHING”.

- Check power connector on the base station and on 230 V.

- Reduce range.

- Register handset.

- No display.

- Handset turned off -> turn on.

- Battery empty -> recharge.

Default settings

Call list No entry

Phonebook No entry

Alarm Off

Ringer handset Internal call: Melody 2

External call: Melody 1

Volume: 3

Tone setup Key tone: On

Battery tone: On

Out of range: On

Language German

Handset name TEAM 30x

Handset display Handset name

Auto answer On

Date & Time Time format: 24 hours

Dial mode Tone

Flash time Short (100 ms)

PIN 0 0 0 0

Technical data

Standard: DECT / GAP

Number of channels: 120 duplex channels

Frequencies: 1880 MHz to 1900 MHz

Duplex mode: Time division multiplex, 10ms frame length

Channel spacing: 1728 kHz

Bit rate: 1152 kBit / s

Modulation: GFSK

Voice encoding: 32 kBit / s

Transmitter power: 10 mW (average power per channel)

Range: up to 300 m outside, up to 50 m inside buildings

Electricity supply base station:

100\~240 V AC (adapter plug VT04EEU06045), 6 V DC / 450 mA Electricity supply charger:

100\~240 V AC (adapter plug VT04EEU06045), 6 V DC / 450 mA

Electricity supply handset: 2 x AAA NiMH / 400 mAh

Handset: Operating time: Stand-by time / Talk time

400 mAh = up to 100 h / up to 10 h

Charging time: approx. 14 hours

Operating temperature for handset operation:

5°C to 45°C ; 20 % to 75 % rel. humidity

Operating temperature for base station operation:

5^ to 45^ ; 20 % to 75 % rel. humidity

Storage temperature: -10^ to +60^

Dial mode: Tone / Pulse

R-key : Flash time (100 ms/250 ms/600 ms)

Base station dimensions (mm): L / W / H = approx. 115 x 105 x 50

Handset dimensions (mm): L / W / H = approx. 155 x 50 x 27

Telephone line cord:

TSV on Pin 3 and 4 according to CTR 37 (Euro)

Adapter plug: European-type mains connector

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directives:

• 1999/5/EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.
• 2005/32/EU directive "Energy-using products".

Conformity with the above mentioned directives is confirmed by the CE symbol on the device.

To view the complete Declaration of Conformity, please refer to the free download available on our web site www.audioline.de.

Maintenance

Clean the housing surfaces with a soft, fluff-free cloth.

Do not use any cleaning agents or solvents.

Guarantee

AUDIOLINE equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies related to material or manufacturing errors within the period of guarantee will be redressed free of charge. Rights to claims under the terms of guarantee are annulled following tampering by the purchaser or third parties. Damage caused as the result of improper handling or operation, normal wear and tear, incorrect positioning or storage, improper connection or installation or Acts of God and other external influences are excluded from the terms of guarantee. In the case of complaints, we reserve the right to repair defect parts, replace them or replace the entire device.

Replaced parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your device shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the AUDIOLINE device together with the purchase receipt. All claims under the terms of guarantee in accordance with this agreement can only be asserted at the sales outlet. No claims under the terms of guarantee can be asserted after a period of two years from the date of purchase and hand-over of the product.

Index

A

Alarm 23

Alert tones .....24

Auto Answer 9,25

C

Call list .....16, 20

Call timer .....17

Charging the batteries .....8

Conference 18

Connecting the base station .....7

Connecting the charging station . .7

D

Date/time 8,23

Declaration of Conformity .....33

Default settings .....31

Dial mode .....25

Display 25

Display language .....8

Disposal 5

E

Earpiece/loudspeaker volume ...17

ECO mode .....14

Ending a call .....15

F

Flash Time .....26

G

Guarantee 33

H

Hands-free .....15

Handset name .....25

|

Icons 12

In Case of Problems .....30

Inserting the batteries .....8

Installation location .....4

Intended use 4

Internal calls .....17

K

Key lock....19

L

Language 24

Low-radiation operation .....14

M

Maintenance 33

Making a call 15

Medical equipment .....5

Menu Structure .....29

Muting the microphone .....17

N

Navigating in the menu .....14

GB

P

Package contents .....6

PBX 28

Phone book 16,21

PIN 26

Power adapter plug ....4

Power failure 4

R

Rechargeable batteries .....4

Redial .....16, 20

Registering/de-registering

handsets 27

Reset 26

Ringer 24

S

Safety Information 4

Standby mode .....14

Supplementary services .....28

Switching off the handset .....19

Switching the handset ringer

on/off 19

T

Taking a call 15

Technical data 32

Transferring an external call ....18

V

Volume (earpiece/loudspeaker) . .17

Volume (ringer) .....24
