USER MANUAL Wave 182 ECO AUDIOLINE

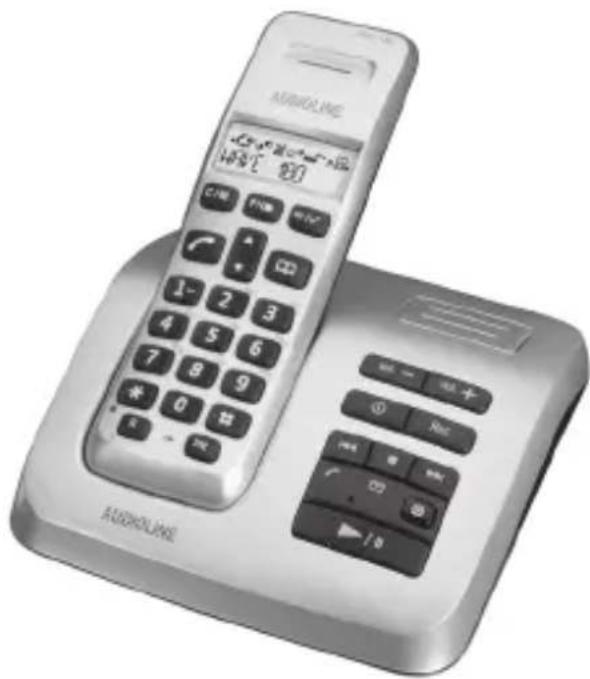

Cordless DECT GAP telephone with answering machine

Illustration of a vintage telephone with keypad and control buttons (no text or symbols visible)

Operating Instructions

1 Safety Information 23
2 Putting the Telephone into Operation ..... 24
3 Operating Elements 26
4 Introductory Information 28
5 Menu Structure 29
6 Call Log 30
7 Telephoning 30
8 Answering Machine 33
9 In Case of Problems 38
10 Technical Properties 38
11 Maintenance / Guarantee 39

Three symbolic icons: a recycling symbol, a crossed-out recycling bin with a cross, and a crossed-out recycling bin (no text or labels)

Simple line drawing of a rectangular frame with an internal oval shape and a small rectangular base, labeled with number 1 (no text or symbols beyond label)

Basisstation

▲, ▲/▼, c, LOESCHEN?, ✓.

7 Telefonieren

✓, ▲/▼, ANMELDEN, ✓, BASIS ANMELD, ✓, BASIS1 2 3 4.

✓, ✓, ▲/▼, NEUE NACH XX, ✓

✓, ✓, ▲/▼, ALLE NACH XX, ✓

Please read this operating instruction manual thoroughly.

Intended use

The telephone is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

Installation location

Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Do not use the handset in potentially explosive areas.

Power adapter plug

Attention: Only use the power adapter plug supplied because other power supplies could damage the telephone. Ensure access to the power adapter plug is not obstructed by furniture or such.

Batteries

Attention: Never throw batteries into a fire. Only use batteries of the same type! Pay attention to correct polarity! If the polarity of the batteries is incorrect, there is a risk of explosion of the charging station.

Power failure

The telephone cannot be used to make calls in the event of a power failure. Always keep a cord connected telephone which operates without an external power supply available in case of emergency situations.

Medical equipment

Attention: Never use the telephone in the vicinity of medical equipment. Effects on such equipment cannot be fully ruled out.

DECT ^1 telephones can cause an unpleasant humming sound in hearing aids.

^1 DECT: Digital Enhanced Cordless Telecommunication = Standard for cordless telephones.

Disposal

In order to dispose of your device, bring it to a collection point provided by your local public waste authorities (e.g. recycling centre). The adjacent symbol indicates that the device must not be disposed of in normal domestic waste! According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container.

Batteries must be disposed of at the point of sale or at the appropriate collection points provided by the public waste authorities.

Packaging materials must be disposed of according to local regulations.

Three symbolic icons: a recycling symbol, a crossed-out trash bin with a 'X' mark, and a crossed-out trash bin with a 'U' mark (no text or labels)

2 Putting the Telephone into Operation

Safety information

Attention: It is essential to read the Safety Information in Chapter 1 before starting up.

Checking the package contents

The package contains:

Contents	WAVE 18X
	180 181	1	1821	1831
Base station with power adapter plug	1 1 1 1
Charging station with power adapter plug	- 1 2 3
Handset 1 2 3 4
Telephone connection cable	1 1 1 1
Batteries 2 4 6 8
Operating instructions 1 1 1 1

1 Refer to the www.audioline.de web site to see if this telephone set is already available.

Connecting the base station

Attention: Position the base station at least 1 m away from other electronic devices, otherwise there is a risk of mutual disturbance.

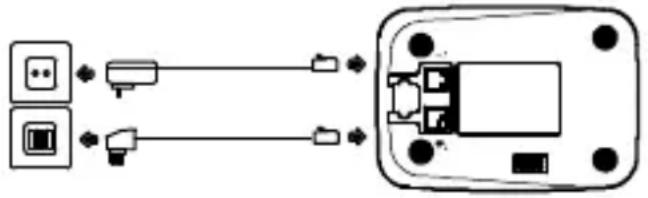

Connect the base station as illustrated in the diagram. For reasons of safety, only use the power adapter plug and telephone connection line supplied.

Mains power outlet Telephone line socket

Diagram showing two connected devices with connectors and a device interior, likely illustrating a wiring or connection setup.

Attention: With regard to the base station, use the power adapter plug model No. ED 351 406 5030P, bearing the output data: 6,5 V, 300 mA.

Connecting the charging station ^1

Connect the charging station as illustrated in the diagram. For safety reasons, only use the power adapter plug supplied.

Mains power outlet

Simple line drawing of a rectangular electronic component with four pins (no text or symbols)

Attention: With regard to the charging station, use the power adapter plug model No. SA 28-146, bearing the output data: 6,5 V, 150 mA.

Inserting the batteries

Insert the batteries in the open battery compartment. Only use batteries of the type AAA NiMH 1,2 V.

Pay attention to correct polarity. Close the battery compartment.

- AAA + +AAA - ↓ - AAA + +AAA -

Charging the batteries

Before the handset is used for the first time, insert it in the base/charging station for at least 24 hours.

When the handset is inserted in the base/charging station properly, you will hear an acoustic confirmation signal. The handset warms up during the charging process. This is normal and does not represent a risk. Do not charge the handset with charging units from other manufacturers.

1 Only applies to telephone sets with at least two handsets Section "Package contents" on Page 24.

The current battery charge status is indicated in the display:

Full Half empty Low Empty

3 Operating Elements

The buttons in this operating manual are subsequently depicted with a uni-form contour. Slight deviations in the appearance of the icons on the buttons compared to those depicted in this manual are possible.

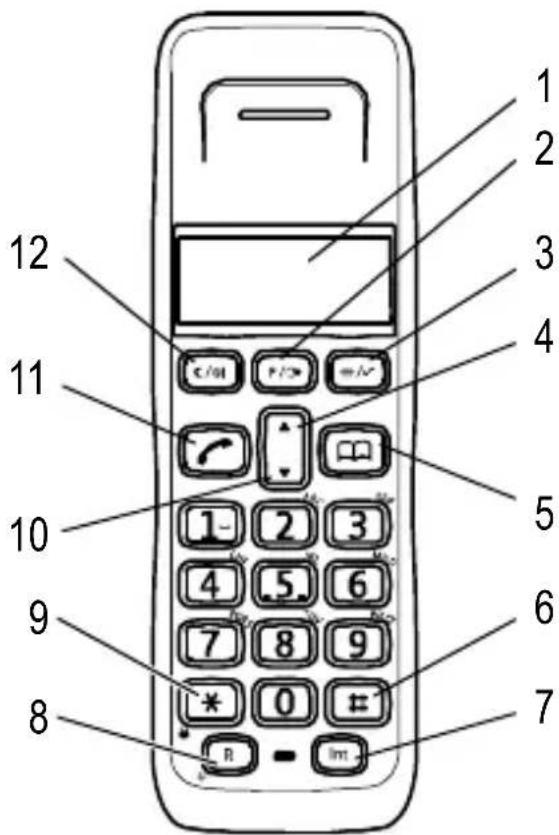

Handset

1 Display
2 Pause / Redialling
3 Menu / OK button
4 Open calls log / Scroll upwards
5 Phone number memory
6 Conference call
7 Internal call
8 R button / Handset on/off
9 Key lock
10 Open calls log / Scroll downwards
11 Take call / End call
12 Delete / Muting / Cancel process

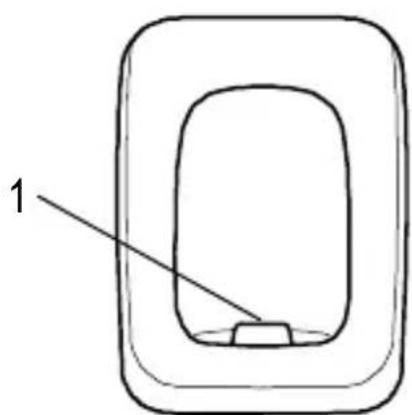

Charging station ^1

1 Charge contacts

1 2 3 4 5 6 7 8 9 10 11 12

Simple line drawing of a rectangular frame with a diagonal line and label '1' pointing to the bottom-left corner (no text or symbols within the frame)

1 Only applies to telephone sets with at least two handsets Section "Package contents" on Page 24.

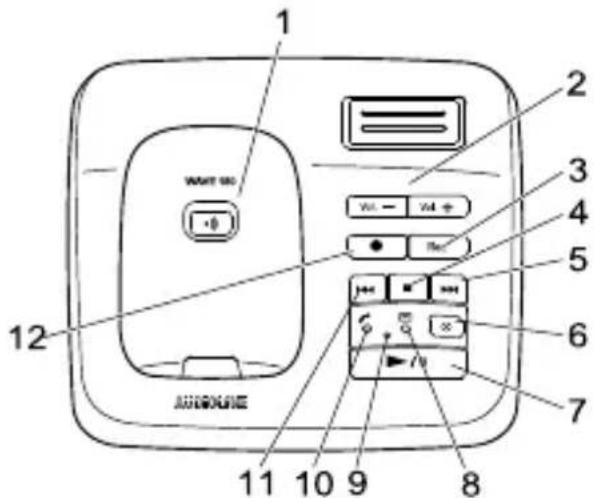

Base station

1 Paging button
2 Volume + / -
3 Outgoing message / Answering mode
4 Stop
5 Forward / Answer delay
6 Delete button / Remote access code
7 Message play / Pause
8 LED, new message
9 Microphone
11 Back / Alert signal
12 Answering machine On / Off

10 LED, call and power indicator

1 2 3 4 5 6 7 8 9 10 11 12 WAIT ON +0 AUTOONCE

Low radiation operation (ECO mode)

Default settings = ECO-MODE → OFF

The telephone can be set up so that the radiation frequency is reduced; ☐ Page 29.

= ECO MODE → ON.

Reductions, with ECO mode activated, in comparison to a standard DECT cordless telephone:

• Up to 75 % less radiation in talk mode (depending on the distance between the handset and base station).
• Up to 90% less radiation in Standby mode.

If necessary, you can increase the range of the telephone system by switching ECO MODE off Page 29 (ECO MODE → OFF).

GB

4 Introductory Information

Notation used in the operation instruction manual

Notation Description

Enter digits or letters
Press the button depicted briefly
2 secPress the button depicted for 2 seconds
SETUP	Represents texts which appear in the display
	Represents icons which appear in the display

Icons and texts in the handset display

Icon Description

Internally assigned call number of the handset

05:08:03Time display

ext External call

int Internal call

Flashing: New calls have been registered in the calls log.

The key lock is activated.

MUTE The microphone is switched off (muting).

On: The connection to the base station is good.

Flashing: The connection to the base station is poor.

On: The answering machine is switched on.

Flashing: New messages have been recorded.

5 Menu Structure

Open the main menu by pressing the √ button. Use the ▲/▼ buttons to move to and select an option then confirm it by pressing the √ button.

PLAY MESSAGE	NEW MSG XXALL MSG XX
PHONEBOOK ADD ENTRY	MODIFY ENTRYDELETE ENTRY
TAM SETTINGS ANS ON/OFF	ANS MODEMEMO RECOGM SETTINGDAY SETTINGANS DELAYREMOTE CODE
SETUP BASE VOLUME	BASE MELODYDEL HANDSETPIN CODEDIAL MODERECALLDEFAULTECO MODE
HANDSET BEEP	INT RING VOLEXT RING VOLINT MELODYEXT MELODYAUTO ANSWERNAMELANGUAGEKEYLOCK?
DATE - TIME DATE SET	CLOCK SETALARM SET
REGISTER SELECT BASE	REG BASE

6 Call Log

A total of 40 phone numbers are stored in a call log.

The caller number display function is an optional service offered by telephone network providers. If this service is not offered, the incoming calls are not displayed. Contact your network provider for further information.

Displaying numbers in the call log

Storing an entry in the call log in the phone number memory

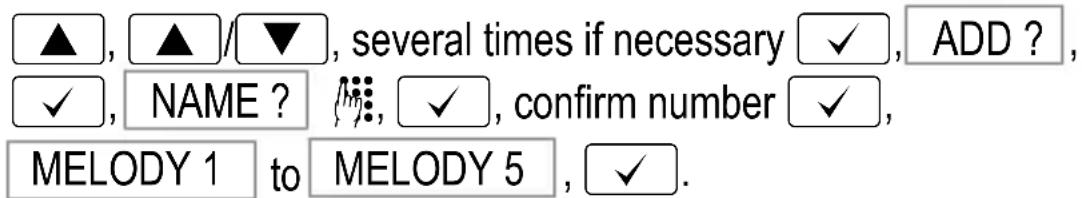

▲, ▲/▼, several times if necessary ✓, ADD ? ✓, NAME ? ⋮, ✓, confirm number ✓, MELODY 1 to MELODY 5 , ✓.

Deleting phone numbers from the call log

▲, ▲/▼, c, DELETE?, ✓.

7 Telephoning

All descriptions in this operating manual assume that the handset is in Standby mode.

Take a call (off-hook)
End a call (on-hook)
Make an external call	, or , or
Redial the number	, / ▼ , or , ○

Dial from calls log

Dial from phone number memory

Internal calls

Making an internal call

INT, e.g. 2.

There must be two or more handsets registered on the base station in order to make internal calls.

Forwarding external calls internally / Conference calls

During a call: INT, e.g. 2.

After the internal party has answered, transfer the call by pressing the button.

To start a conference call, wait for the party called to answer the internal call and then press the # button.

If the handset called does not answer, take the external call back by pressing the INT button.

Other functions

Function Button sequence
Switch the handset on /off 5 sec	R
Key lock on 3 sec	*
Key lock off	*, *
Receiver volume	, ▲/▼
Ringing melody volume	/▼while phone is ringing
Muting/Activating micro-phone in handset	⊗l during the call
Locate handset (paging)	●))on the base station

GB

Muting function

After muting the microphone, the caller can no longer hear you.

Displaying the duration of a call

The duration of a call is displayed in hours, minutes and seconds during the call.

Registering a handset

If your handset is not registered on the base station, icons flash in the display.

To register the handset, press the ●)) button on the base station for five seconds and then proceed as follows:

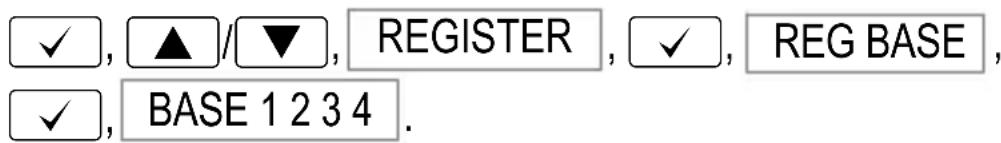

✓, ▲/▼, REGISTER, ✓, REG BASE, ✓, BASE 1 2 3 4.

To register a handset from a different manufacturer, refer to the operating manual supplied with the respective handset. The four-digit PIN for your base station is 0000.

Up to five handsets can be registered on your base station. However, you can only activate your handset on one base station at a time.

8 Answering Machine

The answering machine can store up to 59 messages. The maximum recording time is 10 minutes. When the memory capacity for new messages is exhausted, no further messages are recorded.

Operating using the handset

The answering machine is controlled via the buttons on the handset.

To play new messages recorded, proceed as follows:

✓, ✓, ▲/▼, NEW MSG- 01, ✓

To play all the messages recorded, proceed as follows:

✓, ✓, ▲/▼, ALL MSG- 03, ✓

To open the answering machine's main menu, proceed as follows (pay attention to the audio operating instructions):

✓, ▲/▼, TAM SETTINGS, ✓, ▲/▼,

Function Display	text	Button sequence
Switch answering machine on/off	ANS ON/OFFONOFF	√, ▲/▼, √
Select outgoing message (OGM)	ANS MODEANS AND RECANS ONLY	√, ▲/▼, √
Record memo	MEMO REC	√, follow the audio operating instructions
OGM menu OGM	SETTINGPLAY OGMRECORD OGMDELETE OGM	√, ▲/▼, √
Set weekday DAY	SETTINGSUNDAY--SATURDAY	√, ▲/▼, √

GB

Answering delay	ANS DELAYTS, 2-9	√, ▲/▼, √
Change the PIN code (default setting: 000)	REMOTE CODE	√, √, √

Taking a call being recorded

If the answering machine has taken an incoming call, press the ↗ button to take the call personally.

Outgoing message menu

To open the OGM Setting menu, proceed as follows:

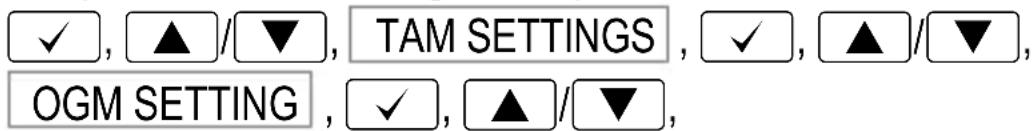

✓, ▲/▼, TAM SETTINGS, ✓, ▲/▼, OGM SETTING, ✓, ▲/▼,

Outgoing messages (OGM) can be recorded or deleted. After OGM 1 has been played, the caller can leave a message.

OGM 2 is purely an answer only announcement after which no message can be left.

Function Display	text	Button sequence
Select and play OGM	PLAY OGMANS AND RECANS ONLY	√, ▲/▼, √
Record OGM RECORD OGMANS AND RECANS ONLY		√, ▲/▼, √,follow the audio operating instructions.
Delete OGM DELETE OGMANS AND RECANS ONLY		√, ▲/▼, √

GB

Answer delay

You can select from 2 to 9 ringing tones or the TS (Time Saver) setting for pre-remote access free of charge.

Pre-remote access means: If new messages have been recorded on your answering machine, your call is taken after 2 rings. If no messages have been recorded, the call is taken after 6 rings. Place the receiver on-hook before the 6th ring. This means that no charges ensue.

To open the Answer Delay menu, proceed as follows:

√, ▲/▼, TAM SETTINGS, √, ▲/▼,

ANS DELAY, √. Press ▲/▼ to select the required number of rings. Confirm by pressing √.

Remote access

Call your own phone number. Press the ✕ button while the outgoing message is being played. Enter your security code (default setting: 000).

Other functions can now be started. If the answering machine is not switched on, it takes the call after the 20th ring.

Function Button

Play all the messages 2
Play the new messages 3
Play the previous message 4
Delete messages 5
Play the next message 6
Answering machine on/off 7
OGM menu 8
Change the security code (default setting 000) 9
Play the main menu 1

Operating using the base station

The answering machine provides voice prompts. Please pay attention to the instructions and information.

Switching the answering machine on/off

① Switch the answering machine on/off

Setting the volume

You can set the volume of the loudspeaker.

Vol. + or Vol. - Set the volume required

GB

Playing/Deleting recorded messages

Playing back messages

The recorded messages are played back in the sequence they were recorded. The day and time of recording are announced before the respective message is played.

▶/ⅡPlay new messages

Press and hold ▶/Play all messages

■ Stop playback

Repeat playback of the message

2x Play the previous message

▶▶▶ Play the next message

Deleting one message

▶/ⅡPlay the message to be deleted

☒ Message is deleted while being played

Deleting all messages

All the messages which have been played can be deleted after confirming the prompt from the operator guidance.

Delete all the messages

Selecting the answering mode

The answering machine is provided with two pre-recorded outgoing messages. After OGM 1, answering with recording, has been played the caller can leave a message. OGM 2, answering without recording, is purely an answer only announcement after which no message can be left. Both the outgoing messages can be replaced by ones of your own.

When the answering machine's memory capacity is full, OGM 2 (answering without recording) is automatically played.

3 sec REC Initiate selection

GB

Select outgoing message with recording or

▶▶▶ Select outgoing message without recording

Recording an outgoing message

3 sec REC Initiate selection

Press and hold ▶ Record your outgoing message with recording (OGM 1) or

Press and hold ▶▶▶ Record your outgoing message without recording (OGM 2)

Speak your text slowly and clearly. Release the ◀◀◀ or ▶▶▶ I button after finishing recording your message.

Playing and/or deleting outgoing message

REC Play the OGM currently selected

☑ Your own OGM is deleted, the pre-recorded OGM is reactivated and subsequently played to a caller.

The pre-recorded outgoing messages cannot be deleted.

Answering delay

Press and hold ▶▶▶I The selection options are announced: Tollsaver, 2-9

Release ▶▶▶ Release the button when the required setting is played. The selected setting is played.

Recording memos

Memos can only be recorded via the handset.

Playing the weekday and time

■ The weekday and time currently set are played.

Activating the message alert indicator

Press and hold ◀◀◀ Message alert indicator on

Press and hold ◀◀◀ Message alert indicator off

Playing the security code

☒ The security code currently set is played.

9 In Case of Problems

Service hotline

In the case of technical problems, you can contact our hotline service, tel. [phone] (cost via Telekom at time of going to print: 14 ct/min). In the case of claims under the terms of guarantee, please contact your sales outlet. There is a 2 year period of guarantee.

10 Technical Properties

Technical data

Feature Value

Standard DECT

1-GAP2

Power supply Input: 220/230 V, 50 Hz

Output: 6.5 V DC / 300 mA, 6.5 V DC / 150 mA

Range Outdoors: 300 m / Indoors: 50 m

Standby Up to 250 h

Max. talk time Up to 12 h

Rechargeable batteries 2 x 1,2 V, size: AAA

Dialling mode Tone/Pulse dialling mode

Permissible ambient temperature 10°C to 30°C

Permissible relative humidity 20 % to 75 %

Flash (Recall) function 100 ms, 300 ms

Declaration of Conformity

CE

This device fulfils the requirements stipulated in the EU directive: 1999/5/EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. Conformity is confirmed by the CE symbol on the device. To view the complete Declaration of Conformity, please refer to the free download available on our web site, www.audioline.de.

GB

^1 DECT: Digital Enhanced Cordless Telecommunication = Standard for cordless telephones.
^2 GAP: Generic Access Profile = Standard for the interoperation of handsets and base stations from other manufacturers.

11 Maintenance / Guarantee

Maintenance

• Clean the housing surfaces with a soft, fluff-free cloth.
• Never use cleaning agents or solvents.

Guarantee

AUDIOLINE equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies related to material or manufacturing errors within the period of guarantee will be redressed free of charge. Rights to claims under the terms of guarantee are annulled following tampering by the purchaser or third parties. Damage caused as the result of improper handling or operation, incorrect positioning or storage, improper connection or installation or Acts of God and other external influences are excluded from the terms of guarantee. In the case of complaints, we reserve the right to repair defect parts, replace them or replace the entire device. Replaced parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your device shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the

AUDIOLINE device together with the purchase receipt. All claims under the terms of guarantee in accordance with this agreement can only be asserted at the sales outlet. No claims under the terms of guarantee can be asserted after a period of two years from the date of purchase and hand-over of the product.

GB
