B2601SS-A - Oven BAUMATIC - Free user manual and instructions

Product Type	Built-in Electric Oven
Brand	Baumatic
Model	B2601SS-A
Colour	Stainless Steel
Height	595 mm
Width	595 mm
Depth	575 mm
Weight	30 kg
Oven Capacity	70 litres
Energy Efficiency Class	A
Power Supply	220-240 V, 50/60 Hz
Power Rating	2.8 kW
Heating Functions	Fan, Top/Bottom Heat, Grill, Defrost, Pizza, Light
Temperature Range	50°C - 250°C
Control Type	Mechanical with Timer
Cleaning Type	Standard Enamel Interior
Door Type	Cool-Touch, Double-Glazed
Child Lock	Yes
Energy Consumption (Conventional)	0.89 kWh
Energy Consumption (Fan Forced)	0.69 kWh
Spare Parts Availability	Yes, through Baumatic service
Repairability Index	8/10

Frequently Asked Questions - B2601SS-A BAUMATIC

How do I preheat the Baumatic B2601SS-A oven?

Turn the function selector to the desired cooking mode and set the thermostat to the required temperature. Wait until the thermostat light turns off, indicating the oven has reached the set temperature.

Can I use aluminum foil in the oven?

Yes, but avoid covering the entire oven floor or blocking air circulation. Do not let foil touch the heating elements.

How do I clean the oven interior?

Use a mild detergent and a soft cloth. Avoid abrasive cleaners. The enamel interior can be wiped with a damp cloth after cooling.

What is the recommended temperature for baking a cake?

Typically 160-180°C (fan) or 180-200°C (conventional). Consult your recipe for specific instructions.

How do I replace the oven light bulb?

Disconnect the oven from power. Remove the glass cover by turning counterclockwise. Replace with a 25W/300°C halogen bulb, then reassemble.

Why is my oven not heating?

Check that the oven is properly connected to the mains and the timer is set. If the problem persists, a heating element or thermostat may be faulty.

Can I grill with the oven door open?

No, keep the door closed during grilling. Some models allow partial open for grilling only, but check manual.

What is the oven's energy efficiency rating?

It is rated A, meaning high energy efficiency. Actual consumption depends on usage.

How do I activate the child lock?

Press and hold the function and timer buttons simultaneously for 3 seconds. A symbol appears on the display. Repeat to deactivate.

Where can I find the user manual?

You can download a free PDF from notice-facile.com or the Baumatic website using the model B2601SS-A.

USER MANUAL B2601SS-A BAUMATIC

B260.1SS-A 60cm Multifunction built in oven.

Instruction manual

User Manual for your Baumatic

B260.1SS-A

60 cm Multifunction built in oven

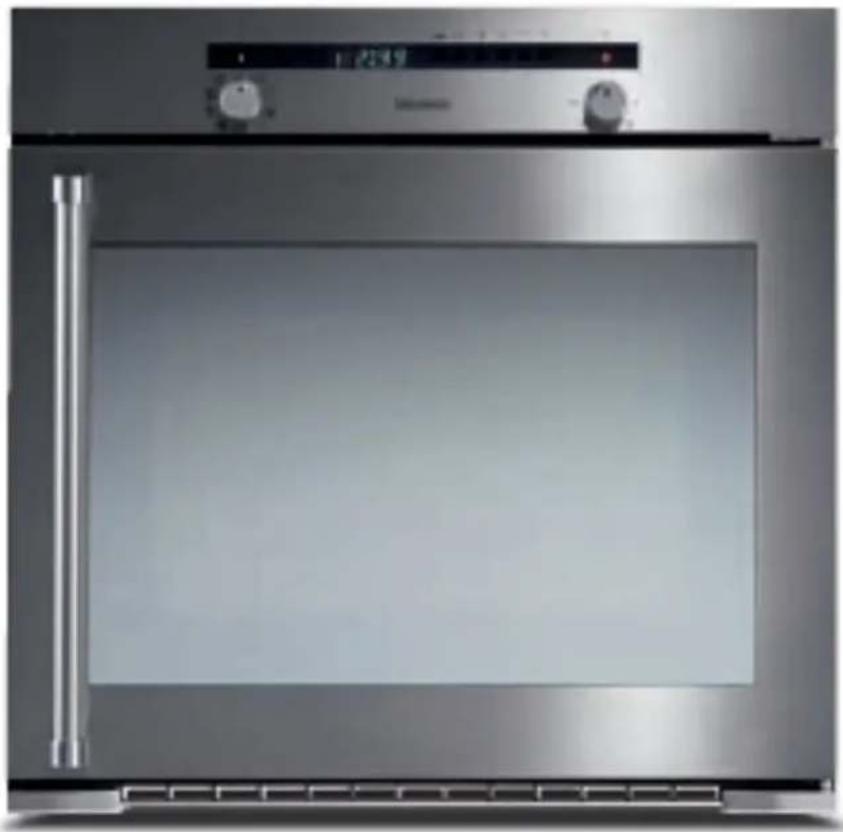

Exterior view of a stainless steel oven with control knobs and a blank screen (no visible text or symbols)

Baumatic®

You will be mine ...

NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.

DD 25/07/07

Contents

E n v i r o n m e n t a l

Important safety information 5 - 7

S

p

e

c

i

f

i

c

a

t

i

o

n

s

Product

and

aperture

dimensions

8

P

r

o

d

u

c

t

s

p

e

c

i

f

S

t

a

n

d

a

r

d

a

c

c

e

s

O

p

t

i

o

n

a

l

e

x

t

r

a

E

l

e

c

t

r

i

c

a

l

d

e

t

C

o

n

t

r

o

l

p

a

n

e

l

Oven

programmer/timer

display

10

Setting and using the oven programmer/timer 10

Selecting

manual

operation

mode

1

S

e

t

t

i

n

g

t

h

e

t

i

B

e

f

o

r

e

f

i

r

s

t

u

Setting

the

minute

minder

function

Setting

the

duration

function

Setting

the

end

cook

function

Setting the start and end time function

13-14

Selecting a cooking function and temperature 14

Selecting

manual

operation

mode

1

Selecting

an

oven

function

14-1!

T

h

e

r

m

o

s

t

a

t

c

o

n

O

v

e

n

o

p

e

r

a

t

i

n

g

C

o

o

k

i

n

g

g

u

i

d

e

l

W

a

r

n

i

n

g

s

Cleaning and maintenance 18

Removable	oven	roof	liner	19

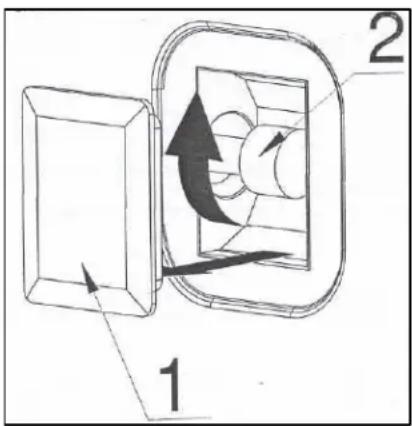

Replacing	the	oven	bulb	19

I

n

s

t

a

l

l

a

t

i

o

n

E

l

e

c

t

r

i

c

a

l

c

o

n

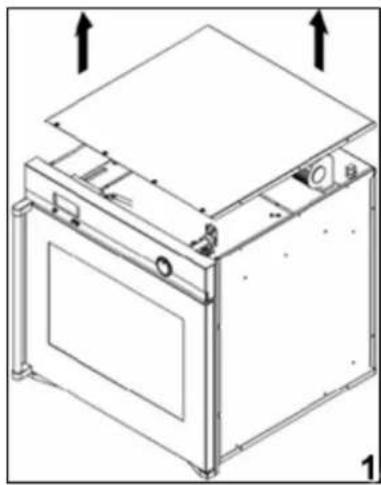

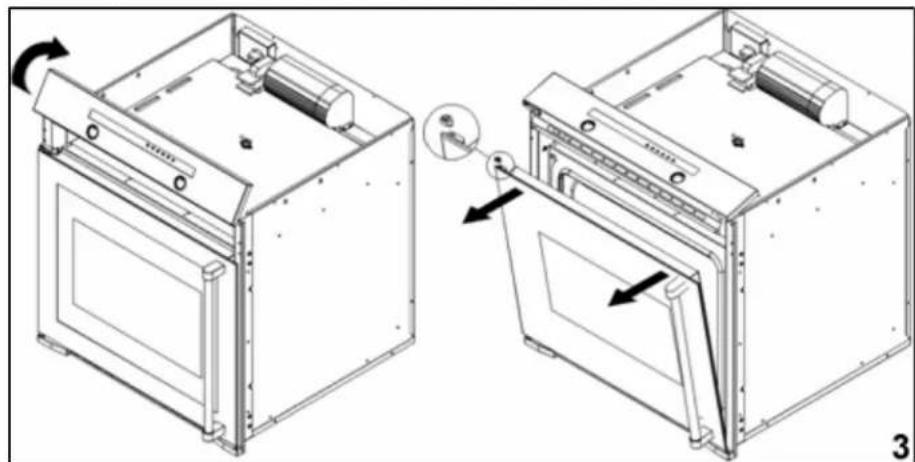

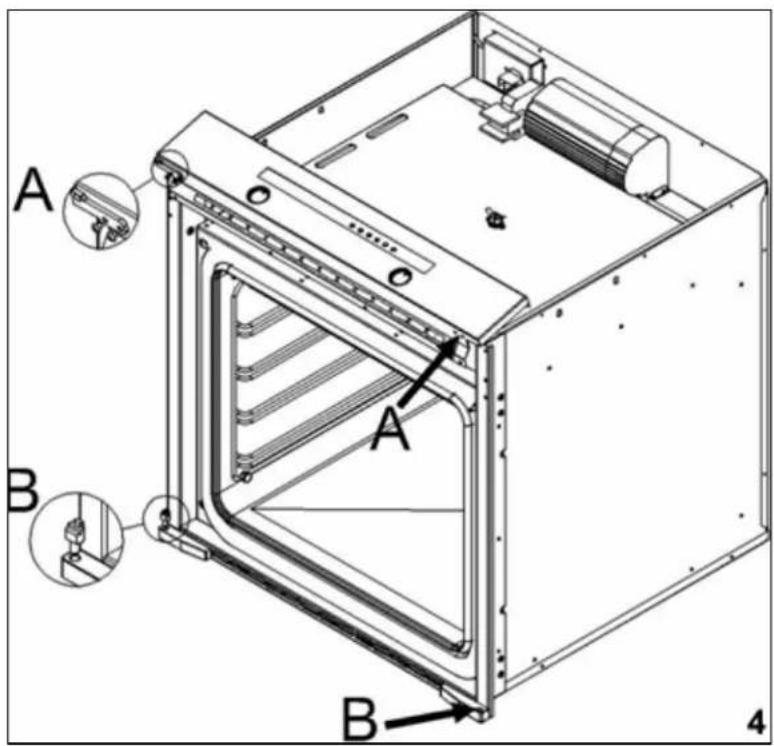

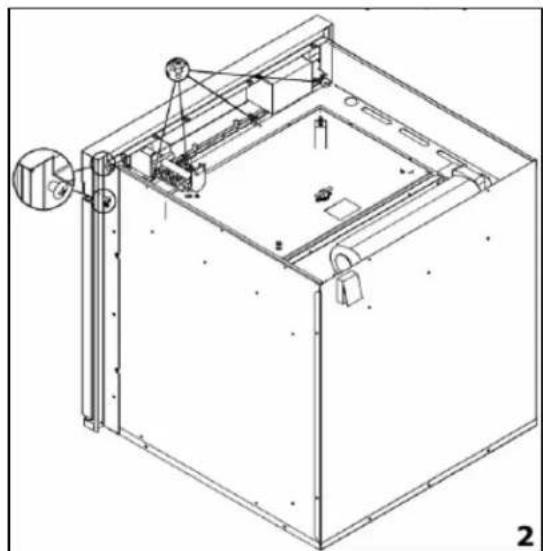

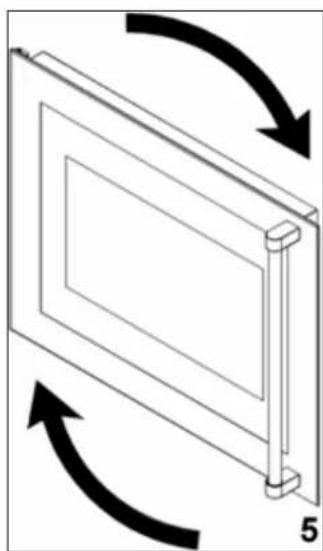

Reversing the door of your appliance			21-24

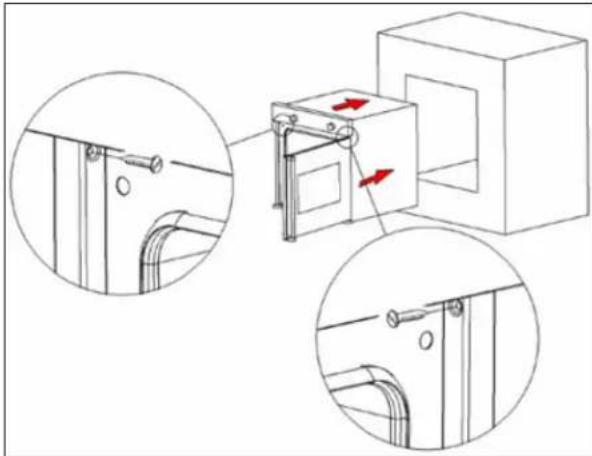

Installing the oven into the kitchen		cabinet	24-25

My appliance isn't working correctly 25-27

Baumatic Ltd. conditions of guarantee 28

C o n t a c t d e t a i l

Environmental note

This appliance is marked according to the European directive 2002/96/EC on Waste electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol

on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

• The packaging materials that Baumatic uses are environmentally friendly and can be recycled.
• Please discard all packaging material with due regard for the environment.

IMPORTANT SAFETY INFORMATION

Warning symbol with exclamation mark inside triangle

Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Technical Department.

General Information

• This appliance is designed for domestic household use and can be built into a standard kitchen cabinet or housing unit.
  ○ IMPORTANT: The adjacent furniture or housing and all materials used in the installation must be able to withstand a minimum temperature of 85^ C above the ambient temperature of the room it is located in, whilst in use.
  ○ Certain types of vinyl or laminate kitchen furniture are particularly prone to heat damage or discolouration at temperatures below the guidelines given above.
• Any damage caused by the appliance being installed in contravention of this temperature limit, or by placing adjacent cabinet materials closer than 4mm to the appliance, will be the liability of the owner.
• For use in leisure accommodation vehicles, please refer to the appropriate information given in the installation instructions for this appliance.
• The use of this appliance for any other purpose or in any other environment without the express agreement of Baumatic Ltd. will invalidate any warranty or liability claim.
• Your new appliance is guaranteed against electrical or mechanical defects, subject to certain exclusions that are noted in Baumatic's Conditions Of Guarantee. The foregoing does not affect your statutory rights.
• Repairs may only be carried out by Baumatic Service Engineers or their authorised service agent.

Warning and safety instructions

- This appliance complies with all current European safety legislation. Baumatic do wish to emphasise that this compliance does not remove the fact that the appliance surfaces will become hot during use and retain heat after operation.

Child Safety

○ Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time.

- If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.

General Safety

Do not place heavy objects on the oven door or lean on the oven door when it is open, as this can cause damage to the oven door hinges.

- Do not leave heated oil or fat unattended, as this is a fire risk.

- Do not place pans or baking trays directly on the base of the oven cavity, or line it with aluminium foil.

- Do not allow electrical fittings or cables to come into contact with areas on the appliance that get hot.

- Do not use the appliance to heat the room it is located in or to dry clothing.

- Do not install the appliance next to curtains or soft furnishings.

Do not attempt to lift or move cooking appliances by using the oven door or handle, as this may cause damage to the appliance or result in injury to the person lifting the appliance.

Cleaning

- Cleaning of the oven should be carried out on a regular basis.

- Great care should be taken whilst using this appliance and when following the cleaning procedure.

- IMPORTANT: The appliance must be disconnected from the mains before following the cleaning procedure.

Installation

Warning symbol with exclamation mark inside triangle

This appliance must be correctly installed by a suitably qualified person, strictly in accordance with the manufacturer's instructions.

○ Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
- Heat, steam and moisture will be created during use of the appliance, take care to avoid injury and ensure that the room is adequately ventilated. If the appliance is going to be used for prolonged periods of time, then additional ventilation may be required.
- Please consult with your qualified installer if you are in any doubt about the amount of ventilation that you will require.

Declaration of conformity

• In the parts destined to come into contact with foodstuffs, this appliance is in accordance with the requirements of the EC directive 89/109 transposed in the Italian Legislative Decree No. 108 of 25/01/92.
• CE: Appliance conforming to the European directives 89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions and "RoHS" directive 2002/95/CE.*
  The manufacturer declares that the oven is built using certified materials and requires the appliance to be installed in accordance with the standards currently in force. This appliance must be used by a trained person for domestic purposes only.
  * The RoHS directive stands for "the restriction of the use of certain hazardous substances in electrical and electronic equipment". This directive bans the placing on the EU market of new electrical and electronic equipment containing more than the agreed levels of lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE) flame retardants.

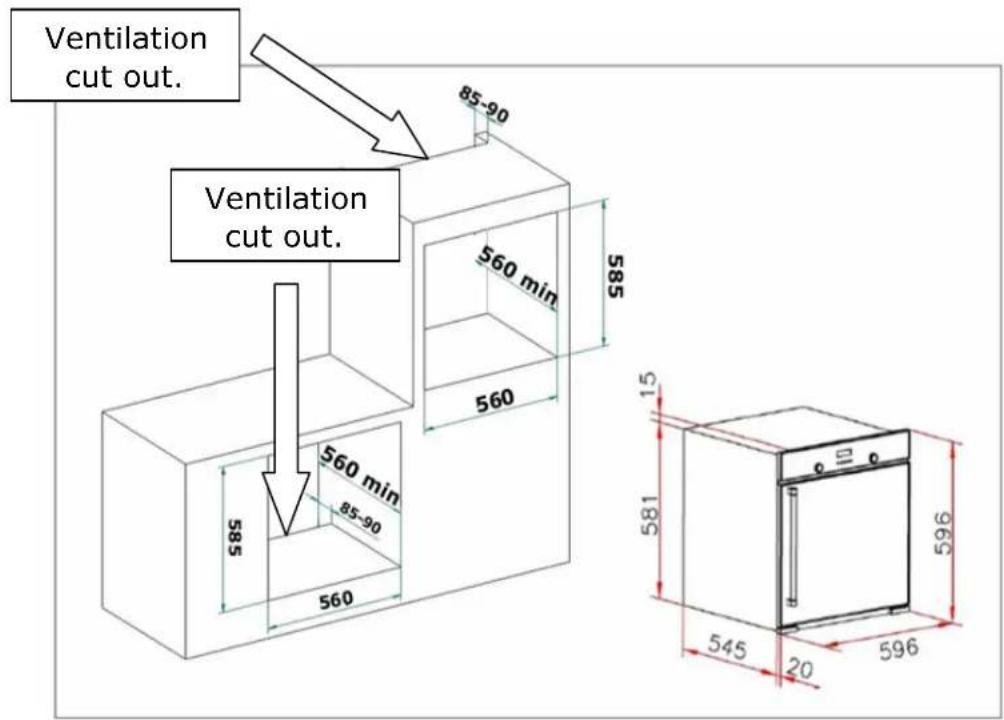

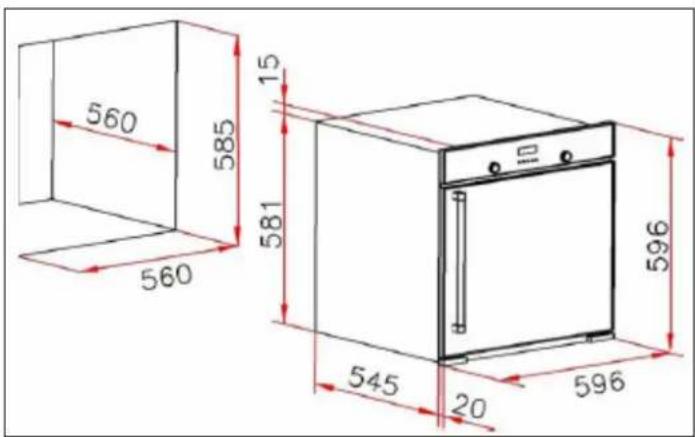

Specifications

560 585 15 581 560 545 20 596 596

Product Dimensions

Height: 596 mm

Width: 596 mm

Depth: 545 mm

Aperture Dimensions

Height: 585 mm

Width: 560 mm

Depth: 560 mm

Product specifications

• 9 functions
  ○ Energy efficiency class: A
• Mark resistant coating
• Oven capacity: 65 litres
• Side opening reversible door
• LED full programmer
  ○ Cooling fan
• Thermostatically controlled grill
  ○ Wipeclean enamel cavity
• Flush mounted installation
  ○ Double-glazed removable door

Standard accessories:

• Removable roof liner
• Removable side racks
• 2 x safety shelves
  ○ Wipeclean enameled drip tray with handle
  ○ Trivet

Optional extras:

○ BPS1 Pizza stone
- TEL4KIT Telescopic runners kit

Cooling fan

○ A tangential cooking fan is fitted inside of this appliance, to make the internal temperature of the oven stable and the external surface temperature lower.

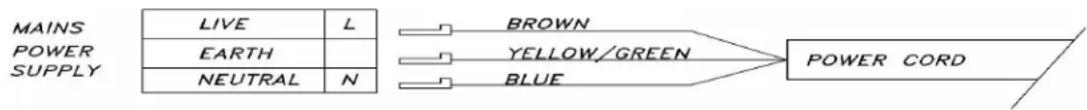

Electrical details

Rated Voltage: 230 Vac 50 Hz

Supply Connection: 16 A (double pole switched fused outlet with 3mm contact gap)

Max Rated Inputs: 3.6 kW

Mains Supply Lead: 3 x 1.5 mm²

Oven Light Bulb: 25 W/300°C screw type pigmy

For future reference please record the following information which can be found on the Rating Plate and the date of purchase which can be found on your sales invoice. The rating plate for your oven can be located by opening the oven door and looking on the right hand side of the oven chassis.

Model Number

Serial Number

Date of Purchase ....

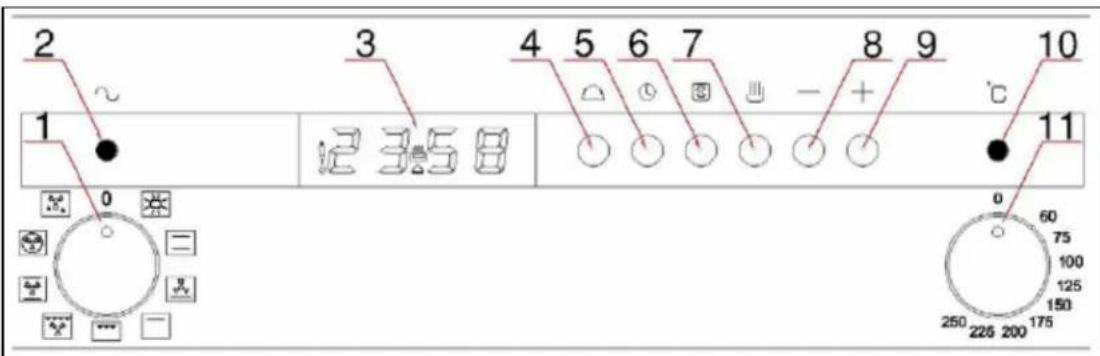

Control Panel

2 ~ 1 3 4 5 6 7 8 9 10 12 3:5 8 - + . 11 0 60 75 100 125 150 250 225 200 175

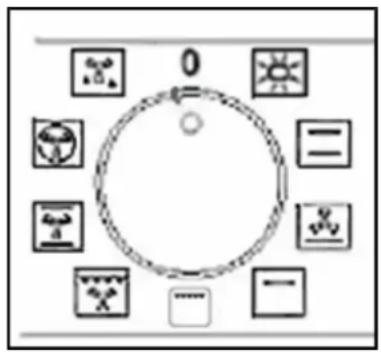

1) Oven function selector knob

2) Power indicator light

3) Oven programmer/timer

4) Timer "minute minder" button

5) Timer "duration" button

6) Timer "end cook" button

7) Timer "manual operation" button

8) Timer "minus" button

9) Timer "plus" button

10) Oven operating light

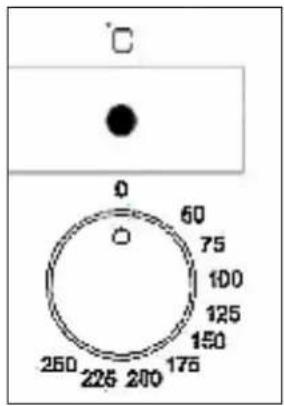

11) Thermostat control knob

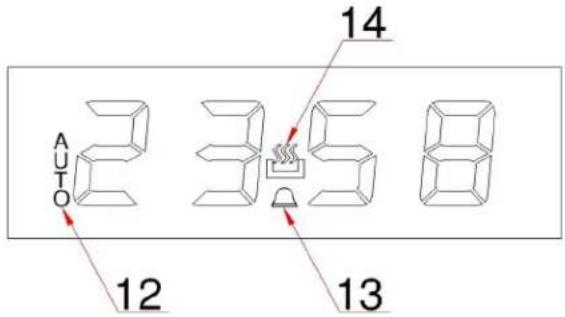

Oven programmer/timer display

AUTO 12 13 14

12) "Auto" function symbol
13) "Minute minder" symbol
14) "Manual operation" symbol.

Setting and using the oven programmer/timer

Selecting manual operation mode

After your appliance is connected to your mains supply for the first time, the numbers on the timer display will flash. Before you can select a cooking function or set a temperature, you must set the appliance into "manual operation" mode.

To select manual operation mode, press the "manual operation" button (7) on the control panel.

Setting the time of day

After setting your oven for manual operation, you should also set the time of day.

Use the "minus" button (8) and "plus" button (9) to adjust the time that appears in the display. After getting the display to the correct time, release the "minus" and "plus" buttons. After a few seconds the time will fix in the display and you will be able to use your oven.

Before first use

To remove any residue from the oven that may have been left from the manufacturing process, you should select either the fan or conventional oven function and turn the thermostat dial to its maximum temperature setting.
- It is perfectly normal for a smell to be produced during this process.

• You should make sure that any windows in the room are left open during this process.
• It is advisable for you not to remain in the room whilst the burning off process is taking place.
• You should leave the oven on maximum setting for 30 – 40 minutes.

Setting the minute minder function

You are able to set the minute minder at any time, regardless of whether an oven function has been selected. You can set a period of time using the minute minder function and an alarm will sound when this period of time has elapsed.

Press the "minute minder" button (4), the display will show a value of 00:00. Set the period of time that you wish the minute minder to countdown for, by using the "minus" (8) and "plus" (9) buttons.
Once the display has got to your desired countdown time, let go of the "minus" and "plus" buttons. The minute minder symbol (13) will appear on the timer display.
Once a countdown time has been set, it is possible to shorten or lengthen the time by using the "minus" or "plus" buttons.
- An alarm will sound when the countdown time has elapsed. The alarm can be silenced by pressing the "minute minder" button.
- Important: The oven will continue to heat once the alarm has been silenced. If you have finished cooking, then you should turn the oven function selector and thermostat control knob to 0.

Setting the duration function

This function will allow you to set a countdown time similar to the minute minder function. However the oven will no longer continue to heat, once the countdown period has elapsed.

• Use the thermostat control knob (11) to set the temperature that you require. The manual operation symbol (14) will appear on the display.
• Use the oven function selector knob (1) to select the mode of cooking that you require.
• It is then possible to set the duration of the cooking time that you require.

Press the "duration" button (5) and the display will show a value of 00:00. Set the period of time that you wish the duration function to countdown for, by using the "minus" (8) and "plus" (9) buttons.

Once the display has got to your desired countdown time, let go of the "minus" and "plus" buttons. The countdown will start immediately and the word AUTO will appear on the timer display.

Once a countdown time has been set, it is possible to shorten or lengthen the time by using the "minus" or "plus" buttons.

- An alarm will sound when the countdown time has elapsed and the oven will switch off. The word AUTO will flash and the heating symbol will disappear. The alarm can be silenced by pressing the "duration" button.

- You will need to return the oven to manual operation mode, once the duration function has been used. To do this you should press the "manual operation" button, the word AUTO will disappear from the display and the manual operation symbol will appear instead.

- Important: If you do not turn the thermostat control knob and oven function selector knob to 0. Then the appliance will continue to operate as soon as you press the "manual operation" button.

Setting the end cook function

This function is similar to the duration function, however instead of selecting a period of time that you wish the oven to switch off after. You select the time of day that you wish the oven to switch off at.

- Use the thermostat control knob (11) to set the temperature that you require. The manual operation symbol (14) will appear on the display.

- Use the oven function selector knob (1) to select the mode of cooking that you require.

Press the "end cook" button (6) and the display will show a value of 00:00. Set the time of day that you wish the oven to stop cooking at by using the "minus" and "plus" buttons. The timer will calculate how long the cooking time will be, based on the time of day that you have selected and show it on the display.

Once the display has got to the time of day that you want the oven to stop cooking at, let go of the "minus" and "plus" buttons. The countdown will start immediately and the word AUTO symbol will appear on the timer display.

- When the time is set, it can be modified by pressing the "minus" and "plus" buttons.

When the time of day reaches the end of cooking time that you set, the oven will switch off and an alarm will sound. The word AUTO will flash and the heating symbol will disappear. The alarm can be silenced by pressing the "end cook" button.

- You will need to return the oven to manual operation mode, once the end cook function has been used. To do this you should press the “manual operation” button, the word AUTO will disappear from the display and the manual operation symbol will appear instead.

- Important: If you do not turn the thermostat control knob and oven function selector knob to 0. Then the appliance will continue to operate as soon as you press the "manual operation" button.

Setting the start and end time function

This function will allow you to set a time in the future that the oven switches on at and a time that the oven will switch off at.

- Use the thermostat control knob (11) to set the temperature that you require. The manual operation symbol (14) will appear on the display.

- Use the oven function selector knob (1) to select the mode of cooking that you require.

Press the "duration" button (5) and the display will show a value of 00:00. Set the period of time that you wish to cook for, by using the "minus" (8) and "plus" (9) buttons. The word AUTO will appear on the timer display.

- Immediately press the "end cook" button (6) and the timer display will show the value 00:00. Set the time of day that you want the oven to switch off at, using the "minus" and "plus" buttons.

• The oven will calculate what time it needs to switch on at, so that your food will cook for the length of time that you selected. It will automatically switch itself on, once it reaches the time of day that it has calculated.
  When the time of day reaches the end of cooking time that you set, the oven will switch off and an alarm will sound. The word AUTO will flash and the heating symbol will disappear. The alarm can be silenced by pressing the "end cook" or "duration" button.
• You will need to return the oven to manual operation mode, once the start and end time function has been used. To do this you should press the "manual operation" button, the word AUTO will disappear from the display and the manual operation symbol will appear instead.
• Important: If you do not turn the thermostat control knob and oven function selector knob to 0. Then the appliance will continue to operate as soon as you press the "manual operation" button.

Selecting a cooking function and temperature

Selecting manual operation mode

After your appliance is connected to your mains supply for the first time, the numbers on the timer display will flash. Before you can select a cooking function or set a temperature, you must set the appliance into "manual operation" mode.

To select manual operation mode, press the "manual operation" button (7) on the control panel.

Selecting an oven function

The oven function selector knob should be used to select the particular mode of cooking that you require. The appliance will utilise different elements within the oven cavity, depending on the oven function that you select. When a function is selected, the power indicator light will come on.

There are nine cooking functions available on your appliance:

OVEN LIGHT: Separate light control which allows the light to be switched on, even when the oven is switched off.

DEFROST MODE: The fan runs without heat to reduce the defrosting time of frozen foods. The time required to defrost the food will depend on the room temperature, the quantity and type of food. Always check food packaging for the defrosting instructions.

CONVENTIONAL OVEN (top and lower element): This method of cooking provides traditional cooking, with heat from the top and lower elements. This function is suitable for roasting and baking on one shelf only.

FAN OVEN: This method of cooking uses the circular element while the heat is distributed by the fan. This results in a faster and more economical cooking process. The fan oven allows food to be cooked simultaneously on different shelves, preventing the transmission of smells and tastes from one dish onto another.

CONVENTIONAL OVEN & FAN: This method of cooking provides traditional cooking with heat from the top and bottom element. It also switches on the circulation fan which helps to ensure fast, even distribution of the heat. This function is suitable for light and delicate baking such as pastries. You can cook on different shelf levels, as long as the food being cooked requires the same cooking temperature.

TOP ELEMENT ONLY: This method of cooking uses the outer part of the top element to direct heat downwards onto the food. For gentle cooking, browning or keeping cooked dishes warm.

GRILL MODE: This method of cooking utilises the inner and outer sections of the top element, which directs heat downwards onto the food. This function is suitable for grilling medium or large portions of sausages, bacon, steaks, fish etc.

FAN AND GRILL: This method of cooking utilises the top element in conjunction with the fan, which helps to provide a quick circulation of heat. This function is suitable where quick browning is required and "sealing" the juices in, such as steaks, hamburgers, some vegetables etc.

FAN AND LOWER ELEMENT: This method of cooking utilises the bottom element in conjunction with the fan, which helps to circulate the heat. This function is suitable for sterilizing and serving jars.

Thermostat control knob

° 0 60 75 100 125 150 250 225 200 175

The oven thermostat control knob sets the required temperature of the oven. It is possible to regulate the temperature within a range of 50 - 250°C.

Turn the control knob clockwise.

Oven operating light

This light will come on to indicate that the oven's heating elements are in operation. The light will turn off when the temperature set on the thermostat control knob has been reached. It will cycle on and off throughout the cooking time.

You should not place food inside the cavity, until the correct cooking temperature has been reached.

Cooking guidelines

- Please refer to the information given on food packaging for guidance on cooking temperatures and times. Once familiar with the performance of your appliance, temperatures and times can be varied to suit personal preference.

- If you are using the fan oven function, then you should follow the information given on the food packaging for this particular mode of cooking.

○ Make sure that frozen foods are thoroughly thawed before cooking, unless the instructions on the food packaging advise that you can "cook from frozen".

- You should pre-heat the oven and not place food inside of it until the oven operating light has gone off. You can choose not to pre-heat when using the fan oven mode; however you should extend the cooking time given on the food packaging by approximately ten minutes.

Before cooking, check that any unused accessories are removed from the oven.

• Place cooking trays in the centre of the oven and leave gaps between the trays to allow air to circulate.
• Try to open the door as little as possible to view the dishes.
• The oven light will remain on during cooking.

Warnings

• Keep the oven door closed when using either of the grill functions.
  Do not use aluminium foil to cover the grill pan or heat items wrapped in aluminium foil under the grill. The high reflectivity of the foil could potentially damage the grill element.
• You should also never line the base of your oven with aluminium foil.
  During cooking, never place pans or cookware directly onto the bottom of your oven. They should always be placed on the shelves provided.
• The grill heating element becomes extremely hot during operation, avoid touching it inadvertently when handling the food which you are grilling.
• Important: Be careful when opening the door, to avoid contact with hot parts and steam.
• The drip tray handle should only be used to reposition the drip tray and NOT for removing it from the oven cavity. When removing the drip tray, you should ALWAYS use an oven glove.
• The drip tray handle should not be left in position when the appliance is switched on.

Warning symbol with exclamation mark inside triangle

Cleaning operations must only be carried out when the oven is cool.

The appliance should be disconnected from your mains supply before commencing any cleaning process.

The oven should be thoroughly cleaned before it is operated for the first time and after each use. This will avoid residual food stuffs becoming baked on the oven cavity. After residues have been baked on several times, they are far more difficult to remove.
- Never clean the oven surfaces by steam cleaning.
- The oven cavity should only be cleaned with warm soapy water, using either a sponge or soft cloth. No abrasive cleaners should be used.
- Any stains that may appear on the bottom of the oven will have originated from food splashes or spilt food, these splashes occur during the cooking process. These could possibly be a result of the food being cooked at an excessively high temperature or being placed in cookware that is too small.
- You should make sure that the cooking temperature that is selected is appropriate for the food that you are cooking. You should also ensure that the food is placed in an adequately sized dish and use the drip tray where appropriate.
- Outer parts of the oven should only be cleaned with warm soapy water, using either a sponge or soft cloth. No abrasive cleaners should be used.
- If you use any form of oven cleaner on your appliance, then you must check with the manufacturer of the cleaner that it is suitable for use on your appliance.
- Any damage that is caused to the appliance by a cleaning product will not be fixed by Baumatic free of charge, even if the appliance is within the guarantee period.

Removable oven roof liner

• Your appliance is supplied with a roof liner, which should be slid over the top of the grill element.
  Once you have finished cooking, the liner should be removed and thoroughly cleaned after each use of the appliance.
• Do not allow fat and grease to build up on the oven liner, as this could cause a fire hazard.

Replacing the oven bulb

Warning symbol with exclamation mark inside triangle

IMPORTANT: The oven must be disconnected from your mains supply before you attempt to either remove or replace the oven bulb.

Diagram showing a mechanical or electrical component with labeled parts 1 and 2, featuring directional arrows indicating motion or flow.

• Remove all oven shelves, the drip tray and the side rack that is on the same side as the oven light.
  ○ Using a screwdriver, remove the lamp cover (1).
• Unscrew the bulb (2) clockwise and remove it from its holder.

○ Replace the bulb with a 25 W/300°C, screw type pigmy.

- Do not use any other type of bulb.

- Place the lamp cover back into position. There is a curve on one side of the cover; this should be on the right hand side as the cover goes back into place.

INSTALLATION

The installation must be carried out by a suitably qualified person, in accordance with the current version of the following.

• UK Regulations and Safety Standards or their European Norm Replacements.
  ○ Building Regulations (issued by the Department of the Environment).
  ○ Building Standards (issued by the Scottish Development Department).
  ○ IEE Wiring Regulations.
• Electricity At Work Regulations.

Before connecting the appliance, make sure that the supply voltage marked on the Rating Plate corresponds with your mains supply voltage.

WARNING: THIS APPLIANCE MUST BE EARTHED.

- This appliance should be wired into a 16 A double pole switched fused spur outlet, having 3 mm contact separation and placed in an easily accessible position adjacent to the appliance. The spur outlet must still be accessible even when your oven is located in its housing.

To connect the oven power cord, loosen and remove the cover on the terminal block, in order to gain access to the contacts inside. Make the connection, securing the cord in place with the cable clamp provided and then immediately close the terminal block cover again.
- If you have to change the oven power cord, the earthing (yellow/green) conductor must always be 10 mm longer than the line conductors.
- Care must be taken to ensure that the temperature of the mains supply cable does not exceed 50°C.
- If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department.

Reversing the door of your appliance

IMPORTANT: This operation must be only carried out by a suitably qualified person. Baumatic Ltd. do not recommend that a customer completes this operation.

- It is necessary to disconnect the oven from the mains before executing the operations described in the present manual.

- Please read this text thoroughly before starting with the work.

Once that the operations are completed, ensure that the oven is re-assembled properly and check the electric connection.

- In order to reverse the door it is necessary to remove the covers of the Oven. Therefore if the appliance is already installed, loosen the screws which fixed the oven to the cabinet and extract it from the unit.

Technical line drawing of an open oven with internal components and directional arrows indicating motion (no text or symbols)

1) Loosen the screws and remove the upper cover of the oven

Technical line drawing of a mechanical assembly with mounting bracket and internal components (no text or symbols)

2) Loosen the screws that fix the control panel. These can be found in the following positions:-

- On the stainless steel sides of the oven.

- On the base of the control panel (where the ventilation slots are cut out).

Technical line drawing of two open oven units with directional arrows indicating assembly or movement (no text or symbols present)

3) IMPORTANT: Support the oven door from the underneath whilst attempting the next stage.

○ Rotate the control panel as shown whilst supporting the underneath of the oven door.

- Remove the upper pivot pin. IMPORTANT: The upper pivot pin must be retained, as it will be required when the door is being reassembled.

o Pull the door away from the oven cavity and gently lean it on some padded material, to ensure that no damage is caused to the oven door or door glass.

4) Unscrew the fixing plate (A) and fix it to the other side of the oven using the screws that you have just removed. The new position of the fixing plate is indicated by the arrow with the letter A next to it.

- Remove the bottom pivot (B) from the left lower holder and place it in the right lower holder. The new position of the bottom pivot is indicated by the arrow with the letter B next to it.

Diagram of a rectangular panel with rotating arrows indicating rotation, no text or symbols present

5) Turn the door upside down and refit it to the oven cabinet. IMPORTANT: Make sure that the upper pivot pin is refitted on the door. It now must be placed on the right hand side of the door rather than the left hand side.

IMPORTANT: When the above steps have been followed, it is necessary to reassemble all of the components.

• You should pay particular attention to the wiring, it is important to make sure that no wiring has been damaged during the door reversal operation.
• You should ensure that all the electrical components and the oven programmer work correctly before refitting the upper cover of the oven.

Installing the oven into the kitchen cabinet

Ventilation cut out. Ventilation cut out. 85-90 560 min 585 560 585 560 min 85-90 585 560 15 581 545 20 596 596

Fixing the oven into a cabinet.

• Ensure that the aperture that you will be fitting the oven into is of the size given in the above diagram.
• Ensure that the rear panel of the furniture housing unit has been removed.
• This oven may be installed without any additional ventilation cut outs being made in the housing unit. However the ventilation cut out indicated by the arrow in figure 1 MUST be present, otherwise the oven may overheat. This applies to a built in or built under installation.

Technical diagram showing mechanical assembly with two views of a bracket and a close-up of a component (no text or symbols)

- Ensure that the oven has been securely fixed into the housing unit. The fixing of the oven into the housing is made by using four screws. These should be screwed through the oven cabinet and into the housing unit.

My appliance isn't working correctly

- The oven isn't coming on.

* Check that the oven is in manual operation mode.

* Check that you have selected a cooking function and a cooking temperature.

- There appears to be no power to the oven and grill.

* Check that the appliance has been connected to the electrical mains supply correctly.

* Check that the mains fuses are in working order.

* Check that the operating instructions for setting the time of day and putting the appliance into manual operation mode have been followed.

- The grill function works but the main oven does not.

* Check that you have selected the correct cooking function.

- The grill and top oven element is not working, or cuts out for long periods of time during use.

* Allow the oven to cool for approximately 2 hours. Once cool, check whether the appliance is again working properly.

○ My food is not cooking properly

* Ensure that you are selecting the correct temperature and the correct cooking function for the food that you are cooking. It may be appropriate to adjust your cooking temperature by plus or minus 10°C, to achieve the best cooking results.

○ My food is not cooking evenly

* Check that the oven has been installed correctly and is level.

* Check that the correct temperatures and shelf positions are being used.

- The oven light is not working

* Refer to page 19 and follow the "Replacing the oven bulb" section.

- I am getting condensation in my oven

* Steam and condensation is a natural by product of cooking any food with high water content, such as frozen food, chicken etc.

* You may get condensation in the oven cavity and forming between the oven door glasses. This is not necessarily a sign that the oven is not working correctly.

* Do not leave food in the oven to cool after it has been cooked and the oven has been switched off.

* Use a covered container, where practical, when cooking to reduce the amount of condensation that forms.

Warning symbol image with exclamation mark inside triangle

IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact the Baumatic Service Department on telephone number [phone].

DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.

Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.

The appliance must be accessible for the engineer to perform any necessary repair. If your appliance is installed in such a way that an engineer is concerned that damage will be caused to the appliance or your kitchen, then he will not complete a repair.

This includes situations where appliances have been tiled in, sealed in with sealant, have wooden obstructions placed in front of the appliance, like plinths. Or any installation other than the one specified by Baumatic Ltd. has been completed.

Please refer to the conditions of guarantee document on page 28 of this instruction manual for clarification of this.

Baumatic Ltd. Conditions of guarantee

Dear Customer,

Your new Baumatic appliance comes complete with a free 12 month guarantee covering both parts and labour costs resulting from defective materials or workmanship.

Baumatic also gives you the opportunity to automatically extend the guarantee period for a further 12 months at no extra cost, giving an initial guarantee period of 24 months. The extended guarantee period applies to England, Scotland, Wales and Northern Ireland only.

To qualify for your full 24 months guarantee you must register your appliance within 28 days of purchase to be covered under this guarantee. This can be done online via: www.baumatic.co.uk or through returning the guarantee card which can be found in each new Baumatic appliance.

* In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date.
* An additional 1 to 3 year insurance scheme for labour is available should you wish to extend the warranty period.

Should any person other than an authorised representative of Baumatic Ltd interfere with the appliance, the policy is negated and Baumatic Ltd will be under no further liability.

The guarantee covers the appliance for normal domestic use only, unless otherwise stated.

Any claims made under the terms of the guarantee must be supported by the original invoice/bill of sale issued at the time of purchase.

This guarantee is transferable only with the written consent of Baumatic Ltd.

If the appliance fails and is considered either not repairable or uneconomical to repair between 12 months (2 years if registered) and five years, a free of charge replacement will not be offered.

The guarantee for any replacement will only be for the remainder of the guarantee on the original product purchased.

The guarantee does not cover:

• Sinks and taps
• Failure to comply with the manufacturers instructions for use.
• The replacement of cosmetic components of accessories
• Accidental damage or wilful abuse.
• Subsequent loss or damage owing to the failure of the appliance or electrical supply
• Incorrect installation
• Losses caused by Acts of God, civil war, failure to obtain spare parts, strikes or lockouts
• Filters, fuses, light bulbs, external hoses, damage to bodywork, paintwork, plastic items, covers, baskets, trays, shelves, burner bases, burner caps, decals, corrosion, rubber seals.

In the course of the work carried out it may be necessary to remove the appliance from it operating position. Whilst all reasonable care will be taken, Baumatic Ltd cannot accept responsibility for damage sustained to any property whatsoever in this process.

This guarantee is in addition to and does not diminish your statutory or legal rights.

Contacting Baumatic Ltd

Sales

Service

Spares

Technical/Advice

TEL: [phone]

TEL: [phone]

TEL: [phone]

0118 933 6933

FAX: [phone]

FAX: [phone]

FAX: [phone]

0118 933 6942

For ROI (Republic of Ireland), please contact one of the numbers below:

TEL: [phone]

FAX: 01 - 6266634

Thanks you for buying Baumatic.

* Applies to UK, Scotland, Wales & Northern Ireland only (Republic of Ireland has 1 year labour & 1 year parts warranty only)

Baumatic®

You will be mine ...

Headquarters

Baumatic Ltd.

Baumatic Buildings,

6 Bennet Road,

Reading,

Berkshire

RG2 0QX, United Kingdom

Sales Telephone

[phone]

Sales Fax

[phone]

Service Telephone

[phone]

Service Fax

[phone]

Spares Telephone

[phone]

Technical / Advice Telephone

[phone]

E-mail:

[e-mail]

[e-mail]

Http (Internet site):

www.baumatic.com

Baumatic

www.baumatic.com
