Product Type	MP3 Player
Brand	Aiptek
Model	MP3-S2
Dimensions (H x W x D)	Approx. 50 x 30 x 10 mm
Weight	Approx. 30 g
Power Source	Built-in rechargeable lithium-ion battery, USB charging (5V)
Battery Life	Up to 10 hours of music playback
Storage Capacity	Internal flash memory (size not specified, typically 1-8 GB)
Supported Audio Formats	MP3, WMA, WAV
Display	LCD screen (size not specified)
Main Functions	Music playback, FM radio, voice recording, folder navigation
Playback Modes	Normal, repeat one, repeat all, random, intro
Equalizer Presets	Normal, Rock, Pop, Classic, Jazz, Bass
Connectivity	USB 2.0 for data transfer and charging, 3.5 mm headphone jack
FM Radio	Yes, with preset memory
Voice Recording	Built-in microphone, WAV format
Maintenance & Cleaning	Wipe with a soft dry cloth; do not use chemicals
Safety Precautions	Keep away from water and extreme temperatures; use only supplied charger
Spare Parts & Repairability	Spare parts not available; device not user-serviceable
Package Contents	MP3 player, USB cable, earphones, user manual

Frequently Asked Questions - MP3-S2 AIPTEK

How do I turn on the Aiptek MP3-S2?

Press and hold the Play/Pause button for about 3 seconds until the screen lights up.

How do I charge the MP3 player?

Connect the included USB cable to the player and a computer or USB power adapter. The battery icon will show charging status.

How do I transfer music to the device?

Connect the player to a computer via USB. It will appear as a removable drive. Copy MP3 files into the Music folder or root directory.

Why is there no sound from the earphones?

Ensure the earphones are fully inserted into the 3.5mm jack. Also check the volume level and make sure the player is not paused.

How do I set the FM radio?

Press the Mode button to switch to FM mode. Then press and hold the Play/Pause button to auto-scan and save stations.

How do I record voice?

Press Mode to select Voice Recording. Press Play/Pause to start recording, and press again to stop. Files are saved in WAV format.

What to do if the device freezes?

Try a reset by inserting a small pin into the reset hole (if available) or pressing and holding the Power button for 10 seconds.

How long does the battery last?

The battery typically lasts up to 10 hours of continuous playback, depending on volume and usage.

Can I use the player while charging?

Yes, you can use the player while connected to USB power, but it may take longer to charge.

How do I navigate the menu?

Use the Volume Up/Down buttons to scroll through options and Play/Pause to select. Press Mode to go back.

USER MANUAL MP3-S2 AIPTEK

For the sake of your more comfortable and easier operation to the MP3 player, we herein present specific user manual for your acquisition on product instruction, usage guidance. Please seriously study the guidance attached so as to use the player correctly.

The liability of private data loss and damage or all relevant indirect loss due to individual misapplication to software or hardware, product disassembly, battery replacing, or any other suddenness should be not on our company. Besides, user's misunderstanding to this manual is out of our control, hereby, we are not obligated to the third party demanding compensation due to the product application.

Once any alteration to this manual, excuse for the notification's disregard.

Attention:

● Do not use this product in an extremely hot, cold, dusty or humid environment.
- Confirm the HOLD key unlocked before usage.
- Care should be taken so that the player will not be hit by any hard objects, or else it may cause broken surface, or slippage of the battery, or damage to other hardware components.
● The player need to be recharged in following conditions:

a) Unprompted Power off for low battery power
b) Power on disabled.
c) No response to key operation, it needs to be discharged by RESET key and then recharged.

● To avoid static electricity, do not operate this player in an extremely dry environment.

- Do not disconnect the player when formatting, uploading, or downloading is proceeding, or else it may result in errors of the program.

- When this player is used as a portable hard drive. Follow the correct file operating procedures to store and export files, for any incorrect operations may lead to the files lost. The manufacturer shall not be liable for such problems.

Special Statement: Study this manual prudently before the usage to the player, if any data loss due to personal operational reasons or Force Majeure incidents, the liability should be not on our company.

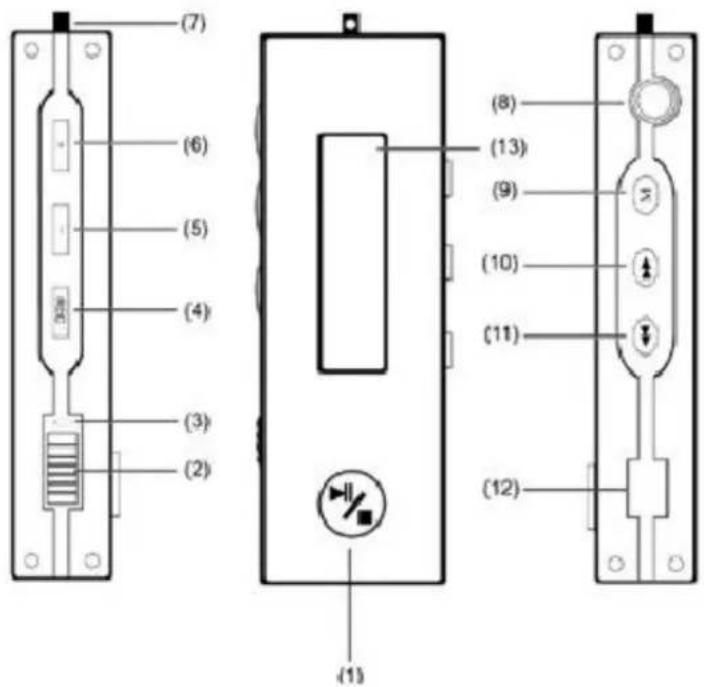

Figure Introduction:

(1) PLAY/ON/OFF/

PAUSE/STOP

(2)Power Switch

(3)MIC embedded

(4)Record Key

(5)Volume -

(6)Volume +

(7)Clasp

(8) Earphone Socket

(9)MODE Key

(10)FF Key

(11)REW Key

(12)USB Socket

(13)LCD Display

- To power on

Push the power switch to "ON" into power on, and push to another side into power off.

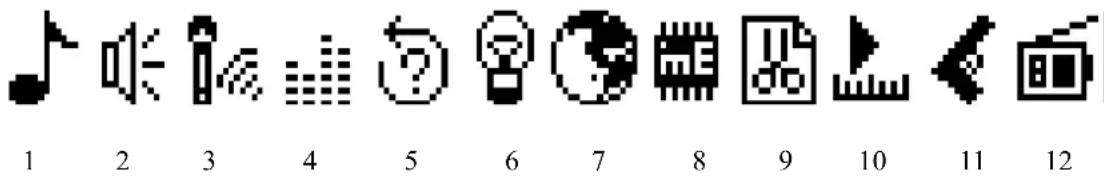

● Functions Operation (Push Mode button)

1. Music Playing Mode

1) Push the power switch to “ON”, then click PLAY/PAUSE/STOP key into STOP status. It indicates the length of the current song at the left top corner in “03-33” format, and the ID information of this song at the bottom.
2) Click PLAY/PAUSE/STOP key again into playing status. The lyrics of the song displays at the bottom of the screen so long as the song was edited to be with lyrics. Click FF key or REW key to skip to a next song or a previous song; click volume+, volume- to increase or decrease the volume. Each click decrease volume by one level, and total 32 levels.
3) In playing status, click MODE key to set EQ effects, Repeat, Backlight, Language and Playing Speed. Refer to relevant parts in this manual for detailed operation. Click RECORD key into "A-B" repeat mode, click again to confirm point "A", and click more once to confirm point "B", then it repeats the fragment A-B. Click RECORD key again to exit to normal playing mode.
4) In playing status, click PLAY/PAUSE/STOP key to pause; press PLAY/PAUSE/STOP key for 1 second to stop.

1. Voice Playing Mode:

1) Select voice mode and click PLAY/PAUSE/STOP key to replay record, click again PLAY key to pause; press PLAY/PAUSE/STOP key for 1 second to stop.
2) In playing mode, click FF key and REW key to skip to a next track or a previous track; click volume+ or volume- to increase or decrease volume level, each click for one level shift; click FF key or REW to play a next record fragment or a previous one.
3) In playing status, click MODE key to set EQ effects, Repeat, Backlight, Language and Playing Speed. Refer to relevant parts in this manual for detailed operation.

1. Record Mode

1) Select Record Mode to set high-quality processing (SP) or low-quality processing (LP), and click MODE key to confirm to be ready in recording mode.
2) As playing status, click PLAY key to pause; press PLAY for 1 second to stop and shift to voice playing status.
3) In stop status, press RECORD key to record availability.

1. EQ setup

6 effects: Normal; DBB; Pop; Rock; Classic; Jazz.

1. Repeat setup

4 modes: Normal; Repeat 1, Repeat All, Preview playing

1. Backlight Setup

Backlight: 0-60s adjustable, click (FF) key and (REW) key to change.

1. Language:

3 language versions optional: English; Simple Chinese; Complex Chinese; or to install a new font library.

1. Memory Information:

Check the capacity of the memory, left capacity; High speed formatting or low-level formatting (recommended if high-speed formatting failed).

1. Files deletion:

Delet music files or record files.

1. Different speed playing:

5 levels speed: Normal; Slow 1; Slow 2; Fast 1; Fast 2.

1. Game

PLAY key to exit, any other keys shoot.

12. FM Radio

1) Click MODE key to shift scanning mode / listening mode
2) Click PLAY key to save channels; click +/- to tune the frequency
3) Click FF key and REW key to select channel
4) Click MODE key to exit FM Radio.

Note: MODE key acts as a menu key and confirmation key; in menu status, click any key to exit.

USB Mode

1. Check the USB port in the computer.
2. Connect the USB socket in the player to the computer's USB port through the attached USB cable.
3. If connected, the player displays the connection symbol,
4. For WIN98 computer operation system, the compatible software must be installed before the connection between the player and computer. Put the driver CD into CD-ROM driver then open the executive file "setup.exe".

• IBM compatible personal computer
• CPU: PENTIUM 166MHZ above
• Operation system: WIN98、ME、2000、XP
• USB( Universal serial bus) port
- 32MB system memory or above(64MB recommended for WINDOWS2000)
• 20MB available hard disk space or above
• 4X speed CD-ROM or above
• Sound Card (Optional)

1. When uploading or downloading data, it displays a real line arrow and can be used just like a USB disk.
2. Do not disconnect the player when formatting, uploading, or downloading is proceeding, or else it may result in errors of the program.
3. Do save the music files into the MUSIC folder special for music storage.
4. Confirm the correct connection to PC before the formatting.

Open My Computer folder, click Mobile Disk folder by clicking mouse right key, select Formatting option to proceed the formatting. After the proceeding, the computer displays OK, disconnect and then connect again, the disk generate two folders automatically (a DVR folder and a MUSIC folder).

Warning: Formatting will delete all data in the memory

Note: Warning: Once the USB cable connected to PC, do not disconnect or pull out the player to avoid the damage to the player, the data lost or PC halted.

● Communication with PC

1. Driver program installation:

A. Note: Driver software installation needless above WIN98 operation system
B. Select the attached CD, run the setup.exe file, click "NEXT" button in each dialog, then it appears in the screen as follows:

C. It automatically installs the software of the player management and basic driver into the player. After the installation, it reminds to restart the computer, then press "OK" to restart and take effect the software.

2. Connect to PC

Connect to PC, it appears a disk icon in MY COMPUTER folder.

3. Upload and Download data

So long as the driver software is installed correctly, connect the player to a computer, then the player is used as a mobile hard disk for uploading and downloading data

Special statement: Do not disconnect the player during uploading or downloading, or else it may cause the data lost or damaged and the player malfunctioned.

Special warning: Do uninstall USB device in Windows ME, Windows2000 or Windows XP systems, or else it may cause the data lost or damaged, the details as follows:

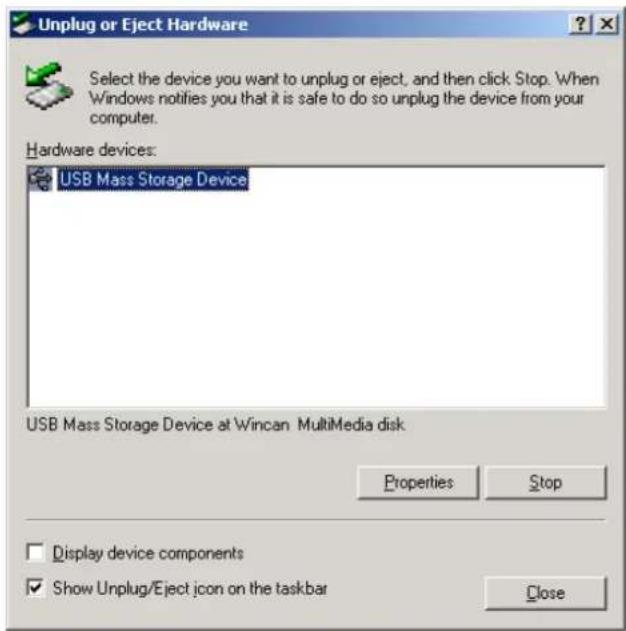

A. Double click the icon "pull hardwares out" in the right bottom of the computer(the icon "safely uninstall hardwares" in Windows XP system), as below:

B. Click Stop button in the pop-up dialog, as below:

C. Click OK in the next pop-up window, as below:

D. Click OK in the next pop-up window, as below:

After the above procedures, the player can be pull out safely from the USB port.

PC software usage

(1) The software of ID3 information and synchronous lyrics edit:

The player supports standard MP3 TAG (ID3V1.0 -ID3V2.3) display, while prior ID3V1.1. Make use of the attached file or downloaded ID3 edit software from Internet to edit the ID3 TAG on the MP3 or WMA files. Notice the system language in PC on editing.

The player displays ID3 information in songs information mode, while displays the file

name if no valid ID3 information.

The player displays the synchronous text information (ex. lyrics), if no valid ones, it's display is the same as songs information mode.

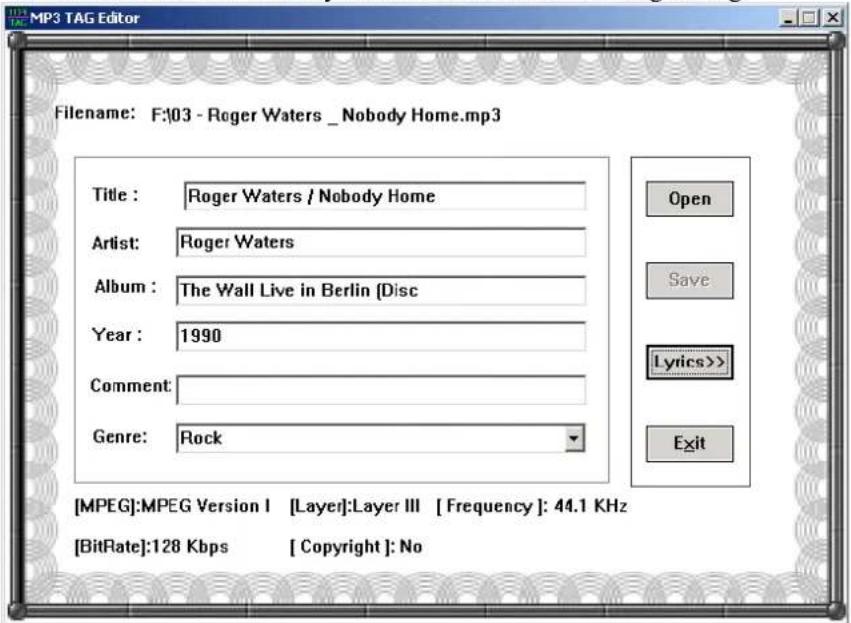

ID3 TAG edit

The software opens a MP3/WMA file and appears its ID3 information for edit. Save the changes after the alteration. Click lyrics edit to enter into editing dialog.

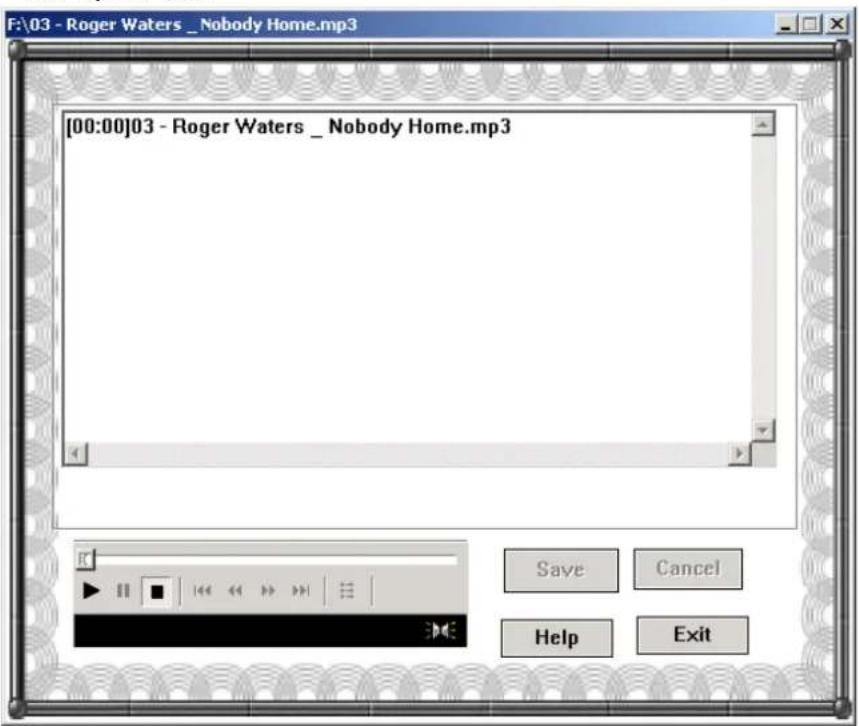

ID3 Lyrics edit

If the current song or voice file doesn't include synchronous lyrics, download the lyrics from

Internet or edit it by yourself. The editing format is as follows:

[mm: ss] lyrics..... (Enter)

and [mm:ss] must be inputted in English status, no space.

● Usage of the AC charger

1. Power on the charger, the red light lightens indicating power on. Plug the charger's USB port into the socket of the player, the red lamp lights always indicating it's charging, if the green one lights, it shows power's full.
2. The charger is used for the player only.
3. Charging is also processing when the player is connected to PC by USB cable (If PC is power on)

Remark: The power switch must be put the position "ON" to process the charging.

- Questions:

1. No display after Power key pressed

Answer: Battery low power, connect to PC to recharge.

1. No sound when playing:

Answer: Too low volume level, tune the volume level to be normal, or the play is connected to PC, or no music files saved in the player

1. Connected to PC, but incapable of downloading music files:

Answer: No installation of the management software attached, or the software damaged after the installation and needs to be installed again, or the mainboard no supporting to USB port and its driver software needs to be updated.

1. Compacted MP3 file by yourself can't be player in the player:

Answer: Due to the different compacting formats and rates popular, at present the player only supports those standard compacting format but not to those non-standard. Compact the music into a standard format but not Layer I or Layer II.

1. Why is it different capacity in the computer displaying from the player capacity claimed to be?

Answer: Because the firmware holds a little capacity, the displaying capacity in the computer is less than the capacity reputed, but indeed it does measure up.

1. Why does the running of the player become slow?

Answer: After a long time usage or frequently deleting files, so there are some chips generated in the flash memory which leads to the slow running. Solution: Format the player.

1. Messed time display during some songs playing

Answer: When those MP3 files compacted by VBR format are playing, time display maybe seems like abnormal due to the play rate, but music playing is no problem. Please compact the music again in a firm rate, then solve the display problem.

1. The player is incapable of playing some MP3 songs

Answer: Strictly speaking of MP3 format, it's in MPEGI, MPEGII, LAYER 3 standard compacted. Most MP3 songs are in this format at present, but there are MPEGI LAYER 1 and MPEGI LAYER 2 as earlier formats. The player is compatible to many formative files including WMA, but not to MPEG I LAYER 1, LAYER II formats. The player skips to a next song to play but not play this kind of formative song. The solutions are as follows:

1) Delete the incompatible songs to implement the normal functions of the player
2) Choose MPEG I LAYER3 format when compacting by yourself

a) Compatible formats: MPEG I MPEG 2 LAYER 3, WMA
b) Supporting MP3 compact rate range: 32Kbps----384Kbps
c) Supporting WMA compact rate range: 64Kbps----128Kbps

In case music playing is abnormal, response rate is very late, or earphone noises and so on, probably the song format is incompatible to the player or the compact rate of the song is out of the range of the player processing. In case of this situation, please delete this song or compact it into a standard format by relevant software.

Note: A method to confirm the format, it's to connect the player to PC and check the information of the file by the software "WINAMP".

• Parameter

Capacity	64/128/256MB
Battery A integrated 3.6Voltage Li-ion battery
Measurement	80mmX28mmX15mm
Signal-Noise rate 90dB
Output Distortion <0.1%
Signal separability >80dB
Earphone output power 5mw +5mw
Output frequency range 20HZ-20KHZ
Record sampling frequency 8KHZ
Music format MP3; WMA
Recorded format/length	LP 40 hours; SP 8 hours (128MB)
Compact rate 32Kbps-384Kbps
