USER MANUAL LED19AHRLCBC Tecovision

DIGITAL LED/LCD TELEVISION WITH EDGE LED LIGHTING

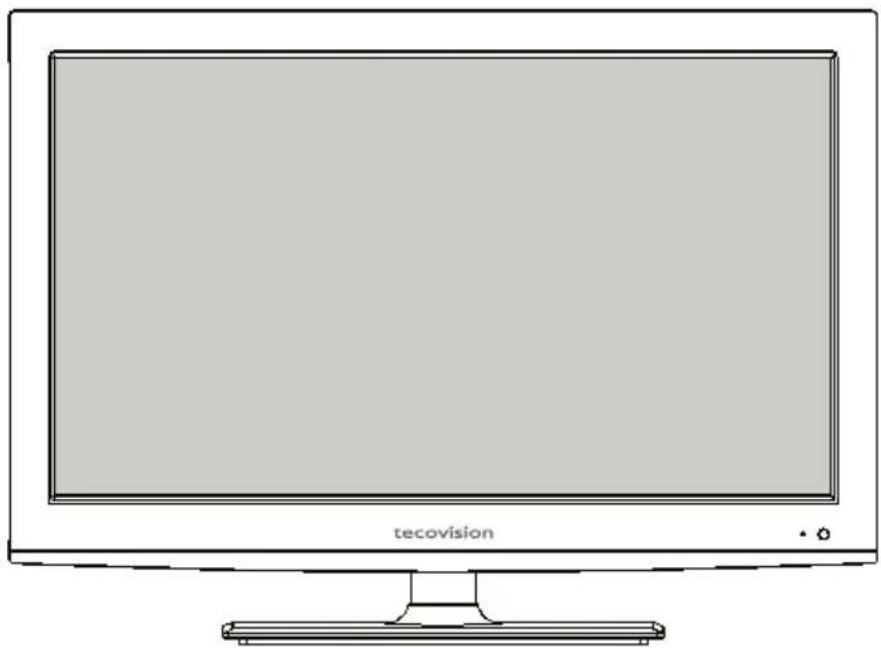

Line drawing of a modern television monitor with 'tecovision' branding and stand (no additional text or symbols)

MODLE: LED19AHRLCBC, LED22AFRLLBB, LED24AFRLFBC

CONTENTS

Safety Precautions

• About this manual / Safety Information 1
  • Product disposal 1
  • Safety precautions 2
• Handling the LED/LCD screen 4

User Guidance Information

• Device Overview 6
• Desktop Mounting / Wall Mounting 8
• Connecting an Antenna 9
• Remote Control 10
• Precautions / How to use remote control 12

Basic Use

- Turning on the TV / Selecting Input Source 13

Operation

• Channel Menu 14

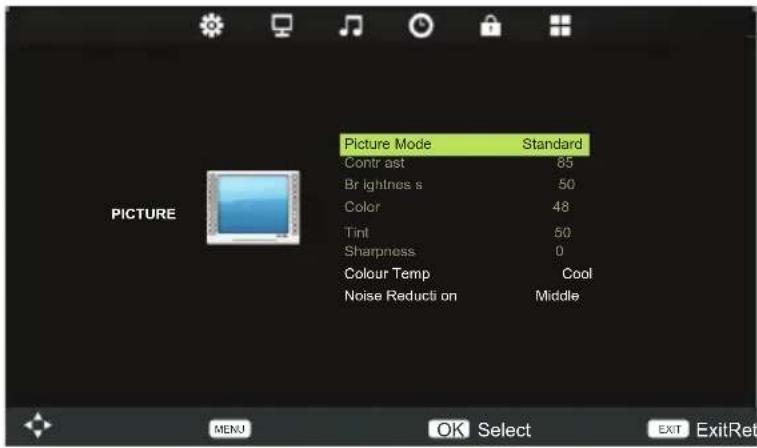

  • Picture Menu 17

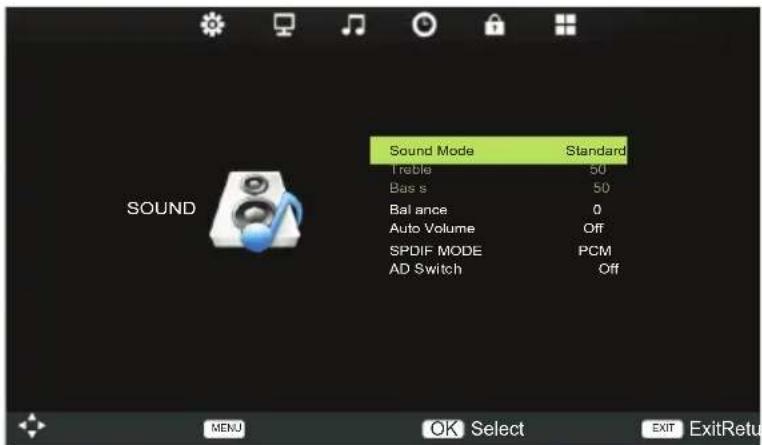

  • Sound Menu 19
  • Time Menu 21
• Lock Menu 22
• Setup Menu 25

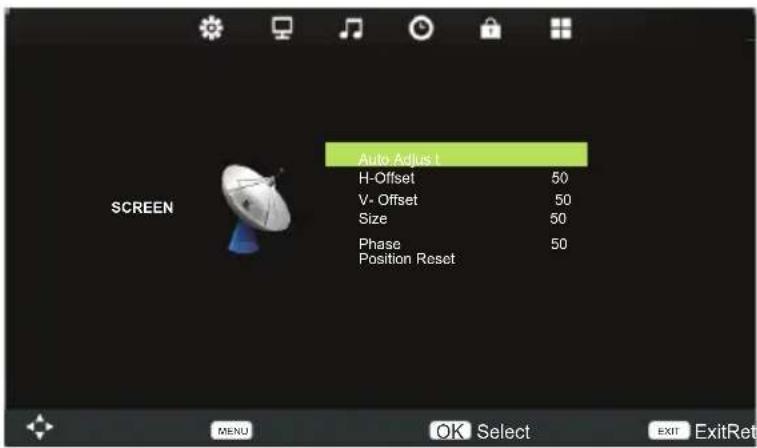

  • Screen Menu (Only for PC) 27
  • Electronic Progrm Guide (EPG) 28
  • Personal Video Recorder Mode (PVR) 30

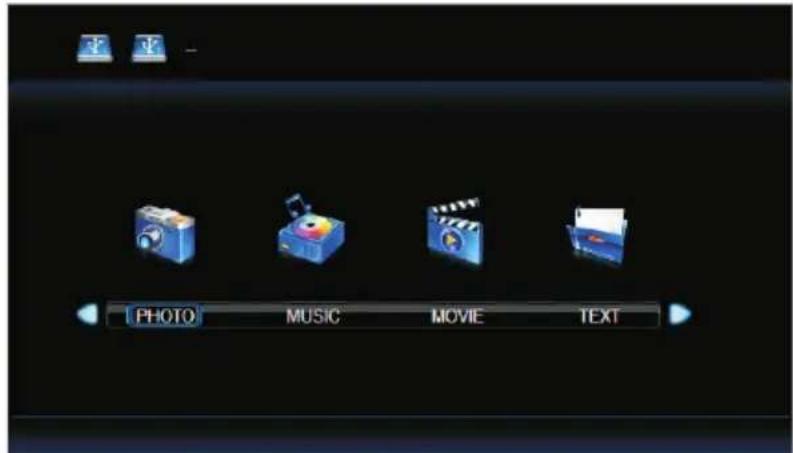

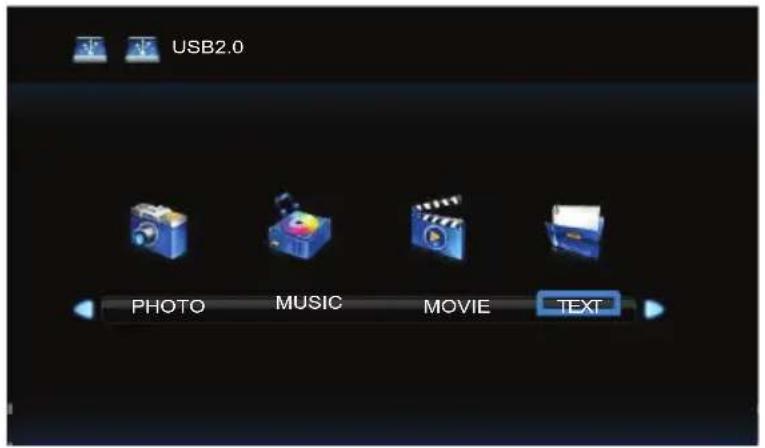

  • Media Player Mode 32

Maintenance and Service

• Troubleshooting 39
• Specifications 40

Safety Precautions

Preface

About this manual

Thank you for purchasing tecovision LED/LCD Color Television (LED stands for Light-Emitting Diode, LCD stands for Liquid Crystal Display). We are pleased to present a product that has been designed with excellent quality, reliability and performance to make your viewing experience more satisfying than ever before. This manual provides detailed descriptions on how to use this product and making adjustments according to your personal preferences.

Please read the Safety Precautions and the instructions in this manual carefully, and keep them handy, for your future reference.

Safety Information

CAUTION RISK OF ELECTRIC SHOCK; DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING This symbol is intended to tell the user that parts inside the product pose a risk of electric shock to persons. CAUTION This symbol is intended to tell the user that important operating and servicing instructions are described here.

Earthing information

This apparatus must be earthed. To ensure safe operation, the earthed plug must be inserted only into a standard earthed power outlet which is effectively earthed through normal household wiring. Extension cords used with the equipment could be hazardous. The face that the equipment operates satisfactorily only means it is earthed, but the installation may not necessarily be safe. For your safety, if in any doubt about the effective earthing of the equipment or power outlet, please consult qualified service personnel.

Product disposal

Do not dispose of the LED/LCD television with general household waste. The LED/LCD screen contains a small amount of liquid crystal and mercury. For disposal or recycling information, please contact your local authorities.

Safety Precautions

Safety Information

Safety precautions

Please read all of these instructions before you operate your television and save these instructions for later use. This unit has been engineered and manufactured to ensure your personal safety, however, improper use can result in electric shock or fire hazard. In order not to defeat the safeguards incorporated in this equipment, please observe the following basic rules for its installation, use and servicing.

• Always, unplug this LED/LCD television from the wall outlet before cleaning.
- Do not use liquid cleaners or aerosol cleaners. Use a soft cloth moistened with water for cleaning.
- Use only the attachments recommended by the television equipment manufacturer.
- Do not use this LED/LCD television near water, for example, near a bath tub, washbowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool
- Do not place this LED/LCD television on an unstable surface, stand, or cart. The LED/LCD television may fall, causing serious injury to a child or an adult, and seriously damage the equipment.
- When moving the LED/LCD television, hold it under the main unit. Do not grab the base when moving. The base could come off, causing you to drop the LED/LCD television, possibly resulting in damage to the LED/LCD television or causing injury.
- The LED/LCD television should be moved with care. Quick stops, and uneven surfaces when transporting may lead to damage the LED/LCD television.
- Slots and openings in the back or bottom of the cabinet are provided for ventilation. To ensure reliable operation of the LED/LCD television and to protect it from overheating, these openings must not be blocked or covered. This LED/LCD television should not be placed in an enclosed installation such as a bookcase unless proper ventilation is provided.
- The openings should never be covered with a cloth or other material, and the bottom openings should not be blocked.
- This LED/LCD television should be operated only from a power source indicated on the marking label.
- As a safety feature, this LED/LCD television is equipped with an earthed power plug, if the plug does not fit in your power outlet, contact your electrician. Do not modify the plug and defeat this safety feature.

Safety Precautions

Safety Information

• Do not allow anything to rest on the power cord. Do not locate the LED/LCD television where the cord may be damaged due to lightning and power-line surges.
• Follow all warnings and instructions marked on the LED/LCD television.
• If an outdoor antenna is connected to the LED/LCD television, be sure the antenna system is earthed so as to provide some protection against voltage surges and static charges.
• For added protection for this LED/LCD television during a lightning storm, or when it is left unattended and unused for long period of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.
• An outdoor antenna system should not be located in the vicinity of over head power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outdoor antenna system, extreme care should be taken to keep from touching such power lines or circuits as contacting with them could be fatal.
• Do not overload wall outlets and extension cords as this can result in fire or electric shock.
• Never push any kind of objects into this LED/LCD television through cabinet slots as they may touch dangerous voltage points or result in short-circuits of internal parts. This could result in a fire or electric shock. Never spill any kind of liquid on the LED/LCD television.
• Do not attempt to service the LED/LCD television by yourself because opening or removing covers may expose you to dangerous voltage or other hazard. Refer all servicing to qualified service personnel.
• Unplug this LED/LCD television from the wall outlet and refer servicing to qualified service personnel under the following conditions:

— When the power cord or plug is damaged or frayed.
— If liquid has been spilled into the LED/LCD television.
— If the LED/LCD television does not operate according to the operating instructions, please adjust those items that are covered by the operating instruction because improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the LED/LCD television to normal state.
— If the LED/LCD television has been dropped or damaged.
— When the television comes about a distinct change in performance.

Safety Precautions

Safety Information

• After the servicing of the LED/LCD television, please ask the survice technician to perform routine safety checks to determine that the television is in safe operating condition.
- If needing to replace parts, please make sure that the replaced parts that the service technician adapts are specified by the manufacturer and have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.
- Note to CATV system installer: the note reminds the CATV system installers that the cable earth should be connected to the earthing system of the building as close to the point of cable entry practical as possible.
- Wall mounting should follow the manufacturer instructions, and should use a mounting kit approved by the manufacturer.
- The LED/LCD television should not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the LED/LCD television.
- A warning that excessive sound pressure from earphone and headphones can cause hearing loss.

CAUTION: If the set is not going to be used for a long period, such as during a vacation, remove the plug from the wall outlet to economise power. (If the TV set is plugged in, a slight current still flows, even the power button is in OFF position).

Handling the LED/LCD screen

• Direct sunlight on the LED/LCD screen can cause damage to the screen. Take care when you are placing the television near a window.
• Do not push or scratch the LED/LCD screen. Do not place heavy objects on the LED/LCD screen. This may cause the screen to lose conformity or cause LED/LCD panel to malfunction.
• If the TV is used in a cold place, fuzzy image may appear on the screen. This is not a malfunction. The screen will be normal as its temperature rises to the normal operating level.
• If a still picture is displayed for a long period of time on the television screen, ghosting may occur for a while. The ghosting will eventually disappear.
• Displaying a static image for a long period of time on the television screen may cause burn in.

Safety Precautions

Safety Information

- If the LED/LCD panel becomes warm during operation, this is normal and not a malfunction.

Handling of broken glass and liquid crystal leakage

If the LED/LCD panel is damaged, crystalline liquid leakage may occur, or scattered broken glass may result. Do not touch broken glass or crystalline liquid (which is toxic) with bare hands that have cuts or skin irritation as poisoning may result. If any crystalline liquid gets into mouth or eyes, rinse thoroughly with clean water and consult your doctor.

User Guidance Information

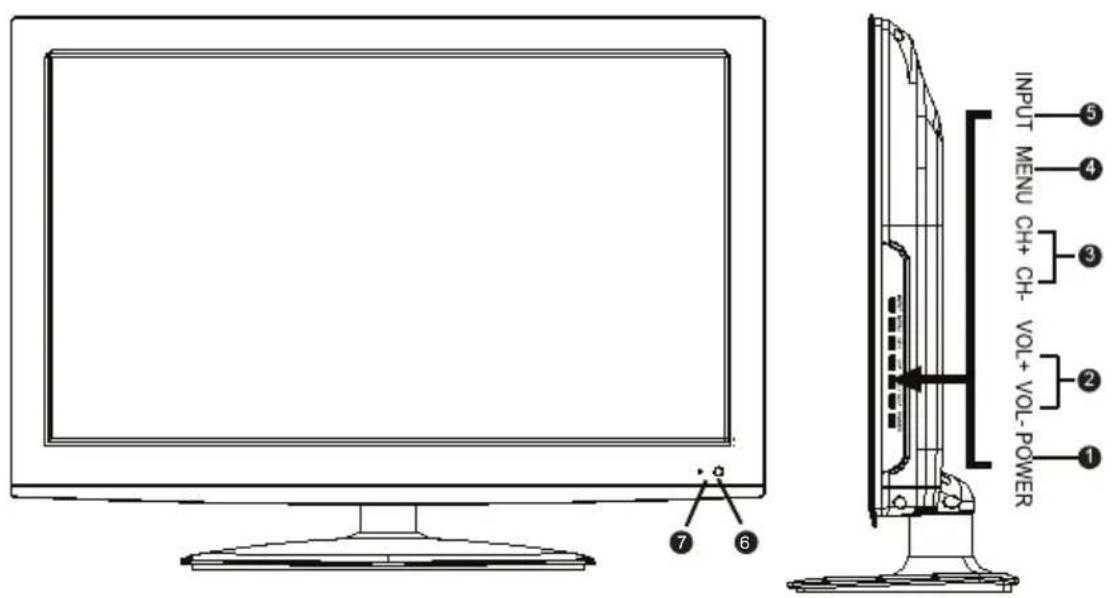

Device Overview

INPUT MENU CH+ CH- VOL+ VOL- POWER ① ② ③ ④ ⑤

1. POWER button
2. VOL+/- button - Adjust Volume
   3.CH+/- button - Change Channel
3. MENU button - Display OSD menu.
4. INPUT button - Display Input Source menu.
5. Standby LED
   7.Remote Sensor

Accessories

This unit contains the following accessories. (Images are for illustration purpose only).

User Manual with Warranty card

Power Cable

Adaptor

Remote Control with Batteries

Cigarette Lighter Adaptor

User Guidance Information

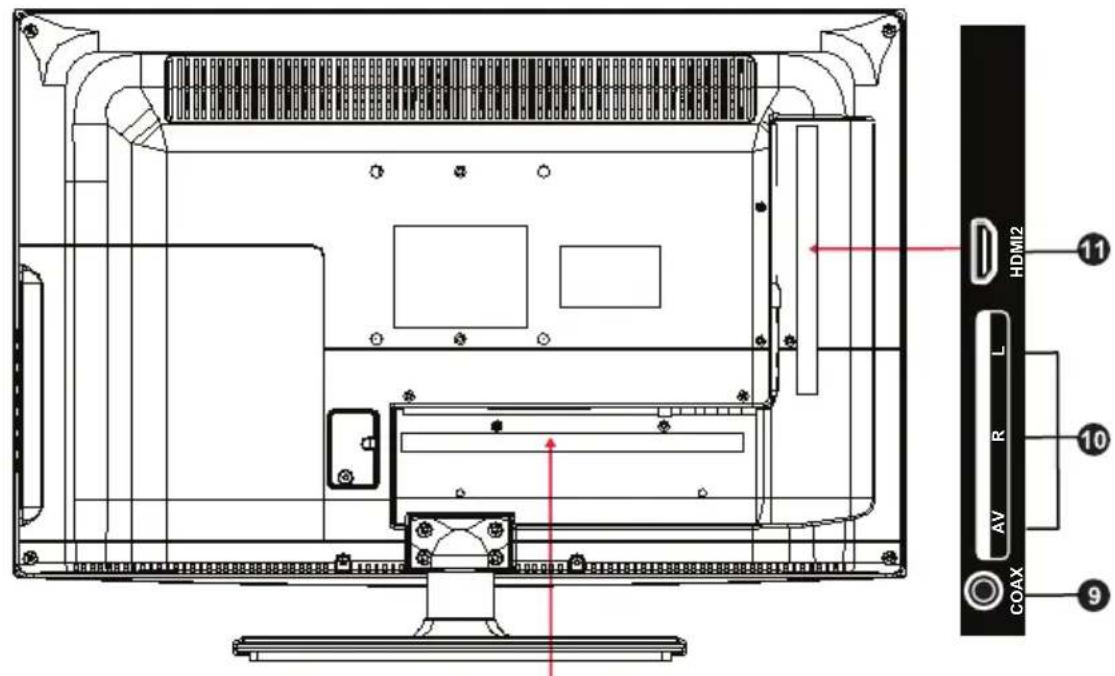

Device Overview

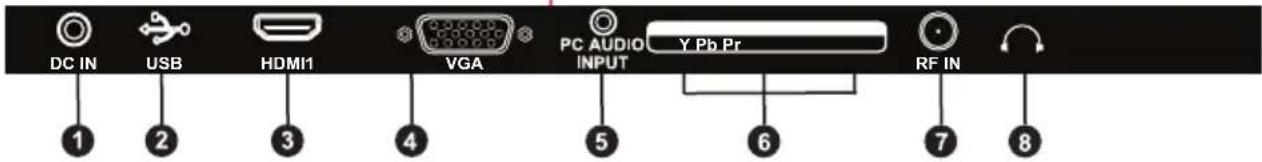

HDMI2 L R AV COAX 11 10 9

DC IN USB HDMI1 VGA PC AUDIO INPUT Y Pb Pr RF IN ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

① DC IN
② USB
③ HDMI1
4 VGA

5 PC-AUDIO IN
6 YPbPr
⑦ RF IN (Antenna)
8 HEADPHONE OUT

9 COAX OUT
10 AV (Video), R/L (Audio)
11 HDMI2

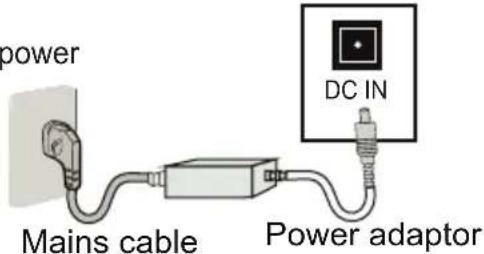

Connecting the Power Cable

1. Connect the small round plug on the power adaptor cable to the power
   input socket at the rear of the set.
2. Connect the mains cable between the power

adaptor and the mains supply.

power DC IN Mains cable Power adaptor

User Guidance Information

Desktop Mounting

When mounting unit on a desktop or entertainment unit, first assemble the pedestal base as per the included instructions.

Ensure that there is ample clearance around the TV between walls and other objects to provide adequate ventilation and prevent overheating.

100mm 100mm 100mm

30mm

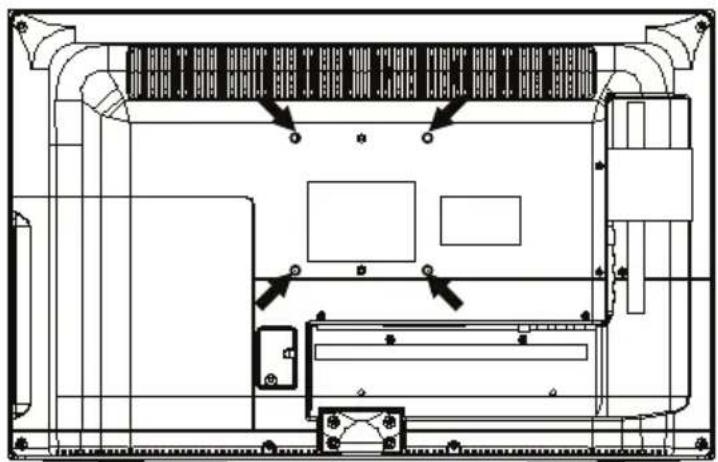

Wall Mounting

When wall mounting TV use only a wall bracket approved by the manufacturer. This device is compatible with standard 100mm X 100mm mounting bracket using the 4 points on the back of the unit as marked in the image below.

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols.

User Guidance Information

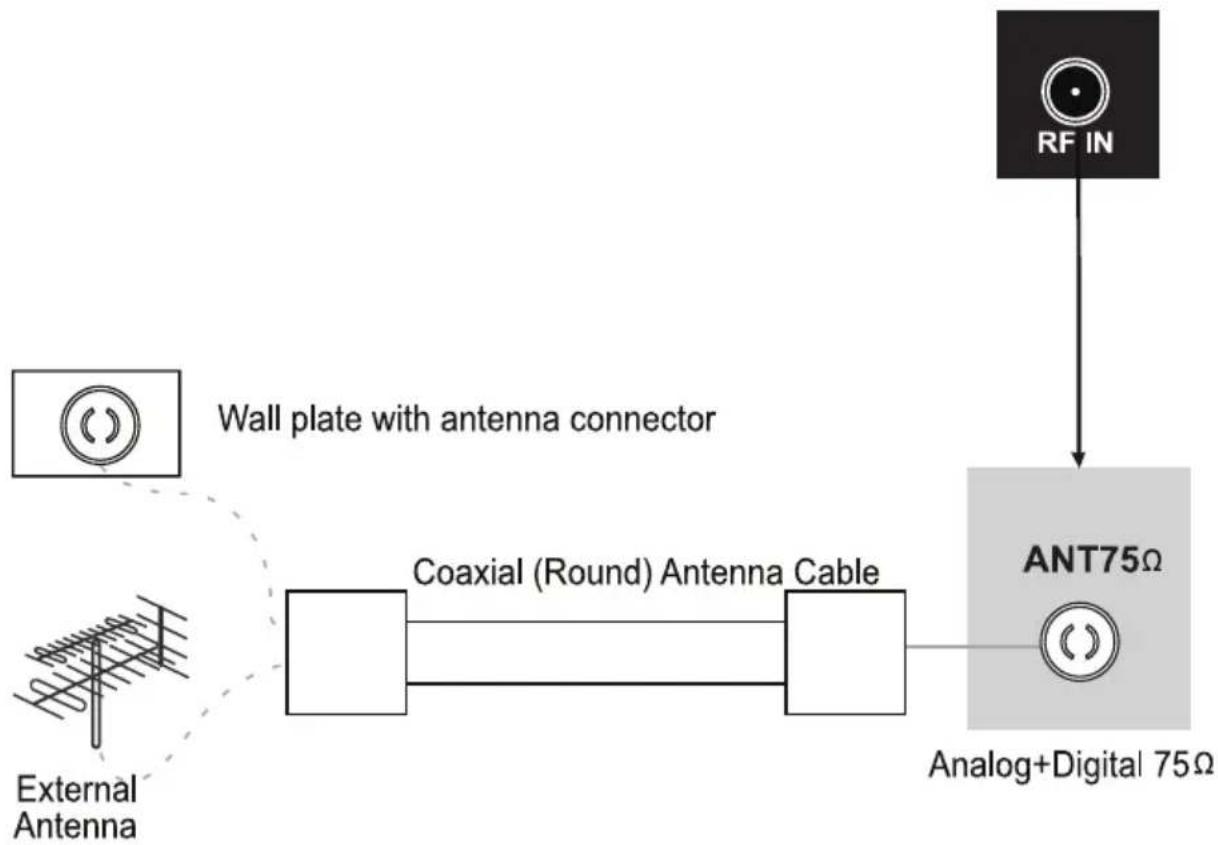

Connecting an Antenna

Press INPUT button on the remote control to display the input source menu, press ▲ / ▼ button to select ATV (Analog) or DTV (Digital) then press OK button to confirm.

NOTES: After installing your digital equipment and ascertained you cannot receive a picture, please check your cables and ensure they are in good condition and connected properly. If you still cannot receive a picture you should contact an experienced antenna installer to check whether digital signals are available in your location.

Digital services may not be available; however, the Government is working on a number of solutions to deliver digital television signals to all households in the country, by the time analog signals are switched off.

User Guidance Information

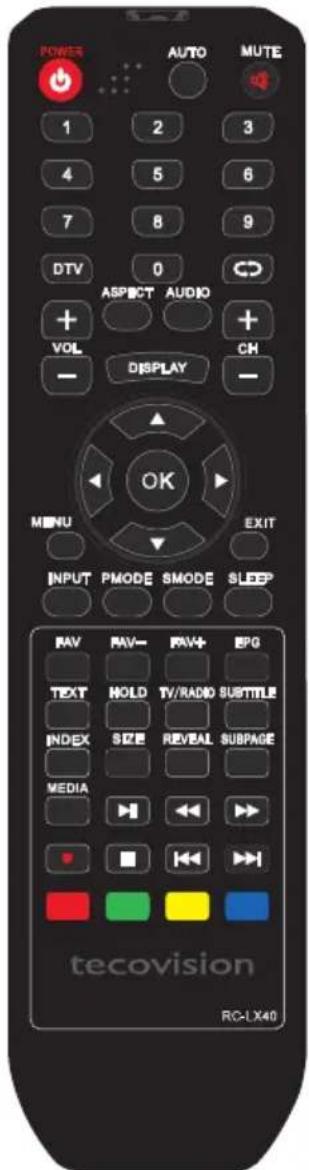

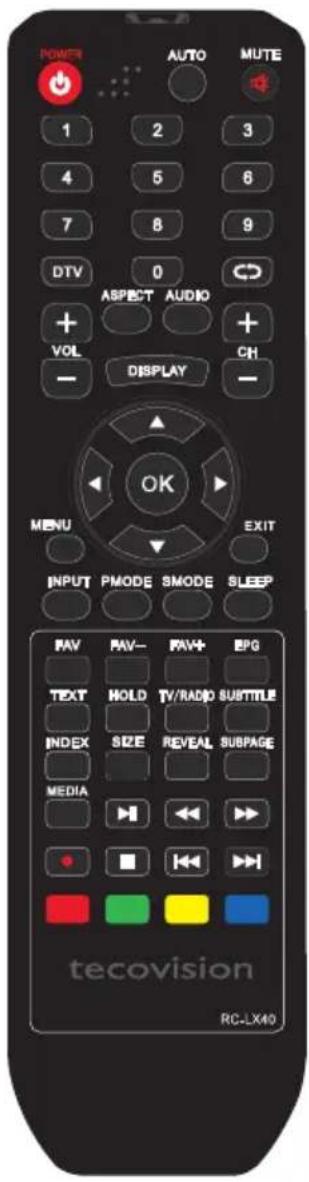

Remote Control

The remote control is Infra Red (IR) and will only operate in direct line of sight to the sensor on the front of the TV. The remote control may not work correctly if it is operated out of range or at too greater angle to the TV.

POWER

Turn on/off TV from standby.

0-9

Choose channel directly.

DTV

Switch to DTV source.

Recall previous channel in TV mode.

ASPECT

Change the picture size.

AUDIO

Change audio language in TV mode.

DISPLAY

Show info bar in TV and Media modes.

INPUT

Open the input source menu.

PMODE

Change the picture mode.

SMODE

Change the sound mode.

SLEEP

Set sleep timer to turn off TV.

POWER AUTO MUTE 1 2 3 4 5 6 7 8 9 DTV 0 ASPECT AUDIO + VOL CH DISPLAY - OK MENU EXIT INPUT PMODE SMODE SLEEP FAV FAV- FAV+ BPG TEXT HOLD TV/RADIO SUBTITLE INDEX SIZE REVEAL SUBPAGE MEDIA TECOVISION RC-LX40

AUTO

Auto adjust in PC mode.

Mute / Unmute the volume.

VOL+/-

Adjust volume.

CH+/-

Change channel

Navigation buttons.

Select in TV menu.

MENU

Open the TV OSD menu

EXIT

Exit from current menu

FAV

Open the FAV channel list in TV mode.

FAV-/+

Select the channel in FAV channel list

EPG

Open the electronic program guide.

User Guidance Information

Remote Control

TEXT

Open teletext in TV mode

HOLD

Hold function in teletext mode.

TV/RADIO

Switch the TV or RADIO mode

SUBTITLE

Change subtitles in TV mode.

INDEX

Index function in teletext mode.

Open PVR List menu in DTV mode

SIZE

Size function in teletext mode

REVEAL

Reveal function in teletext mode.

SUBPAGE

Subpage function in teletext mode.

RED

Red button function in on screen menus

GREEN

Green button function in on screen menus

POWER AUTO MUTE 1 2 3 4 5 6 7 8 9 DTV 0 ASPECT AUDIO + VOL CH - DISPLAY - OK MENU EXIT INPUT PMODE SMODE SLEEP RAV RAV- RAV+ BPG TEXT HOLD TV/RADIO SUBTITLE INDEX SIZE REVEAL SUBPAGE MEDIA - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -TECOVISION RC-LX40

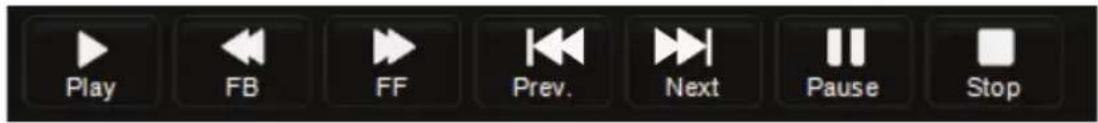

Play / Pause in

Media playback as well as timeshift for live TV.

Fast reverse in playback modes.

Fast forward in playback modes.

(PVR)

Start recording to PVR in DTV mode.

Stop in playback modes.

Skips to previous file in media playback.

Skips to next file in media playback.

YELLOW

Yellow button function in on screen menus.

BLUE

Blue button function in on screen menus.

User Guidance Information

Precautions

Avoiding Remote Control Problems

1. Check the polarity (+, -) of the batteries in the remote control.
2. Check that the batteries have power.
3. Check that the TV is powered and that it is properly plugged in.
4. Check that no direct sunlight is falling on the remote control sensor of the TV.

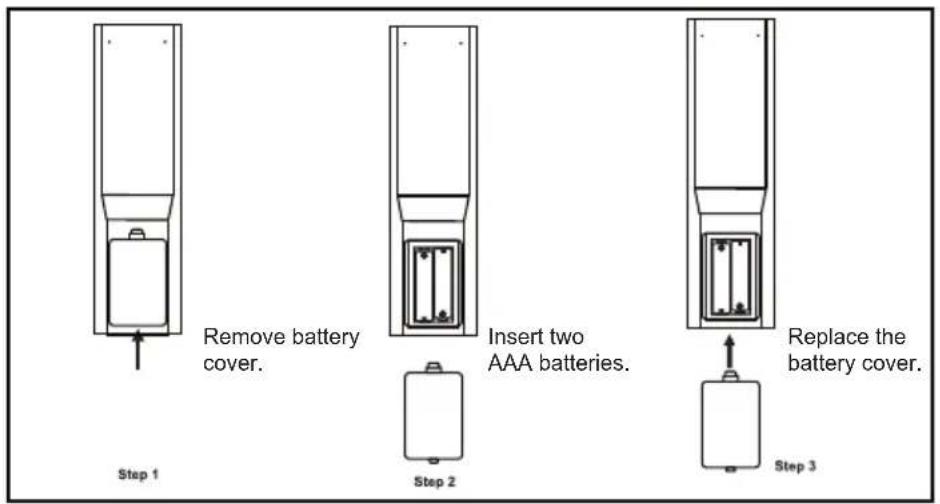

Inserting Batteries in the Remote Control

1. Open the cover completely.
2. Insert the two supplied batteries (AAA, 1.5V). Ensure that the polarities (+ and -) of the batteries are aligned correctly.
3. Slide back the cover.

Remove battery cover. Insert two AAA batteries. Replace the battery cover. Step 1 Step 2 Step 3

CAUTION : Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the national code (Recycling program).

How to use remote control

The remote control should be operated within 30 feet (7m) and 30^ to the left and the right of the IR sensor at the front of the TV.

Used batteries should be disposed of properly.

Turning on the TV

Power on/off

To turn the TV on:

Press "POWER" button on the TV.

To turn the TV off:

Press "POWER" button on the LTV.

To turn on/off by remote control:

Press the POWER button on remote control.

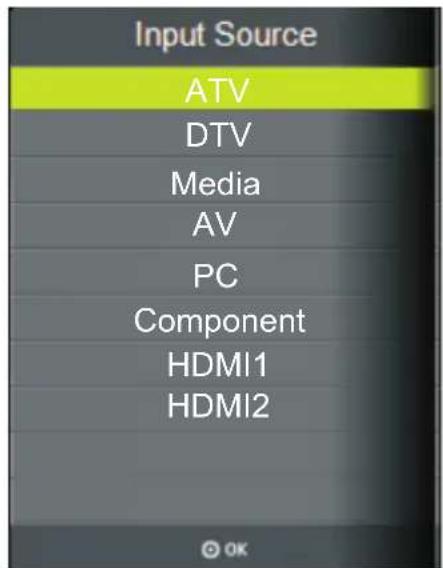

Selecting Input Source

Press

button on the remote control.

Use

to move to the desired input source.

Press

to select.

Input Source ATV DTV Media AV PC Component HDMI1 HDMI2

TIPS: You can also use the DTV button on the remote control to instantly select the DTV source.

Operation

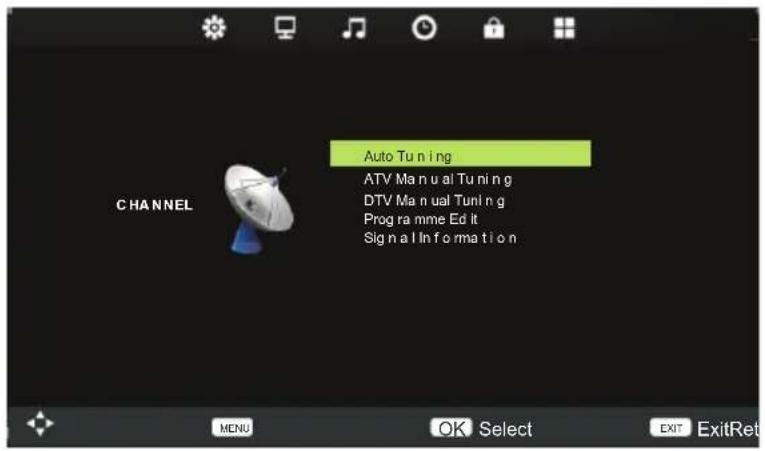

Channel Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select CHANNEL in the main menu.

Auto Tuning ATV Manual Tuning DTV Manual Tuning Prog r amme Ed it Sign a l In mo fat i on CHANNEL MENU OK Select EXIT ExitRet

1. Press ▼ / ▲ button to select the option that you want to adjust in the CHANNEL menu.
2. Press OK button to adjust.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu.

Auto Tuning

Press ◀ / ▶ button to select Tune Type (ATV+DTV, DTV, ATV), and press ▼ / ▲ button to select Country, then press OK button to start auto search.

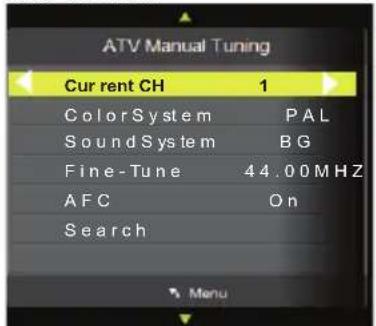

ATV Manual Tuning

Press ▼ / ▲ button to select ATV Manual Tuning, then press OK button to enter sub-menu.

ATV Manual Tuning Cur rent CH 1 ColorSystem PAL SoundSystem BG Fine-Tune 44.00MHz AFC On Search Menu

Press ◀ / ▶ button to select channel number you want to store.

Press ▼ / ▲ button to select Color System. Press ◀ / ▶ button to select option you want. Press ▼ / ▲ button to select Sound System. Press ◀ / ▶ button to select option you want. Press ▼ / ▲ button to select Fine-Tune. Press ◀ / ▶ button to adjust a suitable tune that make you watch comfortably.

Operation

Channel Menu

Press ▼ / ▲ button to select AFC. Press ◀ / ▶ button to select On or OFF.

Press ▼ / ▲ button to select Search, then press OK button to start tuning.

Press Red button on your remote control to save the settings and press MENU button to return back to the previous menu.

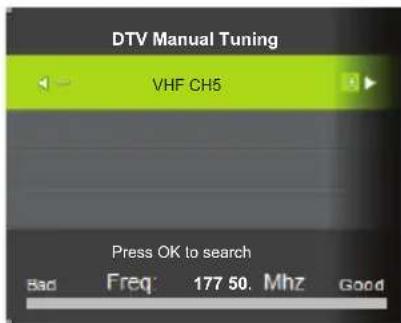

DTV Manual Tuning

Press ▼ / ▲ button to select DTV Manual Tuning, then press OK button to enter sub-menu.

DTV Manual Tuning VHF CH5 Press OK to search Bad Freq 177 50. Mhz Good

Press ◀ / ▶ button to select channel, then press OK button to search program.

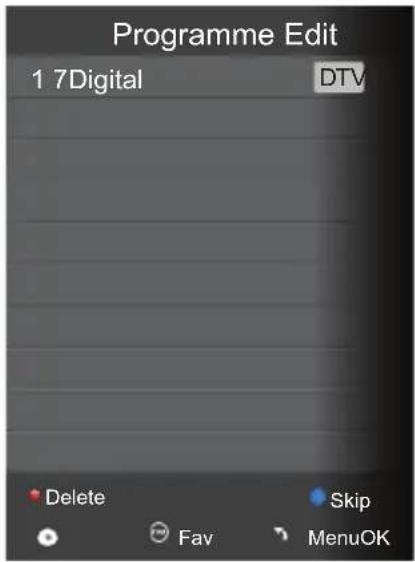

Program Edit

Press ▼ / ▲ button to select Program Edit, then press OK button to enter sub-menu.

Programme Edit 1 7Digital DTV Delete Skip Fav MenuOK

- Use Red button to delete the current channel.

- Use Blue button to skip the current channel.

Operation

Channel Menu

Signal Information

Press ▼ / ▲ button to select Signal Information, the press the OK button to see the detail information about the signal.

Sig n al In forma ti on

Channel 29

Frequency 538.00MHZ

Q uality 96

Strength 84

Operation

Picture Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select PICTURE in the main menu.

Picture Mode Standard Contr ast 85 Brightness s 50 Color 48 Tinl 50 Sharpness 0 Colour Temp Cool Noise Reduction Middle MENU OK Select EXIT ExitRet

1. Press ▼ / ▲ button to select the option that you want to adjust in the PICTURE menu.
2. Press OK button to adjust.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu.

Picture Mode

Press ▼ / ▲ button to select Picture Mode, then press OK button to enter sub-menu.

Press ▼/▲ button to select. (Available Picture mode: Personal, Dynamic, Standard, Mild).

You can change the value of contrast, brightness, colour and sharpness when the picture is in Personal mode.

TIPS: You can press PMODE button on the remote control to change the Picture Mode directly.

Contrast/Brightness/Colour/Tint/Sharpness

Press ▼ / ▲ button to select option, then press OK button to enter sub-menu. Press ◀ / ▶ button to adjust.

Operation

Picture Menu

NOTE:

Contrast: This item can adjust the highlight intensity of the picture, but the shadow of the picture is invariable.

Brightness: This item can adjust the brightness of the entire picture, it will effect the dark region of the picture.

Colour: This item can adjust the saturation of the Colour based on your own preference.

Tint: This item may use in compensating color changed with the transmission in the NTSC code.

Sharpness: This item can adjust the peaking in the detail of the picture.

Colour Temp: This item can increase or reduce red or blue color according to your preference.

COLD-Increase the blue tone.

NORMAL-Average all colors.

WARM-Increase the red tone.

Operation

Sound Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select SOUND in the main menu.

Sound Mode Standard Treble 50 Bas s 50 Balance 0 Auto Volume Off SPDIF MODE PCM AD Switch Off MENU OK Select EXIT ExitRefu

1. Press ▼ / ▲ button to select the option that you want to adjust in the SOUND menu.
2. Press ◀ / ▶ button to adjust.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu.

Sound Mode

Press ▼ / ▲ button to select Sound Mode, then press OK button to enter sub-menu.

Press ▼ / ▲ button to select. (Available Sound mode: Standard, Music, Movie, Sports, Personal).

You can change the value of Treble and Bass when the sound is in Personal mode.

TIPS: You can press SMODE button on the remote control to change the Sound Mode directly.

Treble / Bass / Balance

Press ▼ / ▲ button to select the option, then press OK button to enter sub-menu.

Press ◀ / ▶ button to adjust.

Auto Volume

Press ▼ / ▲ button to select Auto Volume, then press OK button to select On or Off.

SPDIF MODE

Press ▼ / ▲ button to select SPDIF MODE, then press OK button to select off, PCM or Auto.

AD Switch (Audio Description Switch)

Press ▼ / ▲ button to select AD Switch, then press OK button to enter the submenu and select the audio descriptor On or Off as well as adjust the volume of the AD.

Operation

Sound Menu

NOTE:

Balance: This item can adjust the speaker's output, it enables you to listen to best sound balance at your position.

Auto Volume: This item can be used for reducing the difference between channel and program's volume automatically.

It makes the overall volume to be even. This function will also reduce the fluctuation of the sound.

Operation

Time Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select TIME in the main menu.

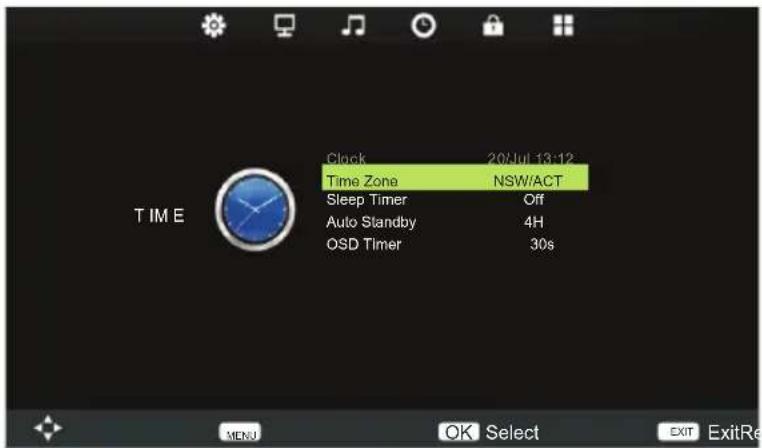

Clock 20-Jul 13:12 Time Zone NSW/ACT Sleep Timer Off Auto Standby 4H OSD Timer 30s MENU OK Select EXIT ExitRe

1. Press ▼ / ▲ button to select the option that you want to adjust in the TIME menu.
2. Press ◀ / ▶ button to adjust.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu.

Time Zone

Press ▼ / ▲ button to select Time Zone, then press OK button to enter sub-menu. Press ▼ / ▲ / ◀ / ▶ button to select time zone.

Sleep Timer

Press ▼ / ▲ button to select Sleep Timer, then press OK button to enter sub-menu. Press ▼ / ▲ button to select. (Available options are:Off, 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min).

TIPS: The remote control does not make any operation in the hypothesis time, it will close down automatically. If you do any operation, it will reset the time.

Auto Standby

Press ▼ / ▲ button to select Auto Standby, then press OK button to enter sub-menu. Press ▼ / ▲ button to select. (Available options are: Off, 3H, 4H, 5H.)

OSD Timer

Press ▼ / ▲ button to select Auto Standby, then press OK button to enter sub-menu. Press ▼ / ▲ button to select. (Available options are: 5S, 10S, 15S, 20S, 25S, 30S.)

NOTE:

The Clock will change with the area which you have selected in the Time Zone.

Operation

Lock Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select LOCK in the main menu.

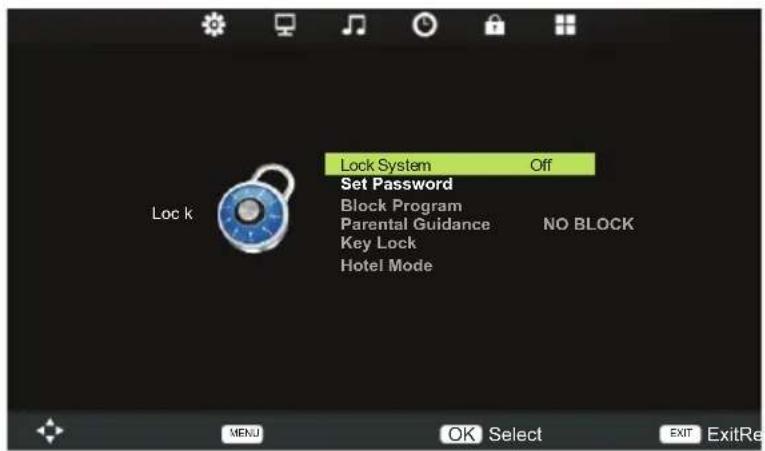

Lock System Set Password Block Program Parental Guidance NO BLOCK Key Lock Hotel Mode Menu OK Select EXIT ExitRe

1. Press ▼ / ▲ button to select the option that you want to adjust in the LOCK menu. You should enter password if you want to adjust in the LOCK menu. Default password is '0000'.
2. Press ◀ / ▶ button to adjust option.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu.

Lock System

Press ▼ / ▲ button to select Lock System, then press ◀ / ▶ button to set to On or Off. When Lock System option is on, Channel menu will be locked.

Set Password

Press ▼ / ▲ button to select Set Password, then press OK button to enter sub-menu to set new password.

Block Program

Press ▼ / ▲ button to select Block Program, then press OK button to enter sub-menu.

Block 17Digital al DTV LOCK ENTER MENU

Operation

Lock Menu

Press ▼ / ▲ button to select the program you want to lock, then press Green button on your remote control. (To unlock program, input the password you set.)

Press OK button to save setting and menu button to back to the previous menu.

Parental Guidance

Press ▼ / ▲ button to select Parental Guidance, then press OK button to enter sub-menu to select.

Key Lock

Press ▼ / ▲ button to select Key Lock, then press ◀ / ▶ button to select Off or On. When Key Lock option is on, you can't use the Key panel button.

Hotel Mode

Press ▼ / ▲ button to select Hotel Mode, the press OK button to enter.

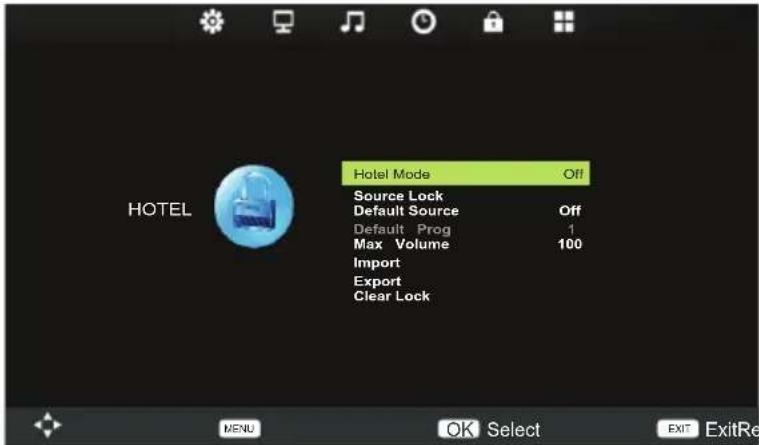

Hotel Mode Off Source Lock Default Source Off Default Prog 1 Max Volume 100 Import Export Clear Lock

Hotel Mode

Press ▼ / ▲ button to select Hotel Mode, then press ◀ / ▶ button to select Off or On.

Source Lock

Press ▼ / ▲ button to select Source Lock, then press OK button to enter sub-menu. "ON" is locked. "Off" is unlocked.

Default Source

Press ▼ / ▲ button to select Default Source, then press OK button to enter sub-menu to select default source you want to watch when TV is turned on.

If Default Source set to Off, the default source will set to the last source you select before you turn off the TV.

Default Prog (Only for ATV)

Press ▼ / ▲ button to select Default Prog, then press ◀ / ▶ button to select program you want to watch when TV is tuned on. Only when you select the ATV as the Default Source, you are able to set the Default Prog. If you select "Off", the default program will be the last channel you select before you turn off the TV.

Operation

Lock Menu

Max Volume

Press ▼ / ▲ button to select Max Volume, then press ◀ / ▶ button to adjust the value. After set the Max Volume, the volume can't be adjusted above the max volume.

Import (USB Clone Function)

Press ▼ / ▲ button to select Import, then press OK button to import hotel settings from USB disk.

Export (USB Clone Function)

Press ▼ / ▲ button to select Export, then press OK button to export hotel settings of this TV to USB disk.

You can use this USB disk to clone hotel settings to other TV sets.

Clear Lock

Press ▼ / ▲ button to select Clear Lock, then press OK button to reset all settings of hotel menu to default settings.

NOTE: USB DISK MUST BE INSERTED TO USE USB CLONE FUNCTION.

Operation

Setup Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select SETUP in the main menu.

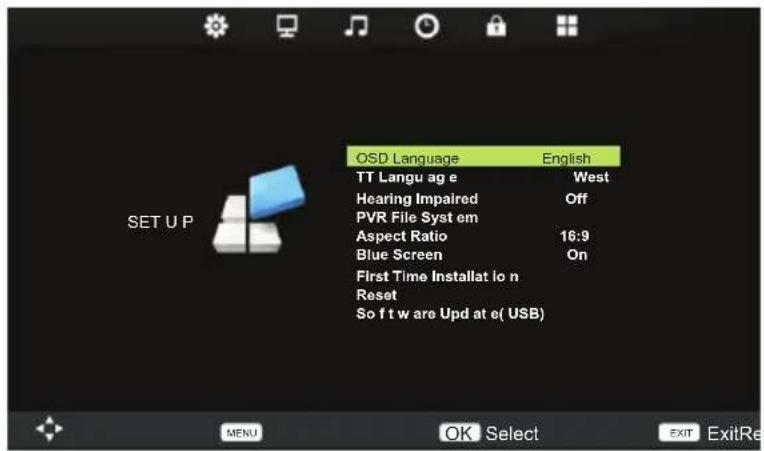

SET U P OSD Language English TT Langu ag e West Hearing Impaired Off PVR File Syst em Aspect Ratio 16:9 Blue Screen On First Time Installat lo n Reset So f t w are Upd at e( USB)

1. Press ▼ / ▲ button to select the option that you want to adjust in the SETUP menu.
2. Press ◀ / ▶ button to adjust.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu.

OSD Language

Press ▼ / ▲ button to select OSD Language, then press OK button to enter sub-menu.

Press ▼ / ▲ / ◀ / ▶ button to select OSD language, default setting is English.

TT Language

Press ▼ / ▲ button to select TT Language, then press OK button to enter sub-menu.

Press ▼ / ▲ button to select TT language, default setting is West.

Hearing Impaired

Press ▼ / ▲ button to select Hearing Impaired, then press OK button to select On or Off.

PVR File System

Press ▼ / ▲ button to select PVR File System, then press OK button to enter sub-menu.

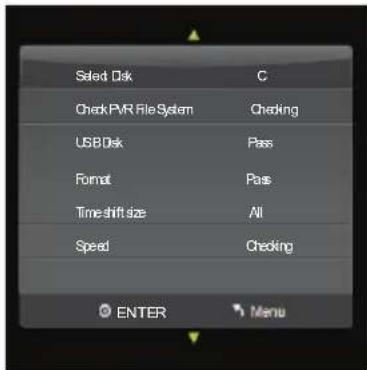

Selected Disk C Check PVR File System Checking USB Disk Pass Format Pass Time-shift size All Speed Checking ENTER Menu

Press ▼ / ▲ button to select Check PVR File System, then press OK button to enter. Then it will check the USB speed.

Operation

Setup Menu

Aspect Ratio

Press ▼ / ▲ button to select Aspect Ratio, then press OK button to enter sub-menu. Press ▼ / ▲ button to select Aspect Ratio . (Available options: Auto, 4:3, 16:9, Zoom1, Zoom2).

Blue Screen

Press ▼ / ▲ button to select Blue Screen, then press OK button to select On or Off.

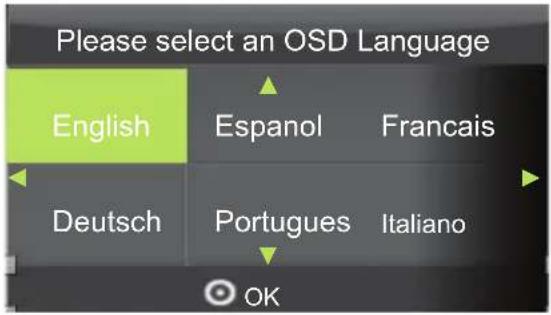

First Time Installation

Press ▼ / ▲ button to select First Time Installation, then press OK button to set relevant options including OSD language, country and tuning.

Please select an OSD Language English Espanol Francais Deutsch Portugues Italiano OK

Reset

Press ▼ / ▲ button to select Reset, then press OK button to enter a dialogue. Press ◀ button selecting Yes to reset to default settings.

Software Update (USB)

Press ▼ / ▲ button to select Software Update (USB), then press OK button to update software using USB.

NOTE: IF ANY SOFTWARE UPDATES AVAILABLE, THEY CAN BE LOCATED FROM www.TECO.com.au

Operation

Screen Menu (Only for PC)

Auto Adjust H-Offset 50 V- Offset 50 Size 50 Phase 50 Position Reset SCREEN MENU OK Select EXIT ExitRet

1. Press ▼ / ▲ button to select the option that you want to adjust in the SCREEN menu.
2. Press OK button to adjust.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu.

Auto Adjust

Press ▼ / ▲ button to select Auto Adjust, then press OK button to start adjusting automatically.

H-Offset

Press ▼ / ▲ button to select H-Offset, then press OK button to enter sub-menu.

Press ◀ / ▶ button to adjust.

V-Offset

Press ▼ / ▲ button to select V-Offset, then press OK button to enter sub-menu.

Press ◀ / ▶ button to adjust.

Size

Press ▼ / ▲ button to select Size, then press OK button to enter sub-menu.

Press ◀ / ▶ button to adjust.

Phase

Press ▼ / ▲ button to select Phase, then press OK button to enter sub-menu.

Press ◀ / ▶ button to adjust.

Position Reset

Press ▼ / ▲ button to select Position Reset, then press OK button to reset position.

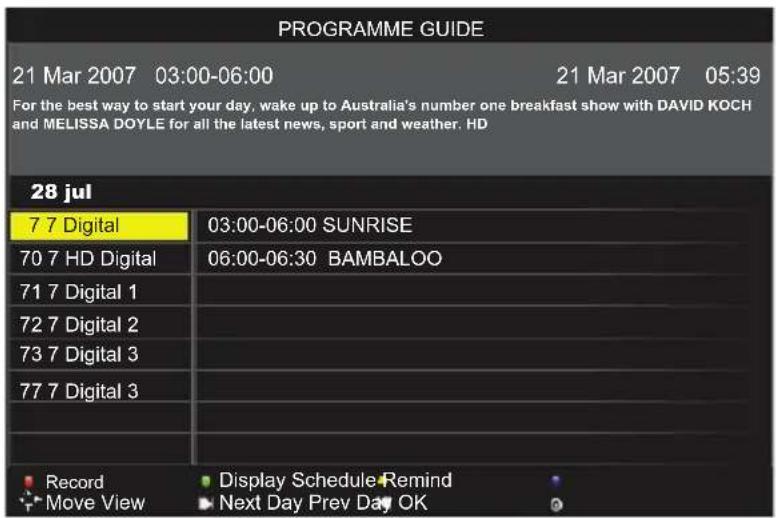

Electronic Progrm Guide (EPG)

Press the EPG button on the remote control to enter EPG menu.

PROGRAMME GUIDE 21 Mar 2007 03:00-06:00 21 Mar 2007 05:39 For the best way to start your day, wake up to Australia's number one breakfast show with DAVID KOCH and MELISSA DOYLE for all the latest news, sport and weather. HD 28 jul 7 7 Digital 03:00-06:00 SUNRISE 70 7 HD Digital 06:00-06:30 BAMBALOO 71 7 Digital 1 72 7 Digital 2 73 7 Digital 3 77 7 Digital 3 Record Display Schedule Remind Move View Next Day Prev Day OK

Record

Press the RED button to enter the sub-menu. You can choose the time of the appointment to record you want.

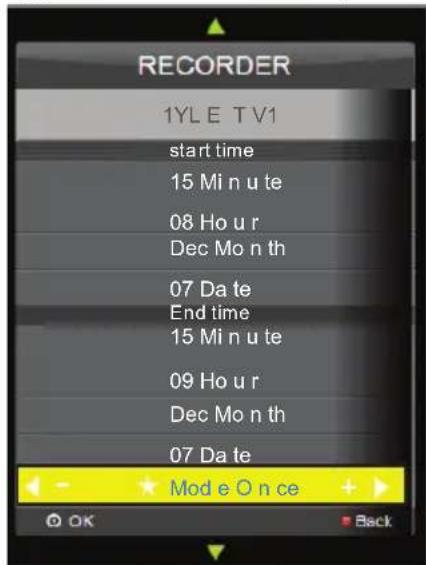

RECORDER 1YLE TV1 start time 15 Min u te 08 Hour Dec Mon th 07 Da te End time 15 Min u te 09 Hour Dec Mon th 07 Da te Mode Once OK Back

When the time appointment is conflict, it will produce a warning message.

Timer Overlay 7 7 Digital 21 Mar 2007 05:42

Press the ▼ / ▲ button to select Minute, Hour, Month and Date, then press ◀/▶ button to change the value. Press OK button to save and add record task to schedule list.

Operation

Electronic Progrm Guide (EPG)

Display

Press the GREEN button to display the detail information about the program.

Schedule

Press the YELLOW button to see the Schedule List you have done before. (Record or Remind task)

Schedule List 05:41 21th Mar Delete
	Time	Date Programme Title		Channel Name
		Wed. 21 Mar05:55	SUNRISE	70 7HD Digital	X
	05:59-06:00	Wed. 21 Mar	SUNRISE	70 7HD Digital

Press ▼ / ▲ button to select programme you want to delete, then press RED button to delete.

Remind

Press the BLUE button to enter sub-menu, then set the time and channel you want to remind to see. Press OK button to save and add remind task to schedule list.

Operation

Personal Video Recorder Mode (PVR)

Record

When you are watching DTV, you can press ● button to start Record mode. TV will display a record control menu.

Play FB FF Prev. Next Pause Stop

Press ● button to display or hide the record control menu.

Stop Record

Press ■ button to stop recording. TV will display a warning message, then press ◀ button to select Yes to return to normal broadcast television.

It will stop PVR.

When the storage space of Disk is full. TV will display a warning message, then it will stop recording automatically and return to normal broadcast television.

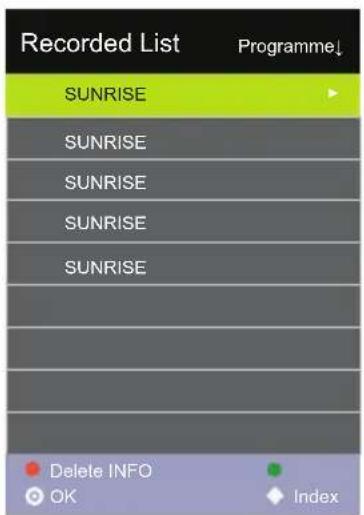

Record playback and Recorded List

After you stopped the recording, the recorded video will save to disk and add to Recorded List. Press INDEX button to enter Recorded List menu.

Recorded List Programme↓ SUNRISE SUNRISE SUNRISE SUNRISE SUNRISE Delete INFO OK Index

Operation

Personal Video Recorder Mode (PVR)

Use RED button to delete the selected video.

Use GREEN button to see the detail of the selected video.

Use OK button to start playback the selected video. Use ◀/▶ button to select playback control icon in record control menu, then press OK button to execute.

TIPS: The ▶, ◀, ▶, ◀, ▶, ■ button on the remote control is as same as playback control icon in record control menu.

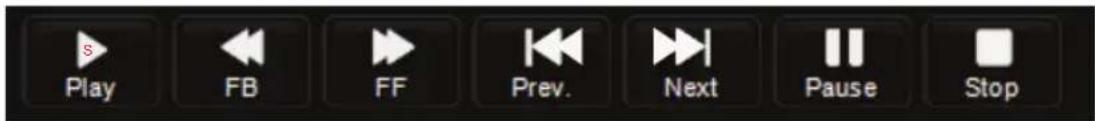

Time Shift

When you are watching DTV, you can press ▶ button to start Time Shift mode. The live TV will pause and TV will display a time shift control menu.

s Play FB FF Prev. Next Pause Stop

Time shift control menu is similar with Record menu.

Press ■ button to exit time shift mode.

Time Shift Playback

Press ▶ button again to start time shift playback.

Use ◀/▶ button to select playback control icon, then press OK button to execute.

TIPS: The ◀◀, ▶▶, ◀◀, ▶▶, ■ button on the remote control is as same as playback control icon in time shift control menu.

NOTE: A USB DEVICE IS TO BE INSERTED IN TV TO OPERATE ALL P.V.R. FUNCTIONS.

Operation

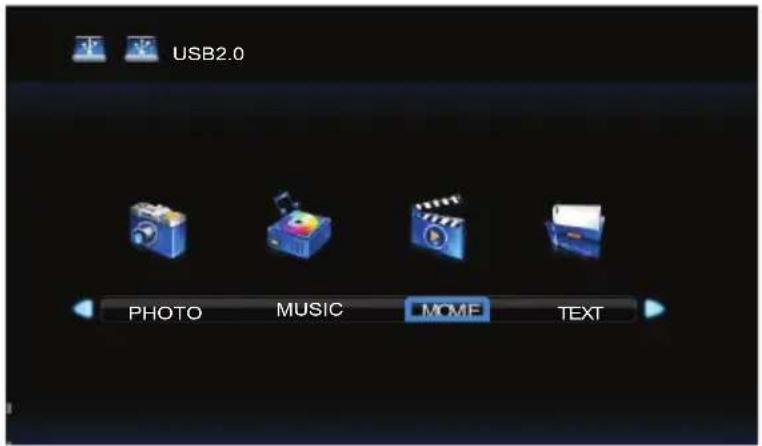

Media Player Mode

Note: Before operating Media menu, plug in USB device, then press INPUT button to set the Input Source to Media.

Press ▼ / ▲ button to select Media in the Source menu, then press OK button to enter.

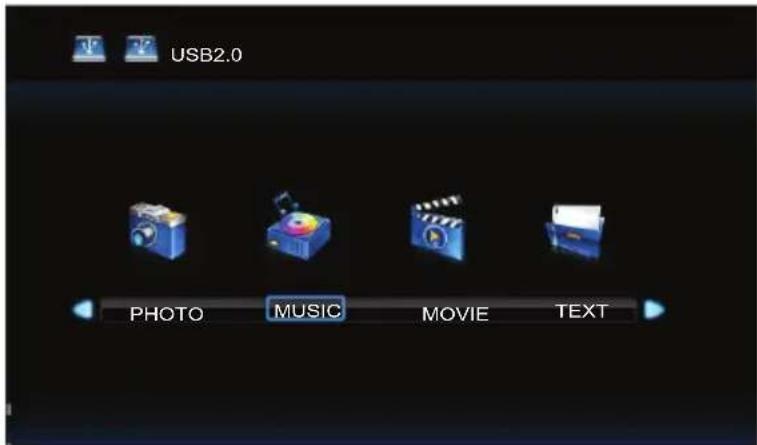

PHOTO MUSIC MOVIE TEXT

Press ◀ / ▶ button to select the media type you want to play in the main media menu, then press OK button to enter.

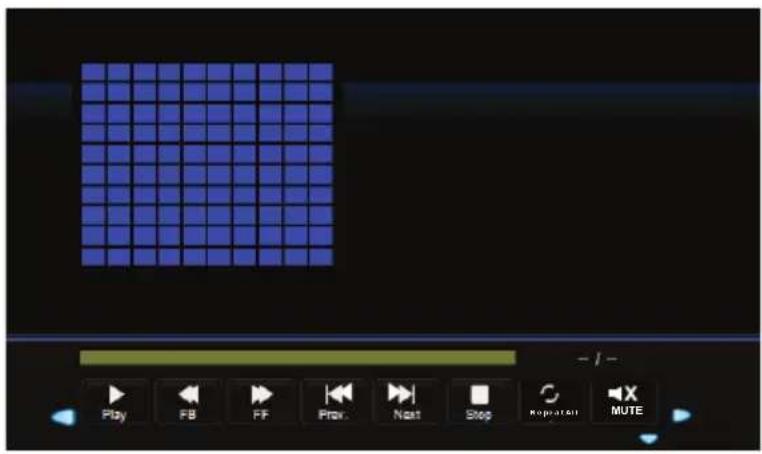

Press ◀ / ▶ button to select PHOTO in the main media menu, then press OK button to enter.
Press ◀ / ▶ button to select drive disk you want to watch, then press OK button to enter.
Press ◀ / ▶ button to select return option to back to the previous menu.
Press ◀ / ▶ button to select the file you want to watch in the file selecting menu, then press OK button to display picture.

When highlighting the file you select, the file information will appear on the right and picture will be previewed in the center.

Operation

Media Player Mode

Press DISPLAY button to display or hide control menu. Press ◀ / ▶ button to select function icon in control menu, then press OK button to excute.

Press ■ or EXIT button to return back to previous menu.

TIPS: The ▶||, ◀◀, ▶▶, ◀◀, ▶▶], ■ button on the remote control is as same as function icon in control menu.

Repeat

Press ◀ / ▶ button to select Repeat option, press OK to select Repeat none / all / 1.

Music

Press ◀ / ▶ button to select Music, press OK to play background music. Music files should be in the same folder with photo files.

Playlist

Press ◀ / ▶ button to select Playlist, press OK to enter.

Info

Press ◀ / ▶ button to select, press OK to enter. You can see the detail information of picture.

Rotate

Press ◀ / ▶ button to select. You may choose direction revolving or reversed direction revolving.

Zoom in/Zoom Out

You can choose to zoom in / zoom out the picture.

Move View

If the picture big enough to surpasses the screen, you may use this function to move the picture.

Operation

Media Player Mode

Music

Press ◀ / ▶ button to select MUSIC in the main media menu, then press OK button to enter.

USB2.0 PHOTO MUSIC MOVIE TEXT

Press ◀ / ▶ button to select drive disk you want to watch, then press OK button to enter.

Press ◀ / ▶ button to select return file to back to the previous menu.

When highlighting the option you select, the file information will appear on the right and music will be played.

Operation

Media Player Mode

Press ◀ / ▶ button to select the file you want to watch in the file selecting menu, then press OK button to play.

Play FB FF Prev Next Stop Repeater MUTE - / -

Press DISPLAY button to display or hide control menu. Press ◀ / ▶ button to select function icon in control menu, then press OK button to excute.

Press ■ or EXIT button to return back to previous menu.

TIPS: The ▶||, ◀◀, ▶▶, |◀◀, ▶▶|, ■ button on the remote control is as same as function icon in control menu.

The most of the Music function are the same as the PICTURE.

Operation

Media Player Mode

Movie

Press ◀ / ▶ button to select MOVIE in the main media menu, then press OK button to enter.

USB2.0 PHOTO MUSIC MOME TEXT

Press ◀ / ▶ button to select drive disk you want to watch, then press OK button to enter.

Press ◀ / ▶ button to select return option to back to the previous menu.

When highlighting the file you select, the file information will appear on the right and movie will be previewed in the center.

Press OK button to play the selected movie.

Press DISPLAY button to display or hide control menu. Press ◀ / ▶ button to select function icon in control menu, then press OK button to execute.

Press ■ or EXIT button to return back to previous menu.

TIPS: The ▶, ◀, ▶, ◀, ▶, ■ button on the remote control is as same as function icon in control menu.

Operation

Media Player Mode

Text

Press ◀ / ▶ button to select TEXT in the main media menu, then press OK button to enter.

USB2.0 PHOTO MUSIC MOVIE TEXT

The most of the TEXT function are the same as the PICTURE.

Operation

Media Player Mode

Press DISPLAY button to display or hide control menu on the bottom of TV screen. Press ◀ / ▶ button to select function icon in control menu, then press OK button to excute function as the following table shows it.

Item Supported Mode Function
Repeat	PHOTO/MUSIC/MOVIE	Repeat mode. You can choose from Repeat ALL, Repeat Non, Repeat 1.
Music PHOTO/TEXT		Play the background music files.
Playlist	PHOTO/MUSIC/MOVIE/TEXT	Display the playlist.
Info.	PHOTO/MOVIE	Display the information of media file.
Rotate	PHOTO	Clockwise or counter clockwise turn pictures.
Zoom in	PHOTO/MOVIE	Zoom in.
Zoom out	PHOTO/MOVIE	Zoom out.
Move View	PHOTO/MOVIE	Move the picture when the picture is zoomed in.
Goto Time	MUSIC/MOVIE	Search time to play the media file.
Aspect Ratio	MOVIE	Change the picture size.
SetA	MOVIE	Set A circle playing.
Slow Forward	MOVIE	Play slowly.
Step Forward	MOVIE	Play step by step.
Prev Page	TEXT	Previous page.
Next Page	TEXT	Next page.
Prev	TEXT	Previous files.
Next	TEXT	Next files.
Stop	TEXT	Stop text reading.
Mute	MUSIC	Mute the volume.

Operation Instruction

USB only support PHOTO, MUSIC and MOVIE files. The system automatically classifies files and only shows the supported files. For example, it only shows JPG, BMP and PNG files when in PHOTO mode.

MOVE mode: MPEG-4, MPEG-1/2.

PHOTO mode: BMP, JPG, PNG.

MUSIC mode:MP3, WMA, AAC.

Special Notes:

1) Maximum hard disk capacity supported is 400GB. Use PC to format large disks prior to connecting.
2) Maximum number of nested folders is 30.
3) Each folder may contain a maximum of 5000 files.

Maintenance and Service

Troubleshooting

• Do not use other functions that are not mentioned in this user's manual.
• In case a problem occurs with your TV, please take the following steps first.
• If you still have the problem, turn the power off and contact your dealer or an authorized service centre.

Issue	Action
No power	* Check the indicator light. (Red is STANDBY. Green or Blue is ON). If light is OFF, switch ON the power from the outlet and/or the power switch at the back of the TV.* Make sure the TV and the power cord are connected correctly.* Plug in another device to the outlet and make sure there is power coming from the outlet.* Press POWER on the remote control or on the side panel.
Power cut off automatically	* Check if the TIMER or SLEEP TIMER is set ON.* TV temperature may increased. Remove any objects/dust blocking the vents.
Remote Control does not operate	* Check if Main Power is On.* Change the batteries and make sure batteries are inserted correctly.* Make sure that you do not use the remote control under strong lighting.* Make sure the remote control aim to the remote control sensor directly within 7 meter from the TV.
No signal	* Check the cables and connections. Make sure they are connected correctly and securely fastened.* Turn ON the device (e.g. DVD player) that you are trying to view, and, if needed, start play.* Press SOURCE on the remote control or on the side panel, and select the correct input source.* Test the input port with other device and connect the device on other input port.
Poor picture quality	* Check the cables and connections. Make sure they are connected correctly and securely fastened.* Check the condition and length of the cables. Cables that have been bent or pinched may also cause picture quality problems. Replace the cable or try a different cable type.* Press the CH button to display a different channel. Picture quality problems on a single channel or on all channels may be caused by the TV station signal (antenna) or the cable signal source. Rescan the channel. Contact experienced antenna installer to check the antenna if needed.* Adjust the Picture setting (Picture Mode, Contrast, Brightness, Colour etc.) in the Menu.* Check the vedio setting on the external device.
No sound	* Check if the Mute function is ON. Press Mute, or the Vol+ to turn off mute.* Is the volume too low? Press the Vol+ button.* Check the cables and connections. Make sure they are connected correctly and securely fastened.* Check the audio setting on the external device.

Maintenance and Service

Specifications

Model		19" LED TV 22" LED TV	24" LED TV
LED Edge Backlight LCD Panel	Panel Size	18.5"	21.5"
	Brightness	250	250
	Contrast Ratio	1000:1	1000:1
Max.Resolution		1366 x 768	1920 x 1080
Input Connector	VIDEO	1	1
	YPbPr	1	1
	AUDIO(L/R)	1	1
	PC/AUDIO(L/R)	1	1
	HDMI	2	2
	RF	1	1
	USB	1	1
Output Connector	HEADPHONE	1	1
	COAX	1	1
Power Source		DC 12V 3.33A	DC 12V 4.16A
Power Consumption		40W	50W
Mounting Bracket (VESA)		100mm x 100mm	100mm x 100mm
Screw size		M4	M4

"Note: This manual is for your reference only. Design and specifications subject to change without prior notice for future product improvements."

tecovision

www.teco.com.au
