Celsius H720 - Laptop FUJITSU - Free user manual and instructions

Product Type	Laptop (Mobile Workstation)
Brand	Fujitsu
Model	Celsius H720
Processor	Intel Core i7 (6th Gen or later)
RAM	Up to 32 GB DDR4
Storage	SSD (SATA or NVMe) + HDD optional
Display Size	15.6 inches
Display Resolution	1920 x 1080 (Full HD)
Graphics	Integrated Intel HD + optional NVIDIA Quadro
Operating System	Windows 10 Pro (64-bit)
Weight	Approx. 2.5 kg (5.5 lbs)
Dimensions (W x D x H)	383 x 256 x 30 mm (15.1 x 10.1 x 1.2 in)
Battery	Li-Ion, 6-cell, 48 Wh
Power Adapter	120 W AC adapter
Networking	Gigabit Ethernet, Wi-Fi 802.11ac, Bluetooth 4.2
Ports	3x USB 3.0, 1x USB-C, HDMI, VGA, LAN RJ-45, audio combo
Security Features	TPM 2.0, Smart Card Reader, Kensington Lock, Fingerprint Reader (optional)
Expansion	Port Replicator (docking station) supported
Cleaning	Use a soft, lint-free cloth; avoid liquids
Battery Care	Charge at 20-80%, store at 50% charge
Regulatory	FCC Part 15, ICES-003, CE, UL

Frequently Asked Questions - Celsius H720 FUJITSU

How do I clean my Fujitsu Celsius H720 laptop?

Use a soft, lint-free cloth slightly dampened with water or a mild electronics cleaner. Avoid abrasive materials or liquids directly on the device. Turn off and unplug the laptop before cleaning.

How do I connect the port replicator (docking station)?

Place the laptop on the port replicator, aligning the connectors. Press down gently until it clicks into place. To disconnect, lift the front of the laptop while pressing the release button. See manual page for details.

What is the Smart Card reader used for?

The Smart Card reader accepts smart cards for enhanced security, such as user authentication or digital signatures. Insert the card with the chip facing down and forward.

How do I enable the TPM (Trusted Platform Module)?

Enter the BIOS setup during boot (press F2). Navigate to the Security or Advanced menu, find TPM settings, and enable it. Save and exit. Ensure the TPM driver is installed in the OS.

What should I do if the laptop does not charge?

First, check the power adapter connection and try a different outlet. If using a docking station, connect directly. Inspect the charging port for debris. If the issue persists, the battery or adapter may need replacement.

How do I perform a factory reset?

Back up your data first. Restart the laptop and press F12 to enter the boot menu. Select 'Reset to factory state' or use Windows recovery (Settings > Update & Security > Recovery). Confirm and follow on-screen steps.

Can I upgrade the RAM or storage?

Yes, the laptop has accessible compartments. For RAM, remove the bottom panel and install DDR4 SO-DIMMs up to 32 GB. Storage can be upgraded via M.2 SSD or 2.5-inch SATA HDD/SSD. Refer to manual for screws.

How do I use the Kensington lock?

Insert the Kensington lock into the security slot on the laptop's side. Turn the key to lock. Attach the cable to a fixed object. This deters theft.

Why does my Wi-Fi keep disconnecting?

Ensure the Wi-Fi antenna switch (if present) is on. Update the wireless driver from Fujitsu support. Check for interference from other devices. Reseat the wireless card if accessible.

How do I dispose of the battery?

Follow local regulations. Do not throw in trash. Recycle at designated battery collection points. If possible, remove the battery before disposal. See manual for proper removal.

USER MANUAL Celsius H720 FUJITSU

http://www.fujitsu.com/fts/

Copyright

InnovativeTechnologie 7

Save Changes and Power Off 76

ProblemlösungenundTipps 77

Regulatorynotices....88

Regulatoryinformationfornotebookswithoutradiodevice.... 8 8

DOC(IndustryCANADA)Notices 89

FCCRegulatoryinformationfornotebookswithradiodevice....91

Stichwörter 93

InnovativeTechnologie

Simple black downward arrow pointing to a circular button on a rectangular base (no text or symbols)

Simple black downward arrow pointing to a button labeled 'Power' on a white background (no text or symbols beyond the arrow)

Simple black downward arrow pointing to a circular button on a rectangular base (no text or symbols)

Grid of white and gray square tiles arranged in a pattern, no text or symbols present

Tastenkombinationen

Technical line drawing of a computer chassis with labeled component '1' (no text or symbols beyond label)

Technical line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

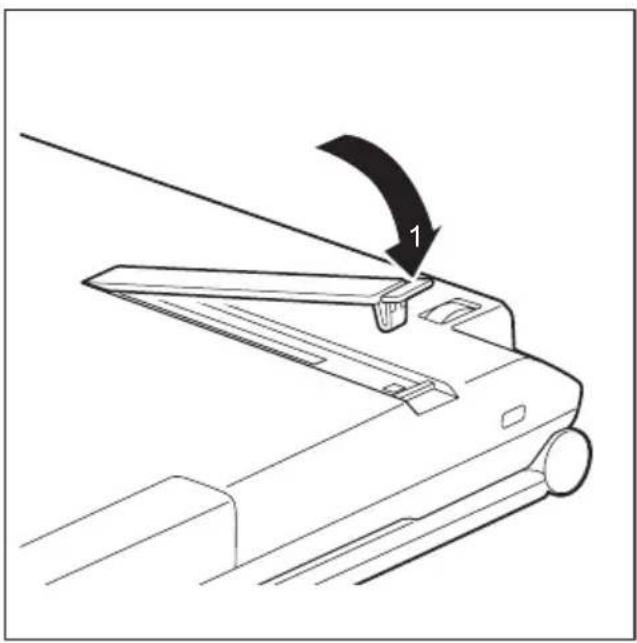

oder

Line drawing of a car's front compartment with a diagonal arrow indicating direction (no text or symbols)

Simple line drawing of a folded paper or sheet with an arrow indicating direction (no text or symbols)

Diagram showing a folded paper or sheet with two labeled arrows (1 and 2) pointing to a gray block, and a small triangular symbol below (no text or symbols present)

Diagram of a mechanical component with two directional arrows labeled 1 and 2, no text or symbols present.

Diagram of a mechanical component with a curved blade and rectangular block, showing an arrow indicating direction (no text or symbols)

Diagram of a mechanical component with two directional arrows labeled 1 and 2, no text or symbols present.

Simple line drawing of a mechanical component with a curved edge and a black arrow indicating direction (no text or symbols)

1=LAN-Anschluss

Line drawing of a laptop and its internal component, showing front and side views (no text or symbols)

Pure technical diagram showing a mechanical component with a downward arrow and a circular feature, no text or symbols present.

Line drawing of a laptop and its internal component, showing front and side views (no text or symbols)

▶ GreifenSiemitdenFingernunterdasNotebook.
DrückenSiemitdenDaumenaufdenPort-ReplikatorundhebenSiedasNotebookab(1).

Simple line drawing of a rectangular object and a small square with a labeled pointer (no text or symbols)

Diagram showing a connector with a padlock and cable, no text or symbols present

▶ BringenSiedenKensingtonLockCablean derVorrichtungIhresNotebookan.

Line drawing of a laptop with an attached paper label, showing the front panel and side panel (no text or symbols)

▶ SchiebenSiedieSmartCardmitdem Chipnachuntenundvorneinden SmartCard-Leser.

TrustedPlatformModule-TPM(geräteabhängig)

Line drawing of a USB cable connector with an attached port (no text or symbols)

Diagram showing a VGA connector with an arrow pointing to it, alongside a separate view of the same device (no text or symbols present)

Diagram showing a DVI connector inserted into a USB drive, with no text or symbols present.

Diagram showing a USB plug inserted into a port with an external USB symbol (no text or labels)

Diagram showing a mechanical component being inserted into a threaded rod, with no text or symbols present.

Diagram showing a connector being inserted into a plug with an earpin, no text or symbols present

Technical line drawing of a computer chassis with a curved component and labeled part '1' (no text or symbols beyond the label)

Technical line drawing of a device casing with an arrow indicating component 1 (no text or symbols present)

Technical line drawing of a device casing with a labeled component (no text or symbols present)

Technical line drawing of a device casing with a curved arrow indicating a component (no text or symbols present)

If there is no FCC logo and also no FCC Don the device that this device is not approved by the Federal Communications Commission (FCC) of the USA. Although it is not explicitly forbidding travel the UStrading area acarrying this device, but to avoid trouble at customs clearance Fujitsu Technology Solutions GmbH recommends not to bring this device into the UStrading area.

Regulatoryinformationf ornotebookswithoutradiodevice

NOTICE:

Changes or modifications not expressly approved by Fujitsu Technology Solutions couldvoid this user's authority to operate the equipment.

NoticetoUsersofRadiosandTelevision

Theselimitsaredesignedtoprovidereasonableprotectionagainstsharmfulinterferenceina residentialinstallation. This equipment generates, uses, and can radiater radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or radio television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorientorrelocatethereceivingantenna.
- Increase these separation between the equipment and receiver.
- Connecttheequipmentintoanoutletthatisonadifferentcircuitthanthereceiver.
- Consultthedea leroranexperiencedradio/TVtechnicianforhelp.

NoticetoUsersoftheUSTelephoneNetwork

Yournotebook may be supplied with an internal modem which complies with Part68 of the FCC rules. On this notebook is a label that contains the FCC Registration Number and the Ringer Equivalence Number (REN) for this equipment among other information. If requested, the user must provide their telephone company with the following information:

1. Thetelephonenumbertowhichthenotebookisconnected.
2. The Ringer Equivalence Number (REN) forthisequipment.
3. The equipment requires a standard modular jack type USOCRJ-11C which is FCC Part 68 compliant.
4. The FCCRe gistrationNumber.

Thisequipmentisdesignedtobeconnectedtothetelephonenetworkorpremiseswiringusing astandardmodularjacktypeUSOCRJ-11CwhichisFCCPart68compliantandalinecord betweenthemodemandthetelephonenetworkwithaminimumof26AWG.

TheRENisusedtodeterminethenumberofdevicesthatyoumayconnecttoyourtelephone line and still have all of those devices ring when your number is called. Too many devices ononelinemayresultinfailuretoringinresponsetoanincomingcall.Inmost,butnotall, areas the sum of the RENs of all of the devices should not exceed five (5). To be certain of the number of devices you may connect to your line, as determined by the RENs, contact yourlocaltelephonecompany.Ifthisequipmentcausesharmtothetelephonenetwork,your telephonecompanymaydiscontinueyourservicetemporarily.Ifpossible,theywillnotifyyou in advance. If advance notice is not practical they will notify you as soon as possible. You will also be advised of your right to file a complaint with the FCC.

ThisfaxmodemalsocomplieswithfaxbrandingrequirementsperFCCPart68.

Your telephone company will probably ask you to disconnect this equipment from the telephone network until the problem is corrected and you are sure that the equipment is not malfunctioning. This equipment may not be used on coin-operated telephones provided by your telephone company. Connection to party lines is subject to state tariffs. Contact your state's public utility commission, public service commission or corporation commission form more information.

This equipment includes automatic dialing capability. When programming and/or makingtestcallstoemergency numbers:

- Remain on the line and briefly explain to the dispatcher the reason for the call.

- Performsuchactivitiesinoff-peakhours,suchasearlymorningorlateevening.

FCCrulesprohibittheuseofnon-hearingaidcompatibletelephonesinthe followinglocationsorapplications:

- Allpublicorsemipubliccoin-operatedorcreditcardtelephones.

- Elevators, highways, tunnels (automobile, subway, railroad or pedestrian) where a person with impaired hearing might be isolated in an emergency.

- Places where telephones are specifically installed to alert emergency authorities such as fire, police or medical assistance personnel.

• Hospital rooms, residential health care facilities, convalescent homes and prisons.

•Hotel, motelorapartmentlobbies.

- Storeswheretelephonesareusedbypatronstoordermerchandise.

- Public transportation terminals where telephones are used to call tax is or to reservelodging torrentalcars.

- Inhotelandmotelroomsasatleasttenpercentoftheroomsmustcontainhearing aid-compatibletelephonesorjacksforplug-inhearingaidcompatibletelephoneswhich willbeprovidedtohearingimpairedcustomersonrequest.

DOC(IndustryCANADA)Notices

NoticetoUs ersofRadiosandTelevision

ThisClass BdigitalapparatusmeetsallrequirementsofCanadianInterference-CausingEquipment Regulations.

Noticeto UsersoftheCanadianTelephoneNetwork

NOTICE:

This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before thereg istration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply thatIndustryCanadaapprovedtheequipment.Beforeconnectingthisequipmentto a t e phone line the user should ensure that it is permissible to connect this equipment to theo caltelecommunicationfacilities.Theusershouldbeawarethatcompliancewiththe certification standards does not prevent service degradation in some situations.

RepairstotelecommunicationequipmentsshouldbemadebyaCanadianauthorizedmaintenancefacility.AnyrepairsoralterationsnotexpresslyapprovedbyFujitsuor

anyequipmentfailuresmaygivethetelecommunicationcompanycausetorequestthe usertodisconnecttheequipmentfromthetelephoneline.

NOTICE:

TheRingerEquivalenceNumber(REN)forthisterminalequipmentis0.0.TheRENassigned toeachterminalequipmentprovidesanindicationofthemaximumnumberofterminals allowedtobeconnectedtoatelephoneinterface.Theterminationonaninterfacemay consistofanycombinationofdevicessubjectonlytotherequirementthatthesumofthe RingerEquivalenceNumbersofallthedevicesdoesnotexceedfive.

CAUTION:

Forsafety, users should ensure that the electrical ground of the power utility, the telephone lines and the metallic water pipes are connected together. Users should NOT attempt to make such connection themselves but should contact the appropriate electric inspection authority or electrician. This may be particularly important in rural areas.

CAUTION:

To reduce the risk of fire, use only 26AWG or larger telecommunications line cord.

For Authorized Repair Technicians Only

CAUTION:

For continued protection against risk of fire, replace only with the sametypeandratingfuse.

WARNING:

DangerofexplosionifLithium(CMOS)batteryisincorrectlyreplaced.Replaceonly withthesameorequivalenttyperecommendedbythemanufacturer.

Dispose of used batteries according to the manufacturer's instruction.

FCCRegulatoryinformationfornotebookswithradiodevice

FederalCommunicationsCommissionstatement

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of this device.

FCCInterferenceStatement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference or radiocommunications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of fandon, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorientorrelocatethereceivingantenna.
2. Increase the distance between the equipment and thereceiver.
3. Connect the equipment to an outlet on a circuit different from the one there receiver is connected to.
4. Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
   Pleasenotethefollowingregulatoryinformationrelatedtotheoptionalradiodevice.

FCCRadioFrequencyExposurestatement

This radiodevice has been evaluated under FCC Bulletin OET65 Cand found compliant with the requirements asset forth in CFR47 Sections 2.1091, 2.1093, and 15.247(b)(4) addressing RF

Exposure from radio frequency devices. The radiated output power of this radio device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation is minimized. When using this device, a certainseparationdistancebetweenantennaandnearbypersonsmustbemaintainedtoensureRF exposure compliance. In order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm (8 inches).

RegulatoryNotesandStatements

Radiodevice, Health and Authorization for use

Radiofrequencyelectromagneticenergyisemittedfromtheradiodevices.Theenergylevelsof these emissions, however, are far much less than the electromagnetic energy emissions from wireless devices such as mobile phones. Radio devices are safe for use by consumers because they operate within the guidelines found in radio frequency safety standards and recommendations.

The use of theradiodevices may be restricted in some situations or environments, such as:

• onboardanairplane, or
•inanexplosiveenvironment,or
•insituationswheretheinterferencerisktootherdevicesorservicesis perceivedoridentifiedasharmful.

In cases in which the policy regarding use of radio devices in specific environments is not clear (e.g., airports, hospitals, chemical/oil/gas industrial plants, private buildings), obtain authorizationousethesedevicespriortooperatingtheequipment.

RegulatoryInformation/Disclaimers

Installation and use of this radio device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are expressly approved by the manufacturer may void the user's authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than those specified by the manufacturer. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. The manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failure to comply with these guidelines.

Exportrestrictions

Thisproductorsoftwarecontainsencryptioncodewhichmaynotbeexportedor transferredfromtheUSorCanadawithoutanapprovedUSDepartmentofCommerce exportlicense. ThisdevicecomplieswithPart15ofFCCRules,aswellasICES003B/NMB003B.Operationissubjecttothefollowingtwoconditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesirable operation.

Modifications not expressly authorized by Fujitsu Technology Solutions may invalidatetheuser'srighttooperatethisequipment.

Stichwörter

A

Akku32

aufladen32

Ladezustand32,39

lagern32

Lebensdauer32

pflegenundwarten32

Selbstentladung32

Regulatoryinformation

Notebookswithradiodevice91

Notebookswithoutradiodevice88

Reinigung15

Reise, Notebook14

Return24

RollenLock

Anzeige21

S
