WAP1200 - Access Point Edimax - Free user manual and instructions

Product Type	AC1200 Wall Mount Access Point
Wireless Standards	IEEE 802.11a/b/g/n/ac
Frequency Bands	2.4 GHz (11b/g/n) and 5 GHz (11ac/11an)
Maximum Data Rate	Up to 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz)
Interfaces	1x 10/100/1000 Mbps Ethernet (PoE support)
Security	WEP, WPA, WPA2, MAC filtering, RADIUS
Management	Web-based GUI (HTTP), SNMP
Default IP Address	192.168.2.2
Default Username	admin
Default Password	admin (or blank)
Mounting	Wall mount (bracket included)
Power Supply	5V DC 2A (via adapter) or PoE 802.3af
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% non-condensing
LED Indicators	Power, LAN, WLAN
Antennas	2 internal antennas (2x2 MIMO)
Compliance	FCC, CE, R&TTE
Warranty	2 years limited
Maintenance & Cleaning	Clean with a soft, dry cloth. Do not use liquids or aerosols.
Safety	Keep away from water and heat sources. Do not attempt to disassemble.
Spare Parts & Repairability	No user-serviceable parts. Contact support for repairs.

Frequently Asked Questions - WAP1200 Edimax

How do I reset the Edimax WAP1200 to factory defaults?

Press and hold the reset button on the device for about 10 seconds until the LEDs flash. The device will reboot with default settings (IP 192.168.2.2, username: admin, password: admin).

What is the default IP address and login for the WAP1200?

The default IP address is 192.168.2.2. The default username is admin and the default password is admin (or blank on some versions).

How do I access the web management interface?

Connect your computer to the WAP1200 via Ethernet or Wi-Fi, set your computer to obtain an IP automatically (or use 192.168.2.x), then open a browser and go to http://192.168.2.2. Log in with the default credentials.

How can I update the firmware on the WAP1200?

Download the latest firmware from the Edimax website. Log into the web interface, go to Management > Firmware Upgrade, select the file, and click Upgrade. Do not power off during the process.

Does the WAP1200 support PoE (Power over Ethernet)?

Yes, the WAP1200 supports 802.3af PoE, allowing you to power it through the Ethernet cable without a separate power adapter.

Can I use the WAP1200 as a wireless repeater?

The WAP1200 is primarily an access point, but it may support WDS (Wireless Distribution System) for bridging. Check the web interface under Wireless Settings > WDS for configuration options.

What security methods are available?

The WAP1200 supports WEP, WPA, WPA2, and WPA2-PSK. You can also enable MAC filtering and use an external RADIUS server for enterprise authentication.

How do I change the Wi-Fi SSID and password?

Log into the web interface, go to Wireless Settings > Basic, and modify the SSID and security settings. Click Apply to save changes.

What should I do if I forgot the admin password?

Perform a factory reset by holding the reset button for 10 seconds. This will restore the default username and password, and all custom settings will be lost.

Is the WAP1200 compatible with 802.11ac devices?

Yes, the WAP1200 supports 802.11ac on the 5 GHz band, providing high-speed wireless connections for compatible devices.

USER MANUAL WAP1200 Edimax

No.3, Wu-Chuan 3rd Road, Wu-Gu, New Taipei City 24891, Taiwan

Email: [e-mail]

Edimax Technology Europe B.V.

Fijenhof 2, 5652 AE Eindhoven, The Netherlands

Email: [e-mail]

Edimax Computer Company

3350 Scott Blvd., Bldg.15 Santa Clara, CA 95054, USA

Live Tech Support: 1(800) 652-6776

Email: [e-mail]

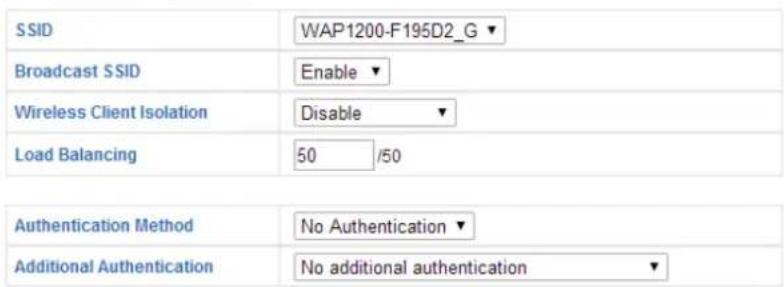

2.4GHz Wireless Security Settings

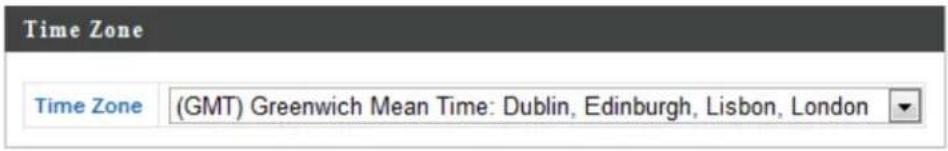

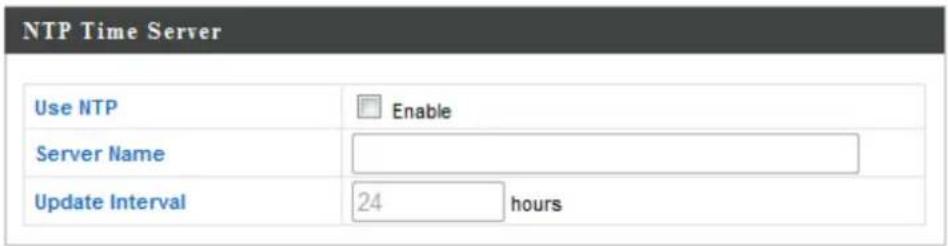

Acquire Current Time from Your PC
