Brand	AEG-Electrolux
Model	Santo 70312 KG5
Product Type	Refrigerator with freezer compartment
Climate Class	See rating plate (e.g., SN-ST)
Energy Supply	220-240 V ~ 50 Hz, fuse min 10 A
Light Bulb	220-240 V, max power as indicated on diffuser
Refrigerant	Isobutane (R600a), flammable
Fridge Temperature Range	Adjustable, recommended +5°C
Freezer Temperature Range	Adjustable, recommended -18°C
Freezing Capacity	As per rating plate (max per 24h)
Max Storage Time (Frozen Food)	Varies by food type (see calendar on drawers)
Interior Accessories	Adjustable shelves, door racks, drawer, bottle holder, ice trays, ice packs
Special Functions	COOLMATIC (fridge), FROSTMATIC (freezer), Holiday mode (fridge only)
Defrosting	Automatic defrost in fridge; manual defrost in freezer
Door Reversible	Yes, instruction provided
Cleaning	Use lukewarm water and mild detergent; avoid abrasive cleaners
Safety Features	Alarm for temperature rise, child safety (packaging disposal), lockable doors (if equipped)
Noise Level	Not specified but typical for class
Dimensions (Approx.)	Not provided; refer to product spec sheet
Weight	Not provided; refer to product spec sheet

Frequently Asked Questions - Santo 70312 KG5 AEG-ELECTROLUX

How do I set the temperature on the fridge?

Press the B (warmer) or D (colder) buttons to adjust. The display shows the desired temperature flashing, then returns to actual temperature after 5 seconds. Recommended fridge temperature is +5°C.

How do I set the freezer temperature?

Use buttons I (warmer) and K (colder). The recommended freezer temperature is -18°C. The display works similarly to the fridge.

What is the COOLMATIC function and how do I use it?

COOLMATIC provides intensive cooling for large quantities of food. Press F button; yellow light turns on. It automatically selects +2°C and ends after 6 hours. Press again to stop manually.

How do I use the FROSTMATIC function for freezing?

Press FROSTMATIC button (yellow light on) 24 hours before adding fresh food. It accelerates freezing and protects stored food. Ends automatically after 52 hours or you can press again to stop.

How do I defrost the freezer?

Remove food, switch off appliance, and leave door open. Use the plastic scraper provided to remove frost. Do not use metal tools or mechanical devices. Place a basin under the defrost water channel.

How do I clean the appliance?

Switch off and unplug. Use a cloth with lukewarm water and mild detergent. Do not use steam cleaners, abrasive cleaners, or solvents. Clean condenser at back annually with a brush or vacuum.

How do I reverse the door?

Unplug the appliance. Remove ventilation grille, unscrew hinges, slide doors off, swap hinge pins and plugs, reassemble on opposite side. A 10 mm spanner and screwdriver are needed. See manual for diagrams.

What should I do if the alarm sounds?

The alarm indicates a temperature rise in the freezer. Press the alarm reset button L to stop the buzzer. The alarm light will flash until temperature normalizes. Press L again to see the warmest temperature reached.

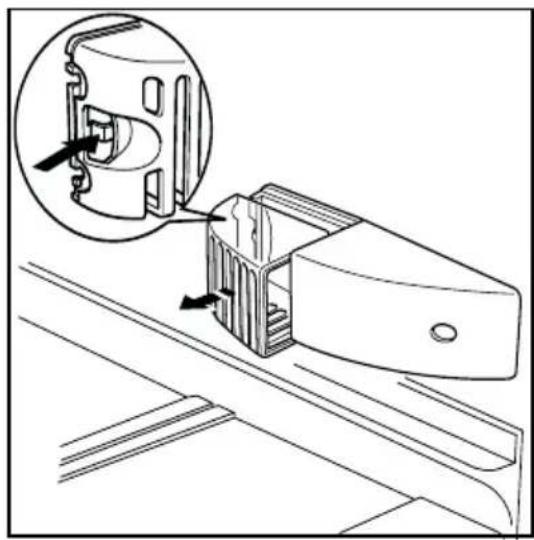

How do I change the interior light bulb?

Switch off and unplug. Press the rear hook and slide cover off. Replace with same type (220-240 V, max power on diffuser). Snap cover back on.

What is the Holiday function?

Holiday function sets fridge temperature to +15°C to prevent odors when empty. Press B until 'H' appears in display. Fridge should be empty. Exit by changing temperature again.

USER MANUAL Santo 70312 KG5 AEG-ELECTROLUX

Diagram showing a hand holding a door panel connected to a wall-mounted bracket, with an inset magnified view of the handle (no text or symbols present)

Technical line drawing of a mechanical assembly with a labeled component 'G' (no text or symbols beyond label)

Belangrijk

Line drawing of a hand holding a shelf with a ruler, no text or symbols present

Technical line drawing of a mechanical assembly inside a cabinet or enclosure, showing internal components and motion arrows (no text or symbols)

Line drawing of a mechanical or electrical component with coiled wires and a handle, no text or symbols present

Diagram of a car interior with a bottle partially submerged in water, showing airflow direction arrows (no text or symbols)

Technical diagram of a mechanical component with directional arrow and plate (no text or symbols)

Illustration of a hand using scissors to cut or lift a piece, with arrows indicating motion (no text or symbols)

Tips om energie te besparen

Technical line drawing of a mechanical component with an inset showing a close-up view of a housing (no text or symbols present)

Diagram showing a hand adjusting a door lock mechanism with a magnified inset (no text or symbols)

Technical line drawing of a mechanical assembly with a labeled component 'G' (no text or symbols beyond label)

Line drawing of a hand holding a shelf with a tool, no text or symbols present

Variable Innentür

Illustration of a hand using a tool to clean or adjust a machine component, with no visible text or symbols.

Line drawing of a mechanical component with coiled springs and a handle, no text or symbols present

Diagram of a mechanical device with rotating coil and directional arrows indicating motion (no text or symbols)

Richtig lagern

Technical diagram of a mechanical assembly with a central component and two rectangular parts, no visible text or symbols.

Diagram showing a hand holding scissors inside a circular component, with arrows indicating rotation (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Thank you for choosing one of our high-quality products.

With this appliance you will experience the perfect combination of functional design and cutting edge technology.

Convince yourself that our appliances are engineered to deliver the best performance and control - indeed we are setting the highest standards of excellence.

In addition to this you find environmental and energy saving aspects as an integral part of our products.

To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently.

To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

The following symbols are used in this manual

Important information concerning your personal safety and information on how to avoid damaging the appliance

General information and tips

Environmental information

Contents

Safety 51

Disposal ....52

Appliance Packaging Information ....52

Disposal of old Appliances ....53

Remove transport safeguard ....53

Installation....53

Installation Location ....53

Your appliance needs air ....54

Rear spacer....55

Rehingeing the door 55

Electrical connection .....56

Prior to Initial Start-up ....56

Operating and indicator panel Fridge .....57

Starting up - Setting the Temperature .....58

Interior Accessories ....59

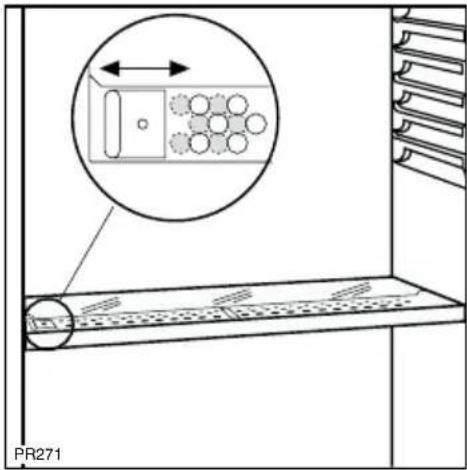

Storage shelves ....59

Door rack 59

Moisture regulator ....60

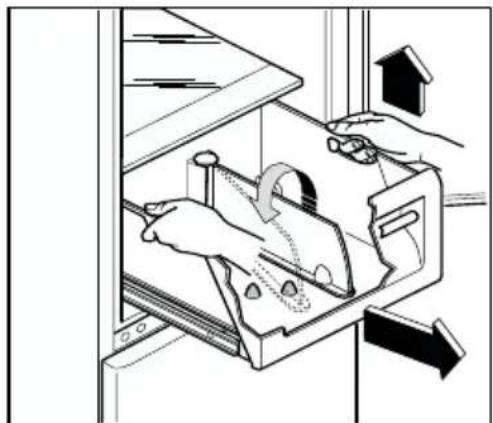

Drawer 60

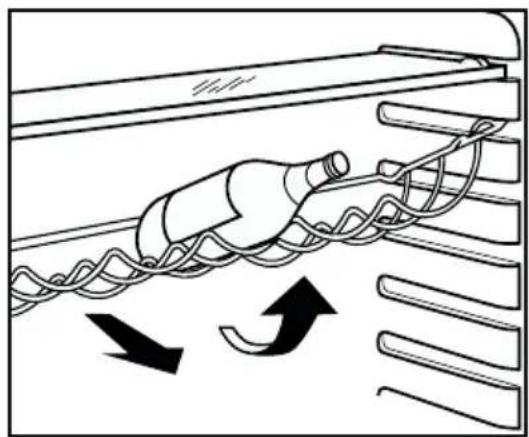

Bottel holder ....61

Fresh food refrigeration 61

Operating and indicator panel Freezer....62

Starting up - Setting the Temperature .....63

Switching the appliance off ....64

Freezing and storing frozen food ....65

Preparation of Ice Cubes 66

Freezing calender....66

Ice packs 66

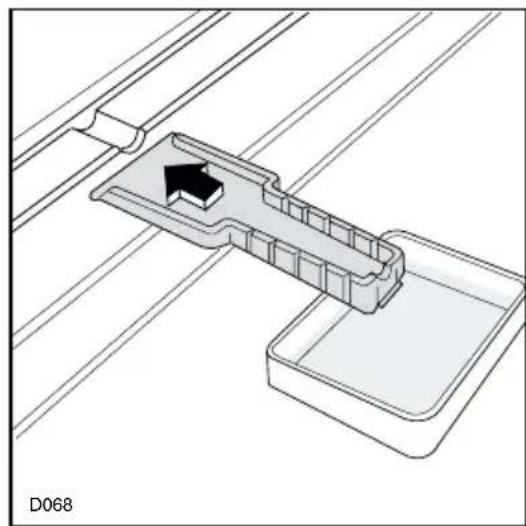

Defrosting 67

Cleaning and Care 68

Energy Saving Tips ....69

What to do if 69

Correcting Malfunctions 69

Changing the light bulb 71

Regulations, Standards, Guidelines .....71

⚠️ Safety

The safety aspects of our refrigerators/freezers comply with accepted technical standards and the German Appliance Safety Law. Nevertheless, we consider it our obligation to make you aware of the following safety information:

Intended use

• The refrigerator is intended for use in the home. It is suitable for the cooling, freezing and storing of frozen food, as well as for making ice. If the appliance is used for purposes other than those intended or used incorrectly, no liability can be accepted by the manufacturer for any damage that may be caused.
  • Alterations or changes to the freezer are not permitted for reasons of safety.
• If you use the refrigerator in a commercial application or forpurposes other than the cooling, freezing or frozen storage of foods, please observe all valid legal regulations for your application.

Prior to initial start-up

- Check the refrigerator for transport damage. Under no circumstance should a damaged appliance be plugged in! In the event of damage, please contact the vendor.

Refrigerant

The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:

- avoid open flames and sources of ignition;

- thoroughly ventilate the room in which the appliance is situated.

Safety of children

• Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is a risk of suffocation! Keep packaging material away from children!
• Please make old appliances unusable prior to disposal. Pull out the mains plug, cut off the mains cable, break or remove spring or boltcatches, if fitted. By doing this you ensure that children cannot lock themselves in the fridge when playing (there is risk of suffocation!)or get themselves into other dangerous situations.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. !

Daily Operation

• Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers with flammable materials such as, for example, spray cans, fire extinguisher refill cartridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer compartment. They can burst when the contents freeze, high carbonate content drinks can even explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer compartment. Exception: high alcohol content spirits can be stored in the freezer compartment.
• Do not put ice creams or ice cubes in the mouth immediately after removal from the freezer compartment. Very cold ice can freeze to the lips or tongue and cause injury.
• Do not touch frozen food with wet hands. Your hands could freeze to the food.
• Do not operate any electrical appliances in the refrigerator/freezer (e.g. electric ice cream makers, mixers etc.).
• Before cleaning the appliance, always switch off the appliance and unplug it, or pull the house fuse or switch off the circuit breaker.
• When unplugging always pull the plug from the mains socket, do not pull on the cable.

In case of malfunction

- If the a malfunction occurs on the appliance, please look first in the "What to do if ..." section of these instructions. If the information given there does not help, please do not perform any further repairs yourself.

- Refrigerators/freezers may only be repaired by qualified service engineers. Improper repairs can give rise to significant hazards. If your appliance needs repairing, please contact your specialist dealer or our Customer Service.

Disposal

Appliance Packaging Information

All materials are environmentally sound! They can be dumped or burned at an incinerating plant without danger!

About the materials: The plastics can be recycled and are identified as follows:

PE< for polyethylene, e.g. the outer covering and the bags in the interior.

PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluorocarbon.

The carton parts are made from recycled paper and should be disposed of at a waste-paper recycling collection location.

Disposal of old Appliances

For environmental reasons, refrigeration appliances must be disposed of properly. This applies to your old appliance, and - at the end of its service life - for your new appliance as well.

Warning! Before disposing of old appliances make them inoperable. Remove plug from mains, sever the power cable, remove or destroy any snap or latch closures. This eliminates the danger that playing children lock themselves into the appliance (danger of suffocation!) or place themselves into other life-endangering situations.

Disposal:

- The appliance may not be disposed of with domestic waste or bulky refuse.

- The refrigerant circuit, especially the heat exchanger at the back of the appliance, may not be damaged.

- The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Remove transport safeguard

The appliance and the interior fittings are protected for transport.

- Remove all adhesive tape and packing pieces from the interior of the appliance.

Installation

Installation Location

The appliance should be set up in a well ventilated, dry room.

Energy use is affected by the ambient temperature. The appliance should therefore

- not be exposed to direct sunlight;

• not be installed next to radiators, cookers or other sources of heat;
• only be installed at a location whose ambient temperature corresponds to the climate classification, for which the appliance is designed.

The climate classification can be found on the serial plate, which is located at the left on the inside of the appliance.

The following table shows which ambient temperature is correct for each climate classification: each climate classification:

If installation next to a source of heat is unavoidable, the following minimum clearances must be maintained at the sides of the appliance:

• for electric cookers 3 cm;
• for oil and coal fired ranges 30 cm.

If these clearances cannot be maintained a heat insulating pad is required between the cooker and the refrigeration appliance.

If the refrigeration appliance is installed next to another refrigerator or freezer a clearance of 5 cm at the sides is required, in order to prevent the formation of condensation on the outside of the appliance.

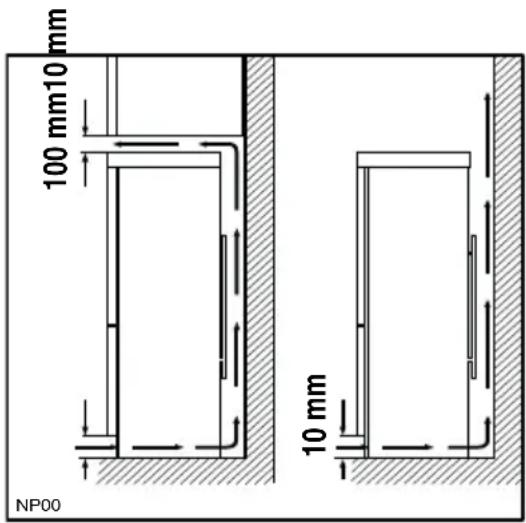

Your appliance needs air

For safety reasons, minimum ventilation must be as shown Fig.

Attention: keep ventilation openings clear of obstruction;

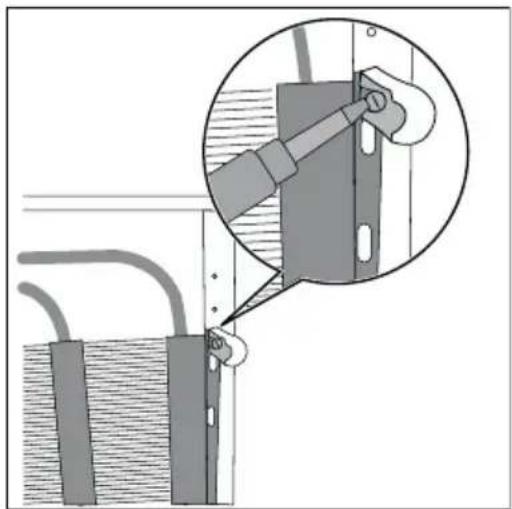

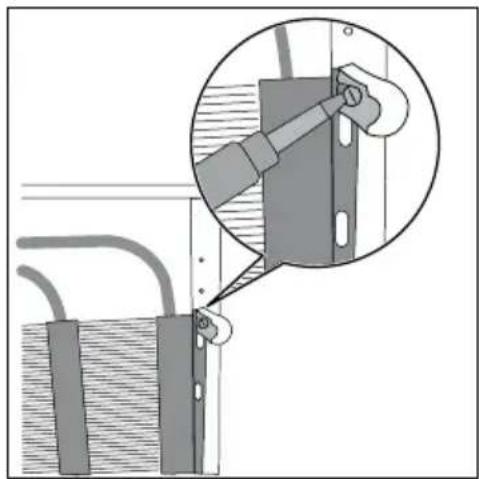

Rear spacers

Fit the rear spacers contained in the appliance to ensure even dissipation of heat generated during operation. Proceed in the sequence illustrated by the figures.

Rehingeing the door

The side at which the door opens can be changed from the right side (factory adjustment) to the left side, if the installation site requires.

Warning! When changing the side at which the door opens, the appliance may not be connected to the mains. Remove plug from the mains beforehand.

Proced as follow:

1. Remove the clip-in ventilation grille (D).
2. Remove the bottom hinge (E) by unscrewing the fixing screws.

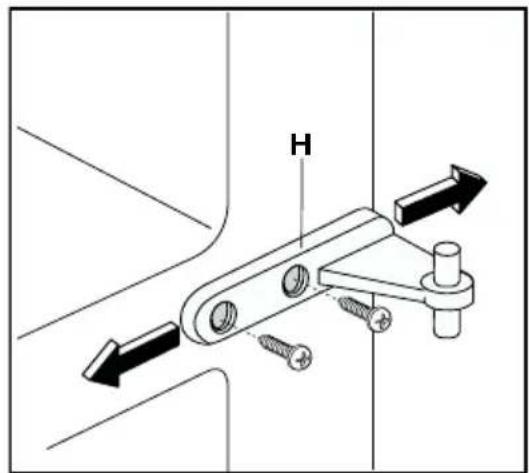

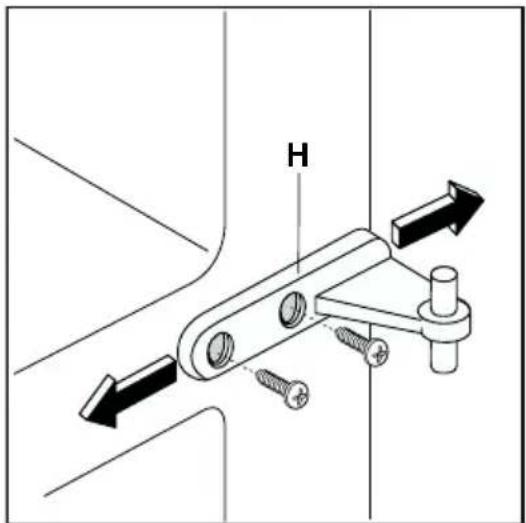

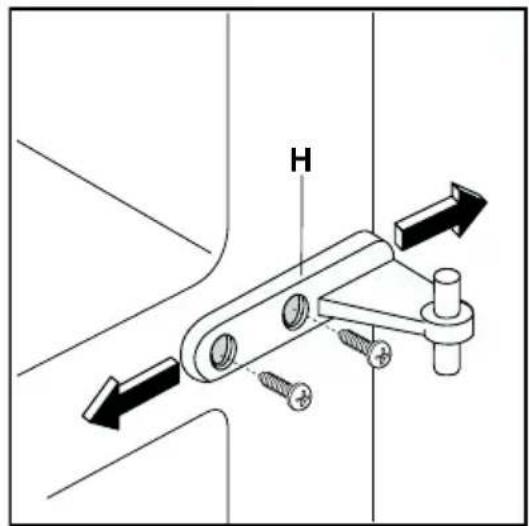

3. Slide the bottom door off the centre hinge (H).

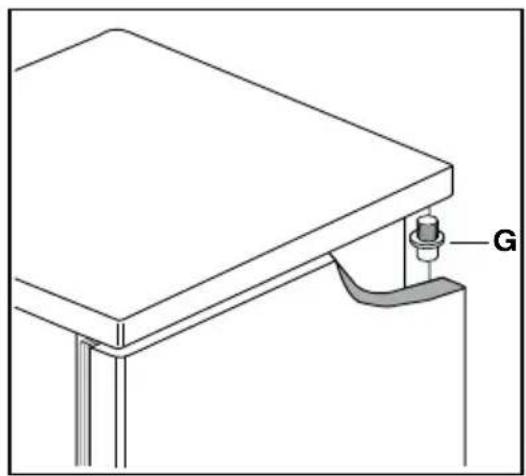

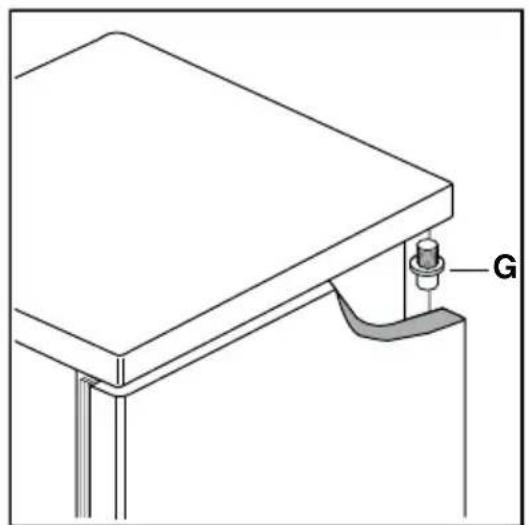

4. Remove the centre hinge and slide the top door off pin (G); unscrew pin (G) and refit it on the opposite side.
5. Remove the two plugs, to reveal the holes for the hinge pivots, and remount them on the other side.
6. Refit the top door and the centre hinge (H) on the opposite side.
7. Refit the bottom door.
8. Using a 10 mm spanner, unscrew the hinge pin (E) and reassemble it on the opposite side of the hinge;
9. Refit bottom hinge (E) on the opposite side, using the screws previously removed.

Diagram showing a hand holding a tool interacting with a wall-mounted device, with an inset magnified view of the component (no text or symbols present)

Technical line drawing of a mechanical assembly with a labeled component 'G' (no text or symbols beyond label)

1. Remove blanking cover (F) from ventilation grille (D) by pushing it in the direction of the arrow and refit it on the opposite side.

2. Refit ventilation grille (D), clipping it into place.

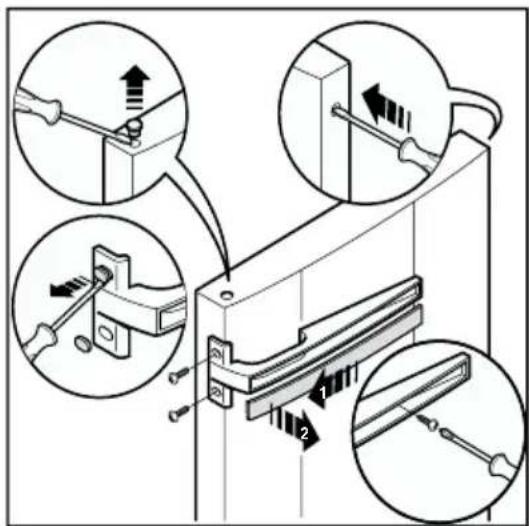

3. Dismantle the handles, by sliding the handle-cover, by unscrewing its side and middle screws and reassemble them on the opposite side. Cover the holes left open with the plugs contained in the documentation pack.

Electrical connection

Before initial start-up, refer to the appliance rating plate to ascertain if supply voltage and current values correspond with those of the mains at the installation location.

e.g.: AC 230 ... 240 V 50 Hz or

230 ... 240 V\~ 50 Hz

(i.e. 230 to 240 volts alternating current, 50 Hertz)

The rating plate is inside the appliance on the left.

A correctly installed, earthed socket is required for the electrical supply. The supply must have a fuse rating of at least 10 Amps.

If the socket is not accessible once the appliance is built in, the electrical installation must include suitable means of isolating the appliance from the mains (e.g. fuse, cut-out, current trip or similar with a minimum contact separation of 3 mm).

Attention: The mains connection cable may only be replaced by a skilled electrician. Please contact your dealer or our customer service department for repairs.

Prior to Initial Start-Up

- Please clean the appliance interior and all accessories prior to initial start-up (see section: "Cleaning and Care").

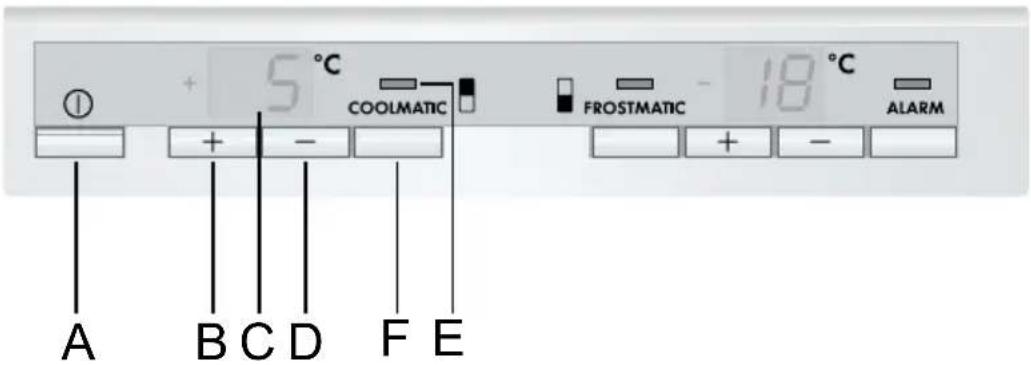

Operating and indicator panel Fridge

A. Fridge button ON/OFF
B. Temperature setting button (for warmer temperatures)
C. Temperature display
D. Temperature setting button (for colder temperatures)
E. COOLMATIC function "on" indicator (yellow)
F COOLMATIC button

Temperature setting buttons

The temperature is adjusted using the „B“ and „D“ buttons. These buttons are connected to the temperature display.

- The temperature display is switched over from the display of the ACTUAL temperature (Temperature display is illuminated) to the display of the DESIRED temperature (Temperature display flashes) by pressing one of the two buttons, "B" or "D". - Each time one of the two buttons is pressed again the DESIRED temperature is adjusted by 1 °C. The DESIRED temperature must be reached within 24 hours.

If neither button is pressed, the temperature display automatically switches back after a short period (approx. 5 sec.) to the display of the ACTUAL temperature.

DESIRED temperature means:

The temperature that has been selected for inside the fridge. The DESIRED temperature is indicated by flashing numbers.

ACTUAL temperature means:

The temperature display indicates the current temperature inside the fridge. The ACTUAL temperature is indicated with illuminated numbers.

Temperature display

The temperature display can indicate several pieces of information.in the fridge (ACTUAL temperature) is displayed.

• During normal operation, the temperature currently present in the fridge (ACTUAL temperature) is displayed.
• When the temperature is being adjusted a flashing display indicates the fridge temperature currently set (DESIRED temperature).

Starting Up - Setting the Temperature

1. Plug the mains plug into the mains socket.
2. If the display is off, press the ON/OFF button. The appliances start.
3. Press either the „B“ or „D“ button. The temperature display switches over and the DESIRED temperature currently set flashes on the temperature display.
4. Set the required temperature by pressing the „B“ or „D“ buttons (see section "Temperature setting buttons"). The temperature display will immediately show the changed setting. Each time the button is pressed the temperature is adjusted by 1 °C.

From a food safety point of view +5 °C should be considered sufficiently cold for storing food in the fridge.

1. Once the required temperature has been set, after a short period (approx. 5 sec.) the temperature display will change and again indicate the current ACTUAL temperature inside the fridge. The display will change from flashing to continuous illumination.

Information! When the setting is changed, the compressor does not start immediately if automatic defrosting is currently taking place. As the storage temperature within the fridge is reached quickly you can store food immediately after switching on.

COOLMATIC

The COOLMATIC function is suited for quick cooling of large quantities of goods in the refrigerator.

1. The COOLMATIC function is switched on by pressing the COOLMATIC button. The yellow light illuminates.

The COOLMATIC function now provides for intensive cooling. A DESIRED temperature of +2 °C is automatically selected. The COOLMATIC function is ended automatically after a period of 6 hours.

1. The COOLMATIC function can be ended manually at any time by pressing the COOLMATIC button again. The yellow light goes out.

Holiday function

The holiday function sets the temperature at +15°C. This function allows you to keep the refrigerator shut and empty during a long holiday period (e.g. the summer holidays) without the formation of a bad smell.

1. To turn on the holiday function, press button (B).
2. Press continuously button (B) until the letter "H" (Holiday) appears on the temperature indicator. The temperature indicator can modify the displayed temperature up to +8°C, 1° at a tim. 8°C will be followed by the letter "H". Now the refrigerator is in the "holiday" function in the energy-saving mode.

The fridge compartment must be empty with holiday function on.

Turning OFF the refrigerator compartment

To turn off the refrigerator press the button "B" several times until the symbol "OF" appears in the temperature indicator (C). Press the button "B" again for about 5 seconds. In the temperature indicator there is a "count down" i.e. a backward counting from "3" to "1". When "1" appears the refrigerator is turned off. The temperature indicator switches off.

Interior Accessories

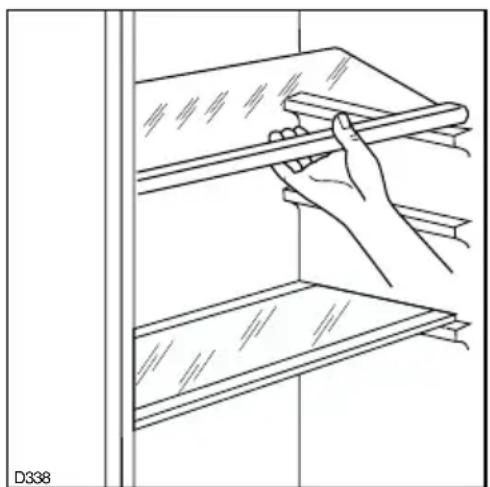

Storage shelves

• You should always slide one of the full size glass storage shelf into the lowest set of guides, above the fruit and the vegetable containers, and keep it in this position.
• The height of the storage shelves can be adjusted:
• To do this pull the storage shelf forward until it can be swivelle-dupwards or downwards and removed.
• Please do the same in reverse to insert the shelf at a different height.

Adjusting the upper door rack

Line drawing of a hand holding a shelf with a tray, no text or symbols present

- Depending on the food stored, the upper door racks can be changed to other holders or removed. Take out the refrigerators food, press the door racks digonally upwards at their edges, reposition them, and press them back into place.

Moisture regulator

There is an adjustable air grille in front of the shelf above the fruit and vegetable compartments. The opening in the ventilation slots can be adjusted with the slider.

Right slider: Ventilation slots opened. With the ventilation slots open, more air circulation results in a lower air moisture content in the fruit and vegetable compartments.

Left slider: Ventilation slots closed.

When the ventilation slots are closed, the natural moisture content of the food in the fruit and vegetable compartments is preserved for longer.

Drawer

The drawer is suitable for storing fruit and vegetables. There is a separator inside the drawer that can be placed in different positions to allow for the subdivision best suited to personal needs.

There is a grille on the bottom of the drawer to separate the fruit and vegetables from any humidity that may form on the bottom surface.

Diagram of hands operating a mechanical device with arrows indicating motion (no text or symbols)

To remove the drawer, use the side handles (as shown in the drawing). All parts inside the drawer can be removed for cleaning purposes.

Bottle holder

Place the bottles (with the opening facing front) in the pre- positioned shelf.

If the shelf is positioned horizontally, place only closed bottles.

This bottle holder shelf can be tilted in order to store previously opened bottles.

To obtain this result, pull the shelf up so it can rotate upwards and be placed on the next higher level.

Line drawing of a mechanical device with coiled wires and a bottle, no text or symbols present

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquide in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circulate freely round it.

Useful hints:

Meat (all types): wrap in polythene bags and place on the glass shelf above the vegetable drawer(s). For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Operating and indicator panel freezer

G. FROSTMATIC function "on" indicator (yellow)

H. FROSTMATIC button

I. Temperature setting button (for warmer temperatures)

J. Temperature display

K. Temperature setting button (for colder temperatures)

L. Alarm reset button

M. Alarm reset light

Temperature setting buttons

The temperature is adjusted using the „I“ and „K“ buttons. These buttons are connected to the temperature display.

- The temperature display is switched over from the display of the ACTUAL temperature (Temperature display is illuminated) to the display of the DESI-RED temperature (Temperature display flashes) by pressing one of the two buttons, „I“ or „K“).

- Each time one of the two buttons is pressed again the DESIRED temperature is adjusted by 1 °C. The DESIRED temperature must be reached within 24 hours.

If neither button is pressed, the temperature display automatically switches back after a short period (approx. 5 sec.) to the display of the ACTUAL temperature.

DESIRED temperature means:

The temperature that has been selected for inside the freezer. The DESIRED temperature is indicated by flashing numbers.

ACTUAL temperature means:

The temperature display indicates the current temperature inside the freezer. The ACTUAL temperature is indicated with illuminated numbers.

Temperature display

The temperature display can indicate several pieces of information.

• During normal operation, the temperature currently present in the freezer (ACTUAL temperature) is displayed.
• When the temperature is being adjusted a flashing display indicates the freezer temperature currently set (DESIRED temperature).

Starting Up - Setting the Temperature

1. Plug the mains plug into the mains socket.
2. If the display is ogg, press ON/OFF button. The alarm light flashes since the temperature is reached. The buzzer sounds.
3. Pressing button "L" the buzzer stops.
4. Press either the „I“ or „K“ button. The temperature display switches over and the DESIRED temperature currently set flashes on the temperature display.

5. Set the required temperature by pressing the „I“ or „K“ buttons (see section "Temperature setting buttons"). The temperature display will immediately show the changed setting. Each time the button is pressed the temperature is adjusted by 1 °C.
   From a food safety point of view -18 °C should be considered sufficiently cold for storing food in the freezer.

6. The alarm light, when the set temperature is reached. Press the alarm button to turn off the buzzer.

FROSTMATIC

The FROSTMATIC function accelerates the freezing of fresh food and, at the same time, protects foodstuffs already stored from undesirable warming.

1. The FROSTMATIC function is switched on by pressing the FROSTMATIC button. The yellow light illuminates.

If the FROSTMATIC function is not ended manually, the appliance turns off the FROSTMATIC function after about 52 hours. The yellow light goes out.

1. The FROSTMATIC function can be ended manually at any time by pressing the FROSTMATIC button again. The yellow light goes out.

Alarm reset button

In the event of an abnormal temperature rise inside the freezer (e.g. power cut) warning light (M) will start to flash and a buzzer will sound.

After the temperature has returned to normal, the warning light (M) will continue to flash, although the buzzer has stopped.

When the alarm button is pressed, the warmest temperature reached in the compartment flashes on the indicator.

Turning OFF the freezer compartment

To turn off the freezer press the button "I" several times until the symbol "OF" appears in the temperature indicator (K). Press the button "I" again for about 5 seconds. In the temperature indicator there is a "count down" i.e. a backward counting from "3" to "1". When "1" appears the freezer is turned off. The temperature indicator switches off.

Switching the Appliance off

To switch off, push the ON/OFF button. The temperature display will go off. Note:

The appliance cannot be switched on or off if unplugged, or if there is no power being supplied to it. Following connection to the mains power supply, the appliance returns to the same operating state as before the interruption of main power.

If the appliance is not going to be used for an extended period:

1. Turn off the appliance (please see the above point 1).
2. Remove the mains plug or switch off or turn out the circuit breaker or fuse.
3. Defrost the freezer compartment and clean the appliance thoroughly (see section: "Cleaning and Maintenance").
4. Finally, leave the doors open so as to avoid a build up of odours.

Freezing and storing frozen food

You can use your freezer for freezing fresh food yourself.

Important!

• The temperature in the freezer compartment must be -18^ or colder before freezing food.
• Please observe the freezing capacity given on the rating plate. The freezing capacity is the maximum quantity of fresh food that can be frozen within a period of 24 hours. If you wish to freeze food several days in a row, please observe a maximum capacity of only 2/3 to 3/4 of that on the rating plate. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.
• Allow warm food to cool down before freezing. The warmth will cause increased ice formation and increase the power consumption.
• Please note the maximum storage times specified by the manufacturer.
• Thawed foods which have not been processed further (cooked into meals) may not under any circumstances be frozen a second time.
• Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers with flammable materials such as, for example, spray cans, fire extinguisher refill cartridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer. They can burst when the contents freeze, high carbonate content drinks can even explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer. Exception: high alcohol content spirits can be stored in the freezer.
• All foods must be packed air tight prior to freezing, so that they do not dry out or lose their flavour, and so that no flavour contamination of other frozen goods occurs.

Caution! Do not touch frozen food with wet hands. Your hands could freeze to the food.

1. To achieve faster freezing of food or to freeze the maximum allowed quantity, depress the FROSTMATIC button 24 hours before loading the food
2. Place the food to be frozen in the top drawer.
3. Not open the door frequently or leave it open longer than absolutely necessary.

Preparation of Ice Cubes

1. Fill the ice cube tray 3/4 full with cold water, place it in the freezer compartment and leave to freeze.
2. To loosen the frozen cubes, either bend the ice cube tray or hold it under running water for a few seconds.

Important! Never try to free an ice tray that is frozen to the freezer compartment using pointed or sharp edged objects. Use the ice scraper supplied.

Freezing Calendar

• The symbols on the drawers show different types of frozen goods.
• The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and pre-treating before freezing. The lower value applies to foods with high fat content.

Ice packs

There are two ice packs in one drawer of the freezer.

In the event of a power failure or malfunction, the ice pack will lengthen the amount of time it takes for the frozen food to become too warm by several hours. The ice pack can only fulfil this task optimally if it is placed in the uppermost drawer, at the front, above the frozen food. You can use the ice pack for cooling cold bags.

Defrosting

Refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

Freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed with the special plastic scraper provided, whenever the tickness of the frost exceeds 4 mm. During this operation it is not necessary to switch off the power supply or to remove the foodstuffs.

However when the ice becomes very thick on the inner liner, complete defrosting should be carried out as follows:

1. Remove the frozen food from the freezer, wrap it in several layers of newspaper and put it in a very cool place.

2. Switch off the appliance and pull out the plug, or remove or unscrew the safety fuses.

3. Leave the freezer compartment door open.

4. Insert the plastic scraper into the recess provided under the defrost water channel and place a collecting basin under it.

Technical line drawing of a mechanical component with a black arrow indicating direction, no text or symbols present

1. Once defrosting is completed keep the scraper for future use;

2. Turn the thermostat knob to the required setting or replace the plug in the power socket.

Warning!

Never use metal tools to scrape off the frost

Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer.

A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

Cleaning and Care

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Warning!

• The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.
• Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapours can lead to the damage of plastic parts.
• The appliance must be dry before it is placed back into service.

Attention!

- Ethereal oils and organic solvents can attack plastic parts, e.g.

– lemon juice or the juice from orange peals;

- butyric acid;

- cleansers which contain acetic acid.

Do not allow such substances to come into contact with appliance parts.

- Do not use any abrasive cleansers.

1. Remove frozen food and the food from the refrigerator. Wrap frozen food in several layers of newspaper. Store it in a cool place, well covered.
2. Defrost the freezer compartment prior to cleaning (see "Defrosting" section).
3. Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.
4. Clean the appliance and the interior accessories with a cloth and lukewarm water. Commercially available dish washing detergents may also be used.
5. After cleaning wipe with fresh water and rub dry.

Accumulation of dust at the condenser increases energy consumption. For this reason carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.

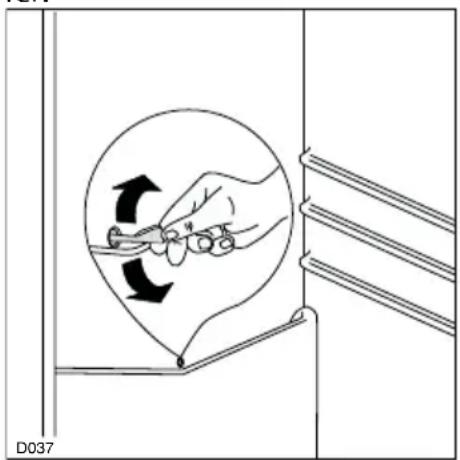

1. Check the water drain hole on the rear wall of the fridge. Clear a blocked drain hole with the aid of the green peg in the pack of accessories included with the appliance.

2. After everything is dry place appliance back into service.

Diagram showing a hand holding scissors inside a circular frame with directional arrows, next to a bracket (no text or symbols)

Energy Saving Tips

• Do not install the appliance near cookers, radiators or other sources of warmth. High ambient temperatures cause longer, more frequent operation of the compressor.
• Ensure sufficient air circulation and exhaust at the appliance base and at the back wall of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to cool first.
• Only leave door open as long as necessary.
• Do not set temperature any colder than necessary.
• Put frozen food in the fridge to defrost. The cold in the frozen food will then be used to cool the fridge.
• Keep the heat emitting condenser, the metall grille on the rear wall of your appliance, always clean.

What to do if ...

Correcting Malfunctions

A malfunction may be caused by only a minor fault that you can rectify yourself using the following instructions. Do not perform any other work on the appliance if the following information does not provide assistance in your specific case.

Warning! Repairs to refrigerators/freezers may only be performed by qualified service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please contact your specialist dealer or our Customer Service.

Malfunction Possible	Cause Remedy
Appliance does not work.	Appliance is not switched on Switch on the appliance.
	Mains plug is not plugged in or is loose.	Insert mains plug.
	Fuse has blown or is defective.	Check fuse, replace if necessary.
	Socket is defective.	Mains malfunctions are to be corrected by an electrician.
Appliance cools too much. Temperature is set too cold.		Turn the temperature regulator to a warmer setting temporarily.
The food is too warm.	Temperature is not properly adjusted.	Please look in the "Initial Start Up" section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulator to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the "Installation location" section.
Interior lighting does not work.	Light bulb is defective.	Please look in the "Changing the Light Bulb" section.
Heavy build up of frost, possibly also on the door seal.	Door seal is not air tight (possibly after changing over the hinges).	Carefully warm the leaking sections of the door seal with a hair dryer (not hotter than approx. 50 °C). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises.	Appliance is not level.	Readjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
The compressor does not start immediately after changing the temperature setting.	This is normal, no error has occurred.	The compressor starts after a period of time.
Water on the floor or on storage shelves.	Water drain hole is blocked.	See the "Cleaning and Care" section.

Changing the light bulb

Warning! There is a risk of electric shocks! Before changing the light bulb, switch off the appliance and unplug it, or pull the fuse or the circuit breaker.

Light bulb data: 220-240 V

1. To switch off the appliance, depress the ON/OFF button.
2. Unplug the mains plug.
3. To change the light bulb press on the rear hook and at the same time slide the cover in the direction indicated by the arrow.
4. Change the defective light bulb with one of the some power (the maximum power is shown on the light diffuser).
5. Refit the light bulb cover.
6. Put the refrigerator back into operation.

Technical line drawing of a mechanical component with an inset showing a close-up view of a component (no text or symbols present)

Regulations, Standards, Guidelines

This appliance was designed for household use and was manufactured in accordance with the appropriate standards. The necessary measures in accordance with appliance safety legislation regulations (GSG), accident prevention regulations for refrigeration appliances (VBG 20) and the regulations of the German Society of Electrical Engineers (VDE) were observed in the manufacture of this appliance.

The refrigerant circuit has been checked for leaks.

This appliance is in accordance with the following EU guidelines:

- 73/23/EWG dated 19 February 1973 - low voltage guidelines.

- 89/336/EWG dated 3 May 1989

(including guideline change notice 92/31/EWG) - EMV guideline

Subject to change without notice
