Product Type	Freestanding fridge-freezer
Brand	AEG-Electrolux
Model	Santo 75340 KG2
Total Height	1850 mm
Total Width	595 mm
Total Depth	632 mm
Weight	Approx. 75 kg (estimated)
Energy Source	220-240 V, 50 Hz
Climate Class	SN, N, ST, T
Freezer Type	No Frost (auto defrost)
Refrigerator Type	Auto defrost
Cooling System	Dynamic Air Cooling (DAC) fan
Functions	COOLMATIC, FROSTMATIC, Holiday, High temperature alarm
Temperature Range Fridge	+2°C to +8°C (adjustable)
Temperature Range Freezer	-18°C to -24°C (adjustable)
Storage Capacity (approx.)	Fridge 200 L, Freezer 80 L (estimated)
Rising Time (freezer)	18 hours
Noise Level	Approx. 42 dB (estimated)
Reversible Door	Yes
Accessories	Movable shelves, bottle rack, vegetable drawer, freezing baskets

Frequently Asked Questions - Santo 75340 KG2 AEG-ELECTROLUX

How do I adjust the temperature in the fridge or freezer?

Press the temperature regulator button (+ or -) on the control panel. The current set temperature is shown on the display. For fridge, recommend +5°C; for freezer, -18°C.

What does the COOLMATIC function do?

The COOLMATIC function provides rapid cooling for large amounts of fresh food. It automatically sets the fridge to +2°C for 6 hours, then returns to normal.

Why is the alarm indicator flashing and a buzzer sounding?

This indicates a high temperature inside the freezer, e.g., after a power failure. Press the alarm reset button to silence the buzzer. The light stops once the temperature returns to normal.

How do I activate the Holiday function?

Press and hold the fridge temperature + button until a letter 'H' appears on the display. This sets the fridge to approx. +15°C to save energy while keeping the fridge empty and odor-free.

Can I reverse the door opening direction?

Yes. Follow the door reversibility instructions in the manual. You will need a second person to hold the doors. The process involves unscrewing hinges, moving handles, and reattaching components.

How do I clean the refrigerator?

Unplug the appliance. Clean inside and accessories with lukewarm water and mild soap. Do not use abrasive powders. Regularly check door seals and clean behind the appliance (condenser) with a brush or vacuum.

Why is water pooling inside the fridge?

Probably the defrost water outlet is clogged. Clean it using the special cleaner provided (found in the drain hole). Also ensure food does not block the rear wall.

What should I do if the interior light does not work?

First, close and reopen the door. If still off, unplug the appliance, remove the lamp cover by unscrewing and unhooking it, then replace the bulb with one of the same wattage (see lamp cover for max power).

How do I defrost the freezer?

This model has a No Frost freezer, so manual defrosting is not needed. Frost is automatically removed by a fan. However, if heavy ice forms, check that the door is properly closed and the gasket is clean.

What does the FROSTMATIC function do?

The FROSTMATIC function accelerates freezing of fresh food and protects already frozen items. It runs for 52 hours and then turns off automatically. Press the FROSTMATIC button to activate or deactivate.

USER MANUAL Santo 75340 KG2 AEG-ELECTROLUX

User manual Fridge Freezer

Line drawing of a hand installing or adjusting a shelf panel on a cabinet (no text or symbols)

Flessenrek

Diagram of a person climbing a rope with directional arrows indicating motion (no text or symbols)

Groentelade

Diagram of a door handle mechanism with arrows indicating upward movement (no text or symbols)

Luchtkoeling

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Waterpas zetten

Technical diagram of a mechanical joint or bracket assembly with a bolt and rotational arrow (no text or symbols)

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

CONTENTS

SAFETY INFORMATION

Children and vulnerable people safety
	23
General safety 23
Daily Use 24
Care and cleaning 24
Installation 24
Service 25

CONTROL PANEL

Switching on 26

Switching off 26

Temperature regulation 26

COOLMATIC function 26

Holiday function 26

FROSTMATIC function 27

High temperature alarm 27

FIRST USE 27

Cleaning the interior	27
DAILY USE	27
Storage of frozen food	27
Thawing	28
Movable shelves	28
Bottle rack	28
Vegetable Drawer	29
Positioning the door shelves	29
Air cooling	30
Removal of freezing baskets from the freezer	30

HELPFUL HINTS2AND TIPS 30

Normal Operating Sounds	30
Hints for energy saving	31
Hints for fresh food refrigeration	31
Hints for refrigeration	31
Hints for freezing	31
Hints for storage of frozen food	32

CARE AND CLEANING 32

Periodic cleaning25	32
Defrosting of the refrigerator	32
Defrosting of the freezer	33

WHAT TO DO IF... 33

Replacing the lamp	35
Closing the door	35

TECHNICAL DATA 35

INSTALLATION	35
Positioning 36
Location	36
Electrical connection	36
Rear spacers 37
Levelling	37
Removing the shelf holders	37
Door reversibility	37
ENVIRONMENTAL CONCERNS	40

Subject to change without notice

SAFETY INFORMATION

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To

avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

- Keep all packaging well away from children. There is risk of suffocation.

- If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

CAUTION!

Keep ventilation openings clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

If the refrigerant circuit should become damaged:

- avoid open flames and sources of ignition - thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

WARNING!

Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.

3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the lamp cover ^5) of interior lighting.

7. This appliance is heavy. Care should be taken when moving it.

8. Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
9. Avoid prolonged exposure of the appliance to direct sunlight.
10. Bulb lamps ^6) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.

Daily Use

• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.
• Do not place food products directly against the air outlet on the rear wall. ^7)
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.

Installation

For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.

• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only. ^8)

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

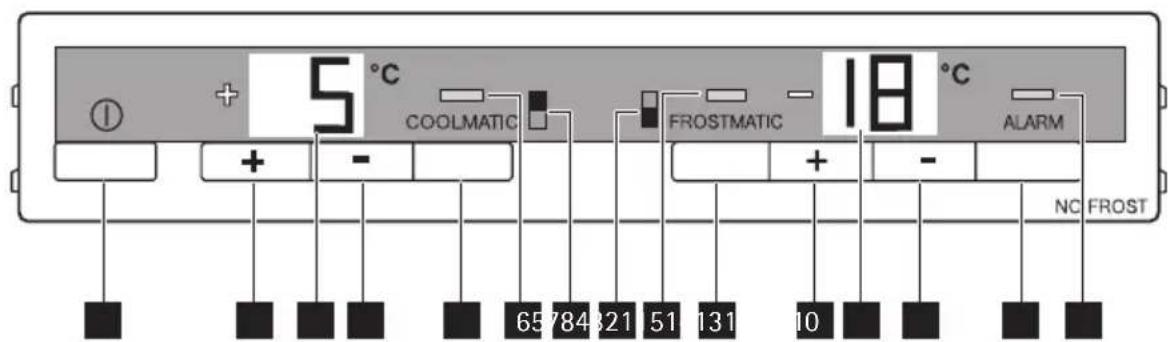

CONTROL PANEL

1 ON/OFF switch
2 Fridge temperature regulator, + button
3 Fridge temperature indicator
4 Fridge temperature regulator, - button
5 COOLMATIC button
6 COOLMATIC indicator
7 Fridge compartment indicator
8 Freezer compartment indicator
9 FROSTMATIC indicator
10 FROSTMATIC button
11 Freezer temperature regulator, + button

12 Freezer temperature indicator
13 Freezer temperature regulator, - button
14 Alarm reset button
15 Alarm indicator

Switching on

1. Insert the plug into the mains socket.
2. Set ON/OFF switch to ON.
3. The alarm indicator light flashes since the temperature is reached.
   The acoustic alarm sounds.
4. Press the alarm reset button to reset the alarm.

Switching off

To switch the entire appliance off:

1. Set ON/OFF switch to OFF.
2. Disconnect the mains plug from the mains socket.

Temperature regulation

The set temperature of the fridge and of the freezer may be adjusted by pressing the temperature regulator button. The temperature indicators show the set temperature.

For a correct storage of the food the following temperatures should be set:

• +5 °C in the fridge
- -18 °C in the freezer.

The set temperature will be reached within 24 hours.

Fluctuations of some degrees around set temperature are normal and does not mean any fault in the appliance.

COOLMATIC function

The COOLMATIC function is suited for quick cooling of large quantities of goods in the refrigerator.

To activate the function, do these steps:

1. Press the COOLMATIC button.
2. The COOLMATIC indicator switches on.

The COOLMATIC function now provides for intensive cooling. A temperature of +2^ is automatically selected.

The COOLMATIC function is ended automatically after a period of 6 hours.

You can deactivate the function at any time:

1. Press the COOLMATIC button.
2. The COOLMATIC indicator switches off.

Holiday function

This function allows you to keep the refrigerator shut and empty during a long holiday period (e.g. the summer holidays) without the formation of a bad smell.

The fridge compartment must be empty when the holiday function is on.

To activate the function:

1. press continuously the temperature regulator (+ button) until the letter "H" (Holiday) appears on the temperature indicator. The Holiday function sets the temperature approx +15°C. The refrigerator is in the energy-saving mode.

To deactivate the function:

1. set the required temperature by pressing the fridge temperature regulator.

FROSTMATIC function

The FROSTMATIC function accelerates the freezing of fresh food and, at the same time, protects foodstuffs already stored from undesirable warming.

To activate the function, do these steps:

1. Press the FROSTMATIC button.

2. The FROSTMATIC indicator switches on.

The FROSTMATIC function is ended automatically after a period of 52 hours.

You can deactivate the function at any time:

1. Press the FROSTMATIC button.

2. The FROSTMATIC indicator switches off.

High temperature alarm

In the event of an abnormal temperature rise inside the freezer (e.g. power cut) alarm indicator light will start to flash and a buzzer will sound.

Push the alarm reset button to stop the buzzer sound, while the alarm indicator light will continue to flash.

The buzzer will stop automatically when the temperature has returned to normal while the alarm indicator light will continue to flash.

Press the alarm reset button. The alarm indicator light goes out and at the same time the freezer temperature indicator show for about 5 seconds the warmest temperature reached in the freezer compartment.

FIRST USE

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

DAILY USE

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours on the higher settings.

In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

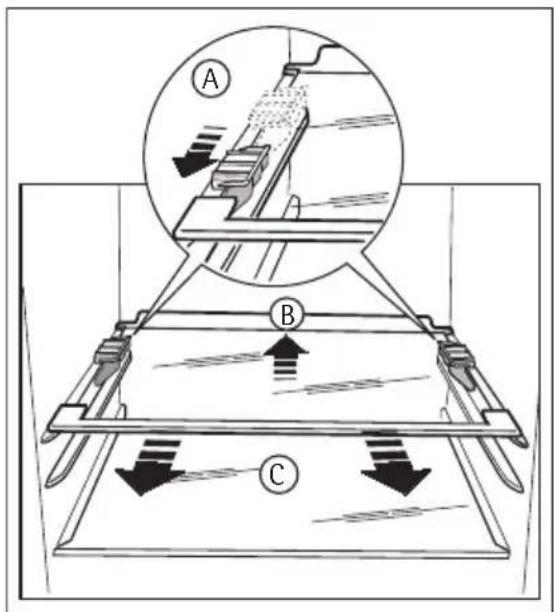

Movable shelves

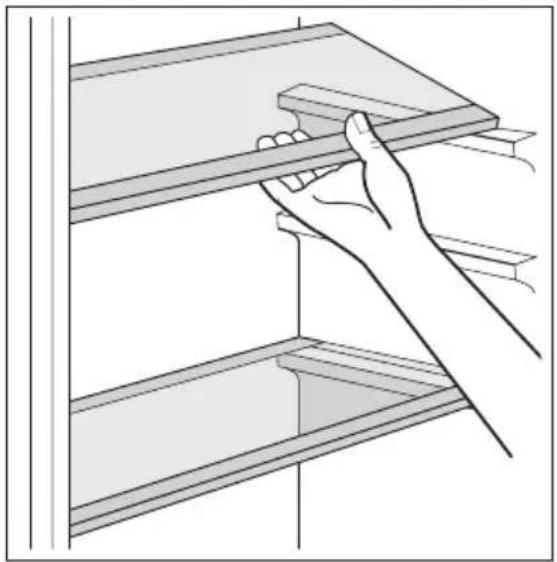

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Line drawing of a hand holding a shelf with a small object, no text or symbols present

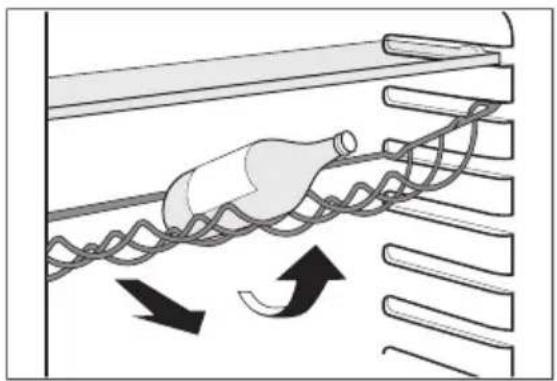

Bottle rack

Place the bottles (with the opening facing front) in the pre-positioned shelf.

If the shelf is positioned horizontally, place only closed bottles.

This bottle holder shelf can be tilted in order to store previously opened bottles. To obtain this result, pull the shelf up so it can rotate upwards and be placed on the next higher level.

Diagram of a bottle partially submerged in a coiled structure with directional arrows indicating flow or movement (no text or symbols)

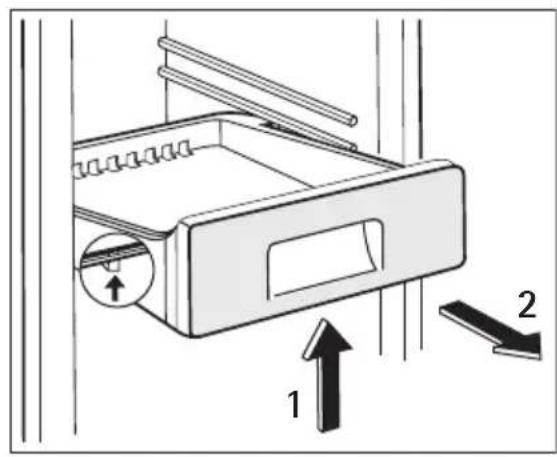

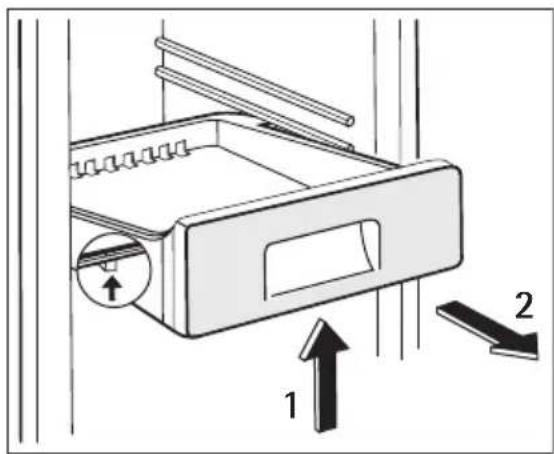

Vegetable Drawer

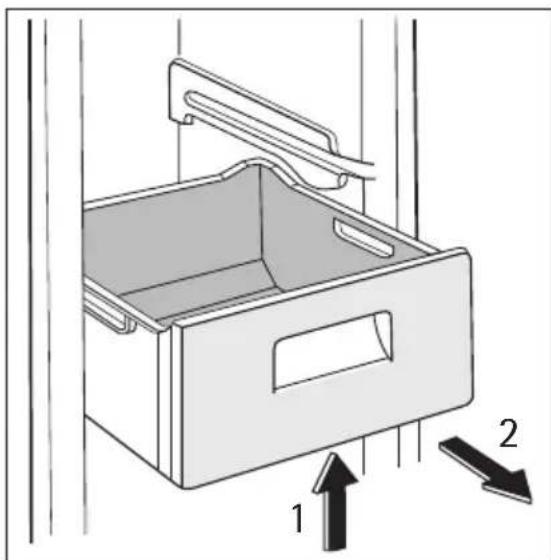

The drawer is suitable for storing fruit and vegetables.

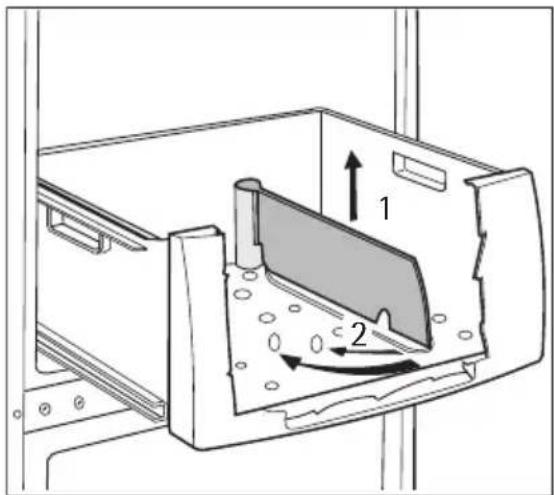

There is a separator inside the drawer that can be placed in different positions to allow for the subdivision best suited to personal needs.

There is a grille (if foreseen) on the bottom of the drawer to separate the fruit and vegetables from any humidity that may form on the bottom surface.

All parts inside the drawer can be removed for cleaning purposes

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

To make these adjustments proceed as follows:

gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.

Diagram of a door handle mechanism with arrows indicating upward movement (no text or symbols)

Air cooling

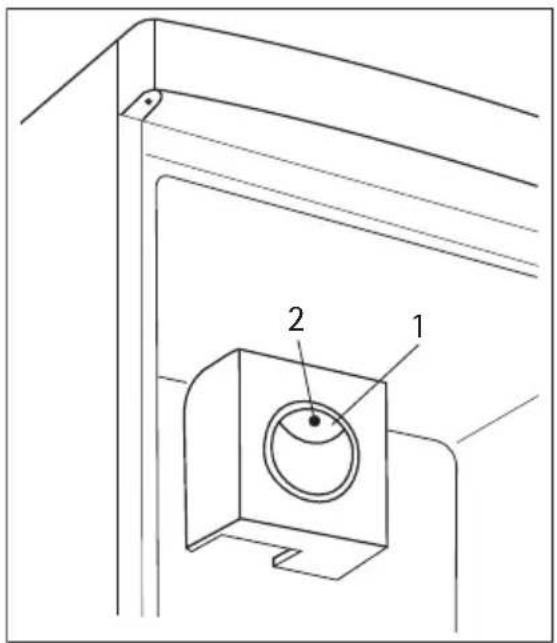

The Dynamic Air Cooling (DAC) fan let food cool quickly and a more uniform temperature in the compartment.

1. You can switch on the fan by pressing the switch (1). The green light (2) comes on. This device allows for rapid cooling of foods and a more uniform temperature in the compartment.

Switch on the fan when the ambient temperature exceeds 25^ C.

Removal of freezing baskets from the freezer

The freezing baskets have a limit stop to prevent their accidental removal or falling out. At the time of its removal from the freezer, pull the basket towards yourself and, upon reaching the end point, remove the basket by tilting its front upwards. At the time of putting it back, slightly lift the front of the basket to insert it into the freezer. Once you are over the end points, push the baskets back in their position.

HELPFUL HINTS AND TIPS

Normal Operating Sounds

- You may hear a faint gurgling and a bubbling sound when the refrigerant is pumped through the coils or tubing. This is correct.

• When the compressor is on, the refrigerant is being pumped around and you will hear a whirring sound and a pulsating noise from the compressor. This is correct.
• The thermic dilatation might cause a sudden cracking noise. It is natural, not dangerous physical phenomenon. This is correct.

Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour
• position food so that air can circulate freely around it

Hints for refrigeration

Useful hints:

Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.

CARE AND CLEANING

CAUTION!

Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• rinse and dry thoroughly.

Do not pull, move or damage any pipes and/or cables inside the cabinet.

Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush or a vacuum cleaner. This operation will improve the performance of the appliance and save electricity consumption.

Take care of not to damage the cooling system.

Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.

After cleaning, reconnect the equipment to the mains supply.

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.

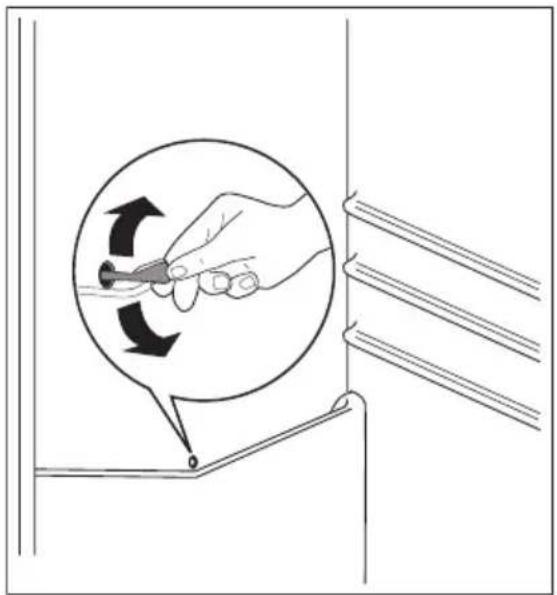

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Defrosting of the freezer

The freezer compartment of this model, on the other hand, is a "no frost" type. This means that there is no buildup of frost when it is in operation, neither on the internal walls nor on the foods.

The absence of frost is due to the continuous circulation of cold air inside the compartment, driven by an automatically controlled fan.

WHAT TO DO IF...

CAUTION!

Before troubleshooting, disconnect the power supply.

Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible cause Solution
The appliance is noisy.	The appliance is not supported properly.	Check if the appliance stands stable (all the four feet should be on the floor).
The compressor operates continually.	The Temperature regulator may be set incorrectly.	Set a warmer temperature.
	The door is not closed correctly.	Refer to "Closing the door".
The door has been opened too frequently.	Do not keep the door open longer than necessary.
The product temperature is too high.	Let the product temperature decrease to room temperature before storage.
The room temperature is too high.		Decrease the room temperature.
The FROSTMATIC function is switched on.		Refer to "FROSTMATIC function".
The COOLMATIC function is switched on.		Refer to "COOLMATIC function".
Water flows on the rear plate of the refrigerator.	During the automatic defrost-ing process, frost defrosts on the rear plate.	This is correct.
Water flows into the refrigerator.	The water outlet is clogged. Clean the water outlet.
Products prevent that water flows into the water collector.		Make sure that products do not touch the rear plate.
Water flows on the ground.	The melting water outlet does not flow in the evaporative tray above the compressor.	Attach the melting water outlet to the evaporative tray.
There is too much frost and ice.	Products are not wrapped properly.	Wrap the products better.
	The door is not closed correctly.	Refer to "Closing the door".
The Temperature regulator may be set incorrectly.		Set a higher temperature.
The temperature in the appliance is too high.	The door is not closed correctly. Refer to "Closing the door".
The product temperature is too high.		Let the product temperature decrease to room temperature before storage.
Many products are stored at the same time.		Store less products at the same time.
The temperature in the refrigeration is too high.	There is no cold air circulation in the appliance.	Make sure that there is cold air circulation in the appliance.
The temperature in the freezer is too high.	Products are too near to each other.	Store products so that there is cold air circulation.
The appliance does not operate.	The appliance is switched off. Switch on the appliance.
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
The appliance has no power.	There is no voltage in the mains socket.	Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
The lamp does not work.	The lamp is in stand-by. Close and open the door.

As much as the advice does not lead to result, call the nearest brand-mark service.

Replacing the lamp

CAUTION!

Disconnect the plug from the mains socket.

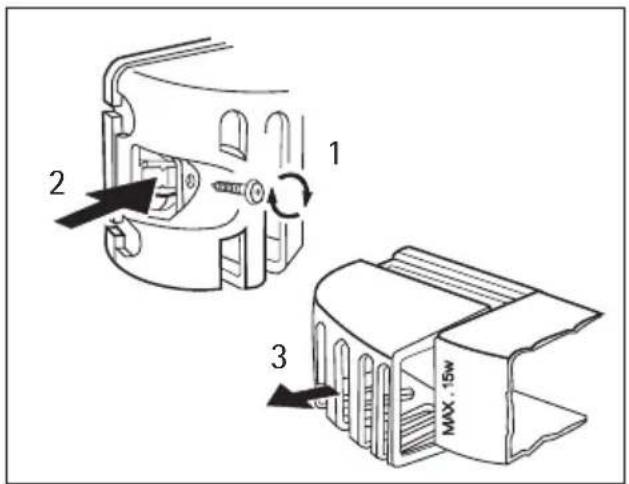

1. Remove the screw from the lamp cover.

2. Pull outwards the hook of the lamp cover.

3. Remove the lamp cover.

4. Replace the lamp with one of the same power (the maximum power is shown on the light bulb cover).

5. Install the lamp cover.

6. Tighten the screw to the lamp cover.

7. Connect the plug to the mains socket.

8. Open the door. Make sure that the light comes on.

Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to "Installation".

3. If necessary, replace the defective door gaskets. Contact the Service Center.

TECHNICAL DATA

S75340KG2 S75380KG2
Dimension
Height 1850 mm 2010 mm
Width 595 mm 595 mm
Depth 632 mm 632 mm
Rising Time 18 h 18 h

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

INSTALLATION

WARNING!

Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Location

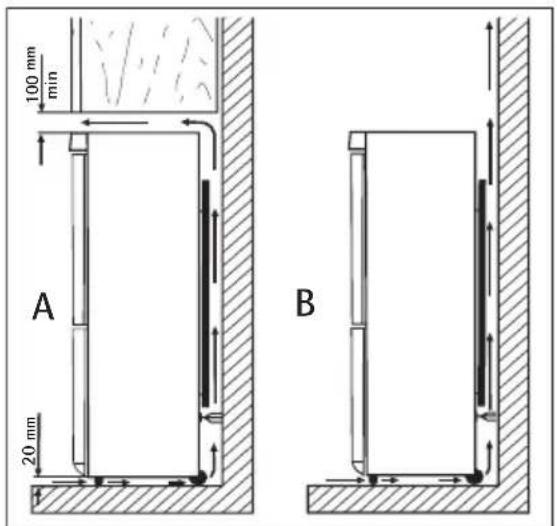

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate levelling is ensured by one or more adjustable feet at the base of the cabinet.

WARNING!

It must be possible to disconnect the appliance

from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.

The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

Rear spacers

In the bag with the documentation, there are two spacers which must be fitted as shown in the figure.

Slacken the screws and insert the spacer under the screw head, then tighten again the screws.

Levelling

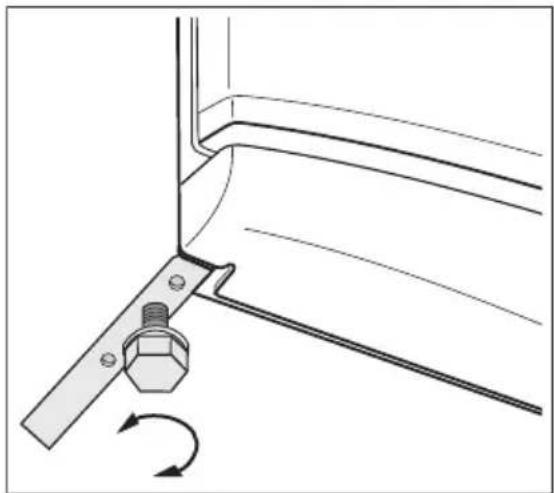

When placing the appliance ensure that it stands level. This can be achieved by two adjustable feet at the bottom in front.

Technical line drawing of a mechanical joint or bracket assembly with a bolt and rotational arrow (no text or symbols)

Removing the shelf holders

Your appliance is equipped with shelf retainers that make it possible to secure the shelves during transportation.

To remove them proceed as follows:

1. Move the shelf holders in the direction of the arrow (A).
2. Raise the shelf from the rear and push it forward until it is freed (B).
3. Remove the retainers (C).

Door reversibility

WARNING!

Before carrying out any operations, remove the plug from the power socket.

To carry out the following operations, we suggest that this be made with another person that will keep a firm hold on the doors of the appliance during the operations.

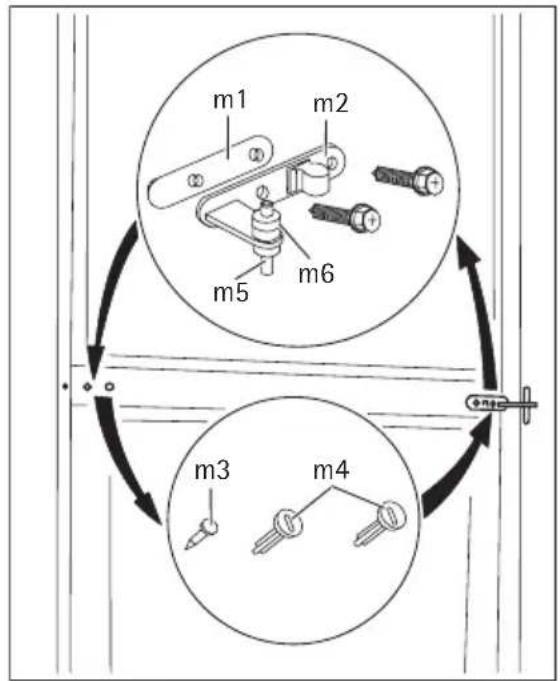

1. Open the doors. Unscrew the middle hinge (m2). Remove the plastic spacer (m1).
2. Remove the spacer (m6) and move to the other side of the hinge pivot (m5).
3. Remove the doors.
4. Remove the left-hand cover pin of the middle hinge (m3,m4) and move to the other side.
5. Fit the pin of the middle hinge (m5) in-to the left-hand hole of the lower door.

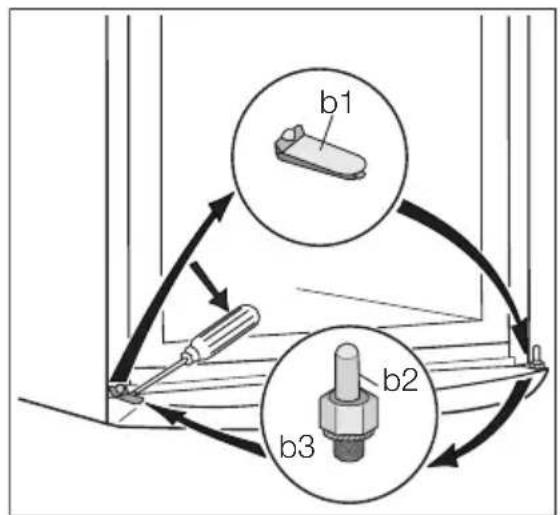

1. Remove using a tool the cover (b1). Unscrew the lower hinge pivot (b2) and the spacer (b3) and place them on the opposite side.
2. Re-insert the cover (b1) on the opposite side.

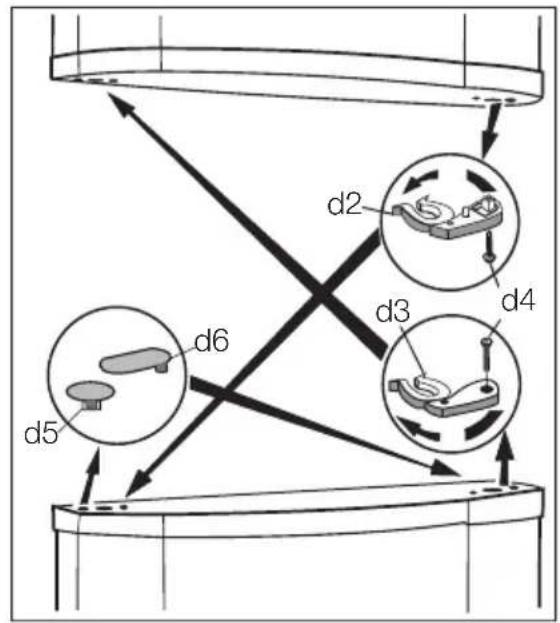

1. Reverse the door locking elements (d2,d3), move to the other side of the other door and fix by screwing in the screw (d4).
2. Re-insert the stoppers (d5,d6) on the other side of the doors.
3. Re-insert the lower door on the lower hinge pivot (b2).
4. Insert the middle hinge (m2) into the left drill of the lower door.


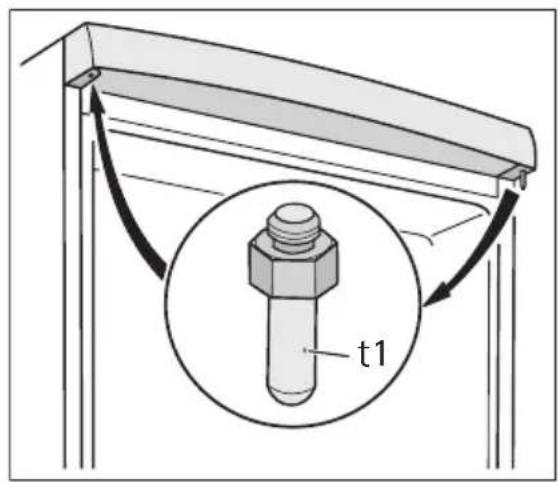

1. Unscrew the upper hinge pivot (t1) and place it on the opposite side.
2. Fit the upper door on the upper door pivot.
3. Re-insert the upper door on the middle hinge pivot (m5) slightly tilting both doors.
4. Re-screw the middle hinge (m2). Do not forget the plastic spacer (m1).

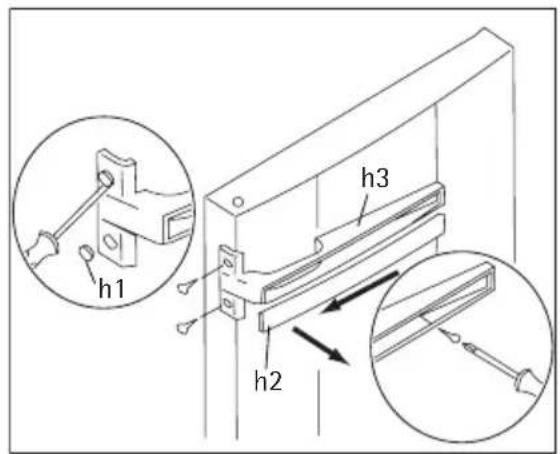

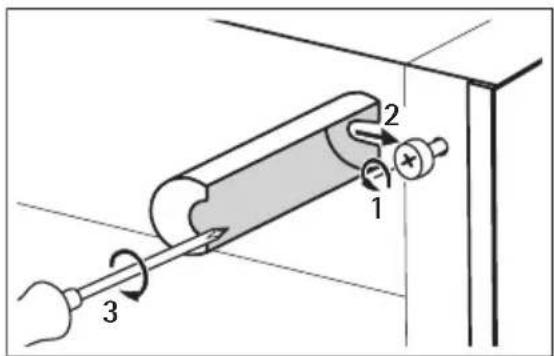

1. Remove the cover pins (h1). Remove the cover (h2).
2. Unscrew the handles (h3) and fix them on the opposite side.
3. Re-insert the cover (h2) and the cover pins (h1).

Do a final check to make sure that:

• All screws are tightened.
  • The magnetic seal adheres to the cabinet.
• The door opens and closes correctly.
  If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to

the cabinet. In that case, wait for the natural fitting of the gasket.

In case you do not want to carry out the above mentioned operations, contact the nearest After Sales Service Force. The After Sales Service specialist will carry out the reversibility of the doors at your cost.

ENVIRONMENTAL CONCERNS

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Line drawing of a hand installing or adjusting a shelf panel on a cabinet (no text or symbols)

Diagram of a person climbing a rope with directional arrows indicating motion (no text or symbols)

Diagram of a door handle mechanism with arrows indicating upward motion (no text or symbols)

Illustration of a hand holding a tool inside a circular component, with arrows indicating rotation and a small object at the base (no text or symbols)

Livellamento

Technical line drawing of a mechanical joint or bracket assembly with a bolt and rotational arrow (no text or symbols)

www.aeg-electrolux.com/shop

Four icon-based line drawings showing different product categories: washing machine, washing machine with gear, shopping cart, and shopping cart (no text or symbols)

CE
