| Product Type | LCD Television |
| Brand | Finlux |
| Model | 37FLHD760 |
| Screen Size | 37 inches (94 cm) |
| Display Resolution | Full HD 1920 x 1080 |
| Tuner | DVB-T (digital), analog VHF/UHF/cable |
| Number of Channels | 100 presets |
| HDMI Inputs | 2 (supports 1080p) |
| SCART Sockets | 2 (AV in/out) |
| Other Inputs | Component (Y Pb Pr), PC VGA, AV, Audio Line In |
| Audio Outputs | Headphone, Audio Line Out, Subwoofer Out, S/PDIF |
| Sound System | Stereo with SRS TruSurround XT |
| Special Features | Teletext, PIP/PAP/PAT, Child Lock, Sleep Timer, Auto Standby |
| PC Compatibility | Plug & Play for Windows 98/ME/2000/XP/Vista |
| Power Supply | 220-240 V AC, 50 Hz |
| Power Consumption | Approximately 150 W (typical) |
| Dimensions (W x H x D) | Approx. 90 x 60 x 10 cm (without stand) |
| Weight | Approx. 15 kg |
| Remote Control Batteries | 2 x AAA (included) |
| Cleaning Instructions | Unplug, use soft dry cloth; no liquid cleaners |
Frequently Asked Questions - 37FLHD760 Finlux
User questions about 37FLHD760 Finlux
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Television in PDF format for free! Find your manual 37FLHD760 - Finlux and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 37FLHD760 by Finlux.
USER MANUAL 37FLHD760 Finlux
bedienungsanleitung
Contents
Features 3
Accessories 3
Introduction 4
Preparation 4
Safety Precautions 4
Overview of the Remote Control 6
LCD TV and Operating Buttons 7
Viewing the Connections 8
Power Connection 10
Aerial Connection 10
Connecting the LCD TV to a PC 11
Connecting to a DVD Player 12
Using Side Connectors 13
Connecting Other Equipment via Scart 14
Input Selection 14

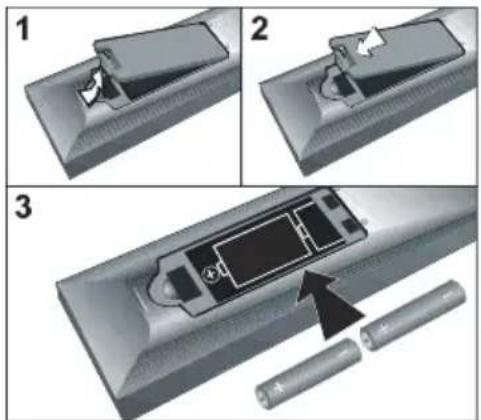

Inserting Batteries in the Remote Control
Handset 15
Operating Range for the Remote Control 15
Switching the TV On/Off 16
To switch the TV on: 16
To Switch the TV Off 16
Navigating the Menu System 16
Initial Settings 17
General Operation 18
Information Banner 18
Electronic Programme Guide (EPG) 18
Over Air Download 19
Displaying the Subtitles 20
Teletext 20
IDTV Menu System 20
Channel List 20
Navigating the Entire Channel List 20
Moving the channels in the channel list ..... 20
Deleting the Channels in the Channel List ... 21
Renaming channels 21
Adding Locks to Channels 21
Setting Favourites 22
How to Add a Channel to a Favourites List . 22
Removing a Channel from a Favourite List .. 22
Using BLUE Button to Navigate through the
Favourite Channels 23
On Screen Help 23
Installation 23
Automatic Search 23
Manual Search 24
First Time Installation 24
Configuration 25
Favourite Mode 25
Channel List 25
Language Settings 25
System Language 26
Audio Language.... 26
Subtitle Language 26
Parental Settings 26
Maturity Lock 26
Menu Lock 26
Set Lock Key 27
Time Settings 27
Receiver Upgrade 27
Timers 27
TV Setup 28
Common Interface 28
Menu System 29
Picture Menu 29
Mode 29
Contrast/Brightness/Sharpness/Colour/Hue 29
Colour Temp 29
Noise Reduction 30
Film Mode 30
Store 30
Reset 30
Sound Menu 30
Volume 30
Equalizer 30
Balance 30
Headphone.... 30
Volume 30
Balance 30
Sound Mode 31
AVL 31
Effect 31
Dynamic Bass 31
SRS TruSurr XT 31
Subwoofer.... 31
Store 31
Feature Menu.... 31
Sleep Timer 31
Child Lock 31
Language 32
EXT-2 Out 32
Default Zoom 32
Blue Background 32
Menu Background 32
Menu Timeout 32
Teletext Language 32
Install Menu 33
Program 33
Band 33
Channel 33
Colour System 33
Sound System 33
Fine Tune 33
Search 33
VCR 33
Store Program 33
Program Menu 33
Name 34
Insert 34
Delete.... 34
APS (Auto Programming System) ...... 34
Country 34
Install Menu in AV Modes 34
Colour System 34
VCR 35
Store Program 35
Source Menu 35
PC Mode Menu System 35
Sound Menu 35
Feature Menu 35
PC Picture Menu 35
PC Picture Position Menu.... 35
Autoposition 36
H (Horizontal) Position 36
V (Vertical) Position 36
Dot Clock 36
Phase 36
No-Signal and Out Of Range Detection (PC mode) 36
Displaying TV Information 36
Mute Function 36
PIP (Picture-in-Picture) and PAP (Picture-and-
Picture) Modes 37
Freezing Picture 37
Zoom Modes 37
Auto 37
Full 37
4:3 37
Panoramic 37
14:9 Zoom 38
Cinema 38
16:9 Subtitle 38
Teletext 38
Tips 39
Screen Care 39
No Power.... 39
Poor Picture 39
Input Sources 39
CI Module 39
Appendix A: PC Input Typical Display Modes ..... 40
Information for users applicable in European
Union countries 40
Appendix B: Main and PIP-PAP Picture
Combinations 41
Appendix C: AV and HDMI Signal Compatibility ... 42
Appendix D: Pin Specifications 43
Specifications 44
Features
- Remote controlled colour LCD TV.
• Fully integrated digital TV (DVB-T).
- It has two HDMI connectors for digital video and audio. This connection is also designed to accept high definition signals.
• Full HD (1920x1080).
- 100 programmes from VHF, UHF bands or cable channels can be preset.
- It can tune cable channels.
- OSD menu system.
- It has 2 scart sockets for external devices (such as video, video games, audio set, etc.).
- AV in available.
- Stereo sound system (SRS Trusurround XT)
- Teletext, fastext, TOP text.
• Headphone connection.
• Automatic programming system.
- Forward or backward automatic tuning.
- Sleep timer.
- Child lock.
• Automatic sound mute when no transmission.
- NTSC playback.
- PIP / PAP / PAT functions.
• AVL (Automatic Volume Limiting).
- When no valid signal is detected, after 5 minutes the TV switches itself automatically to standby mode.
- PLL (Frequency Search).
- PC input.
- Plug&Play for Windows 98, ME, 2000, XP, Vista.
- Audio line out.
Accessories
Remote Controller
Batteries
2 X AAA
Introduction
Thank you for choosing this product. This manual will guide you for the proper operation of your TV. Before operating the TV, please read this manual thoroughly.
Please do keep this manual in a safe place for future references.
Preparation
For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set.
Use this device in moderate climates.
Safety Precautions
Please read the following recommended safety precautions carefully for your safety.
1. Power Source
The TV set should be operated only from a 220-240 V AC, 50 Hz outlet. Ensure that you select the correct voltage setting for your convenience.
2.Power Cord
Do not place the set, a piece of furniture, etc. on the power cord (mains lead) or pinch the cord. Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such a way that they are not likely to be stepped on. A damaged power cord can cause fire or give you an electric shock. When it is damaged and needs to be changed, it should be done by qualified personnel.
3.Moisture and Water
Do not use this equipment in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this equipment to rain or water, as this may be dangerous and do not place objects filled with liquids, such as flower vases, on top. Avoid from dripping or splashing.
If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.
4.Cleaning
Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.
5. Ventilation
The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.
6. Heat and Flames
The set should not be placed near to naked flames and sources of intense heat, such as an electric heater. Ensure that no naked flame sources, such as lighted candles, are placed on top of the TV. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
7. Lightning
In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.
8. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts which are specified by the manufacturer or have the same specifications as the original one. Unauthorized substitutions may result in fire, electrical shock, or other hazards.
9. Servicing
Please refer all servicing to qualified personnel. Do not remove the cover yourself as this may result in an electric shock.
10. Waste Disposal
Instructions for waste disposal:
- Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children.
- Battery, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environmentally sound manner. Find out about the legal regulations which apply in your area.
- Cold cathode fluorescent lamp in LCD PANEL contains a small amount of mercury; please follow local ordinates or regulations for disposal.
11. Disconnect Device
The mains plug is used to disconnect TV set from the mains and therefore it shall remain readily operable.
12.
Excessive sound pressure from earphones and headphones can cause hearing loss.
13.
To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).
"The LCD panel is very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product."
"DO NOT LEAVE YOUR TV ON STAND-BY OR OPERATING WHEN YOU LEAVE YOUR HOUSE"
① Mode Selection Leds
② Stand By
③ Direct Program
④ No Function
⑤ Programme Up
⑥ Volume Down / Volume Up
⑦ Menu
⑧ Previous Program
9 Cursor Buttons
⑩ Teletext / Picture and TXT
11 Info
⑫ Image Size / Expand
⑬ Install
⑮ Picture
⑯ Sound
⑰ MIX / PIP/PAP On-Offf
18 Index
⑲ Mono / Stereo / Dual I-II
20 Okay / Freeze
21 TV / DTV
22 Programme Down
23 Mute
24 External Source
25 RC MODE SELECTION
⑭ Feature / Audio Language On/Off in DTV
LCD TV and Operating Buttons


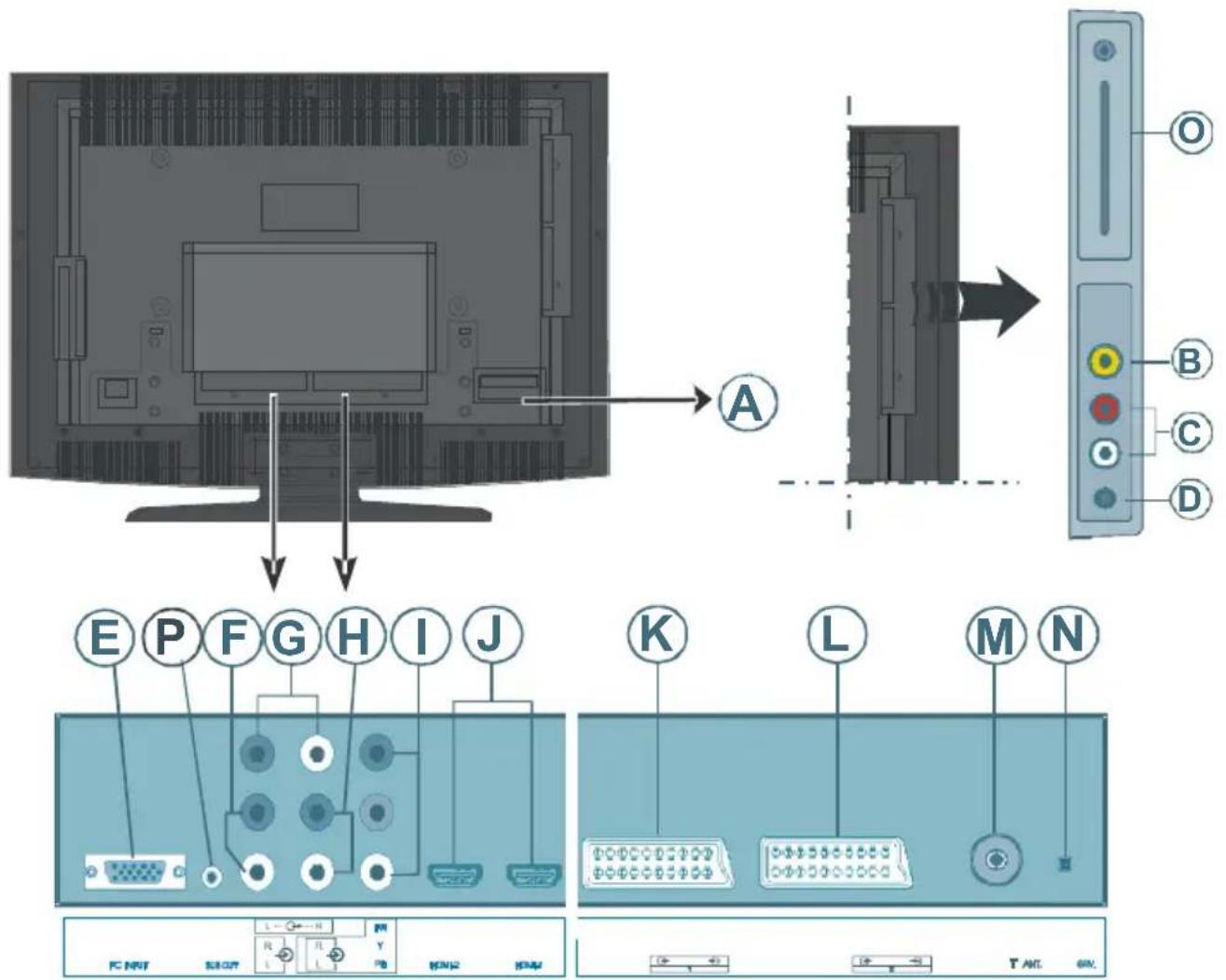

Ⓐ Power Cable
B Video Input is used for connecting video signals of external devices.
Connect the video cable between the VIDEO IN socket on the TV and the VIDEO OUT jack on your device.
© Audio Inputs are used for connecting audio signals of external devices.
Connect the audio cable between the AUDIO INPUTS on the TV and the AUDIO OUTPUT jacks on your device.

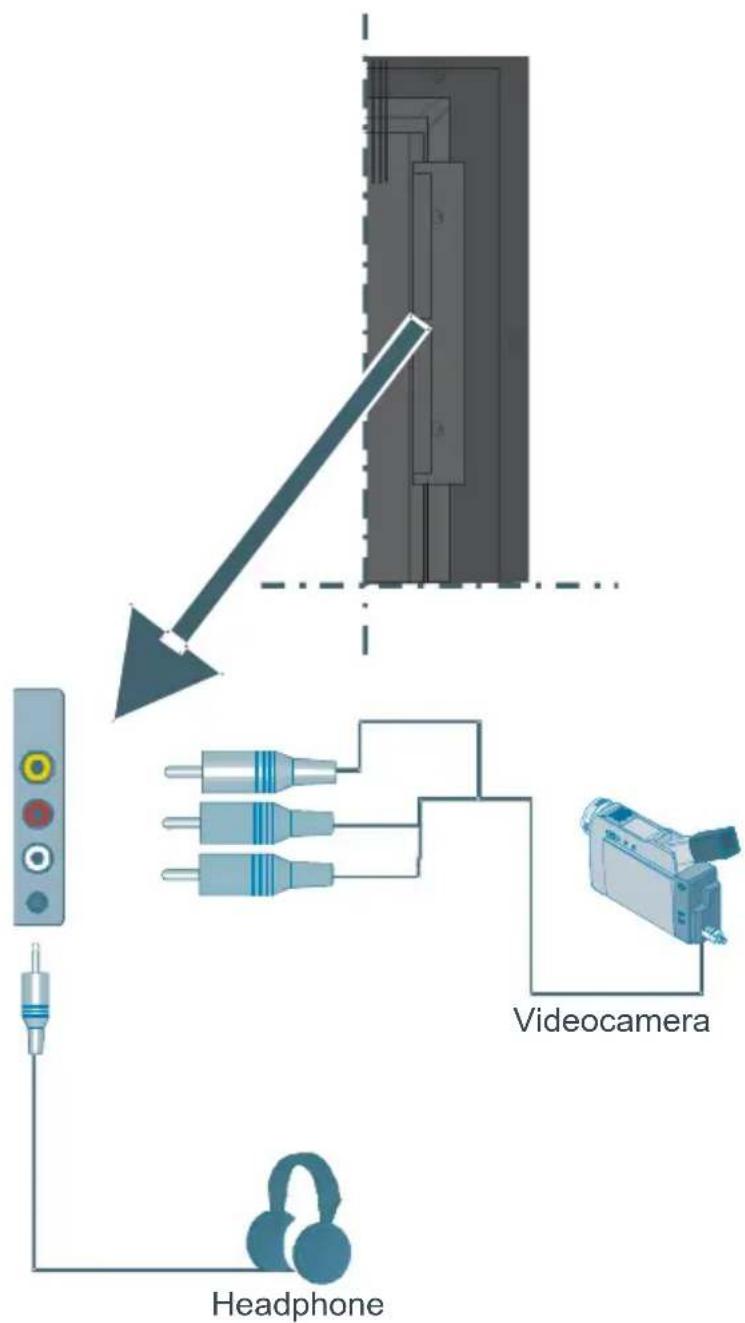

⑭ Headphone jack is used for connecting an external headphone to the system.
Connect to the HEADPHONE jack to listen to the TV from headphones (optional).
E PC Input is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.
F PC Audio Inputs connects to audio jacks of your PC to enable PC audio.
Connect the PC audio cable between the PC AUDIO INPUTS on the TV and audio output of your PC.
© Audio Line Outs output audio signals to an external device such as an optional sound system.
To connect the external speakers to your TV, use AUDIO LINE OUTS of the TV with an audio cable.
⑧ Component Audio Inputs are used for connecting component audio.
Connect the audio cable between COMPONENT AUDIO INPUTS on the TV and audio outputs of your device.
① Component Video Inputs (YpBPr) are used for connecting component video.
You can connect the component video and audio sockets with a device that has component output. Connect the component video cables between the COMPONENT VIDEO INPUTS on the TV and the component video outputs of your device. While connecting, be sure that the letters on your TV, "Y", "Pb", "Pr" correspond with your device's connectors.
① HDMI Inputs are for connecting a device that has an HDMI socket.
Your LCD Television is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 720p or 1080i signals. Also, only HDMI modes accept 1080p signals. No sound connection is needed for an HDMI to HDMI connection.
SCART 1 inputs or outputs for external devices.
Connect the SCART cable between SCART sockets on TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player).
Note: If an external device is connected via the SCART sockets, the TV will automatically switch to AV mode. If both sockets are employed at the same time, SCART 1 becomes the preferential.
L SCART 2 inputs or outputs for external devices.
M RF Input connects to an antenna or a cable.
Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration below.
① This connector is for service use only..
① CI Slot and SPDIF Out. CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that you subscribe to. For more information, see “Common Interface” section. S/PDIF Out is used for transferring digital audio signals. Use an RCA cable to transfer audio signals to a device that has S/PDIF input.
Subwoofer Out is for connecting an external, active subwoofer to the set to give a much deeper bass effect.
Use an appropriate RCA cable to connect the set to a subwoofer unit.
Power Connection
IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.
• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.
- Plug the power cable to the mains socket outlet.
Aerial Connection
- Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.

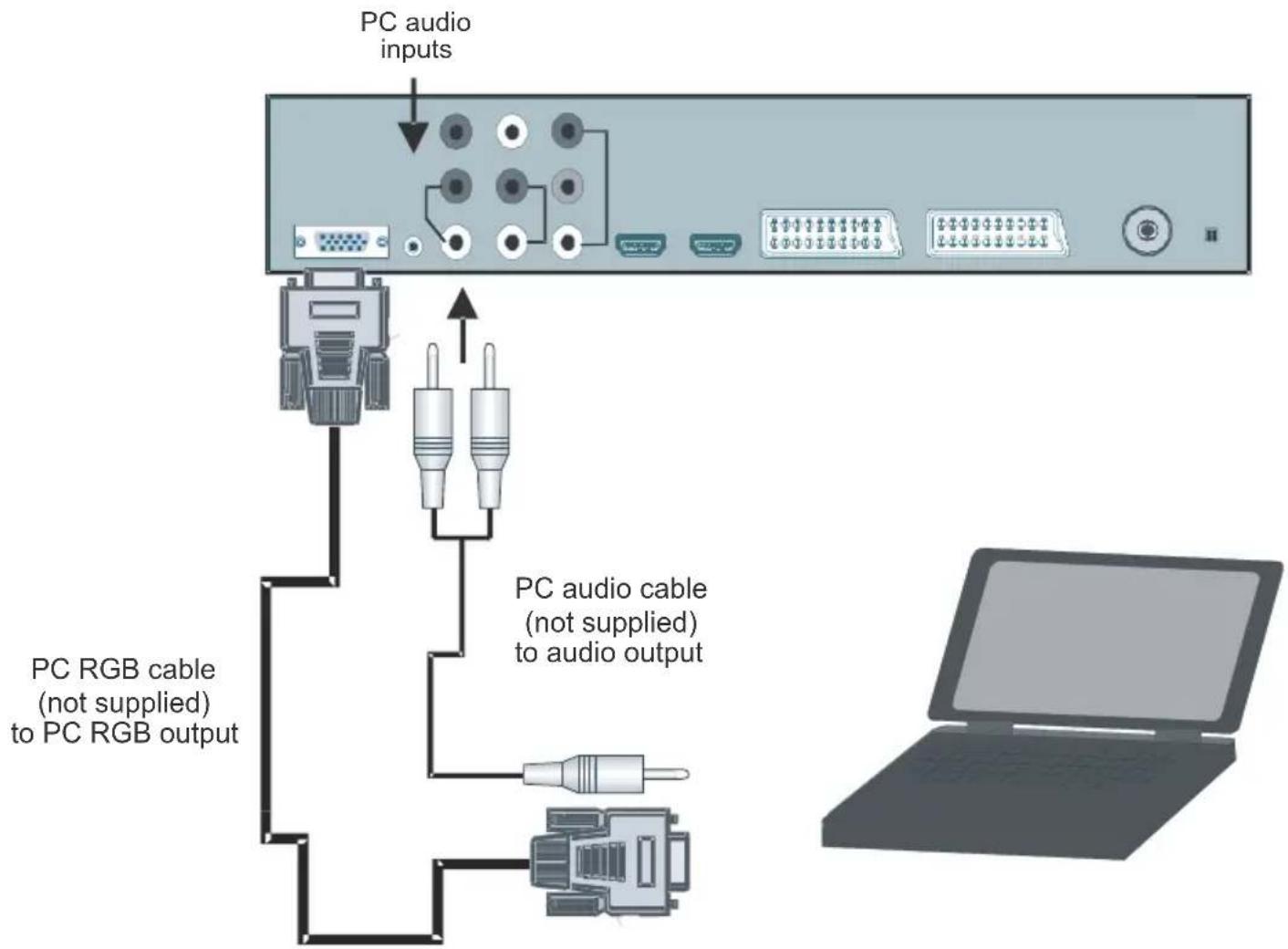

Connecting the LCD TV to a PC
For displaying your computer's screen image on your LCD TV, you can connect your computer to the TV set.
- Power off both computer and display before making any connections.
- Use 15-pin D-sub display cable to connect a PC to the LCD TV.
- When done, switch to PC source. See, "Input selection" section.
- Set the resolution that suits your viewing requirements.
Connecting to a DVD Player
If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player's instruction book for additional information. Power off both the TV and the device before making any connections.
Note: Cables shown in the illustration are not supplied.
- If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to DVD player as illustrated below, switch to HDMI source. See, “Source menu” section.
- Most DVD players are connected through COMPONENT SOCKETS. Use a component video cable to connect video input. For enabling audio, use a component audio cable as illustrated below. When done, switch to YPbPr source. See, "Input selection" section.
- You may also connect through the SCART 1 or SCART 2. Use a SCART cable as shown below.
Using Side Connectors
You can connect a range of optional equipment to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.
- For connecting a camcorder, connect to the VIDEO IN socket and the AUDIO SOCKETS. Do not connect the camcoder to VIDEO IN socket at the same time since it can cause noise in the picture. For selecting the related source, see the section “Input selection” in the following parts.
- To connect external speakers, use an audio cable. Do not reverse the AUDIO LEFT and AUDIO RIGHT jacks. Turn on the LCD TV and external speaker set after all connections are made. Refer to your speaker set's manual for further queries.
• To listen the sound from headphones, connect to the HEADPHONE jack of theTV.
- For connecting a subwoofer, connect to the SUBWOOFER OUT.
Connecting Other Equipment via Scart
Most devices support SCART connection. You can connect a DVD recorder, a VCR or a decoder to your LCD TV by using the SCART sockets. Note that cables shown in the illustration are not supplied.
Power off both the TV and the devices before making any connections.
For more information, refer to your device's own instruction book.


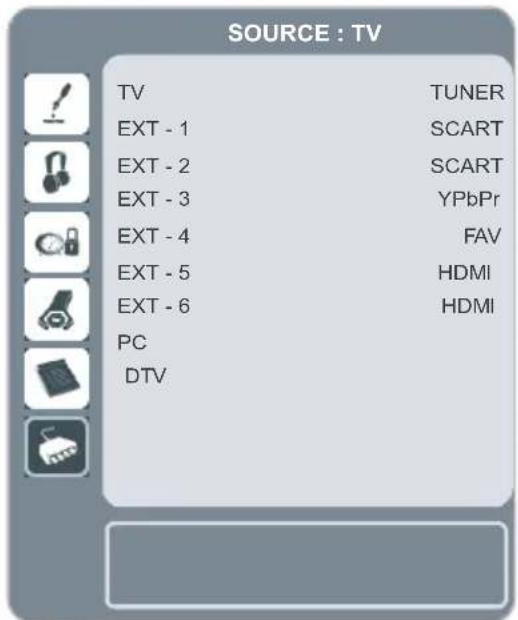

Input Selection
Once you have connected external systems to your TV, you can switch to different input sources.
- Press AV button on your remote control for directly changing sources.
or, - Select "Source" option from the main menu by using ▲ or ▼ button and press OK button.
Use then ▲ or ▼ button to highlight an input and press OK button to select.
Inserting Batteries in the Remote Control Handset
WARNING: Remote control is battery included. A plastic protector is used to disconnect the batteries in order to prevent the battery life from reducing. Please remove the plastic protector before the first use.
- Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part.
- Insert twoAAA/R3 or equivalent type batteries inside. Place the batteries in the right directions and replace the battery cover.
Note: Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries.
Operating Range for the Remote Control
- Point the top of the remote control toward the LCD TV's remote sensor LED while pressing a button.
Remote range is approximately 7m/23ft.
Switching the TV On/Off
To switch the TV on:
Your TV will switch on in two steps:
1- Connect the power to 220-240V AC 50Hz. Press stand-by button. Then the TV switches itself to stand-by mode (Optional).
2- To switch on the TV from stand-by mode either:
Press a digit button on the remote control so that a channel number is selected, or Press the -P/CH or P/CH+ button on the TV or press the Ch+ or Ch- button on the remote control, so that last mode switched off is selected.
By either method the TV will switch on.
To Switch the TV Off
Press stand-by button on the remote control or stand-by button on the TV so the TV will switch to standby mode. To power down the TV completely, unplug the power cord from the mains socket.
Navigating the Menu System
- Contents
- Features
- Accessories
- Introduction
- Preparation
- Safety Precautions
- Power Source
- 2.Power Cord
- 3.Moisture and Water
- 4.Cleaning
- Ventilation
- Heat and Flames
- Lightning
- Replacement Parts
- Servicing
- Waste Disposal
- Disconnect Device
- 12.
- 13.
- LCD TV and Operating Buttons
- Viewing the Connections
- Power Connection
- Aerial Connection
- Connecting the LCD TV to a PC
- Connecting to a DVD Player
- Using Side Connectors
- Connecting Other Equipment via Scart
- Input Selection
- Inserting Batteries in the Remote Control Handset
- Operating Range for the Remote Control
- Switching the TV On/Off
- To switch the TV on:
- To Switch the TV Off
- Navigating the Menu System
Brand : Finlux
Model : 37FLHD760
Category : Television
