USER MANUAL DAB 402 SCHAUB LORENZ

Line drawing of a handheld electronic device with a coiled cable and labeled pin number 15 (no text or symbols on the device itself)

92.75MHz Scanning...

F.7

92.75MHz
Scanning...

Sucheinstellung (Scan Setting)

Preset 1 Stored

Factory reset? Yes

DE

Kopfhöreranschluss

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Water and Moisture – Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.
5. Setup – The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.
6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings. Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
10. Cables and Plugs – The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.
12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
13. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

14. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:
    a) The power-supply cord or the plug has been damaged; or
    b) Objects have fallen, or liquid has been spilled into the appliance; or
    c) The appliance has been exposed to rain; or
    d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
    e) The appliance has been dropped, or the enclosure damaged.

15. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

16. Open Fire – Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.

17. Thunderstorms – During a thunderstorm the mains plug should be unplugged.

18. Safety Check – After servicing the technician should conduct a safety check in order to

ensure that the apparatus is working properly and safely.

1. Batteries – Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.
2. Volume Levels – To prevent possible hearing damage, do not listen at high volume levels for long periods.
3. Headphones – Excessive sound pressure from earphones and headphones can cause hearing loss.

CAUTION

RISK OF ELECTRO SHOCK

DO NOT OPEN

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Product Overview

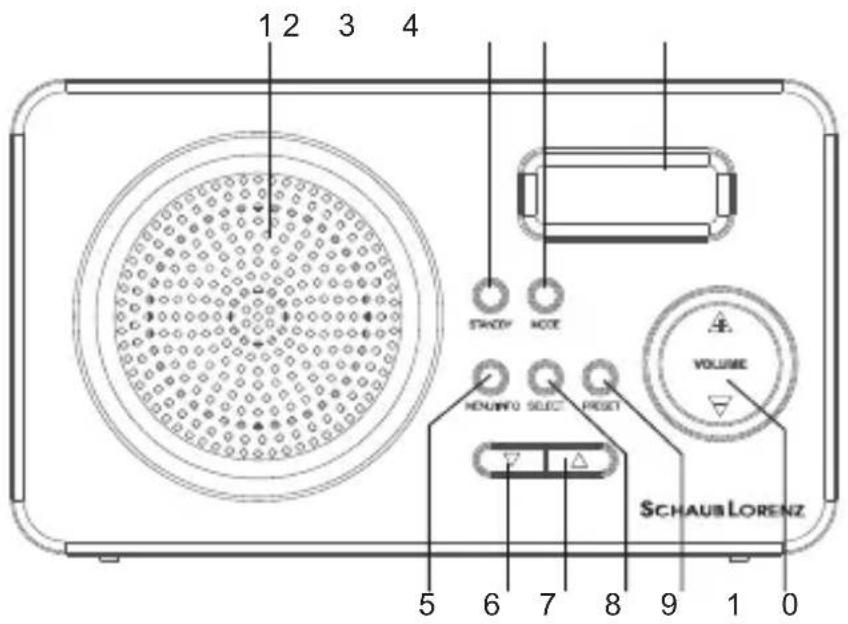

1 2 3 4 STICKY NOTE VOLUME NDUFO SELECT RESET Schaus Lorenz 5 6 7 8 9 1 0

11 DC DC+V 3 12

13 14

Line drawing of a handheld electronic device with a coiled cable and labeled pin number 15 (no text or symbols on the device itself)

1. Speaker
2. STANDBY button
3. MODE button
4. LCD Display

5. MENU/INFO button

6. TUN/CH▼ button

7. TUN/CH▲ button
8. SELECT button
9. PRESET button

10. VOL+/- button

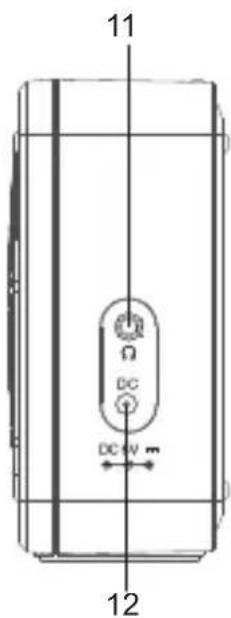

11. Headphone jack

12. DC Input socket
13. Antenna

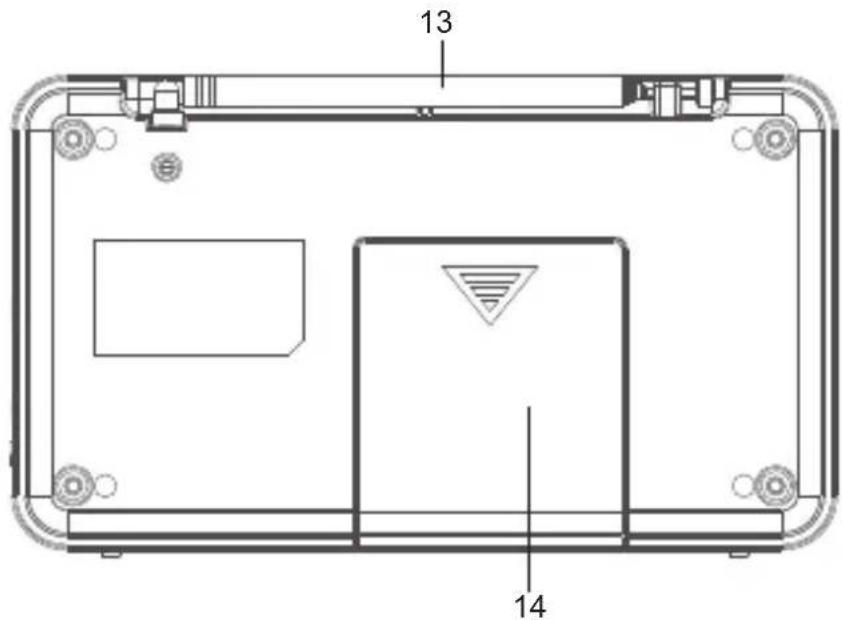

14. Battery door
15. Adaptor

Power Supply

Power Adaptor

1. The unit requires DC 6V = 0.5A.
2. Plug the supplied adaptor cable into the DC input socket of the unit and the other end into a suitable wall socket.
3. Make sure that the output power of the wall outlet matches the required power of the

adaptor.

Note:

- If not using the unit for a longer period of time, unplug the adaptor from the wall outlet and from the unit.

Battery Power

1. Ensure that the AC/DC adaptor is disconnected from the radio and the mains power supply.
2. Insert 4x 1.5V size UM-3/AA batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when the appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

Note:

• Use batteries of the same type. Never use different types of batteries together.
• To use the appliance with batteries, disconnect the power adaptor from it.

Basic Functions

Switching the Unit On & Off

1. Power the unit as described above.
2. The unit is now in standby mode.
3. To switch the unit on, press the STANDBY button once.
4. To switch the unit off into standby mode, press the STANDBY button again.

Display Backlight

When the radio is in AC mode, the display backlight will be at full brightness all the time when the unit is switched on and dimmed when the unit is in standby mode.

When the radio is in DC battery operation, the display backlight will be turned on to full brightness for around 10 seconds and then go to dim. It will then be turned on to full brightness again for 10 seconds on every key press. In standby mode, the radio and display backlight will be turned off.

Mode Selection (Switching Between DAB+ and FM)

- With the unit switched on, press the MODE button to switch between DAB+ and FM mode.

Volume Control

• To increase the volume, press the VOLUME+ button.
  • To decrease the volume, press the VOLUME-button.

Menus

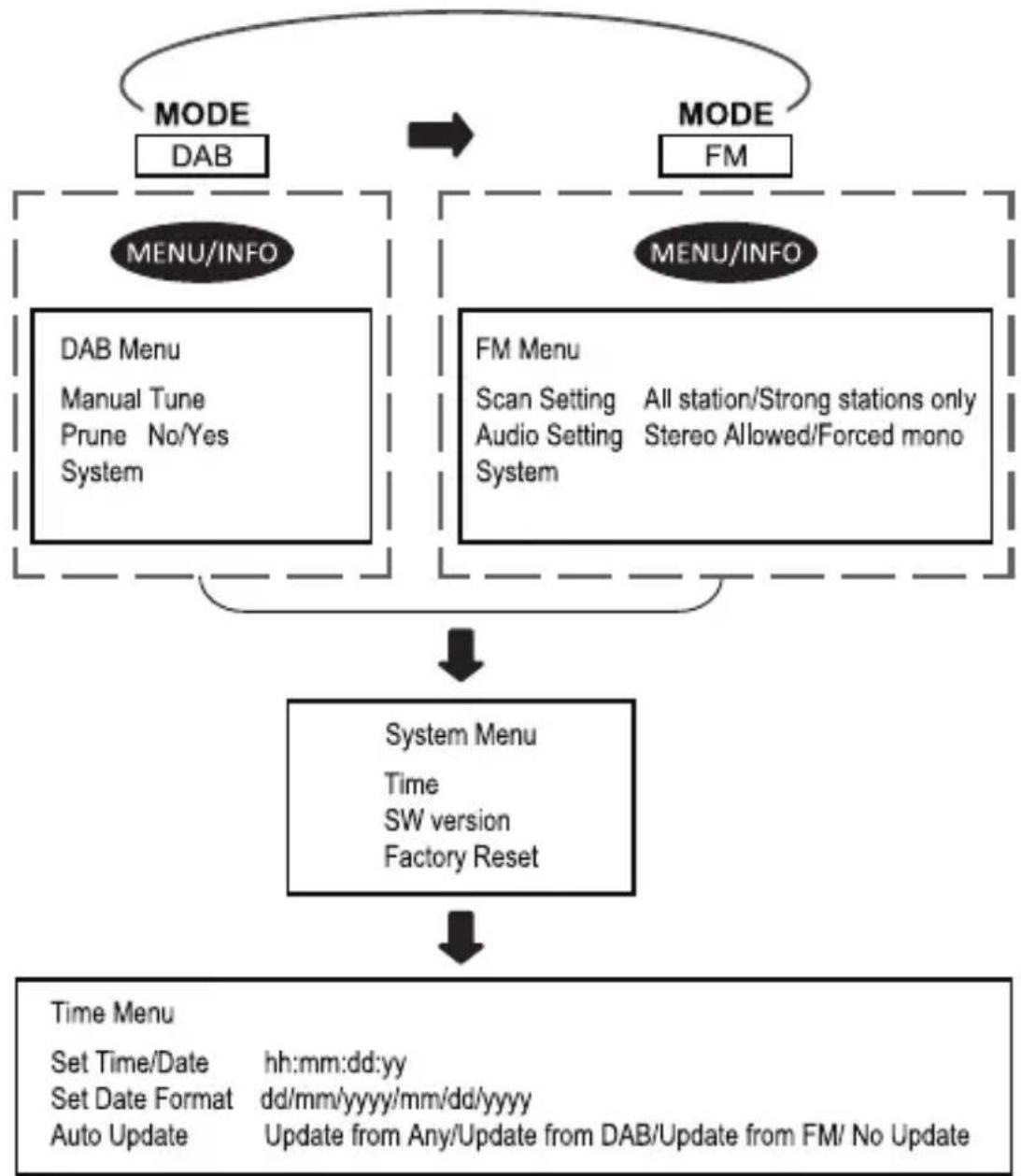

The following controls are used to navigate the menu tree to choose and select the required settings:

• Press and hold for 2 seconds the MENU/INFO button while the unit is in DAB+ or FM mode to enter the main menu.
• Press the SELECT button to enter sub-menus or items and to confirm settings.
  • To exit the menu or go back inside the menu, repeatedly press the MENU/INFO button.

Note:

• Current or default values are indicated by an asterisk (*) on the right-hand side of the top

line of the character display.

Clock Setting

The clock in this radio is equipped to receive a DAB radio frequency and RDS time signal. After the unit has been turned on, it will automatically tune into a DAB radio station (see below) and update the clock. It may be necessary to wait for 1-2 minutes to allow the unit to receive the time signal. If there is no DAB or FM-RDS reception it will be necessary to manually set the clock.

To manually set the clock:

1. Power the unit as described above.

2. The display backlight will illuminate for a few seconds, a welcome message (F.1) will appear in the display briefly followed by "00:00:00 Time is not set".

3. Switch the unit on by pressing the STANDBY button.

4. Press and hold for 2 seconds the MENU/INFO button to enter the menu. Select "System" by pressing the TUN/CH▲ or TUN/CH▼ button. Once "System" is displayed, press the SELECT button to enter the system settings.

5. In the system settings select "Time" by pressing the TUN/CH▲ or TUN/CH▼ button.

Once "Time" is displayed, press the SELECT button to enter the time menu and select "<Set Time /Date)". Press the SELECT button again to enter the time setting.

1. The hours are flashing. Set the current hour by pressing the TUN/CH▲ or TUN/CH▼ button. Confirm by pressing the SELECT button.
2. The minutes are flashing. Set the current minute by pressing the TUN/CH▲ or TUN/CH▼ button. Confirm by pressing the SELECT button.
3. In the next step the date must be set. Set day, month and year by pressing the TUN/CH▲ or TUN/CH▼ button. Confirm each setting by pressing the SELECT button.
4. Once the year has been set and confirmed by pressing the SELECT button, "Time Saved" will be shown in the display.
5. You can now exit the menu by repeatedly pressing the MENU/INFO button or switching the unit into standby mode by pressing the STANDBY button.

DAB+ Radio

First Use and Operation

• Press the STANDBY button to turn the radio on. When switching the radio on for the first time it will automatically enter DAB+ mode and perform the auto scan function to search for available radio stations.
• During the scan the display shows "Scanning..." together with a slide bar that indicates the progress of the scan and the number of stations that have been found so far (F.1, F.2).
• Once the scan is finished the radio will select and play the first alphanumerically found station.
  • You can now press the TUN/CH▲ or TUN/CH▼ button to explore the found stations followed by pressing the SELECT button to play the selected station.

Note:

- If there are no stations found after auto scan, the radio will enter the Tune/Select menu. In this menu you can chose to do full scan or manual tuning.

F.1

Welcome! Digital Radio

F.2

Scanning... 0

DAB Auto Scan

The auto scan will search for the entire DAB Band III channels. After the scan has finnished, the first alphanumerically found stations will be automatically selected.

1. To activate auto scan, press and hold the

MENU/INFO button for 2 seconds to enter the menu and then press the TUN/CH▲ or TUN/CH▼ button to select "Full scan". Finally press the SELECT button to confirm. The display will show "Scanning..." and a slide bar (F.3).

1. All stations that have been found will be stored

F.3

DAB < Full scan >

automatically. To explore the stations that have been found, press the TUN/CH▲ or TUN/CH▼ button and when you find a station that you would like to listen to, press the SELECT button.

DAB Manual Tuning

1. To select manual tune, press and hold the MENU/INFO button for 2 seconds to enter the menu, then press the TUN/CH▲ or TUN/CH▼ button to select "Manual tune" (F.4, F.5).
2. Press TUN/CH▲ or TUN/CH▼ button to move through the DAB channels, the display will show "5A to 13F" and their associated frequencies.
3. When your desired frequency appears in the display, press the SELECT button to listen, the name of the station group (ensemble/multiplex) will be displayed.

F.4

DAB < Manual tune >

F.5

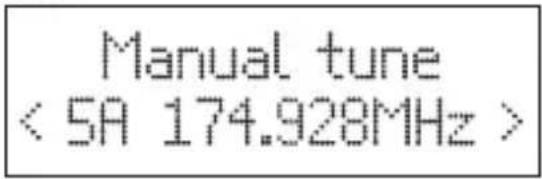

Manual tune < 5A 174.928MHz >

Prune

You can remove all unavailable stations from the list:

1. In DAB mode press and hold the MENU/INFO button for 2 seconds to enter the menu, then press the TUN/CH▲ or TUN/CH▼ button to select "Prune" and finally press the SELECT button to confirm.
2. Press the TUN/CH▲ or TUN/CH▼ button to select to confirm to delete. Or select to cancel. Press the SELECT button to confirm the setting.

DAB Display Modes

Every time you press the MENU/INFO button the display will cycle through the following display modes:

Signal strength, Programme Type, Ensemble Name, Channel number/frequency, Signal error, Bit Rate, codec/DAB variant, power status (Mains/Battery), Time and Date.

FM Radio

1. Press the STANDBY button to switch on the radio.
2. Press the MODE button to switch to FM mode. The display will show the frequency.
3. To automatically search for the next available radio station, press and hold for 2 seconds the TUN/CH▲ or TUN/CH▼ button. The display will show "Scanning..." and it will stop automatically once a station has been found (F.6, F7).
4. To manually search for a station, press the TUN/CH▲ or TUN/CH▼ button repeatedly. Each press adjusts the frequency by 0.05 MHz.

Note:

- To improve the reception, fully extend the antenna and adjust its position, or try moving the radio to another location.

F.6

92.75MHz Scanning...

F.7

92.75MHz Scanning...

Scan Setting

This function enables you to search only for stations with strong reception or for all stations during automatic tuning.

1. During FM mode, press and hold the MENU/INFO button for 2 seconds to enter the menu and then press the TUN/CH▲ or TUN/CH▼ button to select "Scan setting". Finally press the SELECT button to confirm.
2. Press the TUN/CH▲ or TUN/CH▼ button to select "Strong stations". Press the SELECT button to confirm the setting. With this setting active, only strong stations will be found during automatic tuning. To find all stations, also those with inferior reception, select "All stations".

Audio Setting

1. During FM mode, press and hold the MENU/INFO button for 2 seconds to enter the menu and then press the TUN/CH▲ or TUN/CH▼ button to select "Audio setting". Finally press the SELECT button to confirm.
2. Press the TUN/CH▲ or TUN/CH▼ button to select between "Stereo allowed" and "Forced mono". Press the SELECT button to confirm the setting.

Note:

- The radio will automatically switch between stereo and mono mode, but you can override this and switch this function manually which is helpful for poor signal reception.

FM Display Modes

Every time you press the MENU/INFO button, the display will cycle through the following display modes:

RDS Radio Text, Programme Type, Frequency, Mono/Stereo, Power status (Mains/Battery), Time and Date.

Storing and Recalling Stored Stations

This function allows up to 10 stations to be programmed into the memory and stored in both DAB and FM mode.

1. To store a preset, first tune to your desired station, then press and hold the PRESET button for 2 seconds. The display will show the preset store number (F.8).
2. Press the TUN/CH▲ or TUN/CH▼ button to select your desired station preset number.
3. Press the SELECT button to confirm your selection. The station currently broadcasting has now been stored in the selected location (F.9).

F.8

Preset Store <1: Empty >

F.9

Preset 1 Stored

1. To select a preset station, first press the

PRESET button once and then press the TUN/CH▲ or TUN/CH▼ button to scroll up or down the presets that you have stored, and press the SELECT button to confirm. The station name or frequency and preset location number will

F.10

Preset Recall <6: BBC Radio 6>

be displayed in the lower half of the display (F.10). If the preset has not been allocated "Preset Recall #: (Empty)" and then "Preset empty" will be shown in the display.

Note:

- If the unit is disconnected from the mains supply for any length of time and the batteries are not installed, the programmed stations will be lost.

Factory Reset

If moving the radio to another location in the country the pre-tuned and stored DAB stations may no longer be available and it will be necessary to reset the radio back to the factory settings.

1. Connect the radio to AC mains (via AC/DC adaptor), then press STANDBY to turn the radio on.
2. Press and hold the MENU/INFO button for 2 seconds to enter the menu, then press the TUN/CH▲ or TUN/CH▼ button to select "System". Press the SELECT button to enter the system menu.
3. Press the TUN/CH▲ or TUN/CH▼ button to select "<Factory Reset)". Press the SELECT button to confirm (F.11)
4. The display now shows "Factory Reset Yes". Press the TUN/CH▲ or TUN/CH▼ button to select "" and then press the SELECT button again (F.12) to do the factory reset.
5. The radio will display "Restarting...." and will then go into standby mode.

Note:

- All stored programmed stations will be lost during reset.

F.11

System

F.12

Factory reset? Yes

Headphone Jack

A headphone jack is located at right side of the unit. When the unit is powered on and playing music, you can connect earphones (not included) to the headphone jack for your private listening. Mind the safety information from page 14 on.

With headphones connected the unit's speaker is disabled. To listen via the speaker again, disconnect the headphones.

Technical Specifications

EN

Rated Voltage (adaptor): AC 100-240V \~ 50/60Hz, 0.3A

Adaptor Output: -DC 6V 0.5A

Batteries: DC 6V ——(4x 1.5V UM-3/AA size, not included)

Radio Frequency Range: DAB: 174 - 240 MHz

FM 87.5 - 108 MHz

Dimensions (WxDxH) ca.: 181 x 45 x 105 mm

Technical specifications and design may change without notice.

Contact for this Schaub-Lorenz product:

Karcher AG

Gewerbestr. 19

75217 Birkenfeld

Germany

www.karcher-products.de
