BB 320 - Radio SCHAUB LORENZ - Free user manual and instructions

Product Type	Radio
Brand	Schaub Lorenz
Model	BB 320
Color	Black
Dimensions (W x H x D)	300 x 150 x 200 mm
Weight	1.5 kg
Power Supply	AC 230V, 50Hz
Tuner Type	Analog
FM Frequency Range	87.5 - 108 MHz
AM Frequency Range	530 - 1600 kHz
Antenna	Telescopic for FM, built-in ferrite for AM
Output Power	2 x 3W
Speaker Configuration	Mono, single speaker
Display	No display
Controls	Volume, tuning, on/off
Headphone Jack	3.5mm
Power Consumption	< 10W
Safety	Use only specified power supply; do not open; keep away from moisture
Cleaning	Soft dry cloth
Spare Parts Availability	Generic parts compatible; check local service

Frequently Asked Questions - BB 320 SCHAUB LORENZ

How do I tune the radio?

Turn the tuning knob to select the desired frequency. For FM, extend the telescopic antenna for better reception.

Why is there no sound?

Check the volume is turned up and the radio is plugged in and switched on. Also ensure the headphone jack is not inserted.

How can I improve AM reception?

Rotate the entire radio to orient the internal ferrite antenna for best signal. Keep away from metal objects.

Can I use batteries?

No, this model operates only on AC mains (230V). It does not have battery backup.

Is there a sleep timer?

No, the BB 320 does not include a sleep timer. Turn off manually.

How do I clean the radio?

Use a soft dry cloth to wipe the exterior. Do not use liquids or cleaners.

What should I do if the radio gets wet?

Unplug immediately and let it dry completely before use. Do not operate if wet.

Can I connect external speakers?

No, there is no line out. Only a headphone jack is available for private listening.

Why does FM sound noisy?

Fully extend the telescopic antenna and adjust its angle. If still noisy, try moving to a location with better signal.

Where can I find spare parts?

Contact local electronics service centers. Many generic parts like knobs and antennas may fit. Check online marketplaces for BB 320 compatible parts.

USER MANUAL BB 320 SCHAUB LORENZ

Silver portable electronic radio with a digital display and antenna, no visible text or symbols on the device itself.

Vorwort

GEFAHR EINES ELEKTRO-

SCHOCKS

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL A LASER DE CLASS 1

LUOKAN 1 CLASSLAITE

KLASS 1 LASERAPPARAT

SEHEN SIE NIEMALS DIREKT IN DEN LASERSTRAHL!

Batterien und Akkus

Simple line drawing of a butterfly and a circular object with directional arrows (no text or symbols)

Richtig Falsch

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Water and Moisture – Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.
5. Setup – The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.
6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings. Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
10. Cables and Plugs – The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.
12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
13. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
14. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:
    a) The power-supply cord or the plug has been damaged; or
    b) Objects have fallen, or liquid has been spilled into the appliance; or
    c) The appliance has been exposed to rain; or
    d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
    e) The appliance has been dropped, or the enclosure damaged.
15. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.
16. Open Fire – Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.
17. Thunderstorms – During a thunderstorm the mains plug should be unplugged.
18. Safety Check – After servicing the technician should conduct a safety check in order to ensure that the apparatus is working properly and safely.

19. Batteries – Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.

20. Volume Levels – To prevent possible hearing damage, do not listen at high volume levels for long periods.

21. Headphones – Excessive sound pressure from earphones and headphones can cause hearing loss.
22. Marking information - The marking information is located at the bottom of apparatus.

CAUTION

RISK OF ELECTRO SHOCK

DO NOT OPEN

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL A LASER DE CLASS 1

LUOKAN 1 CLASSLAITE

KLASS 1 LASERAPPARAT

DO NOT STARE INTO BEAM –

INVISIBLE LASER RADIATION

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1. Handling discs

• Always keep the CD compartment shut to prevent dust or dirt from getting into the CD mechanism.
- Do not touch the recorded surface.
- Do not stick paper or write on either side of the CD.
- Do not bend the CD.
- Only handle a disc on its outer edges.

1. Storing discs

• To avoid scratches/damages always put CDs back into their cases after use.
- Do not expose CDs to direct sunlight, dust, dirt, high temperatures, high humidity or water.

1. Cleaning discs

2. Use a soft cloth to wipe fingerprints and dust from the disc surface.

3. Carefully move the cloth from the center of the disc to its edge:

Correct False

- Never use benzene, thinners, record cleaner fluid or antistatic spray to clean CDs.

1. Compatibility

- Due to the numerous compression methods, some discs may not play.

NOTES ABOUT THIS INSTRUCTION MANUAL

1. This instruction manual is published by the manufacturer without any warranty. Corrections and changes of this instruction manual for the removal of typographic mistakes and editorial inaccuracies as well as due to (technical) improvements (changes) of the devices can be done by the manufacturer at any time without announcement. Changes of this kind are considered in future versions of this user manual. All rights reserved.
2. All figures are only for illustration and do not always show the exact representation of the product.
3. This unit is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit.

FURTHER NOTES ON THE DEVICE

Setting a safe volume level

• If you continually listen to loud music, your hearing gradually adapts to it and gives you the impression that the volume is lower.
  • What seems normal to you can be already for long time too loud and unhealthy.
  • To protect yourself from this, set the volume to a low level.
• Increase the volume slowly.
• Damage to your hearing can be extensive and cannot be reversed.
• If you notice a hearing problem, please consult a doctor.

Condensation

• Condensation may occur when moving the device from a cold to a warm environment. If there is

moisture inside the player, it may not operate properly. Don't turn on the device and wait about one hour for the moisture to evaporate.

Saving energy

• If the unit is not used for a long period of time it should be disconnected from the power supply and batteries removed.
• If there is no audio signal or playback while in CD, USB or AUX mode for approximately one hour, the unit will automatically switch into standby mode.

Unpacking

• Take out carefully the unit from the packing. Please keep the packing for further use.
- Carefully remove possible protection cardboards and slipcovers.

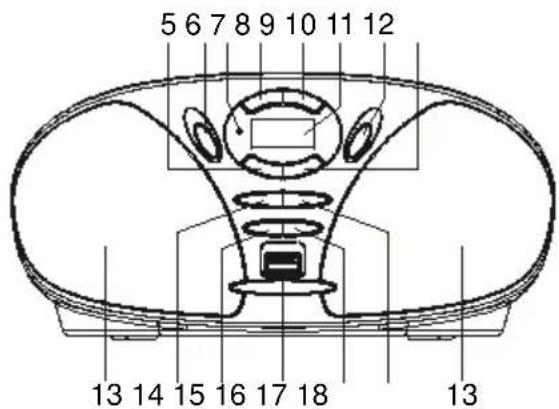

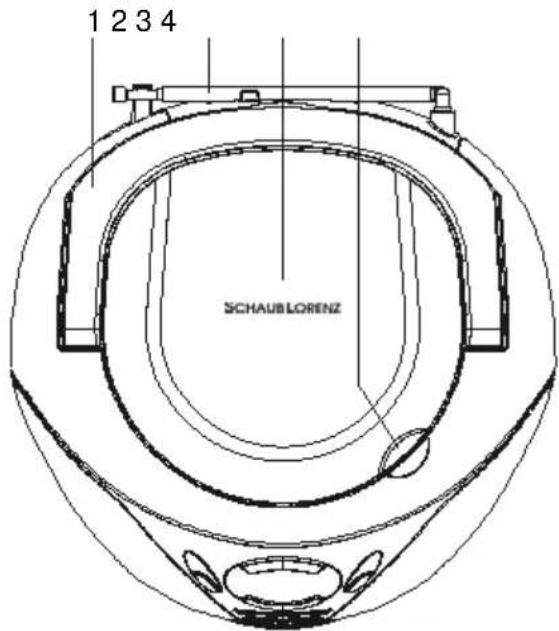

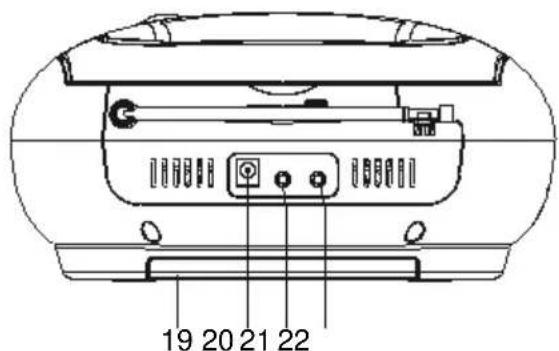

Location of Controls

1. Handle
2. FM Telescopic Antenna
3. CD Door
4. CD Door Open Tab
5. Skip/Search Down button
6. Source button
7. Standby Indicator
8. ■ Stop/CH- button
9. ▶ Play/Pause/CH+ button
10. LCD Display
11. ⏻ Power button
12. ▶ Skip/Search Up button
13. Speakers
14. Mem/Mode/Prog button
15. • Volume-button
16. USB Port
17. • Volume+ button
18. Folder/10+ button
19. Battery Compartment
20. DC In jack
21. Headphone jack
22. AUX In jack

Power Supply

Power Adaptor

1. The unit requires DC 9V 1.0A.
2. Plug the supplied adaptor cable into the connector on the back of the unit and the other end into a suitable wall socket.
3. Make sure that the output power of the wall outlet matches the required power of the adaptor.

Note:

- If not using the unit for a longer period of time, unplug the adaptor from the wall outlet and from the unit.

Battery Power

Insert 6x 1.5V size UM-2/C batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

Notes:

• Use batteries of the same type. Never use different types of batteries together.
• To use the appliance with batteries, disconnect the AC power cord from it.

Basic Functions

Switching the Unit On & Off

1. Power the unit as described above.
2. The unit is now in standby mode. The Standby Indicator will be lit red.
3. To switch the unit on, press the Power button once.
4. To switch the unit off into standby mode, press the Power button again.

Source Selection

- With the unit switched on, press the Source button repeatedly to switch between the following modes: Radio, CD, USB, AUX.

Volume Control

• To increase the volume, press the + Volume+ button.
  • To decrease the volume, press the 🔊-Volume-button.
• When the unit is switched off and back on (incl. disconnecting it from a power source), the volume setting will be the same as before switching the unit off.

Radio

1. Switch the unit on as described above.
2. The unit will switch on to radio mode. The frequency will be shown in the display.
3. Select a desired radio station by pressing the I◀ Skip/Search Down or ▶ Skip/Search Up button repeatedly.
4. To automatically search for the next available radio station, press and hold for 2 seconds the Skip/Search Down or ▶Skip/Search Up button.

Note:

- For the best FM reception fully extend the antenna.

Radio Station Presets

This unit enables you to store up to 20 radio stations:

1. Tune to a radio station which you would like to store.
2. Press the Mem/Mode/Prog button once. The preset no. (e.g. "P01") will be shown in the display.
3. Select a desired preset from P01 to P20 on which you want to store the current frequency by pressing the ■ Stop/CH- or ▶Play/Pause/CH+ button.
4. Press the Mem/Mode/Prog button again to confirm your setting.
5. Repeat steps 1 - 4 to store up to 20 stations.
6. To recall a stored frequency, press the ■ Stop/CH- or ▶ Play/Pause/CH+ button until you reach the desired preset.

Note:

- Storing stations on presets where other stations have previously been stored on will overwrite these.

CD/MP3 Player

Playing Discs

1. Switch the unit on and select the CD mode by pressing the Source button. "Cd" will be shown in the display
2. Open the CD door gently by the tab at the CD door and insert a disc with the printed side facing up.
3. Close the CD door. The CD is being read and the total number of tracks will then be shown in the display.
4. Playback will start automatically with the frist track on the disc.
5. To temporarily stop the playback (pause), press the ▶II Play/Pause/CH+ button once. Press the button again to resume playback.
6. To stop playback, press the ■ Stop/CH-button.

Fast Forward / Fast Rewind & Skipping Tracks

• To jump to the beginning of the currently playing track, press the L←Skip/Search Down button once. Press it a second time to skip to the previous track.
• To skip to the next track, press the Skip/Search Up button once.
• To fast forward the currently playing track, press and hold the ▶Skip/Search Up button. Once you reach the desired section of the track, release the button to resume normal playback.
• To fast rewind the currently playing track, press and hold the ◀◀ Skip/Search Down button. Once you reach the desired section of the track, release the button to resume normal playback.
• To skip 10 tracks at once, press the Folder/10+ button.

Skipping Folders (MP3 Discs Only)

For MP3 discs which contain folders, you can select between these as follows:

1. During playback, press and hold the Folder/10+ button until the folder number flashes on the display.
2. Press the ◀◀ Skip/Search Down or ▶◀ Skip/Search Up button to select the desired folder.
3. Wait several seconds or press the Folder/10+ button to confirm. The playback will start from the selected folder.

Repeat Modes

At any time during playback,

• press the Mem/Mode/Prog button once to repeat the current track. "REP" will be shown in the display flashing.
• press the Mem/Mode/Prog button a second time to repeat all tracks. "REP" will be shown in the display steadily.

• press the Mem/Mode/Prog button a third time to play the first 10 seconds of each track. "INTRO" will be shown in the display.

• press the Mem/Mode/Prog button a fourth time to play all tracks on the disc in random order. "RAN" will be shown in the display.

• press the Mem/Mode/Prog button again until the indicators disappear from the display to deactivate the selected function.

Programming Track Order

You can store up to 20 tracks for audio CDs or up to 99 tracks for MP3 discs in a desired sequence.

1. While in CD stop mode, press the Mem/Mode/Prog button. "PROG" will be shown in the display together with "P01".

2. Using the I◀ Skip/Search Down or ▶Skip/Search Up button, select the track to be played first in the sequence. For discs that include folders you will be asked to select the desired folder first. Do so by pressing the I◀ Skip/Search Down or ▶Skip/Search Up button. Press the Mem/Mode/Prog button. Then select the desired song from the folder using the I◀ Skip/Search Down or ▶Skip/Search Up button.

3. Press the Mem/Mode/Prog button again. "P02" will be shown in the display.

4. Repeat the steps 2 - 3 to select up to 20 tracks (or 99 tracks for MP3 discs) for your sequence.

5. Press the May/Pause/CH+ button to start the playback of your sequence.

6. To stop playback, press the ■ Stop/CH- button. To delete your sequence press this button a second time. "PROG" will disappear from the display.

USB Playback

Playback

1. Insert a USB stick into the USB port of the unit while the unit is in standby mode.
2. Switch the unit on and select the USB mode by pressing the Source button repeatedly. "USb" will be shown in the display.
3. The USB stick is being read and the total number of folders and tracks will then be shown in the display.
4. Playback will start automatically with the first track from the first folder.
5. To temporarily stop the playback (pause), press the ▶II Play/Pause/CH+ button once. Press the button again to resume playback.
6. To stop playback, press the ■ Stop/CH-button.

Playback modes

Skipping, fast forwarding and fast rewinding tracks, skipping folders, repeat modes, intro & random functions and programming track order in USB mode are the same as for CD playback. Please see the previous chapter for the instructions.

Notes:

• A USB device must always be connected directly to the USB port of this product. The use of a USB extension cord is not supported by this product. The USB port of this product cannot communicate with a computer directly.
• The reading time for a USB drive varies depending on the speed of the memory device and the number of songs and folders. In some cases the reading time may be as long as 60 seconds.
• Always switch off the unit before removing a USB flash drive to prevent damage to your USB device. The manufacturer is not responsible for the loss or damage of data.
• Due to numerous methods of compression it could be that some files or USB flash drives cannot be played.

AUX Input

You can connect the audio output of an external device such as a smartphone or MP3 player to this

unit to listen to the sound of that device through the amplifier of this music system.

1. Switch the unit on and select the AUX mode by pressing the Source button repeatedly. "AUX" will be shown in the display.
2. To connect the external device please use a standard stereo audio cable (3.5 mm to 3.5 mm plugs) (not included) to connect the headphone out or audio line out of the external device to the AUX input socket of this unit.
3. Switch the external device (e.g. MP3 player) on.
4. Start playback of the external device and adjust the volume of BB 320 and the connected device to the desired level.
5. Remember to switch off the unit when you are finished using the external device.

Headphone Connector

A headphone jack is located at rear of the unit. When the unit is powered on and playing music, you can connect the earphones (not included) to the headphone jack for your private listening. Mind the safety information from page 12 on.

With headphones connected the unit's speakers are disabled. To listen via the speakers again, disconnect the headphones.

Specifications

Power Supply: DC 9V-1.0A (external adaptor)

Batteries: DC 9V (6x 1.5V (UM-2/G size, not included)

Radio Frequency Range: FM 87.5 - 108 MHz

Dimensions (WxDxH) ca.: 232 x 227 x 112,5 mm

Technical specifications and design may change without notice.
