USER MANUAL BigTel 160 AUDIOLINE

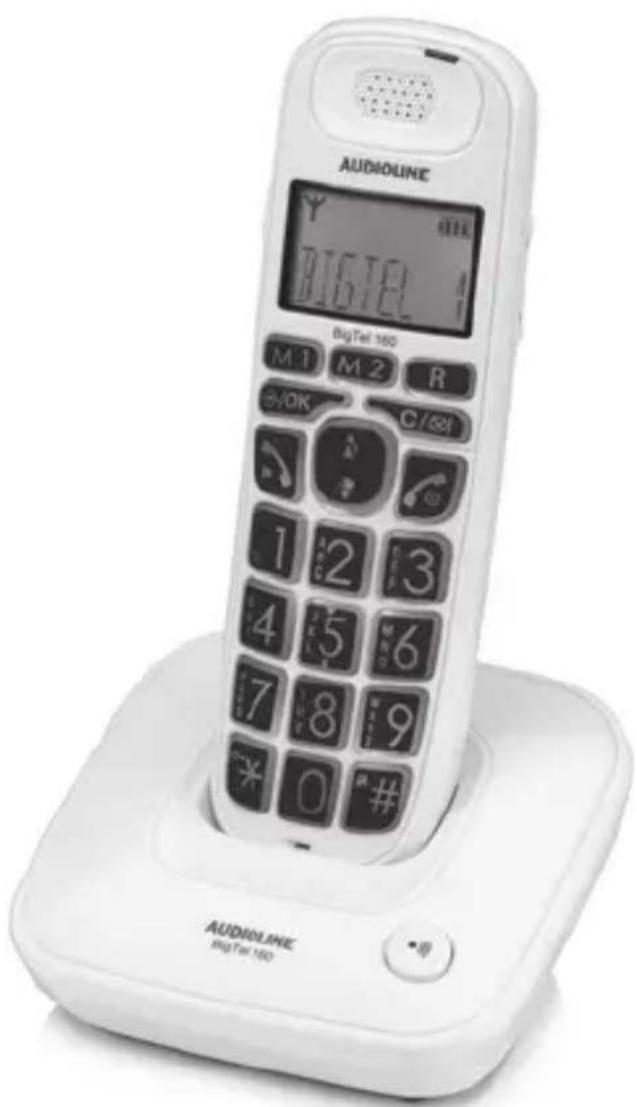

Schnurloses DECT-/GAP-Telefon Cordless DECT/GAP telephone

AUDIOLINE BIGTEL 160 M 1 M 2 R +/OK C/81 1 2 3 4 5 6 7 8 9 * 0 # AUDIOLINE BIGTEL 160

Technical line drawing of a car interior layout with battery pack and storage compartments (no text or labels)

Image showing four distinct icons with symbols: downward triangle, question mark, left triangle, and curved arrow, arranged in a grid-like layout.

Image containing four labeled icons: upward triangles with a question mark, downward triangles with a question mark, a downward arrow, and a circle with a crescent.

/OK ▲+? ▼○ ▲+? ▼○

500 mAh = ca. 100 h / ca. 10 h

1 Safety Information ....2
2 Preparing the Telephone ....5
3 Operating Elements ....8
4 Preliminary Information ....10
5 Telephoning ....12
6 Other features ....17
7 Call list / Redial .....18
8 Phone book ....19
9 Setting the telephone .....21
10 Registering/de-registering handsets .....28
11 PBX / Supplementary Services .....29
12 Appendix ....30

1 Safety Information

Please read this operating instruction manual thoroughly.

Intended use

The telephone is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

Installation location

Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Do not use the handset in potentially explosive areas.

Power adapter plug

⚠ Attention: Only use the power adapter plug supplied because other power supplies could damage the telephone. Ensure access to the power adapter plug is not obstructed by furniture or such.

Rechargeable batteries

⚠ Attention: Never throw batteries into a fire. Only use batteries of the same type. Pay attention to the correct polarity. Incorrect polarity of the batteries represents a risk of explosion during charging.

Power failure

The telephone cannot be used to make calls in the event of a power failure. Always keep a cord connected telephone which operates without an external power supply available in case of emergency situations.

Medical equipment

⚠ Attention: Never use the telephone in the vicinity of medical equipment. Effects on such equipment cannot be fully ruled out.

DECT ^1 telephones can cause an unpleasant humming sound in hearing aids.

^1 DECT: Digital Enhanced Cordless Telecommunication = Standard for cordless telephones.

Boost

Your phone offers a switchable Boost function for the earpiece. Press the key (on)the handset to switch on/off the function. When Boost is activated, the red LED located up the earpiece will light and the display shows "BOOST ON".

Disposal

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The adjacent symbol indicates that the device must not be disposed of in normal domestic waste!

Batteries represent a hazard to both health and the environment! Never open, damage or swallow batteries, nor allow them to get into the environment.

They may contain toxic and ecologically hazardous heavy metals. You are legally obliged to dispose of batteries at the point of sale or at appropriate collection points provided by your local public waste authorities. Disposal is free of charge. The adjacent symbols indicate that batteries must not be disposed of in normal domestic waste and but at authorised collection points.

Packaging materials must be disposed of according to local regulations.

2 Preparing the Telephone

Safety information

⚠ Attention: It is essential to read the Safety Information in Chapter 1 before starting up.

Checking the package contents

The package contains:

1 Base station
1 Power adapter plug for the base station
1 Handset
1 Telephone connection cable
2 Rechargeable batteries
1 Operating instructions

The power adapter plugs supplied fulfils the eco-design directive of the European Council (Directive 2005/32/EC). This means that power consumption is considerably lower than power adapter plugs of an earlier design both in operating and idling modes.

Preparing the Telephone

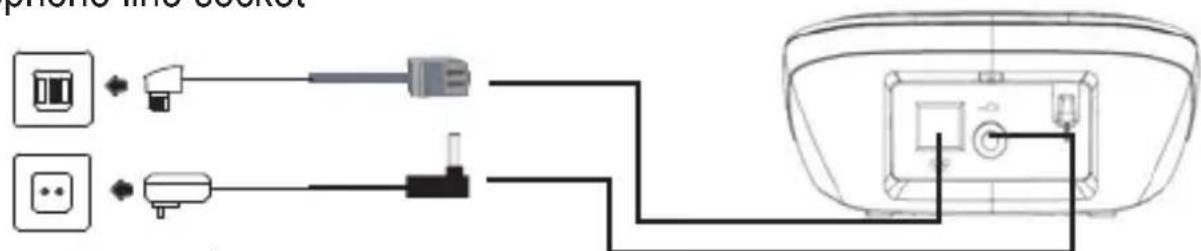

Connecting the base station

Attention: Position the base station at least 1 m away from other electronic devices, otherwise there is a risk of mutual disturbance.

Connect the base station as illustrated in the diagram. For reasons of safety, only use the power adapter plug and telephone connection line supplied.

Telephone line socket

phone line socket

Mains power outlet

Attention: Use only the power adapter plug supplied with the base ion!

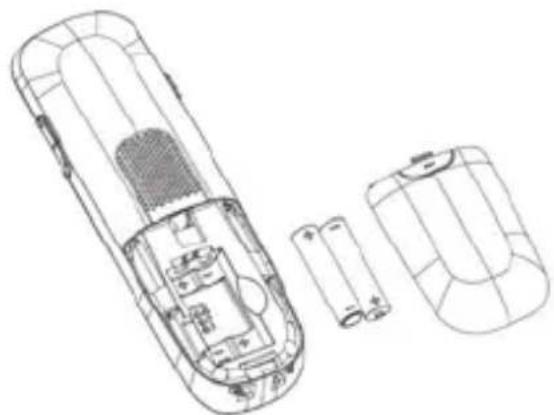

Inserting the batteries

Open the battery compartment cover.

Put in the batteries.

Close the battery compartment cover.

Technical line drawing of a car interior showing internal compartments and battery pack (no text or labels)

Attention: Use only type AAA NiMH 500 mAh rechargeable batteries.

Never use normal batteries / primary cell batteries. Observe the correct polarity!

Charging the batteries

Before the handset is used for the first time, insert it in the base station for at least 14 hours.

The handset warms up during the charging process. This is normal and does not represent a risk. Use only the adapter plug unit provided for the charging station. The battery status is shown on the display. When the battery capacity is nearly exhausted, the battery symbol (☐) will flash in the display and you will hear the battery warning sound (if the option is switched on) / menu item "HS SET / TONE / LOW BATT". You still have up to ten minutes of talk time.

Setting the time and date on the handset

At initial operation the handset does not have the correct time (e.g. for entries in the call list). Date and time are set through the menu item "CLOCK".

Setting the display language

The display language is available 3 languages. The default setting is “German (Deutsch)”. Set the language using the menu item “MT-EINST / SPRA-CHE”.

Auto Answer

If this function is activated, an incoming call is taken when the handset is removed from the base station. The automatic answering function is activated and deactivated using the menu item "HS SET / AUTO ANS".

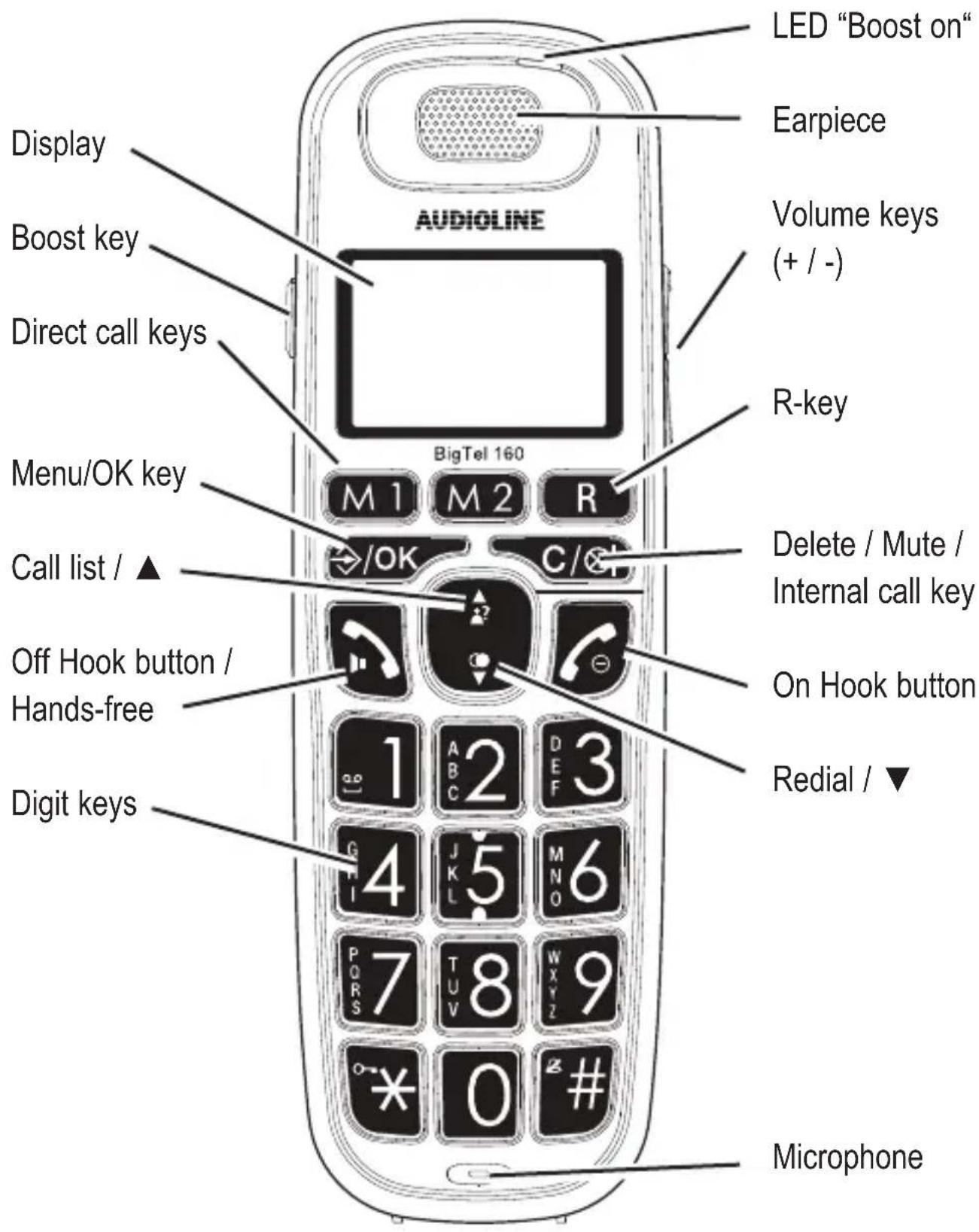

3 Operating Elements

LED "Boost on" Earpiece Volume keys (+ / -) BigTel 160 Display Boost key Direct call keys Menu/OK key Call list / ▲ Off Hook button / Hands-free Digit keys Redial / ▼ Delete / Mute / Internal call key On Hook button Microphone

Operating Elements

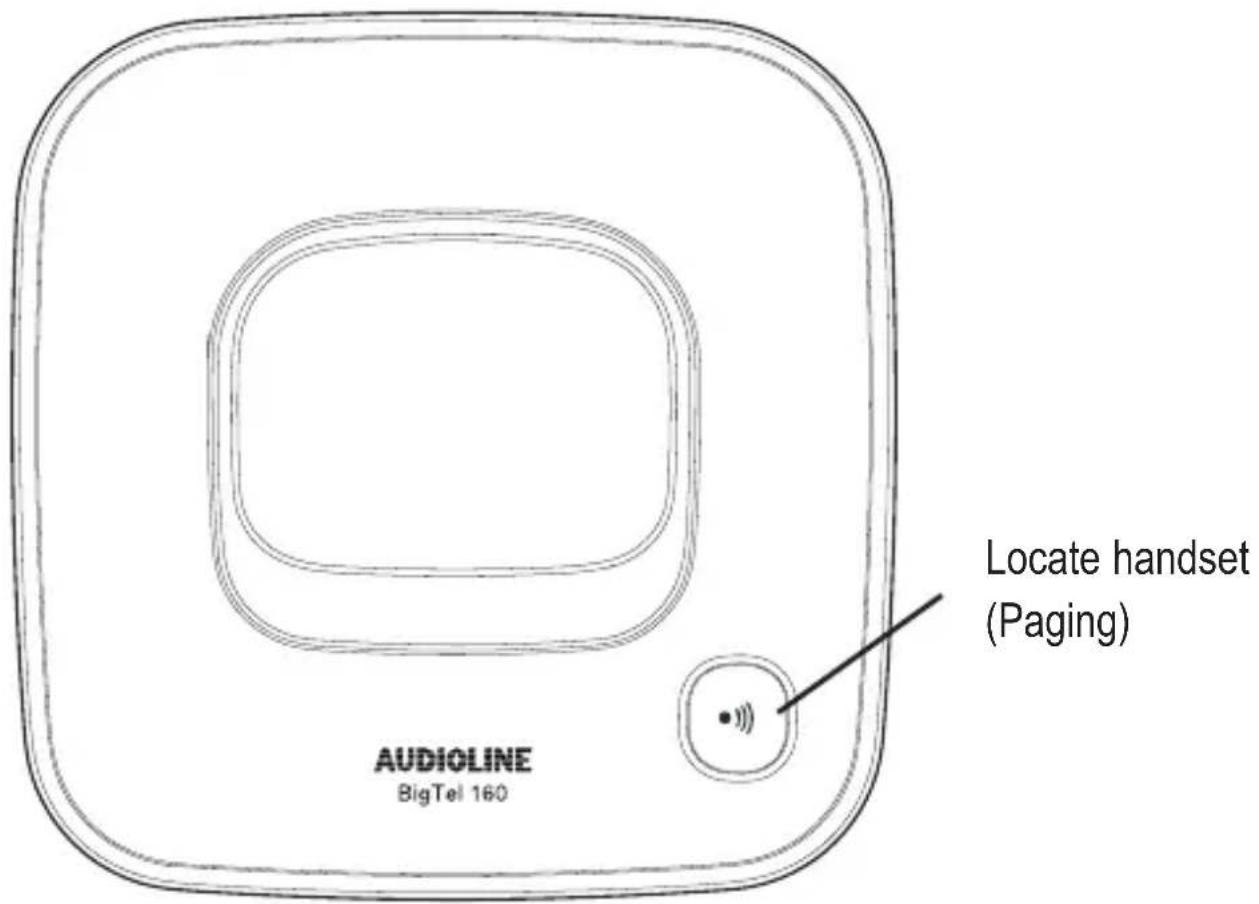

Audioline BigTel 160 Locate handset (Paging)

4 Preliminary Information

Icons in the handset display

Icon	Description
	On: The connection to the base station is good.Flashing: The connection to the base station is lost.
	On: Indicates the battery charge status.Flashing while handset in base:Batteries are being charged.
	On: Batteries need charging.Flashing: Batteries should be charged immediately.
	On: A call is currently being made.Flashing: A call has been received.
	Handsfree mode is activated.
	The ringing tone has been switched off.
	On: The alarm function is activated.Flashing: The alarm is ringing.
	The key lock is activated.
	On: You can conduct an internal call (only with several handsets registered on the base station).Flashing: Incoming internal call.
	Character overflow left/right. Use to scroll.

Standby mode

All descriptions in this operating manual assume that the handset is in Standby mode. The system switches to Standby mode by pressing the button.

Low-radiation operation (ECO mode)

In call mode, when the handset is close to the base unit, the radiation is reduced considerably as compared to standard, cordless DECT telephones.

Navigating in the menu

All the functions can be accessed via the various menus. The entire menu structure can be found in the appendix.

The keys ↗ and the arrow keys are used for navigation in the menu.

The menu is opened with the key ↩/OK

Use the arrow keys ▲ and ▼ to move within the menu

Press the key to open a sub menu.

To return to the main menu press briefly. With a long press you will return to the standby state.

5 Telephoning

Taking a call

Your phone is ringing.

If the handset is not in the base station:

Press the Off Hook button.

If the handset is in the base station and AUTO ANS is not activated:

Remove the handset from the base and press the Off Hook button.

If the handset is in the base station and AUTO ANS is activated:

Remove the handset from the base - the call will be taken automatically.

Making a call

Enter the telephone number.

Delete wrong characters pressing |C/⊗|

The telephone number is being dialled.

You can also press the Off Hook button and you will hear the dialling tone. The entered number will be dialled immediately. It is not possible to correct wrong digits individually using this dialling procedure.

Hands-free

During a call press the Off Hook button again. The Loudspeaker will be switched on.

Ending a call

Press the On Hook button or replace the handset in the base station.

Redial

Your handset saves the last 5 dialled telephone numbers. If a caller is stored in your phone book, the name will be displayed.

Whilst the name is displayed to show the respective number press. The most recent last number will be displayed at the top of the list.

Open the redial list.

Select an entry.

Dial out the telephone number.

Making a call from the call list

Your handset saves the numbers of the last 10 incoming calls in the call list. If a caller is stored in your phone book, the name will be displayed.

Whilst the name is displayed to show the respective number press. Saving can only take place if the function “Phone number transmission (CLIP)” is available at your connection and caller ID is not suppressed by the caller or was not transmitted for any other reason.

Open the call list.

Select an entry.

Dial out the telephone number.

Making a call from the phone book

You can store up to 20 entries in the phone book.

For creating entries see section "Phone book".

/ Dial out the telephone number.

Press the menu key.

Select CONTACTS and press the menu key.

Select the name of the person you wish to call.

Making a call using the fast dial keys (2...9)

For storing a telephone number to the direct call keys please refer to page 20.

2 . . 9 Press and hold down the respective fast dial call key for approx. 3 s. The telephone number will be dialled.

Making a call using the direct call keys (M1/M2)

For storing a telephone number to the direct call keys please refer to page 26.

M1 / M2 Press and hold down the respective direct call key for approx. 3 s. The telephone number will be dialled.

Call timer

Your handset automatically times the duration of every call in hours, minutes and seconds.

Setting the earpiece/loudspeaker volume

During a call you can adjust the volume in 5 levels (if telephoning “normally” -> earpiece volume, with hands-free -> loudspeaker volume).

These separate settings will remain at the last selected level when you end the call.

Muting the microphone

During a call you can switch your handset's microphone off. The display shows MUTED.

To unmute press the key again.

Internal calls

Internal calls, transfers and conference calls are only possible if multiple handsets are registered. If this is not the case FAILED will be indicated on the display.

Making an internal call

Press If two handsets are registered to the base station the other handset will be called immediately. If three or more handsets are registered to the base station their internal numbers will be displayed (for example 2 3 4). Press the internal number you want to call. If you press "9" in the case of several registered handsets all will be called at the same time.

Transferring an external call to another handset

/OK ▲? / ▼

During an external call . . .

Press the menu key.

Select INTERCOM and press the menu key.

Enter the internal telephone number. The external call is put on hold. When the called handset answers you can announce the call transfer.

Press the On-Hook key. The call will be transferred.

3-Party Conference

/OK ▲?/ ↓○ ↑ → *

During an external call . . .

Press the menu key.

Select INTERCOM and press the menu key.

Enter the internal telephone number.

When the called handset answers ... press and hold down the star key until CONFERENCE appears in the display.

Any handset hangs up during a conference call will leave the other handset still in connection with the external call.

6 Other features

Key lock

The key lock prevents functions assigned to buttons being activated inadvertently. Incoming calls can still be taken in the normal way even when the key lock function is activated.

Press and hold down the star-key until the key lock icon appears in the display.

For unlocking the keypad again press and hold down the star-key until the icon disappears.

Switching the handset ringer on/off

You can turn off the ringer via the menu item "HS SET / RINGER / RING VOL" as well.

Press and hold down the #-key until the icon appears in the display.

For turning the ringer on again press and hold down the #-key until the icon disappears.

Switching off the handset

You can switch off the handset for saving battery capacity.

Press and hold down the On Hook-button. After a few seconds the handset will be switched off. The display illumination goes down.

For switching the handset on again press and hold down the On Hook-button until the display is activated again. You can also simply put the handset into the base station.

GB

7 Call list / Redial

Editing the call list

Open the call list.

an entry.

Press the menu key.

one of the following options and confirm with the

menu key:

STORE The telephone number will be stored in the telephone book. Enter a name, confirm or edit the telephone number and select a ringtone melody for the entry.

DELETE The entry will be deleted.

DEL ALL The complete list will be deleted after a confirmation query.

DETAILS The respective call's date and time is shown.

You can access the call list via the menu as well:

Editing the redial list

Open the redial list.

an entry.

Press the menu key.

one of the following options and confirm with the

menu key:

STORE The telephone number will be stored in the telephone book. Enter a name, confirm or edit the telephone number and select a ringtone melody for the entry.

DELETE The entry will be deleted.

DEL ALL The complete list will be deleted after a confirmation query.

8 Phone book

Your phone can store up to 20 private phonebook entries with names and numbers. You can also select different ringtones for your phonebook entries. Always enter the phone numbers with the area code; this ensures that if a number is stored in the phonebook with a name, this name will be displayed when this contact calls.

Creating a new entry

Press the menu key.

Select CONTACTS and press the menu key.

Empty telephone book: EMPTY is shown.

If there are entries yet: the first entry is shown.

Press the menu key.

Confirm ADD with the menu key.

Enter the name (max. 8 digits).

Letters are also imprinted on the digit keys. Letters, digits and special characters are entered by pressing the relevant key the respective number of times.

After a short time the cursor skips one position forwards.

Confirm with the menu key.

Enter the phone number (max. 20 digits). If your telephone is connected to a PBX start the telephone number with the access code. If a dialling pause is needed, press after the access code the 0 key for approx. 2 sec. A P appears in the display.

Confirm with the menu key.

melody for the entry.

Confirm with the menu key.

Back to Standby mode.

GB

Editing telephone book entries

Press the menu key.

Select CONTACTS and press the menu key.

entry.

Press the menu key.

e of the following options and confirm with the menu key:

ADD You can create a new entry.

VIEW The entry is shown. Using the up/down key you switch between name, number and melody.

EDIT You can edit the entry. Use to delete characters and numbers then add new characters and numbers as required. Please refer to "Creating a new entry".

DELETE The entry will be deleted.

DEL ALL The complete list will be deleted after a confirmation query.

CAPACITY The current allocation will be displayed (e.g. 07/20:7 of 20 possible entries are present).

FASTDIAL Select a key from the list, press →select an entry from the phonebook and press →/OK

9 Setting the telephone

Date/Time

Press the menu key.

CLOCK and press the menu key.

one of the following options and confirm with the menu key:

DATE FMT

You can select your desired date format:

(DD-MM-YY or MM-DD-YY).

TIME FMT You can select your desired time format:

(24 hours or 12 hours).

SET TIME Enter the time using the digit keys.

SET DATE Enter the date using the digit keys.

In case of mains failure this setting will be deleted when simultaneously the handset will be switched off or the batteries will be empty.

Alarm

Press the menu key.

ALARM and press the menu key.

ON and press the menu key.

Enter the alarm time using the digit keys.

SNOOZE Press the menu key.

Select ON or OFF and press the menu key.

If “Snooze” is turned on it means that the alarm signal is being repeated after 7 minutes until this function is terminated by pressing and holding the off hook button.

If “Snooze” is turned off the alarm signal is given once at the specified time. To confirm the alarm signal, press any key.

Setting the ringer for the handset

Press the menu key.

Select HS SET and press the menu key.

RINGER and press the menu key.

one of the following options and confirm with the menu key:

INT RING Select a melody for internal calls.

EXT RING Select a melody for external calls.

RING VOL

Select the volume. If you select "OFF" the respective icon appears in the display.

Setting the alert tones

Press the menu key.

HS SET and press the menu key.

TONE and press the menu key.

one of the following options and confirm with the menu key:

KEY TONE Switch the keytone on or off.

LOW BATT

Switch the alert tone on or off. The tone sounds if "Low battery" is detected.

OUTRANGE

Switch the alert tone on or off. The tone sounds if “Out of range” is detected.

Setting the equalizer

Press the menu key.

HS SET and press the menu key.

EQLIZER and press the menu key.

one of the following options and confirm with the menu key:

Setting the telephone

NATURAL Setting for natural voice reproduction.

BASS Setting for enhanced bass.

TREBLE Setting for enhanced treble.

Selecting the base station

If your handset is registered to several base stations, you can select the desired base. The active basestation is marked with a * (BASE 1*).

Press the menu key.

HS SET and press the menu key.

Select SEL BASE and press the menu key.

a base station and confirm with the menu key.

Setting the display language

Press the menu key.

HS SET and press the menu key.

LANGUAGE and press the menu key.

a language and press the menu key.

Setting the handset name

Press the menu key.

HS SET and press the menu key.

HS NAME and press the menu key.

Delete the old name with center a new name using the digit keys and confirm with the menu key.

Setting the display

Press the menu key.

Select HS SET and press the menu key.

Select DISPLAY and press the menu key.

whether in standby-mode the handset's name or

the time will be displayed and confirm with the menu key.

Setting Auto Answer

Press the menu key.

Select HS SET and press the menu key.

AUTO ANS and press the menu key.

whether the automatic answer function will be on or off and confirm with the menu key.

If AUTO ANS is on an incoming call will immediately be taken when the handset is taken from the base.

Setting the voice mailbox number

If you have a access to a voice mailbox (depending on your network operator) you can set the telephone number in this menu. For any further information please contact your network operator.

This telephone number will be dialled, when in idle mode you press and hold down the key 1 for approx. 3 seconds.

Press the menu key.

HS SET and press the menu key.

MAILBOX and press the menu key.

Enter the phone number of your voice mailbox and press the menu key.

Setting the telephone

Setting the dial mode

Press the menu key.

BS SET and press the menu key.

Select DIALMODE and press the menu key.

TONE or PULSE and press the menu key.

In most situations the TONE option should be selected.

Setting the Flash Time

Press the menu key.

BS SET and press the menu key.

Select FLASH and press the menu key.

SHORT (100 ms), MEDIUM (250 ms) or LONG

(600 ms) and confirm with the menu key.

Setting Barge in

Barge in allows two handsets to share the same external call conve-ntly, instead of setting up a conference call by complex call transfer (ascribed on page 16).

Press the menu key.

Select BS SET and press the menu key.

BARGE IN and press the menu key.

ON or OFF and press the menu key.

Editing the PIN

/OK ▲?/ ▼○ ▲?/ ▼○

Press the menu key.

Select BS SET and press the menu key.

Select CHG PIN and press the menu key.

Enter the relevant PIN (default 0 0 0 0) and press the menu key.

Enter the new PIN and press the menu key.

Enter the new PIN again and press the menu key.

The four digit PIN protects some settings against unauthorized changes. If you have forgotten your PIN please call our service hotline.

Storing telephone numbers to the direct call keys

Your phone offers two direct call keys. The telephone numbers, stored to these keys, will be dialled immediately by pressing and holding down the respective key for approx. 3 seconds.

/OK ▲? / Select ▲? / ▼

Press the menu key.

MEM KEY and press the menu key.

Select M1 or M2 and press the menu key.

Enter the desired telephone number and press the menu key.

Resetting your phone

/OK ▲? / ▼

Press the menu key.

Select DEFAULT and press the menu key.

Enter the relevant PIN (default 0 0 0 0) and press the menu key.

Confirm the confirmation query with the menu key.

The phone book entries will not be deleted. Please delete the phone book using the menu item "CONTACTS / DEL ALL" The registration of handsets will not be changed.

Registering/de-registering handsets

10 Registering/de-registering handsets

5 handsets can be registered to a base station. The handsets delivered with your telephone are already registered. To register a “foreign” handset please refer to it’s user manual.

Registering a handset of the same type

Press the menu key.

REGISTER and press the menu key.

Enter the relevant PIN for the base, the new handset should be registered on, and press the menu key.

Press and hold down the paging key on the base station for approx. 8 sec.

After a few seconds the antenna icon on the display is on. The handset is registered.

Deleting a handset

Press the menu key.

BS SET and press the menu key.

DEL HS and press the menu key.

Enter the relevant PIN and press the menu key.

a handset and press the menu key.

You cannot de-register the handset you are currently using.

11 PBX / Supplementary Services

PBX

If the telephone is connected to a private branch exchange, functions such as transferring calls and automatic call back can be used via the R button. Refer to the operating manual provided with your private branch exchange as to which Flash time must be set in order to use these functions. The sales outlet where you purchased the exchange can provide information as to whether the telephone will work properly with the exchange.

Please remember to enter the access code and a neccessary dialling pause (longpress "0") when creating phone book entries.

Supplementary services

Your telephone supports supplementary services provided by your telepho- ne

network provider, such as brokering, call waiting and conference facilities. These supplementary services can be used via the R-button.

Please contact your telephone network provider regarding which Flash time must be set to use the supplementary services. Contact your telephone network provider with regard to enabling supplementary services.

12 Appendix

Menu Structure

    O["HS SET RINGER INT RING RING 1...10"] --> P["______"]
    Q["EXT RING RING 1...10"] --> R["______"]
    S["RING VOL OFF, 1...5"] --> T["______"]

    U["SEL BASE LANGUAGE"] --> V["BASE 1*"]
    V --> W["DEUTSCH / ENGLISH / TURKCE"]
    V --> X["HS DISPLAY"]
    X --> Y["NAME"]
    X --> Z["HS TIME"]
    Z --> AA["ON/OFF"]
    AA --> AB["AUTO ANS"]
    AB --> AC["MAILBOX"]

    AD["MEM KEY"] --> AE["M1/M2"]
    AE --> AF["CLOCK"]
    AF --> AG["DATE FMT"]
    AG --> AH["TIME"]
    AH --> AI["SET TIME"]
    AI --> AJ["SET"]
    AJ --> AK["DATE"]
    AK --> AL["ON/OFF"]
    AL --> AM["00:00"]

    AN["ALARM REGISTER DEFAULT"] --> AO["00:00"]

In Case of Problems

Should problems arise with the telephone, please refer to the following information first.

In the case of technical problems, contact our Hotline. Please refer to our website www.audioline.de for the telephone number.

In the case of claims under the terms of guarantee, contact your sales outlet.

There is a 2 year period of guarantee.

• After pressing the on hook button, no ring tone is audible, the line is not engaged.
• Check the telephone connector on the base station and on the wall socket.
• Check power connector on the base station and on 230 V.
• The line is being occupied by another handset. Wait until the connection is terminated.

- Display:„SEARCHING”.

• Check power connector on the base station and on 230 V.
• Reduce range.
• Register handset.

- No display.

• Handset turned off -> turn on.
• Battery empty -> recharge.

Default settings

Call list No entry

Phonebook No entry

Alarm Off

Ringer handset Internal call: Melody 2

External call: Melody 1

Volume: 3

Tone setup Key tone: On

Battery tone: On

Out of range: On

Language German

Handset name BIGTEL

Handset display Handset name

Auto answer On

Date & Time Date format: DD-MM-YY

Time format: 24 hours

Dial mode Tone

Flash time Short (100 ms)

PIN 0 0 0 0

Technical data

Standard: DECT / GAP

Number of channels: 120 duplex channels

Frequencies: 1880 MHz to 1900 MHz

Duplex mode: Time division multiplex, 10ms frame length

Channel spacing: 1728 kHz

Bit rate: 1152 kBit / s

Modulation: GFSK

Voice encoding: 32 kBit / s

Transmitter power: 10 mW (average power per channel)

Range: up to 300 m outside, up to 50 m inside buildings

Max. handset volume: up to 23 dB

(Volume "5" + Boost "On" + Equalizer setting: bass or treble enhanced)

Electricity supply base station / Electricity supply charger:

100\~240 V AC (adapter plug VT04EEU06045), 6 V DC / 450 mA

Electricity supply handset: 2 x AAA NiMH / 500 mAh

Handset: Operating time: Stand-by time / Talk time

500 mAh = up to 100 h / up to 10 h

Charging time: approx. 14 hours

Operating temperature for handset operation:

5°C to 45°C ; 20 % to 75 % rel. humidity

Operating temperature for base station operation:

5°C to 45°C ; 20 % to 75 % rel. humidity

Storage temperature: -10°C to +60°C

Dial mode: Tone / Pulse

R-key : Flash time (100 ms/250 ms/600 ms)

Base station dimensions (mm): L / W / H = approx. 115 x 110 x 57

Handset dimensions (mm): L / W / H = approx. 180 x 55 x 35

Telephone line cord:

TSV on Pin 3 and 4 according to CTR 37 (Euro)

Adapter plug: European-type mains connector

GB

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directives:

• 1999/5/EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.
• 2005/32/EU directive "Energy-using products".

Conformity with the above mentioned directives is confirmed by the CE symbol on the device.

To view the complete Declaration of Conformity, please refer to the free download available on our web site www.audioline.de.

Maintenance

Clean the housing surfaces with a soft, fluff-free cloth.

Do not use any cleaning agents or solvents.

Guarantee

AUDIOLINE equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies related to material or manufacturing errors within the period of guarantee will be redressed free of charge. Rights to claims under the terms of guarantee are annulled following tampering by the purchaser or third parties. Damage caused as the result of improper handling or operation, normal wear and tear, incorrect positioning or storage, improper connection or installation or Acts of God and other external influences are excluded from the terms of guarantee. In the case of complaints, we reserve the right to repair defect parts, replace them or replace the entire device.

Replaced parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your device shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the AUDIOLINE device together with the purchase receipt. All claims under the terms of guarantee in accordance with this agreement can only be asserted at the sales outlet. No claims under the terms of guarantee can be asserted after a period of two years from the date of purchase and hand-over of the product.

Index

A

Alarm 21

Alert tones .....22

Auto Answer .....7, 24

B

Barge in .....25

Boost function 3

C

Call list .....13, 18

Call timer .....14

Charging the batteries .....7

Conference 16

Connecting the base station .....6

D

Date/time 7,21

Declaration of Conformity .....34

Default settings .....32

Dial mode .....25

Direct call .....14, 26

Display....24

Display language .....7

Disposal 4

E

Earpiece/loudspeaker volume ...15

ECO mode .....11

Ending a call ....13

Equalizer .....22

F

Fast dial .....14, 20

Flash Time .....25

G

Guarantee 34

H

Hands-free .....12

Handset name .....23

|

Icons 10

In Case of Problems .....31

Inserting the batteries .....6

Installation location .....2

Intended use .....2

Internal calls .....15

K

Key lock....17

L

Language .....23

Low-radiation operation .....11

M

Maintenance ....34

Making a call ....12

Medical equipment ....3

Appendix

Menu Structure .....30

Muting the microphone .....15

N

Navigating in the menu .....11

P

Package contents .....5

PBX 29

Phone book 14, 19

PIN....26

Power adapter plug .....2

Power failure ....3

R

Rechargeable batteries .....2

Redial .....13, 18

Registering/de-registering handsets .....28

Reset 27

Ringer .....22

S

Safety Information .....2

Selecting the base station .....23

Standby mode .....11

Supplementary services .....29

Switching off the handset .....17

Switching the handset ringer on/off ....17

T

Taking a call....12

Technical data .....33

Transferring an external call ....16

V

Voice mailbox .....24

Volume (earpiece/loudspeaker) ..15

Volume (ringer) .....22

GB
