Blues X - Phone AUDIOLINE - Free user manual and instructions

Product Type	Cordless DECT telephone
Brand	Audioline
Model	Blues X
Standard	DECT / GAP
Power Supply	Input: 220–230 V, 50 Hz; Output: 6 V, 400 mA
Range (Outdoor)	Approx. 300 m
Range (Indoor)	Approx. 50 m
Standby Time	Up to 125 hours
Talk Time	Up to 13 hours
Batteries	2 x AAA Ni-MH 1.2 V
Dialling Mode	Tone / Pulse (Temporary tone dialling available)
Phone Book Capacity	Max. 13 characters for name, 24 digits for number
Call Log	Last 30 calls
Redial List	Last 10 numbers
Maximum Handsets	Up to 6
Base Stations	Up to 4
Special Functions	Handsfree, key lock, paging, internal calls, conference, room monitor, walkie-talkie, call barring, prefix dialling, private calls
Security	CE conformity; do not open device; only use supplied power adapter; keep away from medical equipment
Maintenance / Cleaning	Clean housing with soft, fluff-free cloth; do not use cleaning agents or solvents
Guarantee	24 months from date of purchase (excluding batteries and power packs)

Frequently Asked Questions - Blues X AUDIOLINE

How do I put the telephone into operation?

Check the package contents: base station, handset, power adapter, telephone cable, batteries. Connect the base station to the mains and telephone line, insert the AAA Ni-MH batteries in the handset, and charge for at least 16 hours before first use. See manual sections 2 and 3.

No connection to the base station – what should I do?

Ensure the handset is registered with the correct PIN (default 0000). Also check that the base station is powered, the handset is within range, and the batteries are charged. If problems persist, reset the base station by disconnecting the power briefly.

How can I extend battery life?

Always place the handset in the base station when not in use. If the batteries drain quickly, they may be defective; replace them with new AAA Ni-MH 1.2 V batteries. Clean the charging contacts with a soft cloth and ensure a full 14-hour charge cycle.

Caller ID (CLIP) does not work. Why?

CLIP is an optional service from your telephone network provider. You must subscribe to it. Also, the caller may have withheld their number. Check with your provider if the service is enabled on your line.

How do I register an additional handset?

First, put the base station into registration mode by pressing and holding the paging button for 3 seconds. On the handset, go to Menu > Add. Settings > Register, select a base (1-4), and enter the base PIN (default 0000). Wait for confirmation.

How can I reset the telephone to factory settings?

For the handset: Menu > Add. Settings > Reset Handset > Yes. For the base station: Menu > Base Settings > Reset Base > Yes. Note that phone book entries are preserved during a handset reset.

Can I use the handset as an alarm clock?

Yes. Go to Menu > Time & Alarm > Set Alarm. You can set the alarm time and activate it. The handset will ring at the set time with the alarm melody.

What should I do if the handset is lost?

Press the paging button on the base station for 2 seconds. The handset will emit a paging tone for about 30 seconds. To stop the tone, press the paging button again or any key on the handset.

How do I use the handsfree function?

During a call, press the Handsfree button (9 on the handset). You can listen and speak via the loudspeaker. Press the button again to return to the earpiece.

Is it possible to block certain numbers?

Yes, use the Call Barring function. Go to Menu > Base Settings > Call Barring. Enter the number or prefix you wish to block (e.g., 0 for all long-distance calls). Up to 5 entries can be stored.

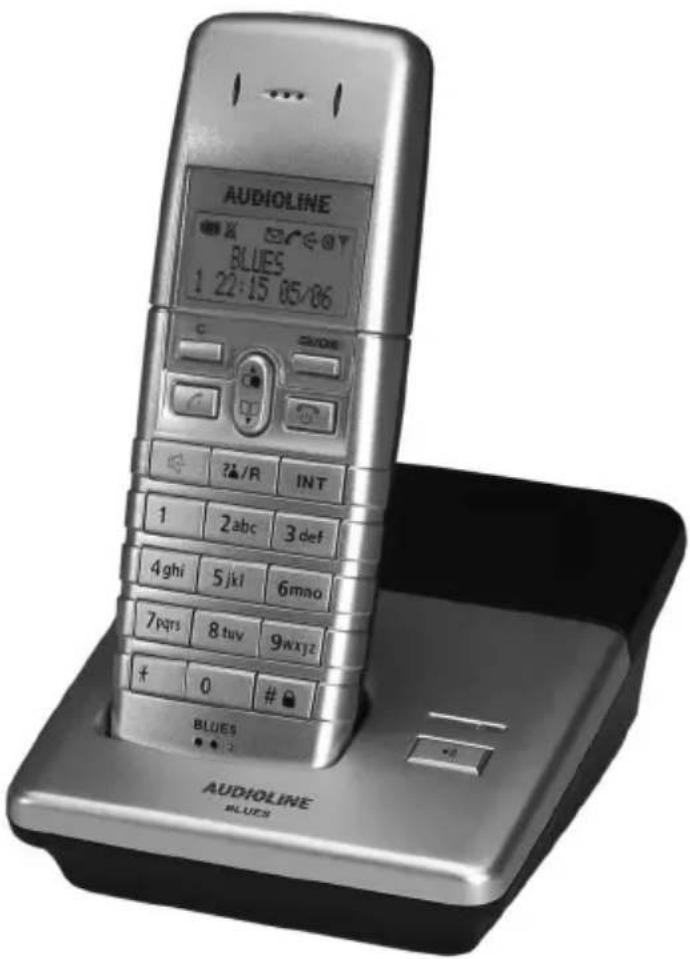

USER MANUAL Blues X AUDIOLINE

Schnurloses DECT-Telefon Cordless DECT telephone

AUDIOLINE BLUES 1 22:15 05/06 C 7#/R INT 1 2abc 3 def 4ghi 5jkl 6mno 7pqrs 8 tuv 9wxjz

0 ##

BLUES AUDIOLINE BLUES

Operating Instructions 27

D

GB

Diagram showing electrical connection with socket, switch, and door panel components labeled in English

D

1 Safety Information 28
2 Putting the Telephone into Operation 29
3 Operating Elements 31.
4 How to Operate the Telephone 32
5 Telephoning 34.
6 PBX / Supplementary Services 37. . . . . . . . . . . . .
7 Menu Structure 38
8 Special Functions 43
9 Expanding the Telephone System 45
10 In Case of Problems 46
11 Technical Properties 47
12 Maintenance / Guarantee 49
13 Index 50

1 Safety Information

Please read this operating instruction manual thoroughly.

Intended use

The telephone is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

Installation location

Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Do not use the handset in potentially explosive areas.

Power supply

Attention: Only use the power adapter plug supplied because other power supplies could damage the telephone. Ensure access to the power adapter plug is not obstructed by furniture or such.

Rechargeable batteries

Attention: Do not throw batteries into a fire. Only use batteries of the same type! Pay attention to correct polarity. Incorrect polarity of the batteries represents a risk of explosion during charging.

Power failure

The telephone cannot be used to make calls in the event of a power failure. Always keep a cord connected telephone which operates without an external power supply available in case of emergency situations.

Medical equipment

Attention: Never use the telephone in the vicinity of medical equipment. Effects on such equipment cannot be fully ruled out.

DECT ^1 DECT telephones can cause an unpleasant humming sound in hearing aids.

Disposal

When you want to dispose of the device, bring it to a collection point provided by your local public waste authorities (e.g. recycling center). The adjacent symbol indicates that the device must not be disposed of in normal domestic waste! According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container.

Batteries must be disposed of at the point of sale or at appropriate collection points provided by the public waste authorities.

Packaging materials must be disposed of according to local regulations.

^1 DECT: Digital Enhanced Cordless Telecommunication = Standard for cordless telephones.

2 Putting the Telephone into Operation

Safety information

Caution: It is essential to read the Safety Information in Chapter 1 before starting up.

Checking the contents of the package

The package contains:

Content	Model
	Blues	Blues Duo 1	Blues Trio 1	Blues Quadro 1
Base station with power adapter plug	1 1 1	1
Charging station with power adapter plug	- 1 2	3
Handset 1 2 3 4
Telephone connection cable	1 1 1 1
Batteries 2 4 6 8
Operating manual 1 1 1 1

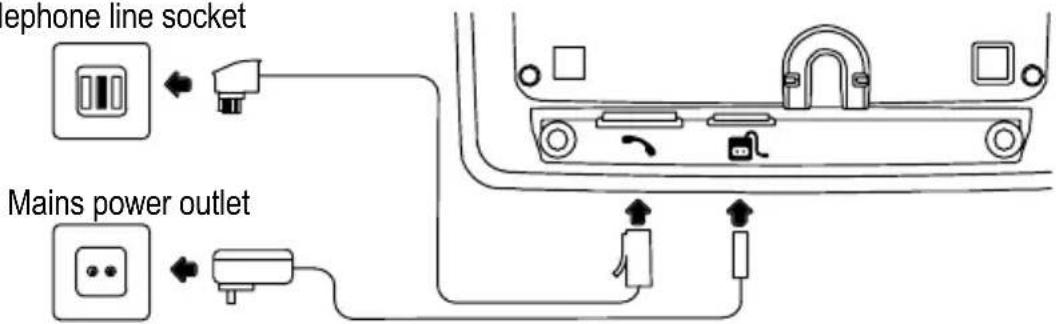

Connecting the base station

Caution: Position the base station at least 1 m away from other electronic devices, otherwise there is a risk of mutual disturbance.

Connect the base station as illustrated in the diagram. For reasons of safety, only use the power adapter plug supplied and telephone connection line enclosed.

Telephone line socket

ephone line socket Mains power outlet

Connecting the charging station ^2

Connect the charging station as illustrated in the diagram. For safety reasons, only use the power adapter plug supplied.

Mains power outlet

Diagram showing electrical connection with socket, switch, and connector components

GB

^1 Visit www.audioline.de to find out whether this telephone set is available.
2 Only applies to telephone sets with at least two handsets ☐ “Checking the contents of the package”.

Putting the Telephone into Operation

Inserting the rechargeable batteries

Insert the rechargeable batteries in the open battery compartment. Only use batteries of the type AAA Ni-MH 1.2 V. Pay attention to correct polarity. Close the battery compartment cover.

+ AAA - - AAA + ↓ + AAA - - AAA + ←

Charging the batteries

Before the handset is used for the first time, insert it in the base station/charging station for at least 16 hours. When the handset is inserted in the base station/charging station properly, the charge control lamp lights up. The handset warms up during the charging process. This is normal and does not represent a risk. Do not charge the handset with charging units from other manufacturers. The current battery charge status is indicated on the display:

Full Half empty Low Empty

Switching the handset on and off

The handset can be switched on and off in order to save the battery power.

2 sec ⏻ Switch the handset off

Switch the handset on

Setting the date and time

The information on Page 38 explains how to set the date and time on the handset when starting it up for the first time.

Private branch exchanges

The information on Page 37 explains how to install your telephone in a private branch exchange.

3 Operating Elements

The buttons in this operating manual are depicted with a uniform contour. Variations in the symbols on the telephone buttons compared to those depicted here are possible.

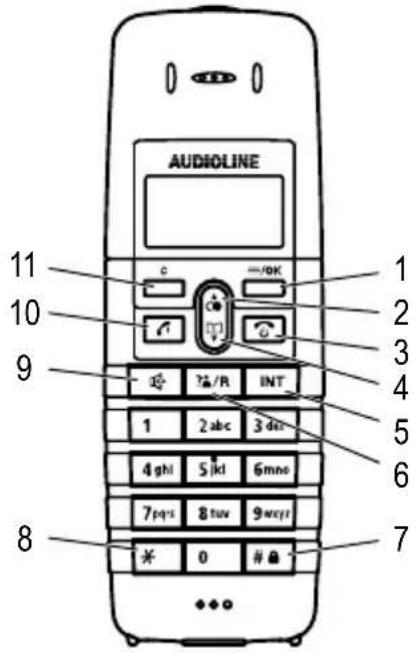

Handset

1 Menu button / OK button
2 Scroll upwards / Redialling list
3 End call / Switch handset on/off
4 Scroll downwards / Phone book
5 Internal call
6 Call log / R button / Initiate conference call
7 Hash key / Key lock
8 Star button / Temporary tone dialling
9 Handsfree
10 Take call
11 Delete / Back

AUDIOLINE 11 10 9 7a/R INT 1 2abc 3dca 4ghl 5kl 6mno 7pqsl 8tuv 9wcyt * 0 #

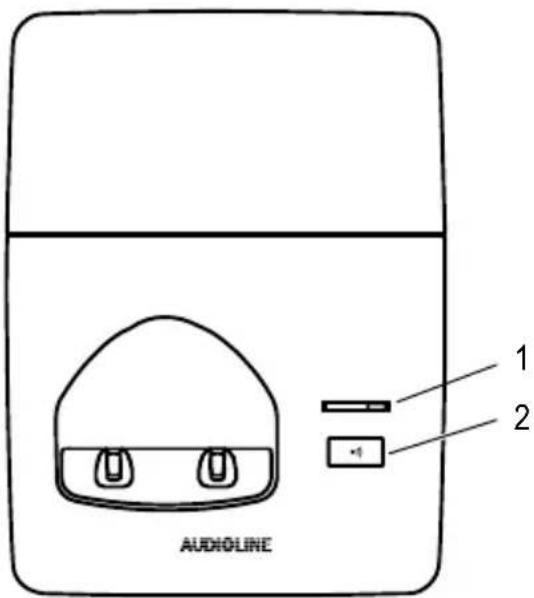

Base station

1 LED, charging control lamp
2 Paging button (locate handset)

AUDHOLINE 1 2

Charging station 1

AUDIOLINE

GB

1 Only applies to telephone sets with at least two handsets "Checking the contents of the package" on Page 29.

How to Operate the Telephone

4 How to Operate the Telephone

Display and notation of operation sequences

Enter digits or letters

* Press the button depicted briefly

2 sec ✱ Press the button depicted for 2 seconds

Press and hold ✱ Press and hold the button depicted

Release * Release the button depicted

( ) Handset rings

(( ) Base station rings

Remove the handset from the base station

Place the handset in the base station

Off or

Text or icon in the display

Icons in the display

Display Description

Blues	Name of the telephone. ☐ Page 39
1	Internally assigned call number of the handset. ☐ Page 34
22:15 02/05	Display of the time and date. ☐ Page 38
	On: Displays battery capacity.Flashing: The batteries must be recharged.Run-through segments: Batteries are being charged. ☐ Page 30
	The ringing tone has been switched off. ☐ Page 38
	Answering machine provided by the telephone network.VMWI ^1 - Optional service provided by the telephone network provider. ☐ Page 37
	On: A call is currently being made.Flashing: A call has been received. ☐ Page 34
	Handsfree mode has been activated. ☐ Page 36
	The microphone is switched off (muting). ☐ Page 35
	On: The connection to the base station is good.Flashing: The connection to the base station is not good. Move towards the base station.
	The key lock is activated. ☐ Page 36
	The alarm is activated. ☐ Page 38
Walkie Talkie	The “Walkie Talkie” function is activated. ☐ Page 40

Navigating in the menu

All the functions can be accessed via the various menus. Refer to the menu structure to find how to access the respective functions. Page 38

≡ Open the main menu ▲ or ▼ Select the submenu required

OK Open the submenu ▲ or ▼ Select the function required

OK Open the function ▲ or ▼ Select the setting required

Enter digits or letters using the relevant digit keys

OK Confirm the input

c Move one level back

Cancel programming and saving processes and return to Standby mode

Every process is automatically cancelled if there is no input within 60 seconds.

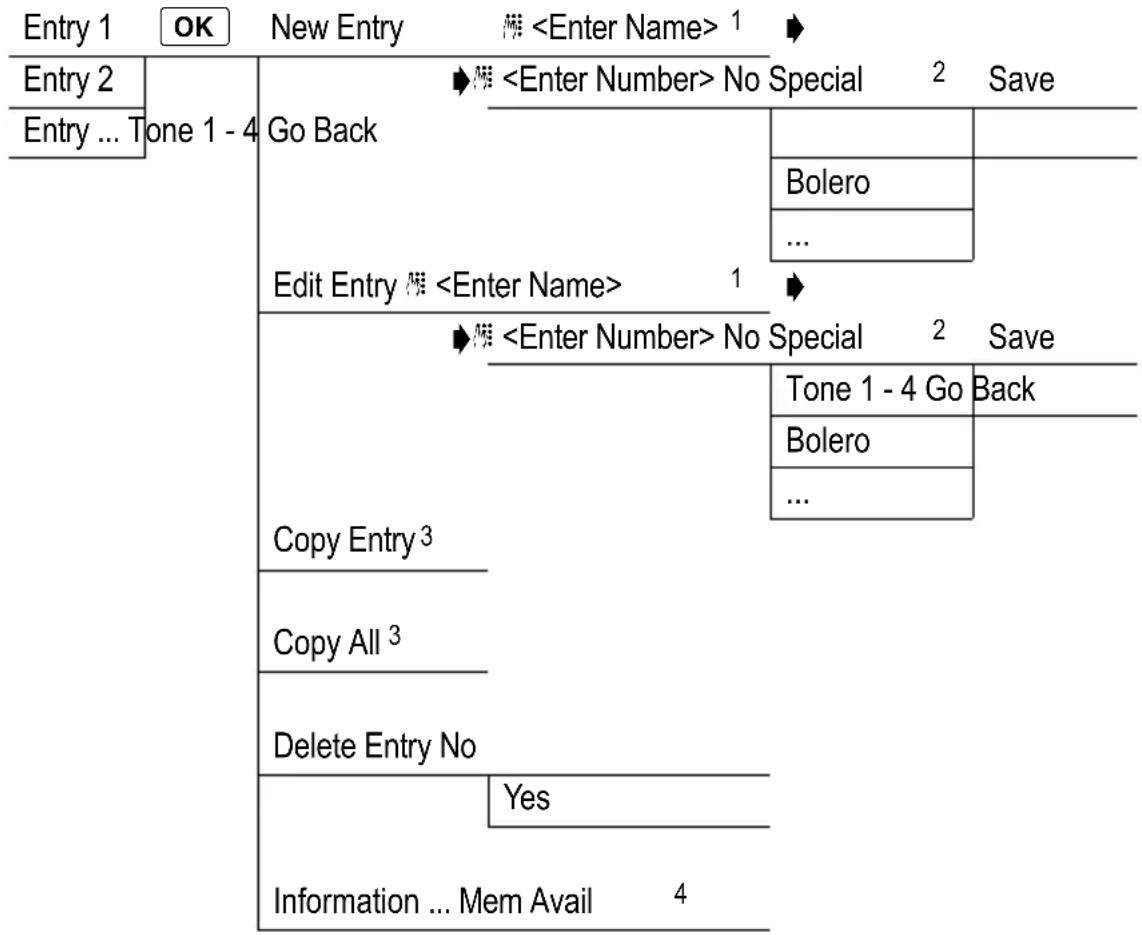

Creating phone book entries - example

The way in which to navigate through the menus and enter data is explained by means of the example Creating phone book entries. Proceed as in this example for all the settings.

Open the phone book

New Entry, OK Select the function and confirm

, OK Enter the name (max. 13 characters)

, OK Enter the number (max. 24 characters)

Telephoning

5 Telephoning

Taking a call

Take the call

Ending a call

End the call

Making a call

Enter the phone number (max. 24 digits)

Delete the last digit if incorrect

cial the phone number

Also possible to press the Call button first to obtain the dialling tone. The digits in the phone number then entered are dialled immediately. It is not possible to correct wrong digits individually using this dialling procedure.

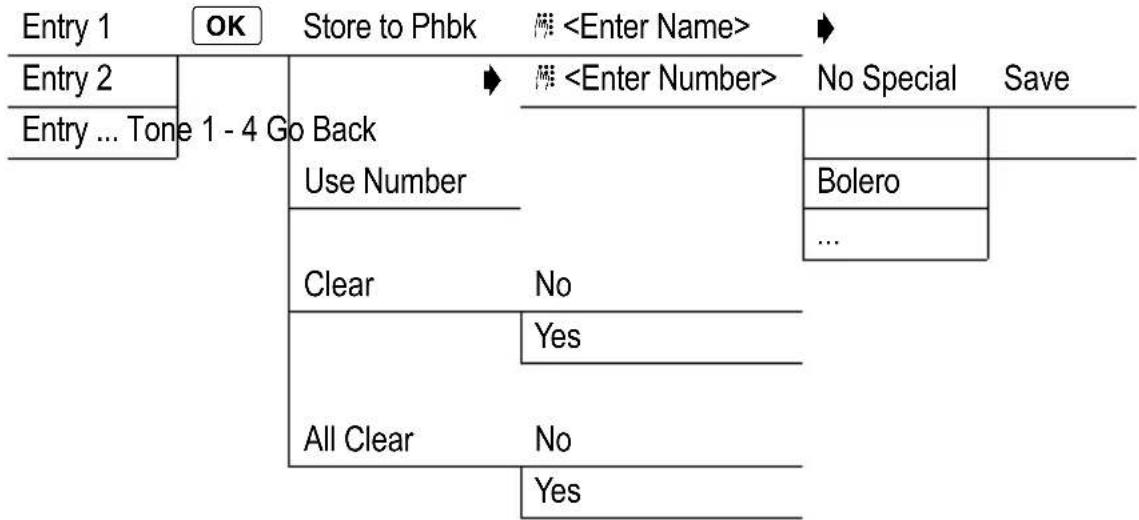

Redialling

Redialling the last phone number dialled

Dialling a number from the redialling list

The telephone stores the last 10 phone numbers dialled in a redialling list.

Open the redialling list

Select an entry and dial the number

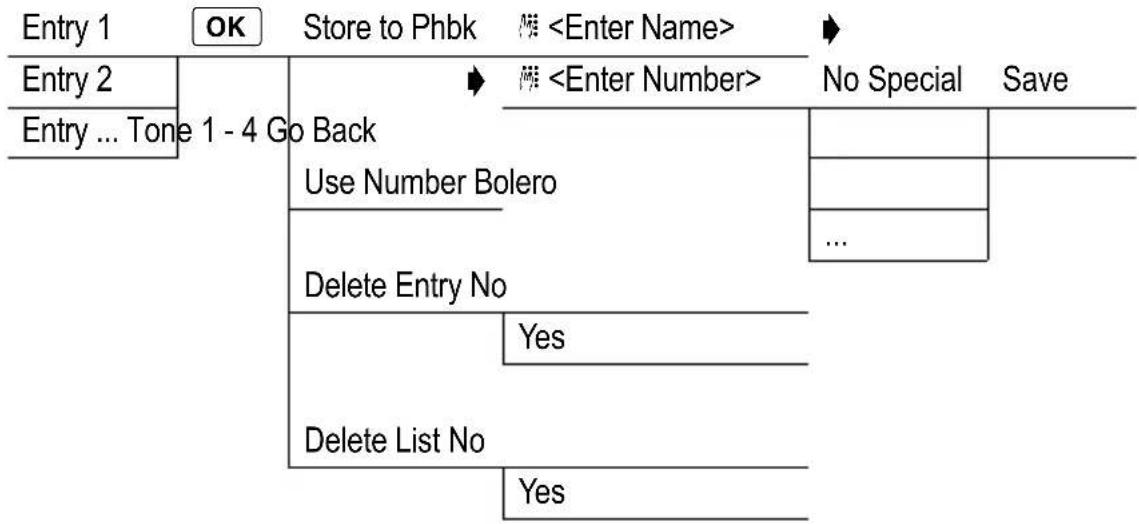

Calling back missed calls

The telephone stores the numbers of the last 30 calls received in a call log.

Open the call log

Select an entry and dial the number

Dialling phone numbers from the phone book

There must be phone numbers stored in the phone book. 📋 Pages 33 and 41

Open the phone book

Select an entry and dial the number

Internal Calls ^1

Making internal calls

There must be two or more handsets (HS1, HS2, ...) registered on a base station in order to make internal calls free of charge.

Transferring external calls internally

HS1: INT, ▲ or ▼

e.g. 2, OK Dial the internal call number during the conversation with the external caller

HS2: Take the call on the other handset

HS1: 📞/○ Forward the call

If the handset called does not answer, take the external call back by pressing the ↗ button.

Conference calls

An external call can be transferred to another internal handset for a conference call.

HS1: INT, ▲ or ▼ Dial the internal call number during the

e.g. 2, OK conversation with the external caller

HS2: Take the call on the other handset

HS1: R Start the conference

HS1 / HS2: 📞/© The conference is terminated by one of the internal handset users ending the call

Adjusting the receiver volume

The volume can be adjusted to one of 6 settings during a call.

or ▲ Select the required volume

Setting the tone

You can alter the tone of the caller's voice during a call.

≡, ▲ or ▼

SoundEnhancer, OK Open the function

or e.g:

NORMAL, OK Select the required tone

Muting the microphone in the handset

The microphone in the handset can be activated and deactivated during a telephone conversation.

≡, ▲ or ▼

Mute, OK Deactivate the microphone (muting function)

≡, ▲ or ▼

Unmute, OK Activate the microphone

Telephoning

Talk time display

The duration of a call is displayed in hours, minutes and seconds during the call.

Handsfree

Use this function to listen to the caller via the loudspeaker.

Key lock

Calls can still be taken in the normal way even when the key lock function is activated.

Activate the key lock function

Searching for the handset (Paging)

If you have mislaid your handset, you can locate it with the aid of a search tone.

End the search tone

6 PBX / Supplementary Services

R button on private branch exchanges

If the telephone is connected to a private branch exchange, functions such as transferring calls and automatic call back can be used via the R button. Please refer to the operating manual supplied with your private branch exchange to determine which recall (Flash) time must be set in order to use these functions. The dealer where you purchased the exchange can provide information as to whether the telephone will work properly with the exchange. Setting the recall time ☐ Page 40

Dialling pause

In the case of private branch exchanges, it is necessary to enter an access code to get an outside line with its corresponding dialling tone. When using some older private branch exchanges, it takes a little time before the dialling tone becomes audible. Particularly in the case of such private branch exchanges, it is possible to insert a dialling pause after the number for the outside line so that the number can be dialled in a continuous process without having to wait for the dialling tone.

3 sec R Insert dialling pause

After dialling the number for the outside line, the telephone waits a specific time before dialling the actual phone number.

The pause can also be entered with the phone numbers in the phone book.

R button and supplementary services

Your telephone supports the supplementary services offered by your telephone network provider, such as brokering, call waiting and conference calls. The supplementary services can be used in conjunction with the R button. Please contact your telephone network provider regarding which recall time must be set to use the supplementary services. Please contact the telephone network provider with regard to enabling the supplementary services. Setting the recall time Page 40

Call number display (CLIP ^1 )

If this function is available with your telephone line, the number of the caller appears in the display when the phone rings. If the caller has suppressed transmission of his phone number, a corresponding message appears in the display. The phone number is not displayed and, as a result, is not stored in the calls list.

The caller number display (CLIP) function is an optional service offered by telephone network providers. Contact your network provider for further information.

Answering machine in the telephone network

If your telephone network provider has an answering machine available for you in the telephone network, the (VMWP ^2 ) icon indicates a new message has been recorded for you. The provision of an external answering machine and indication of new messages via an icon are optional services from the telephone network provider. These functions can only be used when your telephone network provider actually offers the service. Contact your network provider for further information.

^1 CLIP: Calling Line Identification Presentation
^2 VMWI: Visual Message Waiting Indication

7 Menu Structure

Main menu

Access the Main menu by pressing the ≡ button.

Room Monitor Handset 1

Audio Setting Ringer Volume LOW 1 - 6 HIGH
	Handset 2
	Ringer Type External Tone 1 - 4
		Internal Bolero
		Paging Morning
		Alarm William Tell
		Appointment Pomp& Circums.
			Je Te Veux
			ABC
	Tones Key Pattern 1
		Confirmation On	Pattern 2
			Pattern 3
			Off
		Warning On	Off
		Call Waiting	Off
			On
		Range Alarm	Off
			On
			Off

Time & Alarm	Set Appointm.	Appointment1 - 5	Off
		Date Time	On ▶
			Appoint Name:
	Set Alarm	On	Set Alarm
	Set Date&Time	Off
		Date Time

Auto Talk1	On
	Off

Display Handset Name 🎨 Handset Name

	Talk Display2	Time
	Sel Language English/ German

Add. Settings Reset Handset		No
	Register	Yes
		Base 1 - 4	Please Wait... ➤
		➤ Enter Base PIN	Please Wait...
	Select Base Automatic 3
		Base ...
	Deregister Handset Handset 1 No
		Base Base 1	Handset ... Yes
			No
			Base ...	Yes

Base Settings	Private Ring4	<Enter Num-ber>	Handset 1
			Handset ...
	OK	New Entry	<Enter Number>	Handset 1
		Edit Entry	<Enter Number>	Handset ...
		Delete Entry	No	Handset 1
			Yes

^1 Further information on automatic answering ☐ Page 43.
^2 Call time or caller number display during the call.
^3 The handset automatically searches for the nearest base station with the best connection (Automatic).
^4 Further information on private calls ☐ Page 44.

Audio Setting	Ringer Volume	LOW 1 - 6 HIGH
	Ringer Type Tone 1 - 9
Reset Base No
	Yes	Reset Base to default
Additional Dial Mode Tone
	Recall Time 80 msec, 100 msec,	Pulse
	Prefix Dial 1	120 msec, 180 msec,
		250 msec, 300 msec,
		600 msec, 800 msec
		On
Call Barring 2		Off
Base PIN PIN : 0000

Walkie Talkie Enter Group Id 3 OK Off

Ringer Volume LOW 1 - 6 HIGH
	Off
Ringer Type Tone 1 - 4
	Bolero
	...

^1 Further information on prefix dialling ☐ Page 43.
^2 Further information on call barring ☐ Page 44.
^3 The same "Group ID" must be entered on all handsets. Further information on walkie-talkie function ☐ Page 43.

Phone book

Press the 📄 button to open the phone book.

^1 Entering text: Letters are also imprinted on the digit keys. Letters, digits and special characters are entered by pressing the relevant key the respective number of times.
Press the 1 button to enter spaces. Use the Star button to switch between upper and lower case. Press the Scroll Down button to move the cursor to the right to enter letters assigned to the same key.
^2 This function is used to assign a certain ringing melody to a phone book entry. Your handset then rings with this melody when a call is received from this caller. This function requires the CLIP ^5 function is enabled. The CLIP (caller number display) function is an optional service offered by telephone network providers. Contact your network provider for further information.
^3 When the copy process is started on a handset, the handset to which the data is being copied rings. The phone book entries are copied as soon as the connection is established by pressing the Call button.
^4 Display of the memory capacity still available in the phone book.
^5 CLIP: Calling Line Identification Presentation

Menu Structure

Call log

Press the ?Button to open the call log.

Redialling

Press the Ⓐ button to open the redialling list.

8 Special Functions

Automatic answering

If this function is activated, an incoming call is taken when the handset is removed from the base station. Page 39

Dialling mode

The telephone can be operated in new, digital exchanges (TONE) as well as analogue exchanges (PULSE). Page 40

Temporary tone dialling

If you only operate the telephone using the PULSE dialling mode, you can still make use of the advantages of TONE dialling mode (e.g.: remote access of the answering machine in the conventional telephone network). You can temporarily switch to Tone dialling when a connection has already been made.

3 sec ✱ Press the button during a call

When the call is ended, the equipment automatically switches back to Pulse dialling.

Room monitoring

This function can be used when two Blues handsets are available for use.

Use the “Room Monitor” submenu to dial a second handset and place the handset in the room to be monitored. Take the call on the second handset. You can then monitor the room as long as the connection remains established.

Walkie-Talkie

This function can be used when two Blues handsets (HS 1, HS 2, ...) are available for use.

The function must be activated on all the handsets participating in the facility,

Page 40. When this function is activated, the handsets operate independent of the base station. No external calls can be made or taken by the handsets when this function is being used.

E.g.: HS 1: Call the handset

E.g.: HS 2: Take the call

HS 1/HS 2: 📞/⊕ End the call

Prefix dialling

This function enables a specified number to be dialled automatically prior to the actual phone number. This is mainly implemented when using call-by-call numbers.

A call-by-call prefix with up to 24 digits can be stored. The call-by-call number is automatically prefixed and is not displayed in addition to the selected phone number.

If you press the Call button first to obtain a dialling tone and then enter the phone number, the call-by-call number stored is also prefixed.

Special Functions

Call barring

This function can be used to bar the dialling of specific phone numbers or area codes. The numbers defined for call barring applies to all the registered handsets. Emergency numbers cannot be barred.

Call barring - examples

0 All long-distance calls are barred.

00 All international calls are barred.

017 All mobile phone numbers beginning with "017" are barred.

019 All phone numbers beginning with "019" are barred.

Setting appointments

The handset can be used to make your handset remind you of certain appointments (e.g.: birthdays, meetings) Page 38. Up to 5 appointments can be stored together with a name.

Alarm

This function is provided so that the handset can be used as an alarm clock, Page 38

Private calls

Up to 10 private phone numbers can be stored in the phone number memory. When a call is received from a number stored in a handset as a private phone number, only that specific handset rings. The message Private Call appears in the displays of all the other Blues handsets. The call can be taken, however, by all the other handsets.

9 Expanding the Telephone System

The international GAP ^1 standard regulates the compatibility of handsets and base stations from different manufacturers. As a result, it is possible to integrate AUDIOLINE devices and devices from other manufacturers together in one telephone system. It is possible, however, that some functions are not available.

Multiple handsets

Up to 6 handsets can be registered on the base station.

Registering handsets

Before starting with the registration process for a handset, switch the respective base station to Registration mode.

3 sec □ Initiate Registration mode

Complete the registration process for your handset, ☐ Page 39. The currently valid PIN code is used for registration purposes, ☐ Page 40.

The handset is automatically assigned an internal call number following registration. The internal call number appears in the display.

To register handsets from other manufacturers, please refer to the operating manual supplied with them.

Deregistering handsets

A handset can only be deregistered from a base station using another handset registered to that base station.

Multiple base stations

Your handsets can be simultaneously registered on up to 4 different base stations. Each base station requires its own telephone cable socket. Connections can be used with the same call number or with different ones.

Calls in progress, however, cannot be transferred from one base station to another.

Increasing the range

Position the base stations so that the ranges of the individual base stations overlap. Test the range of your handsets because obstructions in buildings restrict the range. Register the handset on all the base stations. Activate the Automatic selection of base station

Page 39. The handset then automatically searches for the nearest base station with the best connection.

Mobility through registration at various locations

Register the handset on base stations at various locations. Activate the Automatic selection of base station, ☐ Page 39. Regardless of your current location, the handset automatically searches for a base station within range.

10 In Case of Problems

Should problems arise with the telephone, please refer to the following information first. In the case of technical problems, you can contact our hotline service, tel. [phone] (cost via Telekom at time of going to print: 12 ct/min). In the case of claims under the terms of guarantee, contact your sales outlet. There is a 2 year period of guarantee.

Problems and solutions

Problems Solutions
No connection to base station possible	- Check that the handset has been registered on the base station with the correct PIN code. Page 39
No telephone calls possible -	The telephone line is not connected properly or is defective. Only use the telephone connection cable supplied.- Test whether the telephone connection is in order by using another telephone.- The power adaptor plug is not plugged in or there is a complete power failure.- The rechargeable batteries are empty or defective.- The handset is too far from the base station.- The phone number has been barred (call barring) Page 44
Connection is disturbed or cut off	- The handset is too far from the base station.- The base station is in an unsuitable location.
The system no longer responds	- Disconnect the power adapter plug briefly from the power socket.- Reset the default settings. Page 47
The batteries are empty in a short time	- The batteries are defect.- Place the handset in the base station properly.Clean the contact surfaces on the handset and base station with a soft, dry cloth.- Place the handset in the base station for 14 hours.
The CLIP 1 function does not work	- The CLIP (caller number display) function is an optional service offered by telephone network providers. Contact your network provider for further information.- The caller has suppressed the transmission of their phone number.

11 Technical Properties

Technical data

Feature Value
Standard DECT	^1-GAP^2
Power supply Input: 220/230 V, 50 Hz	Output: 6 V, 400 mA
Range Outdoors: Approx. 300 m	Indoors: Approx. 50 m
Standby Up to 125 h
Max. talk time Up to 13 h
Rechargeable batteries 2 x AAA Ni-MH 1.2 V
Dialling mode Tone dialling mode	Pulse dialling mode
Permissible ambient temperature 10°C to 30°C
Permissible relative humidity 20% to 75%
Flash function 80 msec, 100 msec, 120 msec,	180 msec, 250 msec, 300 msec, 600 msec, 800 msec

Restoring default settings

Handset

Phone book entries are not deleted during the reset process.

≡ Open the main menu

or Add. Settings, OK Select the menu and confirm

or Reset Handset, OK Select the submenu and confirm

or ▲ No or Yes, OK Cancel or confirm the reset

Base station

≡ Open the main menu

or ▲ Base Settings, OK Select the menu and confirm

or Reset Base, OK Select the submenu and confirm

or ▲ No or Yes, OK Cancel or confirm the reset

GB

^1 DECT: Digital Enhanced Cordless Telecommunication = Standard for cordless telephones.
2 GAP: Generic Access Profile = Standard for the interoperation of handsets and base stations from other manufacturers.

Technical Properties

Default settings, handset/base station

Alarm: Off Ringer Volume: 3

Appointment: Off Ringer Type > External: 1

Auto Talk: On Ringer Type > Internal: 2

Sel Language: German Ringer Type > Paging: 3

Select Base: Automatic Ringer Type > Alarm: 3

Walkie Talkie > Enter Group Id: 000 Ringer Type > Appointment: 3

Recall Time: 100 msec Tones > Key: 1

Base PIN: 0000 Tones > Confirmation: On

Prefix Dial: Empty Tones > Warning: On

Call Barring: Empty Tones > Call Waiting: On

Private Ring: Empty Tones > Range Alarm: On

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directive:

1999/5/EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. Conformity with the above mentioned directive is confirmed by the CE symbol on the device.

To view the complete Declaration of Conformity, please refer to the free download available on our web site www.audioline.de.

0436

12 Maintenance / Guarantee

Maintenance

• Clean the housing surfaces with a soft, fluff-free cloth.
• Never use cleaning agents or solvents.

Guarantee

AUDIOLINE equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies resulting from material or production faults which occur during the period of guarantee will be eliminated free of charge. Rights to claims under the terms of guarantee are annulled following intervention by the purchaser or third parties. Damage caused as a result of improper handling or operation, incorrect positioning or storing, improper connection or installation, Acts of God or other external influence are not covered by the terms of guarantee. In the case of complaints, we reserve the right to repair or replace defect parts or provide a replacement device. Replacement parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your equipment shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the AUDIOLINE equipment together with the purchase receipt. All rights to claims under the terms of guarantee in accordance with this agreement must be asserted exclusively with regard to your sales outlet. Two years after the purchase and transfer of our products, claims under the terms of guarantee can no longer be asserted.

13 Index

A

Alarm, 44

Answering machine in the telephone network, 37

Appointments, 44

Automatic answering, 43

Automatic base selection, 39

Automatic selection, 45

B

Battery charge status, 30

C

Call barring, 44

Call number display, 37

Call-by-Call, 43

Calling back missed calls, 34

Calls list, 42

Charging the batteries, 30

Conference calls, 35

Connecting the base station, 29

Connecting the charging station, 29

Creating phone book entries, 33

D

Declaration of Conformity, 48

Deregistering handsets, 45

Dialling mode, 43

Dialling pause, 37

Dialling phone numbers from the phone book, 34

E

Ending a call, 34

Entering text, 41

Expanding the telephone system, 45

Explanations, 32

G

Guarantee, 49

H

Handsfree, 36

How to operate the telephone, 32

|

Icons in the display, 32

Increasing the range, 45

Inserting the batteries, 30

Internal calls, 34

K

Key lock, 36

M

Main menu, 38

Maintenance, 49

Making a call, 34

Making internal calls, 34

Menu Structure, 38

Mobility, 45

Multiple base stations, 45

Multiple handsets, 45

Muting the microphone, 35

N

Notation, 32

0

Operating elements, 31

P

Package contents, 29

Paging, 36

Phone book, 41

Prefix dialling, 43

Private branch exchanges, 37

Private calls, 44

Problems and solutions, 46

Putting the telephone into operation, 29

R

R button and supplementary services, 37

R button on private branch exchanges, 37

Receiver volume, 35

Redialling, 34, 42

Registering handsets, 45

Reset, 47

Restoring default settings, 47

Room monitoring, 43

S

Safety information, 28

Searching for the handset, 36

Setting the date and time, 38

Setting the tone, 35

Special functions, 43

Supplementary services, 37

Switching the handset on and off, 30

T

Taking a call, 34

Talk time, 36

Technical data, 47

Telephoning, 34

Temporary tone dialling, 43

Transferring external calls internally, 35

V

VMWI, 37

W

Walkie-talkie, 43
