USER MANUAL DECT 5501 plus AUDIOLINE

Front view of a modern audio line phone with control buttons and a digital display (no visible text or symbols on the device body)

Operating Instructions ____ 27

Technical line drawing of a mechanical component with no visible text or symbols

2. Inbetriebnahme

Name: MANFRED ZINNOW

General Instructions.... 28

1. User controls.... 30
2. Setting up 31

2.1 Safety notices 31
2.2 Checking the contents of the package 31
2.3 Connecting the charger 31
2.4 Exchange the batteries.... 31
2.5 Charging the batteries.... 32
2.6 Fitting the belt clip.... 32
2.7 Registering handsets.... 33

1. Normal use 34

3.1 The display 34
3.2 Taking calls.... 34
3.3 Making calls 35
3.4 Handsfree facility.... 35
3.5 Length of call display 35
3.6 Internal calls.... 35
3.7 Connecting external calls to another handset 36
3.8 Setting up conference calls 36
3.9 Turning the handset on and off.... 36
3.10 Range indications 36
3.11 Muting the handset microphone.... 37
3.12 Setting the speaker volume 37
3.13 Redial 37
3.14 "R" button 37
3.15 Keypad lock 37

1. The phonebook.... 39

4.1 Entering numbers in the phonebook.... 39
4.2 Dialling a number in the phonebook 40
4.3 Changing numbers stored in the phonebook.... 40
4.4 Deleting numbers from the phonebook.... 41
4.5 Check the phonebook entries 41

1. Calling number display (CLIP) 42

5.1 The list of callers 42
5.2 Storing a number from the list of callers in the phonebook..... 43
5.3 Deleting numbers from the list of callers.... 43
5.4 Deleting the entire list of callers 43

1. Special functions 44

6.1 Setting ring melodies on the handset 44
6.2 Setting the ring melody volume.... 45

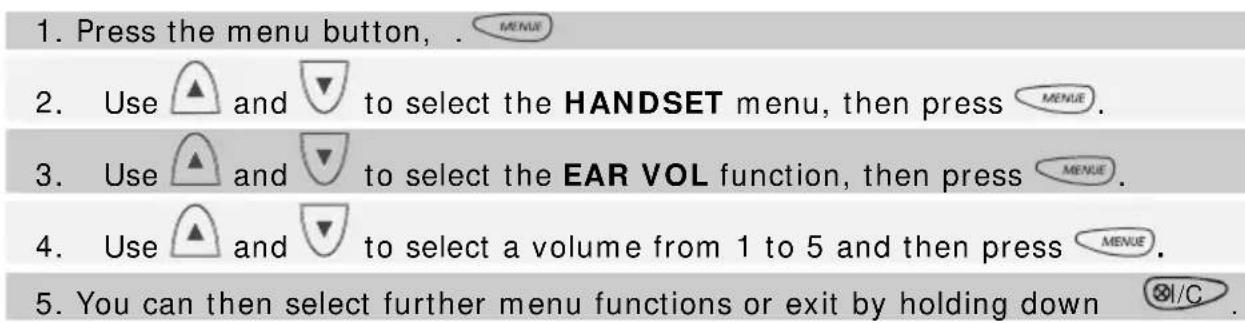

6.3 Adjusting the speaker volume 45

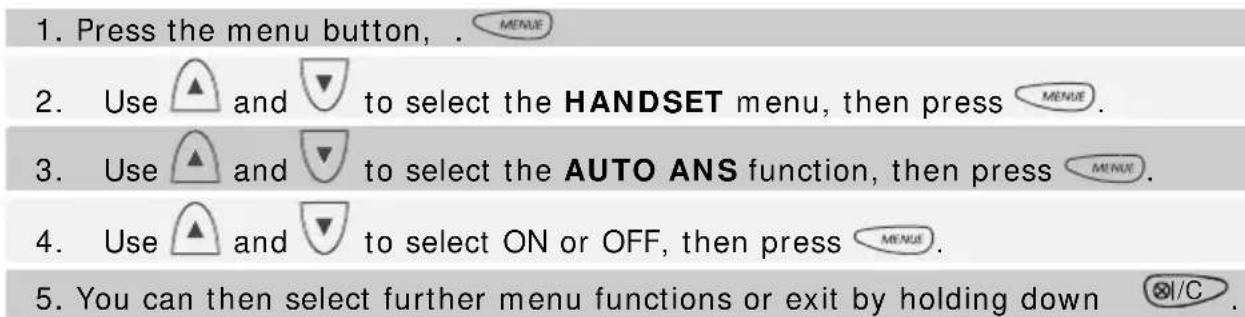

6.4 Take calls automatically.... 45
6.5 Change display name 46
6.6 Turning indicator tones on and off 46
6.7 Setting the display language 47

1. Troubleshooting.... 48

2. Important information 49

8.1 Technical data.... 49
8.2 Guarantee 49
8.4 Declaration of conformity....50

General Instructions

These additional operating instructions describe the use of further handsets with the AUDIOLINE DECT5500+, DECT5600SMS, DECT5800 or at DECT-GAP telephones of other manufacturers.

For the description of all other functions such as normal operation, technical data or safety information for example, please refer to the main operating instructions for the AUDIOLINE DECT5500 or the appropriate operating instruction.

Note: If you should attach this telephone handset on a DECT-GAP telephone of another manufacturer, please note, that not all handset functions are possible.

Up to four further handsets can be logged on to the AUDIOLINE DECT5500+, DETC5600SMS or DECT5800 base station. When using multiple handsets you have access to the following facilities:

• Internal calls between the handsets.
• External calls can be transferred between the handsets.
• Incoming external calls are signalled on all handsets.

Please read these operating instructions carefully. If you have any questions, get in touch with our Service Dept. by calling our Service Hotline at 0180 5 00 13 88.

Under no circumstances should you open the device or attempt to repair the device yourself. Please contact your dealer in case of any warranty claims.

Power failures

Telephone calls cannot be made during power failures. Keep a cord telephone that is not equipped with an external power supply available in case of emergency.

Rechargeable batteries

Use only rechargeable batteries as supplied. The use of other rechargeable batteries or accupacks may cause a short-circuit. When changing the batteries, use only rechargeable batteries, type AAA 1.2 Volt, 550mAh.

Do not throw batteries in the fire or immerse them in water. Do not dispose of old or defective batteries with normal domestic waste.

Charging the handset

If the handset becomes warm when charging, this is quite normal and no cause for alarm. Only charge the handset on the base station. The use of other chargers may cause lasting damage.

Transformer plug

Use only the AUDIOLINE transformer plug supplied, other transformer plugs can destroy your telephone. Opening the power supply plug while it is plugged into the supply mains could lead to personal injury and death.

- General Instructions -

Private branch exchanges

The telephone can also be connected to a private branch exchange. The dealer where you purchased the private branch exchange will tell you if your telephone will work properly on your PBX. Due to the great variety of private branch exchanges, we cannot guarantee that the phone will work properly on all PBXs.

Location of the base station

The base station must be located within reach of a 230Volt supply socket. To avoid interference problems, do not place the base station in the immediate proximity of other electronic equipment such as a microwave oven or hi-fi system. The location of the base station can significantly influence the proper function of the telephone.

Place the base station on a level, non-slip surface. The feet of the base station will not normally mark the surface on which it stands. However, the wide range of surface finishes in use renders it impossible to exclude marking of any surface.

Do not use the handset in areas where there is a danger of explosion.

Avoid excessive exposure to smoke, dust, vibration, chemicals, humidity, high temperature or direct sunlight.

Note for medical products

The telephone works with very low transmitted power. Present knowledge and research indicate that, at this low power level, there is no possible danger to health. It has, however, been shown that portable telephones, when switched on, can affect medical equipment. Maintain a distance of at least one metre from medical equipment.

Disposal

If the batteries or the complete system have reached the end of their useful life, please dispose of them in an environmentally friendly manner and as required by law.

Temperature and ambient conditions

The telephone is designed for indoor use and an operating temperature range of 10 °C to 30 °C .

The base station must not be installed in humid areas such as bath or wash rooms. Avoid proximity to sources of heat such as radiators and do not expose the unit to direct sunlight.

Cleaning and care

The outer surfaces of the unit can be cleaned with a soft, dry, lint-free cloth. Never use cleaning agents or aggressive solvents. Apart from occasionally cleaning the outer surfaces, no further care is required. The rubber feet of the base station are not resistant to all cleaning agents. The manufacturer cannot, therefore, be held responsible for damage to furniture etc.

CE marking

The telephone is compliant with the essential requirements of the R&TTE Directive. This is certified by the CE marking.

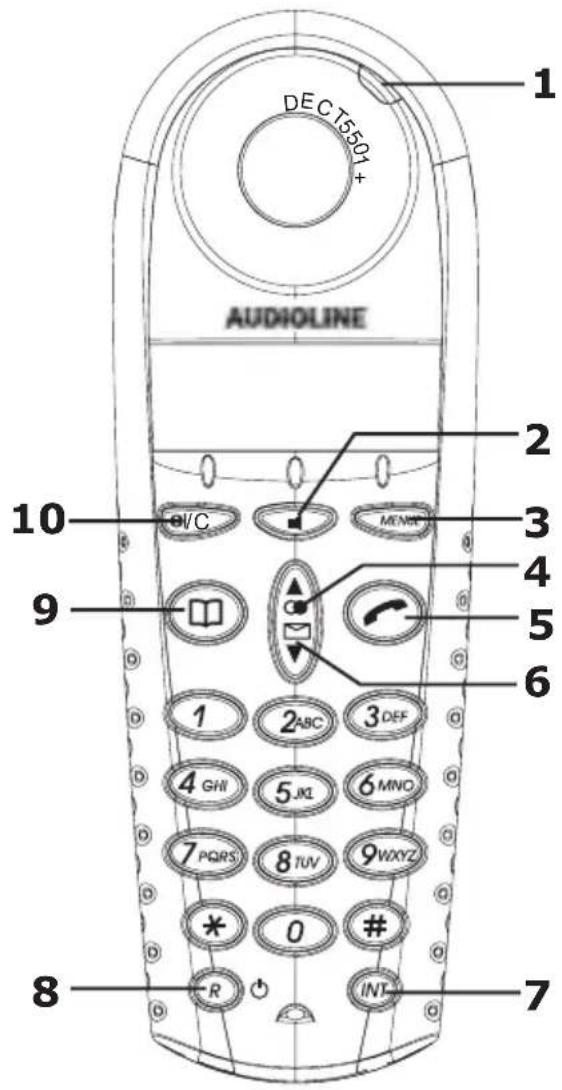

1. User controls

Handset

DECT5501+ AUDIOLINE 1 2 3 4 5 6 7 8 9 10 O/C MENU 1 2ABC 3DFF 4GHI 5JKI 6MNO 7PQRS 8TUV 9WXYZ * 0 # R INT

1 Call indicator 6 Caller list (Clip)/Selector button
2 Handsfree facility 7 Internal calls
3 Menu button 8 R button/On-Off button
4 Redial/Selector button 9 Phonebook
5 Call button 10 Secrecy / Delete button

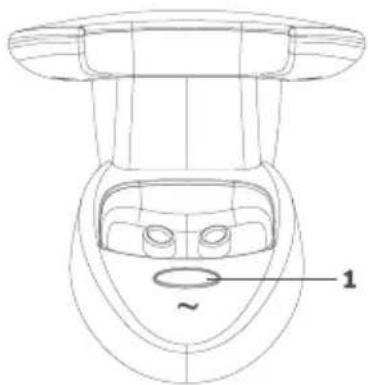

Charger

1 Charging indicator lights

Technical line drawing of a mechanical component with no visible text or symbols

- Setting Up -

2. Setting up

2.1 Safety notices

NOTICE! Before switching on, do not fail to read the safety notices on of the beginning of these instructions.

2.2 Checking the contents of the package

The package should contain:

one charger one supply cable
one handset with batteries one belt clip
one set of directions for use

2.3 Connecting the charger

Set up the AUDIOLINE DECT5501+ within reach of a electricity supply socket.

1. Insert the connector on the lead from the transformer plug in the socket on the underside of the charger and insert the transformer plug in a 230V supply socket installed in accordance with regulations. For safety reasons, use only the transformer plug supplied.

2. Press the cable into the cable channel leading to the rear of the charger.

2.4 Exchange the batteries

The rechargeable batteries (AAA, 1.2V, 550mAh) have a stand-by time of max. 350 hours and a maximum talk time of up to 14 hours. To fit or change the batteries, open the battery compartment cover and insert the new batteries. Take care to ensure that the polarity is correct and close the battery compartment cover. Always use rechargeable batteries, type AAA 2 x 1.2V, only.

To increase performance, you can also use rechargeable batteries of the same type with up to 1300 mAh capacity. In this way, the stand-by time is increased to ca. 700 hours and the talk time to ca. 28 hours.

Important notice: Place the handset on the base station, with the display facing forwards, for at least 16 hours. If the batteries are not properly charged, the telephone may fail to function correctly. While the handset is charging, the battery capacity symbol in the display will blink. The indicator lights as soon as the handset is placed in position.

- Setting Up -

2.5 Charging the batteries

The rechargeable batteries in your AUDIOLINE DECT5501+ handset provide for a maximum standby time of 350 hours and a call time of up to 14 hours.

The actual state of charge of the batteries is shown in the display:

Full

Half

Low

If the remaining charge in the batteries is too low, the symbol in the display will blink and you will hear a warning peep every 10 seconds.

To charge the batteries, place the handset on the charger with the display facing forwards.

Notice: Before using the telephone for the first time, the batteries must be charged for at least 16 hours. Like your car battery, the rechargeable batteries suffer from a certain, unavoidable ageing effect. You can, however, minimise this by exercising the batteries correctly. As you use your telephone, always start with fully charged batteries and continue using it until they are "empty" as indicated by the blinking symbol in the display. Then recharge them fully. This will maintain maximum battery capacity for as long as possible. Repeated partial charging and discharging will "teach" the batteries to operate with reduced capacity.

2.6 Fitting the belt clip

Slide the belt clip into the grooves until it audibly clicks home.

2.7 Registering handsets

1. Hold down the paging button, on the base station for 10 seconds until it beeps twice. You now have 90 seconds to register the new handset.

NOTE: During a log-on to a base station of another manufacturer, please have a look in this operating instruction, as you prepare the base station for registering a new telephone handsets. If you made the necessary inputs, continue with point 2.

1. Press the button on the handset.

2. Use ▲ and ▼ to select the REGISTER menu, then press MENUE.

3. Now use the number buttons to enter the number of the base station (1 - 4). If the handset is already registered with a base station, the corresponding numbers will blink.

4. Press the button again.

5. Now enter the PIN number for the base station (factory setting, 0 0 0 0).

6. Now press the menu button, , and you will hear a beep for a few seconds. The handset is now registered and can be used for external and internal calls.

7. An internal number will now have been allocated to the handset. The first handset registered (main handset) has the internal number 1. Any further handsets that are registered are allocated internal numbers (2 to 5) in the order of registration. This internal number is shown in the display to the right of the name.

3. Normal use

3.1 The display

The display is provided with an automatic backlight, which illuminates the display for ca. 8 seconds every time a button is pressed. In normal operation, the display shows the name of the handset.

The display also gives a symbolic display of all the main functions.

	Steady: You are making (or taking) a call.Blinking: There is an incoming call and the connection with the base station is being established.
	Steady: You are making (or taking) an external call.Blinking: There is an incoming external call.
	Steady: You are making (or taking) an internal call.Blinking: There is an incoming internal call.
	Steady: A conference call has been set up.
	Steady: You are in the callers (CLIP) list.Blinking: New calls have been stored in the CLIP list.
	Blinking: Batteries low. Please recharge handset.Steady: Indicates battery charge level.
	Steady: Shows phonebook is in use.
	Steady: Shows programming has been activated.
	Steady: Handsfree facility has been activated.

3.2 Taking calls

If you receive an incoming call, both the handset and the base station will emit a ring tone. Because of the time required to establish a connection, the handset rings slightly later than the base station.

Notice: While the handset is ringing you can use the ▲ and ▼ buttons to adjust the ring volume.

The EXT indication in the display will blink. Press the call button, ⏻, on the handset to take the call. The call indicator on the base station will blink during the call.

To end the call, replace the handset on the base station or press the call button, ⏻, on the handset.

You will find information on the display of telephone numbers in chapter 5.

When automatic answering is switched on, the call will be automatically taken as soon as you lift the handset from the base station. To find out how to turn on the automatic answering function, see chapter 6.4.

- Normal use -

3.3 Making calls

1. Use the key pad to enter the desired telephone number. Up to 25 digits may be entered. The digits pressed will be shown in the display. Since the display can only show 12 digits, only the last 12 of long phone numbers will be shown.

Notice: If you make a mistake you can briefly press the Ⓧ/C button to delete one digit at a time. If the Ⓧ/C button is held down, the entire number will be deleted.

1. Press the call button, ⏻, on the handset to place the call.

Notice: You can also press the call button, ⓕ, first; you will then hear the dial tone. As you enter the digits of the desired number, your AUDIOLINE DECT5501+ will send them straight out. The correction of individual digits as described above is not possible in this case.

3.4 Handsfree facility

Press the button at the start of or during a call. You will now hear the dialling tone or the person you are speaking to over the loudspeaker in the handset.

By pressing the handsfree button repeatedly you can change over between normal and handsfree mode during a call.

Always end calls made using the handsfree facility by pressing the call button ↗.

3.5 Length of call display

During a call, the duration of the call is displayed in minutes and seconds. 15 seconds after dialling, the display changes from the number called to the length of call. The length of call display persists for a few seconds after ending the call.

3.6 Internal calls

Once you have a number of handsets on a base station, you can make internal calls.

To do so, press the Ⓗ button and then the number of the handset being called. On the handset called, the call is taken by pressing the call button, ⏻.

3.7 Connecting external calls to another handset

If you have taken an external call on one handset, you can connect the call to another handset. To do so, press the Ⓗ button and then the number of the handset being called. Once the internal call is taken on the other handset, you have the following possibilities:

A. Three way calling: you can now speak with the internal caller and use the button to switch back to the external caller. You can switch between the internal and external connections as often as you wish.

B. Forward the call: By pressing the call button, ⏻, on the first handset, the call can be forwarded to the second handset.

3.8 Setting up conference calls

You can connect a second internal handset with an external call to set up a three-way conference. To connect two handsets with an external call:

set up the desired connection with the external caller. Then press the Ⓗ button followed by the number of the handset being called. Once the second internal caller has answered, press the # button for 2 seconds and all three callers will be connected in a conference call.

3.9 Turning the handset on and off

By holding down the "R" button, Ⓗ, you can turn off the handset. If the handset is turned off, there is no drain on the battery. You cannot make or take calls.

Press the "R" button, Ⓞ, briefly to turn the unit back on. The message, BASE, will be displayed and the handset will be ready for use after a brief delay.

3.10 Range indications

The range of the handset is about 50 metres in enclosed areas and about 300 metres in

the open. If a good connection to the base station is available, a symbol will appear in the display.

If you move too far from the base station, the 1 symbol will blink and you will hear warning peeps. In this case you should move closer to the base station to avoid loosing the connection.

3.11 Muting the handset microphone

You can use the Ⓗ/C button to turn off the handset microphone during a call. You can then speak without being heard over the telephone (secret function). The speaker in the handset remains switched on so that you can still hear your caller.

1. Press the Ⓞ/C button briefly, once during a call. The word MUTE will appear in the display.
2. To turn the microphone back on, press the Ⓗ/C button briefly, once again. The word MUTE will disappear from the display and you can continue your call as usual.

3.12 Setting the speaker volume

If you find the speaker too loud or too quiet, this can be adjusted to your taste.

During a call, you can use the buttons, and to adjust the speaker volume. The volume setting will be shown in the Display as EAR VOL (1 to 5).

3.13 Redial

The redial function is especially useful if a number is engaged or the person called does not answer. Your AUDIOLINE DECT5501+ stores the last five numbers called.

1. Press the button and the last number called will appear in the display.

2. By pressing the button again, you can display the previous number called. Use the button to move through the list in the other direction.

3. Now press the call button, , to dial the number shown in the display.

Notice: If a number in the redial list matches a phonebook entry, the entry name will replace the number in the display.

3.14 "R" button

Please find more information in the operating instruction of the base station.

3.15 Keypad lock

If you frequently carry the handset with you, you can lock the keypad so that buttons are not pressed unintentionally. When the keypad lock is switched on, incoming calls can be received as normal.

Activating the keypad lock

Press the MENUE and the ✦ buttons on the handset. The display shows the symbol 🔍.

Deactivating the keypad lock

To deactivate the keypad lock, press the ⑧,⑨ and ✱ buttons simultaneously.

- Normal use -

- Phonebook -

4. The phonebook

Up to 50 telephone number /name pairs can be stored in the phonebook. The maximum length of a stored number is 20 digits.

4.1 Entering numbers in the phonebook

1. Press the menu button, MENUE and the ▼ button. The display will show PHONEBK.

2. Press the MENUE button again. The display will show LIST.

3. Now press the ▼ button. The display will show ADD.

4. Press the MENUE button again. The display will show NAME.

5. Now enter the name (up to 8 letters) from the key pad. In the next section you will find more information on entering names.

6. Press the MENUE button again. The display will show NUMBER.

7. Enter the desired number from the key pad.

8. Press the MENUE button again. The display will now show ADD once again.

9. If you wish to store more phone numbers, go back to step 3. To exit from the entry mode, hold down the Ⓤ/C button.

Further information about the phonebook:

If the memory capacity of 50 numbers has been used, the display will show FULL. In this case, some numbers will need to be deleted before new ones can be entered.

How to enter names

The number buttons of the key pad are also marked with letters. By pressing the appropriate button a number of times, letters, digits and special characters can be entered.

To enter a space, use the ① button.

To enter the same letter twice, press for the desired letter and then wait for the display cursor to move automatically to the next position.

Entry errors can be deleted with the ⓍV/C button.

In order to change a particular letter, the ▲ and ▼ buttons can be used to move the cursor to the right and left so that a new letter can be entered.

- Phonebook -

Summary table:

Button 1	Space, 1,_,-,ç,∅
Button 2	A,B,C,a,b,c,2,à,ä,Ä,æ,
Button 3	D,E,F,d,e,f,3,è,é,É
Button 4	G,H,l,g,h,i,4,i
Button 5	J,K,L,j,k,l,5
Button 6	M,N,O,m,n,o,6,ñ,ö,ò,Ñ,Ö,
Button 7	P,Q,R,S,p,q,r,s,7/Æ
Button 8	T,U,V,t,u,v,8,ù,ü,Ü
Button 9	W,X,Y,Z,w,x,y,z,9,Ä,å
Button 0 0
⊗	Delete

4.2 Dialling a number in the phonebook

Once you have stored a few numbers in the phonebook, they can be quickly and easily recalled.

1. Press the phonebook button, alphabetical order.
   The display will show the first stored number in
2. The
   buttons can now be used to step through the list of stored numbers
   or
   to jump directly to a number with a name beginning with a certain letter, press the button with the desired letter.
3. Now press the call button,
   , to dial the number shown in the display.

4.3 Changing numbers stored in the phonebook

1. Press the menu button, MENUE. The display will show PHONEBK.

2. Press the

button again. The display will show LIST.

1. Now press the

button. The display will show MODIFY.

1. Press the

button again. The display will now show the phonebook entries in er.

1. Use the

and

buttons to select the entry that you wish to modify.

1. Press the

button again. The display will now show the name with a blinking last letter.

1. The name

I can now be changed using the number buttons. Information on entering can be found in point 4.1.

1. After making the desired modifications to the name, press will now show the phone number.

again. The display

- Phonebook -

1. Now modify the phone number using the number buttons. By pressing the button briefly, individual digits can be deleted.

1. After making the desired modifications to the name, press MENUE again. The display will show MODIFY.

2. If you wish to modify more phone numbers, go back to step 5. To exit from the programming mode, hold down the Ⓗ/C button.

4.4 Deleting numbers from the phonebook

1. Press the menu button, MENA. The display will show PHONEBK.

2. Press the MENUE button again. The display will show LIST.

3. Now press the button twice. The display will show DELETE.

4. Press the MENUE button again.

5. Use the ▲ and ▼ buttons to select the entry that you wish to delete.

6. When you have found the desired number, press selected number will be displayed again.

7. Press the menu button, MENU, and the display will show OK.

8. If you are sure that you wish to delete the number, press entry will be deleted.

By holding down the ⓧ/C button, the delete process can be broken off.

1. Once you have deleted the entry, the display shows DELETE. If you wish to delete more phone numbers, go back to step 4. To exit from the delete mode, hold down the Ⓞ/C button.

4.5 Check the phonebook entries

1. Press the menu button MENUE. The display will show PHONEBK.

2. Press the MENU button again. The display will show LIST.

3. Press the MENUE button again.

4. Use the ▲ and ▼ buttons to check the phonebook entries.

5. Press the MENUE several times. The display shows alternating the phone number and the name.

6. To exit from the delete mode, hold down the 81/C button.

5. Calling number display (CLIP)

The calling number display shows the origin of incoming calls. If this function is available to your telephone, the display shows the caller's telephone number when the telephone rings. If the number is stored in your phonebook, the name will be shown in place of the number. The calling numbers are stored in a list of callers so that you can return calls that come in while you are away. A total of 20 calling numbers can be stored in the list. Once the list is full, the oldest number is discarded each time that a new one is added.

If new calls have been added to the list during your absence, a blinking appears in the display.

symbol

NOTICE

If you attached the AUDIOLINE DECT5501+ to a base station of another manufacturer, the calling number display is not available with some types of base stations.

NOTICE!

The calling number indication is an optional service from your telephone provider. Your telephone will show the calling number in the display if your provider makes this service available. Not all providers pass on the date and time information. Please ask your telephone provider for detailed information. Some PBXs are also not able to pass on the whole or part of the calling number information.

5.1 The list of callers

In order to see the list of callers in the display, proceed as follows:

1. Press the button to show the last calling number received in the display. If the list of callers is empty, the display will show EMPTY.
   Notice: If the number matches a phonebook entry, it is replaced by the corresponding name.
2. Use the 🔒 button to search back through the list. Use the 🔑 button to move through the list in the other direction. If there are no further numbers in the list you will hear a beep.
3. Where the number in the display is longer than 12 digits, press to see the rest of the number. Press the ⒽI/C button to return to the list of callers.
4. If you wish to see the date and time of the call, press once. If the date and time information is not available, the display will show ADD and you can press the Ⓗ/C button to return to the list of callers.
5. If you wish to return a call to a number in the list of callers, simply press the call button, , to dial the number displayed.
6. To exit from the list of callers mode, hold down the ☑/C button.

- Calling Number Indication (CLIP) -

5.2 Storing a number from the list of callers in the phonebook

A number in the list of callers can be transferred directly to the phonebook.

1. Press the button to show the last calling number received in the display.

2. Use the buttons, and to select the numbers in the list of callers that you wish to transfer to the phonebook.

3. Press the button. The display will show ADD.

4. Press the button again. The display will show NAME.

5. Now enter the name (up to 8 letters) from the key pad.

6. Press the menu button, to store the number in the phonebook.

7. To exit from the entry mode, hold down the @I/C button.

Notice: Once you have stored a number in the phonebook, it is not the number but the corresponding name that is shown in the list of callers.

5.3 Deleting numbers from the list of callers

1. Press the button to show the last calling number received in the display.

2. Use the buttons, and , to select the numbers in the list of callers that you wish to delete.

3. Press the button. The display will show ADD.

4. Now use the and buttons to select the DELETE function.

5. Now press the menu button, , to delete the number from the list.

5.4 Deleting the entire list of callers

1. Press the button to show the last calling number received in the display.

2. If you now press the ☒/C button, the display will show DEL ALL.

3. You can now press the menu button, , to delete the entire list or hold down the ☒/C button to exit from delete mode.

- Special Functions -

6. Special functions

Note: If you should attach this telephone handset on a DECT-GAP telephone of another manufacturer, please note, that not all handset functions are possible.

Any further programming functions can be accessed through a very user-friendly menu. We give here a short, general description of navigation in this menu:

To begin programming, press the MENUE button. During programming, the symbol will be shown in the display.

The ▲ and ▼ buttons are used to search through the function groups.

The group indicated in the display is selected by pressing MENUE

The ▲ and ▼ buttons are now used to search for the desired individual function which is again selected by pressing MENUE.

The ⒽI/C button can be used to move back one level in the selection process.

Any store function will be automatically broken off if no entry is made within 15 seconds.

The ⒽI/C button can be held down at any time to exit altogether from programming without making any changes.

6.1 Setting ring melodies on the handset

Your handset can use five different melodies to signal an incoming call. If you are operating the telephone with several handsets, you can set up different melodies for internal and external calls.

1. Press the menu button, . MENUE

2. Use ▲ and ▼ to select the HANDSET menu, then press MENUE.

3. Use ▲ and ▼ to select EXT MEL (melody for external calls) or INT MEL (melody for internal calls) and then press MENUE

4. Use ▲ and ▼ to select the desired melody, then press MENUE.

5. You can then select further menu functions or exit by holding down Ⓧ/C.

- Special Functions -

6.2 Setting the ring melody volume

The volume of the handset ring melody can be set to one of five levels. If, at any time, you do not wish to be disturbed, you can also turn off the ringing altogether. If the ringing is turned off, incoming calls will only be signalled by the base station and on the handset display.

1. Press the menu button, . MENU 2. Use ▲ and ▼ to select the HANDSET menu, then press MENU. 3. Use ▲ and ▼ to select the RING VOL function, then press MENU. 4. Use ▲ and ▼ to select the desired volume level or OFF and press MENU. 5. You can then select further menu functions or exit by holding down Ⓧ/C.

6.3 Adjusting the speaker volume

The speaker volume can be adjusted in five steps to take account of the surrounding noise level.

1. Press the menu button, . 2. Use ▲ and ▼ to select the HANDSET menu, then press MENUE. 3. Use ▲ and ▼ to select the EAR VOL function, then press MENUE. 4. Use ▲ and ▼ to select a volume from 1 to 5 and then press MENUE. 5. You can then select further menu functions or exit by holding down ⓍI/C.

6.4 Take calls automatically

Incoming calls are taken automatically when you lift the handset from the charger. If you wish to take calls only by using the ⏻ button you can turn this automatic function off.

1. Press the menu button, . MENUE 2. Use ▲ and ▼ to select the HANDSET menu, then press MENUE . 3. Use ▲ and ▼ to select the AUTO ANS function, then press MENUE . 4. Use ▲ and ▼ to select ON or OFF, then press MENUE . 5. You can then select further menu functions or exit by holding down Ⓚ/C.

- Special Functions -

6.5 Change display name

In normal operation, the display shows "DECT5501 HS1". If you have a number of handsets operating from the one base station, it can be useful to give each handset a name of its own. The name is followed by the number that is used to call the handset internally.

1. Press the menu button,
2. Use ▲ and ▼ to select the HANDSET menu, then press MENUE.
3. Use ▲ and ▼ to select the NAME function, then press MINUTE.
4. Enter the desired name using the number buttons. Brief pressure on the button can be used to erase single letters.
5. Press to store the new name.
6. You can then select further menu functions or exit by holding down Ⓧ/C .

6.6 Turning indicator tones on and off

There are various indicator and warning tones that can be turned on or off.

Button click

The handset emits a confirming click each time that a button is pressed. The button click can be turned on or off.

Low battery warning

If the batteries are too low, a beeping warns that the handset needs recharging.

Range warning

If you are too far from the base station, a beep warns that you should move closer to it in order to maintain contact.

1. Press the menu button,

1. Use ▲ and ▼ to select the HANDSET menu, then press MENUE.
2. Use ▲ and ▼ to select the BEEP function, then press MENUE.
3. Use ▲ and ▼ to select KEYTONE, LOW BATT or OUTRANGE, then press MENUE.
4. Use ▲ and ▼ to select ON or OFF, then press MENUE.
5. You can then select further menu functions or exit by holding down Ⓧ/C .

- Special Functions -

6.7 Setting the display language

The display can be set to give indications in English, French or German.

1. Press the menu button, . MENUE

2. Use ▲ and ▼ to select the HANDSET menu, then press MENUE.

3. Use ▲ and ▼ to select the LANGUAGE function, then press MENUE.

4. Use ▲ and ▼ to select a language, then press MENUE.

5. After a short pause, the language setting will change and the display will revert to the 'ready' state.

- Troubleshooting -

7. Troubleshooting

If you have any problems with your AUDIOLINE DECT5501+, please check through the following points. For claims under guarantee, please contact your dealer. The guarantee period is two years.

If you have technical problems, our service hotline number is 0180 5 00 13 88.

No calls can be made The handset is not correct registered. Please repeat the registering of the handset.The rechargeable batteries are discharged or defective.
The connection has been lost	You are too far from the base station.The base station is badly located.
The charging indicator(s) fail to light.	Ensure that the handset is correctly placed on the charger, clean the contact surfaces of the handset and the charger with a soft, dry cloth.
After a few hours, the battery symbol in the display starts to blink.	Place the hand station on the base station and leave it for ten hours.If there is no improvement, replace the rechargeable batteries.
The display is dark Caused by exposure to direct sunlight. Allow the handset to cool down.

8. Important information

8.1 Technical data

Standard DECT
Frequency range 1880 to 1990 MHz
Power supply Charger: 220/230V, 50 Hz
Range Interior, up to 50 m.
Range In the open, up to 300 m.
Standby time up to 350 hours
Call time up to 14 hours
Rechargeable batteries 2 x 1,2V/	550mAh, type AAA
Permissible ambient temperature	10°C to 30°C
Permissible relative humidity 20% to 75%

8.2 Guarantee

AUDIOLINE equipment is manufactured and tested in accordance with the most up to date production methods. Selected materials and highly developed technology ensure trouble-free operation and long life. If your unit should develop a fault within the guarantee period, however, please contact the shop where you bought your AUDIOLINE equipment exclusively and have your purchase receipt available for inspection. The warranty period is 24 months from the day of purchase. This warranty is not applicable to the batteries or battery packs used in the various products.

Warranty conditions: Within the guarantee period, all defects due to material or manufacturing faults will be repaired free of charge. The guarantee is invalidated if the equipment has been tampered with by the purchaser or third parties. Any damage caused by improper handling or operation, by incorrect positioning or storage, by improper connection or installation or by excessive force or other external influences is not covered by the guarantee. In the case of complaint, we reserve the right to repair or replace defective parts or to exchange the equipment. Exchanged parts or exchanged equipment become our property. Claims for compensation are excluded insofar as they do not relate to criminal intent or gross negligence on the part of the manufacturer. All guarantee claims according to these conditions must be raised exclusively with your dealer. Rights under the guarantee can no longer be enforced after the expiry of 24 months from purchase and delivery of our products. In the case of unnecessary or unjustified demands on the customer service department, we will levy our usual service charges for materials, time, postage and packing. Any complaints must be reported as soon as a problem is found. The guarantee is valid within the German Federal Republic.

8.4 Declaration of conformity

WE AUDIOLINE GmbH

OF HELLERSBERGSTR. 2a

D-41460 NEUSS

GERMANY

DECLARE UNDER OUR SOLE RESPONSIBILITY AS EU DISTRIBUTOR THAT THE PRODUCT

MODEL: DECT5501+

DESCRIPTION: CORDLESS DECT TELEPHONE

IS IN CONFORMITY WITH THE BASIC REQUIREMENTS OF DIRECTIVE: 1999/5/EC

AUTHORISED SIGNATORY:

Signature:

Name:

Position in the company: MANAGING DIRECTOR

Date of issue: 19.07.2002

MANFRED NG DIRECTOR

ZINNOW

A copy of this declaration will be retained for 10 years after cessation of production.

AUDIOLINE GmbH, HELLERSBERGSTR. 2a,

D-41460

NEUSS

PRODUCT: DECT5501+

This product has been developed for use with an analogue telephone line (PSTN) within Germany. However, no guarantee can be accepted for trouble-free operation on all telecommunications terminal equipment connections due to the differences between the different telecommunications network operators.

AUDIOLINE GmbH

Neuss

Service Hotline [phone]
