USER MANUAL Dect 7501 micro AUDIOLINE

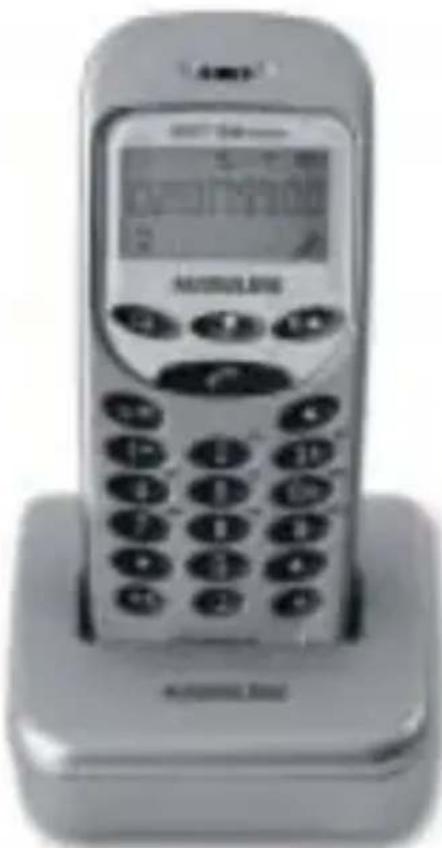

Additional handset for the AUDIOLINE DECT7500micro and DECT7500Bmicro and other DECT/GAP phones

Front view of a vintage mobile phone with a digital display and keypad (no visible text or symbols)

User Instructions 29

These supplemental operating instructions describe how install additional handsets with the AUDIOLINE DECT7500micro and the AUDIOLINE DECT7500Bmicro.

It is also possible to use the DECT7501micro with other DECT/GAP cordless telephone systems. However, all functions supported by this handset are not available.

Simple line drawing of a rectangular frame with a small icon on the top right corner (no text or symbols)

Name: MANFRED ZINNOW

1 General information 31
2 Operational elements.... 33
3 Commissioning 34
3.1 Safety information.... 34
3.2 Check contents of pack 34
3.3 Connecting the charger 34
3.4 Fitting the accupack.... 34
3.5 Charging the accupack.... 35
3.6 Fitting the belt clip.... 35
3.7 Logging handsets on and off 36

3.7.1 Logging on the handset at A DECT7500micro or DECT7500Bmicro base station 36

3.7.2 Logging off handsets 36

3.7.3 Logging on of AUDIOLINE 7501 micro handsets to other DECT-GAP base stations....37

3.7.4 Logging off DECT7501 micro handsets from other DECT-GAP base stations....37

4 Operation.... 38
4.1 The display 38
4.2 Receiving calls.... 39
4.3 Making calls.... 39
4.4 Adjusting the receiver volume 39
4.5 Handsfree 40
4.6 Calling internally 40
4.7 Connecting external calls to another handset 40
4.8 Call duration display 41
4.9 Range information 41
4.10 Redial.... 41
4.11 "R" button.... 41
5 The phone books.... 42
5.1 Entering numbers in a phone book.... 42
5.2 Dialling numbers stored in the phone book 44
5.3 Changing numbers stored in the phone book...... 44
5.4 Deleting numbers stored in the phone book...... 45

- Contents -

6 Caller display (CLID)....46
6.1 The caller list....47
6.2 Saving a number from the caller list to the phone book 48
6.3 Deleting individual numbers from the caller list......48
7 Special functions....49
7.1 Setting up ringing tones and adjusting the ringer volume....50
7.2 Further programming functions....51
8 Rectifying faults....52
9 Important information....53
9.1 Technical data....53
9.2 Warranty....53
9.3 Declaration of conformity ....54

1 General information

Please read these operating instructions carefully. If you have any questions, get in touch with our Service Dept. by calling our Service Hotline at 0180 5 00 13 88. Under no circumstances should you open the device or attempt to repair the device yourself. Please contact your dealer in case of any warranty claims.

Intended use - This telephone is designed for use connected to an analogue telephone line (PSTN) in Germany. However, due to differences in the services provided by the various telecommunications providers, we cannot guarantee that the telephone will work properly when connected to all telecommunications terminal lines. The telephone is prepared for connection to a TAE phone jack with F/N coding and can be used together with other equipment such as a fax, answering machine, or a modem. Plug the connecting phone cable only into the telephone plug socket provided for this purpose. Do not replace the plug of the connecting phone cable.

Power failures - Telephone calls cannot be made during power failures. Keep a cord telephone that is not equipped with an external power supply available in case of emergency.

Rechargeable accupacks - Use only rechargeable accupacks as supplied. The use of other rechargeable batteries or accupacks may cause a short-circuit.

When changing the accupack, use only type 2,4V 400mAh - Ni-Mh. Do not throw accupacks in the fire or immerse them in water. Do not dispose of old or defective accupacks with normal domestic waste.

The maximum standby and talk times quoted are applicable for the rechargeable batteries or battery packs under optimum conditions. Ambient temperature, charging cycle and other external factors, such as the radio loading in the area of use, can considerably reduce the operating times. Furthermore, the charging capacity is reduced for technical reasons during use or when stored at very high or low temperatures.

Charging the handset - If the handset becomes warm when charging, this is quite normal and no cause for alarm. Only charge the handset on the base station. The use of other chargers may cause lasting damage.

Transformer plug - Use only the AUDIOLINE transformer plug supplied, other transformer plugs can destroy your telephone. Opening the power supply plug while it is plugged into the supply mains could lead to personal injury and death.

- General Information -

Private branch exchanges -The telephone can also be connected to a private branch exchange. The dealer where you purchased the private branch exchange will tell you if your telephone will work properly on your PBX. Due to the great variety of private branch exchanges, we cannot guarantee that the phone will work properly on all PBXs.

Location of the base station - The base station must be located within reach of a 230Volt supply socket. To avoid interference problems, do not place the base station in the immediate proximity of other electronic equipment such as a microwave oven or hi-fi system. The location of the base station can significantly influence the proper function of the telephone.

Place the base station on a level, non-slip surface. The feet of the base station will not normally mark the surface on which it stands. However, the wide range of surface finishes in use renders it impossible to exclude marking of any surface. Do not use the handset in areas where there is a danger of explosion.

Avoid excessive exposure to smoke, dust, vibration, chemicals, humidity, high temperature or direct sunlight.

Note for medical products - The telephone works with very low transmitted power. Present knowledge and research indicate that, at this low power level, there is no possible danger to health. It has, however, been shown that portable telephones, when switched on, can affect medical equipment. Maintain a distance of at least one metre from medical equipment.

Disposal - If the accupacks or the complete system have reached the end of their useful life, please dispose of them in an environmentally friendly manner and as required by law.

Temperature and ambient conditions - The telephone is designed for indoor use and an operating temperature range of 10 °C to 30 °C. The base station must not be installed in humid areas such as bath or wash rooms. Avoid proximity to sources of heat such as radiators and do not expose the unit to direct sunlight.

Cleaning and care - The outer surfaces of the unit can be cleaned with a soft, dry, lint-free cloth. Never use cleaning agents or aggressive solvents. Apart from occasionally cleaning the outer surfaces, no further care is required. The rubber feet of the base station are not resistant to all cleaning agents. The manufacturer cannot, therefore, be held responsible for damage to furniture etc.

CE marking - The telephone is compliant with the essential requirements of the R&TTE Directive. This is certified by the CE marking.

- Operational elements -

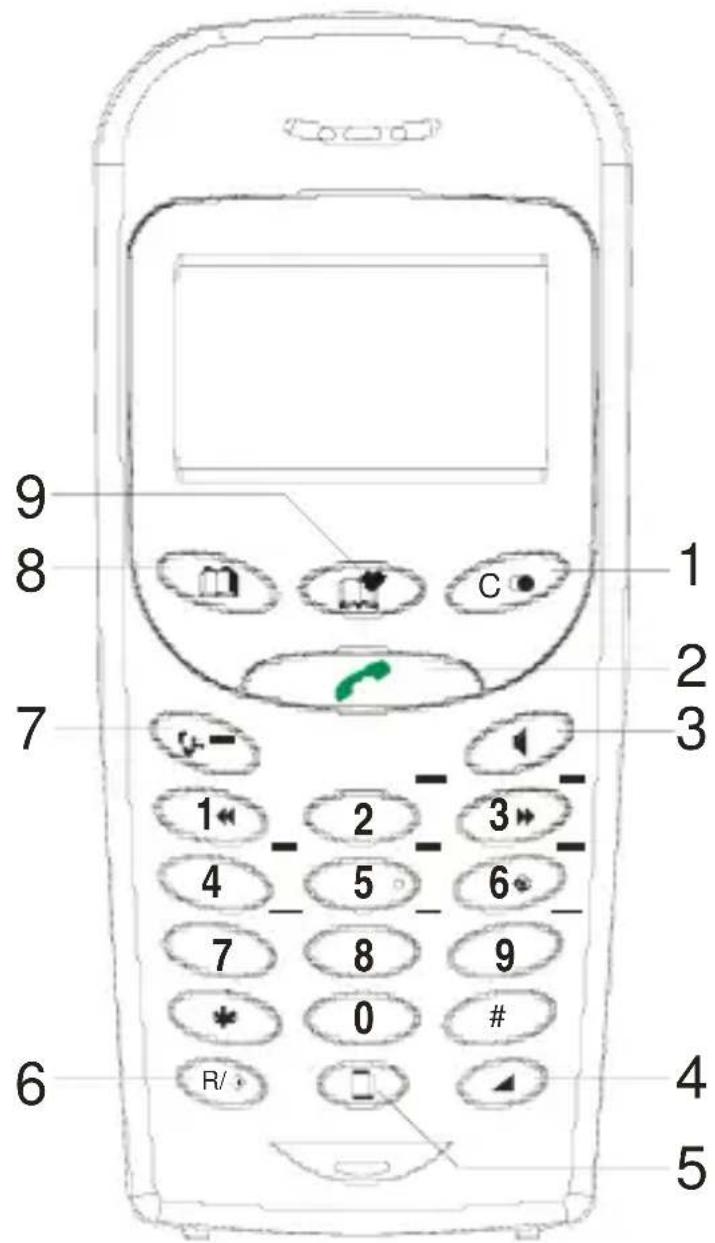

2 Operational elements

9 8 7 1 2 3 6 4 5 6 7 8 9 0 # R/ 5 4

1 Redial/Delete
2 Call button
3 Handsfree button
4 Receiver volume
5 Caller list (CLID)
6 R signal button/Programming
7 Confirmation button/Internal calls
8 Phone book, general
9 Phone book, friends

- Commissioning -

3 Commissioning

3.1 Safety information

NOTE! Before commissioning, it is essential that you read the safety information at the beginning of this manual.

3.2 Check contents of pack

The following items are supplied:

one charger one power supply
one handset with belt clip one accupack
one Operating Manual

3.3 Connecting the charger

Set up the charger for the second handset within reach of an electrical outlet.

Plug the round plug of the smaller power supply in the socket at the back of the charger and plug the transformer plug in a correctly installed 230 volt electrical outlet.

For safety reasons, use only the transformer plug supplied.

3.4 Fitting the accupack

To fit the accupack supplied into the handset, press on the top edge of the accu compartment cover and slide it downwards. Now insert the accupack supplied and close the accu cover.

Simple line drawing of a rectangular box with a small label 'L17' on the top right corner (no text or symbols within the diagram itself)

Important information: Place the handset with the display to the front on the base and charging station for at least 16 hours. If the accupack is not correctly charged, the telephone may not work properly. While the handset is being charged, the

battery capacity symbol will flash in the display.

- Commissioning -

3.5 Charging the accupack

The rechargeable accupack in your handset have a standby time of max. 6 days at room temperature and a maximum talk time over 8 hours. To charge the accupack, place the handset in the charger. The current capacity will be shown in the display.

full

Less than 30 minutes

No display

accupack is discharged

Note: The accupack must be charged for at least 16 hours before being used for the first time. Exactly like your car battery, the rechargeable accupack is unavoidably subject to a certain ageing. However, you can have an influence on this ageing process by “training” the accupack to a certain extent. In regular use of the phone, if you cyclically charge and fully discharge the accupack by using the

telephone until the symbol appears in the display, a demand is placed on the accupack and they will repay you by giving maximum performance and a long life. Extended charging and extended discharging on the other hand will both degrade the capacity and shorten the life of the accupack.

3.6 Fitting the belt clip

Slide the belt clip into the grooves until it audibly clicks home.

- Commissioning -

3.7 Logging handsets on and off

3.7.1 Logging on the handset at A DECT7500micro or DECT7500Bmicro base station

Prepare base station DECT7500micro/DECT7500Bmicro

Separate the plug of the power supply unit for some seconds. After reconnection you log on the telephone handset as follows within 20 seconds:

Logging on handset

Programming steps Indication in the display
1. Press the button followed by one press of the ▶(3) button.	The symbol flashes
2. Confirm with the button.	1/1 0 0 0 0
3. Now enter the PIN code 1 1 1 1 of the DECT7500micro base station.	1/1 1 1 1 1
4. Confirm with .
5. After a few seconds the handset will be logged on.

3.7.2 Logging off handsets

Programming steps Indication in the display
1. Press the button.	The symbol flashes
2. Now enter the code 94 using the number pad.	Symbol
3. Now enter the PIN code using the number pad (factory setting 1111).	1/1 1 1 1 1
4. Confirm with and after a few seconds the handset will be logged off.

- Commissioning -

3.7.3 Logging on of AUDIOLINE 7501 micro handsets to other DECT-GAP base stations

Programming steps Indication in the display
1. Press the button followed by one press of the ▶(3) button.	The symbol flashes
2. Confirm with the button.	1/1 0 0 0 0
3. Now prepare the base station for logging on. For further information on this subject, please refer to the Operating Manual provided by the third-party manufacturer.
4. Now enter the PIN code of the base station. The PIN code used by the base station can be found by referring to the Operating Manual provided by the third-party manufacturer.	1/1 XXXX
5. Confirm with .
6. After a few seconds the handset will be logged on.

3.7.4 Logging off DECT7501micro handsets from other DECT-GAP base stations

You can find out to how to log off a DECT7501micro handset from a third-party base station by referring to the Operating Manual for the base station concerned.

- Operation -

4 Operation

4.1 The display

	On: Batteries are charged.1/4 on: Capacity less than 30 minutes.Off: Battery capacity exhausted.Flashing: Handset being charged.
	On: New call in the caller list.
	On: You are using the general phone book.Flashing: You are receiving a call and the caller is stored in this phone book.
	On: You are making a call.Flashing: Incoming call or the answering machine is running.
	On: An external call is being held or an internal call made (with multiple handsets only).
	On: You are using the family/friends phone book.Flashing: You are receiving a call and the caller is stored in this phone book.
	On: When you are within range of the base station.Flashing: You are out of range.

- Operation -

4.2 Receiving calls

When a call comes through, the ringing tone will sound on the handset. The symbol will flash in the display. Press the call button on the handset and the connection will be made. To end the call, replace the handset in the base station or press the call button on the handset.

Note: If the telephone handset stands on the base station, press the call button first.

4.3 Making calls

1. Enter the required telephone number using the keypad. The numbers pressed will be shown in the display.
2. Press the call button and the required connection will be made.

Note: If you have entered a wrong number, you can delete the phone number by repeatedly pressing the button. The number can be deleted completely by prolonged pressing of the button.

You can also press the call button first and thus obtain a dialling tone. By entering the digits of the phone number you require your telephone will dial the number directly. When making a call in this way, it is not possible to correct individual digits of the phone number as described above.

4.4 Adjusting the receiver volume

If you want to change the receiver volume on the handset you have four volume steps available.

Press several times the button to change the receiver volume. The selected volume is indicated in the display.

- Operation -

4.5 Handsfree

While a call is being made, press the handsfree button . You will now hear the other party over the loudspeaker in the handset.

Pressing the button for the first time = switch on loudspeaker

Pressing the button for the second time = increase or decrease volume

Pressing the button for the third time = switch off handsfree facility

The last volume setting will automatically be used the next time the loudspeaker is switched on.

4.6 Calling internally

You can make internal telephone calls as soon as you connect multiple handsets to a base station.

To do this, press the button. All further handsets that are connected to the base station will now ring simultaneously. The call is accepted at any of the handsets by pressing the call button.

4.7 Connecting external calls to another handset

If you have accepted an external call on one handset, you can transfer the external call to another handset. To do this, press the 📞=OK button. After the internal call has been accepted at another handset you have the following alternatives:

A. Consultation / Brokering: You can talk to the internal party and revert to the external caller by pressing the OK button. You can swap between the external and internal calls as often as you wish.

B. Transfer the call: The external call is transferred to the receiving handset by pressing the call button on the first handset.

You can also transfer the external call directly to a handset without consultation by pressing the Ⓤ=OK button followed immediately by the call button.

- Operation -

4.8 Call duration display

The call duration is shown in the display in minutes and seconds during a call. The display switches from showing the number dialled to showing the call duration 10 seconds after dialling. The call duration still remains showing in the display for a few seconds after the call has been ended.

4.9 Range information

The range of the handset is about 50 metres in enclosed areas and about 300

metres in the open air. When there is good contact with the base station, the symbol will come on in the display. If you are too far away from the base station the symbol will flash.

4.10 Redial

Use the redial facility when the party called is engaged or does not reply. Your telephone will store the last five numbers dialled.

1. Press the 📄 button and the last number dialled will be shown in the display.

2. Further redial numbers can now selected using the ◀◀ (1) and ▶▶ (3) buttons.

3. Now press the call button and the phone number displayed will be dialled automatically.

If you want to delete a number from the redial list, select the required number and then press the Ⓧ (⑥) button.

Redial numbers can also be stored in the phone book. For more on this see Chapter 5.1.

4.11 "R" button

Please find more information in the operating instruction of the base station.

- The phone books -

5 The phone books

Your telephone has two independent phone books, each with 10 storage locations. In this way, numbers saved can be sorted by friends, associates, family members or business people.

General phone book Family/friends phone book

Different call tones are associated with each of the two phone books so that you can tell who is calling you as soon as the phone rings.

Note: The association of different call tones to the phone books will only work after the second ring and if your telephone connection has caller display (CLID) and the party has enabled this service for his connection. Furthermore, all numbers must be stored along with their dialling codes to enable the number recognition to work. More information can be found in Chapter 6.

5.1 Entering numbers in a phone book

1. Enter the required telephone number with a maximum of 25 digits.

2. Now press the button for the required phone book or .

3. After a signal tone, now enter the associated name (max. 10 letters) using the number pad. You will find information on entering names on the next page.

4. Confirm the entry with the button and the number will be saved.

You can cancel the procedure at any time by pressing and holding the button.

Note: A redial number can also be saved directly in one of the phone books. Select the required redial number and continue to save the number from step 2 above.

If a calling achieves you during storing, the input is aborted and must be repeated.

- The phone books -

How to enter names

The number keys are also inscribed with letters for entering the name. By repeatedly pressing the appropriate button, upper case letters as well as numbers can be entered.

To enter a space, press the ① button once.

To enter the same letter twice, press the appropriate letter and wait for a second before pressing the button again.

Incorrect entries can be deleted with the C button.

Example: You wish to enter the name "Peter".

Press: 1 x button 7, 2 x button 3, 1 x button 8, 2 x button 3, 3 x button 7

Overview

Button 1 space, -, 1
Button 2 A, B, C,2
Button 3 D, E, F, 3
Button 4 G, H, I, 4
Button 5 J, K, L, 5
Button 6 M, N, O, 6
Button 7 P, Q, R, S, 7
Button 8 T, U, V, 8
Button 9 W, X, Y, Z, 9
Button 0 0

- The phone books -

5.2 Dialling numbers stored in the phone book

After you have stored a few telephone numbers you can call these very quickly and easily.

1. Press the button for the required phone bookor . The display will now show the first name in alphabetical order.

2. You can now search for a name using the ◆◀(1) and ▶◀(3) buttons.

3. You can switch between displaying the name and the associated telephone number using thebutton.

4. You can exit the phone book by pressing either of the two phone book buttons.

5. Press the call button and the displayed phone number will be dialled automatically.

5.3 Changing numbers stored in the phone book

1. Press the button for the required phone bookor . The display will now show the first name in alphabetical order.

2. You can now select a name using the ◀◀ (1) and ▶▶ (3) buttons.

3. Now press thebutton and the number will appear in the display.

4. By repeatedly pressing thebutton you can now delete the individual digits of the number.

5. Then re-enter the changed phone number and confirm with thebutton.

You can cancel the procedure at any time without making a change by pressing and holding the C button.

Note: It is not possible to change the name associated with a phone number already stored. If the name is also to be changed, delete the number with the incorrect name and then save the phone number completely afresh.

- The phone books -

5.4 Deleting numbers stored in the phone book

1. Press the button for the required phone book will now show the first name in alphabetical order.		display
2. You can now select the required name using the buttons.
3. To delete the number, now press the buttons after the other.		(6) one
4. Confirm the deletion with the button or exit the procedure by pressing and holding the button.

- Caller display (CLID) -

6 Caller display (CLID)

Using caller display, you can see with incoming calls who is calling you. If this function is available on your line, the display shows you the caller's telephone number as soon as the telephone rings.

If you have stored this telephone number in your phone book, the name is shown instead of the number after a short time and the phone will ring with a different tone after the second ring.

All calls are saved in a caller list so that you will not miss any calls even in your absence. A total of 10 numbers can be stored in the list. When the list is full, the oldest number is always deleted from the list.

If new numbers are stored in the list during your absence, the display shows the

symbol.

Note!

Caller display is an optional service from your telephone provider. Your telephone will show the number in the display if your telephone provider offers this service. Indication of the date and time of day is not transmitted by all telephone providers. Please ask your telephone provider for more information. Furthermore, transmission of the caller's number and/or the date and time of day is not possible with some private exchanges.

- Caller display (CLID) -

6.1 The caller list

To view the numbers on the caller list in the display, please proceed as follows:

1. Press the button and the last number received will be shown in the display. If the caller list is empty you will hear signal tones.

2. Further numbers in the caller list can now be selected using the (3) button. You use the 🔊 (1) button to page back through the list. If there are no more numbers available you will hear a signal tone.

3. If the number displayed is longer than 10 digits, the first 10 digits will be shown first and then the last 10 digits.

4. Additional functions can be called up using the button. After pressing the button for the first time the display will show the caller's phone number if this is already stored in the phone book.

5. If you want to call a number in the caller list straight back, simply press the call button and the number will be dialled immediately.

6. You can exit the caller list by pressing the but [SD7D]

- Caller display (CLID) -

6.2 Saving a number from the caller list to the phone book

A telephone number stored in the caller list can be saved directly to the phone book.

1. Press the button and the last number received will be shown in the display.

2. Now select the number from the caller list that you want to save in the phone book using the ◀◀ (1) and ▶▶ (3) buttons.

3. Press the button for the required phone book or

4. Now enter the associated name (max. 10 letters) using the number pad.

5. Confirm again with the button and the number will be saved in the phone book.

By pressing the button you can leave the input mode at any time.

6.3 Deleting individual numbers from the caller list

1. Press the button and the last number received will be shown in the display.

2. Now select the number from the caller list that you want to delete using the ◀◀ (1) and ▶▶ (3) buttons.

3. Press the ✗ (6) button once and the number will be deleted.

You can repeat this procedure up to the complete deleting of the list.

- Special functions -

7 Special functions

All further programming functions can be accessed via a user-friendly menu. Here is a short general guide to finding your way about the menu.

Programming is started with the R/→ button.

You can find the required menu with the ◀◀ (1) and ▶▶ (3) buttons. The 3 available menus are indicated by symbols: = Setting up ringing tones and adjusting the ringer volume = Logging on handsets = Further programming functions (not available for other base stations)

The flashing menu is opened with the button.

Where you are in the menu and how many functions there are available in the menu are shown by the first two numbers: 1/5 = this menu has five functions and you are in the first function.

Using the buttons ◀◀ (1) and ▶▶ (3) you can again select the required function and then confirm with the button.

The values can be changed using the number pad or with the ◀◀ (1) and ▶▶ (3) buttons.

Each time a confirmation is given with the button you move on to the next function in the menu.

You can exit programming with the button.

Any save process is automatically cancelled if no entry is made within 20 seconds.

- Special functions -

7.1 Setting up ringing tones and adjusting the ringer volume

The following functions are available in this menu:

1/4 Ringer volume adjustable in four steps

2/4 Select ring tone

3/4 Select ring tone for the general phone book

4/4 Select ring tone for the family/friends phone book

PROGRAMMING STEP INDICATION IN	DISPLAY
1. Press . R/→	The symbol flashes
2. Confirm with . Ⓤ=OK	1/4 +++ (factory setting)
3. You can now set the required volume in four steps using the ◀◀(1) and ▶▶(3) buttons.	1/4 + or ++ or +++ or ++++
4. Confirm with . Ⓤ=OK	2/4 Birdie (factory setting)
5. You can now select the required ring tone using the ◀◀(1) and ▶▶(3) buttons.	2/4 Birdie or Music etc.
6. Confirm with . Ⓤ=OK	3/4 Music (factory setting)
7. You can now select the required ring tone for the general phone book using the ◀◀(1) and ▶▶(3) buttons.	3/4 Birdie or Music etc.
8. Confirm with . Ⓤ=OK	4/4 Starry (factory setting)
9. You can now select the required ring tone for the family/friends phone book using the ◀◀(1) and ▶▶(3) buttons.	4/4 Birdie or Music etc.
10. Confirm with . Ⓤ=OK	1/4 +++ (factory setting)
11. Exit programming with the R/→ button.

- Special functions -

7.2 Further programming functions

The following functions are available in this menu:

1/3 Enter network type
2/3 Change FLASH time
3/3 Insert automatic pause

Programming steps Indication in the display
1. Press the button followed by two presses of the ▶(3) button.	The symbol flashes
2. Confirm with .	1/5 3 - B - C- or D
3. You can now set the required network type between A and D with the ◀(1) and ▶(3) buttons.	1/3 AThe standard setting here is A and is designed for the public telephone network. If there should be problems with the volume when connected to private exchanges, try the other settings B, C and D.
4. Confirm with .	2/3 current FLASH time, e.g. ***
5. The required FLASH time of 84ms (private exchanges) or 270ms (T-NET) can be set here with the ◀(1) and ▶(3) buttons.	2/3 ***84ms = ***270ms = *****
6. Confirm with .	3/3 automatic pause e.g. NO
7. You can now set whether the automatic pause is to be used with the ◀(1) and ▶(3) buttons.	3/3NOYES
8. Confirm with .	1/3A - B - C- or D
9. Exit programming with the button.

- Rectifying faults -

8 Rectifying faults

If you have problems with your telephone, please first check the following information. In the case of technical problems you can also contact our Hotline on Tel. [phone]. In the case of warranty claims, please contact your dealer. The warranty period is 2 years.

No calls possible The phone	line is not connected correctly or is faulty.Use only the telephone cable provided.Check whether your telephone connection is in working order by using another telephone.The mains power supply has not been plugged in or there is a complete loss of power.The rechargeable accupack is flat or defective.You are too far away from the base station.
Call cut off or breaks up	You are too far away from the base station.Base station in the wrong location.
The battery symbol does not flash during charging	Place the handset properly on the charger, clean the contact surfaces of the handset and the charger with a soft, dry cloth.
The batteries discharge very quickly.	Place the handset with the display to the front on the charging station for at least 16 hours. If this does not help, replace the rechargeable accupack.
Display dark Caused by direct sunlight. Allow the handset to cool down.
Not possible to store numbers in the phone book	The phone book concerned is full.

- Important information -

9 Important information

9.1 Technical data

Standard DECT-GAP
Power supply Charger 220/230V, 50 Hz
Range Indoors up to 50m
Range Outdoors up to 300m
Standby up to 6 days
Max. talk time over 8 hours
Rechargeable accupack 2,4V 400mAh - Ni-Mh
Dialling method TTD (Touch Tone Dialling)
Permissible ambient temperature 10°C to 30°C
Permissible relative humidity 20 to 75%

9.2 Warranty

AUDIOLINE equipment is manufactured and tested in accordance with the most up to date production methods. Selected materials and highly developed technology ensure trouble-free operation and long life. If your unit should develop a fault within the guarantee period, however, please contact the shop where you bought your AUDIOLINE equipment exclusively and have your purchase receipt available for inspection. The warranty period is 24 months from the day of purchase. This warranty is not applicable to the batteries or battery packs used in the various products.

Warranty conditions: Within the guarantee period, all defects due to material or manufacturing faults will be repaired free of charge. The guarantee is invalidated if the equipment has been tampered with by the purchaser or third parties. Any damage caused by improper handling or operation, by incorrect positioning or storage, by improper connection or installation or by excessive force or other external influences is not covered by the guarantee. In the case of complaint, we reserve the right to repair or replace defective parts or to exchange the equipment. Exchanged parts or exchanged equipment become our property. Claims for compensation are excluded insofar as they do not relate to criminal intent or gross negligence on the part of the manufacturer. All guarantee claims according to these conditions must be raised exclusively with your dealer. Rights under the guarantee can no longer be enforced after the expiry of 24 months from purchase and delivery of our products. In the case of unnecessary or unjustified demands on the customer service department, we will levy our usual service charges for materials, time, postage and packing. Any complaints must be reported as soon as a problem is found. The guarantee is valid within the German Federal Republic.

- Important information -

9.3 Declaration of conformity

WE	AUDIOLINE	GmbH
OF	Hellersbergstr.	2a
	D-41460 Neuss

DECLARE UNDER OUR SOLE RESPONSIBILITY AS EU DISTRIBUTOR THAT THE PRODUCT

MODEL: DECT 7501micro

DESCRIPTION: CORDLESS DECT-STANDARD TELEPHONE

IS IN CONFORMITY WITH THE BASIC REQUIREMENTS OF DIRECTIVE: 1999/5/EC

AUTHORISED SIGNATORY:

Signature:

Name:

Position in the company: MANAGING DIRECTOR

Date of issue: 13.02.2003

ED

ZINNOW

A copy of this declaration will be retained for 10 years after cessation of production.

AUDIOLINE GmbH, Hellersbergstr. 2a

D-41460

Neuss

PRODUCT:

DECT7501micro

This product has been developed for use with an analogue telephone line (PSTN) within Germany. However, no guarantee can be accepted for trouble-free operation on all telecommunications terminal equipment connections due to the differences between the different telecommunications network operators.

Notizen/Notes:
