USER MANUAL DECT 7801 AUDIOLINE

Additionalhandsetforthe

AUDIOLINEDECT7800

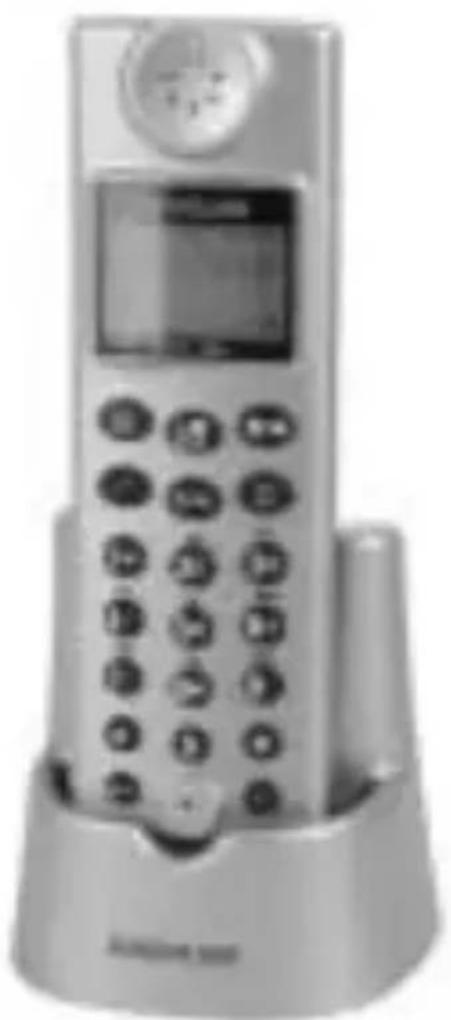

Front view of a silver mobile phone with keypad and display screen (no visible text or symbols)

User Instructions ____ 7

AUDIOLINE

DECT 7801

These supplemental operating instructions describe how install additional handsets with the AUDIOLINE DECT 7800 and other DECT/GAP cordless telephone systems. However, all functions supported by this handset are available only in conjunction with the AUDIO LINE DECT 7800.

Note: Please refer to the free download in our Website www.audioline.de for complete operating instructions including the declaration of conformity and notes on safety applicable to this extension set.

SCOPE OF SUPPLY

The following parts are enclosed in the package:

■ DECT7800 Handset ■ Charger
■ Operating instructions ■ Power supply
■ Two standard 1.2-volt AAA rechargeable batteries

INSTALLING THE BATTERIES

Open the battery compartment in the handset by sliding the cover away from the handset by applying a slight amount of pressure to the bottom edge. Now insert the batteries ensuring that the polarity is correct and close the battery cover.

Place the handset in the battery charger with the display facing towards the front. The charger indicator light on the base station and the charger will illuminate. The handset must be charged for an uninterrupted period of 16 hours before using for the first time.

CONNECTING THE CHARGER

Set up the charger for the second handset within reach of an electrical outlet.

Plug the round plug of the smaller power supply in the socket at the back of the charger and plug the transformer plug in a correctly installed 230 volt electrical outlet. For safety reasons, use only the transformer plug supplied.

LOGGING ON A HANDSET TO THE DECT7800 BASE STATION

1. Prepare base station DECT 7800

Disconnect the plug of the power supply for a few seconds. Log on the telephone handset as follows within 20 seconds after reconnecting the power supply:

2. Logging on the DECT 7801 handset

Press the R/→ button. Then press the ▶(3)

button twice. The symbol will flash.

Confirm by pressing the button.

Now enter the PIN code 1 1 1 1 of the DECT7800 base station.

Confirm by pressing OK

The handset will be logged on after a few seconds.

LOGGING ON A HANDSET TO ANOTHER DECT/GAP BASE STATION SYSTEM OR A THIRD PARTY BASE STATION

1. Prepare other base station

Follow the operating instructions indicated under 'Logging on additional handsets' of the base station you would like to log on to.

2. Logging on the DECT 7801 handset

Proceed as described above, but use the PIN code of the base station you would like to log on to (instead of 1 1 1 1).

You will hear a positive confirmation tone and the symbol will appear and remain in the display when the logon is completed.

AUDIOLINE GmbH

Neuss

Service Hotline [phone]
