Product Type	DECT cordless telephone with answering machine
Brand	Audioline
Model	Euro 882
Standard	DECT-GAP
Base Station Power Supply	Input: 220/230 V, 50 Hz; Output: 6 V, 600 mA
Charging Station Power Supply	Input: 220/230 V, 50 Hz; Output: 6 V, 300 mA
Battery Type	2 x AAA Ni-MH 1.2 V per handset
Outdoor Range	Approx. 300 m
Indoor Range	Approx. 50 m
Standby Time	Up to 100 h
Talk Time	Up to 10 h
Dialing Modes	Tone (DTMF) and Pulse
Flash Times	80, 100, 120, 180, 250, 300, 600, 800 ms (selectable)
Permissible Ambient Temperature	10°C to 30°C
Permissible Relative Humidity	20% to 75%
Answering Machine	Integrated, up to 99 messages, max. 15 min recording time
Additional Features	CLIP, SMS, handsfree, key lock, baby call, emergency numbers, internal calls, conference, call screening, remote access
Maximum Number of Handsets	Up to 5
Maintenance	Clean housing with soft, lint-free cloth; do not use solvents
Guarantee	24 months from date of purchase

Frequently Asked Questions - Euro 882 AUDIOLINE

How do I set the date and time on the handset?

Press the Menu softkey, navigate to Settings > Date / Time, then enter the date and time using the keypad. Confirm with Ok.

How can I register an additional handset to the base station?

First, put the base station into registration mode by pressing and holding the Paging button (or the button labeled with a key symbol) for 10 seconds until the LED flashes. Then, on the handset, go to Menu > Settings > Setup Base > Register Handset. Enter the base PIN (default: 0000) and follow the prompts.

Why is my answering machine not recording messages?

Ensure the answering machine is switched on (green LED on base). Check if memory is full: delete old messages via Menu > Answer Machine > Delete All Mess. Also verify that the recording time setting is not too short.

How do I activate the handsfree function during a call?

Press the Handsfree button (speaker icon) on the handset during an active call. To deactivate, press the same button or the On-hook button.

How can I retrieve a missed call from the call log?

Press the Calls log button (usually a left arrow or phonebook icon) on the handset. Scroll through the entries using the up/down buttons. Press the Off-hook button to dial the selected number.

What should I do if the handset loses connection to the base station?

Check that the handset is registered to the base (see registration steps). If not, re-register. Move the handset closer to the base. Ensure the base is not too close to other electronic devices. Try resetting the handset by removing batteries for a few seconds.

How do I change the PIN for remote access to the answering machine?

Go to Menu > Answer Machine > Answer Settings > Change RemotePIN. Enter the old PIN (default 0000), then enter a new 4-digit PIN and confirm.

Can I use the telephone during a power failure?

No, the telephone requires mains power for the base station. In case of power failure, calls cannot be made or received. It is recommended to keep a corded telephone that does not require external power as a backup.

How do I store a number in the phonebook?

Press the Phone book button, then Opt and select New Entry. Enter the number (max. 24 digits) and confirm, then enter the name (max. 15 characters) and press Store.

What does the 'VMWI' icon mean?

VMWI stands for Visual Message Waiting Indication. It indicates that a new message has been recorded on the network-based answering machine (if subscribed to that service). The icon appears in the display when a new message is waiting.

USER MANUAL Euro 882 AUDIOLINE

Operating Instructions 43

Simple line drawing of a dome-shaped container with two side ports (no text or symbols)

^1 CLIP: Calling Line Identification Presentation
^2 SMS: Short Message Service

Text eingeben

SMS Service Center, 33

Please read this operating instruction manual thoroughly.

Intended use

The telephone is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

Installation location

Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Do not use the handset in potentially explosive areas.

Power supply

Attention: Only use the power adapter plug supplied because other power supplies could damage the telephone. Ensure access to the power adapter plug is not obstructed by furniture or such.

Rechargeable batteries

Attention: Do not throw batteries into a fire or immerse them in water.

Power failure

The telephone cannot be used to make calls in the event of a power failure. Always keep a cord connected telephone which operates without an external power supply available in case of emergency situations.

Medical equipment

Attention: Never use the telephone in the vicinity of medical equipment. Effects on such equipment cannot be fully ruled out.

DECT ^1 DECT telephones can cause an unpleasant humming sound in hearing aids.

^1 DECT: Digital Enhanced Cordless Telecommunication = Standard for cordless telephones.

Disposal

If your device has come to the end of its service life, bring it to a collection point provided by your local public waste authorities (e.g. recycling center). The adjacent symbol indicates that the old device must be disposed of separate from domestic waste. According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container.

Batteries must be disposed of at the point of sale or at appropriate collection points provided by the public waste authorities. Packaging materials must be disposed of according to local regulations.

GB

Putting the Telephone into Operation

2 Putting the Telephone into Operation

Safety information

Attention: It is essential to read the Safety Information in Chapter 1 before starting up.

Checking the contents of the package

The package contains:

• a base station with power adapter plug
• a telephone connection cable
• two handsets - four batteries
• a charging station with power adapter plug
• an operating manual

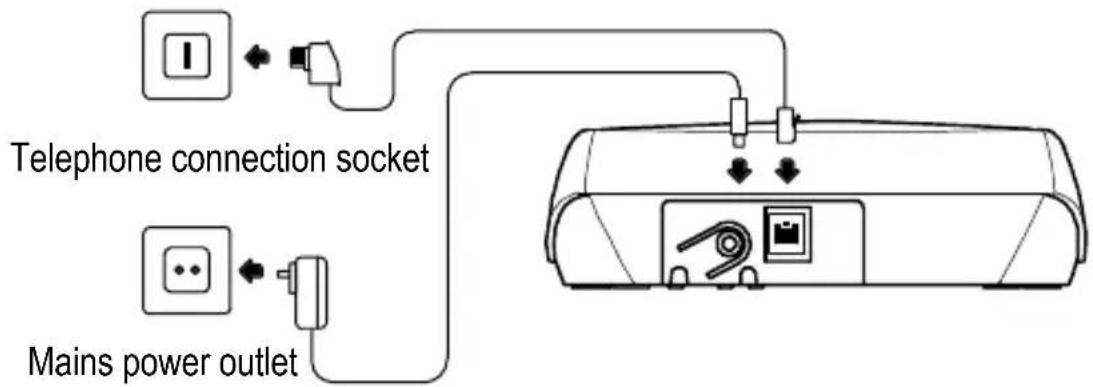

Connecting the base station

Attention: Position the base station at least 1 m away from other electronic devices, otherwise there is a risk of mutual disturbance.

Connect the base station as illustrated in the diagram. For reasons of safety, only use the power adapter plug (6V, 600mA) and telephone connection cable supplied.


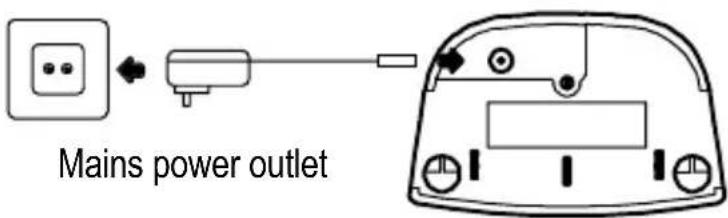

Connecting the charging station

Connect the charging station as illustrated in the diagram. For safety reasons, only use the power adapter plug (6V, 300mA) supplied.

Mains power outlet

Putting the Telephone into Operation

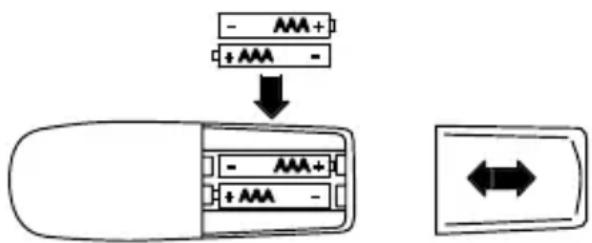

Inserting the batteries

Insert the batteries in the open battery compartment. Only use batteries of the type AAA Ni-MH 1.2 V. Pay attention to correct polarity. Close the battery compartment.

- AAA+ + AAA - ↓ - AAA+ + AAA -

Charging the batteries

Before the handset is used for the first time, insert it in the base station/charging □station for at least 16 hours. When the handset is inserted in the base station/charging station properly, you will hear a confirmation signal. The handset warms up during the charging process. This is normal and does not represent a risk. Do not charge the handset with charging units from other manufacturers.

The current battery charge status is indicated in the display:

Full Half empty Weak Empty

Setting the time and date on the handset

The time and date are set via the menu. Refer to Page 69 for the sequence of option selections.

Private branch exchanges

The information on Page 64 explains how to install your telephone in a private branch exchange.

Setting the weekday and time on the answering machine

The weekday and time are set automatically on the answering machine via the handset.

Operating Elements

3 Operating Elements

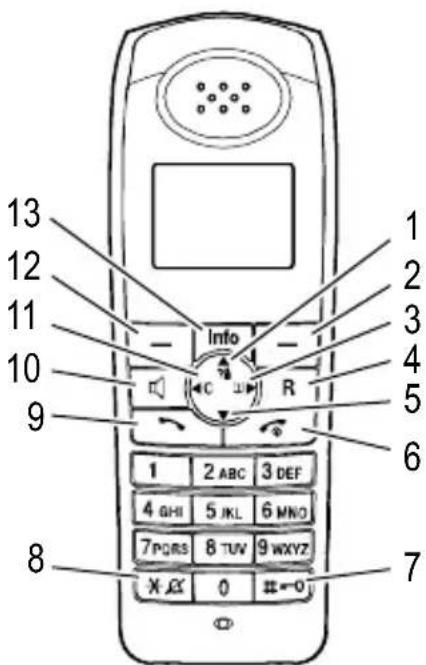

Handset

1 Scroll upwards / Call log
2 Softkey Right button
3 Phone book
4 R-button (Flash)
5 Scroll downwards
6 On-hook / Switch handset on/off
7 Hash button / Key lock
8 Switch ringing tone off / Temporary tone dialling
9 Off-hook (Call)
10 Handsfree mode
11 Move back / Muting function
12 Softkey Left button
13 Menu button "Info"

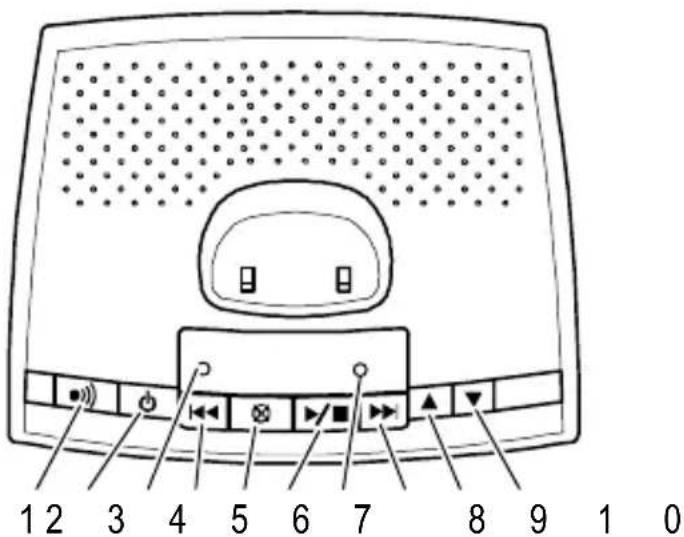

Base station (answering machine)

1 Paging button (locate handset)
2 Answering machine on/off
3 LED Call indicator
4 Skip back
5 Delete
6 Play / Stop
7 LED Charge control lamp
8 Skip forwards
9 Volume +
10 Volume -

Charging station

13 12 11 10 9 Info C R 1 2 ABC 3 DEF 4 GHI 5 IKL 6 MNO 7 PQRS 8 TUV 9 WXYZ X X 0 #-0 8 1 2 ABC 3 DEF 4 GHI 5 IKL 6 MNO 7 PQRS 8 TUV 9 WXYZ X X 0 #-0

1 2 3 4 5 6 7 8 9 1 0

Simple line drawing of a dome-shaped object with two internal slots (no text or symbols)

The buttons in this operating manual are depicted with a uniform contour. Variations in the symbols on the telephone buttons compared to those depicted here are possible.

4 Operating the Telephone

Display and notation of operation sequences

Enter digits or letters

* Press the button depicted briefly

2 sec ✱ Press the button depicted for 2 seconds

( ) Handset rings

(“)Base station rings

Remove the handset from the base station

Place the handset in the base station

Deutsch or Text or icon in the display

Ok

Press the softkey, Page 51

Icons in the display

Display Description

On: The connection to the base station is good.

Warning tone: The connection is being interrupted.

Off: The connection has been interrupted. Move towards the base station.

Handsfree mode is activated. Page 56

On: A call is currently being made.

Flashing: The telephone is ringing. ☐ Page 53

The ringing tone has been switched off. Page 56

Display Description

The microphone is deactivated (muted). ☐ Page 56

The key lock function is activated. Page 56

and KeyGuard

On: Battery charge capacity indicator. Run-through: The batteries are being charged. ☐ Page 47

EURO 880 Name of the telephone. 📋 Page 75

1 Internally assigned call number of the handset. ☐ Page 75

01.12 13:26 Display of date and time. Page 69

New calls have been registered in the call log ➕ Pages 71 and 65. In addition a red LED behind the "Info" button flashes.

and New Calls

A new SMS ^1 message has been recorded. 📋 Pages 66 and 73

and New SMS

Answering machine provided by the telephone network. VMWP - Optional service offered by the telephone network provider. Page 65

The answering machine is activated. 📋 Pages 70 and 73

A new message has been recorded (TAM). 📋 Pages 70 and 73

^1 SMS: Short Message Service
^2 VMWI: Visual Message Waiting Indication

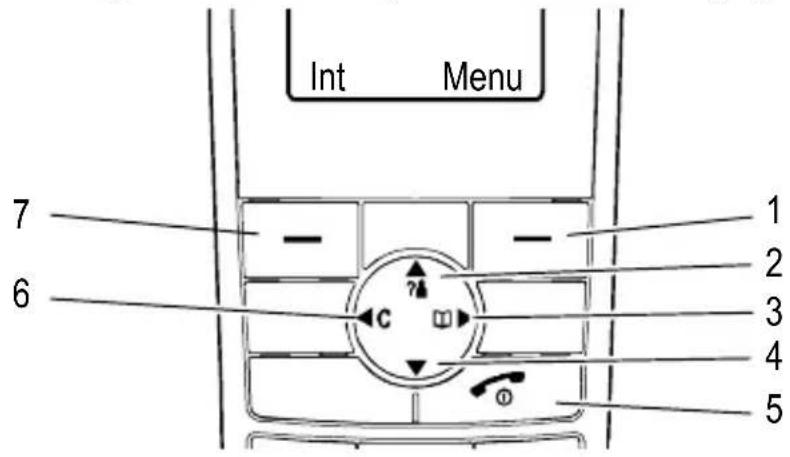

Navigation buttons

All descriptions in this operating manual assume that the handset is in Standby mode. The handset is in Standby mode after pressing the ↗ button.

The softkeys (1) and (7) are assigned different functions in the different menus. The function buttons are always referred to in this manual according to the texts directly above them in the display.

Int Menu 7 6 1 2 3 4 5

Button In Standby mode In Menu

1 - Open the main menu - Opens the menu displayed
2 - Open the call log		- Scroll upwards- Change the settings
3 - Open the phone book - Scroll to the right
4		- Scroll downwards- Change the settings
5 - Switch handset on/off		- Cancel programming and saving processes
6		- Scroll to the left- Move one level back
7 - Internal call - Move one level back

Operating the Telephone

Navigating in the menu

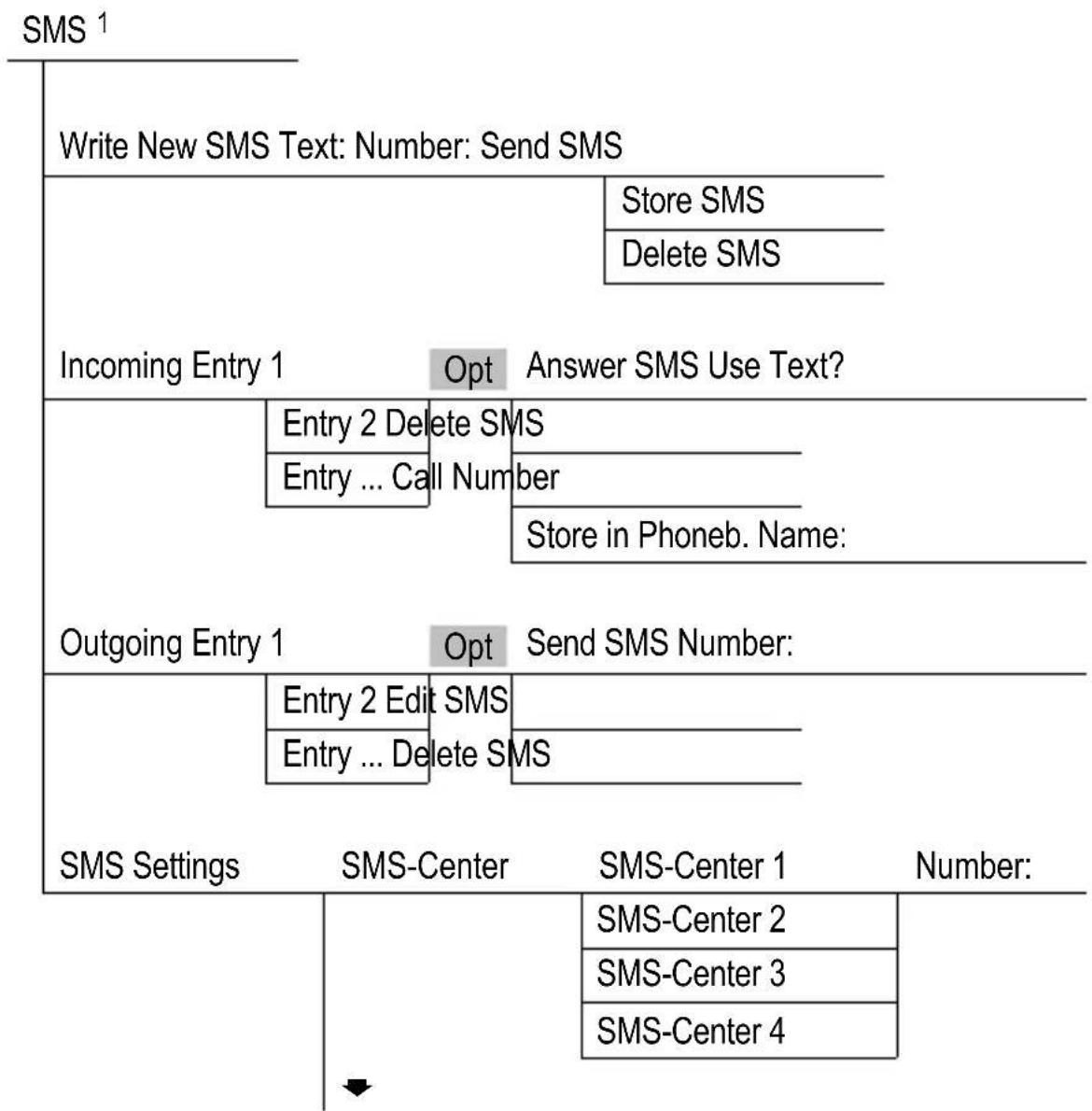

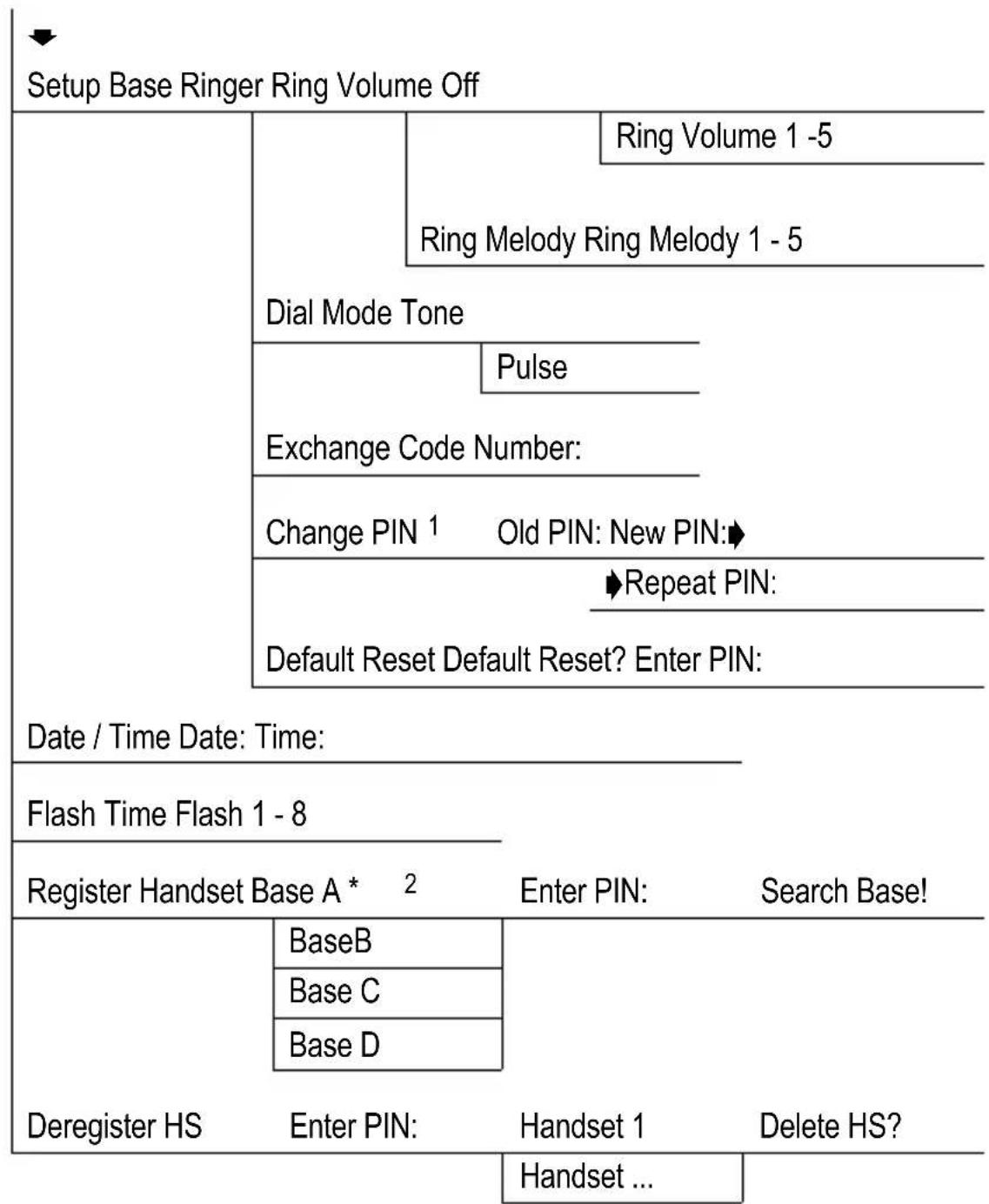

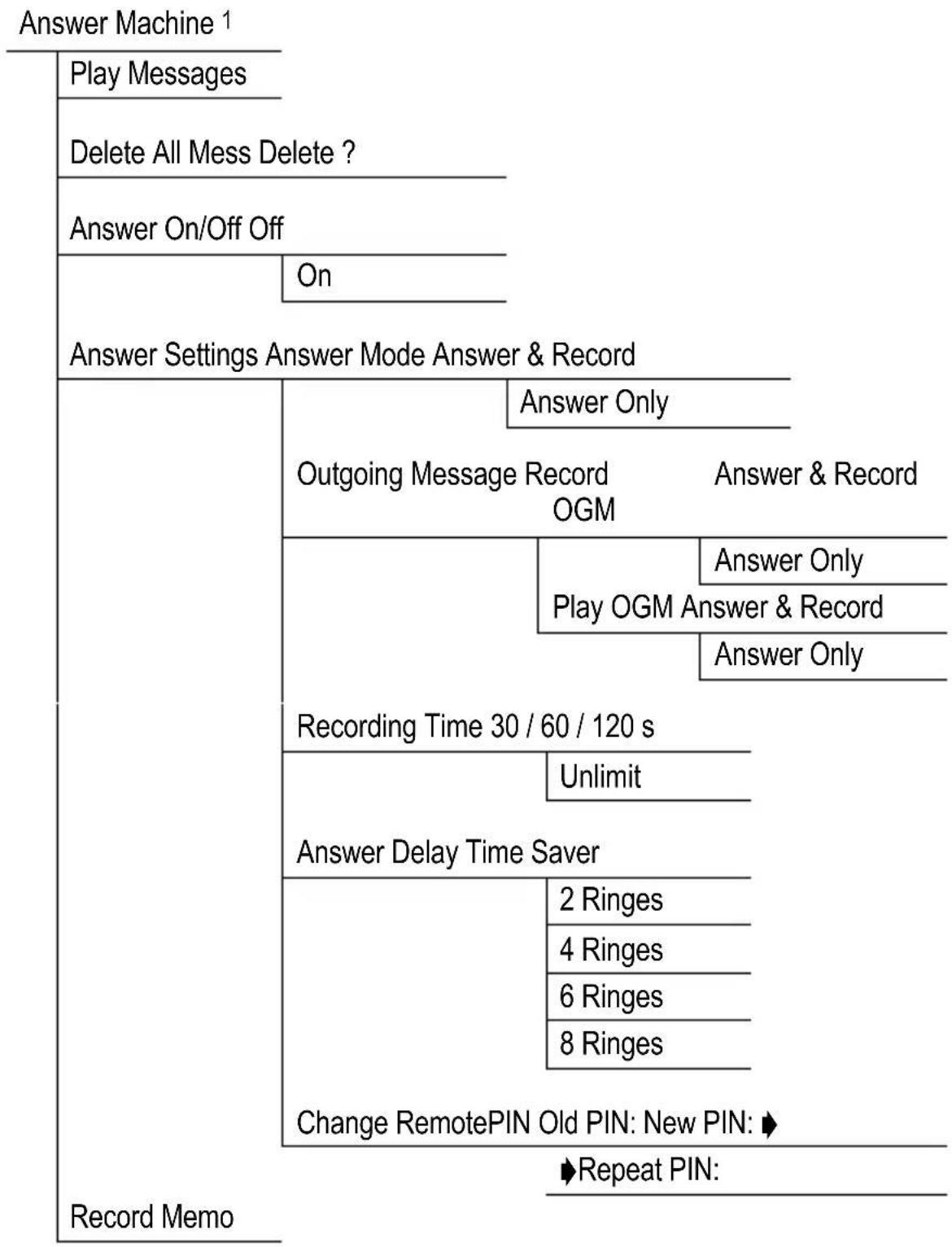

All the functions can be accessed via the various menus. Refer to the menu structure to find how to access the respective functions, Page 66

Menu	Open the main menu
or, or	Move to and select the required submenu
Ok	Open the submenu
or Move to and select the required function
Ok	Open the function
or Move to and select the required setting
Enter digits or letters using the relevant digit keys
Ok or Store	Confirm or store the entry
C or <<	Move one level back
Cancel programming and saving processes and return to Standby mode

Every process is automatically cancelled if there is no input within 30 seconds.

Creating phone book entries - example

The way in which to navigate through the menus and enter data is explained by means of the example Creating phone book entries. Proceed as in this example for all the settings.

■Open the phone book
Opt Open the Options menu
▲ or ▼
New Entry , Ok		Select function and confirm
Number: , Ok		Enter the number (max. 24 digits) and confirm
Name: , Store		Enter the name (max. 15 characters) and store

5 Telephoning

Taking a call

((,, or □ Take the call

Ending a call

or △End the call

Making a call

Enter the phone number (max. 24 digits)

Del

Delete the last digit if incorrect

Dial the phone number

It is also possible to press the Off-hook (Call) button for 2 seconds to obtain the dialling tone. The phone number then entered is dialled immediately. It is not possible to correct wrong digits individually using this dialling procedure.

Redialling

The telephone stores the last 20 numbers dialled in a redialling list.

Open the redialling list

or,

Select an entry and dial the number

Calls log

The telephone stores the numbers of the last 30 calls received in a call log.

?Open the calls log

or,

Select an entry and dial the number

Dialling phone numbers from the phone book

Phone numbers must have been stored in the phone book for this function.

Pages 52 and 71

Open the phone book

or,

Select an entry and dial the number

Telephoning

Chain dialling

The chain dialling function is used in more complex telephone services, e.g. for telephone banking, call-by-call or calling card procedures. Several numbers stored in the phone book can be transmitted. It is also possible to combine numbers for transfer from the phone book with numbers entered manually. Numbers stored in the phone book can be chained and transmitted as required.

Open the phone book

or ▲, Ok Select the phone book entry and transfer the number

Internal calls

Making internal calls

There must be two or more handsets (HS1, HS2, ...) registered on a base station in order to make internal calls free of charge. Further information, Page 75

HS1: Int , ▲ or ▼

e.g. Handset 2, Ok Dial the internal call number of the handset required

HS2: Take the internal call on the other handset

HS1/HS2: End the internal call

Transferring external calls internally

HS1: Int , ▲ or ▼

e.g. Handset 2, Ok Dial the internal call number during the conversation with the external caller

HS2: Take the internal call on the other handset

HS1: Transfer the call

If the handset called does not answer, take the external call back by pressing the ↗ button.

Holding a call / brokering

While a call is in progress, it is possible to dial another handset in order to consult with someone. The external caller is put on hold while you converse with the second, internal person called. You can switch between the callers as often as necessary.

HS1: Int , ▲ or ▼

e.g. Handset 2, Ok Dial the internal call number during the conversation with the external caller

HS2: Take the internal call on the other handset

HS1: Brok Change back and forth between the callers

Conference calls

An external call can be transferred to another internal handset for a conference call.

HS1: Int , ▲ or ▼

e.g. Handset 2, Ok Dial the internal call number during the conversation with the external caller

HS2: Take the internal call on the other handset

HS1: Conf Start the conference

At this point, you can switch between the two callers as necessary and then back to the conference.

HS1/HS2: The conference is terminated by one of the internal handset users ending the call

Adjusting the receiver volume

The volume can be adjusted to one of 5 settings during a call.

or ▲ Select the required volume

Talk time display

The duration of a received call is displayed in hours, minutes and seconds during the call.

Telephoning

Handsfree

This function is used to listen to the caller via the loudspeaker.

Activate handsfree mode

Deactivate handsfree mode

Muting the microphone in the handset

The microphone in the handset can be activated and deactivated during a telephone conversation.

C Deactivate the microphone (muting function activated)

c Activate the microphone

Key lock

3 sec ○→/# Activate the key lock function

Incoming calls can still be taken in the normal way even when the key lock function is activated.

3 sec 0-π/# Deactivate the key lock function

Handset ringing melody

The ringing melody on the handset can be switched off.

3 sec */ Deactivate the ringing melody

The ringing tone setting on the base station remains unaffected.

3 sec */ ☐ Activate the ringing melody

Searching for the handset (Paging)

If you have mislaid your handset, you can locate it again with the aid of a search tone.

●) Activate the search tone

• or

End the search tone

Switching the handset on and off

You can switch the handset off in order to save the batteries.

2 sec ① Switch off HS?

Yes or No

Confirm or cancel the function

2 sec ① Switch the handset on

6 Answering Machine

All the functions provided on the answering machine (TAM) can be operated via the handset. Some functions can also be controlled directly on the base station.

Your answering machine is equipped with a vocal operator guidance. Observe the instructions and information provided.

Proceed as follows to open the answering machine's Answer Settings menu:

Menu

Open the main menu

or

Answer Machine

Ok Open the Answer Machine menu

or

Answer Settings

Ok Open the Answer Settings menu

Setting the weekday and time

The weekday and time of receipt is announced when each message is played back. The weekday and time are set automatically on the answering machine via the handset. ☐ Page 69.

Switching the answering machine on/off

Via the base station:

Switch the answering machine on/off

Via the handset using the Answer Machine menu:

or

Answer On/Off, Ok Select the function and confirm

or Off or

On , Ok Select the setting and confirm

Maximum recording time

The answering machine can store up to 99 messages. The maximum total recording time is 15 minutes. When there is no memory capacity available to record new messages, no further messages are recorded.

Answering Machine

Setting the volume

The volume of the operator guidance can be set to one of 6 levels.

Via the base station:

▲ or ▼ Set the volume

Via the handset:

or Set the volume

Setting the number of rings (delay)

You can select from 2 to 8 ringing tones or the Time Saver setting for pre-remote access free of charge.

The free pre-remote access function enables you to determine whether new messages have been left on your answering machine.

• If new message have been recorded on your answering machine, your call is taken after 2 rings.
• If no messages have been recorded, the call is taken after 6 rings. Replace the receiver before the 6th ring. No charges are accrued.

Via the Answer Settings menu:

or Answer Delay, Ok Select the function and confirm

or

e.g.: Time Saver, Ok Select the setting and confirm

Further information on remote access is provided on Page 62

Call screening

You can listen-in to the caller without actually taking the call.

Scr

Activate the call screening function

End

Deactivate the call screening function

Taking a call being recorded

It is possible to take a call even if the answering machine has already begun to take it. Recording of the message is stopped in this case.

Take the call

Selecting the answering mode

The answering machine is provided with two, pre-recorded outgoing messages, OGM 1 and OGM 2. After the “Answer & Record” OGM has been played, the caller can leave a message. The Answer Only OGM is purely an announcement after which no message can be left. The pre-recorded outgoing messages can be replaced by ones of your own. When the answering machine’s memory is full, the Answer Only message is automatically played.

Via the Answer Settings menu:

Answer Mode ,

Ok

Select the function and confirm

Answer & Record

or Answer Only, Ok

Select the setting and confirm

Recording/Controlling/Deleting outgoing messages

Recording outgoing messages

An outgoing message may be up to 2 minutes long.

Via the Answer Settings menu:

Outgoing Message ,

Ok

Open the Outgoing Message menu

Record OGM, Ok

-

Select the function and confirm

Answer & Record

or Answer Only, Ok

Select the outgoing message and confirm

3, Save

Speak your message and store it

Checking the current outgoing message

Via the Outgoing Message menu:

Play OGM,

Ok

Select the function and confirm

Answer & Record

or Answer Only, Ok

Select the outgoing message and confirm

Answering Machine

Deleting outgoing messages and returning to pre-recorded messages

After deleting your own outgoing message, the pre-recorded message is automatically reactivated.

Via the Outgoing Message menu:

Play OGM,

Ok

Select the function and confirm

Del Delete the message during playback

Recording a memo

A memo is a message left for other machine users and can be played in the same way as an incoming message.

Recording the memo

Via the Answer Machine menu:

Record Memo

Ok Select the function and confirm

Store

Speak your memo and store it

Playing or deleting recorded messages/memos

Play the messages

The recorded messages/memos are played back in the sequence they were received. The weekday and time of recording are announced before the respective message or memo is played back.

Via the base station:

Via the handset using the Answer Machine menu:

Play Messages

Ok Open the Play Messages menu

Further operations, ☐ Key function assignment in the Play Messages menu

Deleting a message

Via the base station:

▶/■Play the message to be deleted

Delete the message

Via the handset using the Answer Machine menu:

or

Play Messages, Ok Open the Play Messages menu

5 Delete the current message

Further operations, Assignment of functions to keys in the Play Messages menu

Key function assignment in the Play Messages menu

Button Functions

2 Play / Stop
4, |<	Play the previous message
5 Delete the current message
6, >|	Play the next message

Deleting all messages/memos

All the old messages/memos are deleted. However, new messages/memos not yet played are retained.

Via the base station:

2 sec ☒ Initiate the deleting process

Confirm the deleting process

Via the handset using the Answer Machine menu:

or

Delete All Mess, Ok Select the function and confirm

Delete ? Yes Confirm the deleting process

or

Delete ? No Cancel the deleting process

Answering Machine

Remote access

You can call your answering machine from another telephone to play any new messages or execute other functions. A condition for this is the use of a telephone which implements tone dialling.

PIN code for remote access

The default setting of the security PIN code is "0000". In order to use the remote access function, the default PIN code "0000" must be changed. Remote access is only possible when the PIN code is not set to "0000".

Changing the PIN code

Via the Answer Settings menu:

Change RemotePIN, Ok Select the function and confirm

Old PIN: 隨，Ok Enter the old PIN

New PIN: , Ok Enter the new PIN

Repeat PIN: 隨，Ok Re-enter the new PIN

Starting remote access

Dial your own phone number

# , Press the button while the OGM is playing and enter the PIN

If the PIN code entry is incorrect, the OGM is repeated. If the PIN is entered incorrectly three times, the line is automatically disconnected.

You can now execute other functions. ☐ Key function assignment for remote access

Remote activation of the answering machine

Dial your own phone number

If you forgot to activate your answering machine, you call is taken after the 10th ring.

# , Press the button while the OGM is playing and enter the PIN

0 Switch the answering machine on/off

You can now execute other functions. ☐ Key function assignment for remote access

Key function assignment for remote access

Remote access is automatically cancelled if there is no input within 8 seconds.

The following table provides an overview of the respective functions assigned to the individual buttons.

Button Functions

1	Play	Options menu
2	Start	playback of all messages
3	Start	playback of new messages
4	Repeat	playback of current message
2 x 4	Play previous message
5	Delete	current message
6	Play	next message
7	Select the answering mode: “Answer & Record” or “Answer Only”
8	Play	currently set outgoing message
9	Record	new outgoing message
0	Switch	answering machine on/off
#	End	recording of the outgoing message

Place the telephone on-hook to end remote access

7 PABX/ Supplementary Services

R button on private branch exchanges

If the telephone is connected to a private branch exchange, all the functions associated with the R-button, such as transferring calls and automatic call back, can be used. Please refer to the information in the operating manual enclosed with your private branch exchange with regard to the Flash time to set in order to use these functions. The dealer where you purchased the exchange can provide information as to whether the telephone will work properly with the exchange. Setting the Flash time, Page 69.

Number for an outside line

In the case of private branch exchanges, it is necessary to dial a specific number in order to obtain the dialling tone for an outside line. This number for an outside line can be stored. When the telephone detects this number preceding a phone number entered, a dialling pause is automatically inserted after the number. Setting the number for an outside line, Page 69

Entering a dialling pause manually

It is possible to insert a dialling pause manually after the number for an outside line to be able to continue dialling directly without waiting for the dialling tone.

2 sec 0 Insert dialling pause

After dialling the number for the outside line, the telephone waits 3 seconds before dialling the actual phone number.

The pause can also be entered with the phone numbers in the phone book.

R-button and supplementary services

Your telephone supports the supplementary services offered by your telephone network provider, such as brokering, call waiting and conference facilities. These supplementary services can be used via the R-button. Please ask your telephone network provider which Flash time you need to set in order to use the supplementary services. Please contact the telephone network provider with regard to enabling the supplementary services. Setting the Flash time, Page 69.

Answering machine in the telephone network

If your telephone network provider has an answering machine available for you in the telephone network, the (VMWI ^1 ) indicates a new message has been recorded for you. The provision of an external answering machine and indication of new messages via an mailbox icon are optional services from the telephone network provider. These functions can only be used when your telephone network provider actually offers the service. Contact your network provider for further information.

Caller number display (CLIP ^2 )

The caller number display function is an optional service offered by telephone network providers. Contact your network provider for further information.

If this function is available, the number of the caller appears in the display when the phone rings. If callers suppress transmission of their phone numbers, the numbers do not appear in the display and are not stored in the call log. A corresponding message indicating this appears in the display.

^1 VMWI: Visual Message Waiting Indication
^2 CLIP: Calling Line Identification Presentation

8 Menu Structure

Main menu

You can access the main menu by pressing the Menu softkey. The way to navigate through the menus is described in chapter 4.

^1 Further information on SMS text messages, ☐ Page 73.

Select Send SMSC SMS Send 1
SMS Alert Off	SMS Send 2
	SMS Send 3
	SMS Send 4
	On

Info 📋 Use the Info button to open this menu directly.

Incoming TAM (-) (only displayed with new messages)
	Calls Log (-) (only displayed with new calls)
	SMS (-) (only displayed with new SMS)
SMS	Page 66
Calls Log Page 71
Info Service	Entry 1	Opt	Edit Entry Number: Name:
	Entry ... Delete	Entry	Delete ?

Display

Wallpaper Wallpaper 1 (Wallpaper in Standby mode)
	Wallpaper 2
	Wallpaper 3
	Wallpaper 4
	Wallpaper Off
Handset Name Name:
Display Contrast Level 1 - 8
Color Scheme Blue / Pink
	Green / Yellow
	Purple / Amber
Backlight On/Off	Off (Backlighting for the keypad)
	On

Sound

Ringer Ring Volume Off
Warning Tones Key tone Off	Ring Melody Ring Melody 1 - 15	Ring Volume1 - 5
		Ring Volume^1
	Battery Low Off	On
	No Coverage Off	On
		On

Settings

Setup Handset Direct Call Enter PIN: 2 ➔
	Baby Call On Number:
	Baby Call Off
	Base Selection Base A
	Auto Talk On/Off Off	Base ...
	Emergency No. ➔	On
	Emergency No. 1 Number:
	Emergency No. ...
	Default Reset	Default Reset?
	Language	Deutsch
		English / Türkçe

^1 The default PIN code is “0000”.

^2 There are 4 memory locations available for registration of base stations. Memory locations identified by a star are already assigned. If a memory location is selected which is already assigned, the old registration in this memory location is overwritten.

1 Further information on the answering machine, Page 57.

Phone Book

Access the phone book by pressing 📄.

Phone Book

Entry 1 Opt New Entry Number: Name: 1

Entry 2 Edit | Entry Number: Name: 1

Entry ... Delete Entry Delete ?

Delete All Delete ?

Calls log

Press the ?Button to access the call log.

Calls Log 2

Entry 1 Opt Delete Entry Delete ?

Entry 2 | Delete All List Delete ?

Entry ... Details

Store in Phoneb. Name: 1

1 Letters are also imprinted on the digit keys. Letters, digits and special characters are entered by pressing the relevant key the respective number of times. Use the Star button to switch between entering upper and lower case and digits.
^2 The (CLIP ^3 ) feature is necessary to display and save phone numbers in various call logs. The caller number display function is an optional service offered by telephone network providers. Contact your network provider for further information. Further information on the CLIP function, Page 65.
^3 CLIP: Calling Line Identification Presentation

9 Special Functions

Auto talk function (taking calls directly)

If this function is activated, an incoming call is taken when the handset is removed from the base station. Setting the auto talk function, Page 68.

Dialling mode

The telephone can be operated in new, digital exchanges (TONE) as well as analogue exchanges (PULSE). Setting the dialling mode, Page 69.

Temporary tone dialling

If you only operate the telephone using the PULSE dialling mode, you can still make use of the advantages of the TONE dialling mode (e.g.: remote access of the answering machine in the conventional telephone network). You can temporarily switch to Tone dialling when a connection has already been made.

2 sec ☒ Press the button when a connection has been established

When the call is ended, the equipment automatically switches back to Pulse dialling.

Baby call function

This function enables you to store a number which is automatically dialled after any button is pressed (except the Opt softkey). Activating the baby call function, Page 68.

Opt , ▲ or ▼

Baby Call Off, Ok Deactivate the baby call function

Emergency call numbers

Up to 4 emergency numbers can be stored in your handset. These numbers can be dialled even if the key lock function is activated. Storing emergency call numbers, Page 68.

10 SMS

Conditions for using SMS

The CLIP ^1 feature must be available for your telephone connection. Contact your telephone network provider to ensure this feature is enabled on your telephone connection. To use the SMS ^2 service, your telephone network provider must enable it.

- A text cannot be sent from every private branch exchange extension.

If you want to send SMS text messages from a private branch exchange extension, it is necessary to store the number for an outside line for your PBX in the handset preceding the Service Center number.

• Sending SMS messages is not available for Call-by-Call connections at present.
• Charges are made for sending SMS texts.
• If the recipient in the conventional telephone network does not use an SMS service or his telephone is not equipped to handle SMS messages, the SMS is automatically converted to a voice message.
  •Costs are charged by your telephone network provider.

SMS Service Center

SMS messages are distributed via a Service Center. If you want to send SMS text messages, you must program a service center number in your handset ☐ Page 66. Please contact the provider of your choice for the necessary service center call numbers and the procedure for enabling the SMS service.

Your telephone has already been prepared to send SMS text messages. Service Center numbers are already programmed in the handset. Activate the required Service Center in the SMS menu. Page 67

Service Center 1 Service Center 2

Deutsche Telekom: 0193 010 Empty

Service Center 3 Service Center 4

Empty Empty

GB

^1 CLIP: Calling Line Identification Presentation
^2 SMS: Short Message Service

Entering text

The digit keys are also labelled with letters for the entry of the respective letters. Letters, digits and special characters are entered by pressing the relevant key the respective number of times.

0, 1 or #	Enter special character
*Switch between entering upper and lower case and digits
Del	Delete the last character entered
2 sec Del	Delete the entire text

SMS alert signal (alarm)

An acoustic signal is issued when a new SMS text message is received. You can activate or deactivate this signal. Activating/Deactivating the alarm signal, Page 67.

11 Expanding the Telephone System

The international GAP ^1 standard regulates the compatibility of handsets and base stations from different manufacturers. As a result, it is possible to integrate AUDIOLINE devices and devices from other manufacturers together in one telephone system. It is possible, however, that certain functions are not available.

Multiple handsets

Up to 5 handsets can be registered on the base station.

Registering handsets

Before starting with the registration process for a handset, switch the respective base station to Registration mode.

10 sec □, (<<)

Activate Registration mode

Complete the registration process for your handset, Page 69. The currently valid PIN code is used for registration purposes, Page 69.

The handset is automatically assigned an internal call number following registration. The internal call number appears in the display.

To register handsets from other manufacturers, please refer to the operating manual supplied with them.

Deregistering handsets

Each handset can deregister itself and other handsets registered on the base station. The message “No Base found!” appears in the display of the handset deregistered.

Deregistering handsets 📋 Page 69.

Multiple base stations

Your handsets can be simultaneously registered on up to 4 different base stations. Each base station requires its own telephone cable socket. Connections can be used with the same call number or with different ones.

Switch the respective base stations to Registration mode. Register the handset Page 69. Select the base station you wish to use for telephoning using the "Base Selection" menu, Page 68.

12 In the Case of Problems

Service hotline

Should problems arise with the telephone, please refer to the following information first. In the case of technical problems, you can contact our hotline service, tel. [phone] (cost via Telekom at time of going to print: 12 ct/min). In the case of claims under the terms of guarantee, contact your sales outlet. There is a 2 year period of guarantee.

Problems and solutions

Problems Solutions
No connection to base station possible	- Check that the handset has been registered on the base station with the correct PIN code. ☐ Page 69
No telephone calls possible	- The telephone is not connected properly or is defective. Only use the telephone connection cable supplied.- Test whether the telephone connection is in order by using another telephone.- The power adaptor plug is not plugged in or there is a complete power failure.- The rechargeable batteries are empty or defective.- The handset is too far from the base station.- Dialling mode is set incorrectly. ☐ Page 69
Connection is disturbed or cut off	- The handset is too far from the base station.- The base station is in an unsuitable location.
The system no longer responds	- Reset all the functions to their default settings. ☐ Page 78- Disconnect the power adapter plug briefly from the power socket.- Remove the batteries briefly from the handset.

In the Case of Problems

Problems Solutions
The batteries are empty in a short time	- Batteries are empty or defective.- Place the handset in the base station properly. Clean the contact surfaces on the handset and base station with a soft, dry cloth.- Place the handset in the base station for 16 hours.
The CLIP ^1 function does not work	- The caller number display function is an optional service offered by telephone network providers. Contact your network provider for further information.- The caller has suppressed the transmission of their phone number.
The answering machine no longer records messages/memos	- Ensure that the answering machine is connected correctly and switched on.- Check whether the answering machine memory is full. Delete messages from the memory, if necessary. Page 60
No remote access functions can be executed	- Check that the correct PIN code has been entered for the remote access. Page 62- The telephone used for remote access must be set to tone dialling.

Technical Properties

13 Technical Properties

Technical data

Feature Value
Standard DECT-GAP	1
Power supply (base station) Input: 220/230 V, 50 HzOutput: 6 V, 600 mA
Power supply (charging station) Input: 220/230 V, 50 HzOutput: 6 V, 300 mA
Range Outdoors: Approx. 300 m	Indoors: Approx. 50 m
Standby Up to 100 h
Max. talk time Up to 10 h
Rechargeable batteries 2 x 1.2 V, size: AAA
Dialling mode Tone dialling mode	Pulse dialling mode
Permissible ambient temperature 10°C to 30°C
Permissible relative humidity 20% to 75%
Flash function 80 ms, 100 ms, 120 ms, 180 ms,250 ms, 300 ms, 600 ms, 800 ms

Default settings

Handset

Restoring the default settings, Page 68

Language: German	Emergency number 1: 112
Ringing melody:	6	Emergency number 2: 110

1 DECT: Digitally Enhanced Cordless Telecommunication = Standard for cordless telephones.

GAP: Generic Access Profile = Standard for the interoperation of handsets and base stations from other manufacturers.

Technical Properties

Ringing tone volume: 3 Emergency number 3: Empty
Receiver volume: 3 Emergency number 4: Empty
Handsfree mode volume: 3 Key tone: On
Phone book: Empty HS name: EURO 880
Call log: Empty SMS: Empty
Redialling list: Empty SMS alarm signal: On
Baby call:	Off/Empty	Auto talk:	On
Number for outside line:	Empty	Display contrast:	4
Key lock:	Off	Menu colour:	Blue
Battery warning signal:	On	Keypad lighting:	On
Range warning signal:	On	Wallpaper:	Sky

Base station

Restoring the default settings, Page 69

Ringing melody:	1 Flash time:	100 ms
Ringing tone volume:	3	Dialling mode:	Tone dialling
VIP phone book:	Empty	PIN:	0000

Answering machine

Ring delay:	4 rings	Answering mode	With recording
Answering machine:	On	Volume:	3

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directive:

1999/5/EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. Conformity with the above mentioned directive is confirmed by the CE symbol on the device.

To view the complete Declaration of Conformity, please refer to the free download available on our web site www.audioline.de.

14 Maintenance / Guarantee

Maintenance

• Clean the housing surfaces with a soft, fluff-free cloth.
• Never use cleaning agents or solvents.

Guarantee

AUDIOLINE equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies resulting from material or production faults which occur during the period of guarantee will be eliminated free of charge. Rights to claims under the terms of guarantee are annulled following intervention by the purchaser or third parties. Damage caused as a result of improper handling or operation, incorrect positioning or storing, improper connection or installation, Acts of God or other external influence are not covered by the terms of guarantee. In the case of complaints, we reserve the right to repair or replace defect parts or provide a replacement device. Replacement parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your device shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the AUDIOLINE device together with the purchase receipt. All rights to claims under the terms of guarantee in accordance with this agreement must be asserted exclusively with regard to your sales outlet. Two years after the purchase and transfer of our products, claims under the terms of guarantee can no longer be asserted.

15 Index

A

Answer only, 59

Answering machine, 57

Answering machine in the telephone network, 65

Auto talk function, 72

Automatic dialling pause, 64

B

Baby call function, 72

Battery charge status, 47

Brokering, 55

C

Call number display, 65

Call screening, 58

Calls log, 53

Chain dialling, 54

Charging the batteries, 47

Conference calls, 55

Connecting the base station, 46

Connecting the charging station, 46

Creating phone book entries, 52

D

Declaration of Conformity, 79

Default settings, 78

Delay, 58

Delete all messages/memos, 61

Deleting memos, 60

Deleting messages, 60

Deleting outgoing messages, 59

Deregistering handsets, 75

Dialling mode, 69, 72

Dialling phone numbers from the phone book, 53

Direct call acceptance, 72

Display, 49

E

Emergency call numbers, 72

Ending a call, 53

Entering a dialling pause manually, 64

Entering text, 74

Expanding the telephone system, 75

Explanations, 49

F

Flash time, 69

G

Guarantee, 80

H

Handsfree, 56

Holding a call, 55

|

Icons in the display, 49

In the case of problems, 76

Inserting batteries, 47

Internal calls, 54

K

Key function assignment for remote access, 63

Key lock, 56

M

Main menu, 66

Maintenance, 80

Making a call, 53

Making internal calls, 54

Maximum recording time, 57

Menu structure, 66

Multiple base stations, 75

Multiple handsets, 75

Muting the microphone, 56

N

Navigation buttons, 51

Number for an outside line, 64

0

Operating elements, 48

Operating the telephone, 49

Index

P

Package contents, 46

Paging, 56

Phone book, 71

PIN code for remote access, 62

Playing memos, 60

Playing messages, 60

Private branch exchanges, 64

Problems and solutions, 76

Pulse dialling, 69

Putting the telephone into operation, 46

R

R button on private branch exchanges, 64

R-button and supplementary services, 64

Receiver volume, 55

Recording a memo, 60

Recording outgoing messages, 59

Redialling, 53

Registering handsets, 75

Remote access, 62

Remote control of the answering machine, 63

Ringing melody, 56

S

Safety information, 44

Searching for the handset, 56

Selecting the answering mode, 59

Service hotline, 76

Setting the answering machine volume, 58

Setting the answering machine weekday and time, 57

Setting the number of rings, 58

SMS alarm, 74

SMS alert, 74

SMS conditions, 73

SMS Service Centre, 73

Special functions, 72

Supplementary services, 64

Switching the answering machine on/off, 57

Switching the handset on and off, 56

T

Taking a call, 53

Taking a call being recorded, 58

Talk time, 55

Technical data, 78

Telephoning, 53

Temporary tone dialling, 72

Time saver, 58

Tone dialling (DTMF), 69

Transferring external calls internally, 54

Troubleshooting, 76

V

VMWI, 65
