USER MANUAL Euro 802 AUDIOLINE

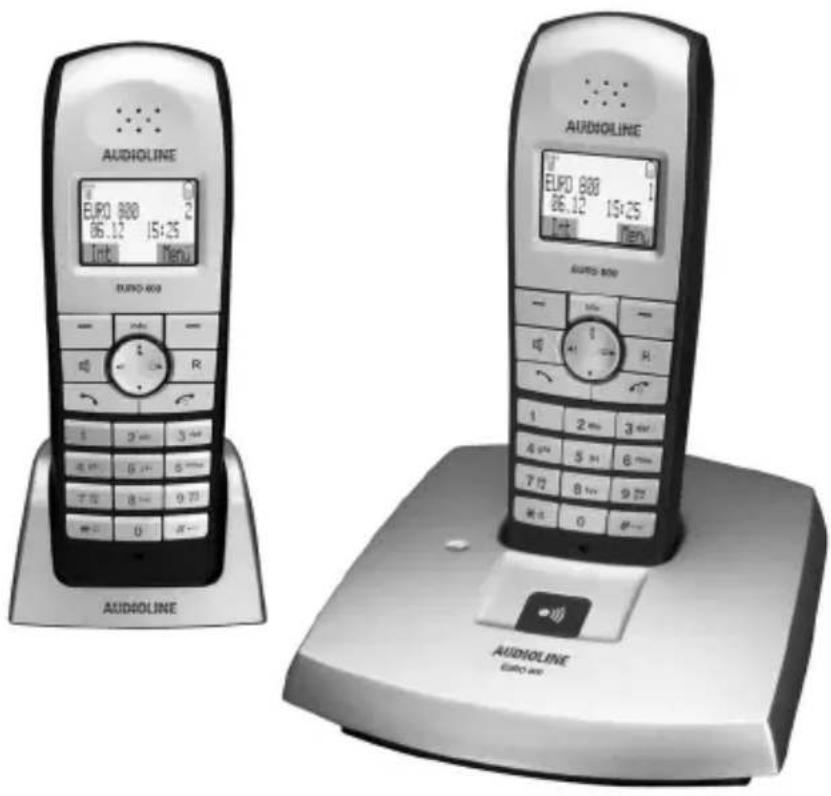

Schnurloses DECT-GAP Telefon Cordless DECT GAP telephone

AUDIOLINE EURO 800 2 66.12 15:25 Tout Menu AUDIOLINE EURO 800 2 66.12 15:25 Tout Menu AUDIOLINE EURO 800 2 66.12 15:25 Tout Menu AUDIOLINE EURO 800

Operating Instructions 35

Line drawing of a device with a labeled component (no text or symbols present)

Ladestation

D

Simple line drawing of a dome-shaped object with two small protrusions at the bottom (no text or symbols)

1 VMWI: Visual Message Waiting Indication
^2 CLIP: Calling Line Identification Presentation

7 Menüstruktur

Hauptmenü

^1 CLIP: Calling Line Identification Presentation
^2 SMS: Short Message Service

Text eingeben

SMS Service Center, 25

Please read this operating instruction manual thoroughly.

Intended use

The telephone is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

Installation location

Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Do not use the handset in potentially explosive areas.

Power supply

Attention: Only use the power adapter plug supplied because other power supplies could damage the telephone. Ensure access to the power adapter plug is not obstructed by furniture or such.

Rechargeable batteries

Attention: Do not throw batteries into a fire or immerse them in water.

Power failure

The telephone cannot be used to make calls in the event of a power failure. Always keep a cord connected telephone which operates without an external power supply available in case of emergency situations.

Medical equipment

Attention: Never use the telephone in the vicinity of medical equipment. Effects on such equipment cannot be fully ruled out.

DECT ^1 DECT telephones can cause an unpleasant humming sound in hearing aids.

^1 DECT: Digital Enhanced Cordless Telecommunication = Standard for cordless telephones.

Disposal

If your device has come to the end of its service life, bring it to a collection point provided by your local public waste authorities (e.g. recycling center). The adjacent symbol indicates that the old device must be disposed of separate from domestic waste. According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container.

Batteries must be disposed of at the point of sale or at appropriate collection points provided by the public waste authorities. Packaging materials must be disposed of according to local regulations.

GB

Putting the Telephone into Operation

2 Putting the Telephone into Operation

Safety information

Attention: It is essential to read the Safety Information in Chapter 1 before starting up.

Checking the contents of the package

The package contains:

• a base station with power adapter plug
• a telephone connection cable
• two handsets - four batteries
• a charging station with power adapter plug
• an operating manual

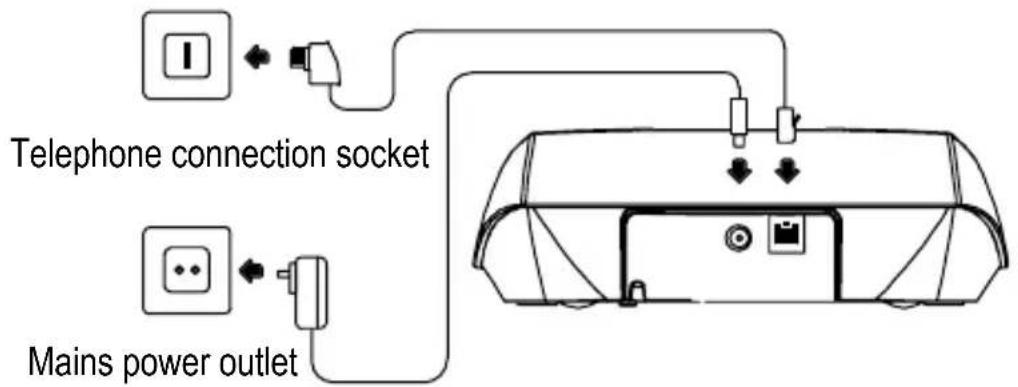

Connecting the base station

Attention: Position the base station at least 1 m away from other electronic devices, otherwise there is a risk of mutual disturbance.

Connect the base station as illustrated in the diagram. For reasons of safety, only use the power adapter plug (6V, 400mA) and telephone connection cable supplied.

Telephone connection socket Mains power outlet

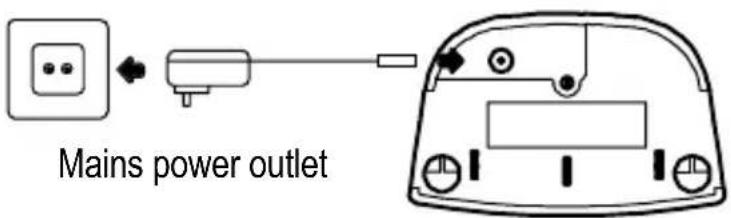

Connecting the charging station

Connect the charging station as illustrated in the diagram. For safety reasons, only use the power adapter plug (6V, 300mA) supplied.

Mains power outlet

Putting the Telephone into Operation

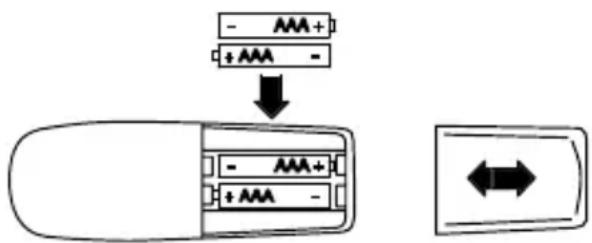

Inserting the batteries

Insert the batteries in the open battery compartment. Only use batteries of the type AAA Ni-MH 1.2 V. Pay attention to correct polarity. Close the battery compartment.

- AAA+ + AAA - ↓ - AAA+ + AAA -

Charging the batteries

Before the handset is used for the first time, insert it in the base station/charging □station for at least 16 hours. When the handset is inserted in the base station/charging station properly, you will hear a confirmation signal. The handset warms up during the charging process. This is normal and does not represent a risk. Do not charge the handset with charging units from other manufacturers.

The current battery charge status is indicated in the display:

Full Half empty Weak Empty

Setting the time and date on the handset

The time and date are set via the menu. Refer to Page 54 for the sequence of option selections.

Private branch exchanges

The information on Page 49 explains how to install your telephone in a private branch exchange.

Operating Elements

3 Operating Elements

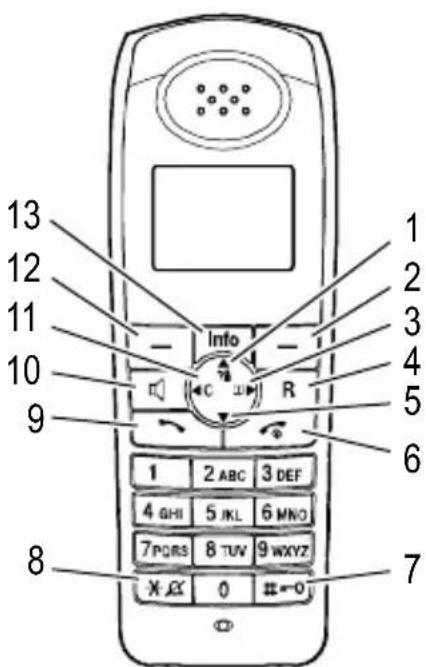

Handset

1 Scroll upwards / Call log
2 Softkey Right button
3 Phone book
4 R-button (Flash)
5 Scroll downwards
6 On-hook / Switch handset on/off
7 Hash button / Key lock
8 Switch ringing tone off / Temporary tone dialling
9 Off-hook (Call)
10 Handsfree mode
11 Move back / Muting function
12 Softkey Left button
13 Menu button "Info"

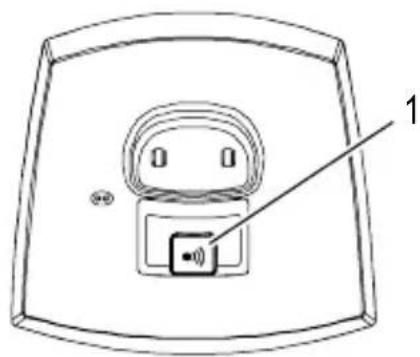

Base station

1 Paging button (locate handset)

Charging station

13 12 11 10 9 Info C R 1 2 ABC 3 DEF 4 GHI 5 IKL 6 MNO 7 PQRS 8 TUV 9 WXYZ X X 0 #-0 8 1 2 ABC 3 DEF 6 7

Diagram of a device with a labeled component (no text or symbols present)

Simple line drawing of a dome-shaped object with two internal slots (no text or symbols)

The buttons in this operating manual are depicted with a uniform contour. Variations in the symbols on the telephone buttons compared to those depicted here are possible.

4 Operating the Telephone

Display and notation of operation sequences

Enter digits or letters

* Press the button depicted briefly

2 sec ✱ Press the button depicted for 2 seconds

( ) Handset rings

(“)Base station rings

Remove the handset from the base station

Place the handset in the base station

Deutsch or Text or icon in the display

Ok

Press the softkey, Page 43

Icons in the display

Display Description

On: The connection to the base station is good.

Warning tone: The connection is being interrupted.

Off: The connection has been interrupted. Move towards the base station.

Handsfree mode is activated. Page 48

On: A call is currently being made.

Flashing: The telephone is ringing. ☐ Page 45

The ringing tone has been switched off. Page 48

Display Description

The microphone is deactivated (muted). ☐ Page 48

The key lock function is activated. Page 48

and KeyGuard

On: Battery charge capacity indicator. Run-through: The batteries are being charged. ☐ Page 39

EURO 800 Name of the telephone. 📋 Page 59

1 Internally assigned call number of the handset. Page 59

01.12 13:26 Display of date and time. Page 54

New calls have been registered in the call log ➕ Pages 55 and 50. In addition a red LED behind the "Info" button flashes.

and New Calls

A new SMS ^1 message has been recorded. 📋 Pages 51 and 57

and New SMS

Answering machine provided by the telephone network. VMWP - Optional service offered by the telephone network provider. Page 50

^1 SMS: Short Message Service
^2 VMWI: Visual Message Waiting Indication

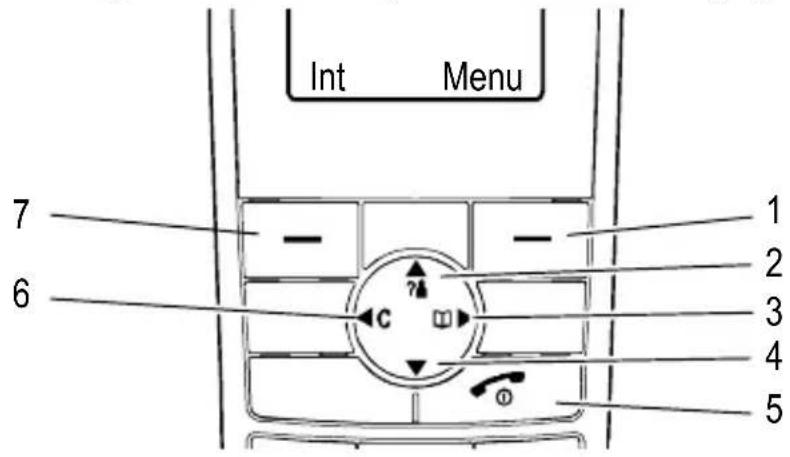

Navigation buttons

All descriptions in this operating manual assume that the handset is in Standby mode. The handset is in Standby mode after pressing the ↗ button.

The softkeys (1) and (7) are assigned different functions in the different menus. The function buttons are always referred to in this manual according to the texts directly above them in the display.

Int Menu 7 6 1 2 3 4 5

Button In Standby mode In Menu

1 - Open the main menu - Opens the menu displayed
2 - Open the call log		- Scroll upwards- Change the settings
3 - Open the phone book - Scroll to the right
4		- Scroll downwards- Change the settings
5 - Switch handset on/off		- Cancel programming and saving processes
6		- Scroll to the left- Move one level back
7 - Internal call - Move one level back

Operating the Telephone

Navigating in the menu

All the functions can be accessed via the various menus. Refer to the menu structure to find how to access the respective functions, Page 51

Menu	Open the main menu
or, or	Move to and select the required submenu
Ok	Open the submenu
or Move to and select the required function
Ok	Open the function
or Move to and select the required setting
Enter digits or letters using the relevant digit keys
Ok or Store	Confirm or store the entry
C or <<	Move one level back
Cancel programming and saving processes and return to Standby mode

Every process is automatically cancelled if there is no input within 30 seconds.

Creating phone book entries - example

The way in which to navigate through the menus and enter data is explained by means of the example Creating phone book entries. Proceed as in this example for all the settings.

■Open the phone book
Opt Open the Options menu
▲ or ▼
New Entry , Ok		Select function and confirm
Number: , Ok		Enter the number (max. 24 digits) and confirm
Name: , Store		Enter the name (max. 15 characters) and store

5 Telephoning

Taking a call

((,, or □ Take the call

Ending a call

or △End the call

Making a call

Enter the phone number (max. 24 digits)

Del

Delete the last digit if incorrect

Dial the phone number

It is also possible to press the Off-hook (Call) button for 2 seconds to obtain the dialling tone. The phone number then entered is dialled immediately. It is not possible to correct wrong digits individually using this dialling procedure.

Redialling

The telephone stores the last 20 numbers dialled in a redialling list.

Open the redialling list

or,

Select an entry and dial the number

Calls log

The telephone stores the numbers of the last 30 calls received in a call log.

?Open the calls log

or,

Select an entry and dial the number

Dialling phone numbers from the phone book

Phone numbers must have been stored in the phone book for this function.

Pages 44 and 55

Open the phone book

or,

Select an entry and dial the number

Telephoning

Chain dialling

The chain dialling function is used in more complex telephone services, e.g. for telephone banking, call-by-call or calling card procedures. Several numbers stored in the phone book can be transmitted. It is also possible to combine numbers for transfer from the phone book with numbers entered manually. Numbers stored in the phone book can be chained and transmitted as required.

Open the phone book

or ▲, Ok Select the phone book entry and transfer the number

Internal calls

Making internal calls

There must be two or more handsets (HS1, HS2, ...) registered on a base station in order to make internal calls free of charge. Further information, Page 59

HS1: Int , ▲ or ▼

e.g. Handset 2, Ok Dial the internal call number of the handset required

HS2: Take the internal call on the other handset

HS1/HS2: End the internal call

Transferring external calls internally

HS1: Int , ▲ or ▼

e.g. Handset 2, Ok Dial the internal call number during the conversation with the external caller

HS2: Take the internal call on the other handset

HS1: Transfer the call

If the handset called does not answer, take the external call back by pressing the ↗ button.

Holding a call / brokering

While a call is in progress, it is possible to dial another handset in order to consult with someone. The external caller is put on hold while you converse with the second, internal person called. You can switch between the callers as often as necessary.

HS1: Int , ▲ or ▼

e.g. Handset 2, Ok Dial the internal call number during the conversation with the external caller

HS2: Take the internal call on the other handset

HS1: Brok Change back and forth between the callers

Conference calls

An external call can be transferred to another internal handset for a conference call.

HS1: Int , ▲ or ▼

e.g. Handset 2, Ok Dial the internal call number during the conversation with the external caller

HS2: Take the internal call on the other handset

HS1: Conf Start the conference

At this point, you can switch between the two callers as necessary and then back to the conference.

HS1/HS2: The conference is terminated by one of the internal handset users ending the call

Adjusting the receiver volume

The volume can be adjusted to one of 5 settings during a call.

or ▲ Select the required volume

Talk time display

The duration of a received call is displayed in hours, minutes and seconds during the call.

Telephoning

Handsfree

This function is used to listen to the caller via the loudspeaker.

Activate handsfree mode

Deactivate handsfree mode

Muting the microphone in the handset

The microphone in the handset can be activated and deactivated during a telephone conversation.

C Deactivate the microphone (muting function activated)

c Activate the microphone

Key lock

3 sec ○→/# Activate the key lock function

Incoming calls can still be taken in the normal way even when the key lock function is activated.

3 sec 0-π/# Deactivate the key lock function

Handset ringing melody

The ringing melody on the handset can be switched off.

3 sec */ Deactivate the ringing melody

The ringing tone setting on the base station remains unaffected.

3 sec */ ☐ Activate the ringing melody

Searching for the handset (Paging)

If you have mislaid your handset, you can locate it again with the aid of a search tone.

●) Activate the search tone

• or

End the search tone

Switching the handset on and off

You can switch the handset off in order to save the batteries.

2 sec ① Switch off HS?

Yes or No

Confirm or cancel the function

2 sec ① Switch the handset on

6 PABX/ Supplementary Services

R button on private branch exchanges

If the telephone is connected to a private branch exchange, all the functions associated with the R-button, such as transferring calls and automatic call back, can be used. Please refer to the information in the operating manual enclosed with your private branch exchange with regard to the Flash time to set in order to use these functions. The dealer where you purchased the exchange can provide information as to whether the telephone will work properly with the exchange. Setting the Flash time, Page 54.

Number for an outside line

In the case of private branch exchanges, it is necessary to dial a specific number in order to obtain the dialling tone for an outside line. This number for an outside line can be stored. When the telephone detects this number preceding a phone number entered, a dialling pause is automatically inserted after the number. Setting the number for an outside line, Page 54

Entering a dialling pause manually

It is possible to insert a dialling pause manually after the number for an outside line to be able to continue dialling directly without waiting for the dialling tone.

2 sec 0 Insert dialling pause

After dialling the number for the outside line, the telephone waits 3 seconds before dialling the actual phone number.

The pause can also be entered with the phone numbers in the phone book.

R-button and supplementary services

Your telephone supports the supplementary services offered by your telephone network provider, such as brokering, call waiting and conference facilities. These supplementary services can be used via the R-button. Please ask your telephone network provider which Flash time you need to set in order to use the supplementary services. Please contact the telephone network provider with regard to enabling the supplementary services. Setting the Flash time, Page 54.

PABX/ Supplementary Services

Answering machine in the telephone network

If your telephone network provider has an answering machine available for you in the telephone network, the (VMWI ^1 ) indicates a new message has been recorded for you. The provision of an external answering machine and indication of new messages via an mailbox icon are optional services from the telephone network provider. These functions can only be used when your telephone network provider actually offers the service. Contact your network provider for further information.

Caller number display (CLIP ^2 )

The caller number display function is an optional service offered by telephone network providers. Contact your network provider for further information.

If this function is available, the number of the caller appears in the display when the phone rings. If callers suppress transmission of their phone numbers, the numbers do not appear in the display and are not stored in the call log. A corresponding message indicating this appears in the display.

1 VMWI: Visual Message Waiting Indication
^2 CLIP: Calling Line Identification Presentation

7 Menu Structure

Main menu

You can access the main menu by pressing the Menu softkey. The way to navigate through the menus is described in chapter 4.

SMS 1

Write New SMS Text: Number: Send SMS

Store SMS

Delete SMS

Incoming Entry 1

Opt

Answer SMS Use Text?

Entry 2 Delete SMS

Entry ... Call Number

oer

Store in Phoneb. Name:

Outgoing Entry 1

Opt

Send SMS Number:

Entry 2 Edit SMS

Entry ... Delete SMS

SMS Settings

SMS-Center

SMS-Center 1

Number:

SMS-Center 2

SMS-Center 3

SMS-Center 4

GB

Info 📋 Use the Info button to open this menu directly.

Incoming TAM (-) (only displayed with new messages)
	Calls Log (-) (only displayed with new calls)
	SMS (-) (only displayed with new SMS)
SMS	Page 51
Calls Log Page 55
Info Service	Entry 1	Opt	Edit Entry Number: Name:
	Entry ... Delete	Entry	Delete ?

Display

Wallpaper Wallpaper 1 (Wallpaper in Standby mode)
	Wallpaper 2
	Wallpaper 3
	Wallpaper 4
	Wallpaper Off
Handset Name Name:
Display Contrast Level 1 - 8
Color Scheme Blue / Pink
	Green / Yellow
	Purple / Amber
Backlight On/Off	Off (Backlighting for the keypad)
	On

Sound

Ringer Ring Volume Off
Warning Tones Key tone Off		Ring Volume1 - 5
		Ring Volume^1
	Ring Melody Ring Melody 1 - 15
	Battery Low Off	On
	No Coverage Off	On
		On

Settings

Setup Handset Direct Call Enter PIN: 2 ➔
	Baby Call On Number:
	Baby Call Off
	Base Selection Base A
	Auto Talk On/Off Off	Base ...
	Emergency No. ➔	On
	Emergency No. 1 Number:
	Emergency No. ...
	Default Reset	Default Reset?
	Language	Deutsch
		English / Türkçe

^1 This setting causes the volume to increase with each ring.
^2 The default PIN code is “0000”.

^1 The default PIN code is “0000”.
^2 There are 4 memory locations available for registration of base stations. Memory locations identified by a star are already assigned. If a memory location is selected which is already assigned, the old registration in this memory location is overwritten.

Phone Book

Access the phone book by pressing 📄.

Phone Book

Entry 1 Opt New Entry Number: Name: 1

Entry 2 Edit | Entry Number: Name: 1

Entry ... Delete Entry Delete ?

Delete All Delete ?

Calls log

Press the ?Button to access the call log.

Calls Log 2

Entry 1 Opt Delete Entry Delete ?

Entry 2 | Delete All List Delete ?

Entry ... Details

Store in Phoneb. Name: 1

1 Letters are also imprinted on the digit keys. Letters, digits and special characters are entered by pressing the relevant key the respective number of times. Use the Star button to switch between entering upper and lower case and digits.
^2 The (CLIP ^3 ) feature is necessary to display and save phone numbers in various call logs. The caller number display function is an optional service offered by telephone network providers. Contact your network provider for further information. Further information on the CLIP function, Page 50.
^3 CLIP: Calling Line Identification Presentation

8 Special Functions

Auto talk function (taking calls directly)

If this function is activated, an incoming call is taken when the handset is removed from the base station. Setting the auto talk function, ☐ Page 53.

Dialling mode

The telephone can be operated in new, digital exchanges (TONE) as well as analogue exchanges (PULSE). Setting the dialling mode, Page 54.

Temporary tone dialling

If you only operate the telephone using the PULSE dialling mode, you can still make use of the advantages of the TONE dialling mode (e.g.: remote access of the answering machine in the conventional telephone network). You can temporarily switch to Tone dialling when a connection has already been made.

2 sec ☐ Press the button when a connection has been established

When the call is ended, the equipment automatically switches back to Pulse dialling.

Baby call function

This function enables you to store a number which is automatically dialled after any button is pressed (except theOpt softkey). Activating the baby call function, Page 53.

Opt , or

Baby Call Off Ok Deactivate the baby call function

Emergency call numbers

Up to 4 emergency numbers can be stored in your handset. These numbers can be dialled even if the key lock function is activated. Storing emergency call numbers, ☐ Page 53.

9 SMS

Conditions for using SMS

The CLIP ^1 feature must be available for your telephone connection. Contact your telephone network provider to ensure this feature is enabled on your telephone connection. To use the SMS ^2 service, your telephone network provider must enable it.

- A text cannot be sent from every private branch exchange extension.

If you want to send SMS text messages from a private branch exchange extension, it is necessary to store the number for an outside line for your PBX in the handset preceding the Service Center number.

• Sending SMS messages is not available for Call-by-Call connections at present.
• Charges are made for sending SMS texts.
• If the recipient in the conventional telephone network does not use an SMS service or his telephone is not equipped to handle SMS messages, the SMS is automatically converted to a voice message.
  •Costs are charged by your telephone network provider.

SMS Service Center

SMS messages are distributed via a Service Center. If you want to send SMS text messages, you must program a service center number in your handset ☐ Page 51. Please contact the provider of your choice for the necessary service center call numbers and the procedure for enabling the SMS service.

Your telephone has already been prepared to send SMS text messages. Service Center numbers are already programmed in the handset. Activate the required Service Center in the SMS menu. Page 52

Service Center 1 Service Center 2

Deutsche Telekom: 0193 010 Empty

Service Center 3 Service Center 4

Empty Empty

GB

^1 CLIP: Calling Line Identification Presentation
^2 SMS: Short Message Service

Entering text

The digit keys are also labelled with letters for the entry of the respective letters. Letters, digits and special characters are entered by pressing the relevant key the respective number of times.

0, 1 or # Enter special character
* Switch between entering upper and lower case and digits
Del	Delete the last character entered
2 sec Del	Delete the entire text

SMS alert signal (alarm)

An acoustic signal is issued when a new SMS text message is received. You can activate or deactivate this signal. Activating/Deactivating the alarm signal, Page 52.

10 Expanding the Telephone System

The international GAP ^1 standard regulates the compatibility of handsets and base stations from different manufacturers. As a result, it is possible to integrate AUDIOLINE devices and devices from other manufacturers together in one telephone system. It is possible, however, that certain functions are not available.

Multiple handsets

Up to 5 handsets can be registered on the base station.

Registering handsets

Before starting with the registration process for a handset, switch the respective base station to Registration mode.

10 sec □, (<<)

Activate Registration mode

Complete the registration process for your handset, Page 54. The currently valid PIN code is used for registration purposes, Page 54.

The handset is automatically assigned an internal call number following registration. The internal call number appears in the display.

To register handsets from other manufacturers, please refer to the operating manual supplied with them.

Deregistering handsets

Each handset can deregister itself and other handsets registered on the base station. The message “No Base found!” appears in the display of the handset deregistered.

Deregistering handsets 📋 Page 54.

Multiple base stations

Your handsets can be simultaneously registered on up to 4 different base stations. Each base station requires its own telephone cable socket. Connections can be used with the same call number or with different ones.

Switch the respective base stations to Registration mode. Register the handset Page 54. Select the base station you wish to use for telephoning using the "Base Selection" menu, Page 53.

11 In the Case of Problems

Service hotline

Should problems arise with the telephone, please refer to the following information first. In the case of technical problems, you can contact our hotline service, tel. [phone] (cost via Telekom at time of going to print: 12 ct/min). In the case of claims under the terms of guarantee, contact your sales outlet. There is a 2 year period of guarantee.

Problems and solutions

Problems Solutions
No connection to base station possible	- Check that the handset has been registered on the base station with the correct PIN code. ☐ Page 54
No telephone calls possible	- The telephone is not connected properly or is defective. Only use the telephone connection cable supplied.- Test whether the telephone connection is in order by using another telephone.- The power adaptor plug is not plugged in or there is a complete power failure.- The rechargeable batteries are empty or defective.- The handset is too far from the base station.- Dialling mode is set incorrectly. ☐ Page 54
Connection is disturbed or cut off	- The handset is too far from the base station.- The base station is in an unsuitable location.
The system no longer responds	- Reset all the functions to their default settings. ☐ Page 62- Disconnect the power adapter plug briefly from the power socket.- Remove the batteries briefly from the handset.

In the Case of Problems

Problems Solutions
The batteries are empty in a short time	- Batteries are empty or defective.- Place the handset in the base station properly. Clean the contact surfaces on the handset and base station with a soft, dry cloth.- Place the handset in the base station for 16 hours.
The CLIP ^1 function does not work	- The caller number display function is an optional service offered by telephone network providers. Contact your network provider for further information.- The caller has suppressed the transmission of their phone number.

Technical Properties

12 Technical Properties

Technical data

Feature Value
Standard DECT-GAP	1
Power supply (base station) Input: 220/230 V, 50 HzOutput: 6 V, 400 mA
Power supply (charging station) Input: 220/230 V, 50 HzOutput: 6 V, 300 mA
Range Outdoors: Approx. 300 m	Indoors: Approx. 50 m
Standby Up to 100 h
Max. talk time Up to 10 h
Rechargeable batteries 2 x 1.2 V, size: AAA
Dialling mode Tone dialling mode	Pulse dialling mode
Permissible ambient temperature 10°C to 30°C
Permissible relative humidity 20% to 75%
Flash function 80 ms, 100 ms, 120 ms, 180 ms,250 ms, 300 ms, 600 ms, 800 ms

Default settings

Handset

Restoring the default settings, Page 53

Language: German	Emergency number 1: 112
Ringing melody:	6	Emergency number 2: 110

1 DECT: Digitally Enhanced Cordless Telecommunication = Standard for cordless telephones.

GAP: Generic Access Profile = Standard for the interoperation of handsets and base stations from other manufacturers.

Technical Properties

Ringing tone volume: 3 Emergency number		3: Empty
Receiver volume: 3 Emergency number		4: Empty
Handsfree mode volume: 3 Key tone: On
Phone book: Empty HS name: EURO 800
Call log: Empty SMS: Empty
Redialling list: Empty SMS alarm signal: On
Baby call:	Off/Empty	Auto talk:	On
Number for outside line:	Empty	Display contrast:	4
Key lock:	Off	Menu colour:	Blue
Battery warning signal:	On	Keypad lighting:	On
Range warning signal:	On	Wallpaper:	Sky

Base station

Restoring the default settings, Page 54

Ringing melody:	1 Flash time:	100 ms
Ringing tone volume:	3	Dialling mode:	Tone dialling
VIP phone book:	Empty	PIN:	0000

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directive:

1999/5/EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. Conformity with the above mentioned directive is confirmed by the CE symbol on the device.

To view the complete Declaration of Conformity, please refer to the free download available on our web site www.audioline.de.

GB

13 Maintenance / Guarantee

Maintenance

• Clean the housing surfaces with a soft, fluff-free cloth.
• Never use cleaning agents or solvents.

Guarantee

AUDIOLINE equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies resulting from material or production faults which occur during the period of guarantee will be eliminated free of charge. Rights to claims under the terms of guarantee are annulled following intervention by the purchaser or third parties. Damage caused as a result of improper handling or operation, incorrect positioning or storing, improper connection or installation, Acts of God or other external influence are not covered by the terms of guarantee. In the case of complaints, we reserve the right to repair or replace defect parts or provide a replacement device. Replacement parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your device shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the AUDIOLINE device together with the purchase receipt. All rights to claims under the terms of guarantee in accordance with this agreement must be asserted exclusively with regard to your sales outlet. Two years after the purchase and transfer of our products, claims under the terms of guarantee can no longer be asserted.

14 Index

A

Answering machine in the telephone network, 50

Auto talk function, 56

Automatic dialling pause, 49

B

Baby call function, 56

Battery charge status, 39

Brokering, 47

C

Call number display, 50

Calls log, 45

Chain dialling, 46

Charging the batteries, 39

Conference calls, 47

Connecting the base station, 38

Connecting the charging station, 38

Creating phone book entries, 44

D

Declaration of Conformity, 63

Default settings, 62

Deregistering handsets, 59

Dialling mode, 54, 56

Dialling phone numbers from the phone book, 45

Direct call acceptance, 56

Display, 41

E

Emergency call numbers, 56

Ending a call, 45

Entering a dialling pause manually, 49

Entering text, 58

Expanding the telephone system, 59

Explanations, 41

F

Flash time, 54

G

Guarantee, 64

H

Handsfree, 48

Holding a call, 47

|

Icons in the display, 41

In the case of problems, 60

Inserting batteries, 39

Internal calls, 46

K

Key lock, 48

M

Main menu, 51

Maintenance, 64

Making a call, 45

Making internal calls, 46

Menu structure, 51

Multiple base stations, 59

Multiple handsets, 59

Muting the microphone, 48

N

Navigation buttons, 43

Number for an outside line, 49

0

Operating elements, 40

Operating the telephone, 41

P

Package contents, 38

Paging, 48

Phone book, 55

Private branch exchanges, 49

Problems and solutions, 60

Pulse dialling, 54

Putting the telephone into operation, 38

R

R button on private branch exchanges, 49

R-button and supplementary services, 49

Receiver volume, 47

Redialling, 45

Registering handsets, 59

Ringing melody, 48

s

Safety information, 36

Searching for the handset, 48

Service hotline, 60

SMS alarm, 58

SMS alert, 58

SMS conditions, 57

SMS Service Centre, 57

Special functions, 56

Supplementary services, 49

Switching the handset on and off, 48

T

Taking a call, 45

Talk time, 47

Technical data, 62

Telephoning, 45

Temporary tone dialling, 56

Tone dialling (DTMF), 54

Transferring external calls internally, 46

Troubleshooting, 60

V

VMWI, 50
