USER MANUAL MiniDECT 5000 AUDIOLINE

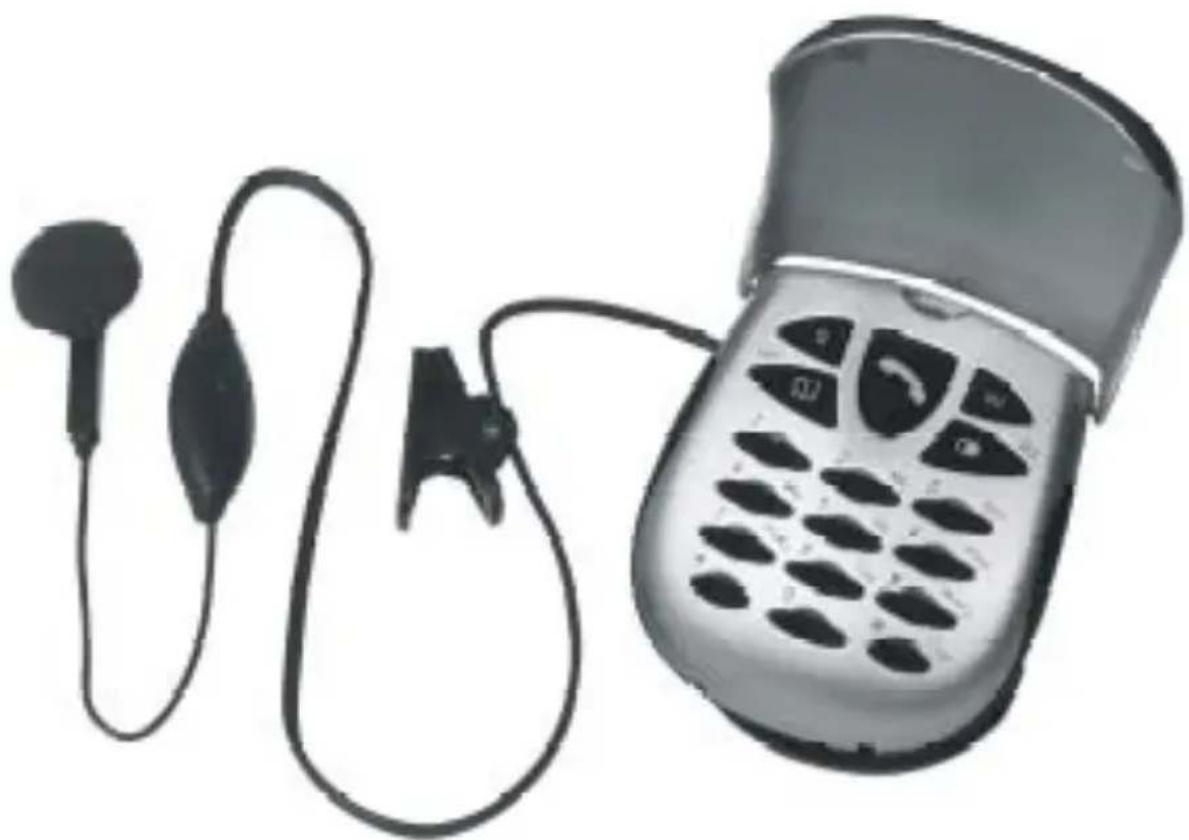

Additional handset for all DECT-GAP phones

Illustration of a mobile phone with earphones and a charging plug (no text or symbols visible)

Operating Instruction in English 23

Simple line drawing of a computer mouse with a handle (no text or symbols)

Simple line drawing of a hand holding an object, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Akkupack Ni/MH 2.4 Volt, 280mA

Name: MANFRED ZINNOW

3.1 Safety information 27
3.2 Check contents of pack 27
3.3 Coloured covers.... 27
3.4 Attaching the belt clip 27
3.5 Connecting the portable handsfree unit (headset).... 27
3.6 Assembling the charging pod.... 28
3.7 Charging the battery.... 28
3.8 Logging on the handset to a GAP-enabled base station.... 29

4 Operation 30

4.1 Receiving external calls 30
4.2 Making external calls.... 30
4.3 Making internal calls 30
4.4 Connecting external calls to another handset 31
4.5 Making conference calls.... 31
4.6 Range information 32
4.7 Muting the microphone in the handset.... 32
4.8 Adjusting the listening volume.... 32
4.9 Redial.... 33
4.10 R signal button 33

5 Storing telephone numbers 34

5.1 Saving numbers as speed dial numbers 34
5.2 Dialling stored speed dial numbers.... 34
5.3 Deleting stored speed dial numbers 34

6 Special functions 35

6.1 Button click on/off 35
6.2 Setting the call signal on the handset (ring tones) 35
6.3 Handset ring tone volume.... 36
6.4 Logging off handsets 36
6.5 Checking internal call numbers.... 36
6.6 Working with more than one base station 37

7 Rectifying faults.... 39

8 Important information 40

8.1 Changing the battery 40
8.2 Technical data.... 41
8.3 Warranty 41
8.4 Declaration of Conformity 42

1 General information

The miniDECT5000 has been designed as an extension for cordless DECT-GAP telephone systems. The normalised GAP standard also enables the handset to be connected to base stations from other manufacturers.

Rechargeable batteries

Do not use any other rechargeable batteries. These could possibly cause a short circuit.

When changing the battery, always use a genuine AUDIOLINE Ni-MH 2.4V, 280mAh battery pack. You can obtain a replacement battery from the AUDIOLINE Spare Parts Sales on Tel. 040 / 3258440.

Do not throw batteries in the fire or immerse them in water. Do not dispose of old or defective batteries with normal domestic waste.

If the handset becomes warm when charging, this is quite normal and no cause for alarm.

Only charge the handset on the base station. The use of other chargers may cause lasting damage.

Use only the AUDIOLINE transformer plug supplied, other transformer plugs can destroy your telephone.

Location of the base station

The base station must be located within reach of a 230Volt supply socket. To avoid interference problems, do not place the base station in the immediate proximity of other electronic equipment such as a microwave oven or hi-fi system. The location of the base station can significantly influence the proper function of the telephone.

Place the base station on a level, non-slip surface. The feet of the base station will not normally mark the surface on which it stands. However, the wide range of surface finishes in use renders it impossible to exclude marking of any surface.

Do not use the handset in areas where there is a danger of explosion.

Avoid excessive exposure to smoke, dust, vibration, chemicals, humidity, high temperature or direct sunlight.

- General Information -

Medical notice

The telephone works with very low transmitted power. Present knowledge and research indicate that, at this low power level, there is no possible danger to health. It has, however, been shown that portable telephones, when switched on, can affect medical equipment. Maintain a distance of at least one metre from medical equipment.

Disposal

If the batteries or the complete system have reached the end of their useful life, please dispose of them in an environmentally friendly manner and as required by law.

Temperature and ambient conditions

The telephone is designed for indoor use and an operating temperature range of -10 ^ to 50 ^ .

The base station must not be installed in humid areas such as bath or wash rooms. Avoid proximity to sources of heat such as radiators and do not expose the unit to direct sunlight.

Cleaning and care

The outer surfaces of the unit can be cleaned with a soft, dry, lint-free cloth. Never use cleaning agents or aggressive solvents. Apart from occasionally cleaning the outer surfaces, no further care is required. The rubber feet of the base station are not resistant to all cleaning agents. The manufacturer cannot, therefore, be held responsible for damage to furniture etc.

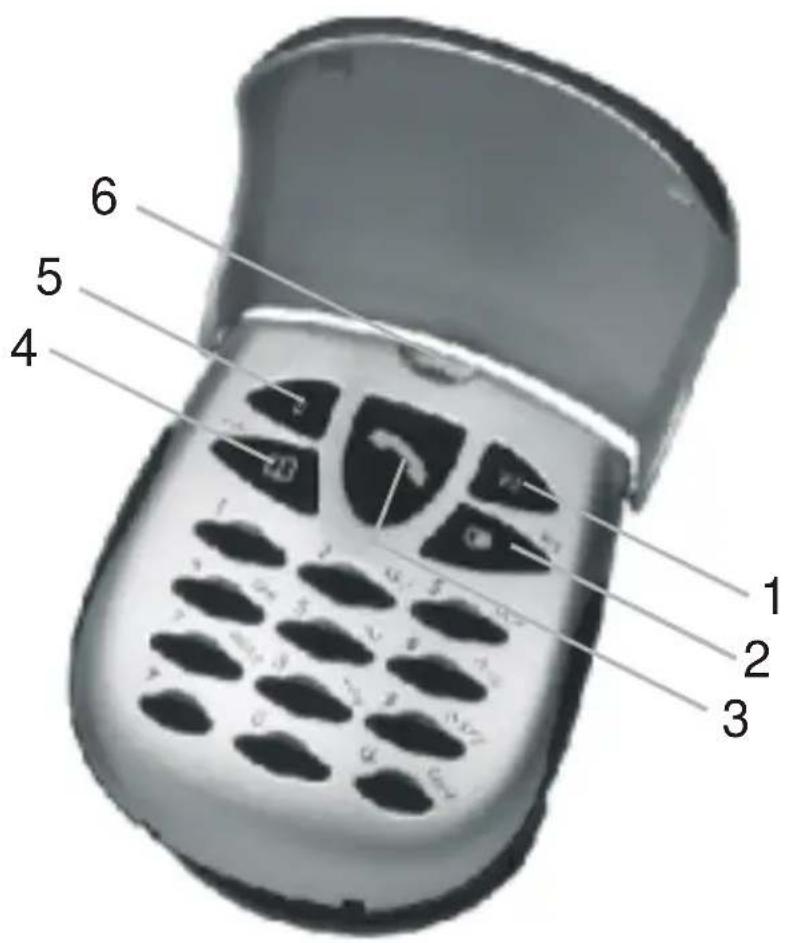

2 Operating elements

1 2 3 4 5 6

1 Button for internal calls
2 Button for redial and for adjusting the listening volume
3 Call button
4 Button for calling up stored telephone numbers, muting the microphone during a call and for programming
5 R signal button for T-NET and private exchanges
6 Operating status indicator (LED)

- Commissioning -

3 Commissioning

3.1 Safety information

NOTE! Before commissioning, it is essential that you read the safety information at the beginning of this manual.

3.2 Check contents of pack

The following items are supplied:

one handset with rechargeable battery pack one	power cable
one portable handsfree unit (headset) belt clip
three coloured cover flaps one Operating Manual

3.3 Coloured covers

Three coloured covers are also included with the unit. You can thus change the appearance of your miniDECT5000 at will.

If you are using several miniDECT5000 handsets on your base station, you can use the different colours to more easily tell the handsets apart.

The cover can easily be removed from the handset by pulling it slightly out of the guide on one side.

3.4 Attaching the belt clip

With the belt clip supplied, you can keep the handset with you at all times. To fit the belt clip, insert it into the handset in a horizontal position and then turn it to a vertical position.

Note: The handset cannot be placed on the charging station when the belt clip is attached.

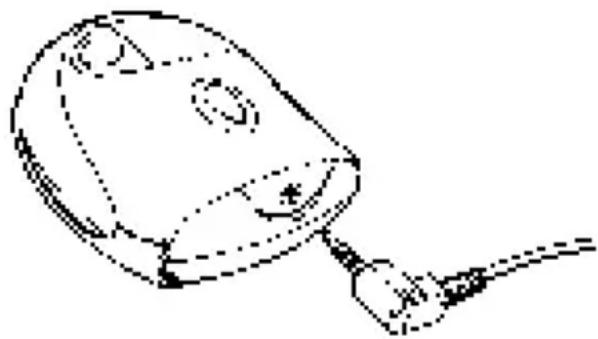

3.5 Connecting the portable handsfree unit (headset)

Connect the portable handsfree unit to the handset.

Simple line drawing of a computer mouse (no text or symbols)

- Commissioning -

3.6 Assembling the charging pod

Note: If you do not want to use the charging pod, you can also connect the small plug of the power supply directly to the handset.

To open the pod, press on the sides of the upper section and pull the two halves apart.

Now place the small plug in the retainer provided for the purpose in the lower section of the pod and feed the cable through the small opening.

Close the pod by replacing the upper section. Press the two halves firmly together until they audibly engage.

Now connect the plug-in power supply to a mains socket.

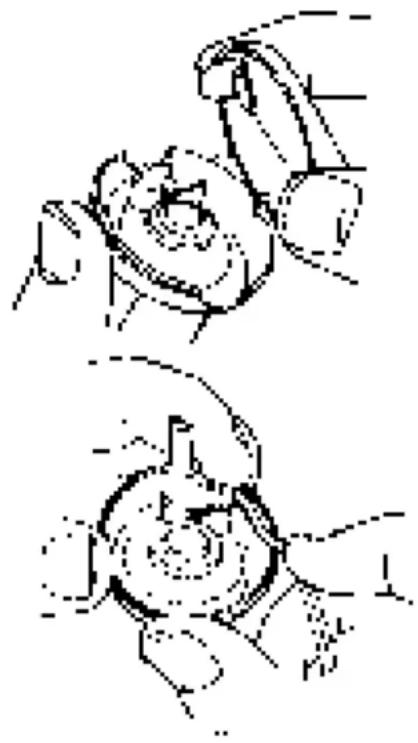

3.7 Charging the battery

Your telephone's rechargeable battery has a standby time of a maximum of 150 hours at room temperature and a maximum talk time of up to 12 hours.

If the battery capacity is too low, you will hear a warning tone every 10 seconds and at the same time the battery condition indicator in the display will flash.

To charge the battery, connect the handset to the charging station.

Two technical line drawings of mechanical components or parts, possibly a valve or pump assembly (no text or symbols present)

Simple line drawing of an insect head (no text or symbols)

Simple line drawing of a hand holding an object, no text or symbols present

- Commissioning -

Note: The handset must be charged for at least 16 hours before being used for the first time. Exactly like your car battery, the rechargeable batteries are unavoidably subject to a certain ageing. However, you can have an influence on this ageing process by “training” the batteries to a certain extent. In regular use of the phone, if you cyclically charge and fully discharge the batteries by using the telephone until the charging indicator flashes, a demand is placed on the batteries and they will repay you by giving maximum performance and a long life. Extended charging and extended discharging on the other hand will both degrade the capacity and shorten the life of the batteries.

3.8 Logging on the handset to a GAP-enabled base station

Before you can use your new handset on your existing telephone system, the handset must first be logged on to the base station.

1. Look in the operating instruction manual for your existing telephone to see how you set up the base station for logging on new handsets. When you have carried out the necessary steps, continue from point 2.
2. Press the button on the handset.
3. Press the * and # buttons on the handset, one after the other.
4. Now enter the base station number using the number pad. If you are using one base station, enter the number 1.
5. Now enter the PIN code for the base station.
6. Now press the button and after a few seconds you will hear a signal tone. The handset is now logged on and can be used for external and internal calls.
7. The handset will now automatically be assigned an internal call number. The main handset already logged on has the internal number 1. All further handsets are numbered in the order that they are logged on (internal call numbers 2 to 5). You can check these internal call numbers at any time. For more information, see Item 6.5.

4 Operation

4.1 Receiving external calls

When a call comes through, the ringing tone will sound on the handset.

The operating status indicator on the handset will flash. Press the small call button on the headset or the call button connection will be made.

on the handset and the

To end the call, press the small call button on the headset or the call button

on the handset.

Note: By assigning a priority at the base station, a different handset connected to the base station can be made to ring first before an external call is transferred to the miniDECT5000. For more information refer to the appropriate instruction manual.

4.2 Making external calls

Press the call button and you will obtain a dialling tone.

Enter the required telephone number using the number pad.

To end the call, press the small call button on the headset or the call button

on the handset.

Note: The call will not be ended by closing the handset cover.

4.3 Making internal calls

To do this, press the INT button and then the number of the required handset.

The call is accepted by pressing

button on the handset called.

- Operation -

4.4 Connecting external calls to another handset

If you have accepted an external call on one handset, you can transfer the external call to another handset.

To do this, press the INT button and then the number of the required handset. After the internal call has been accepted at the other handset you have the following alternatives:

A. Consultation / Brokering:

You can now talk to the internal party and revert to the external caller by pressing the INT button. You can swap between the external and internal calls as often as you wish.

B. Transferring the call:

The external call is transferred to the receiving handset by pressing the call

button 🍼 on the first handset.

You can also transfer the external call directly to a handset without consultation by dialling the internal number using the INT button and then

pressing the call button

4.5 Making conference calls

An external call can be connected to another internal party to make a conference call. In this way, two internal handsets can speak to the external party at the same time.

Set up the required call to the external party. Then press INT button and the internal number of the required handset.

When the second internal party has accepted the call, press the # button and all three parties will be connected together on a conference call.

Note: Conference calls will only work if the base station used supports this function.

- Operation -

4.6 Range information

The range of the handset is about 50 metres in enclosed areas and about 300 metres in the open air.

If you are too far away from the base station, you will hear several signal tones. In this case, go back closer to the base station, as otherwise the call will be interrupted.

4.7 Muting the microphone in the handset

You can switch off the microphone in the handset during a call using the (Sec.) button. It is thus possible to speak without the other party hearing you. The loudspeaker in the handset remains switched on and you can continue to hear the other party.

The secrecy button is only operative when a connection has first been made using the number pad or the speed dial memory.

1. Press the (Sec.) button while a call is being made. The operating status indicator on the handset will flash.
2. To switch the microphone on again, press the (Sec.) button once more. The operating status indicator comes on again and you can continue the call as normal.

4.8 Adjusting the listening volume

If the receiver volume is too quiet or too loud for you, you can change this to suit your requirements.

While a call is being made, repeatedly press the ☐ (Vol.) button until the required volume has been set. There are a total of three volume settings available - "soft - medium - loud".

The facility for changing the listening volume is only operative when a connection has first been made.

- Operation -

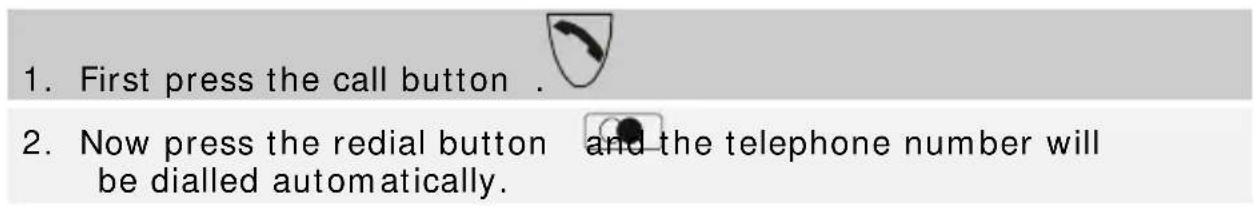

4.9 Redial

Use the redial facility when the party called is engaged or does not reply.

1. First press the call button . 2. Now press the redial button and the telephone number will be dialled automatically.

4.10 R signal button

You can use the "R" signal button on your telephone on private exchanges and when using DEUTSCHE TELEKOM's T-Net functions.

You will find more information in the operating instruction manual for the base station.

- Storing telephone numbers -

5 Storing telephone numbers

10 numbers can be stored as speed dial numbers for rapid dialling. The maximum length of a number is 24 digits.

5.1 Saving numbers as speed dial numbers

1. Press the speed dial button . The operating status indicator will flash.
2. Select a store location from 1-9 or 0 using the number pad.
3. Enter the required telephone number using the number pad.
4. Press the speed dial button to save the number. The operating status indicator will cease to flash.

Repeat steps 1 to 4 to store further telephone numbers. Memory locations already occupied can be changed by overwriting them.

Filling in the index: Underneath the handset you will find an index where you can write in the stored telephone numbers. Open the battery compartment and remove the transparent cover. After you have filled in the index, secure the transparent cover and close the battery compartment.

5.2 Dialling stored speed dial numbers

After you have stored a few telephone numbers, you can call these up very quickly and easily.

1. Press the call button .
2. Next press the speed dial button and the required store location from 1-9 or 0. You will now be automatically connected to the stored number.

5.3 Deleting stored speed dial numbers

Stored speed dial numbers can be deleted one at a time.

1. Press the speed dial button .
2. Press the memory location to be deleted from 1-9 or 0.
3. Press the speed dial button again to delete the number.

- Special functions -

6 Special functions

6.1 Button click on/ off

Each press of a button is acknowledged by the handset with a button click. The button click can be switched on or off.

1. Press the button.
2. Press the star button * and the number 1 on the number pad.
3. Now press the 0 button to switch the button click off or the 1 button to switch the button click on.
4. Exit programming with the button.

6.2 Setting the call signal on the handset (ring tones)

Your handset can respond with five different ringing tones when a call comes through. Internal calls are signalled by their own tone. This tone cannot be changed.

1. Press the button.
2. Press the star button * and the number 3 on the number pad.
3. Now select the ring tone required using the buttons 1, 2, 3, 4 or 5. The corresponding tone selected will be heard each time a button is pressed.
4. Exit programming with the button.

Internal calls are signalled by tone 4 and volume setting 2. This setting cannot be changed.

- Special functions -

6.3 Handset ring tone volume

The volume of the ring tone on the handset can be adjusted in three steps. If you should not want to be disturbed, you can also switch off the ring tone altogether. If the ring tone is switched off, incoming calls are signalled only at the base station and the other handsets.

1. Press the button.
2. Press the star button * and the number 4 on the number pad.
3. Now select the required volume using the buttons 1, 2 or 3. To switch the ring tone off, press 4.
4. Exit programming with the button.

6.4 Logging off handsets

A handset can only be logged off using another handset, which is still logged on. It is therefore not possible to log off using the handset that is to be logged off. If you want to log off the AUDIOLINE miniDECT5000, you must find out how to do this from the instruction manual for the handset you are using for logging off. If you want to use the AUDIOLINE miniDECT5000 to log off another handset, proceed as follows:

1. Press the button.
2. Press the star button * and the number 9 on the number pad.
3. Now enter the internal call number for the handset to be logged off.
4. Enter the PIN code for the base station using the number pad and confirm with You will hear a signal tone in confirmation.

6.5 Checking internal call numbers

If you have forgotten the internal call number of the handset, you can check this as follows:

1. Press the button.
2. Press the star button * and the numbers 7 and 1 on the number pad.
3. Now press the button once more.
4. The number of signal tones that you will now hear tells you the internal call number.

- Special functions -

6.6 Working with more than one base station

A number of base stations can be used to extend the coverage available to the handsets. To make use of this effect, all the base stations must have a telephone connection. Depending on your objectives, you can provide each base station with its own telephone line or connect them all to the same line. A new number will be allocated to the handset each time that it moves within range of another base station.

You should ensure that the coverages of the base stations overlap. Before adding a new base station to your system, check the range of the handsets.

If a handset is registered with the base station and automatic base station selection is switched on (further information in this chapter), the handset will be automatically handed on to the next base station. Calls in progress cannot be passed from one base station to another.

Logging the handset on to an additional base station

1. Look in the operating instruction manual for your existing telephone to see how you set up the base station for logging on new handsets. When you have carried out the necessary steps, continue from point 2.
2. Press the button on the handset.
3. Press the buttons * and # on the handset, one after the other.
4. Now enter the base station number using the number pad. If you want to log your telephone on to a second base station, press the number 2.
5. Now enter the PIN code for the base station.
6. Now press the button and after a few seconds you will hear a signal tone. The handset is now logged on to the selected base station.
7. The handset will now automatically be assigned an internal call number. The main handset already logged on has the internal number 1. All further handsets are numbered in the order that they are logged on (internal call numbers 2 to 5). You can check these internal call numbers at any time. For more information, see Item 6.5.

- Special functions -

Selecting the base station

After you have logged your handset on to more than one base station, you can choose which base station your handset is to be used with. Please proceed as follows:

1. Press the button.
2. Press the star button * and the numbers 8 and 1 on the number pad.
3. Now press the number of the required base station between 1 and 4.
4. Exit programming with the button.

Checking the base station last selected

If you have forgotten the number of the base station to which you have connected your handset, you can check this as follows:

1. Press the button.
2. Press the star button * and the numbers 7 and 2 on the number pad.
3. Now press the button once more.
4. The number of signal tones that you will now hear tells you the number of the base station.

- Rectifying faults -

7 Rectifying faults

If you have problems with your AUDIOLINE miniDECT5000, please check the points below.

If you have any questions, please call our Hotline on 0180 5 00 13 88.

If there should be any claims under the warranty, please contact your dealer. The warranty period is two years. The warranty period for the rechargeable battery is 12 months.

No calls possible The handset has not been properly logged on to the base station.Check whether your telephone connection is in working order by using another telephone or another handset.The rechargeable batteries are flat or defective.You are too far away from the base station.
Call cut off or breaks up You are too far away from the base station.
Insufficient battery capacity shown after a few hours.	Connect the handset to the charging station for 16 hours.If this does not help, replace the battery pack.

- Important information -

8 Important information

8.1 Changing the battery

If you ever have to change the battery, always use a genuine AUDIOLINE Ni-MH 2.4V, 280mAh battery pack. You can obtain a replacement battery from the AUDIOLINE Spare Parts Sales on Tel. 040 / 3258440.

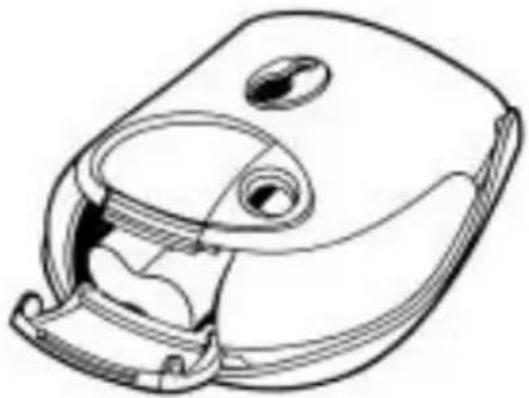

To fit a new battery into a handset, open the battery compartment. Then remove the battery from the handset by pulling on the strap and thus pulling out the battery with it.

Now slide the new battery into the handset, at the same time ensuring the polarity is correct. The + sign must be pointing towards the right-hand edge of the handset.

Technical line drawing of a mechanical component with cutouts and internal features (no text or symbols)

Akkupack Ni/MH 2.4 Volt, 280mA +

Now slip the end of the strap over the battery into the handset and close the battery cover.

Important note: Now connect the handset to the charging station for at least 16 hours. While the battery is being charged, the operating status indicator on the handset will flash every 5 seconds. If the battery is not correctly charged, this can lead to the telephone malfunctioning.

- Important information -

8.2 Technical data

Standard DECT Standard, GAP enabled
Frequencies 1880MHZ to 1900MHZ
Channels 120 duplex channels
Power supply 9Volt/DC, 300 mA
Range Indoors up to 50m
Range Outdoors up to 300m
Standby up to 150 hours
Max. talk time up to 12 hours
Rechargeable battery Battery pack Ni-MH 2.4V, 280mAh
Permissible ambient temperature	+5°C to 45°C

8.3 Warranty

AUDIOLINE equipment is manufactured and tested in accordance with the most up to date production methods. Selected materials and highly developed technology ensure trouble-free operation and long life. If your unit should develop a fault within the guarantee period, however, please contact the shop where you bought your AUDIOLINE equipment exclusively and have your purchase receipt available for inspection. The guarantee period is 24 months from the day of purchase under the following conditions: within the guarantee period, all defects due to material or manufacturing faults will be repaired free of charge. The guarantee is invalidated if the equipment has been tampered with by the purchaser or third parties. Any damage caused by improper handling or operation, by incorrect positioning or storage, by improper connection or installation or by excessive force or other external influences is not covered by the guarantee. In the case of complaint, we reserve the right to repair or replace defective parts or to exchange the equipment. Exchanged parts or exchanged equipment become our property. Claims for compensation are excluded insofar as they do not relate to criminal intent or gross negligence on the part of the manufacturer. All guarantee claims according to these conditions must be raised exclusively with your dealer. Rights under the guarantee can no longer be enforced after the expiry of 24 months from purchase and delivery of our products. In the case of unnecessary or unjustified demands on the customer service department, we will levy our usual service charges for materials, time, postage and packing. Any complaints must be reported as soon as a problem is found. The guarantee is valid within the German Federal Republic.

- Important information -

8.4 Declaration of Conformity

WE AUDIOLINE GmbH

OF PROMENADENSTR. 1

D-41460 NEUSS

GERMANY

DECLARE UNDER OUR SOLE RESPONSIBILITY AS EU DISTRIBUTOR THAT THE PRODUCT

MODEL: miniDECT 5000

DESCRIPTION: CORDLESS DECT TELEPHONE

IS IN CONFORMITY WITH THE BASIC REQUIREMENTS OF DIRECTIVE:

1999/5/EC

AUTHORISED SIGNATORY:

Signature:

Name:

Position in the company: MANAGING DIRECTOR

Date of issue: 19.09.2001

MANFRED

ZINNOW

A copy of this declaration will be retained for 10 years after cessation of production.

SUPPLIER: AUDIOLINE GmbH, PROMENADENSTR. 1,

D-41460

NEUSS

PRODUCT: miniDECT5000

This product has been developed for use with an analogue telephone line (PSTN) within Germany. However, no guarantee can be accepted for trouble-free operation on all telecommunications terminal equipment connections due to the differences between the different telecommunications network operators.

AUDIOLINE GmbH

Promenadenstrasse 1

41460 Neuss

Service Hotline [phone]
