USER MANUAL Oyster 200 AUDIOLINE

Schnurloses DECT Telefon Cordless DECT telephone

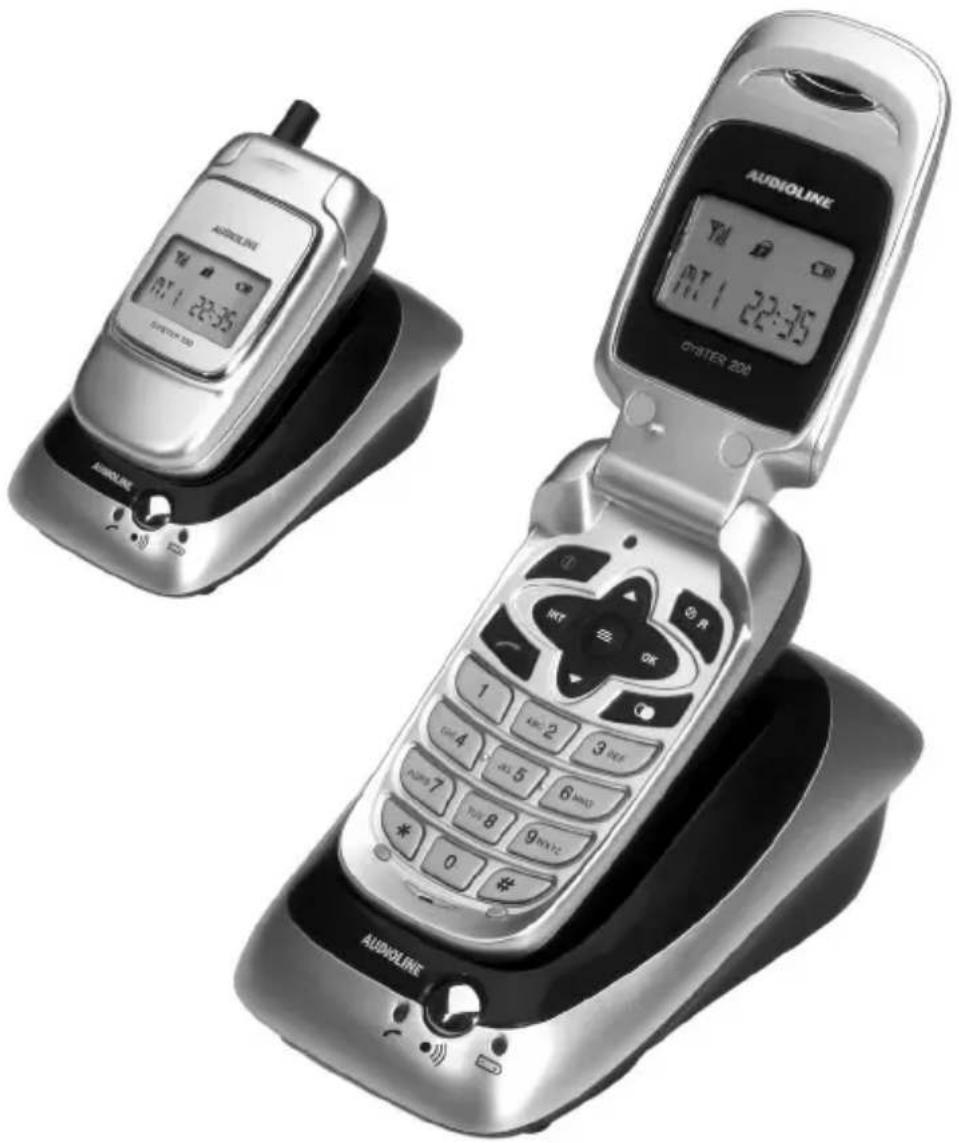

Two Audioline flip mobile phones on stands, one displaying time and display, the other showing a dial with phone numbers (no readable text beyond branding)

Operating Instructions 25

D

Diagram showing a device with a cable being inserted into a device, with directional arrows indicating movement or change.

Akkus aufladen

Line drawing of a mobile phone with a label and antenna (no text or symbols on the device itself)

2 3 4 5 6 7 8 9 10 11 12 INT OK

Basisstation

7 6 5 ① R INT OK 1 2 3 4

Call-by-Call, 14, 19

D

Darstellungen, 8

E

Please read this operating instruction manual thoroughly.

Intended use

The telephone is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

Installation location

Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Do not use the handset in potentially explosive areas.

Power supply

Attention: Only use the power adapter plug supplied because other power supplies could damage the telephone. Ensure access to the power adapter plug is not obstructed by furniture or such.

Rechargeable battery pack

Attention: Do not throw batteries into a fire or immerse them in water.

Power failure

The telephone cannot be used to make calls in the event of a power failure. Always keep a cord connected telephone which operates without an external power supply available in case of emergency situations.

Medical equipment

Attention: Never use the telephone in the vicinity of medical equipment. Effects on such equipment cannot be fully ruled out.

DECT ^1 telephones can cause an unpleasant humming sound in hearing aids.

Disposal

If your device has come to the end of its service life, bring it to a collection point provided by your local public waste authorities (e.g. recycling company). The adjacent symbol indicates that the old device must be disposed of separate from domestic waste. According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container.

Batteries must be disposed of at the point of sale or at appropriate collection points provided by the public waste authorities. Packaging materials must be disposed of according to local regulations.

2 Putting the Telephone into Operation

Safety information

Attention: It is essential to read the Safety Information in Chapter 1 before starting up.

Checking the contents of the package

The package contains:

• a base station with power adapter plug - a telephone connection cable
• a handset - a rechargeable battery pack

- an operating manual

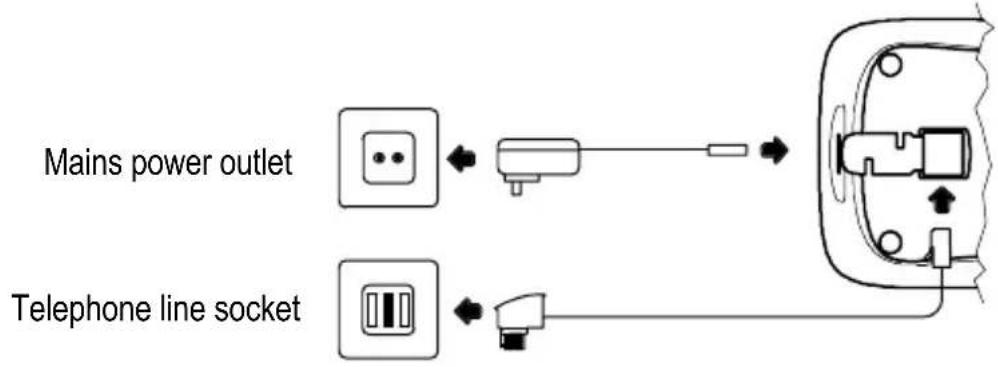

Connecting the base station

Attention: Position the base station at least 1 m away from other electronic devices, otherwise there is a risk of mutual disturbance.

Connect the base station as illustrated in the diagram. For reasons of safety, only use the power adapter plug supplied and telephone connection line enclosed.

Mains power outlet Telephone line socket

Putting the Telephone into Operation

Inserting the batteries

Insert the battery pack in the open battery compartment and plug the connector in the connection socket. Lay the cable in the grey area beside the batteries. When replacing the batteries, only use ones of the same type. Close the battery compartment.

Diagram showing a device with a cable being inserted into a device, followed by a directional arrow indicating movement.

Charging the batteries

Before the handset is used for the first time, insert it in the base station/charging station for at least 14 hours.

You can insert the handset in the base station when the display is flapped open or closed.

When the handset is inserted in the base station properly, you will hear a confirmation signal and the charge control lamp lights up. The handset warms up during the charging process. This is normal and does not represent a risk. Do not charge the handset with charging units from other manufacturers. The current battery charge status is indicated on the display:

Full Half empty Low Empty

Setting the time on the handset

The information on Page 38 explains how to set the time on the handset.

Private branch exchanges

The information on Page 35 explains how to install your telephone in a private branch exchange.

3 Operating Elements

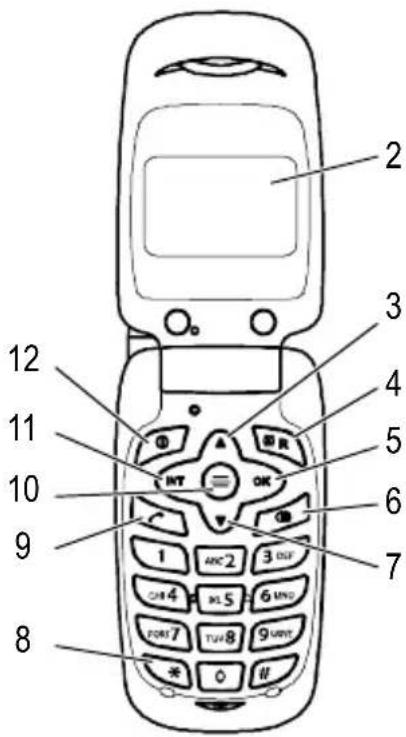

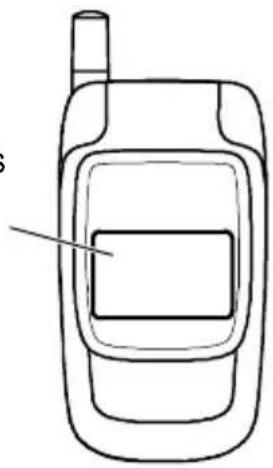

Handset

1 Display 1 (outer)
2 Display 2 (inner)
3 Open phone number memory / Scroll upwards
4 R-button / Delete
5 OK button
6 Redial / Dialling pause
7 Open phone number memory / Scroll downwards
8 Temporary tone dialling 1
9 Call button
10 Menu button
11 Internal call / Muting
12 Key lock / Switch handset on/off

Line drawing of a mobile phone with a label pointing to the front panel (no text or symbols on the device itself)

2 3 4 5 6 7 8 9 10 11 12 INT OK

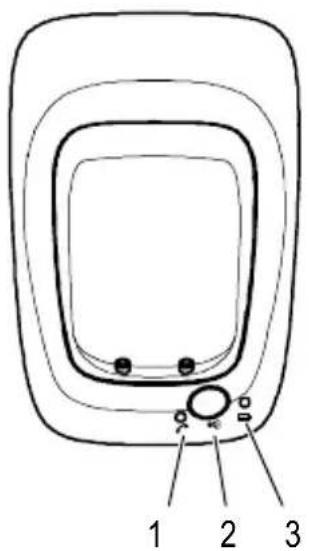

Base station

1 LED, call indicator
2 Paging button (locate handset)
3 LED, battery charge control lamp

1 2 3

GB

The buttons in this operating manual are depicted with a uniform contour. Variations in the symbols on the telephone buttons compared to those depicted here are possible.

4 How to Operate the Telephone

Display and notation of operation sequences

Enter digits

* Press the button depicted briefly

2 sec ✱ Press the button depicted for 2 seconds

Press and hold ✱ Press and hold the button depicted

Release * Release the button depicted

( ) Handset rings

Open handset

Close handset

SPEICHERN NR or Text or icon in the display

Icons in the display

Display Description

On: Indicates the battery charge capacity.

Flashing: The batteries need to be charged.

Run-through segments: The batteries are being charged. Page 28

MT1 Internally assigned call number of the handset. Page 42

13:23 Time display. Page 38

On: A call is currently being made.

Flashing: A call has been received. Page 33

New calls have been registered in the calls log.. 📄 Page 40

The key lock is activated. Page 34

The microphone is switched off (muting). ☐ Page 34

On: The connection to the base station is good.

Flashing: The connection to the base station is poor. Move towards the base station. The more bars in the icon, the better the connection to the base station.

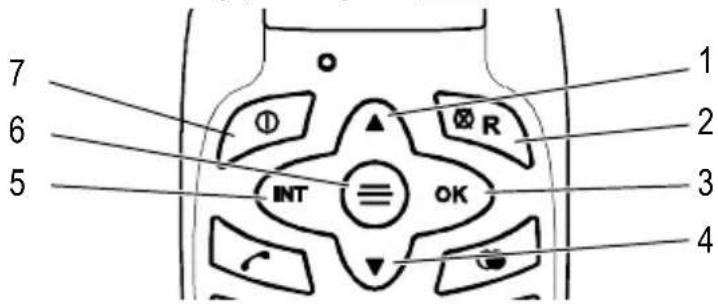

Navigation buttons

All the descriptions in this operating manual assume that the handset is in Standby mode. Standby mode can be activated by pressing the ↗ button.

7 6 5 INT R OK 1 2 3 4

Button In	Standby mode In a menu
1	- Open the phone number memory	- Scroll upwards in the menu- Change settings
2 - Move one level back / Deleting digits
3 - Open the call by call memory		- Open the menu displayed- Confirm the programming and saving processes
4	- Open the phone number memory	- Scroll downwards in the menu- Change settings
5 - Internal call
6 - Open the main menu		- Cancel programming and saving processes and return to Standby mode
7	- Key lock / Switch handset on/off

GB

Navigating in the menu

All the functions can be accessed via the various menus. Refer to the menu structure to find how to access the respective functions. Page 36

≡ Open the main menu ▲ or ▼ Select the submenu required

Enter numbers using the digit keys

Cancel programming and saving processes and return to Standby mode

Every process is automatically cancelled if there is no input within 30 seconds.

Creating entries in the phone number memory - example

The way in which to navigate through the menus and enter data is explained by means of the example Creating entries in the phone number memory. Proceed as in this example for all the settings.

or e.g: 01- Select the memory location

, OK Enter the phone number and confirm

5 Telephoning

Taking a call

(<<), or Take the call

Ending a call

or ▼End the call

Making a call

Enter the phone number (max. 24 digits)

Delete the last digit if incorrect

Dial the phone number

It is also possible to press the Call button first to obtain the dialling tone. The digits in the phone number then entered are dialled immediately. It is not possible to correct wrong digits individually using this dialling procedure.

Redialling

The telephone stores the last 10 phone numbers dialled in a redialling list.

Open the redialling list

or,

Select an entry and dial the number

Calling back missed calls

The telephone stores the numbers of the last 10 calls received in a call log.

≡, ▲ or ▼

ANRUFLISTE, OK Open the call log

or,

Select an entry and dial the number

Dialling phone numbers from the phone book

You must have already stored some phone numbers. 📄 Pages 32 and 39

or Open the phone number memory

or,

Select an entry and dial the number

Dialling the phone numbers directly

Press and hold 0

The phone number selected is dialled directly

The 0 button dials the phone number stored in memory location "0", the 1 button dials the phone number in memory location "1", etc.

Internal Calls

Making internal calls

There must be two or more handsets (HS1, HS2, ...) registered on a base station in order to make internal calls free of charge.

HS1: INT, e.g. 2

Dial the internal call number of the handset required

HS2: Take the call on the other handset

HS1 / HS2: 📞 or INT

End the internal call

Telephoning

Transferring external calls internally

HS1: INT, e.g. 2

Dial the internal call number of the handset required during the external call

HS2: Take the call on the other handset

HS1: 📄 Forward the call

If the handset called does not answer, take the external call back by pressing the INT button.

Adjusting the receiver volume

The volume can be adjusted to one of 3 settings during a call.

or ▲ Select the required volume

Talk time display

The duration of a call is displayed in hours, minutes and seconds during the call.

Muting the microphone in the handset

The microphone in the handset can be activated and deactivated during a telephone conversation.

INT Deactivate the microphone (muting)

INT Activate the microphone

Key lock

① Activate the key lock function

Calls can still be taken in the normal way even when the key lock function is activated.

① Deactivate the key lock function

Searching for the handset (Paging)

If you have mislaid your handset, you can locate it with the aid of a search tone.

Start the search tone

•), ▲ or ↗

End the search tone

Switching the handset on and off

You can switch the handset off to save the batteries.

2 sec ① Switch the handset off

① Switch the handset on

6 Private Branch Exchanges / CLIP

R button on private branch exchanges

If the telephone is connected to a private branch exchange, functions such as transferring calls and automatic call back can be used via the R button. The dealer where you purchased the exchange can provide information as to whether the telephone will work properly with the exchange.

Number for an outside line

In the case of private branch exchanges, it is necessary to dial a number to get an outside line with its corresponding dialling tone. Save the number for an outside line in your handset, Page 37. It is automatically prefixed to a phone number dialled from the call log.

Dialling pause

When using some older private branch exchanges, it takes a little time before the dialling tone becomes audible. Particularly in the case of such private branch exchanges, it is possible to insert a dialling pause after the number for the outside line so that the number can be dialled in a continuous process without having to wait for the dialling tone.

2 sec Insert dialling pause

After dialling the number for the outside line, the telephone then waits 3 seconds before dialling the actual phone number.

The dialling pause can also be entered with the phone numbers in the phone number memory.

Caller number display (CLIP ^1 )

If this function is available with your telephone line, the number of the caller appears in the display when the phone rings. If the caller has suppressed transmission of his phone number, a corresponding message appears in the display. The phone number is not displayed and, as a result, is not stored in the calls list.

The CLIP (caller number display) function is an optional service offered by telephone network providers. Contact your network provider for further information.

7 Menu Structure

Main menu

Access the Main menu by pressing the ≡ button. The way to navigate through the menus is described on Page 32.

SPEICHERN NR 0- Phone number

	1-
	...
ANRUFLISTE 1	0- OK LOESCHEN
	1-
	...
CALL BY CALL 1- Phone number
	2-
	3-

TASTENTOENE TYP 1

	TYP 2
	AUS

RUFTON MELODIE TYP 1

	TYP 2
	...
RUFTON LAUT LEVEL 1
VIP TONRUF2	LEVEL 2
	LEVEL 3
	AUS
	VIP TONRUF1 Number TYP 1
	VIP TONRUF 2 TYP 2

^1 The (CLIP ^3 ) feature is necessary to display and save phone numbers in various call logs. The CLIP (caller number display) function is an optional service offered by telephone network providers. Contact your network provider for further information. Further information on the caller number display (CLIP), Page 35.
2 This can be used to assign a specific ringing melody to two phone numbers. Your handset then rings with this melody when a call is received from this caller. This function requires the caller number display (CLIP ^3 ) function is enabled.
^3 CLIP: Calling Line Identification Presentation

PIN AENDERN1	PIN [----]	NEU [----]	OK [----]
WAHLHILFE2	EIN
	AUS
AMTSKENNZ3	Number for an outside line
ANMELDEN4	PIN [----] BASIS 1 SUCHEN ➤
		BASIS 2
		BASIS 3
		BASIS 4
	“012345” OK	AC - 00004	WARTEN

MT RESET PIN [----] BESTAETIGEN

WWDH LÖSCH PIN [----] BESTAETIGEN

LISTE LÖSCH PIN [----] BESTAETIGEN

BASIS WAEHLE ^5 BESTE BASIS

BASIS 1

BASIS 2

BASIS 3

BASIS 4

BASIS MENU PIN ----] SPERRLISTE 1 1-
		2-
		3-
		4-
		5-
	WAHLVERF 2 TON
		PULSWAHL
	UHRZEIT hh:mm
	ABMELDEN 3 1 2 3 ...

^1 Further information on call barring, ☐ Page 41.
^2 Further information on dialling modes, ☐ Page 41.
3 This can be used to deregister handsets from your base station.
Further information, Page 42.

8 Phone Number Memory

Up to 10 phone numbers can be stored in the phone number memory.

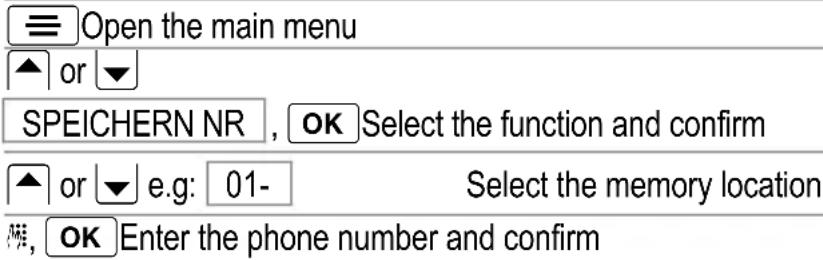

Creating entries in the phone number memory

≡ Open the main menu ▲ or ▼ SPEICHERN NR , OK Select the function and confirm ▲ or ▼ e.g: 01- Select the memory location OK Enter the phone number and confirm

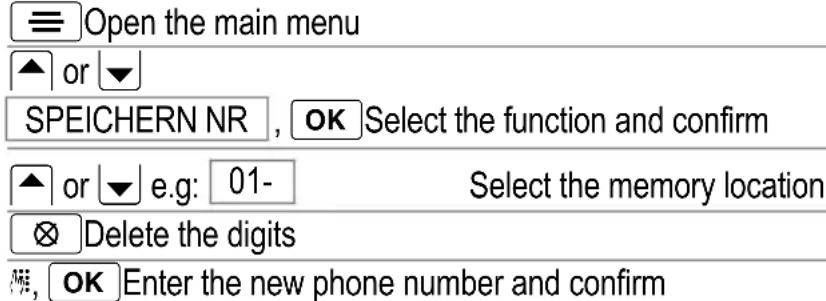

Modifying entries in the phone number memory

≡ Open the main menu ▲ or ▼ SPEICHERN NR , OK Select the function and confirm ▲ or ▼ e.g: 01- Select the memory location ⊗ Delete the digits OK Enter the new phone number and confirm

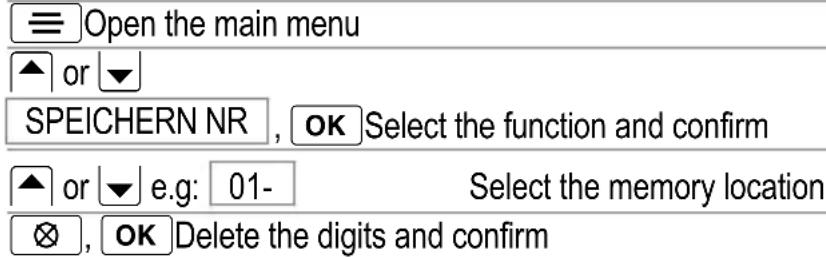

Deleting an entry from the phone number memory

≡ Open the main menu ▲ or ▼ SPEICHERN NR , OK Select the function and confirm ▲ or ▼ e.g: 01- Select the memory location ⊗ , OK Delete the digits and confirm

9 Call Log

A total of 10 phone numbers are stored in a call log. When a new call is registered, the icon appears in the display.

Messages in the Display:

When the phone rings	Stored in the call log
UNBEKANNT -O- The number has only been partially or incorrectly received.The particulars of the number are not available. This could have been an international call.
ANONYM -P- The caller has suppressed the transmission of his telephone number or it was not possible to transmit the number.

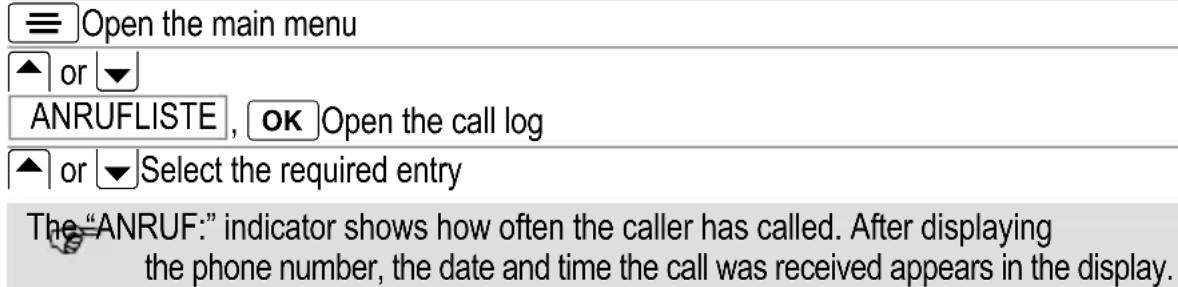

Displaying phone numbers in the call log

≡ Open the main menu ▲ or ▼ ANRUFLISTE, OK Open the call log ▲ or ▼ Select the required entry The "ANRUF:" indicator shows how often the caller has called. After displaying the phone number, the date and time the call was received appears in the display.

Deleting phone numbers from the call log

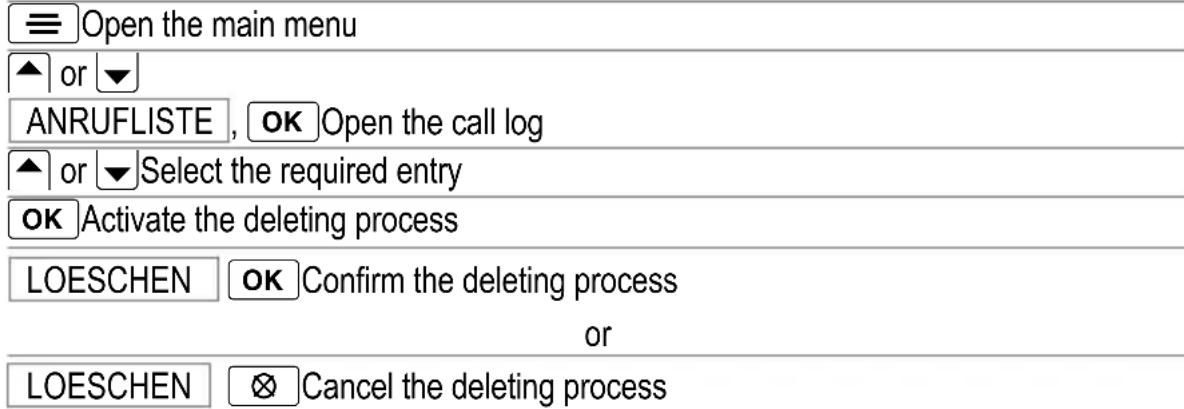

Deleting individual phone numbers

≡ Open the main menu ▲ or ▼ ANRUFLISTE , OK Open the call log ▲ or ▼ Select the required entry OK Activate the deleting process LOESCHEN OK Confirm the deleting process or LOESCHEN ☒ Cancel the deleting process

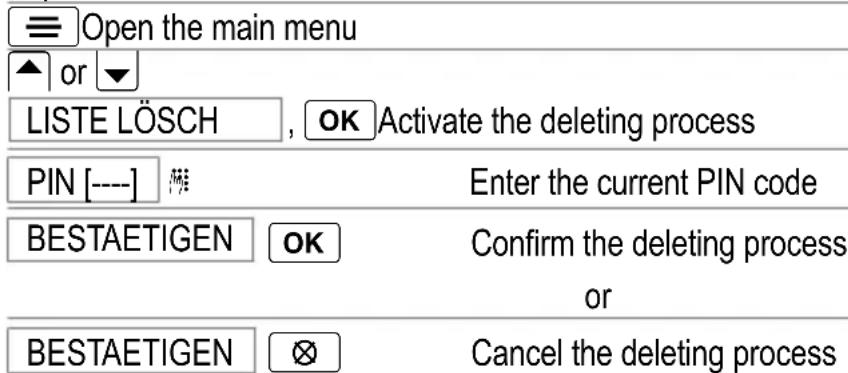

Delete all phone numbers

≡ Open the main menu ▲ or ▼ LISTE LÖSCH , OK Activate the deleting process PIN [----] Enter the current PIN code BESTAETIGEN OK Confirm the deleting process or BESTAETIGEN ☒ Cancel the deleting process

10 Special Functions

Dialling mode

The telephone can be operated in new, digital exchanges (TONE) as well as analogue exchanges (PULSE).

Temporary tone dialling

If you only operate the telephone using the PULSE dialling mode, you can still make use of the advantages of TONE dialling mode (e.g.: remote access of the answering machine in the conventional telephone network). You can temporarily switch to Tone dialling when a connection has already been made.

* Press the button during the call

When the call is ended, the equipment automatically switches back to Pulse dialling.

Call by call

This function enables a stored call by call number to be dialled prior to the actual phone number. Up to 3 different call by call numbers, each with 10 digits, can be stored; Page 36. The call by call number selected is displayed preceding the phone number. If you press the Call button first to obtain a dialling tone and then enter the phone number, no stored call by call number can be predialled.

Predialling a call by call number

OK Open the call by call memory

Select the call by call number and confirm

Enter the phone number and dial it

Call barring

This function can be used to bar sequences of up to 4 digits. The numbers defined for call barring apply to all the registered handsets.

Never enter an emergency call number or the first digit of an emergency call number. These emergency call numbers cannot be dialled if you do.

E. g.: Barring digit 1 would bar all emergency call numbers beginning with "1".

Call barring - examples

0 All long-distance calls are barred.

00 All international calls are barred.

017 All mobile phone numbers beginning with "017" are barred.

019 All phone numbers beginning with "019" are barred.

WAHLHILFE

If you activate WAHLHILFE in the handset, phone numbers are automatically completed. The handset compares the initial digits of phone numbers entered with the phone numbers in the phone number memory and completes them if they match. The phone number displayed is dialled after pressing the Call button.

Expanding the Telephone System

11 Expanding the Telephone System

You can expand your telephone system by adding more Oyster 200 handsets and Oyster 200 base stations.

Multiple handsets

Up to 6 handsets can be registered on the base station.

Registering handsets

Before starting with the registration process for a handset, switch the base station to Registration mode.

6 sec □ Initiate Registration mode

Complete the registration process for your handset, ☐ Page 37. The currently valid PIN code is used for registration purposes, ☐ Page 37.

The handset is automatically assigned an internal call number following registration. The internal call number appears in the display.

Deregistering handsets

Each handset can deregister itself or other handsets registered on the base station. After deregistration, the message ABGEMELDET appears in the display of the deregistered handset.

Multiple base stations

Your handsets can be simultaneously registered on up to 5 different base stations. Each base station requires its own telephone cable socket. Connections can be used with the same call number or with different ones.

Calls in progress, however, cannot be transferred from one base station to another.

Increasing the range

Position the base stations so that the ranges of the individual base stations overlap. Test the range of your handsets because obstructions in buildings restrict the range. Register the handset on all the base stations. Activate the BESTE BASIS selection of base station, Page 37. The handset then automatically searches for the nearest base station with the best connection.

Mobility through registration at various locations

Register the handset on base stations at various locations. Activate the BESTE BASIS selection of base station, Page 37. Regardless of your current location, the handset automatically searches for a base station within range.

12 In the Case of Problems

Service hotline

Should problems arise with the telephone, please refer to the following information first. In the case of technical problems, you can contact our hotline service, tel. [phone] (cost via Telekom at time of going to print: 12 ct/min). In the case of claims under the terms of guarantee, contact your sales outlet. There is a 2 year period of guarantee.

Problems and solutions

Problems Solutions
No connection to base station possible	- Check that the handset has been registered on the base station with the correct PIN code. Page 37
No telephone calls possible	- The telephone line is not connected properly or is defective. Only use the telephone connection cable supplied.- Test whether the telephone connection is in order by using another telephone.- The power adaptor plug is not plugged in or there is a complete power failure.- The rechargeable batteries are empty or defective.- The handset is too far from the base station.- Dialling mode is set incorrectly. Page 38
Connection is disturbed or cut off	- The handset is too far from the base station.- The base station is in an unsuitable location.
The system no longer responds	- Reset all the functions to their default settings. Page 37- Disconnect the power adapter plug briefly from the power socket.
The batteries are empty in a short time	- The batteries are empty or defective.- Place the handset in the base station properly. Clean the contact surfaces on the handset and base station with a soft, dry cloth.- Place the handset in the base station for 14 hours.
The CLIP ^1 function does not work	- The CLIP (caller number display) function is an optional service offered by telephone network providers. Contact your network provider for further information.- The caller has suppressed the transmission of their phone number.

13 Technical Properties

Technical data

Feature Value
Standard DECT	1
Power supply Input: 230 V, 50 Hz	Output: 9 V, 300 mA
Range Outdoors: Approx. 300 m	Indoors: Approx. 50 m
Standby Up to 150 h
Max. talk time Up to 13 h
Battery pack 3.6 V 400 mAh NI-MH
Dialling mode Tone dialling mode	Pulse dialling mode
Permissible ambient temperature 10°C to 30°C
Permissible relative humidity 20% to 75%
Flash function 100 ms

Default settings

Restore the default settings (MT RESET), ☐ Page 37

Handset

Language: German Receiver	volume: 2 Base selection: Base 1
Key lock: Off	Ringing melody: 1 HS name: MT1
Key beep: Off Ringing volume: 2 Smart Dial: Off

Base station

Recall (Flash) time: 100 ms	Dialling mode: Tone	PIN code: 0000
Access code: Empty

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directive:

1999/5/EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. Conformity with the above mentioned directive is confirmed by the CE symbol on the device.

To view the complete Declaration of Conformity, please refer to the free download available on our web site www.audioline.de.

GB

14 Maintenance / Guarantee

Maintenance

• Clean the housing surfaces with a soft, fluff-free cloth.
• Never use cleaning agents or solvents.

Guarantee

AUDIOLINE equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies resulting from material or production faults which occur during the period of guarantee will be eliminated free of charge. Rights to claims under the terms of guarantee are annulled following intervention by the purchaser or third parties. Damage caused as a result of improper handling or operation, incorrect positioning or storing, improper connection or installation, Acts of God or other external influence are not covered by the terms of guarantee. In the case of complaints, we reserve the right to repair or replace defect parts or provide a replacement device. Replacement parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your equipment shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the AUDIOLINE equipment together with the purchase receipt. All rights to claims under the terms of guarantee in accordance with this agreement must be asserted exclusively with regard to your sales outlet. Two years after the purchase and transfer of our products, claims under the terms of guarantee can no longer be asserted.

15 Index

A

Automatic dialling, 37

Automatic selection, 42

B

Bar list, 38

Barring list, 41

Barring phone numbers, 41

Battery charge status, 28

C

Call barring, 38

Call log, 40

Call-by-Call, 36

Call-by-call, 41

Caller number display (CLIP), 35

Calling back missed calls, 33

Charging the batteries, 28

Connecting the base station, 27

Creating entries in the phone number memory, 32, 39

D

Declaration of Conformity, 44

Default settings, 44

Deleting an entry from the phone number memory, 39

Deleting phone numbers from the call log, 40

Deregistering handsets, 42

Dialling mode, 41

Dialling pause, 35

Dialling phone numbers from the phone book, 33

Displaying phone numbers in the call log, 40

E

Ending a call, 33

Expanding the telephone system, 42

Explanations, 30

G

Guarantee, 45

H

How to operate the telephone, 30

|

Icons in the display, 30

In the case of problems, 43

Increasing the range, 42

Inserting the batteries, 28

Internal calls, 33

K

Key lock, 34

M

Main menu, 36

Maintenance, 45

Making a call, 33

Making internal calls, 33

Menu Structure, 36

Messages, 40

Mobility, 42

Modifying entries in the phone number memory, 39

Multiple base stations, 42

Multiple handsets, 42

Muting the microphone, 34

N

Navigation buttons, 31

Notation, 30

Number for an outside line, 35

0

Operating elements, 29

P

Package contents, 27

Paging, 34

Phone number memory, 39

Private branch exchanges, 35

Problems and solutions, 43

Putting the telephone into operation, 27

R

R button on private branch exchanges, 35

Receiver volume, 34

Redialling, 33

Registering handsets, 42

S

Safety information, 26

Searching for the handset, 34

Service hotline, 43

Setting the time, 28, 38

Special functions, 41

Switching the handset on and off, 34

T

Taking a call, 33

Talk time, 34

Technical data, 44

Telephoning, 33

Temporary tone dialling, 41

Transferring external calls internally, 34

Troubleshooting, 43

W

Wahlhilfe, 37, 41

GB
